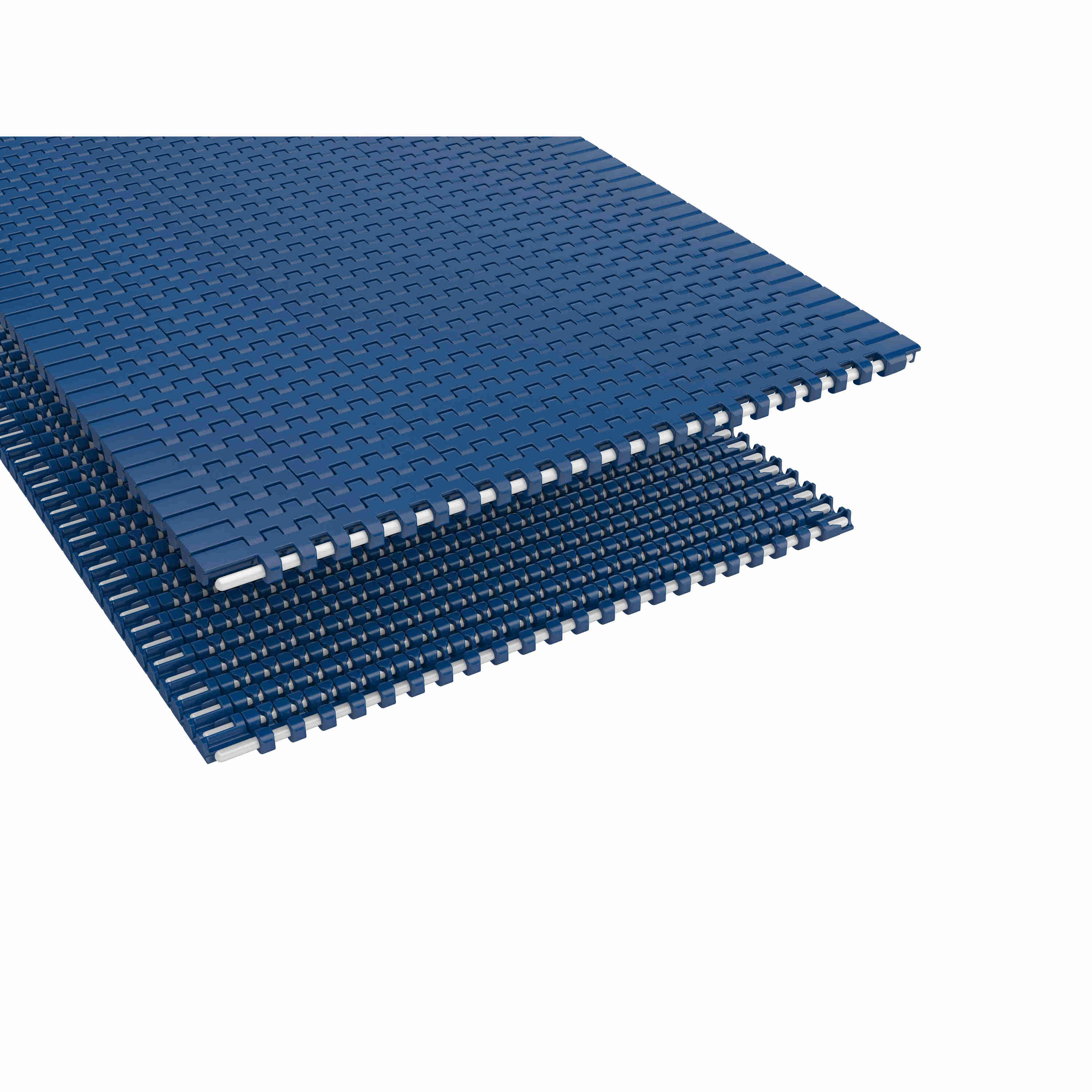

Rexnord 595 Straight Running Solid Top, Material: Blue Cut Resistant, Width: 4in, Pitch: 0.5in - 10674329
Part #:10674329
Catalog #:10674329
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width (in): | 4 in | Chain Number: | 595 |
| Chain Width Measurement System: | Imperial | Product Type: | Straight Running |
| Chain Width (mm): | 101.6 mm | Chain Pitch (in): | 0.5 in |
| Product Group: | Modular Plastic Belts | Belt Thickness (mm): | 9.53 mm |
| Surface Type: | Solid Top | Straight or Side-Flex: | Straight Running |
| Chain Material: | SMB | Chain Pitch (mm): | 12.7 mm |
| Series: | KleanTop 590 Series Belt | Belt Thickness (in): | 0.375 in |
| Rod/Pin Material: | Polyester | Product Line: | Plastic Modular Chain and Belt |
| Chain Material Description: | Blue Cut Resistant |
General Specifications
| Weight: | 0.02 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
