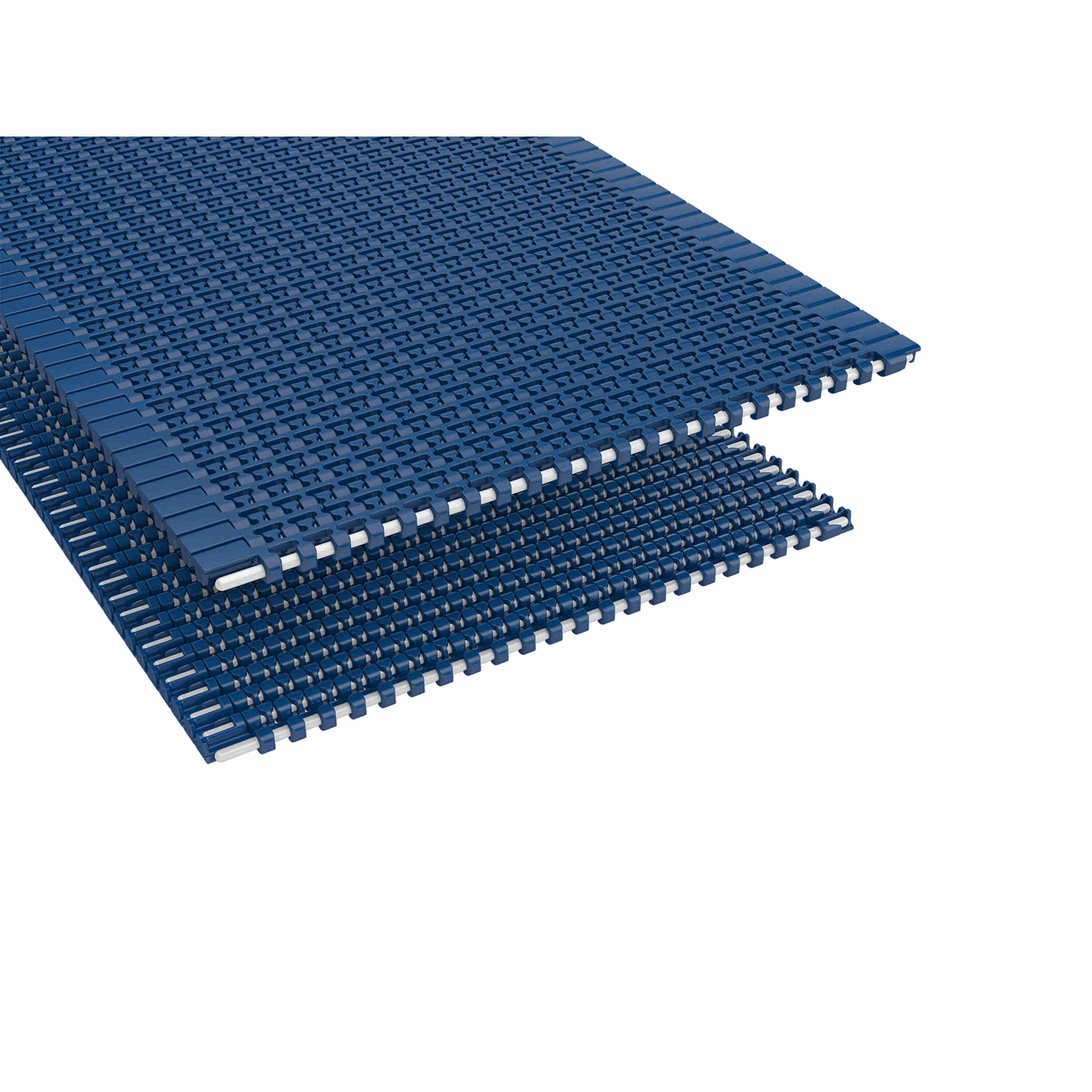

Rexnord 596 Straight Running Flush Grid, Material: Blue Cut Resistant, Width: 52in, Pitch: 0.5in - 10673568
Part #:10673568
Catalog #:10673568
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | Flush Grid | Chain Pitch (in): | 0.5 in |
| Chain Pitch (mm): | 12.7 mm | Belt Thickness (in): | 0.375 in |
| Chain Width (mm): | 1,320.8 mm | Chain Width (in): | 52 in |
| Product Group: | Modular Plastic Belts | Chain Width Measurement System: | Imperial |
| Product Line: | Plastic Modular Chain and Belt | Chain Material Description: | Blue Cut Resistant |
| Belt Thickness (mm): | 9.53 mm | Chain Number: | 596 |
| Straight or Side-Flex: | Straight Running | Product Type: | Straight Running |
| Rod/Pin Material: | Polyester | Chain Material: | SMB |
| Series: | KleanTop 590 Series Belt |
General Specifications
| Weight: | 0.25 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
