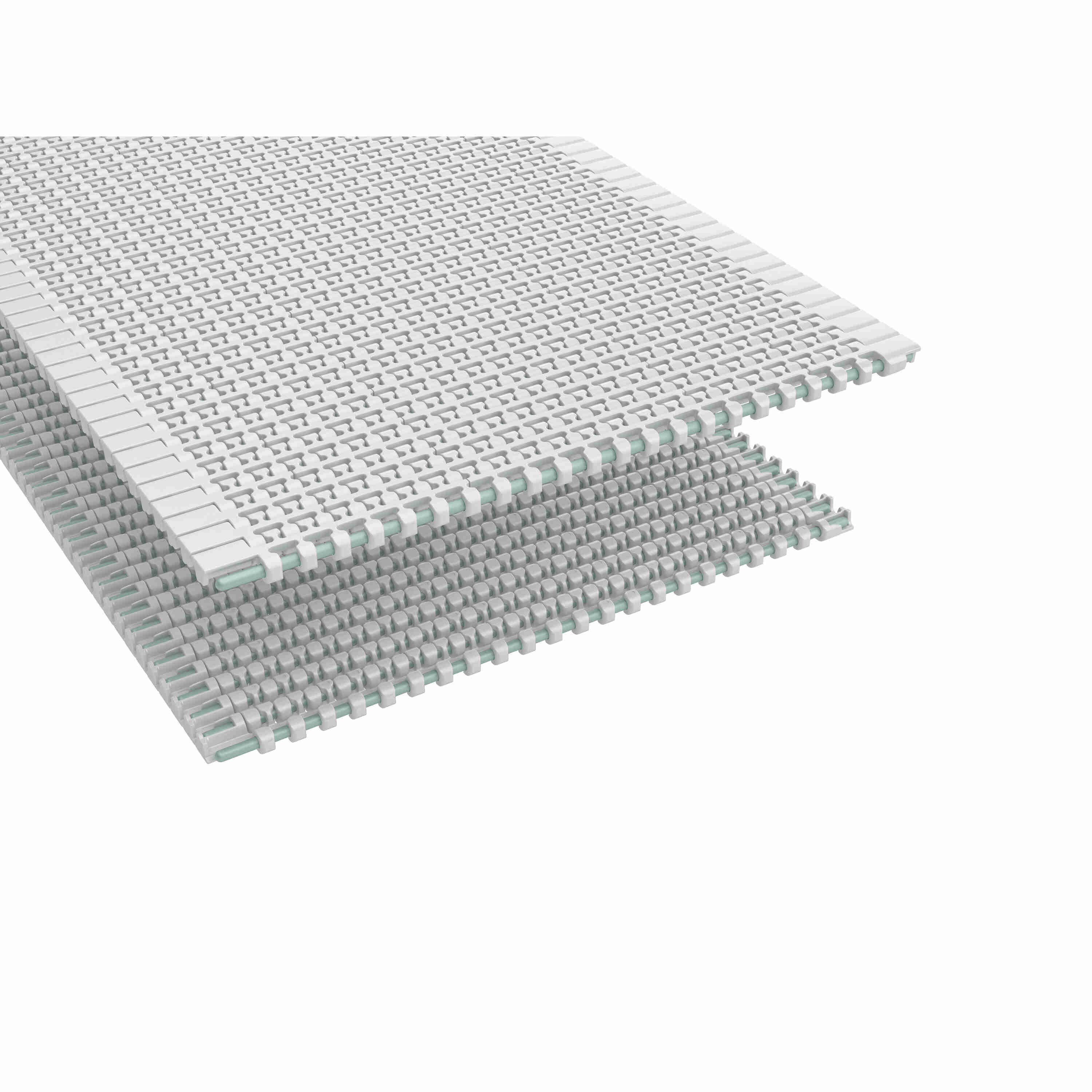

Rexnord 596 Straight Running Flush Grid, Material: White High Temperature, Width: 10.5in, Pitch: 0.5in - 10673207
Part #:10673207
Catalog #:10673207
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 596 | Product Line: | Plastic Modular Chain and Belt |
| Product Type: | Straight Running | Chain Pitch (in): | 0.5 in |
| Surface Type: | Flush Grid | Belt Thickness (in): | 0.375 in |
| Chain Material Description: | White High Temperature | Series: | KleanTop 590 Series Belt |
| Belt Thickness (mm): | 9.53 mm | Product Group: | Modular Plastic Belts |
| Chain Pitch (mm): | 12.7 mm | Straight or Side-Flex: | Straight Running |
| Rod/Pin Material: | Polyester | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 10.5 in | Chain Width (mm): | 266.7 mm |
| Chain Material: | WHT |
General Specifications
| Weight: | 0.04 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
