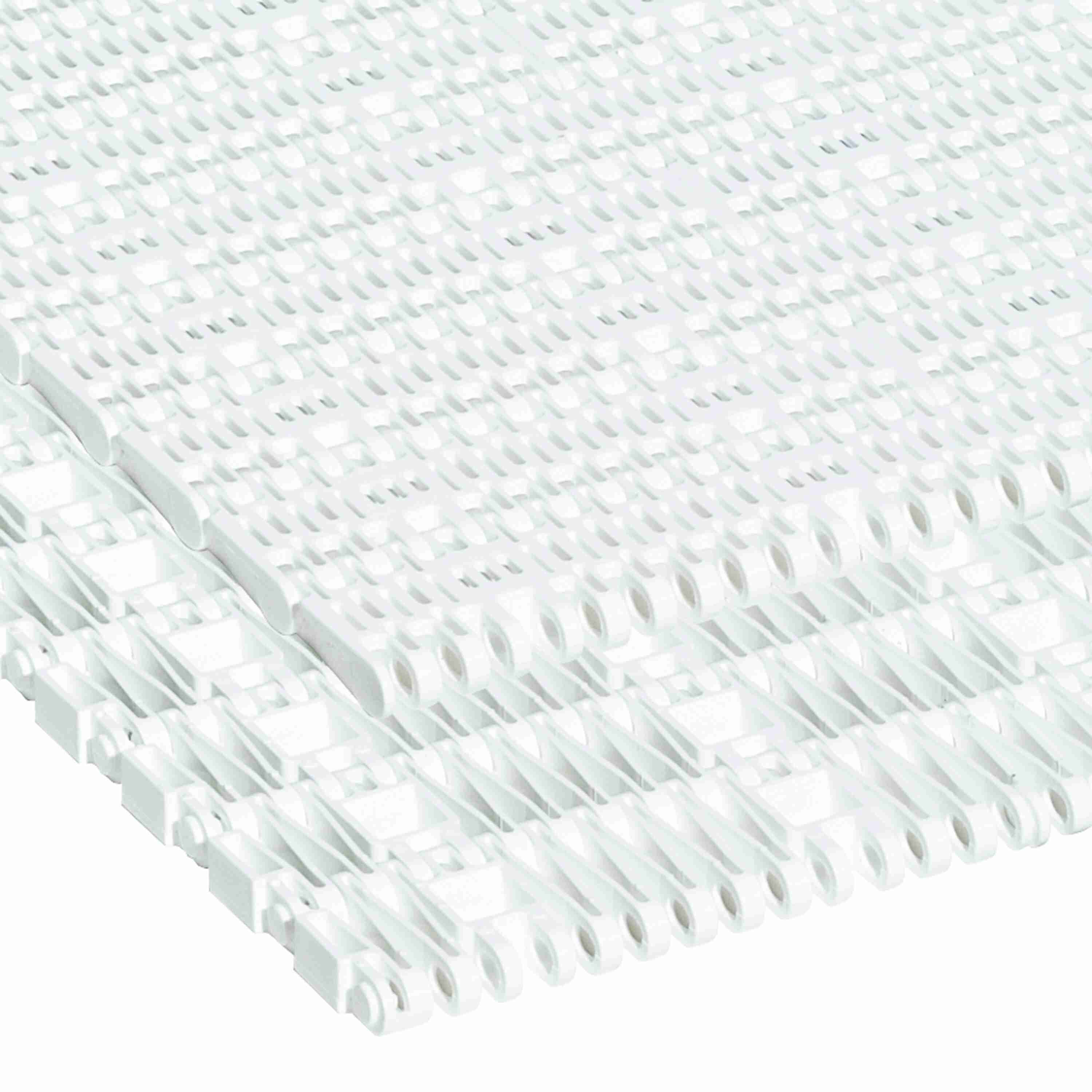

Rexnord 5966 Straight Running Flush Grid, Material: Tan Low Friction, Width: 24in, Pitch: 1.5in - LF5966-24
Part #:10029064
Catalog #:LF5966-24
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 1.5 in | Belt Thickness (mm): | 12.7 mm |
| Chain Number: | 5966 | Chain Width (in): | 24 in |
| Product Line: | Plastic Modular Chain and Belt | Straight or Side-Flex: | Straight Running |
| Product Group: | Modular Plastic Belts | Chain Material: | LF |
| Rod/Pin Material: | Polypropylene | Chain Width Measurement System: | Imperial |
| Chain Material Description: | Tan Low Friction | Belt Thickness (in): | 0.5 in |
| Surface Type: | Flush Grid | Chain Width (mm): | 609.6 mm |
| Series: | MatTop 5960 Series Chain | Product Type: | Straight Running |
| Chain Pitch (mm): | 38.1 mm |
General Specifications
| Weight: | 0.40 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
