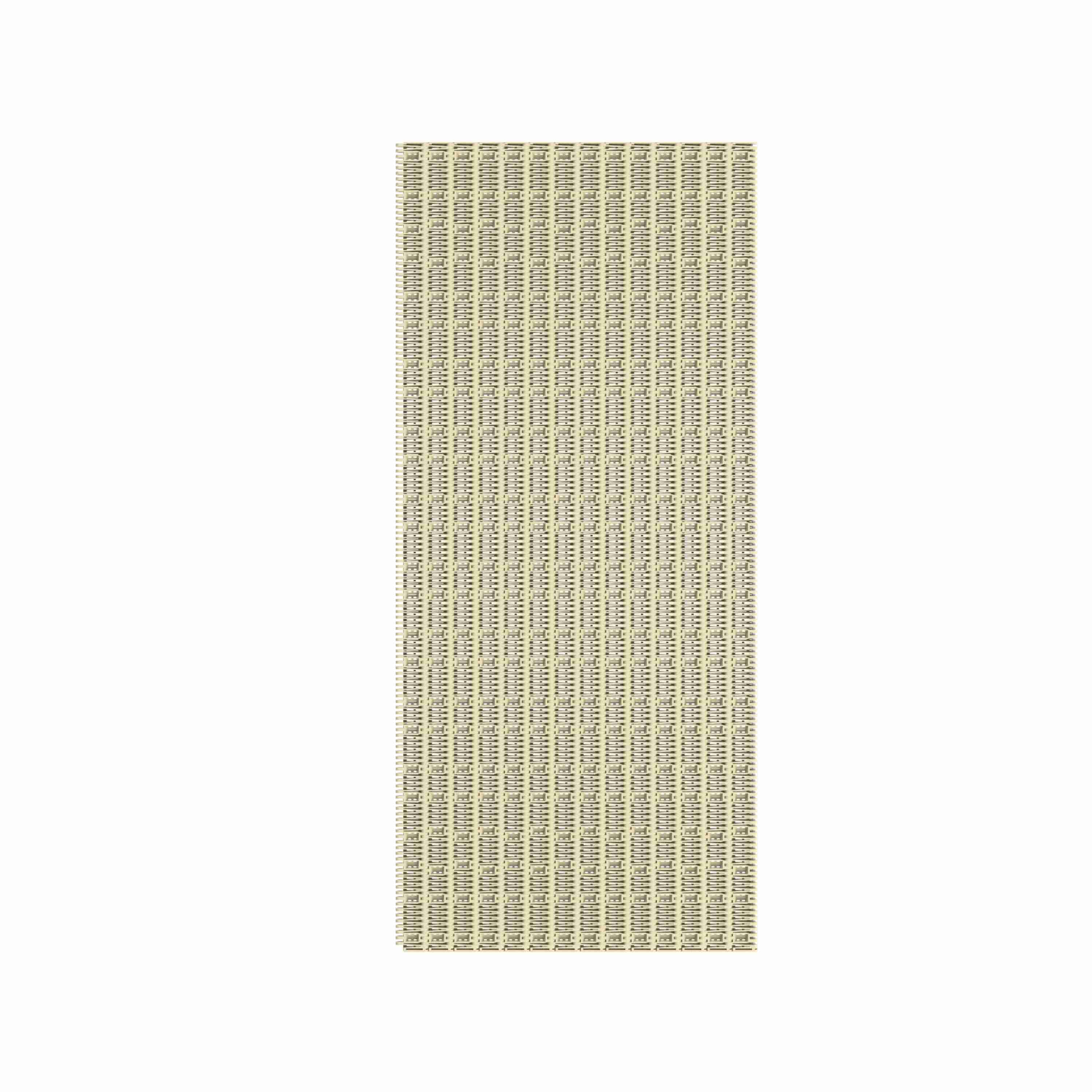

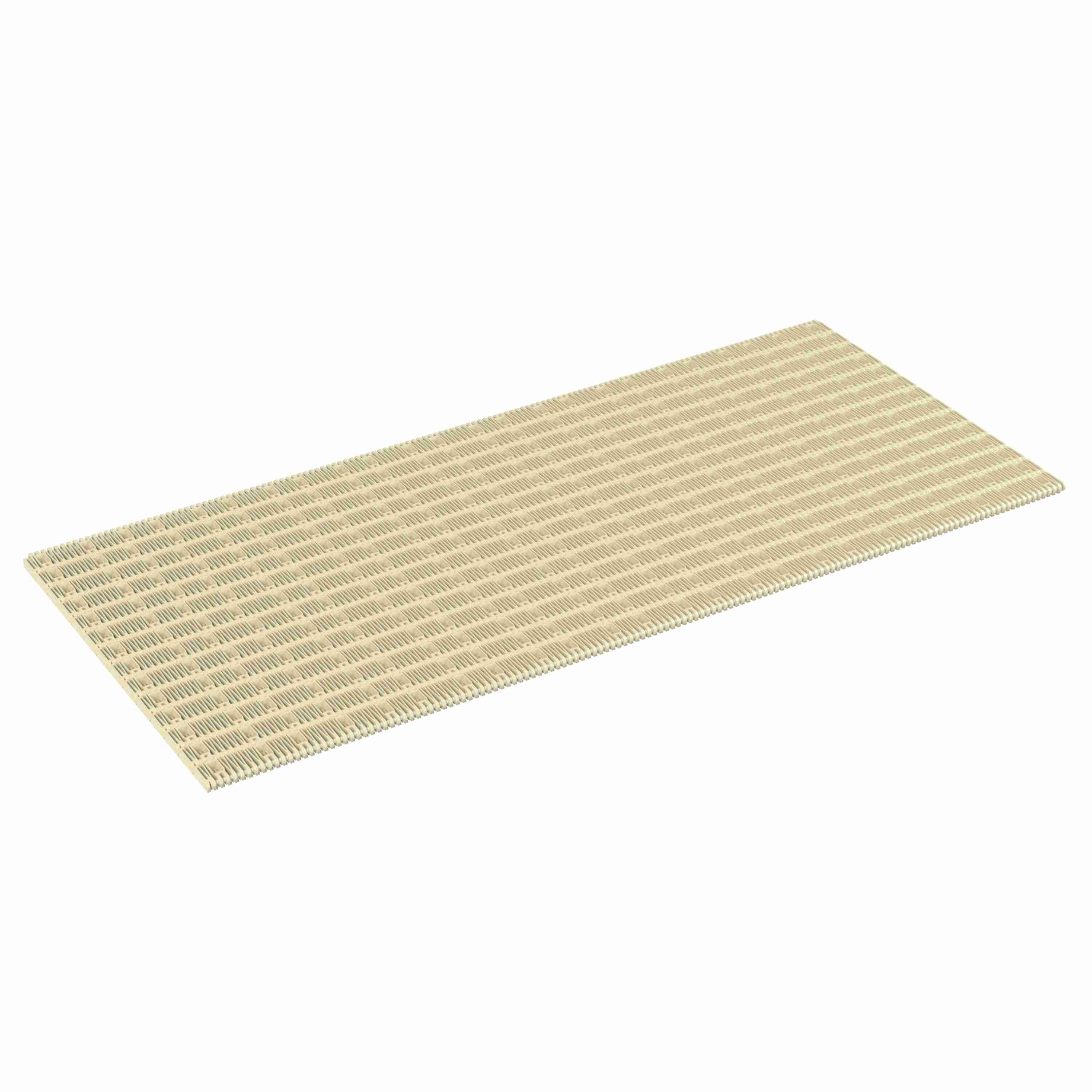

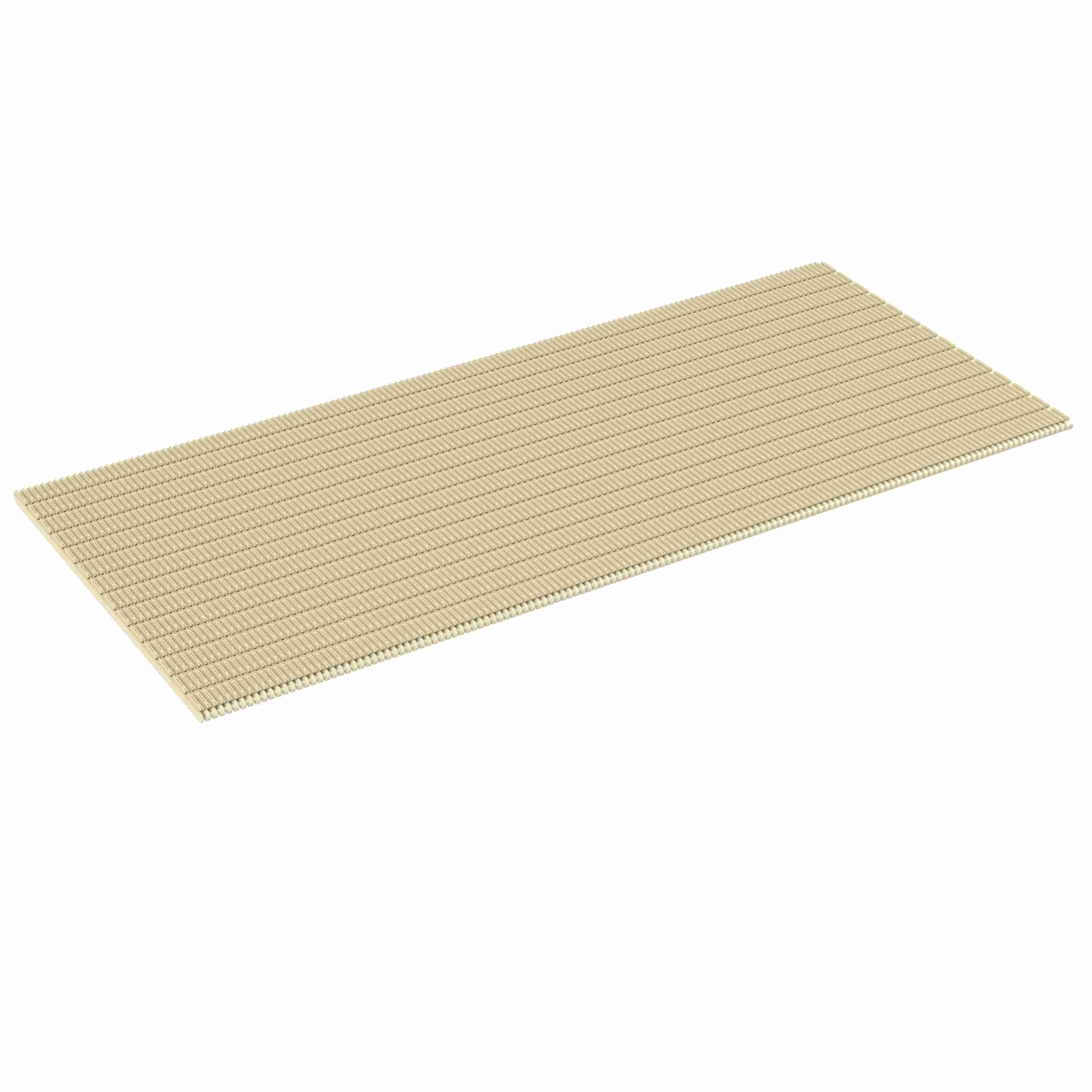

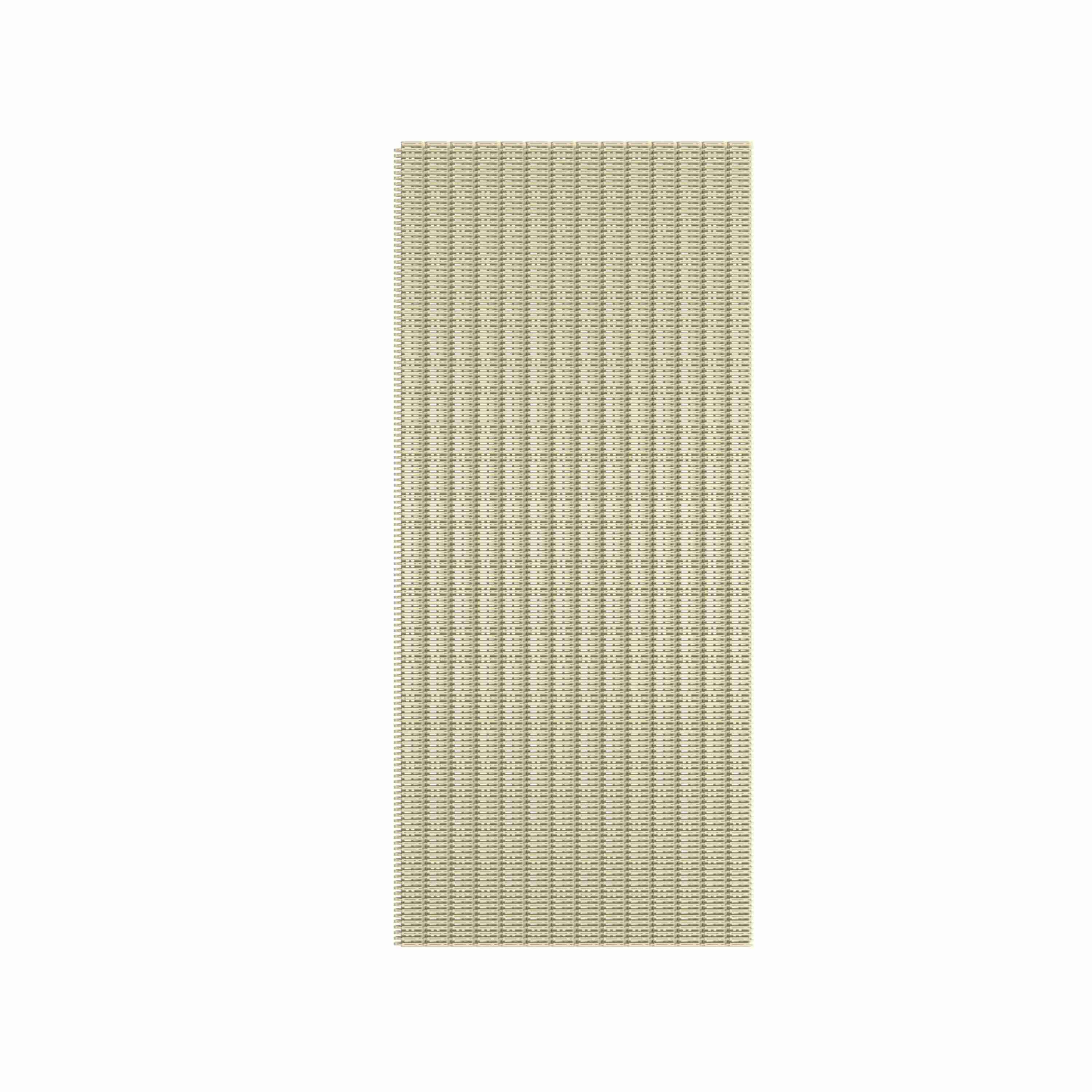

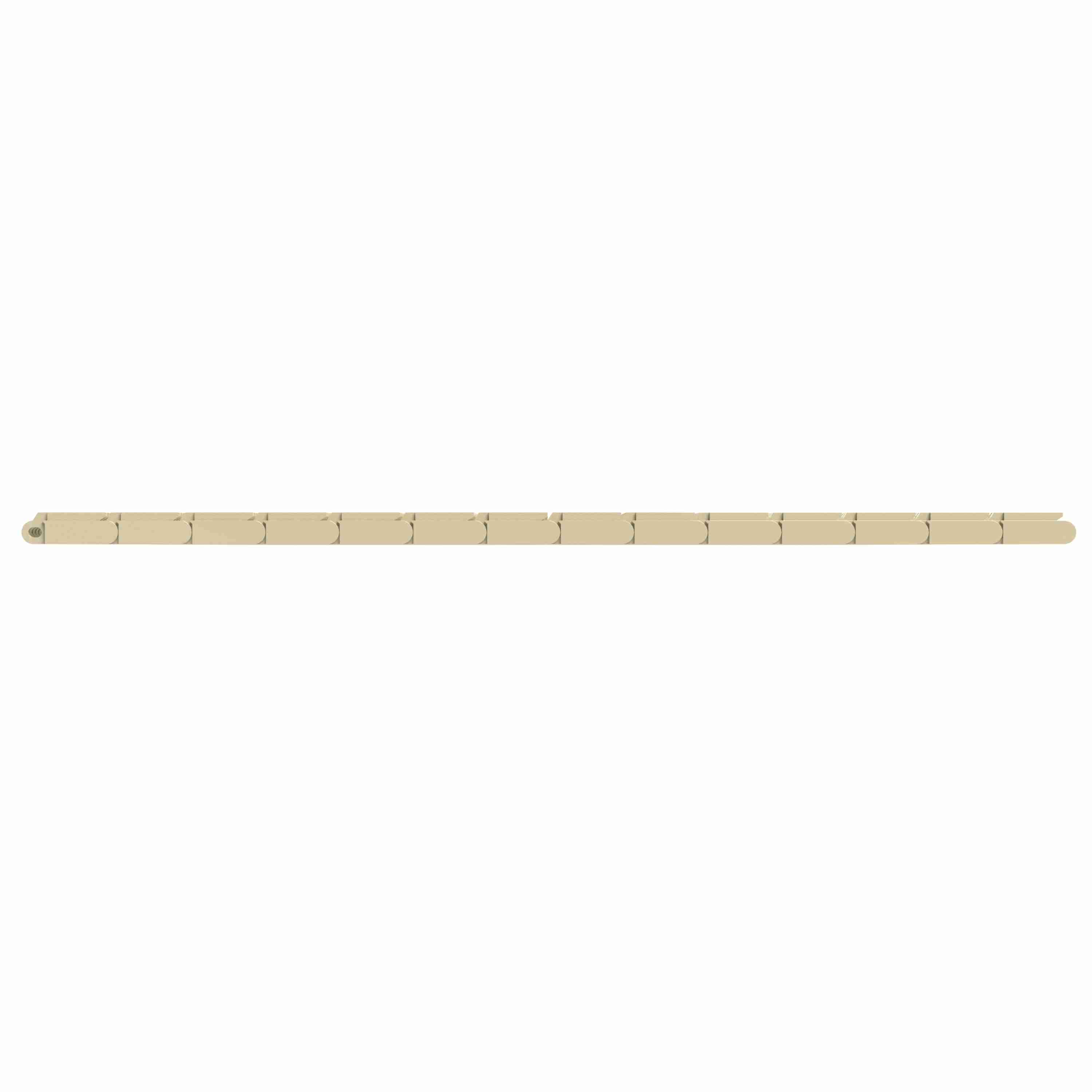

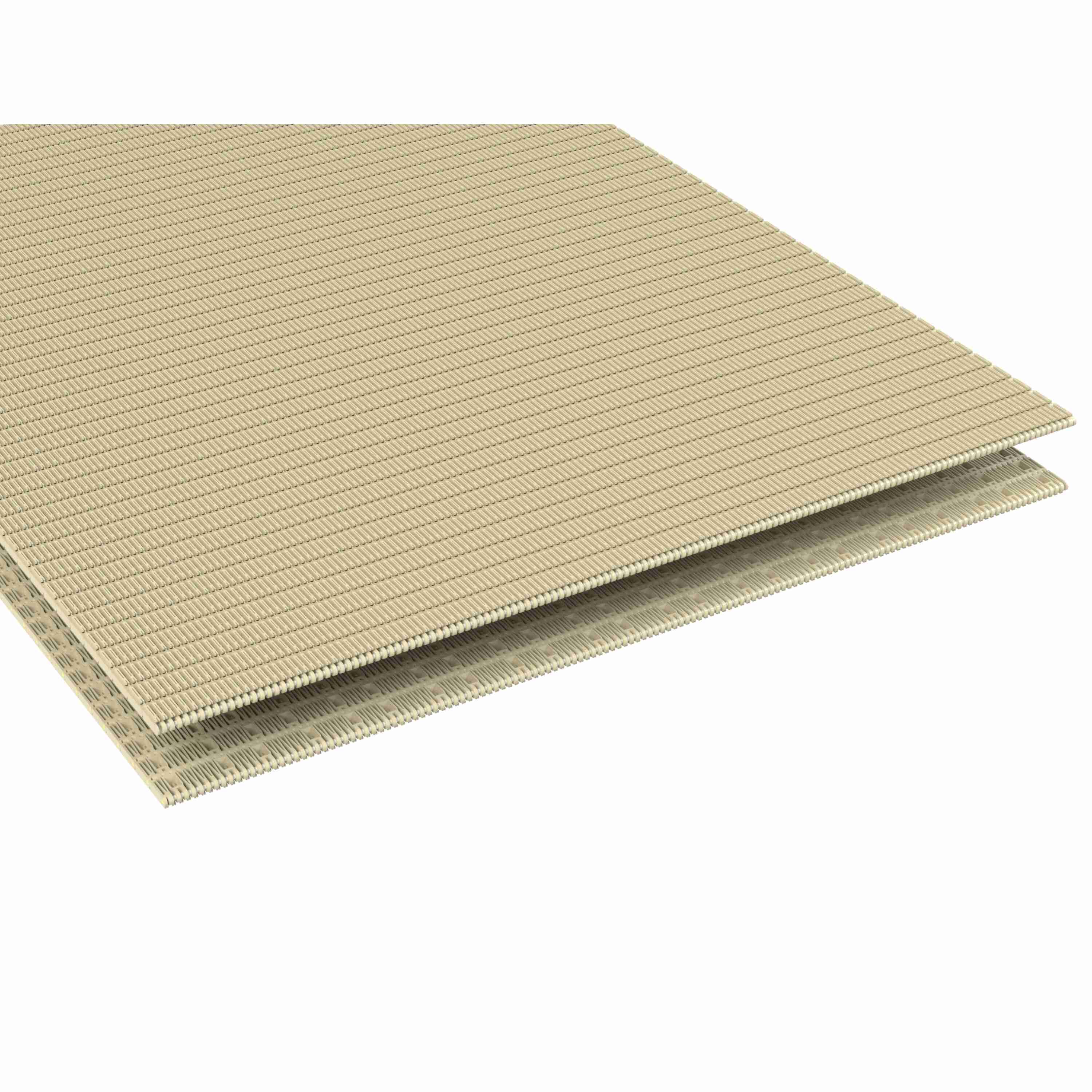

Rexnord 5997 Straight Running Raised Rib, Material: Beige High Temperature, Width: 120in, Pitch: 2.25in - HT5997-120
Part #:10029010
Catalog #:HT5997-120
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Straight or Side-Flex: | Straight Running |
| Belt Thickness (in): | 0.97 in | Chain Width (mm): | 3,048 mm |
| Product Type: | Straight Running | Chain Material: | HT |
| Belt Thickness (mm): | 24.6 mm | Chain Number: | 5997 |
| Chain Strength (N/m): | 35,016 N·m | Chain Strength (lb/ft): | 2,400 lb/ft |
| Chain Material Description: | Beige High Temperature | Chain Pitch (mm): | 57.2 mm |
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (in): | 2.25 in |
| Rod/Pin Material: | Polypropylene | Surface Type: | Raised Rib |
| Open Area (%): | 22.3 % | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 120 in | Series: | MatTop 5990 Series Chain |
General Specifications
| Weight: | 4.13 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
