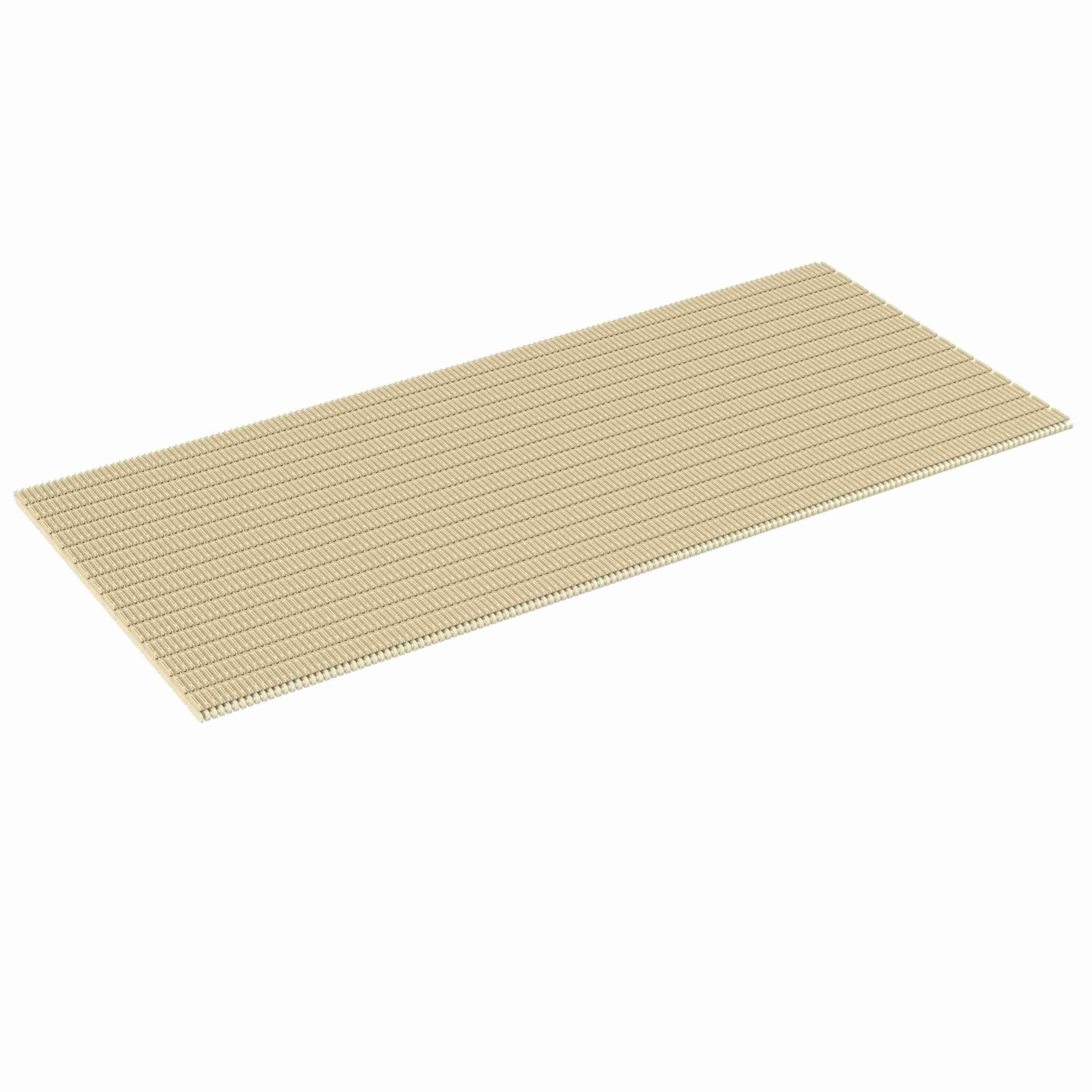

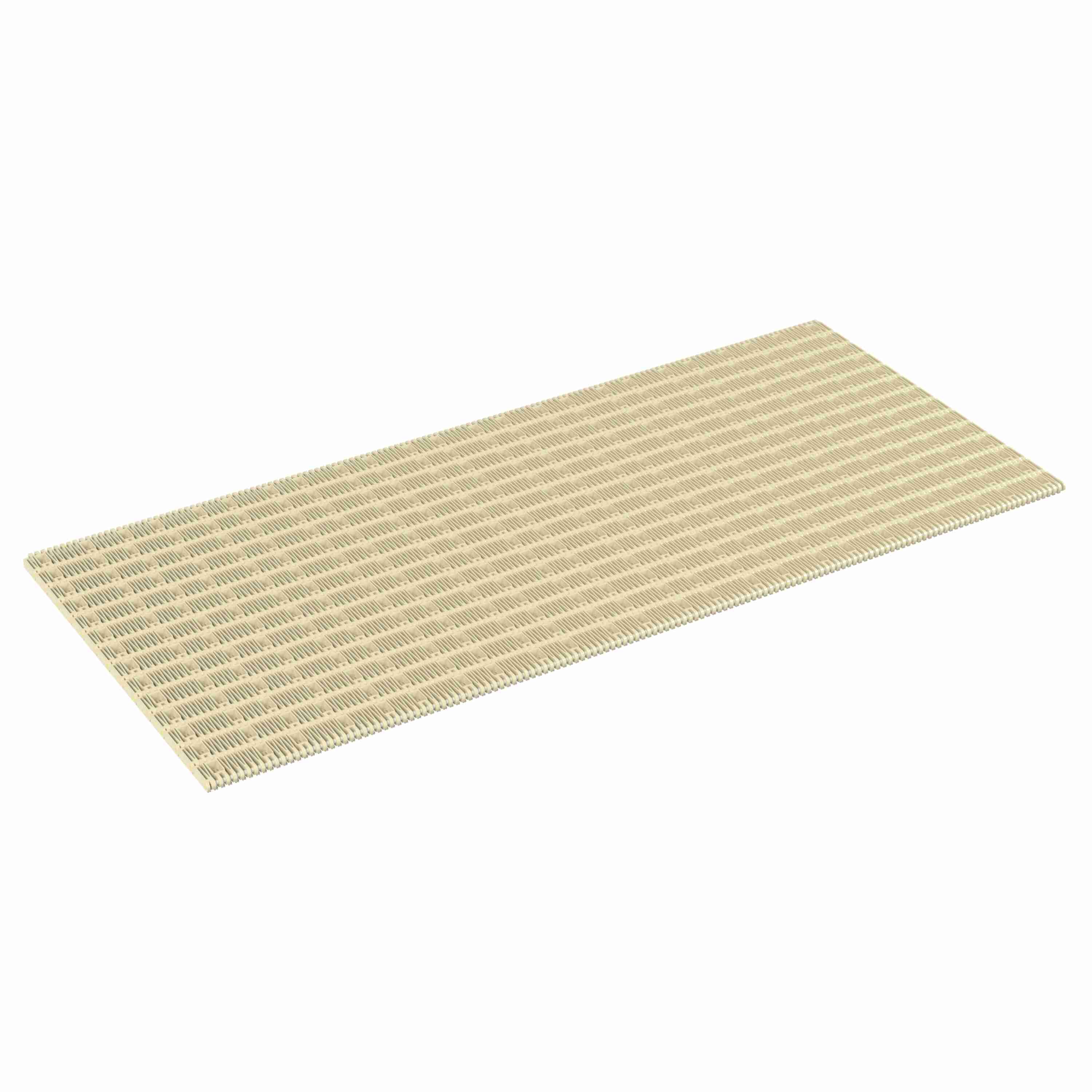

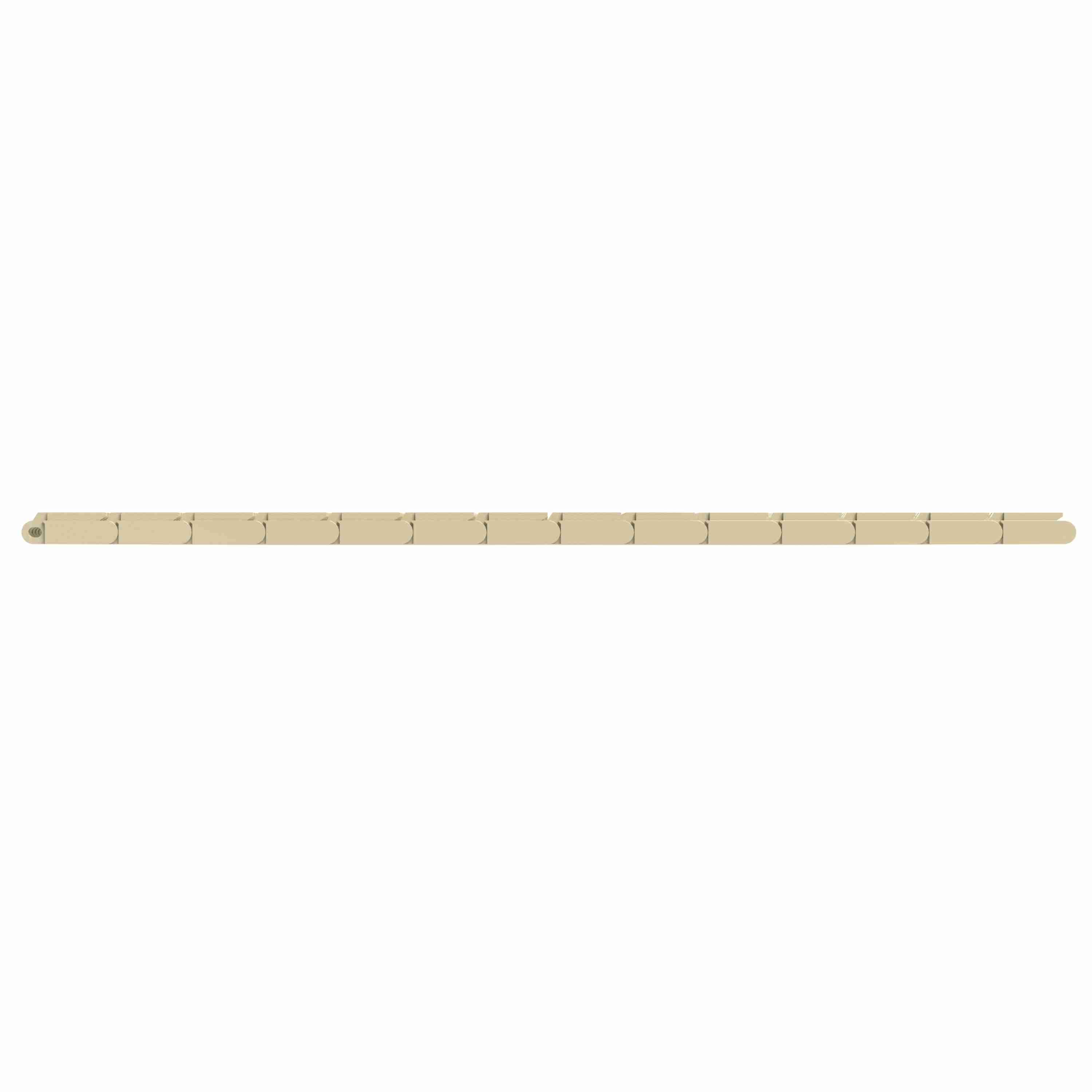

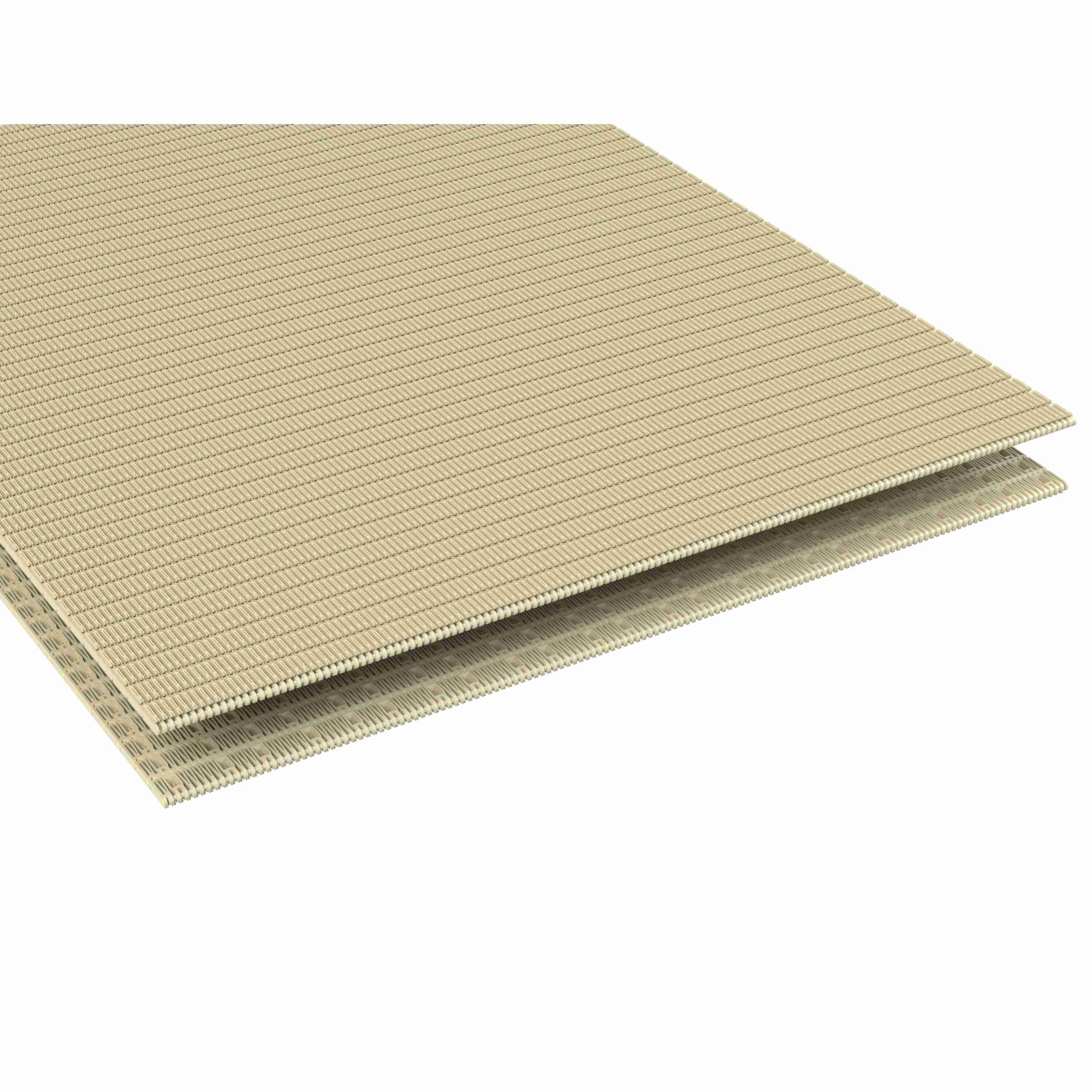

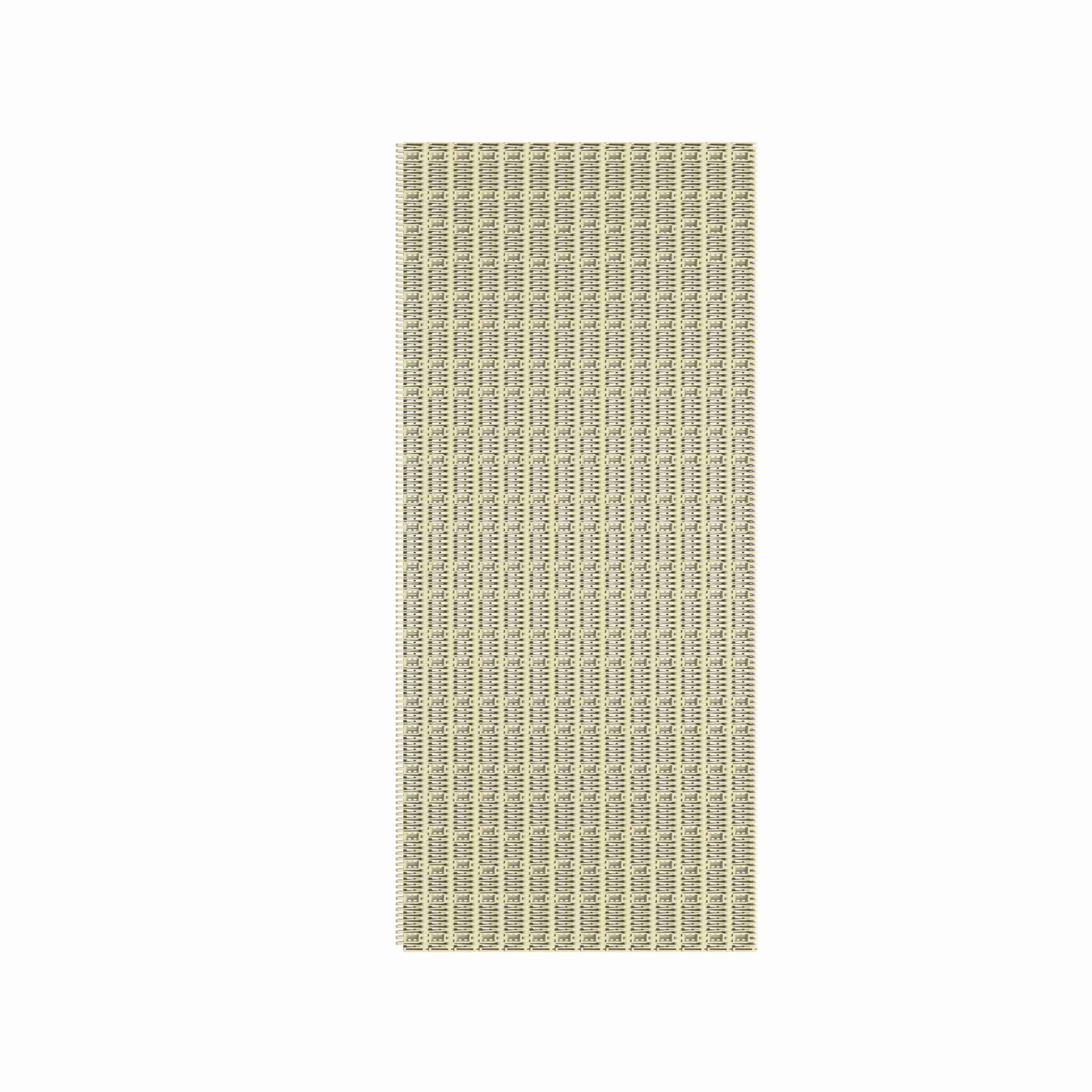

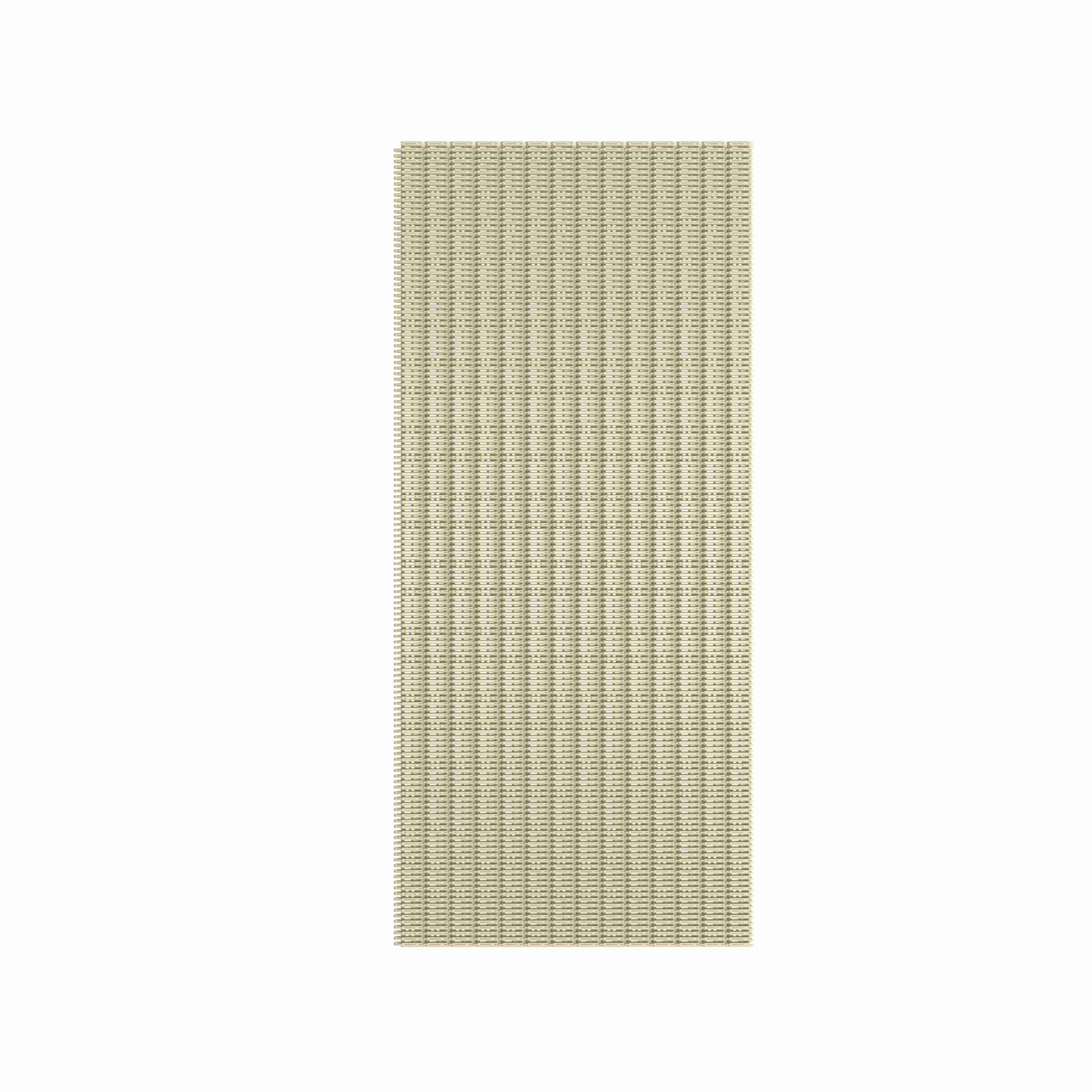

Rexnord 5997 Straight Running Raised Rib, Material: Beige High Temperature, Width: 144in, Pitch: 2.25in - HT5997-144
Part #:10029011
Catalog #:HT5997-144
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.97 in | Product Group: | Modular Plastic Belts |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 57.2 mm |
| Rod/Pin Material: | Polypropylene | Chain Number: | 5997 |
| Straight or Side-Flex: | Straight Running | Series: | MatTop 5990 Series Chain |
| Product Type: | Straight Running | Chain Material Description: | Beige High Temperature |
| Chain Material: | HT | Open Area (%): | 22.3 % |
| Chain Width (mm): | 3,657.6 mm | Belt Thickness (mm): | 24.6 mm |
| Chain Strength (N/m): | 35,016 N·m | Chain Width (in): | 144 in |
| Surface Type: | Raised Rib | Chain Pitch (in): | 2.25 in |
| Chain Strength (lb/ft): | 2,400 lb/ft | Product Line: | Plastic Modular Chain and Belt |
General Specifications
| Weight: | 4.95 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
