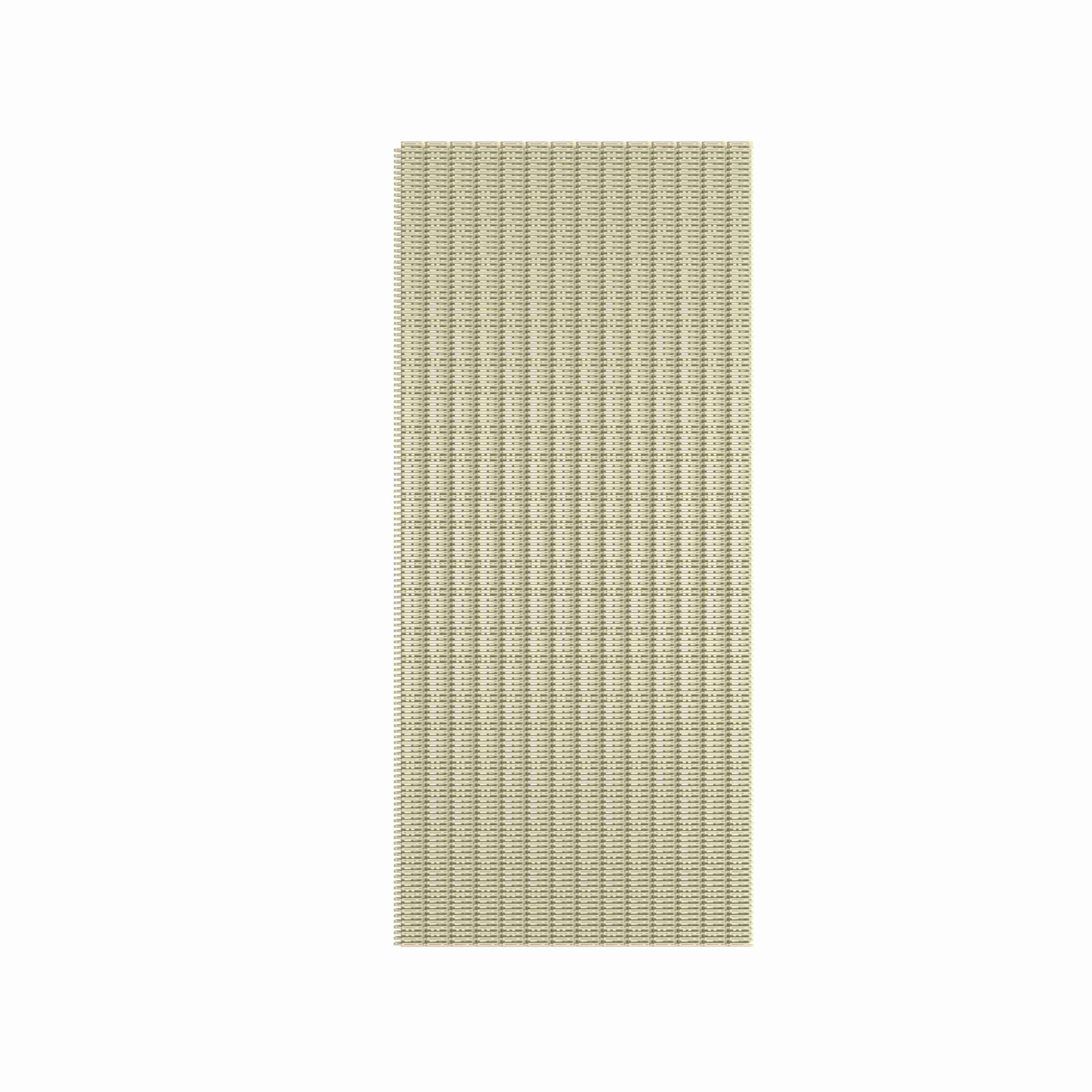

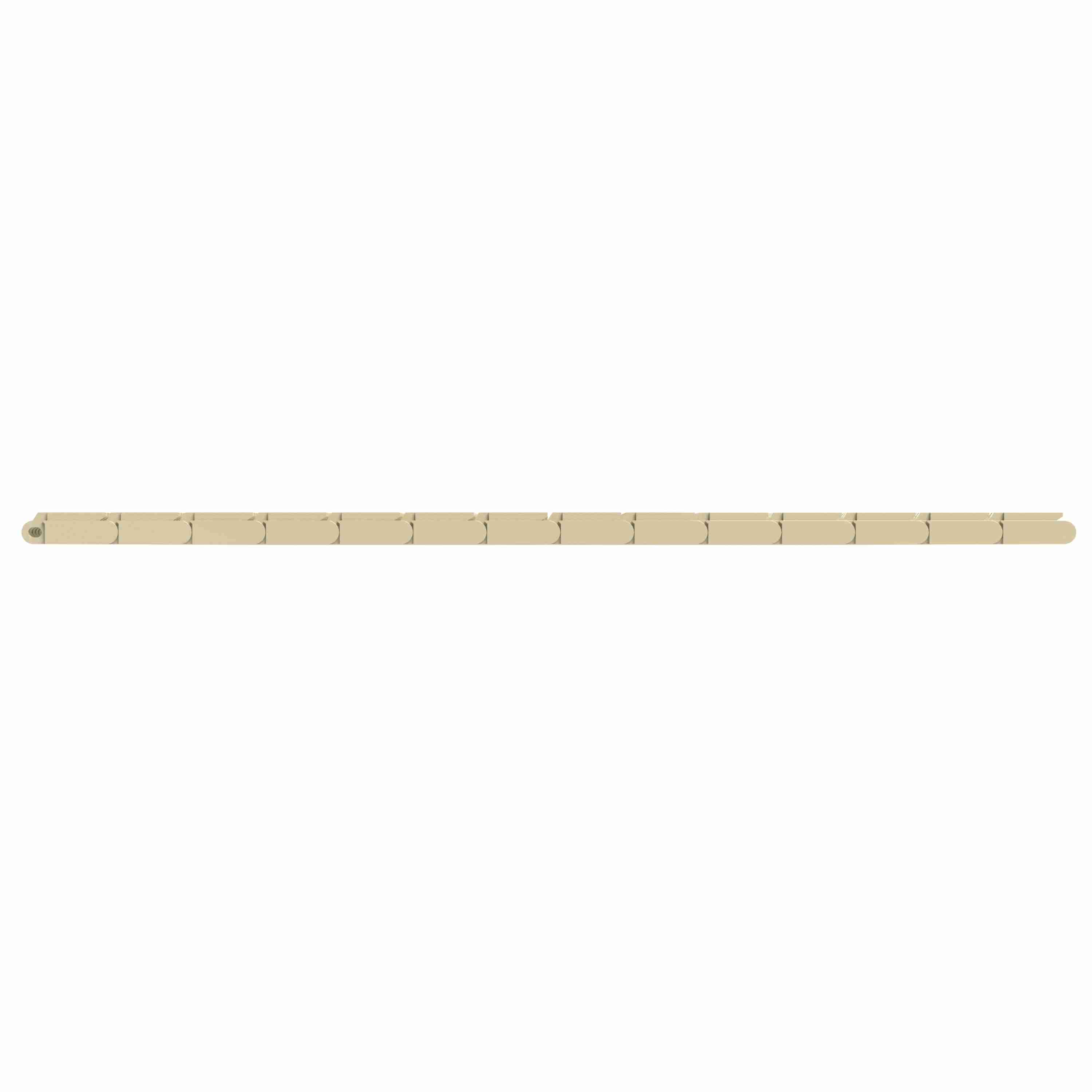

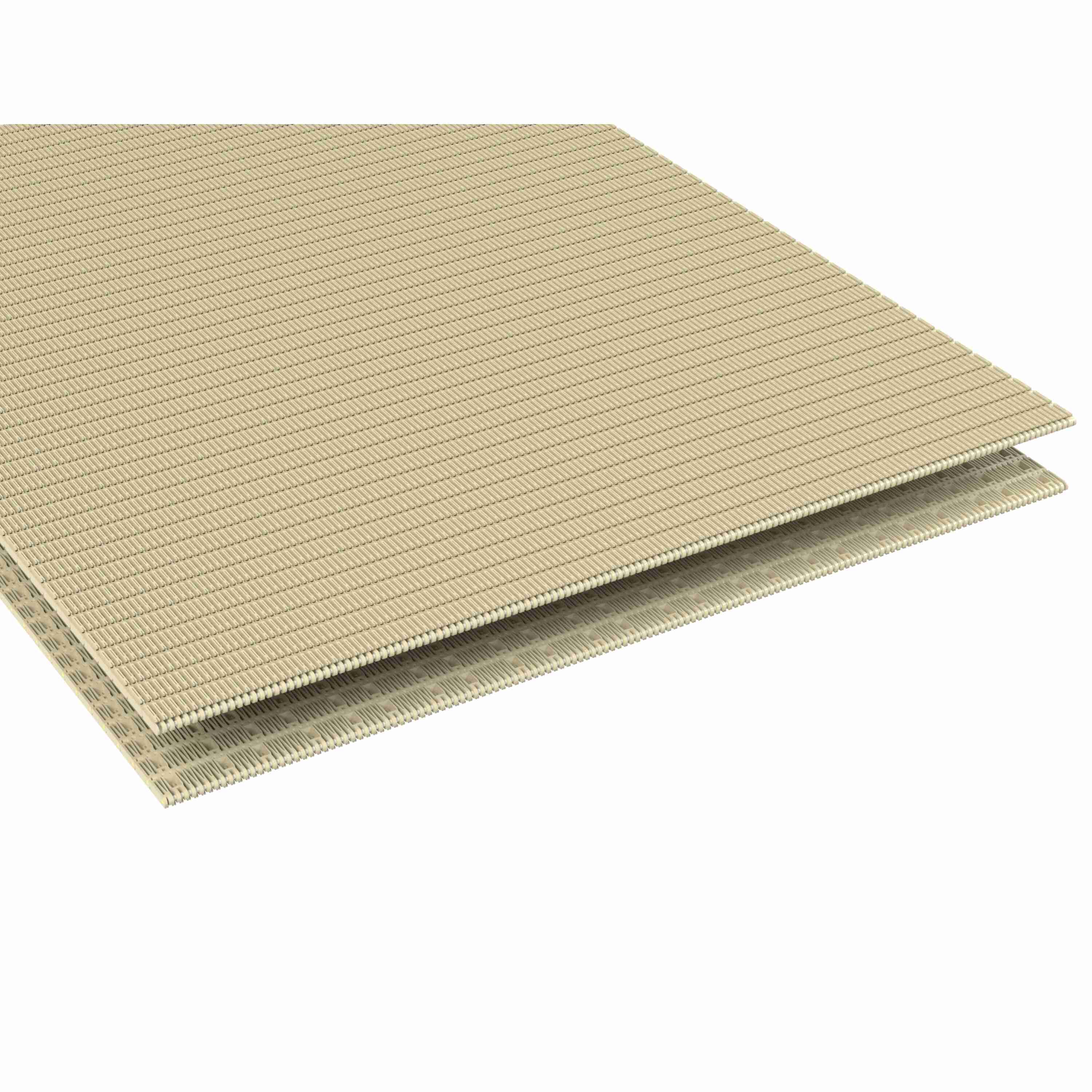

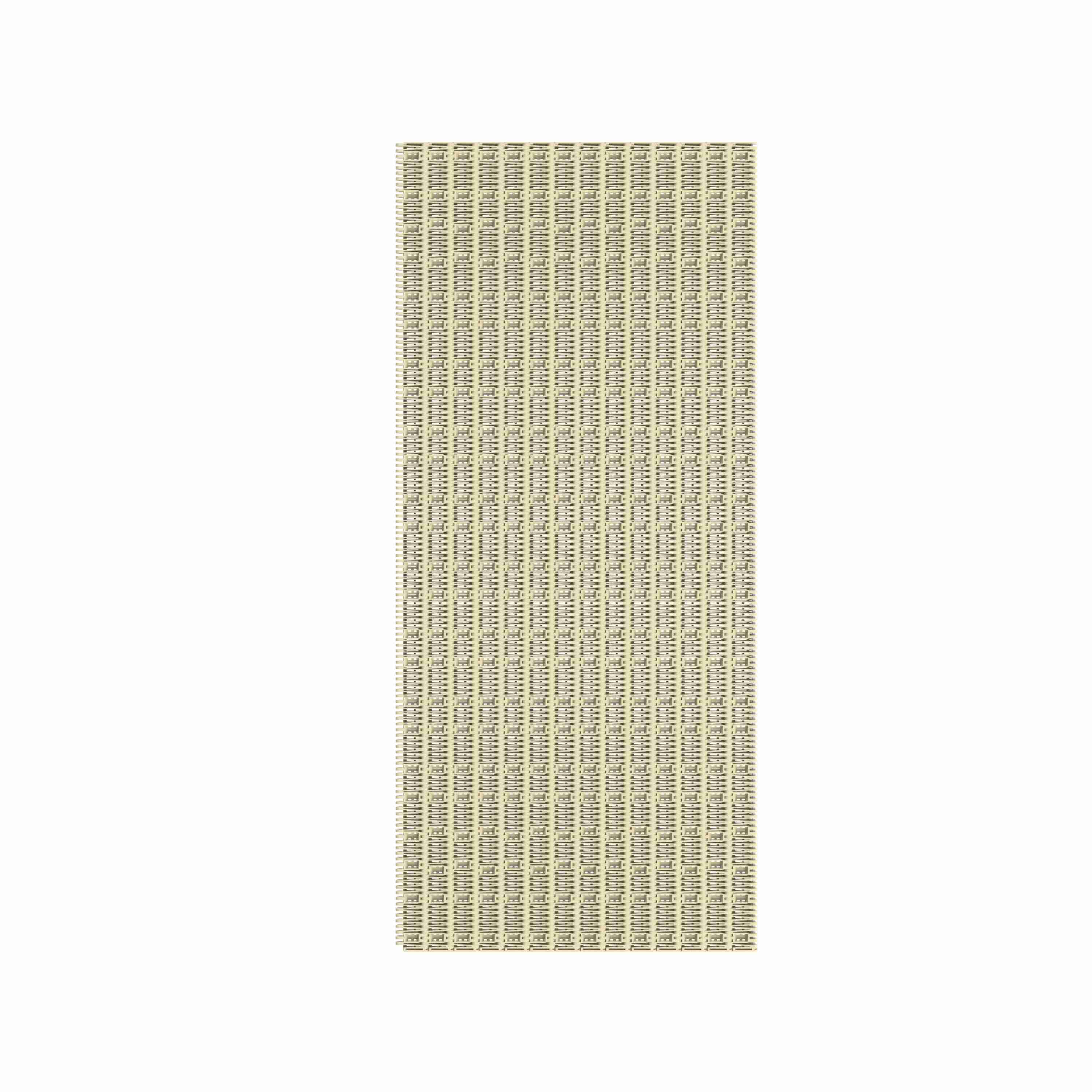

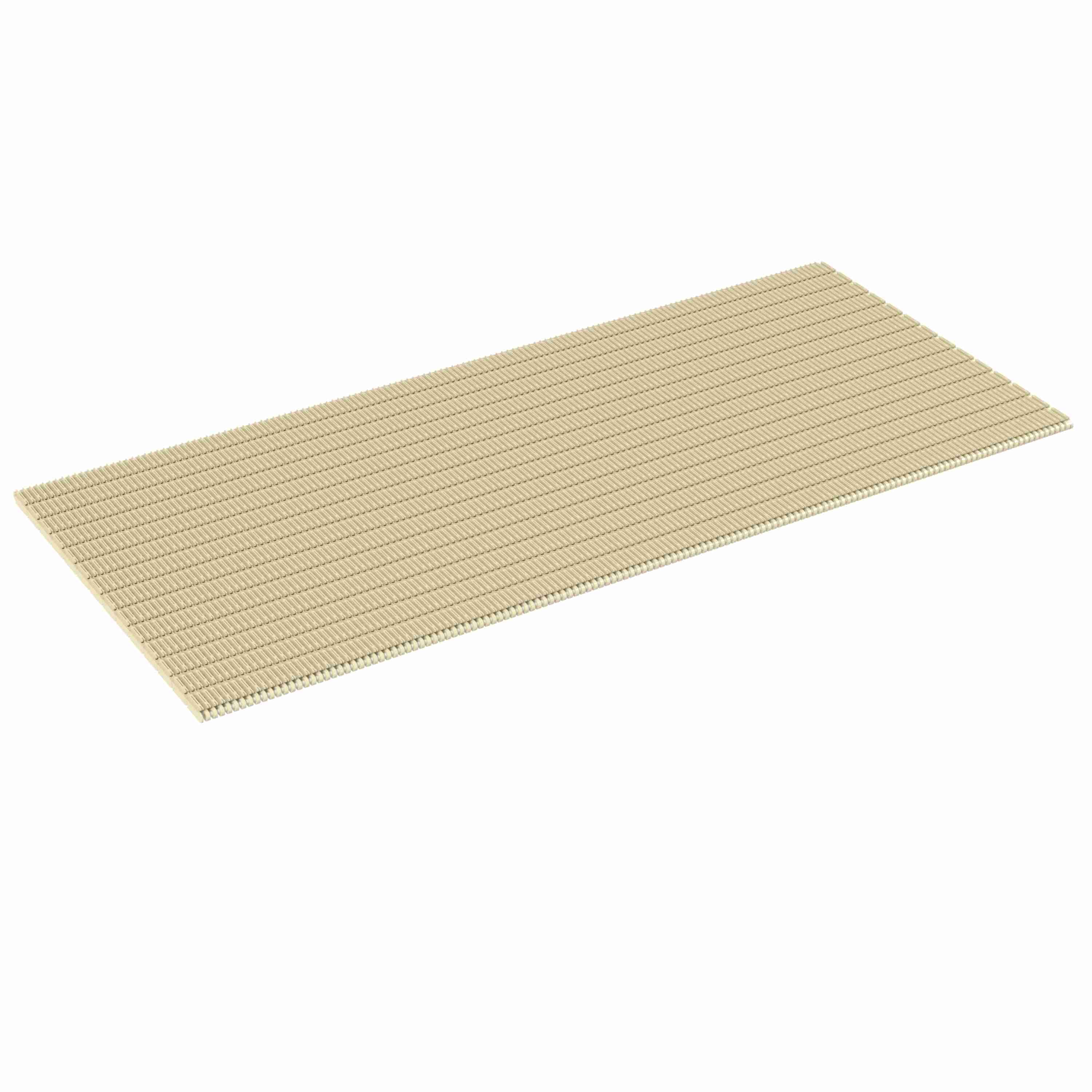

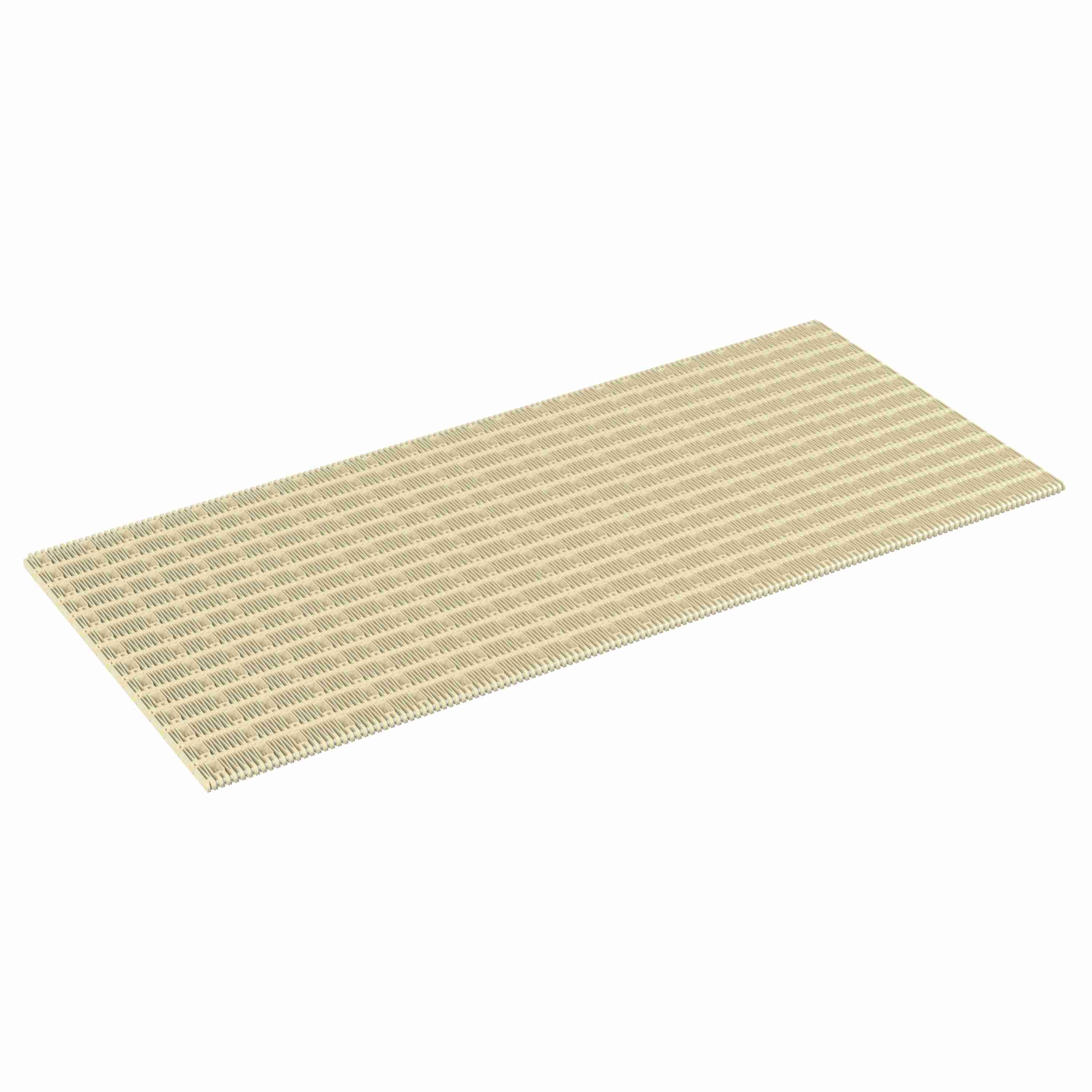

Rexnord 5997 Straight Running Raised Rib, Material: Beige High Temperature, Width: 168in, Pitch: 2.25in - HT5997-168
Part #:10029012
Catalog #:HT5997-168
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Line: | Plastic Modular Chain and Belt | Chain Number: | 5997 |
| Chain Material: | HT | Chain Width Measurement System: | Imperial |
| Straight or Side-Flex: | Straight Running | Chain Strength (N/m): | 35,016 N·m |
| Chain Width (in): | 168 in | Belt Thickness (mm): | 24.6 mm |
| Chain Pitch (mm): | 57.2 mm | Product Group: | Modular Plastic Belts |
| Series: | MatTop 5990 Series Chain | Product Type: | Straight Running |
| Surface Type: | Raised Rib | Rod/Pin Material: | Polypropylene |
| Chain Material Description: | Beige High Temperature | Chain Pitch (in): | 2.25 in |
| Open Area (%): | 22.3 % | Belt Thickness (in): | 0.97 in |
| Chain Width (mm): | 4,267.2 mm | Chain Strength (lb/ft): | 2,400 lb/ft |
General Specifications
| Weight: | 5.78 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
