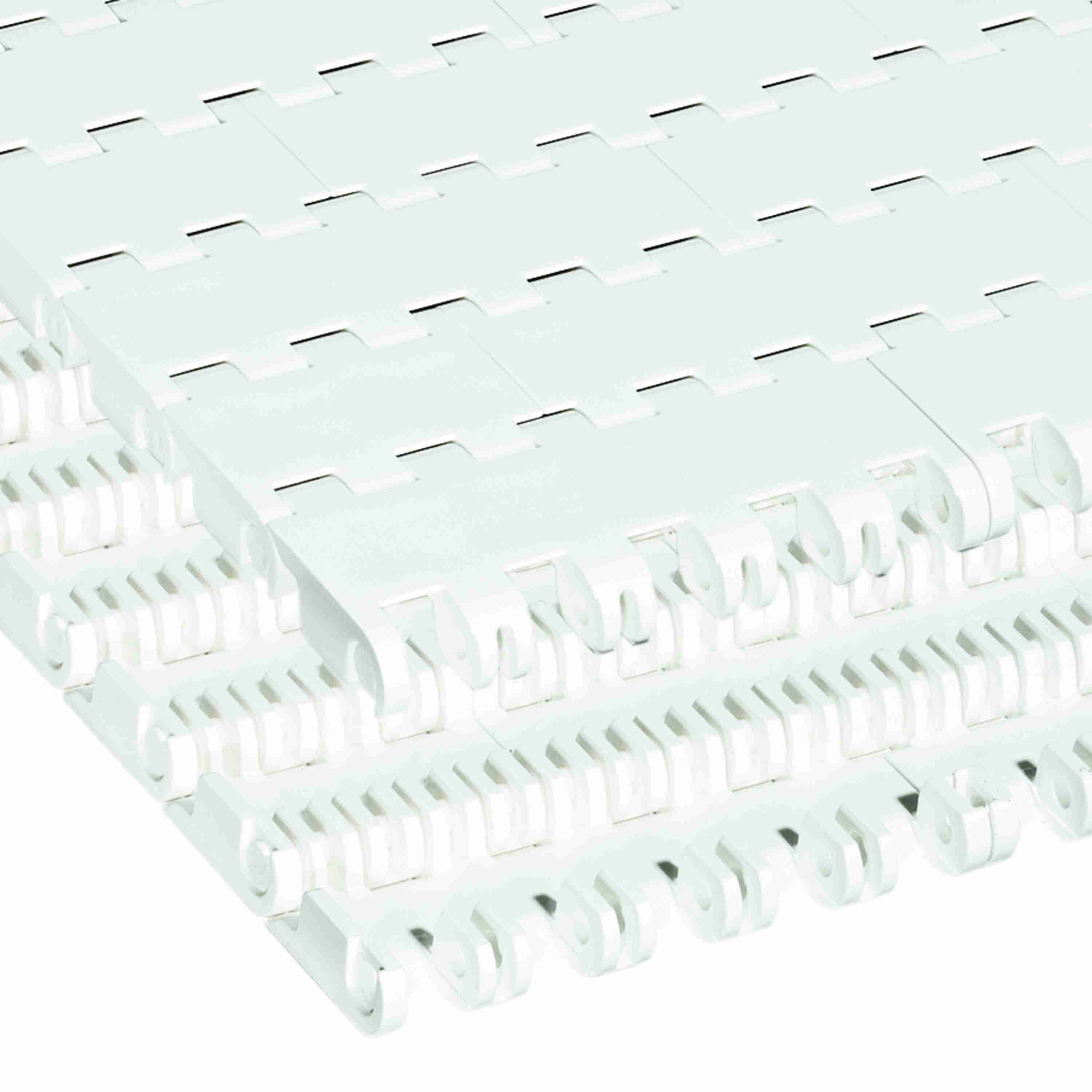

Rexnord 6085 Straight Running Solid Top, Material: White High Temperature, Width: 12in, Pitch: 2in - WHT6085-12
Part #:10029098
Catalog #:WHT6085-12
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | Solid Top | Straight or Side-Flex: | Straight Running |
| Chain Pitch (mm): | 50.8 mm | Chain Pitch (in): | 2 in |
| Chain Width (in): | 12 in | Chain Width Measurement System: | Imperial |
| Product Group: | Modular Plastic Belts | Chain Material Description: | White High Temperature |
| Chain Material: | WHT | Belt Thickness (mm): | 19.1 mm |
| Series: | MatTop 6080 Series Chain | Product Type: | Straight Running |
| Chain Number: | 6085 | Product Line: | Plastic Modular Chain and Belt |
| Chain Width (mm): | 304.8 mm | Rod/Pin Material: | Polyester |
| Belt Thickness (in): | 0.75 in |
General Specifications
| Weight: | 0.30 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
