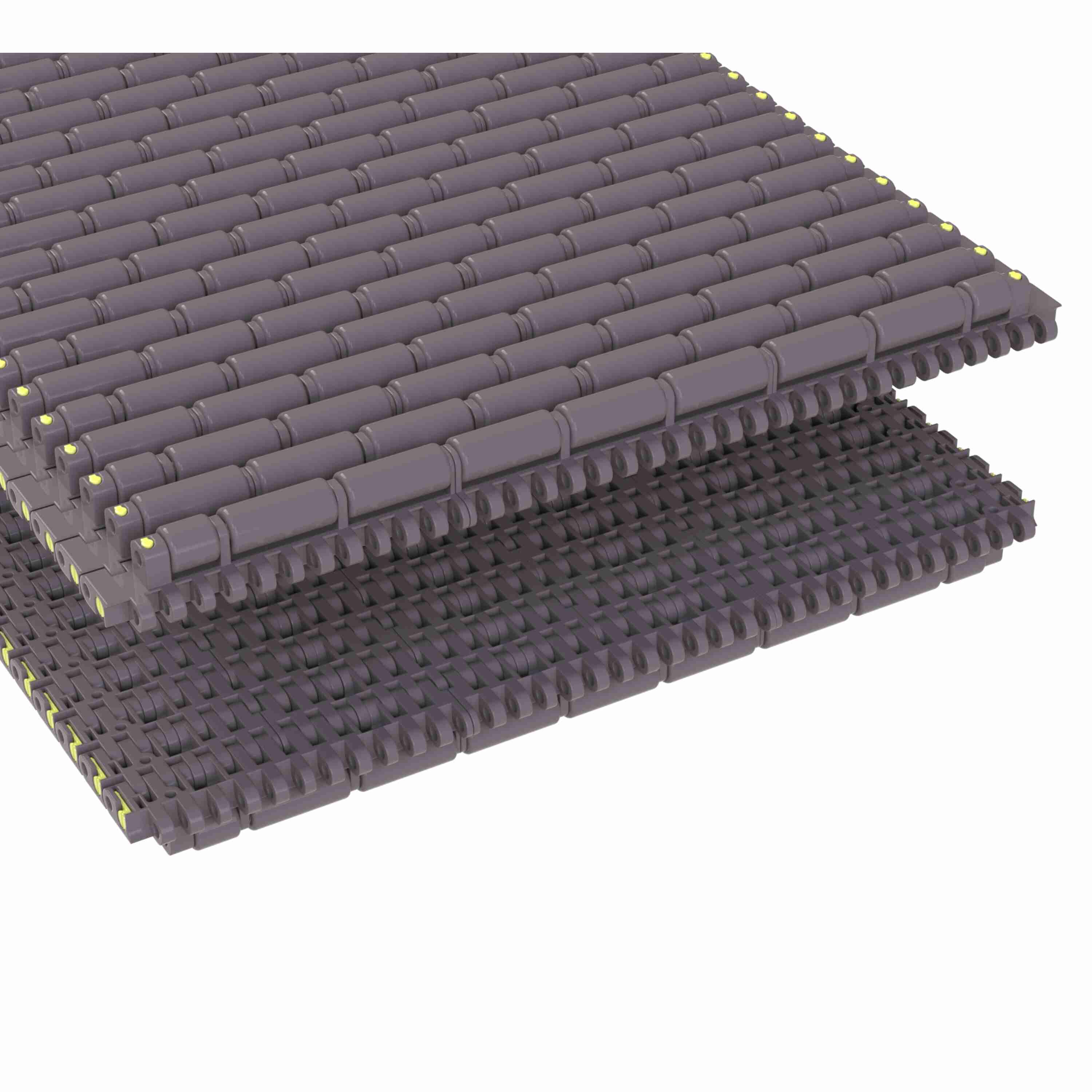

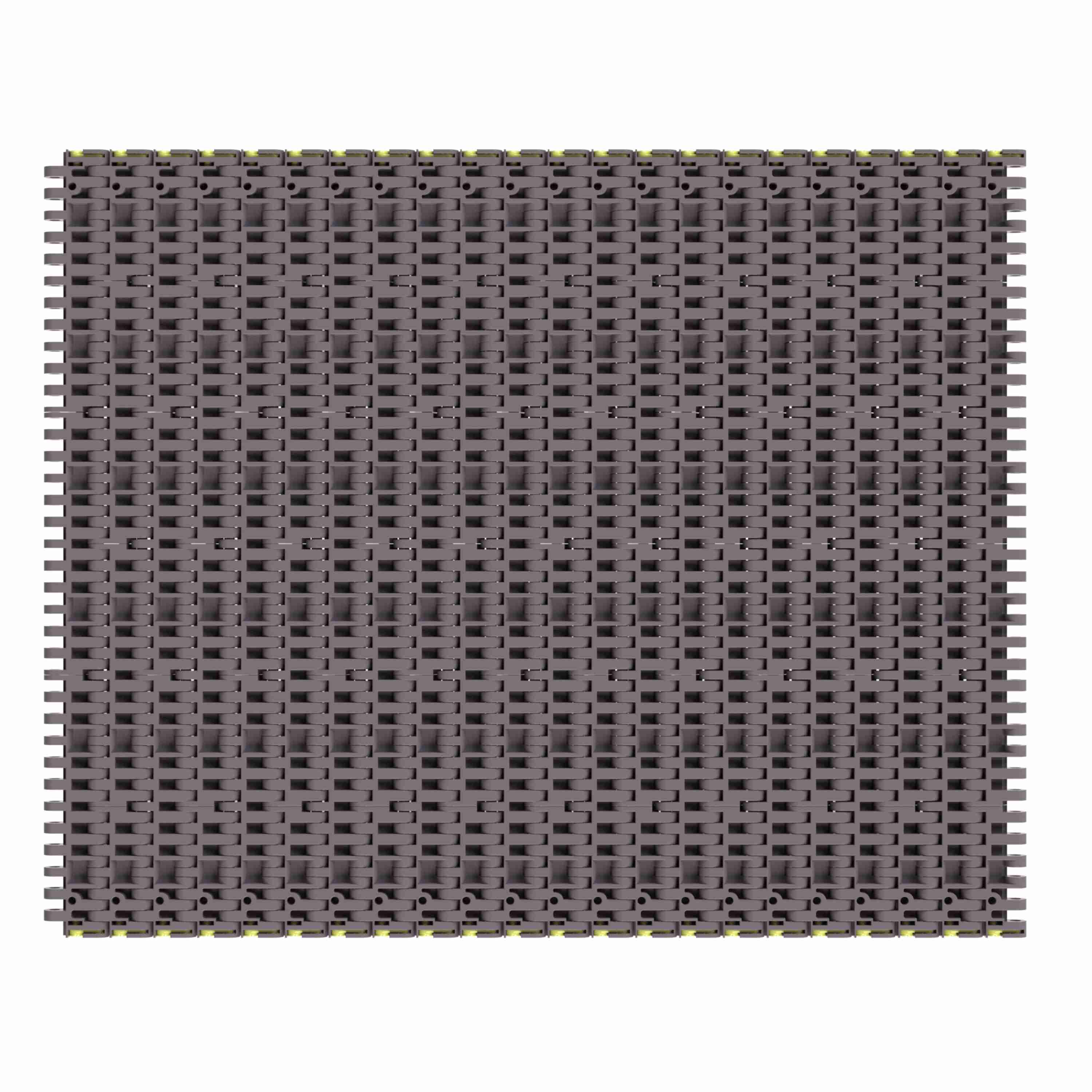

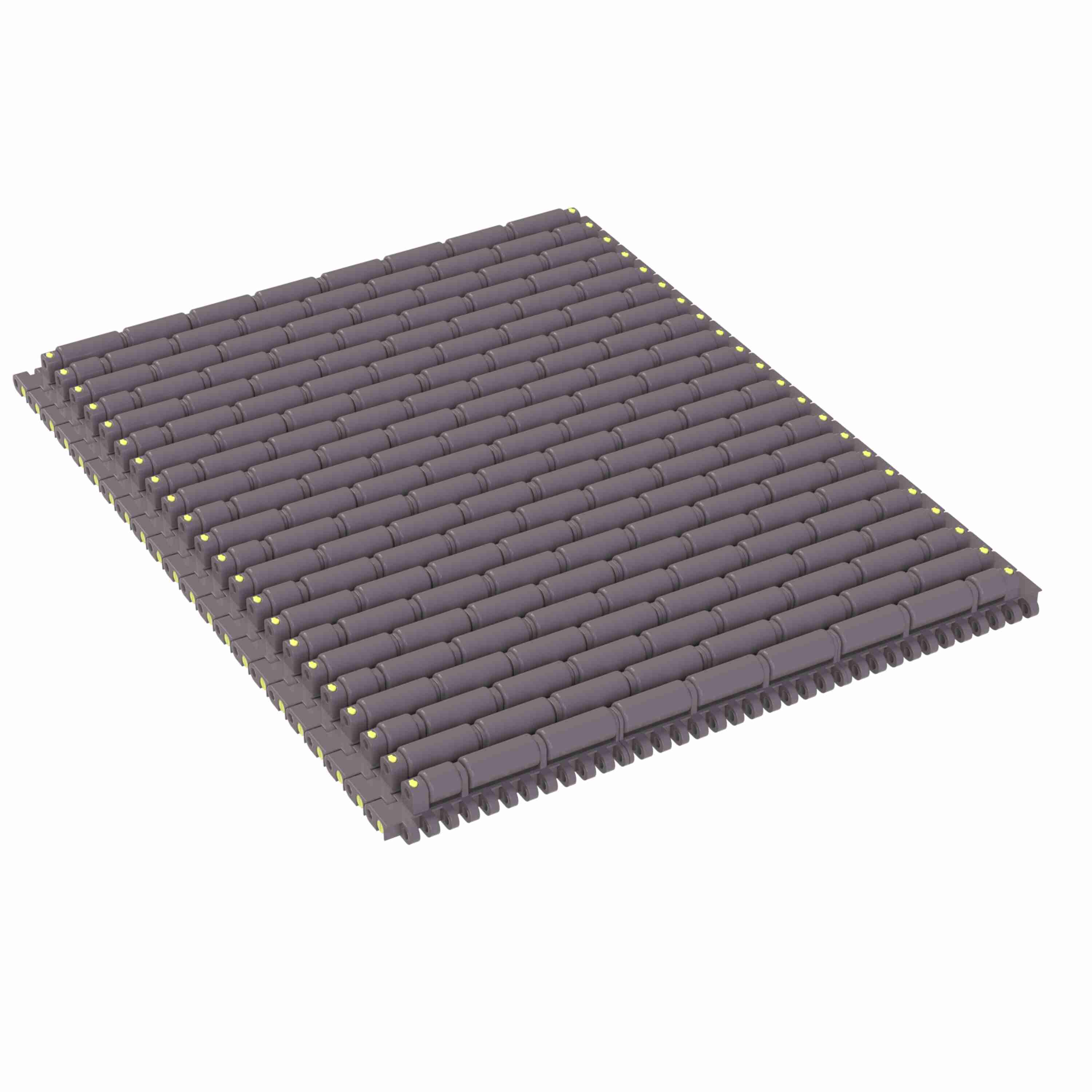

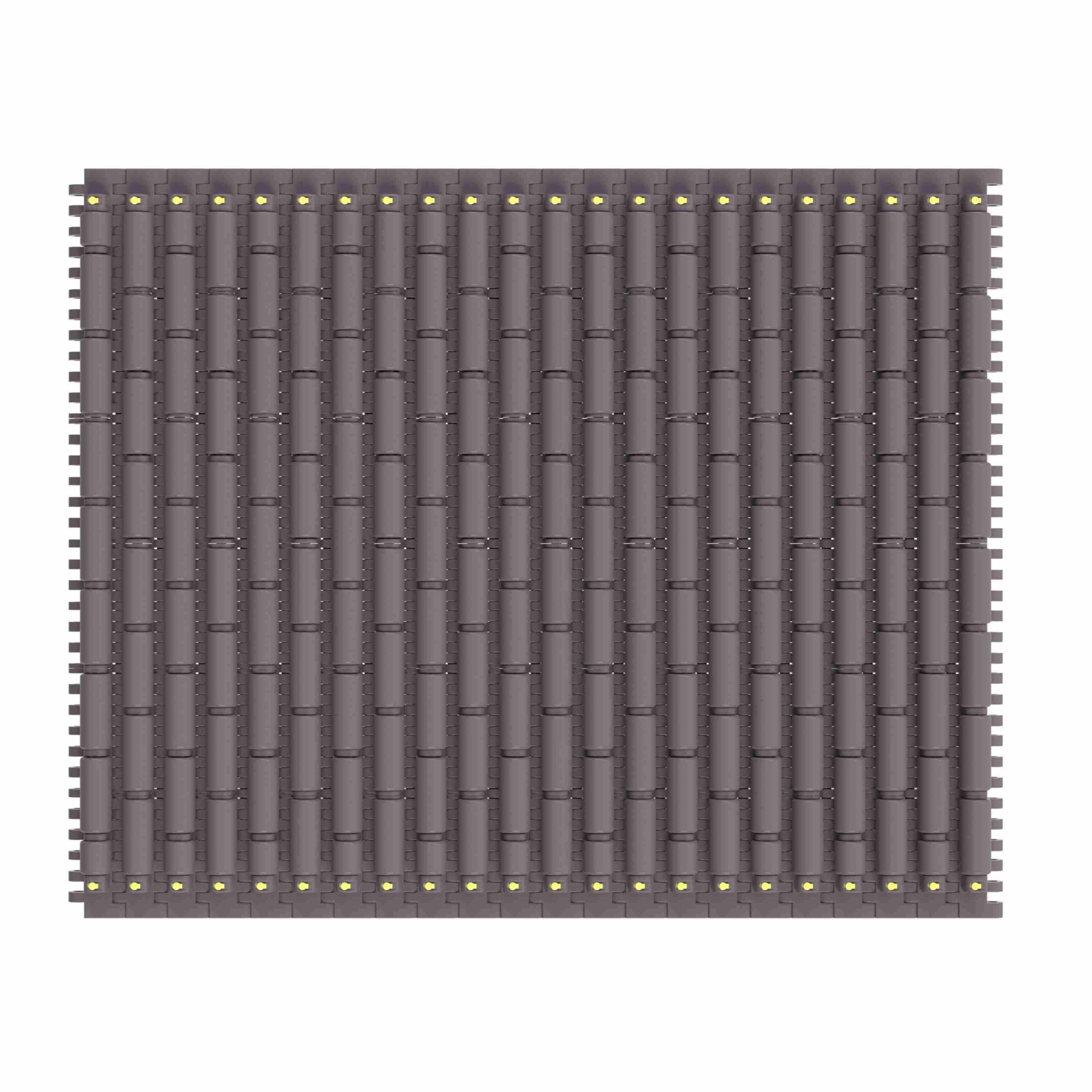

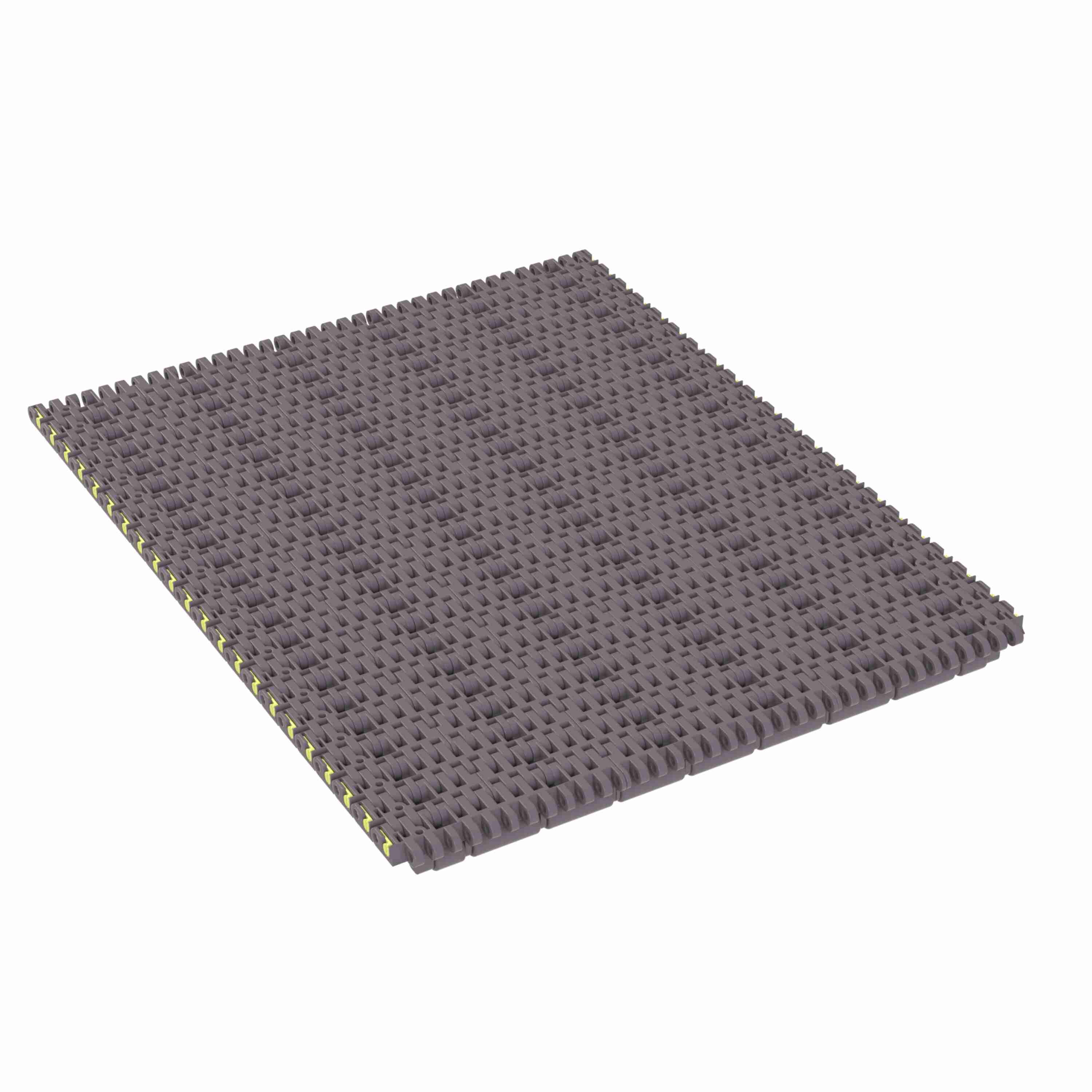

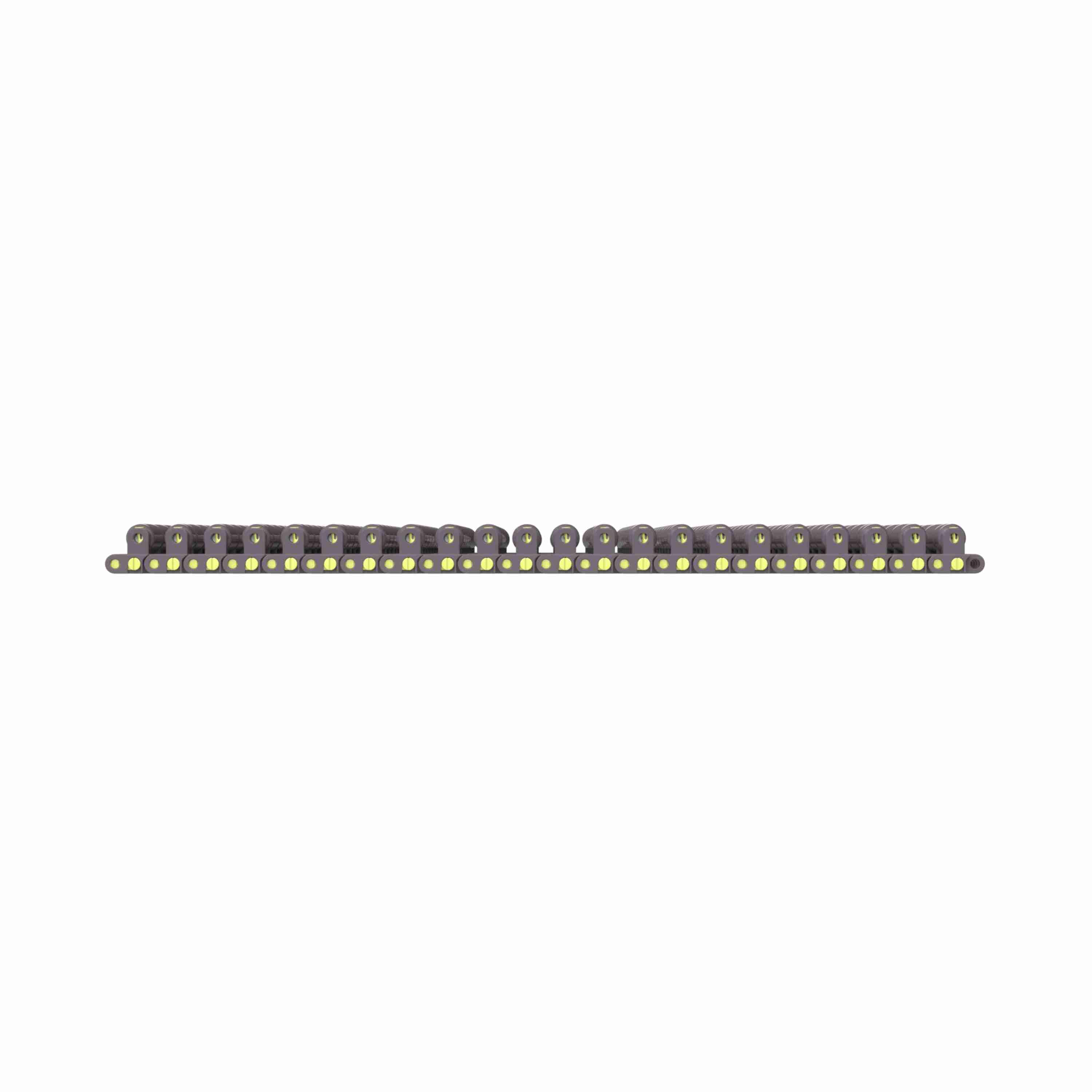

Rexnord 7703 Straight Running Low Backline Pressure, Material: Brown High Performance, Width: 24in, Pitch: 1in - 10324534
Part #:10324534
Catalog #:10324534
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (mm): | 32.8 mm | Straight or Side-Flex: | Straight Running |
| Chain Pitch (mm): | 25.4 mm | Chain Strength (N/m): | 43,041 N·m |
| Product Group: | Modular Plastic Belts | Chain Pitch (in): | 1 in |
| Series: | MatTop 7700 Series Chain | Surface Type: | Low Backline Pressure |
| Chain Material: | HP | Open Area (%): | 3 % |
| Chain Width Measurement System: | Imperial | Chain Strength (lb/ft): | 2,950 lb/ft |
| Chain Material Description: | Brown High Performance | Chain Number: | 7703 |
| Product Line: | Plastic Modular Chain and Belt | Rod/Pin Material: | Polyester |
| Chain Width (mm): | 609.6 mm | Product Type: | Straight Running |
| Chain Width (in): | 24 in | Belt Thickness (in): | 1.29 in |
General Specifications
| Weight: | 0.85 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
