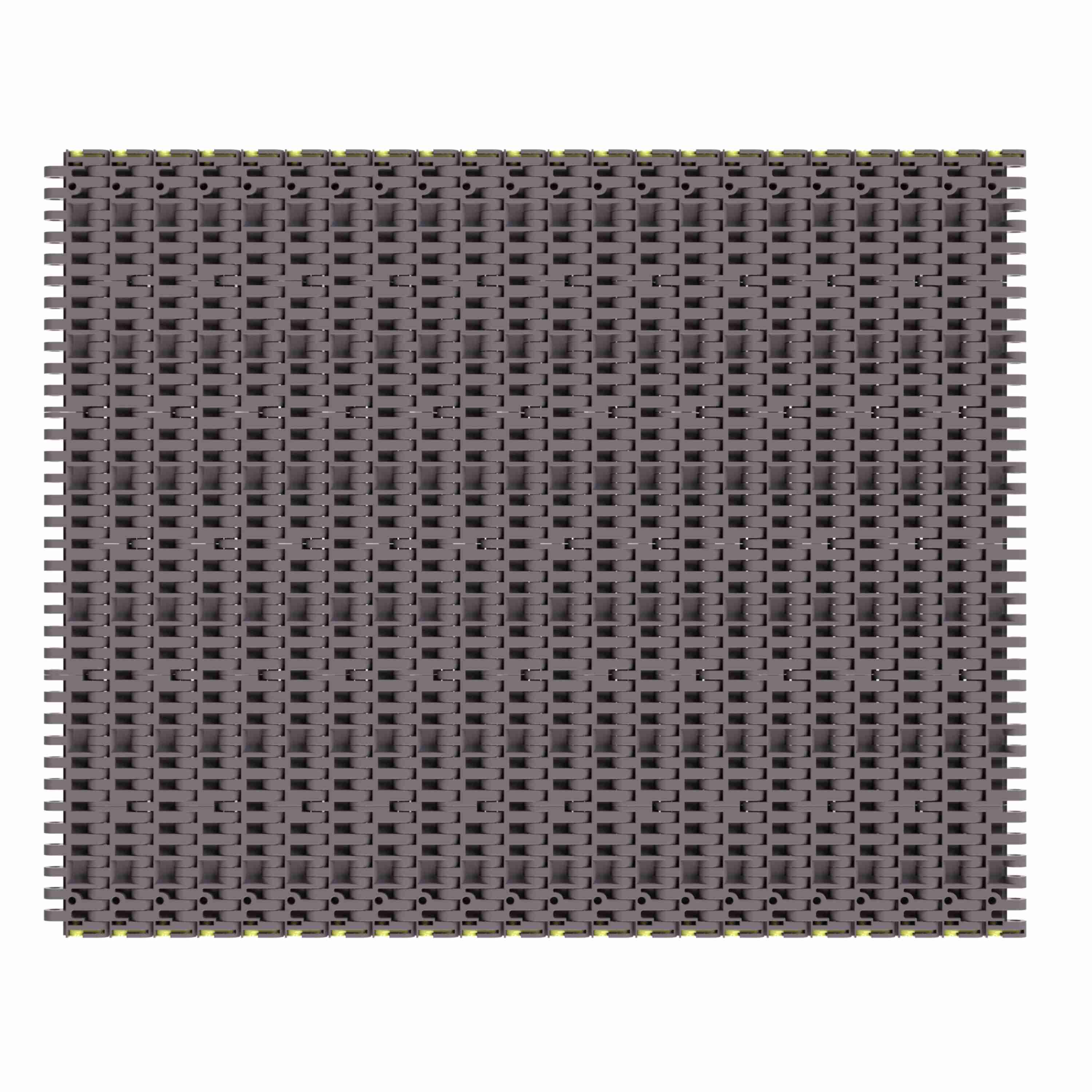

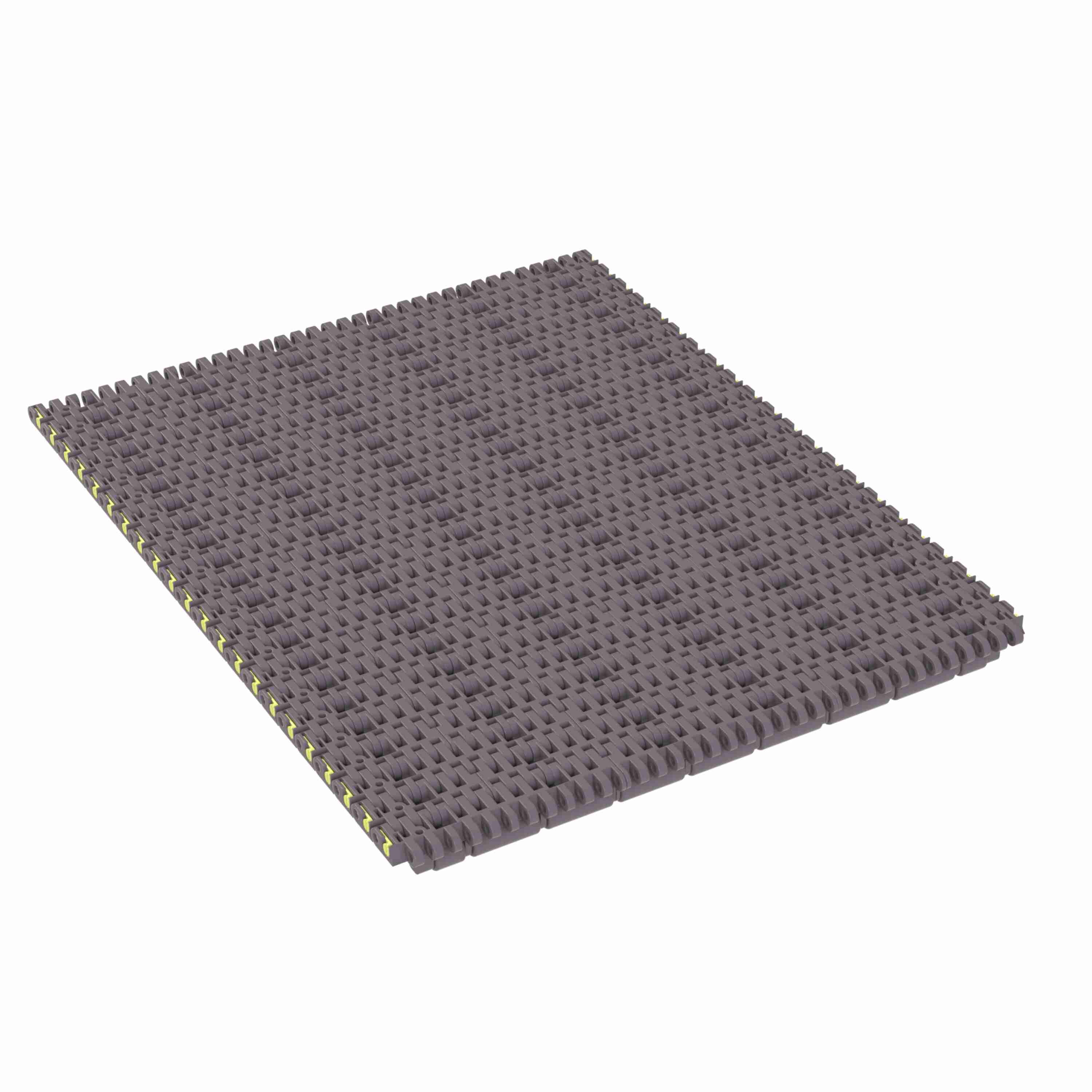

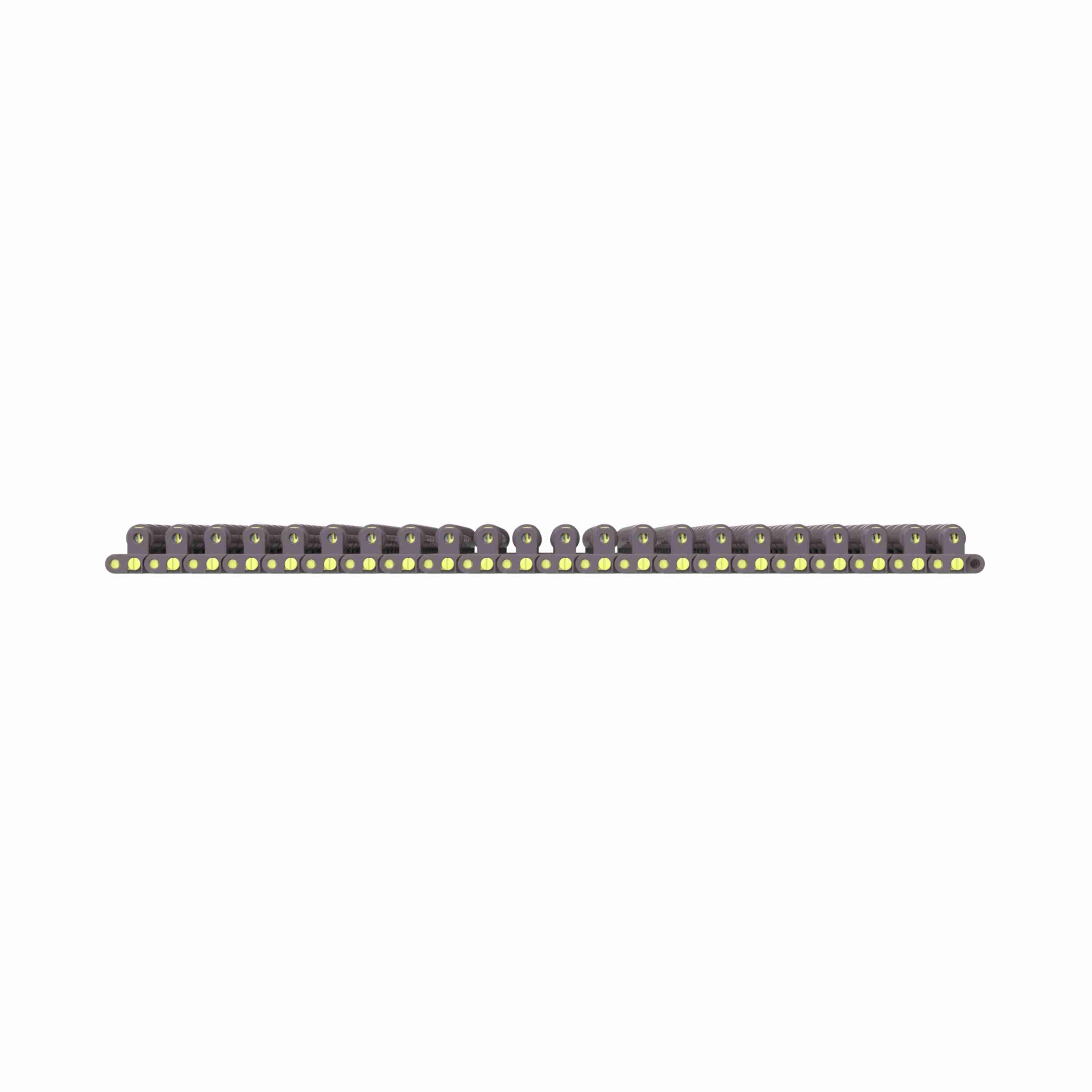

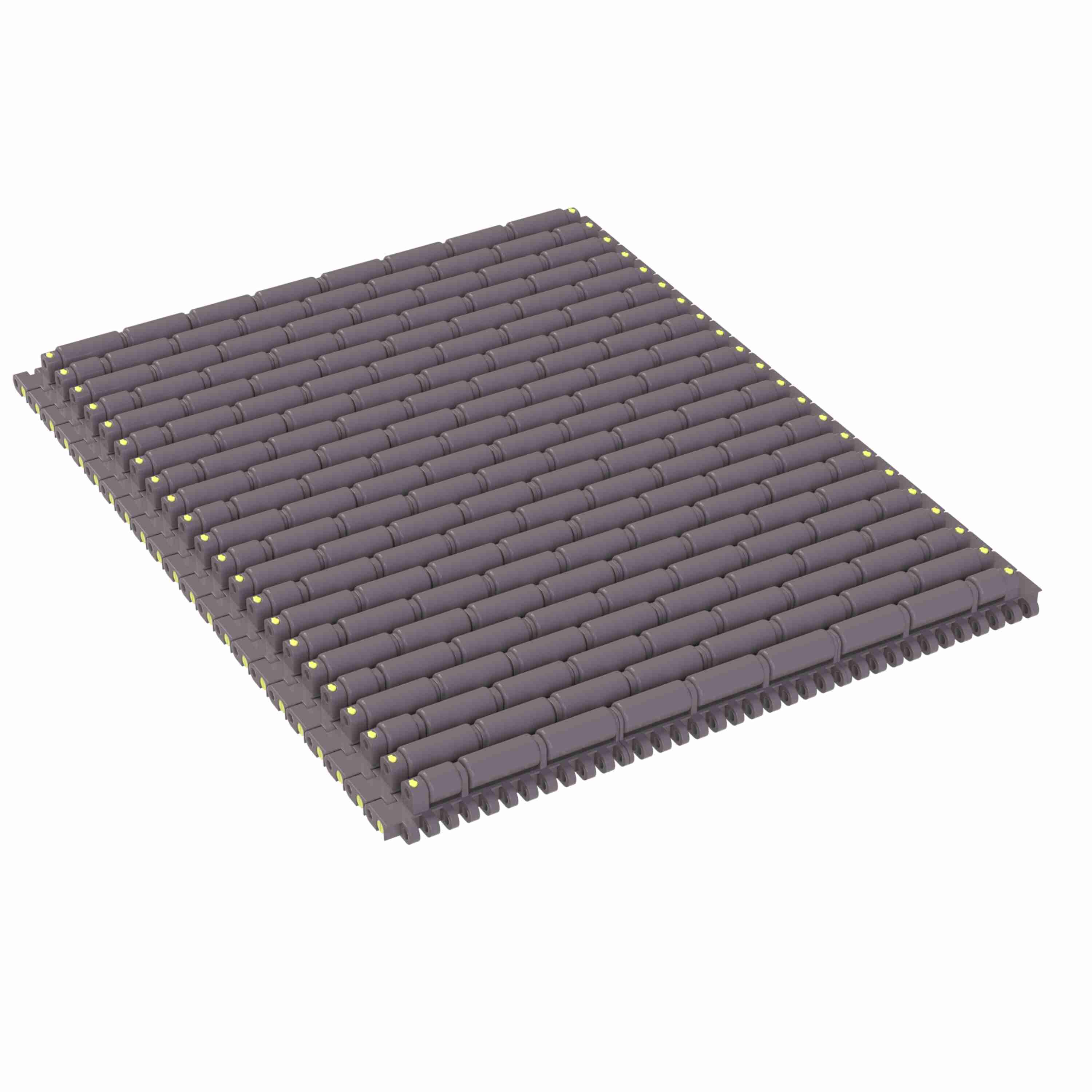

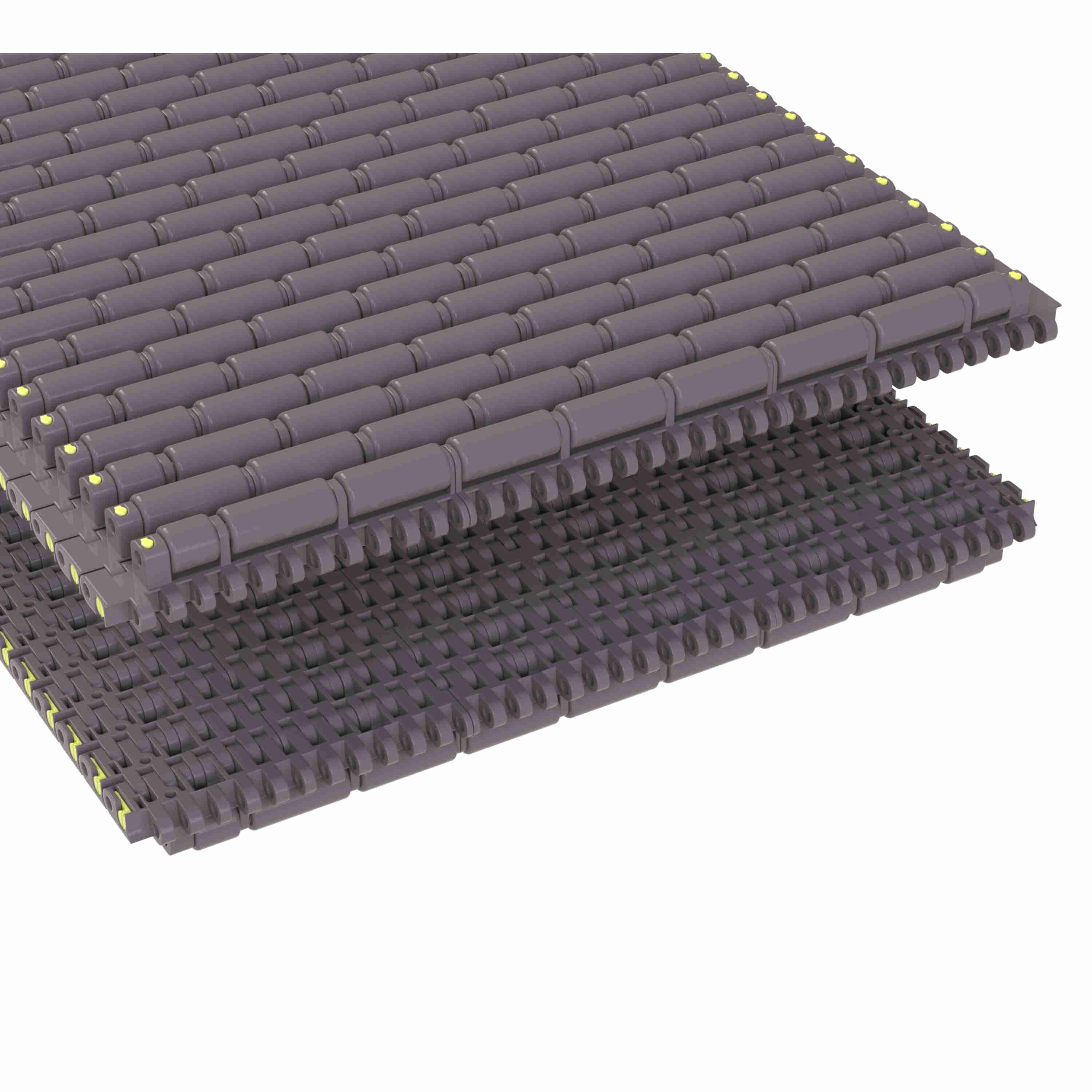

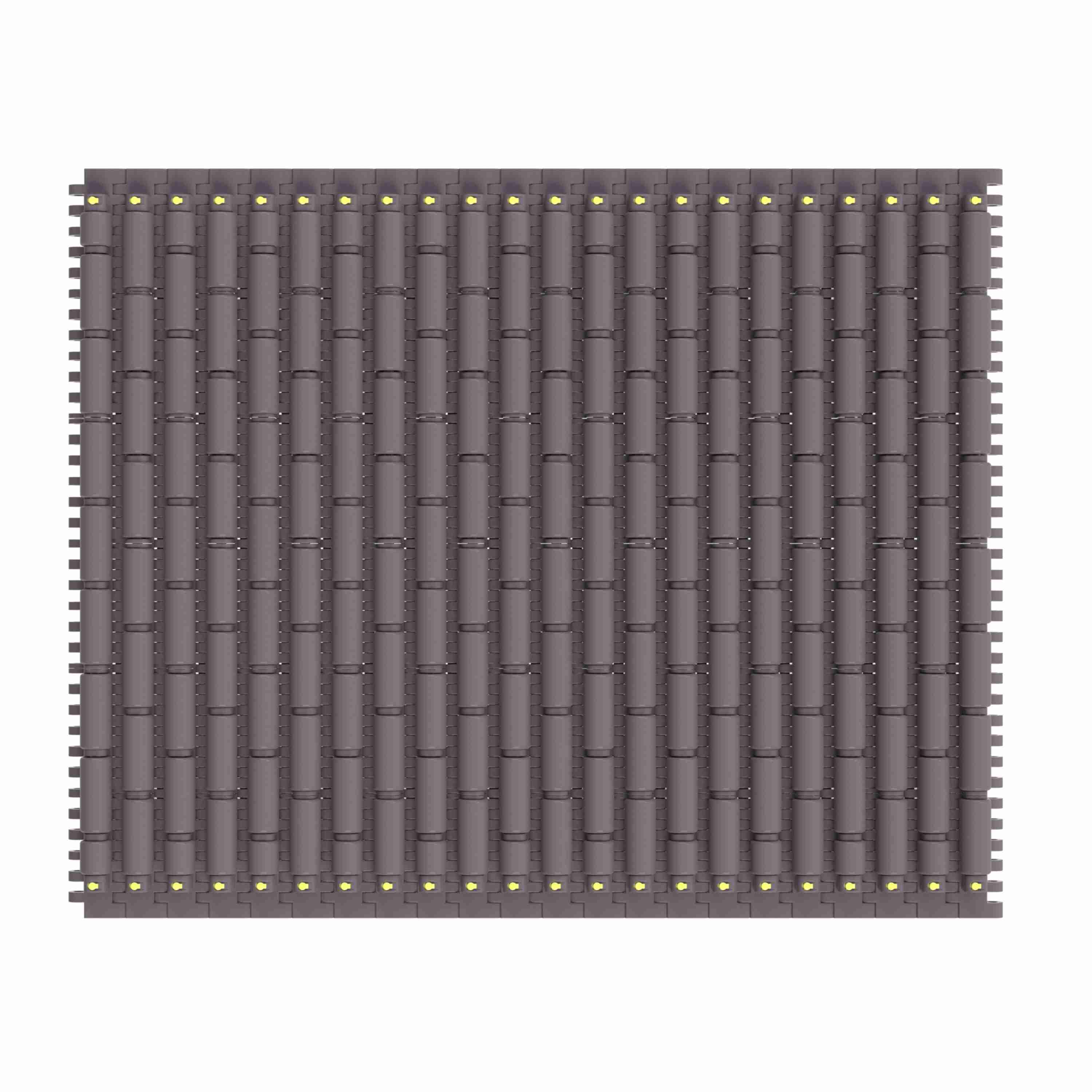

Rexnord 7703 Straight Running Low Backline Pressure, Material: Brown High Performance, Width: 9in, Pitch: 1in - 10324530
Part #:10324530
Catalog #:10324530
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (in): | 1 in | Chain Material Description: | Brown High Performance |
| Chain Width (mm): | 228.6 mm | Chain Pitch (mm): | 25.4 mm |
| Series: | MatTop 7700 Series Chain | Chain Strength (N/m): | 43,041 N·m |
| Product Line: | Plastic Modular Chain and Belt | Product Type: | Straight Running |
| Product Group: | Modular Plastic Belts | Open Area (%): | 3 % |
| Surface Type: | Low Backline Pressure | Chain Material: | HP |
| Chain Number: | 7703 | Chain Width Measurement System: | Imperial |
| Belt Thickness (mm): | 32.8 mm | Chain Width (in): | 9 in |
| Belt Thickness (in): | 1.29 in | Straight or Side-Flex: | Straight Running |
| Rod/Pin Material: | Polyester | Chain Strength (lb/ft): | 2,950 lb/ft |
General Specifications
| Weight: | 0.32 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
