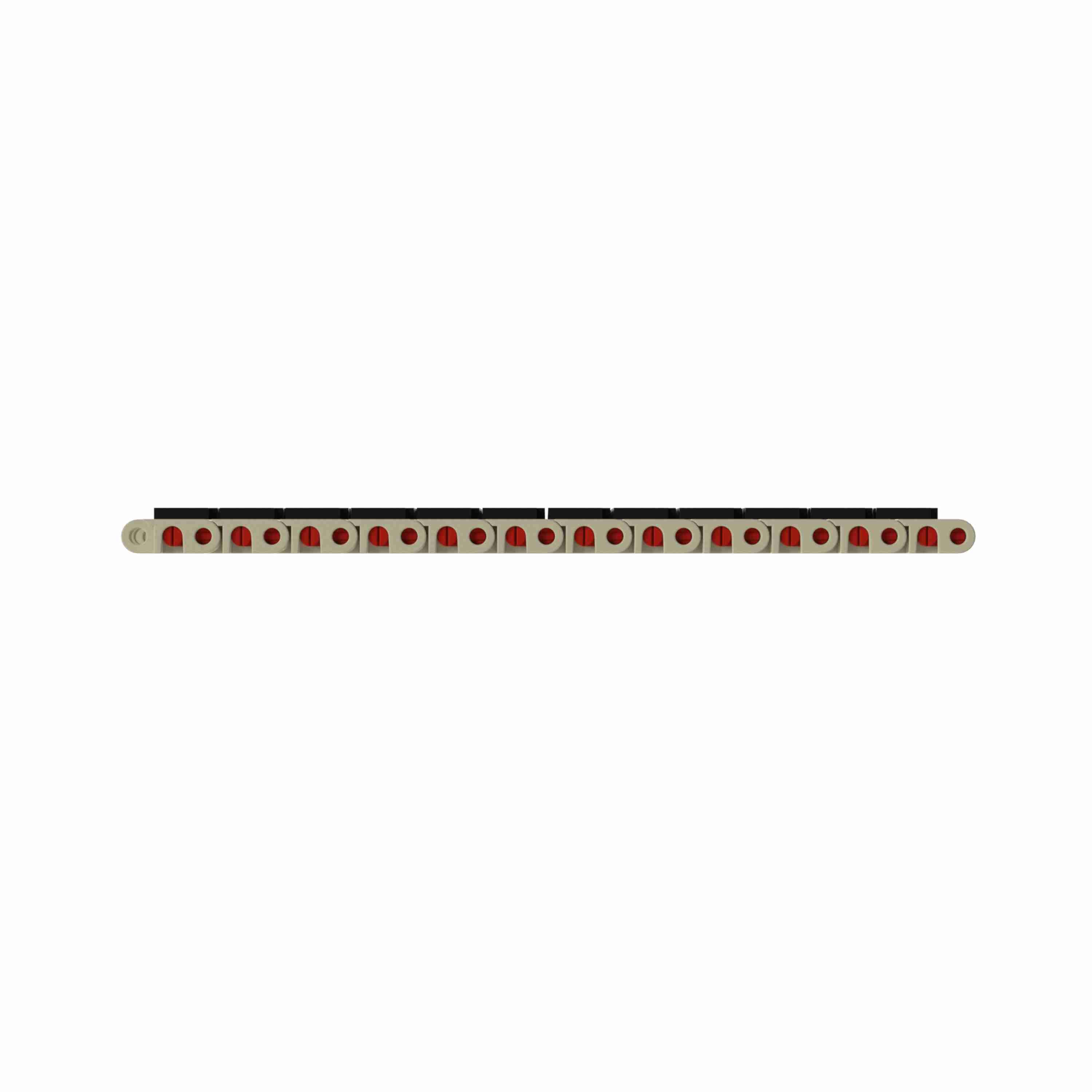

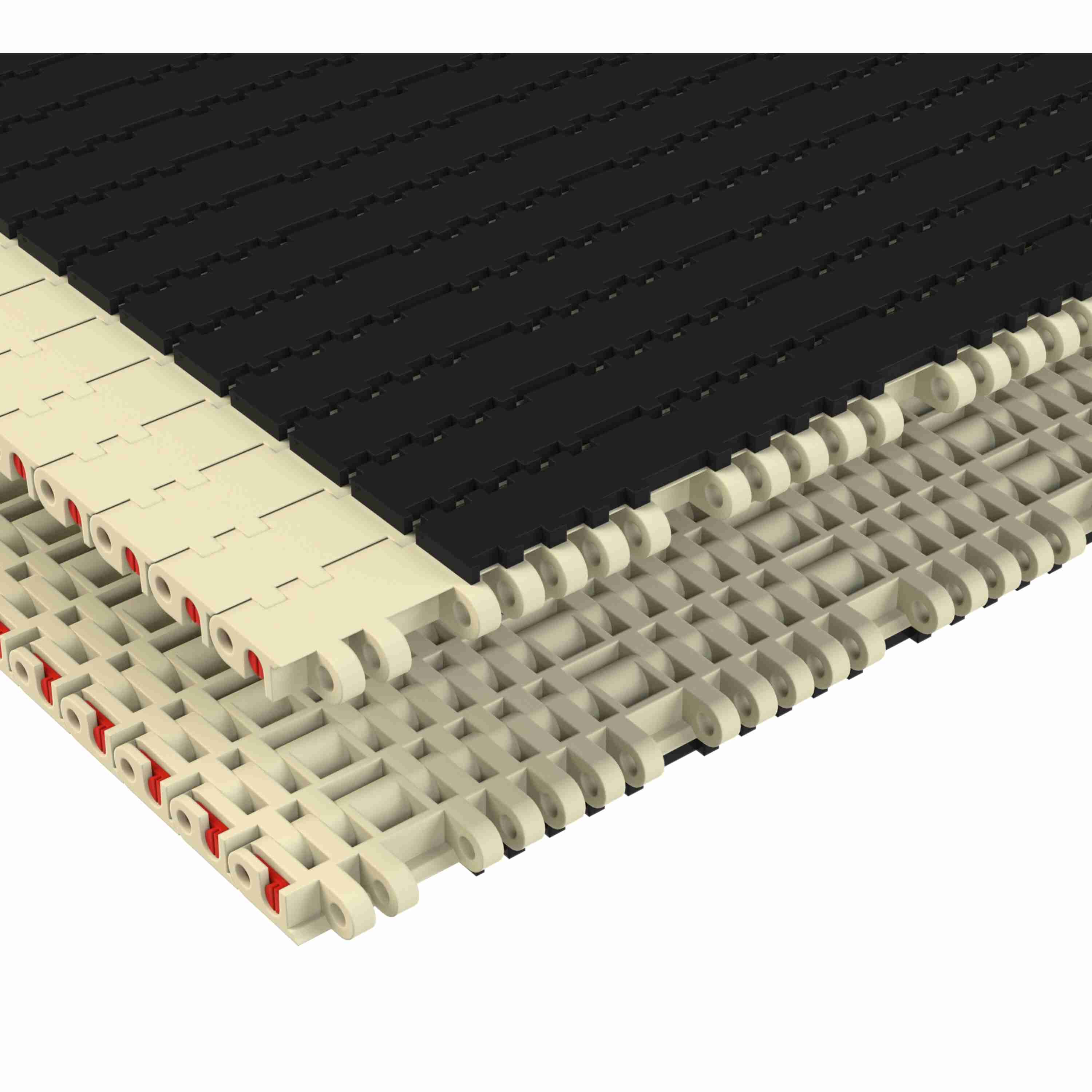

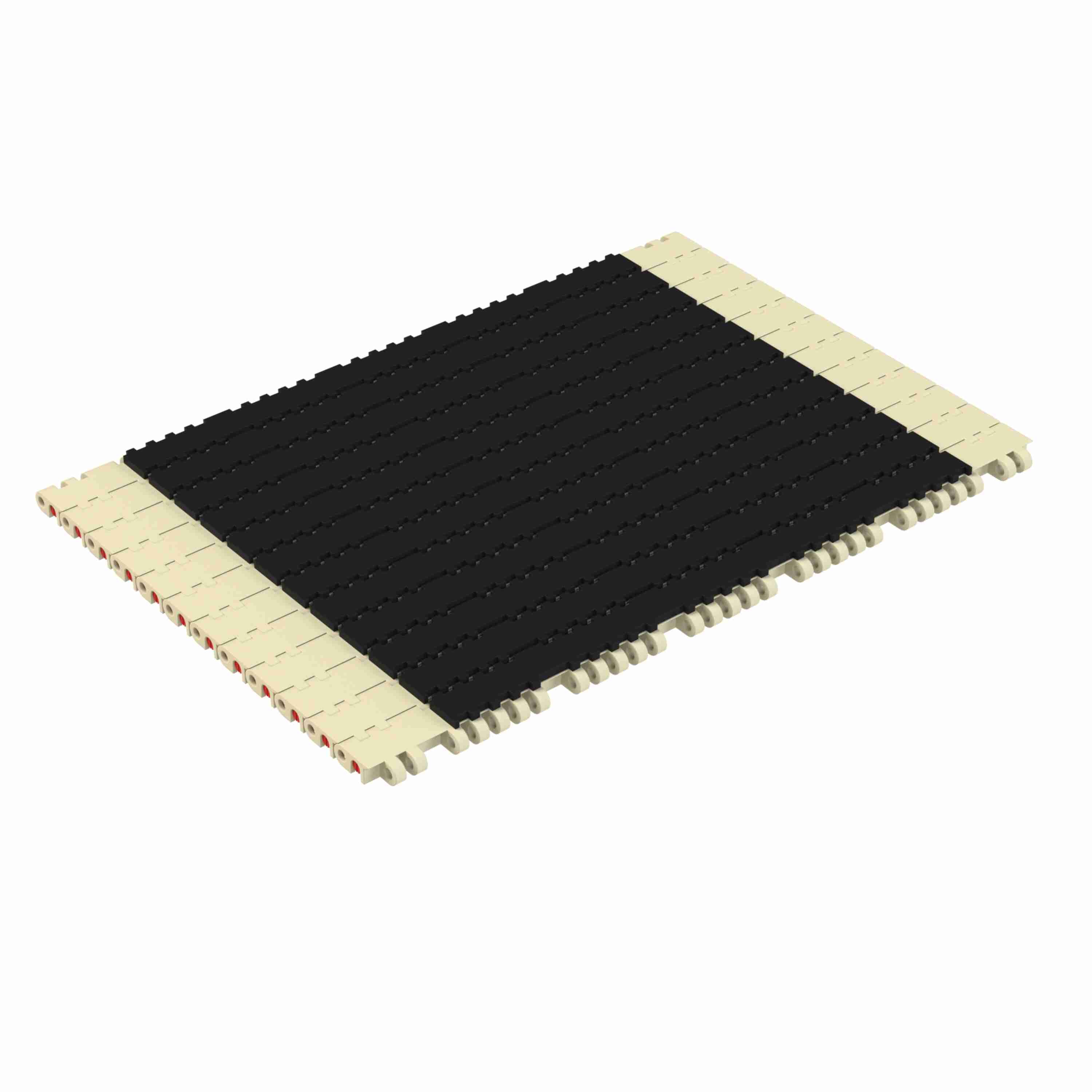

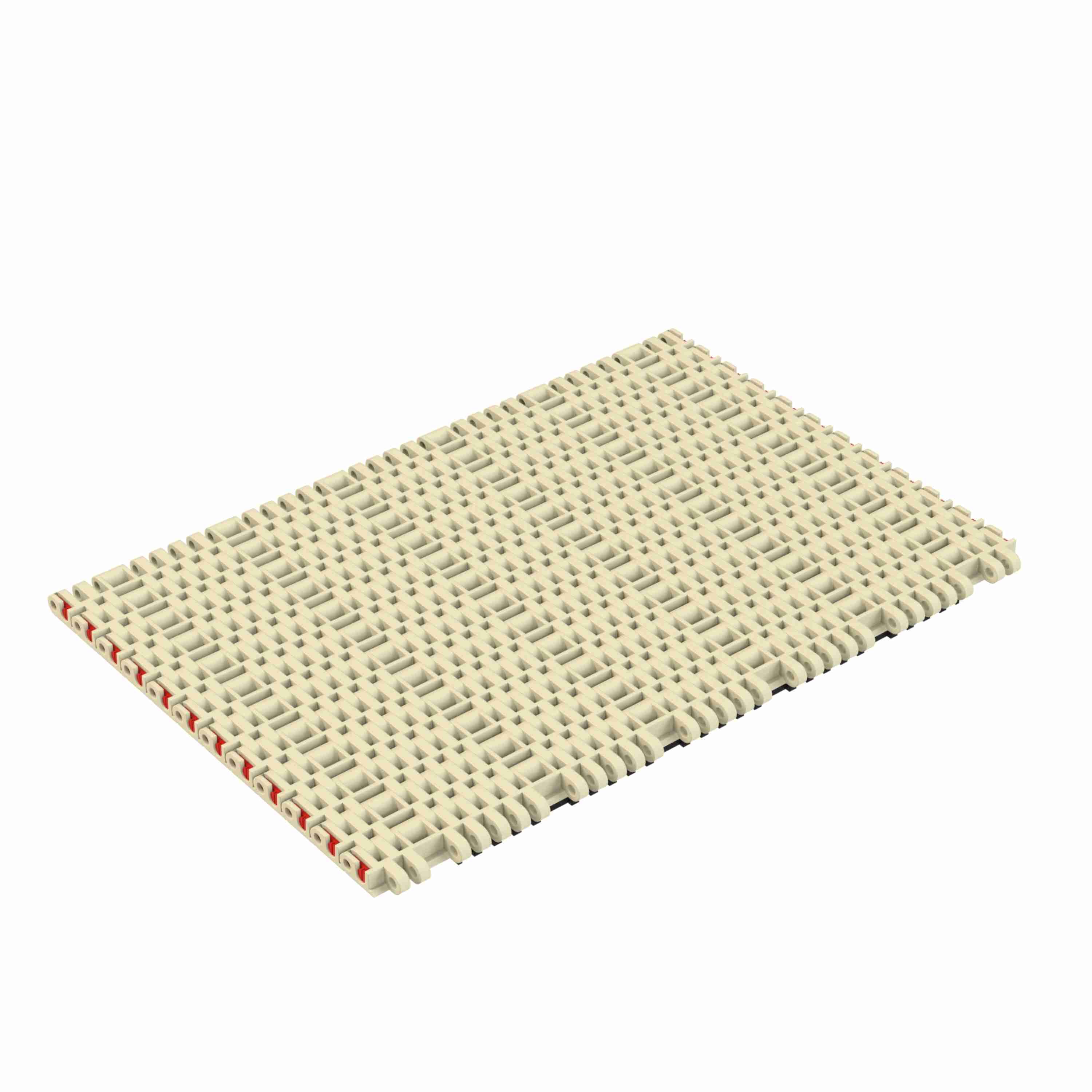

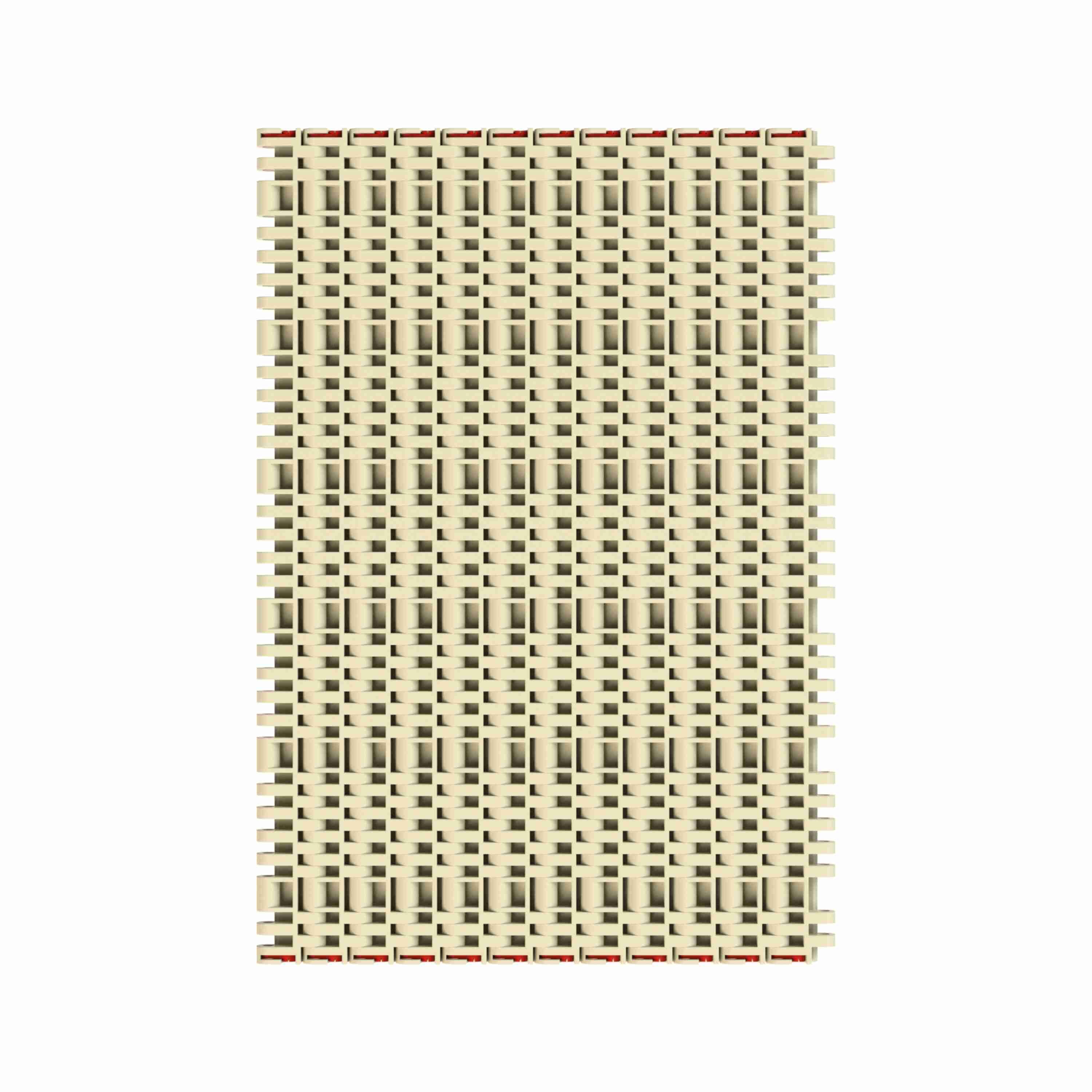

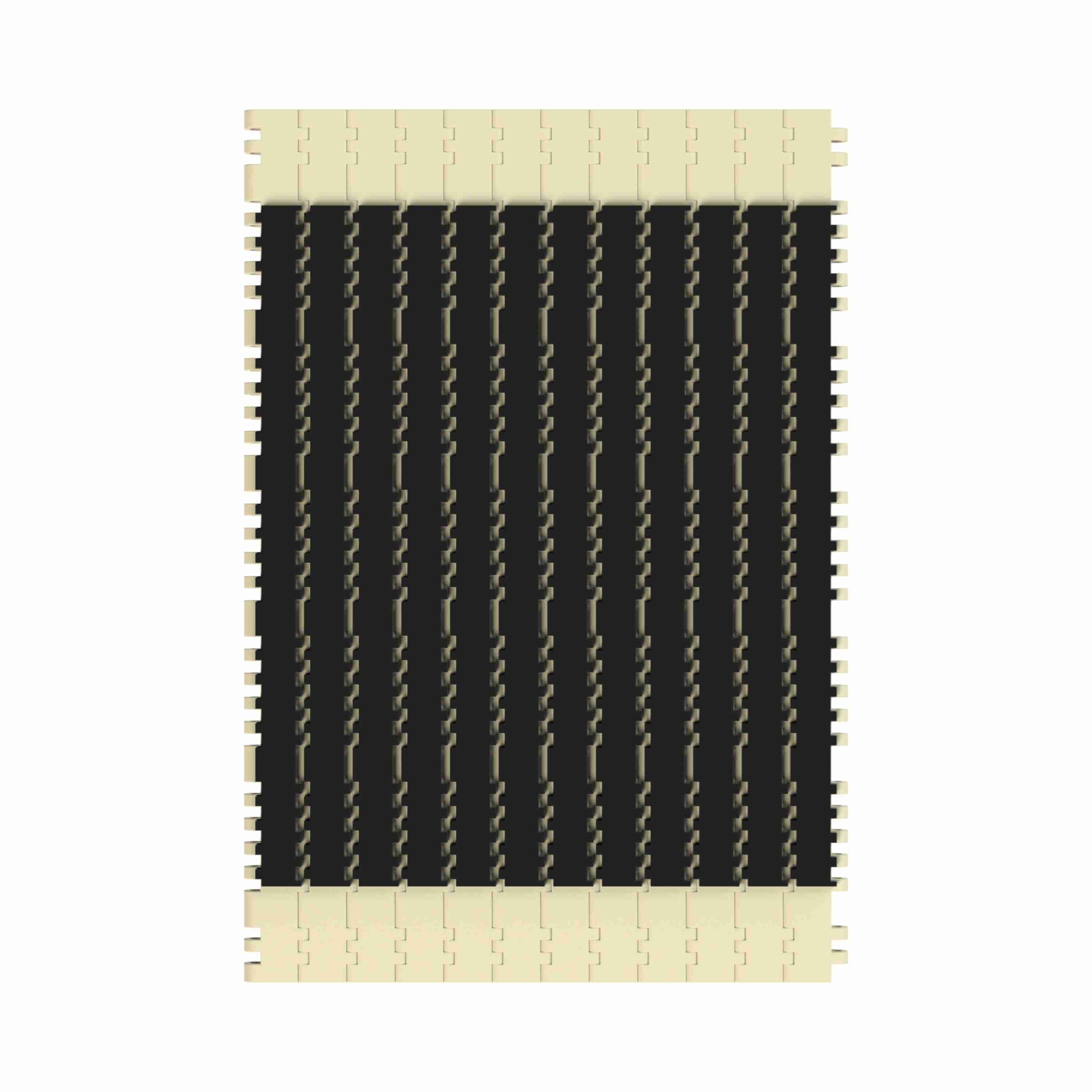

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 12in, Pitch: 1in - HTF7705-12
Part #:10029023
Catalog #:HTF7705-12
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb/ft): | 1,800 lb/ft | Chain Pitch (in): | 1 in |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Product Group: | Modular Plastic Belts |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Pitch (mm): | 25.4 mm |
| Belt Thickness (in): | 0.69 in | Chain Material: | HT |
| Chain Material Description: | Beige High Temperature | Belt Thickness (mm): | 17.6 mm |
| Open Area (%): | 3 % | Chain Width Measurement System: | Imperial |
| Chain Strength (N/m): | 26,262 N·m | Chain Width (in): | 12 in |
| Product Line: | Plastic Modular Chain and Belt | Straight or Side-Flex: | Straight Running |
| Rod/Pin Material: | Polypropylene | Surface Type: | RubberTop® |
| Product Type: | Straight Running | Series: | MatTop 7700 Series Chain |
| Chain Width (mm): | 304.8 mm | Chain Number: | 7705 RubberTop® |
General Specifications
| Weight: | 0.18 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
