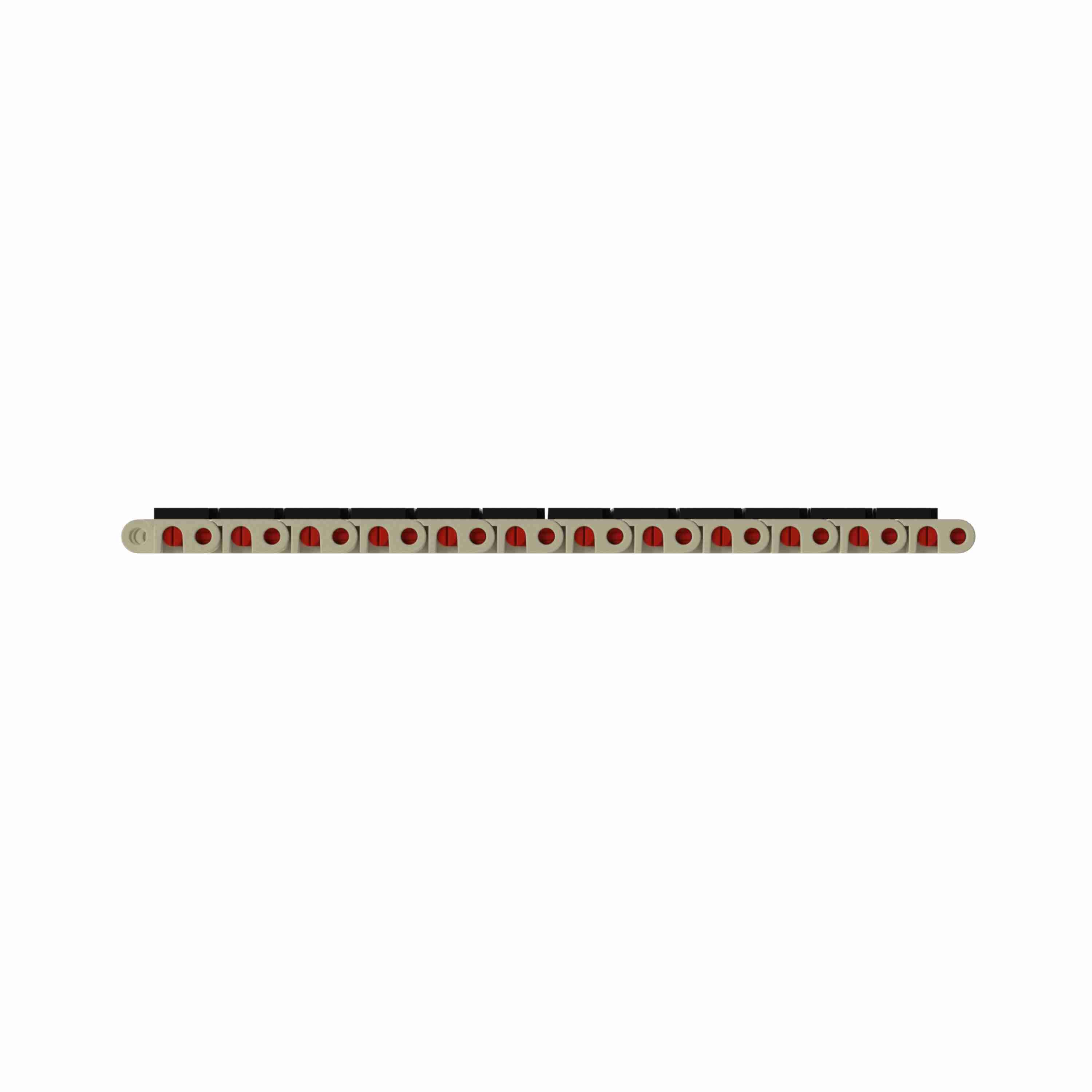

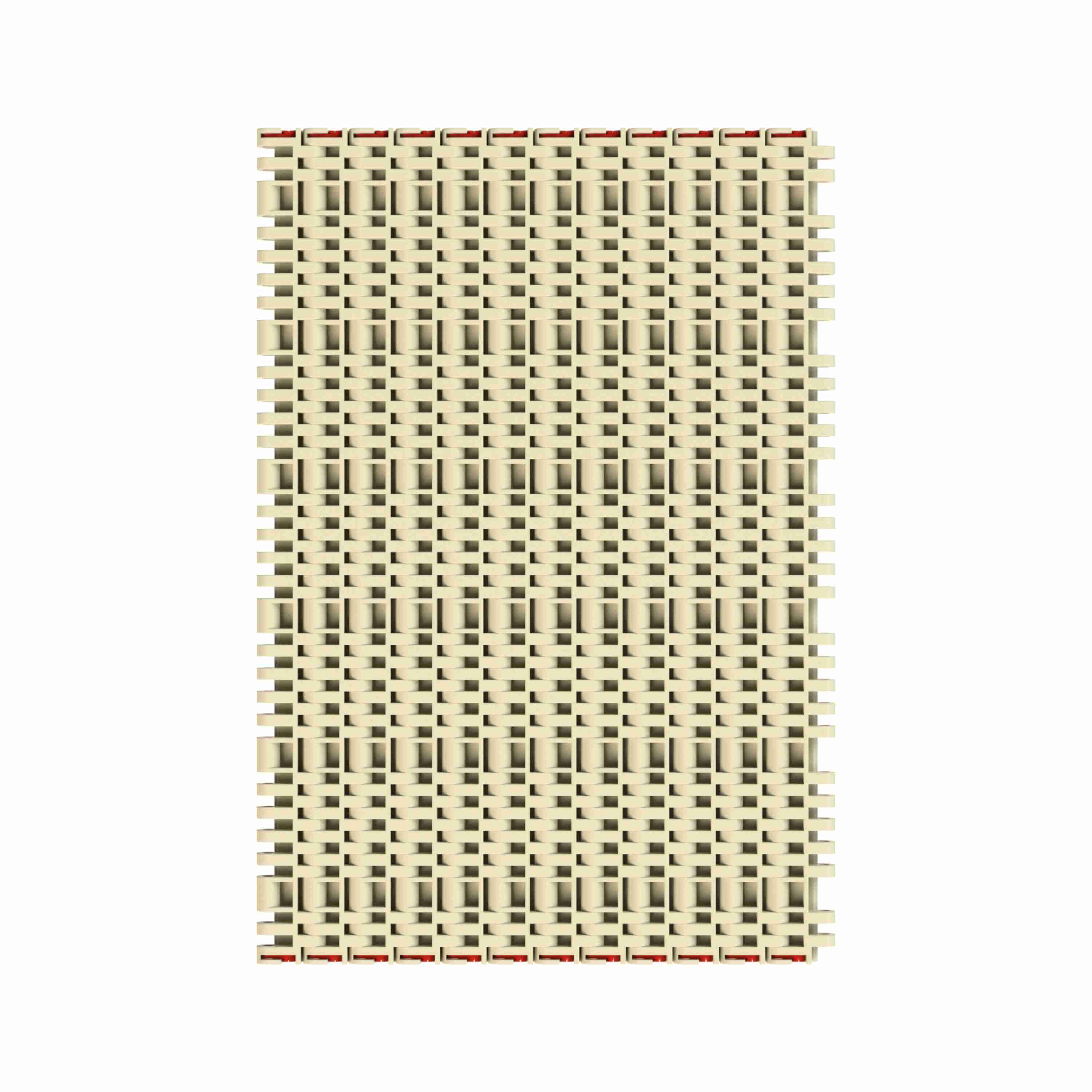

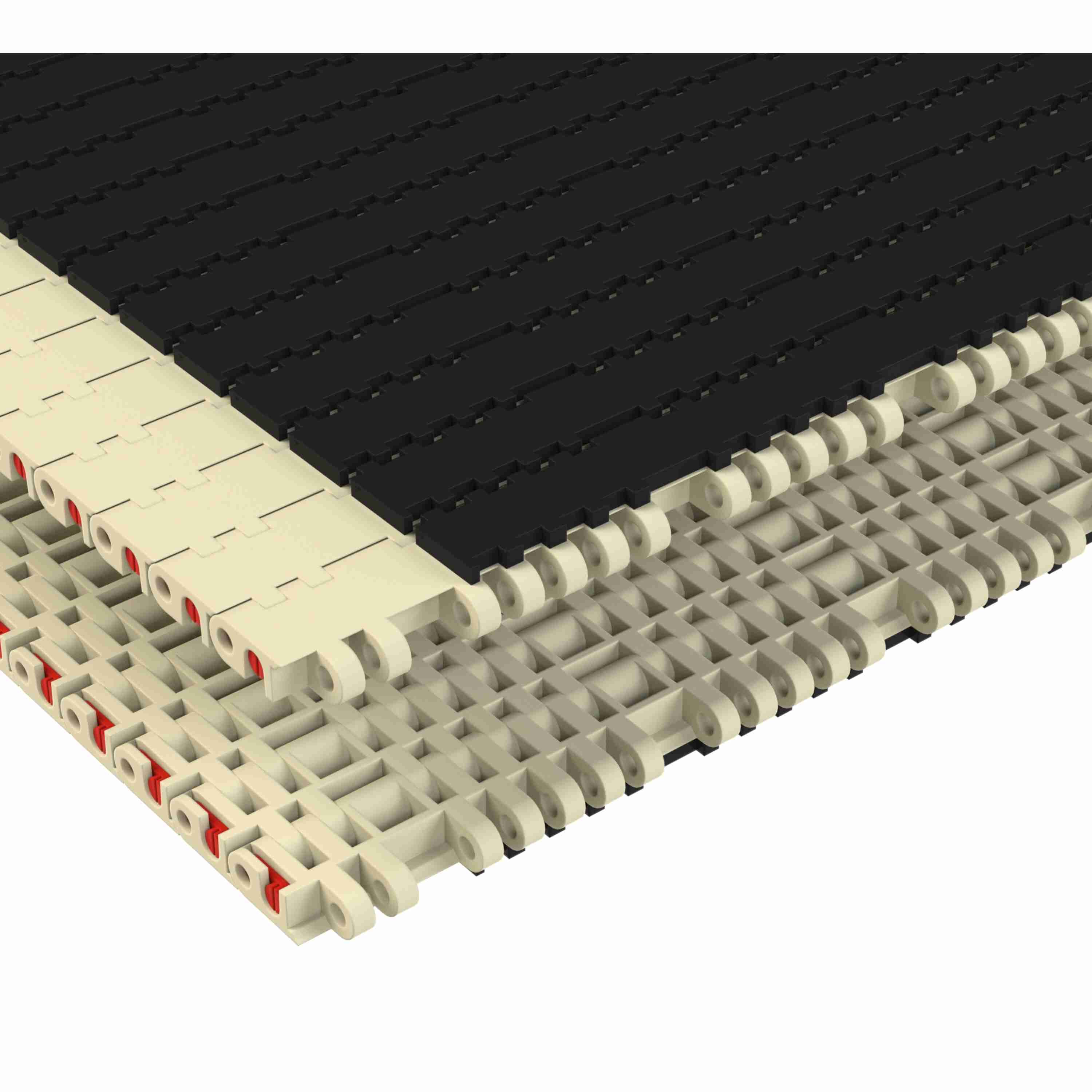

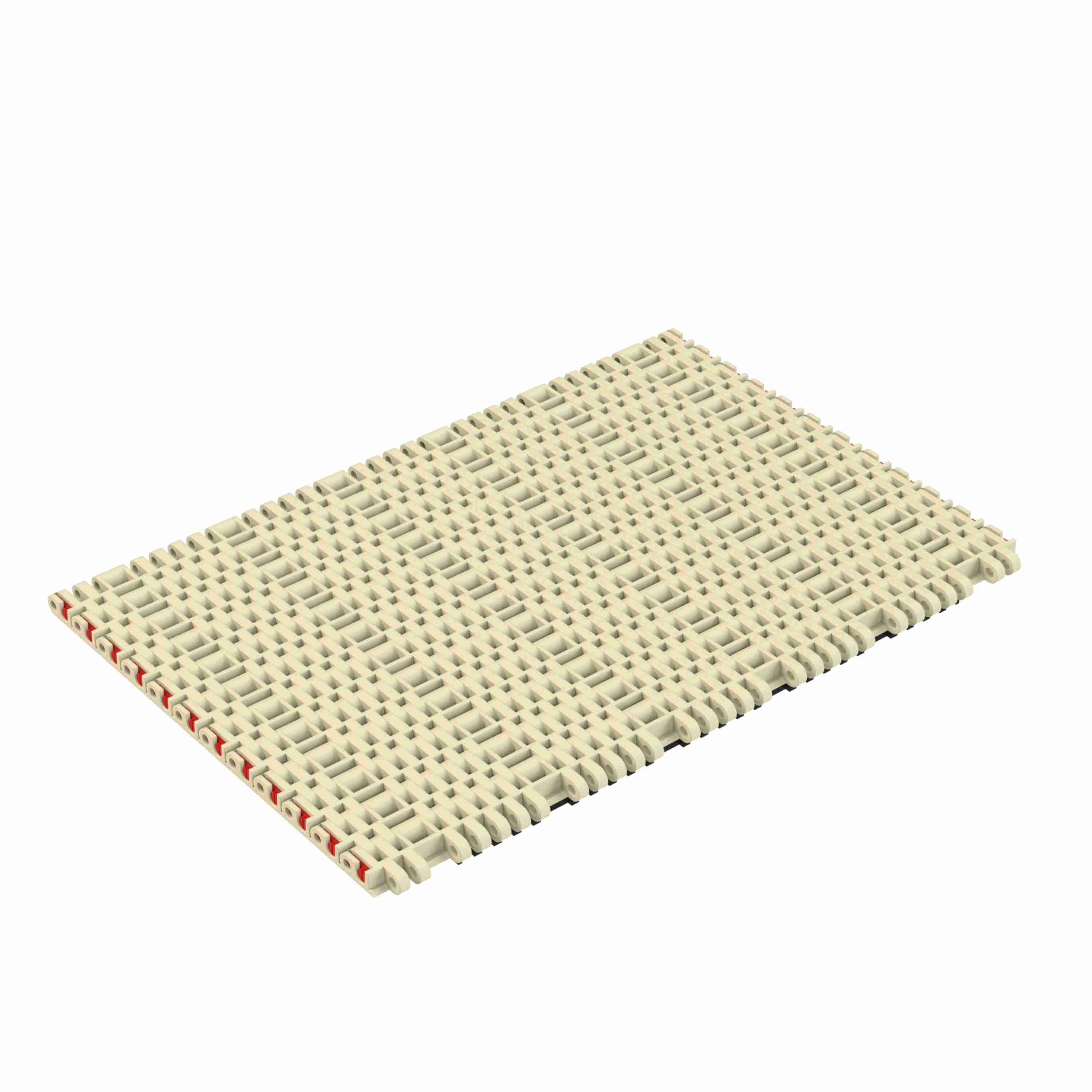

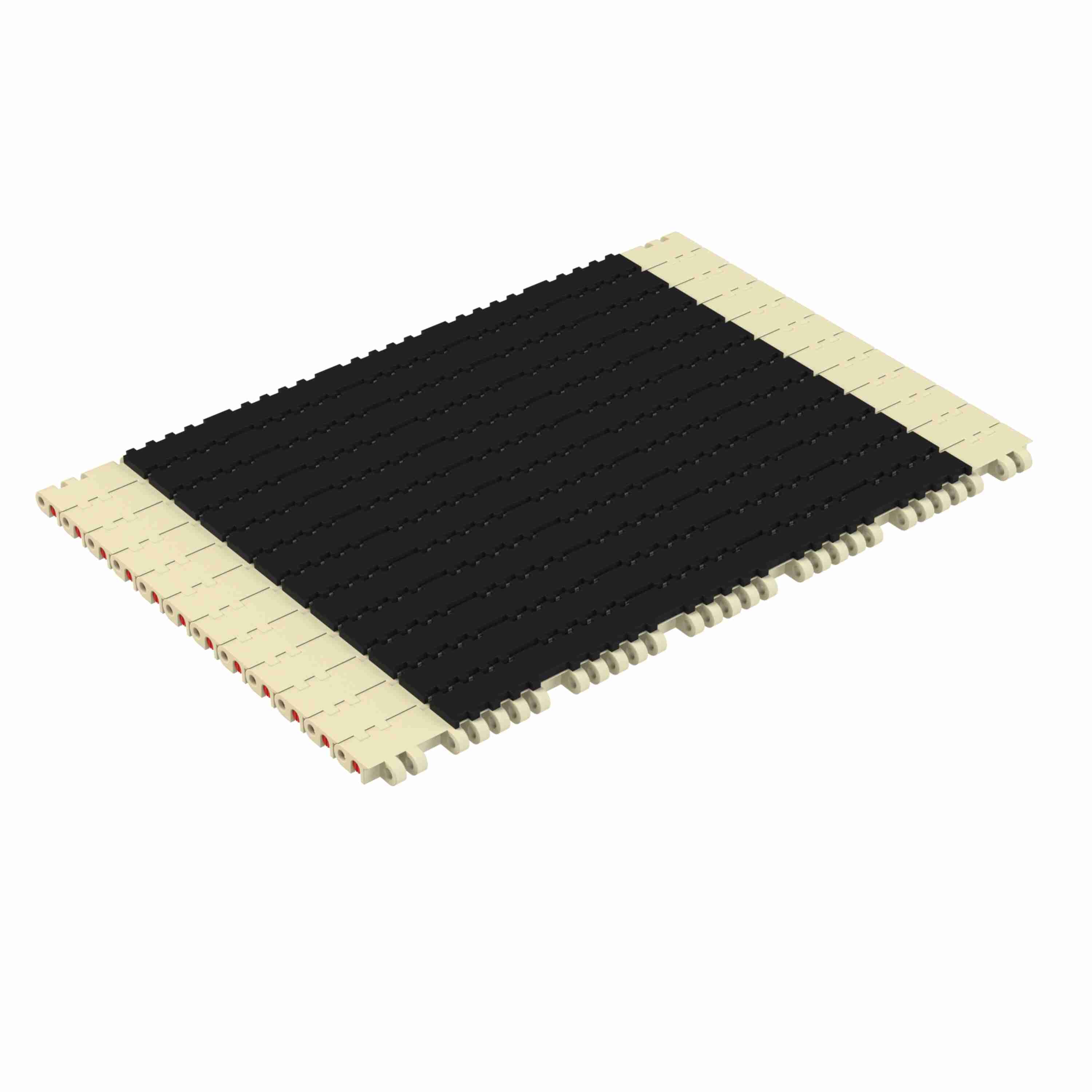

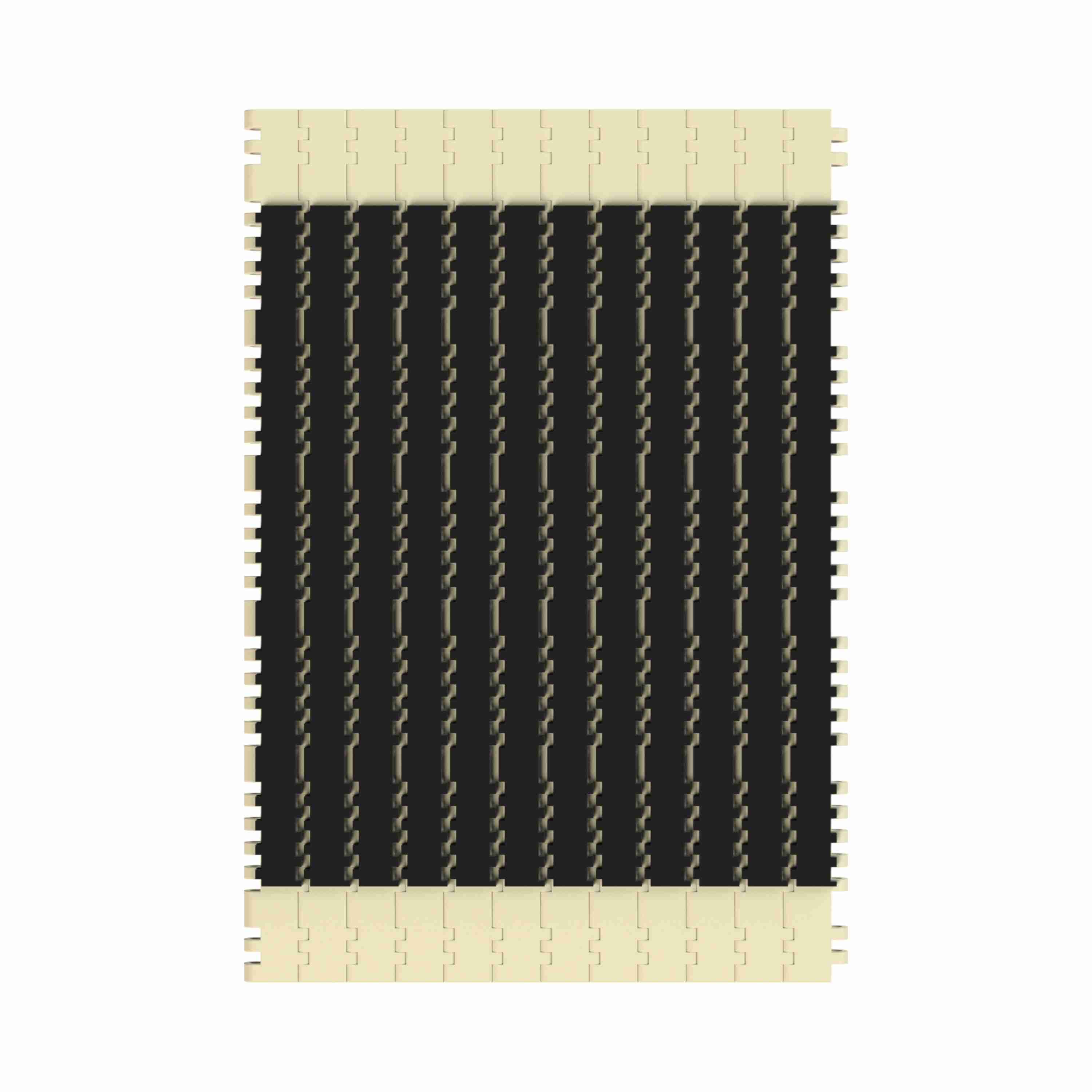

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 18in, Pitch: 1in - HTF7705-18
Part #:10029025
Catalog #:HTF7705-18
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Number of SuperGrip/RubberTop Rows: | 1 Row | Chain Number: | 7705 RubberTop® |
| Chain Width (in): | 18 in | Chain Width (mm): | 457.2 mm |
| Chain Width Measurement System: | Imperial | Chain Pitch (mm): | 25.4 mm |
| Rod/Pin Material: | Polypropylene | Surface Type: | RubberTop® |
| Product Line: | Plastic Modular Chain and Belt | Belt Thickness (mm): | 17.6 mm |
| Chain Strength (lb/ft): | 1,800 lb/ft | Chain Strength (N/m): | 26,262 N·m |
| Chain Pitch (in): | 1 in | Chain Material Description: | Beige High Temperature |
| SG/RT Spacing (Pitches): | Every Pitch | Straight or Side-Flex: | Straight Running |
| Series: | MatTop 7700 Series Chain | Product Type: | Straight Running |
| Chain Material: | HT | Product Group: | Modular Plastic Belts |
| Open Area (%): | 3 % | Belt Thickness (in): | 0.69 in |
General Specifications
| Weight: | 0.27 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
