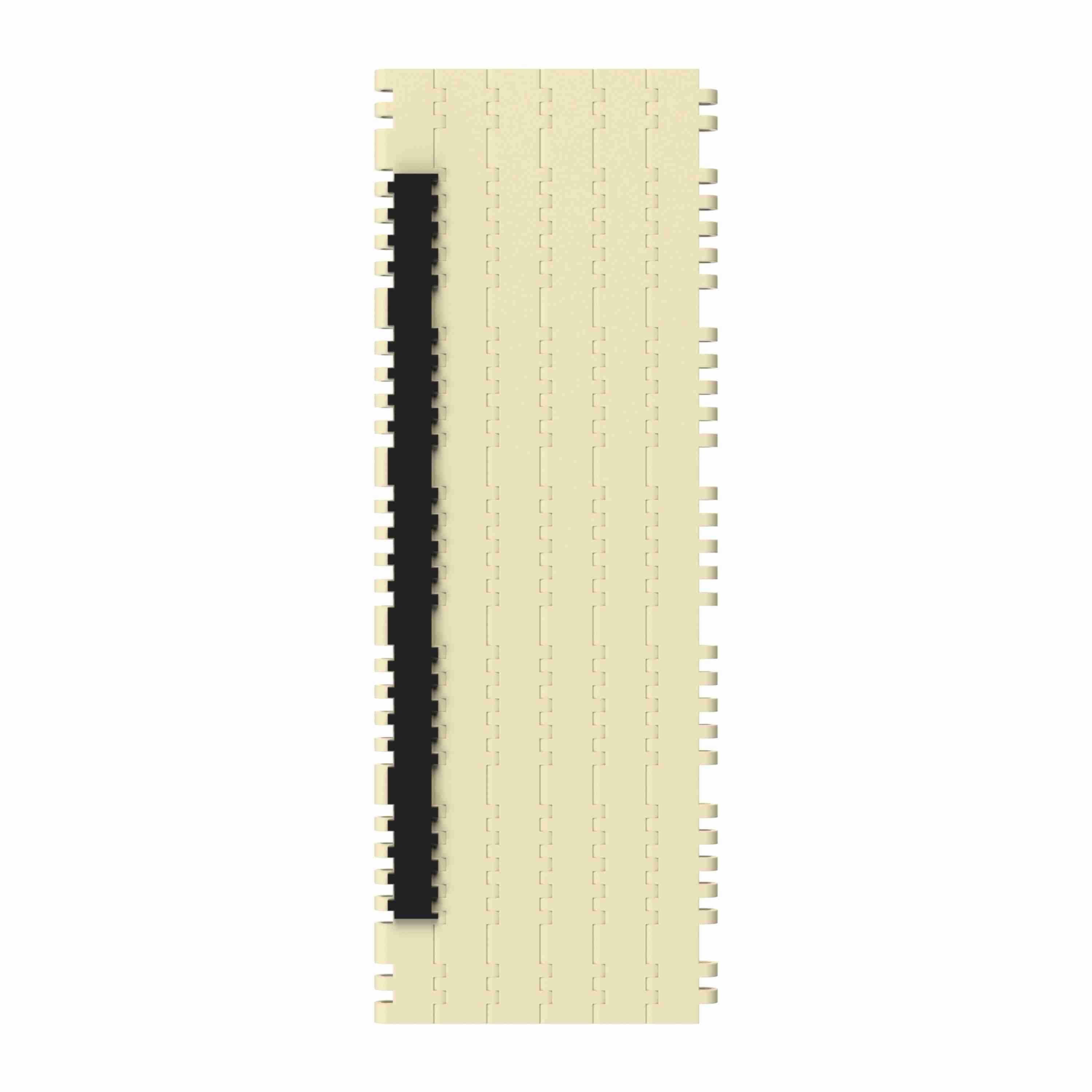

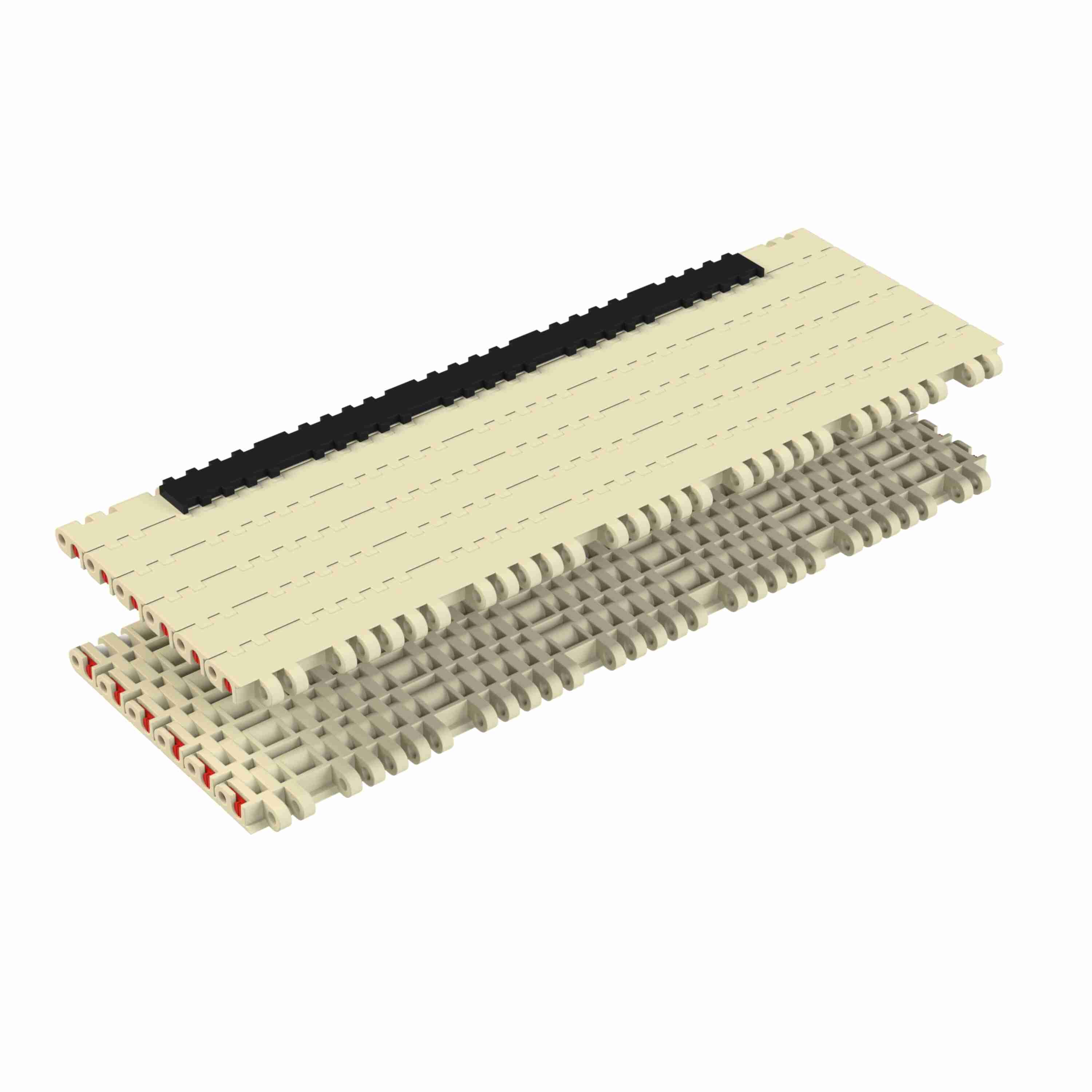

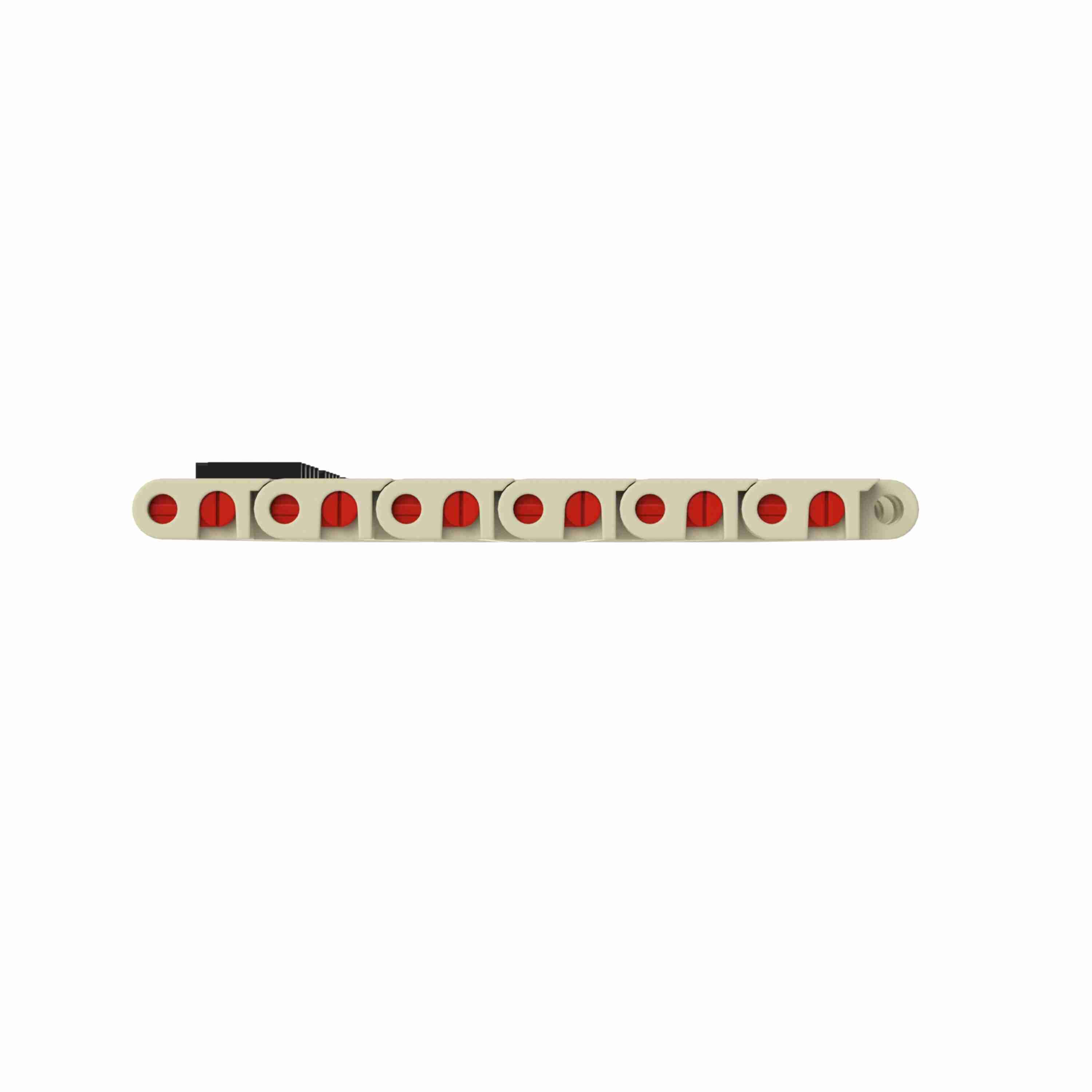

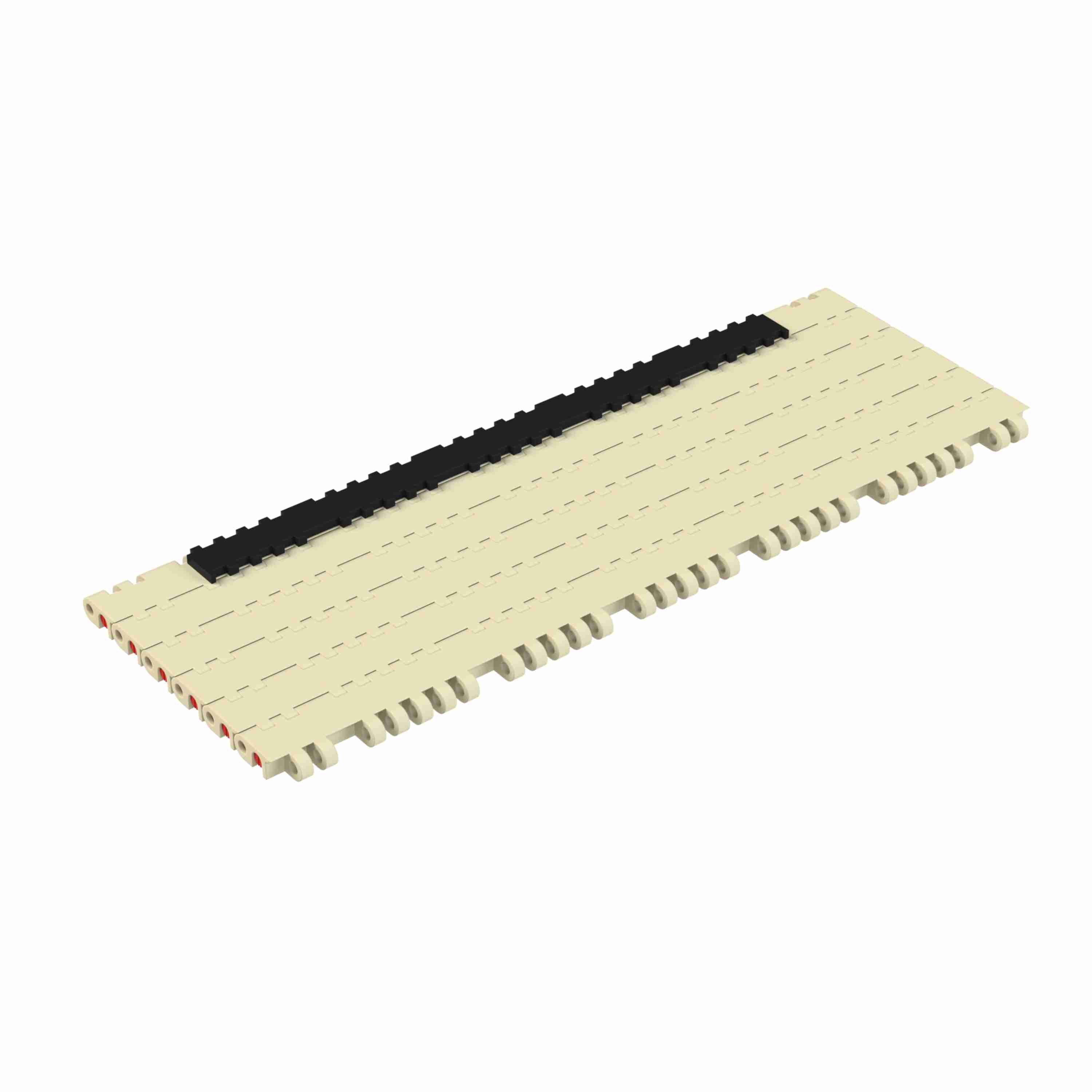

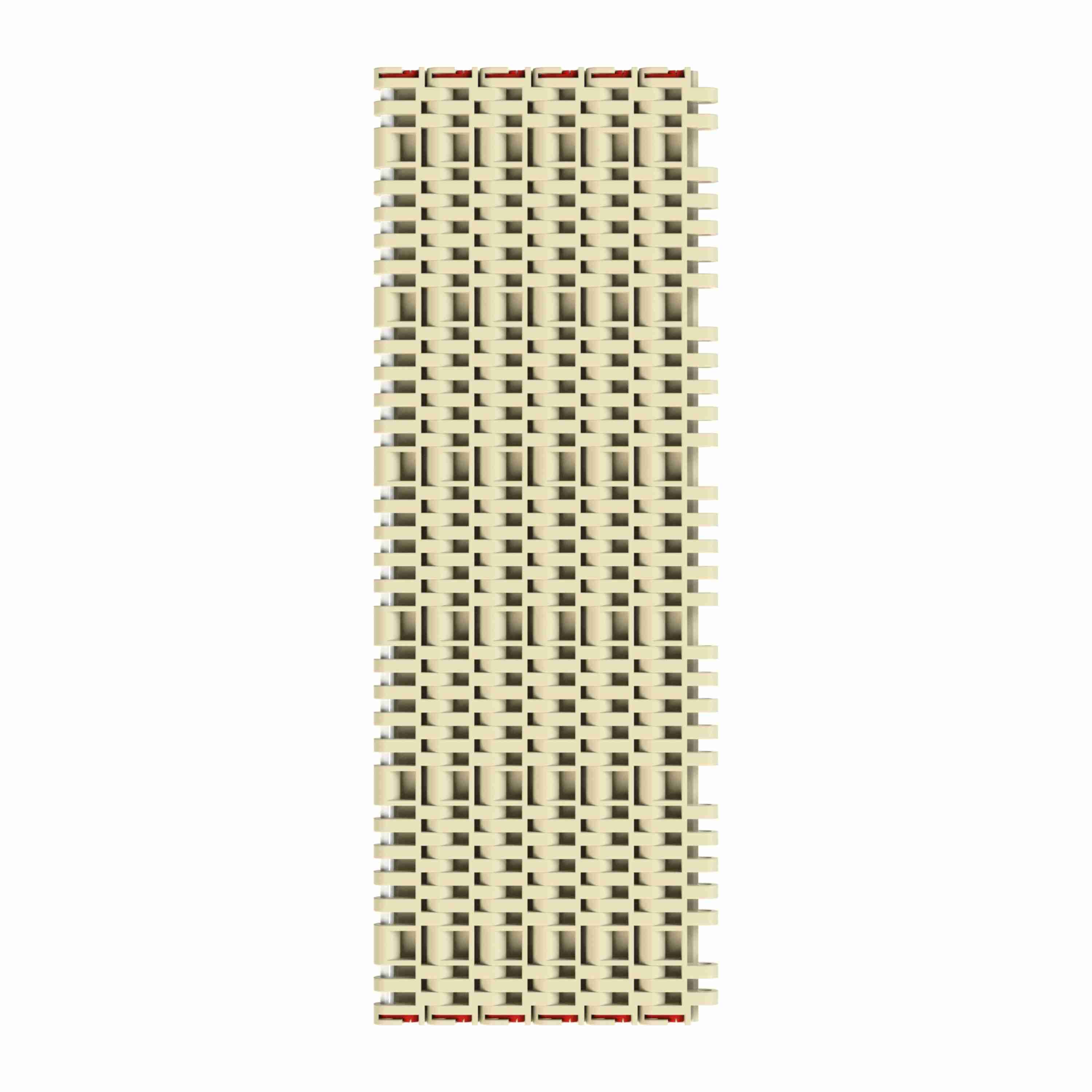

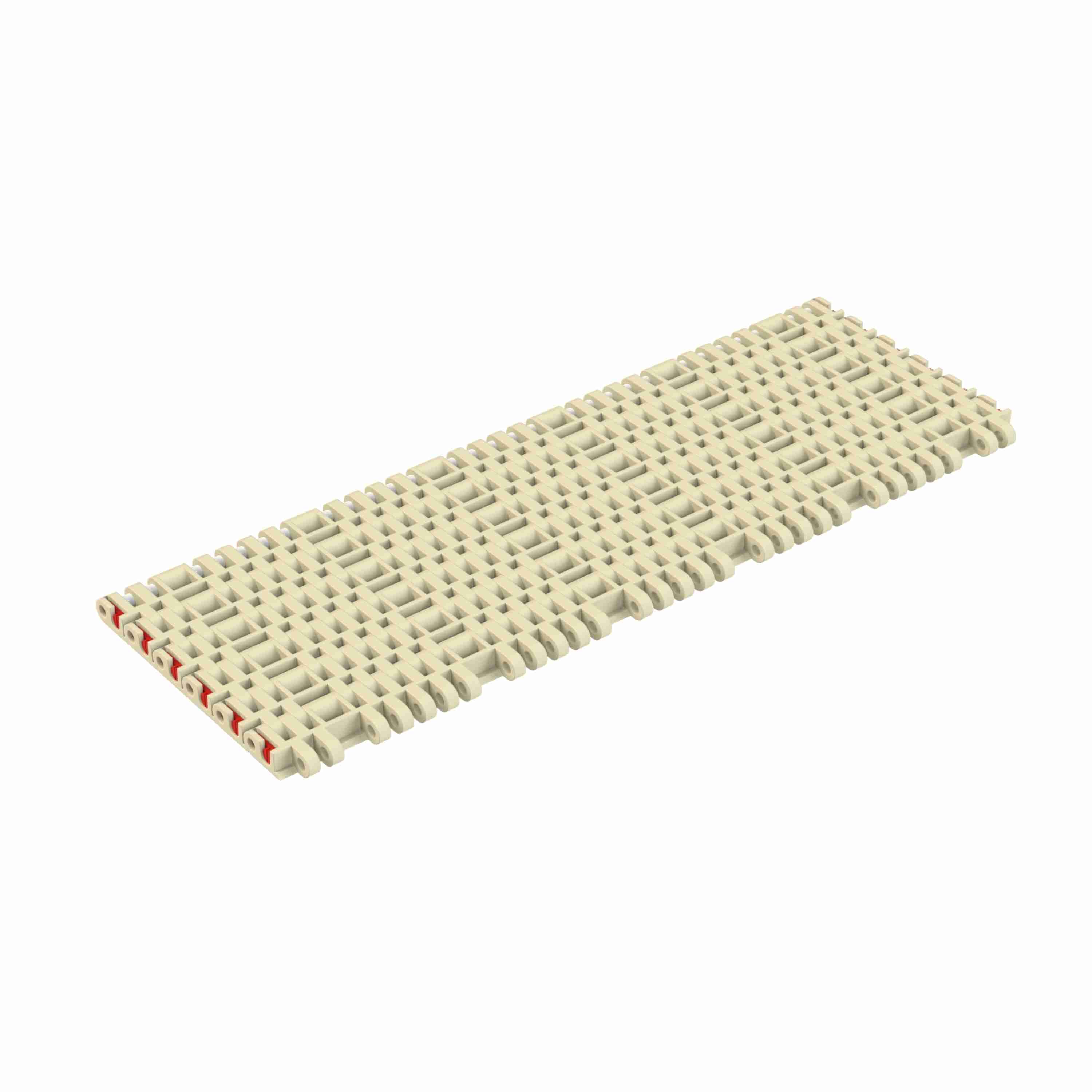

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 18in, Pitch: 1in - 10193893
Part #:10193893
Catalog #:10193893
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb/ft): | 1,800 lb/ft | Product Line: | Plastic Modular Chain and Belt |
| Product Group: | Modular Plastic Belts | Chain Pitch (in): | 1 in |
| SG/RT Spacing (mm): | 152.4 mm | Belt Thickness (in): | 0.69 in |
| Belt Thickness (mm): | 17.6 mm | Straight or Side-Flex: | Straight Running |
| Chain Material Description: | Beige High Temperature | SG/RT Spacing (in): | 6 in |
| SG/RT Spacing (Pitches): | Every 6th Pitch | Rod/Pin Material: | Polypropylene |
| Chain Width (in): | 18 in | Chain Material: | HT |
| Chain Pitch (mm): | 25.4 mm | Chain Width Measurement System: | Imperial |
| Series: | MatTop 7700 Series Chain | Open Area (%): | 3 % |
| Surface Type: | RubberTop® | Chain Width (mm): | 457.2 mm |
| Product Type: | Straight Running | Chain Number: | 7705 RubberTop® |
| Chain Strength (N/m): | 26,262 N·m | Number of SuperGrip/RubberTop Rows: | 1 Row |
General Specifications
| Weight: | 0.29 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
