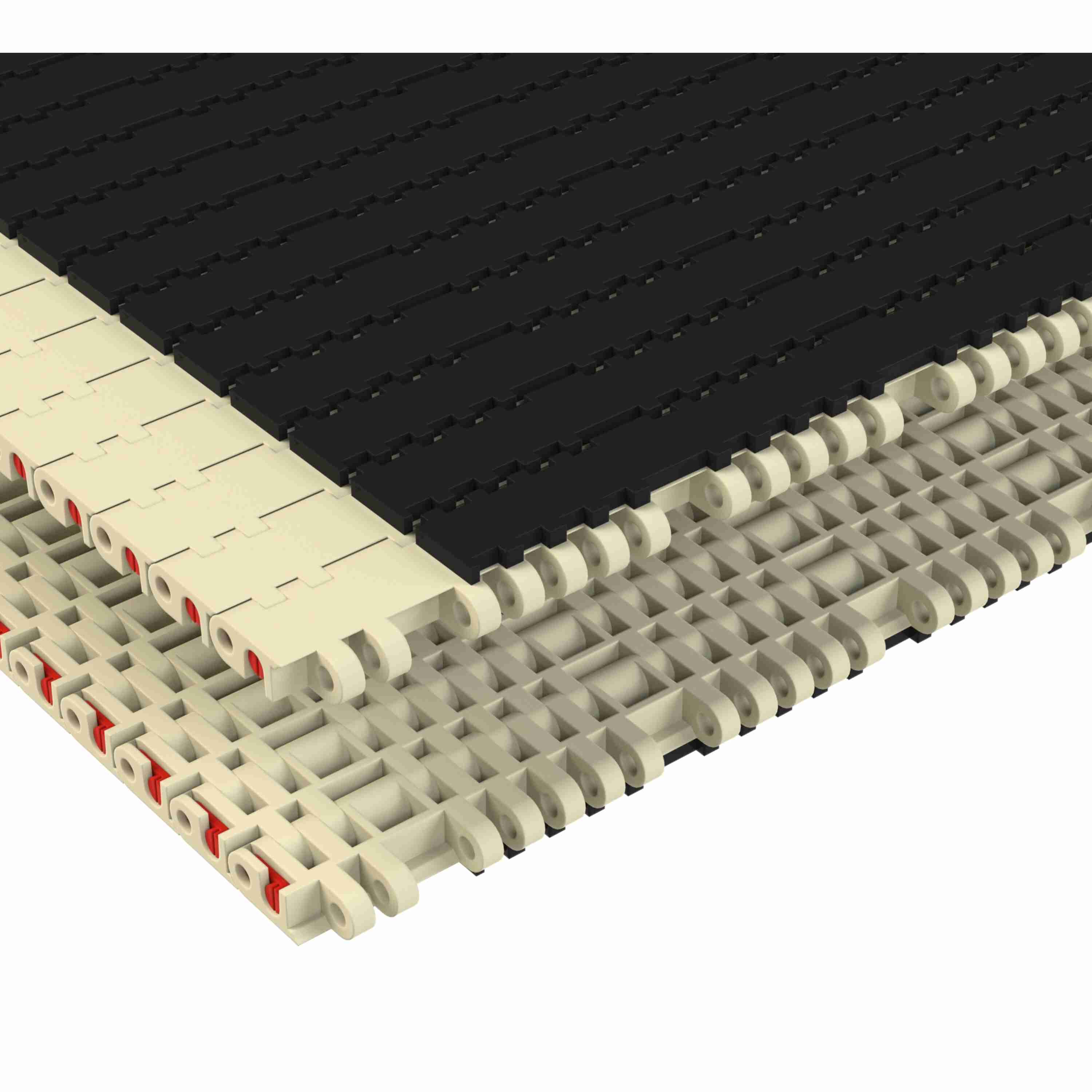

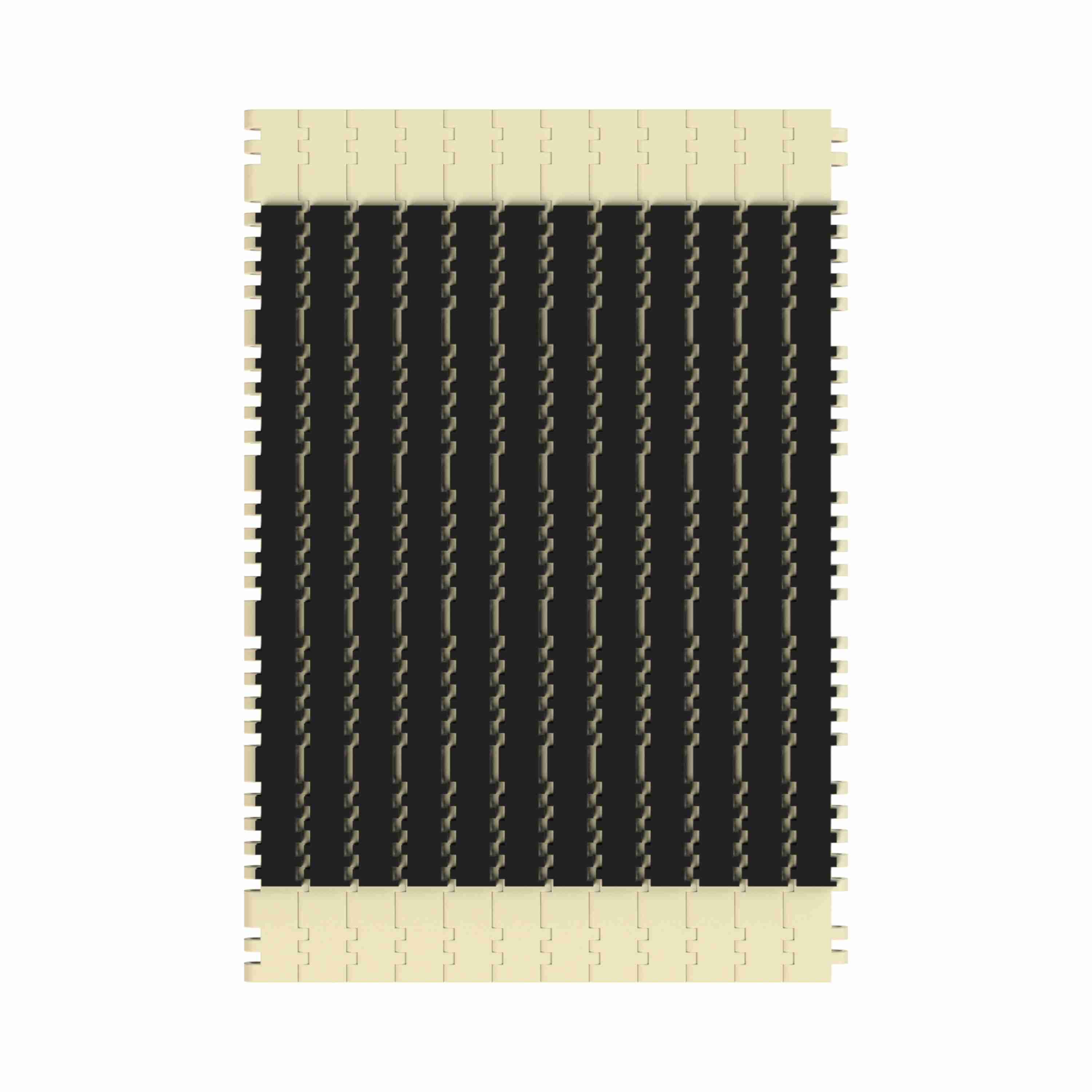

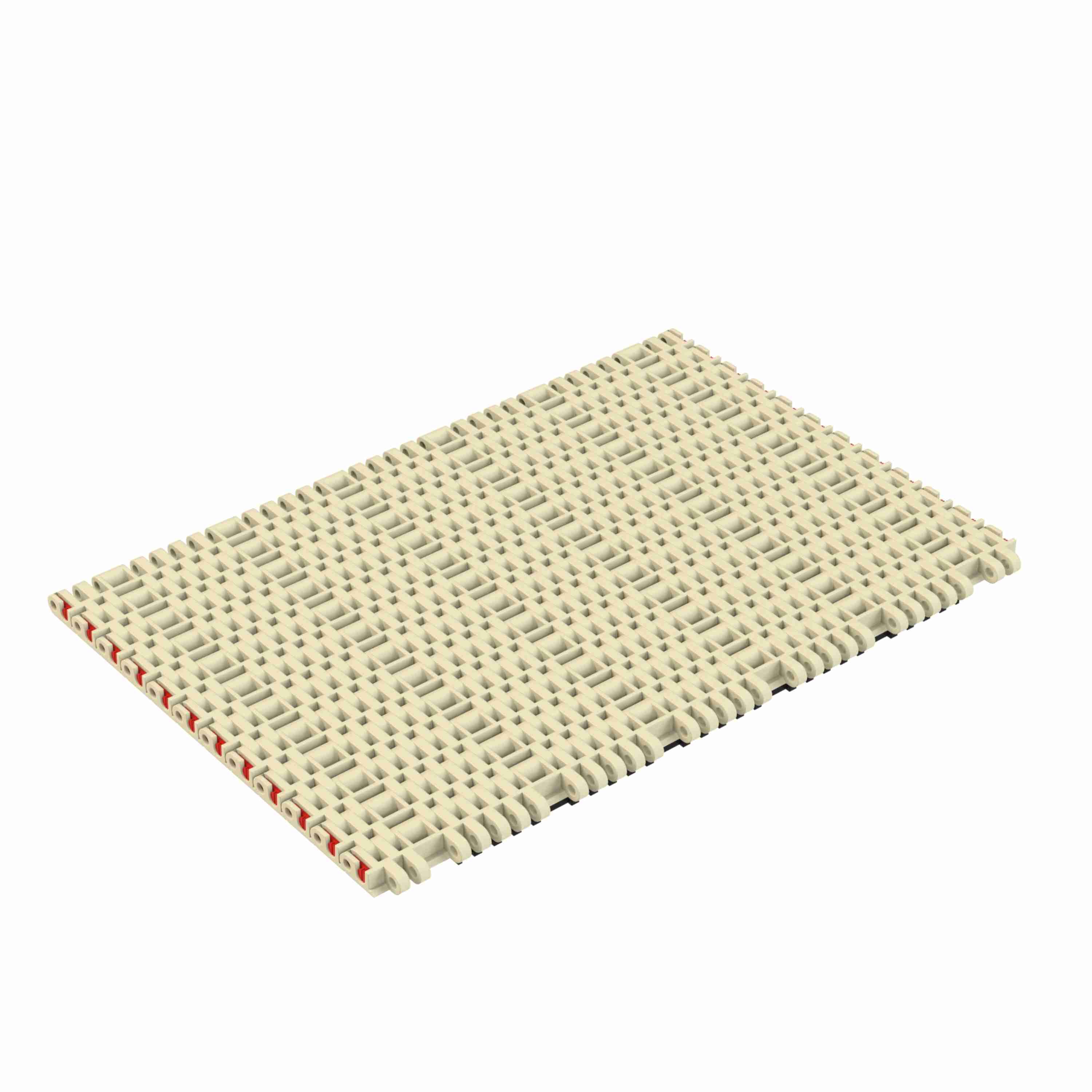

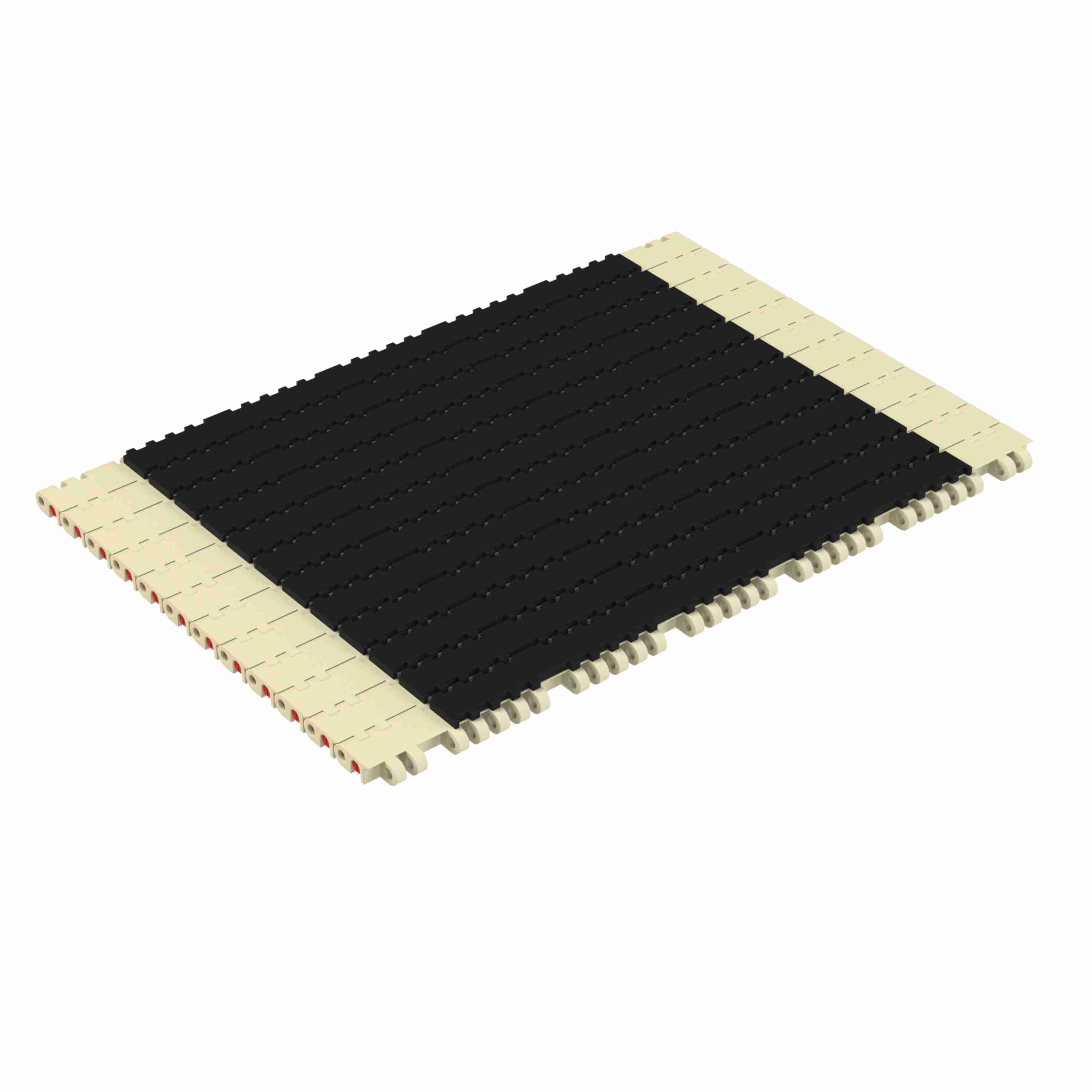

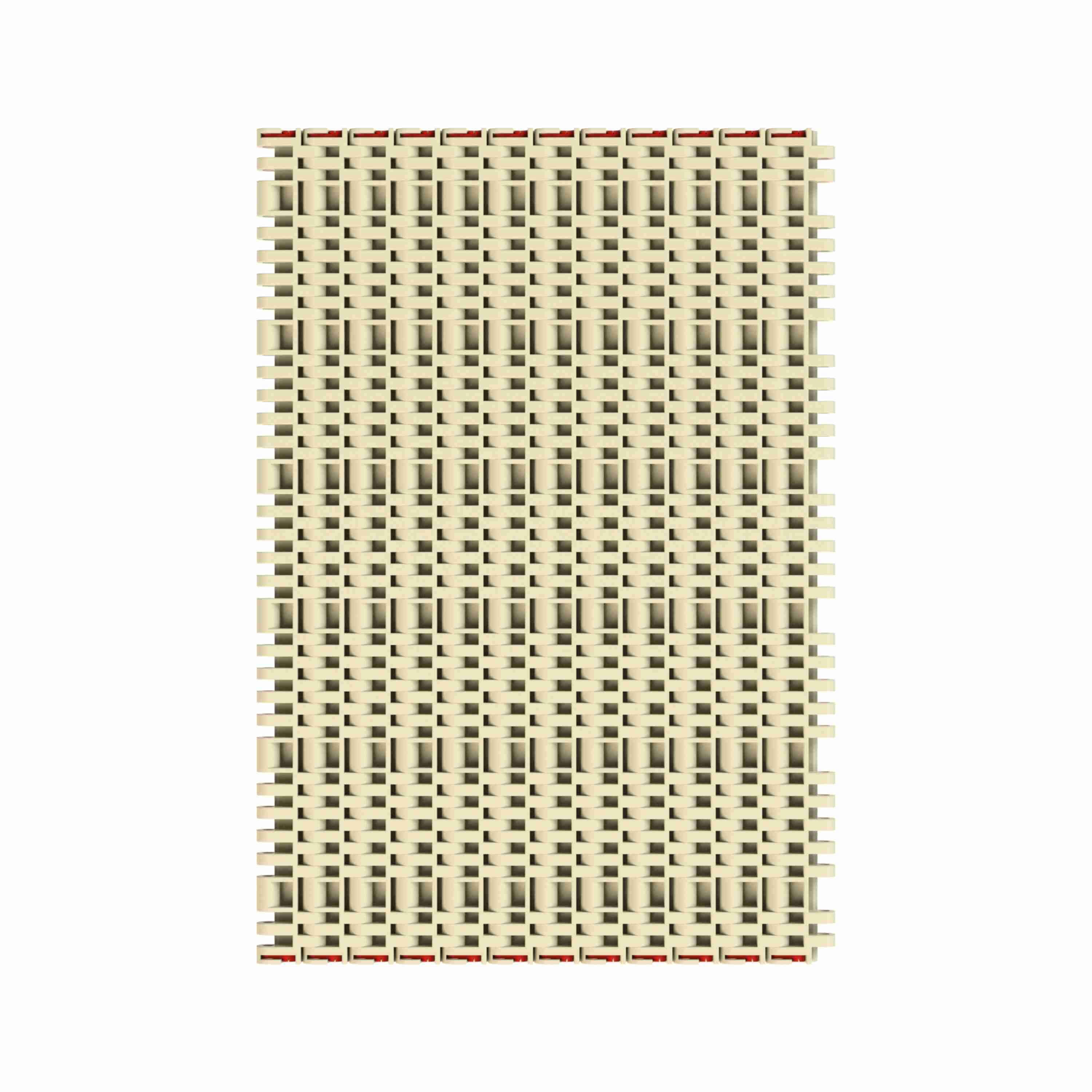

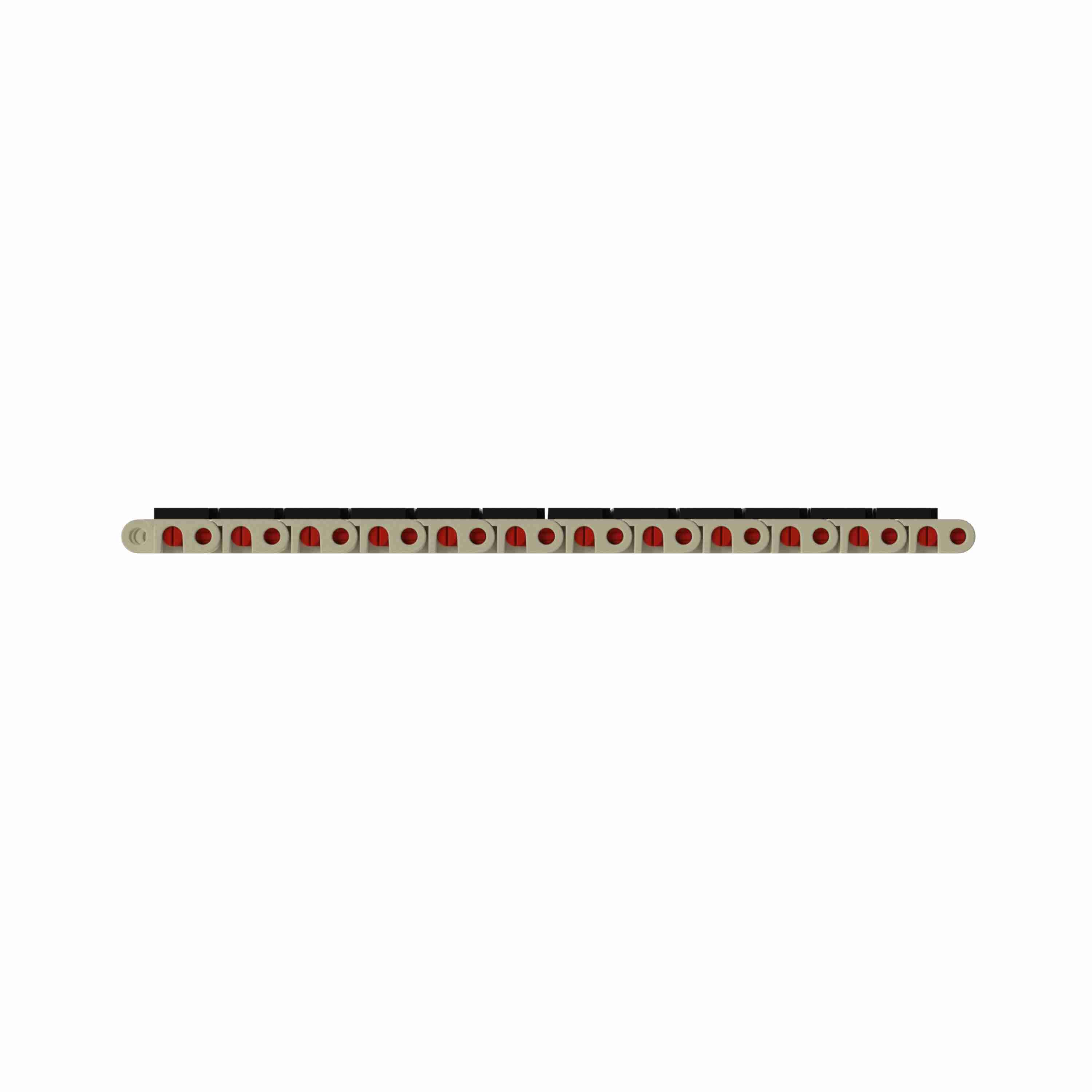

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 24in, Pitch: 1in - 10324550
Part #:10324550
Catalog #:10324550
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.69 in | Chain Strength (N/m): | 26,262 N·m |
| Chain Pitch (mm): | 25.4 mm | Surface Type: | RubberTop® |
| Product Type: | Straight Running | Chain Material: | HT |
| Belt Thickness (mm): | 17.6 mm | Chain Pitch (in): | 1 in |
| Chain Strength (lb/ft): | 1,800 lb/ft | Product Line: | Plastic Modular Chain and Belt |
| Chain Width (mm): | 609.6 mm | Series: | MatTop 7700 Series Chain |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Rod/Pin Material: | Polypropylene |
| Chain Number: | 7705 RubberTop® | Chain Width (in): | 24 in |
| Open Area (%): | 3 % | Product Group: | Modular Plastic Belts |
| Straight or Side-Flex: | Straight Running | Chain Material Description: | Beige High Temperature |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Width Measurement System: | Imperial |
General Specifications
| Weight: | 0.36 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
