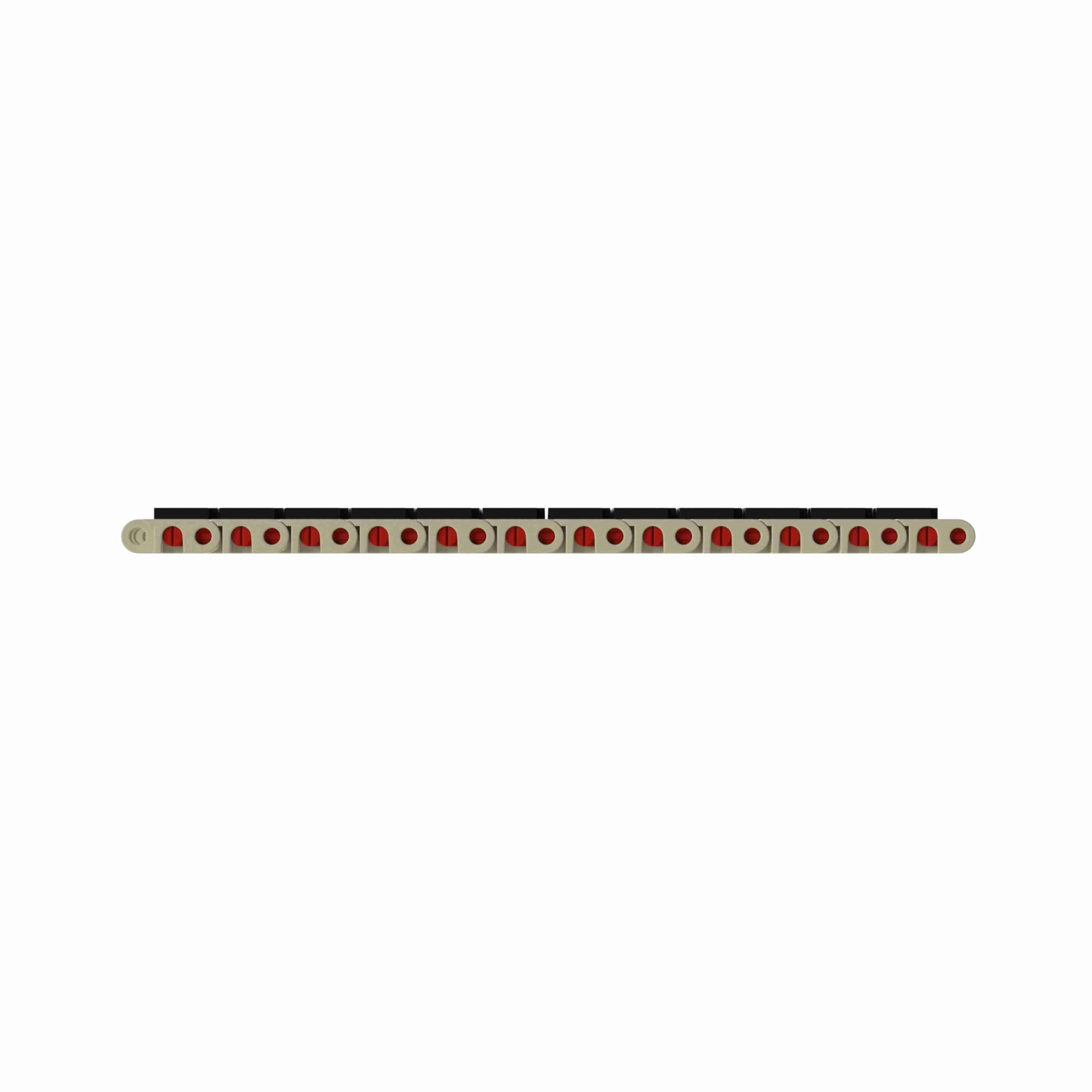

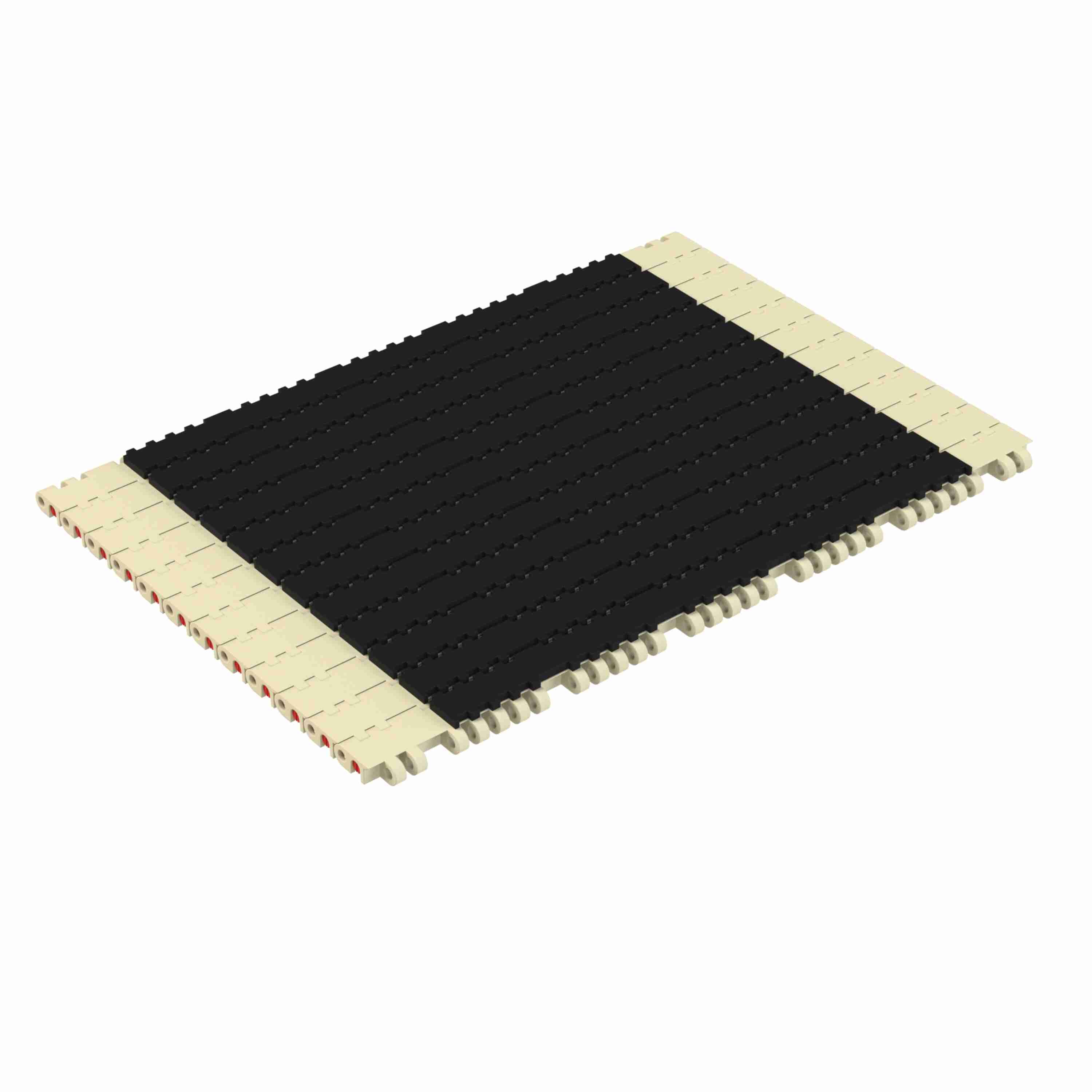

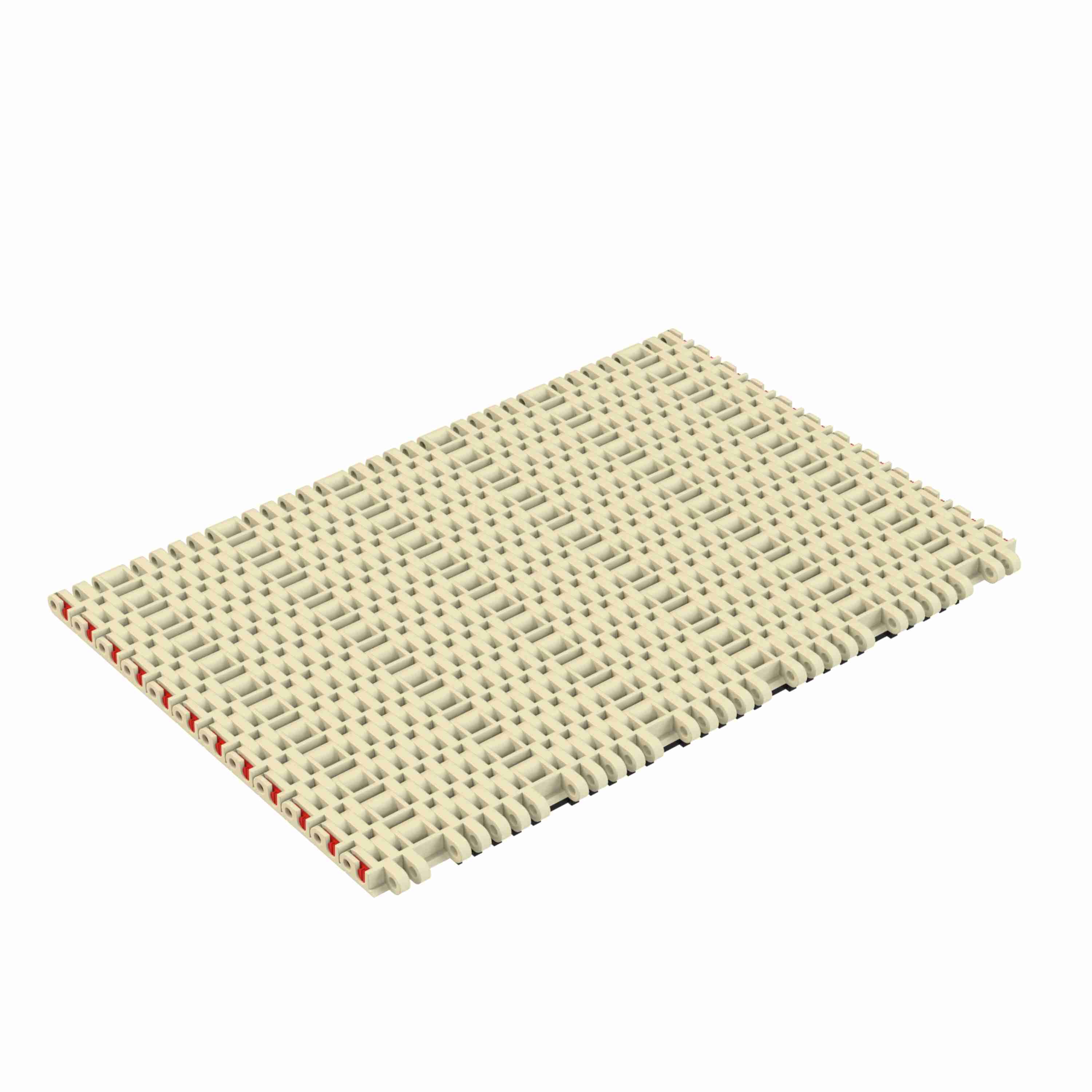

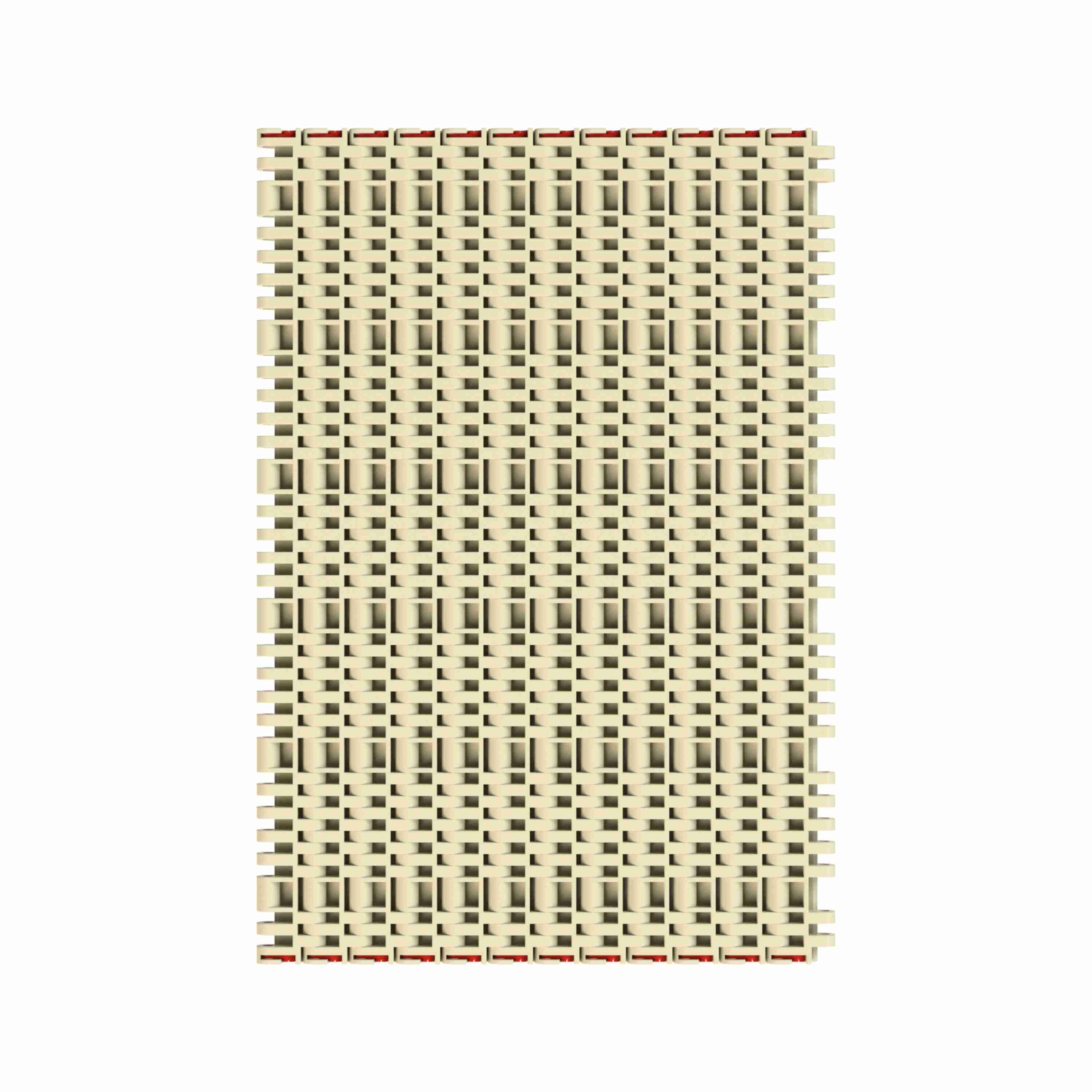

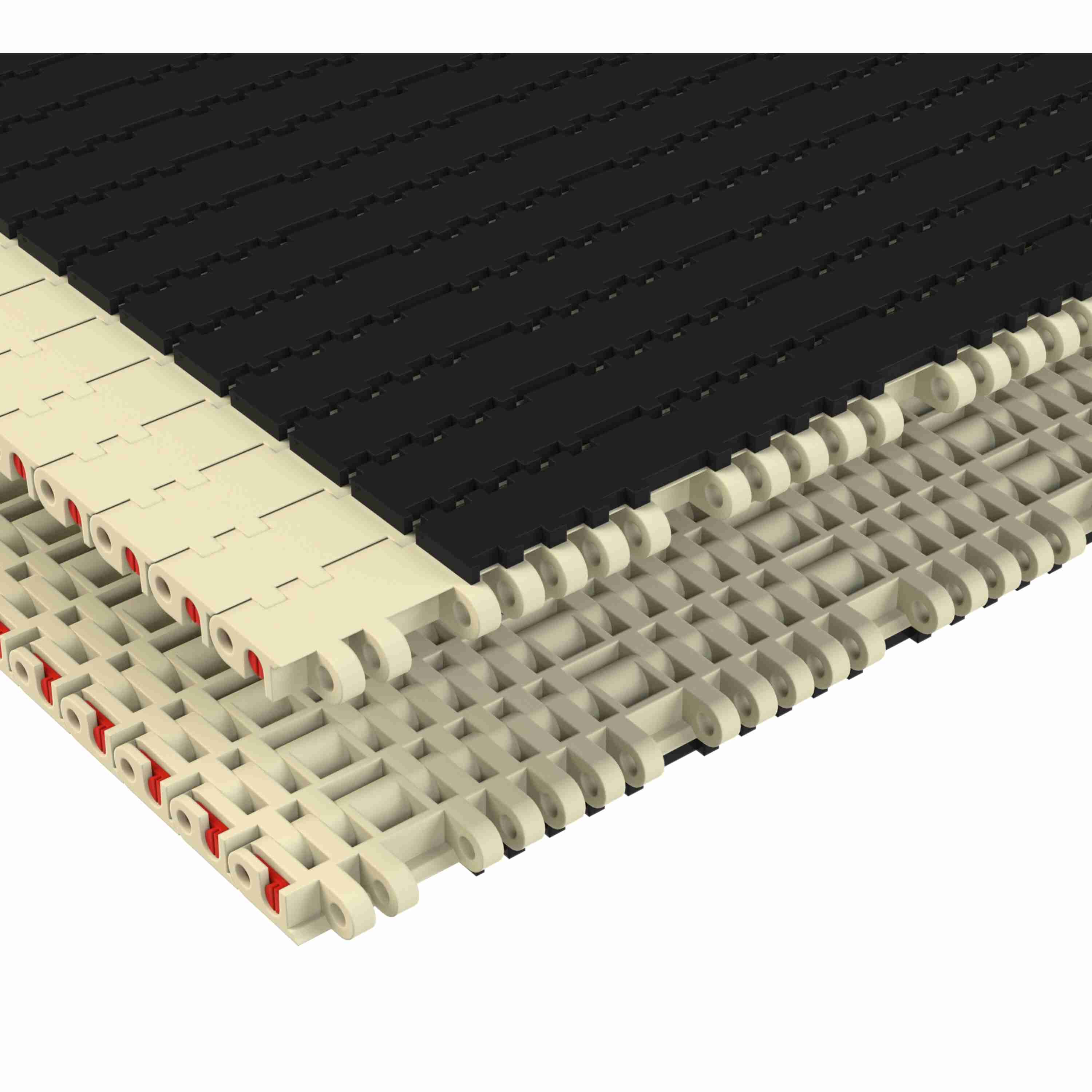

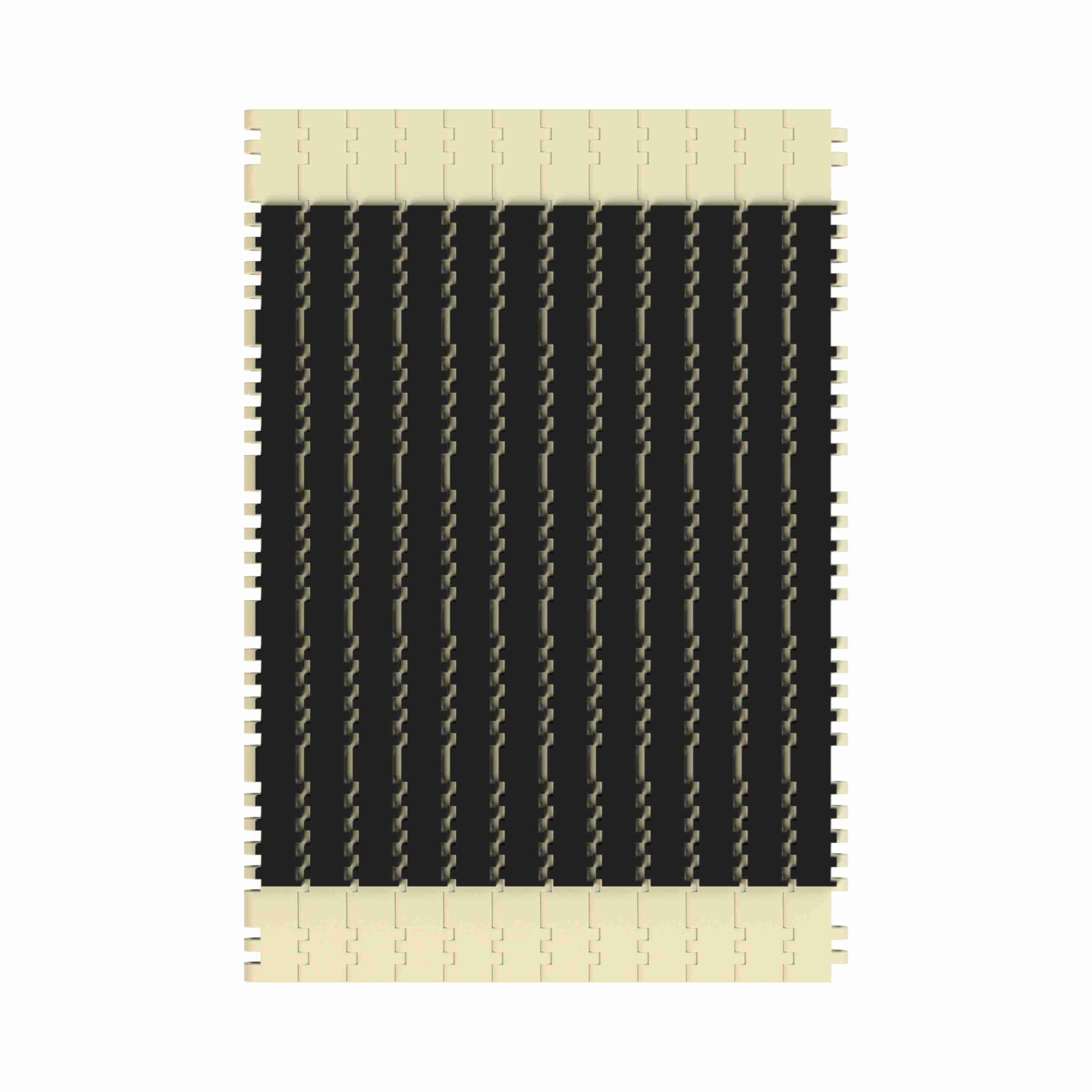

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 8in, Pitch: 1in - 10322265
Part #:10322265
Catalog #:10322265
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (mm): | 17.6 mm | Belt Thickness (in): | 0.69 in |
| Surface Type: | RubberTop® | Chain Strength (N/m): | 26,262 N·m |
| Product Group: | Modular Plastic Belts | Chain Material Description: | Beige High Temperature |
| Rod/Pin Material: | Polypropylene | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Chain Pitch (in): | 1 in | Chain Width (mm): | 203.2 mm |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Width (in): | 8 in |
| Product Line: | Plastic Modular Chain and Belt | Chain Number: | 7705 RubberTop® |
| Open Area (%): | 3 % | Chain Width Measurement System: | Imperial |
| Series: | MatTop 7700 Series Chain | Straight or Side-Flex: | Straight Running |
| Chain Pitch (mm): | 25.4 mm | Chain Material: | HT |
| Product Type: | Straight Running | Chain Strength (lb/ft): | 1,800 lb/ft |
General Specifications
| Weight: | 0.12 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
