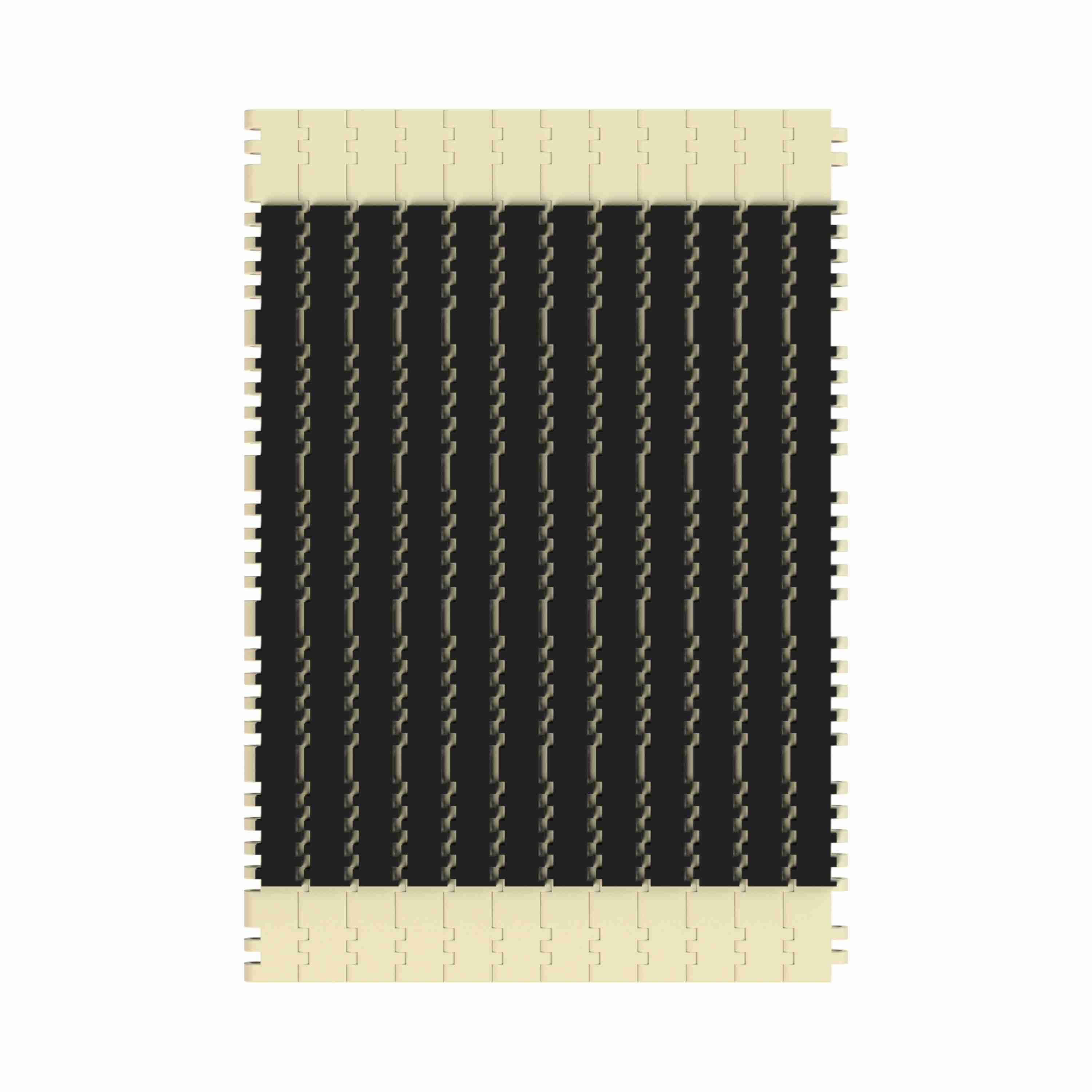

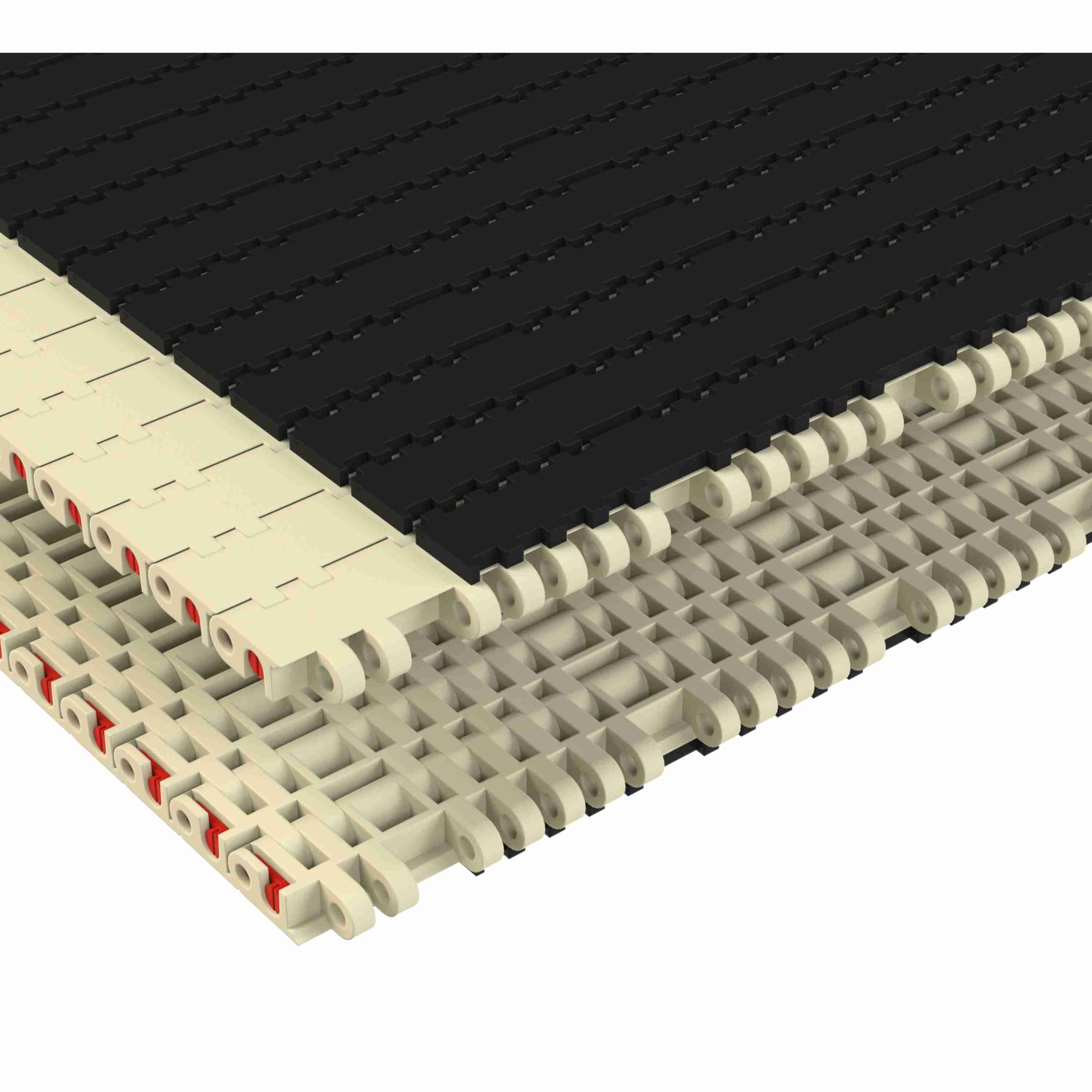

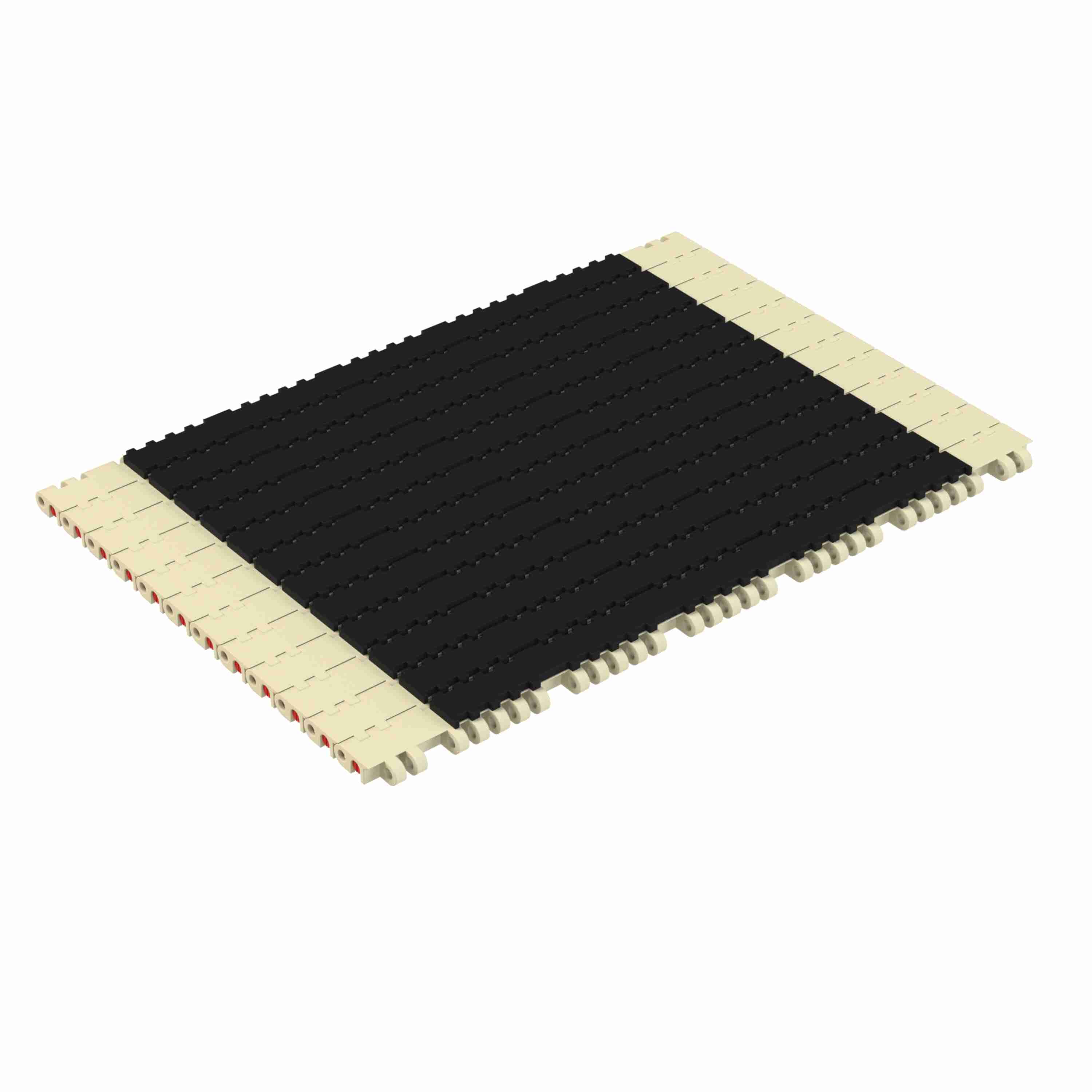

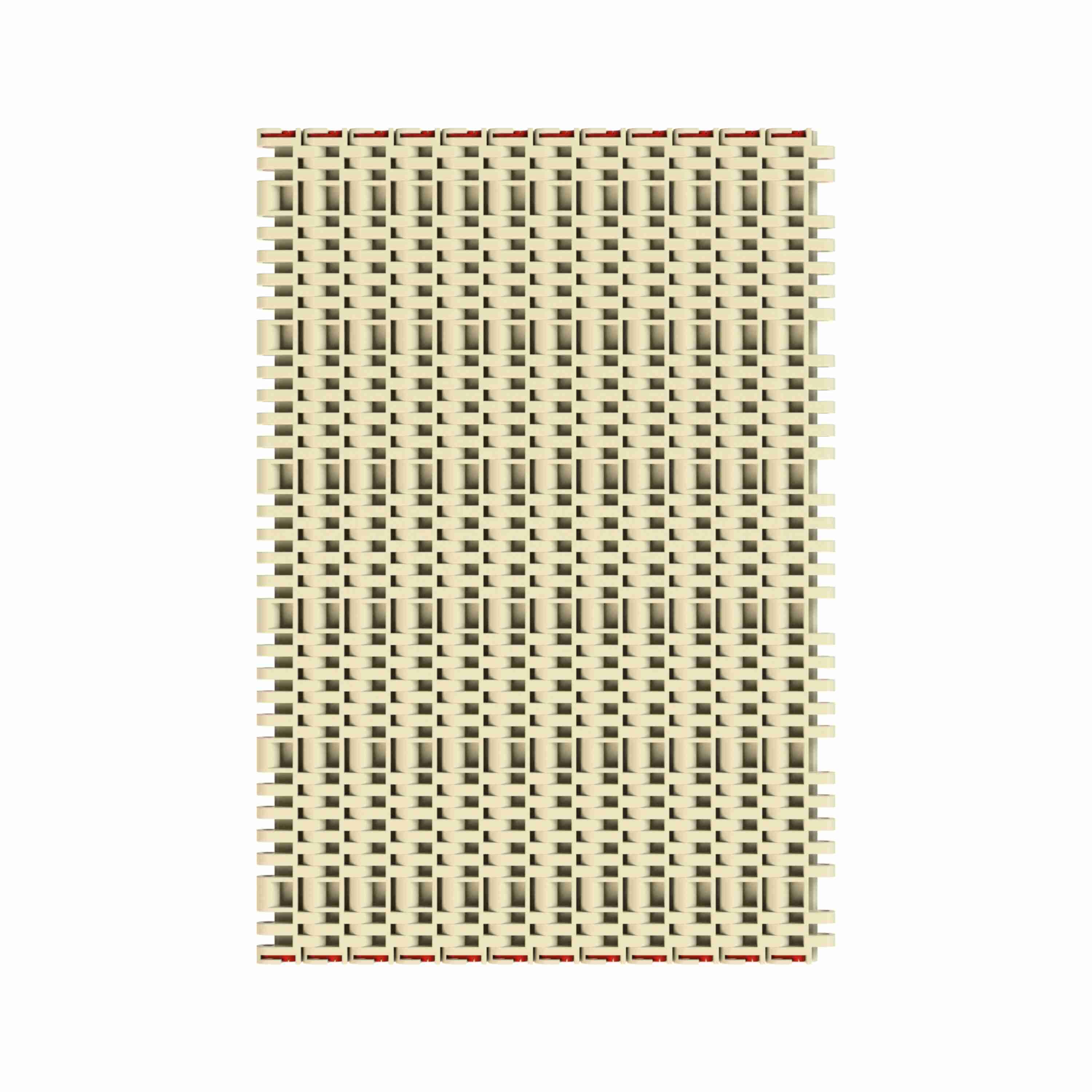

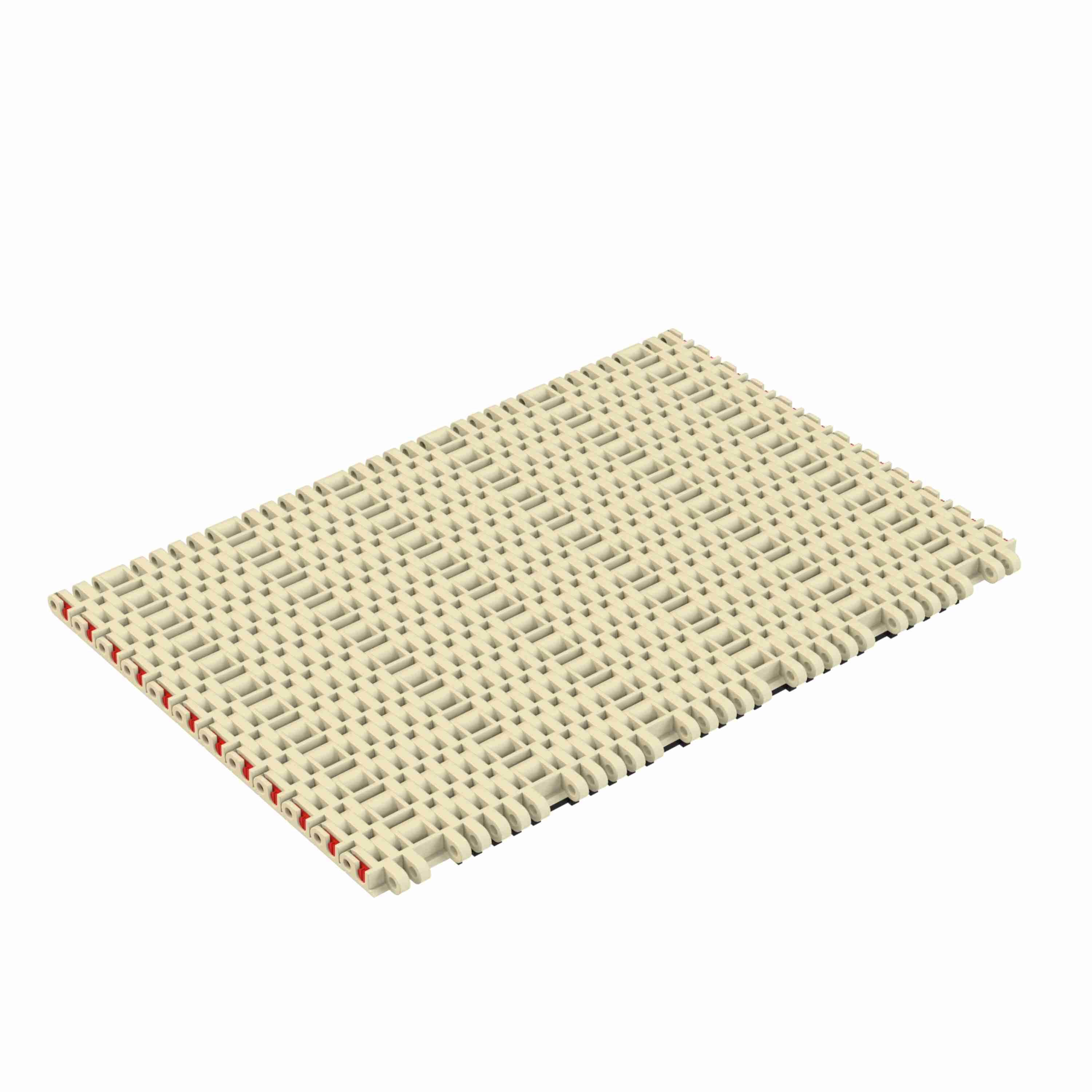

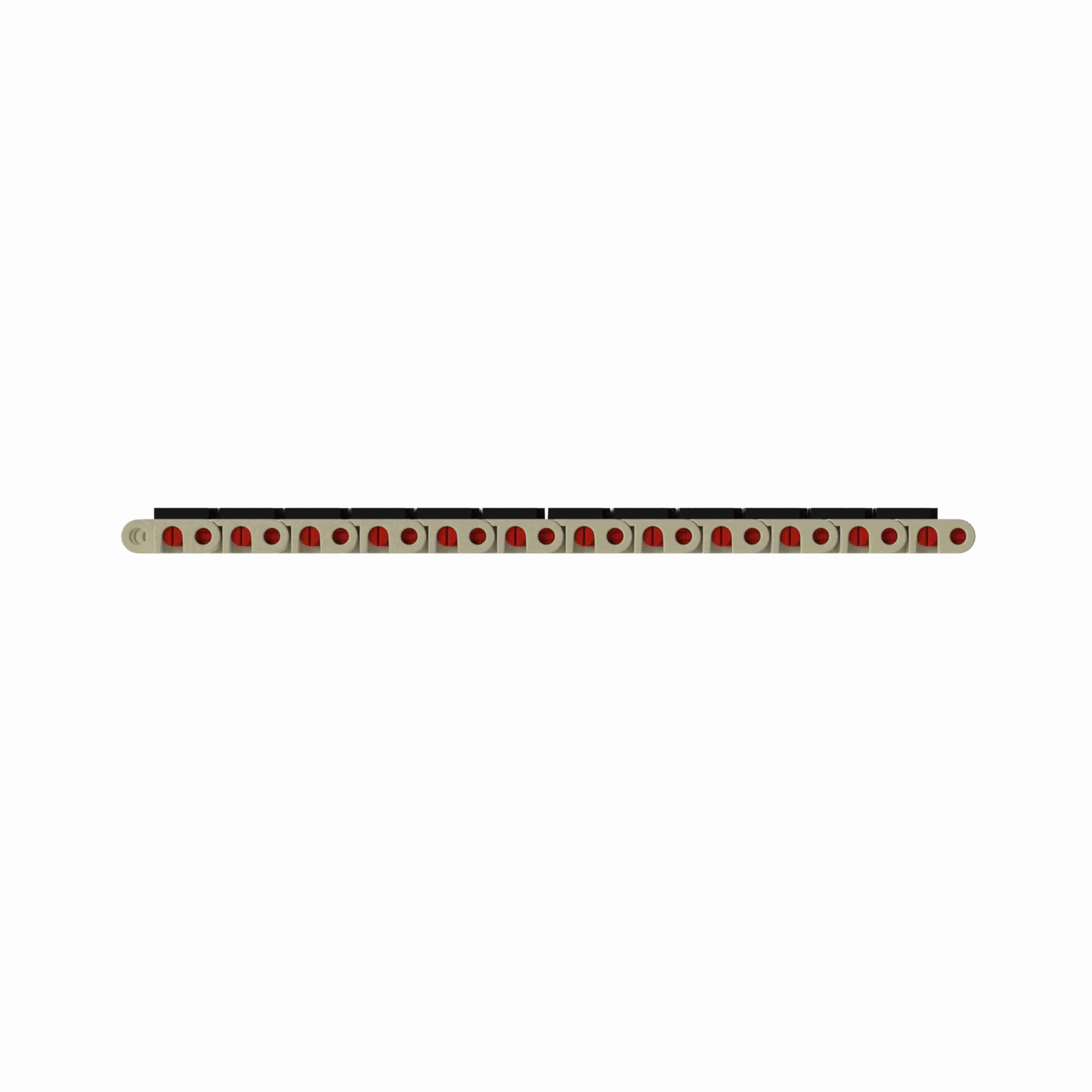

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Beige High Temperature, Width: 9in, Pitch: 1in - 10324547
Part #:10324547
Catalog #:10324547
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.69 in | Series: | MatTop 7700 Series Chain |
| Chain Pitch (in): | 1 in | SG/RT Spacing (Pitches): | Every Pitch |
| Belt Thickness (mm): | 17.6 mm | Product Group: | Modular Plastic Belts |
| Chain Material Description: | Beige High Temperature | Open Area (%): | 3 % |
| Chain Number: | 7705 RubberTop® | Chain Width Measurement System: | Imperial |
| Chain Width (mm): | 228.6 mm | Product Line: | Plastic Modular Chain and Belt |
| Rod/Pin Material: | Polypropylene | Surface Type: | RubberTop® |
| Chain Width (in): | 9 in | Chain Material: | HT |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Chain Strength (lb/ft): | 1,800 lb/ft |
| Product Type: | Straight Running | Chain Strength (N/m): | 26,262 N·m |
| Chain Pitch (mm): | 25.4 mm | Straight or Side-Flex: | Straight Running |
General Specifications
| Weight: | 0.14 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
