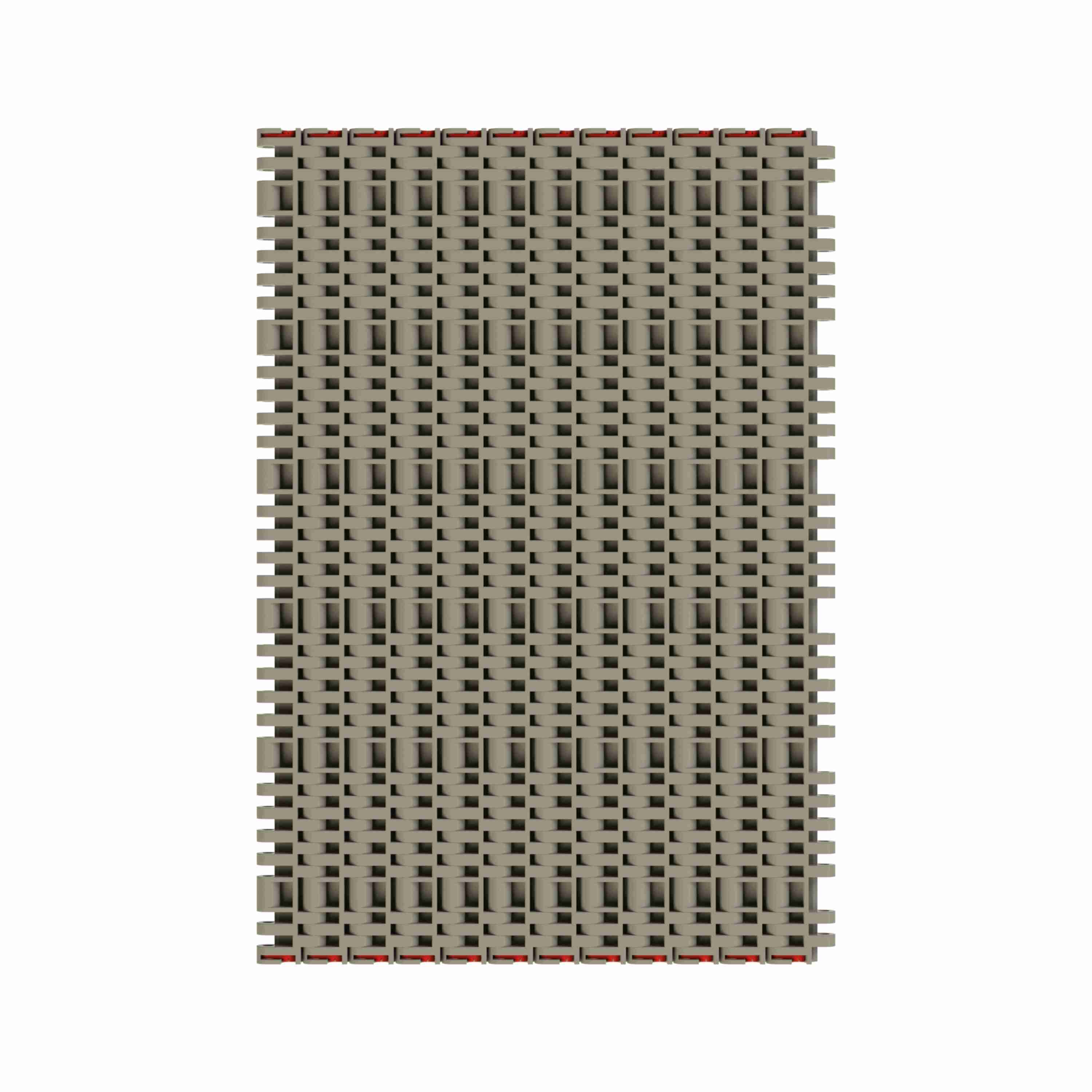

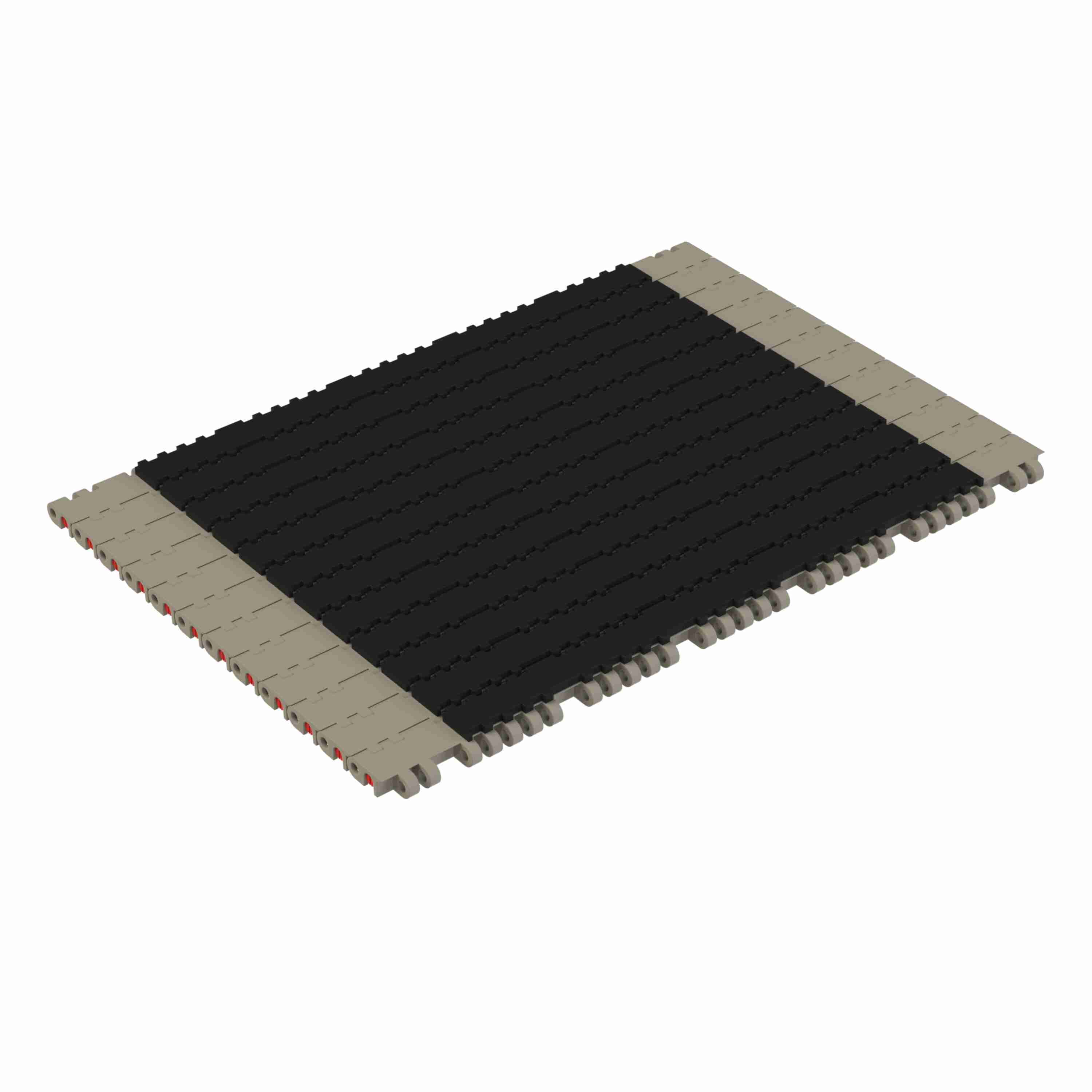

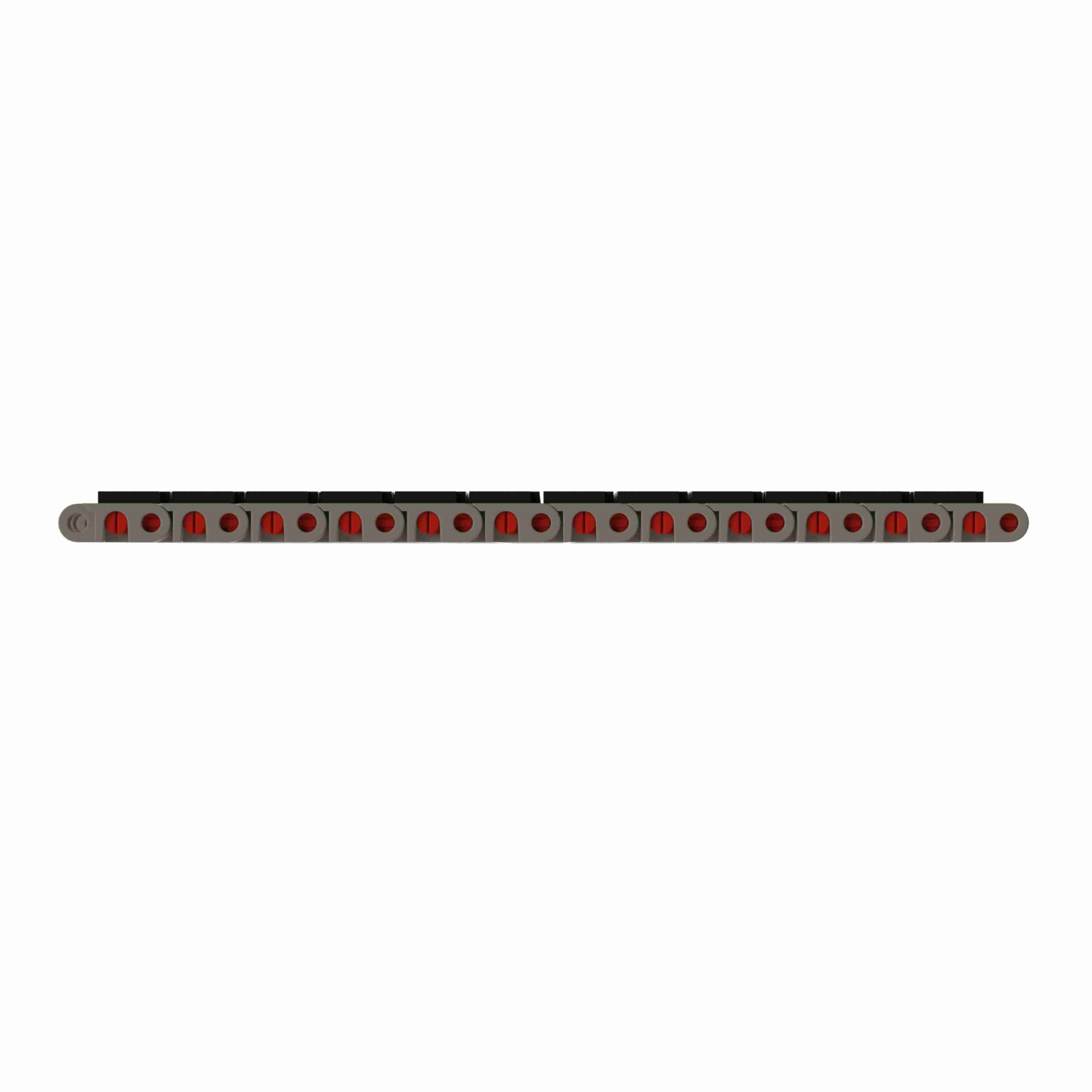

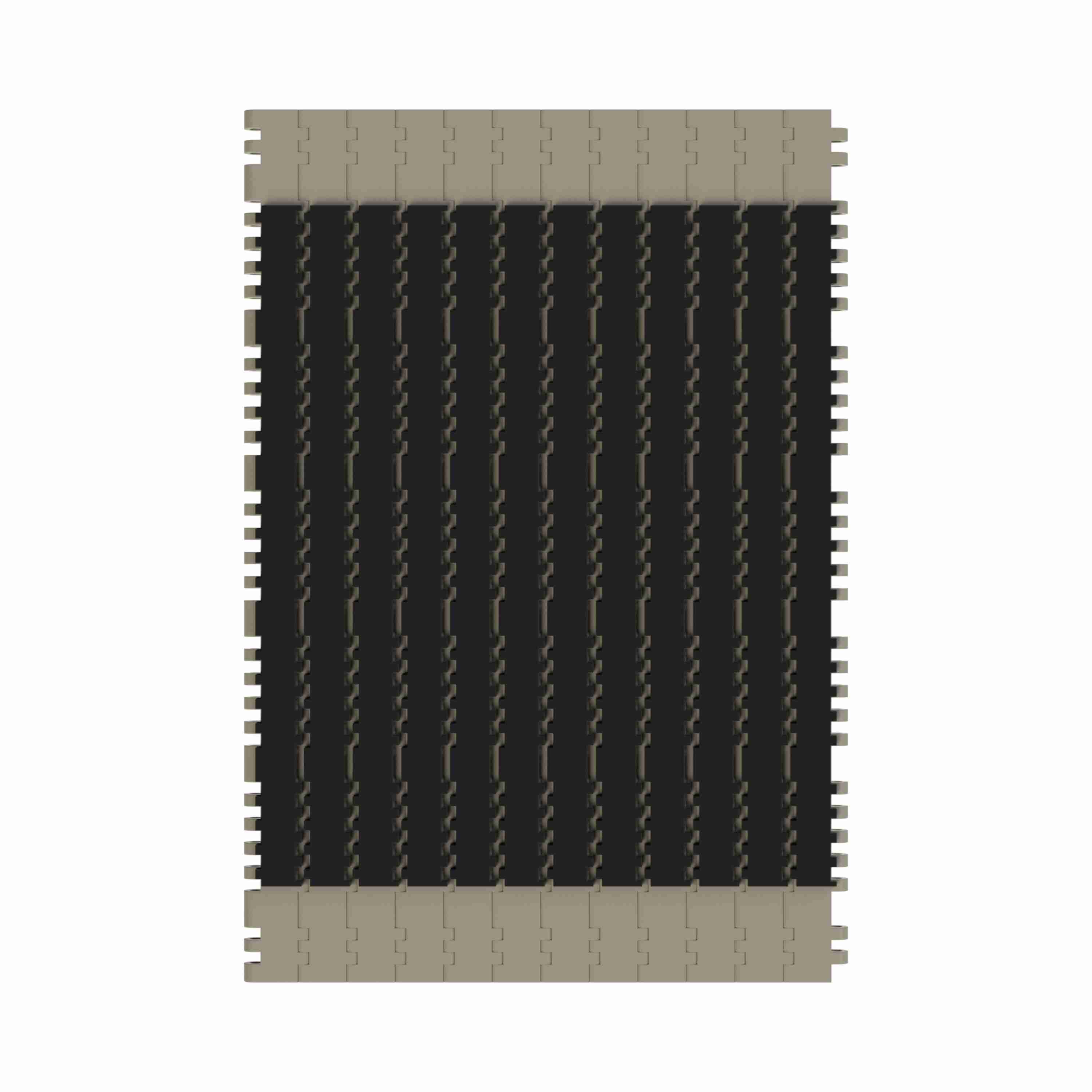

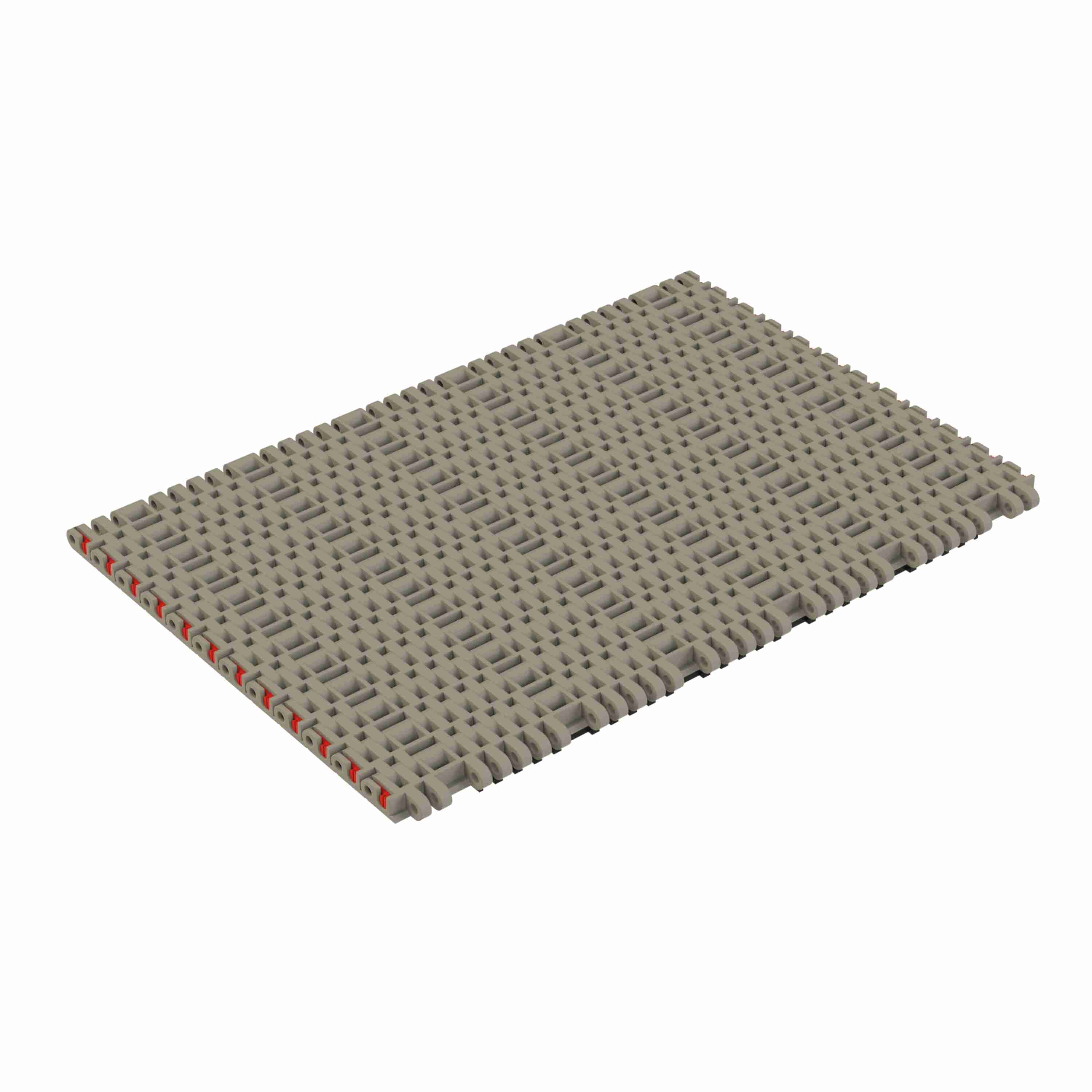

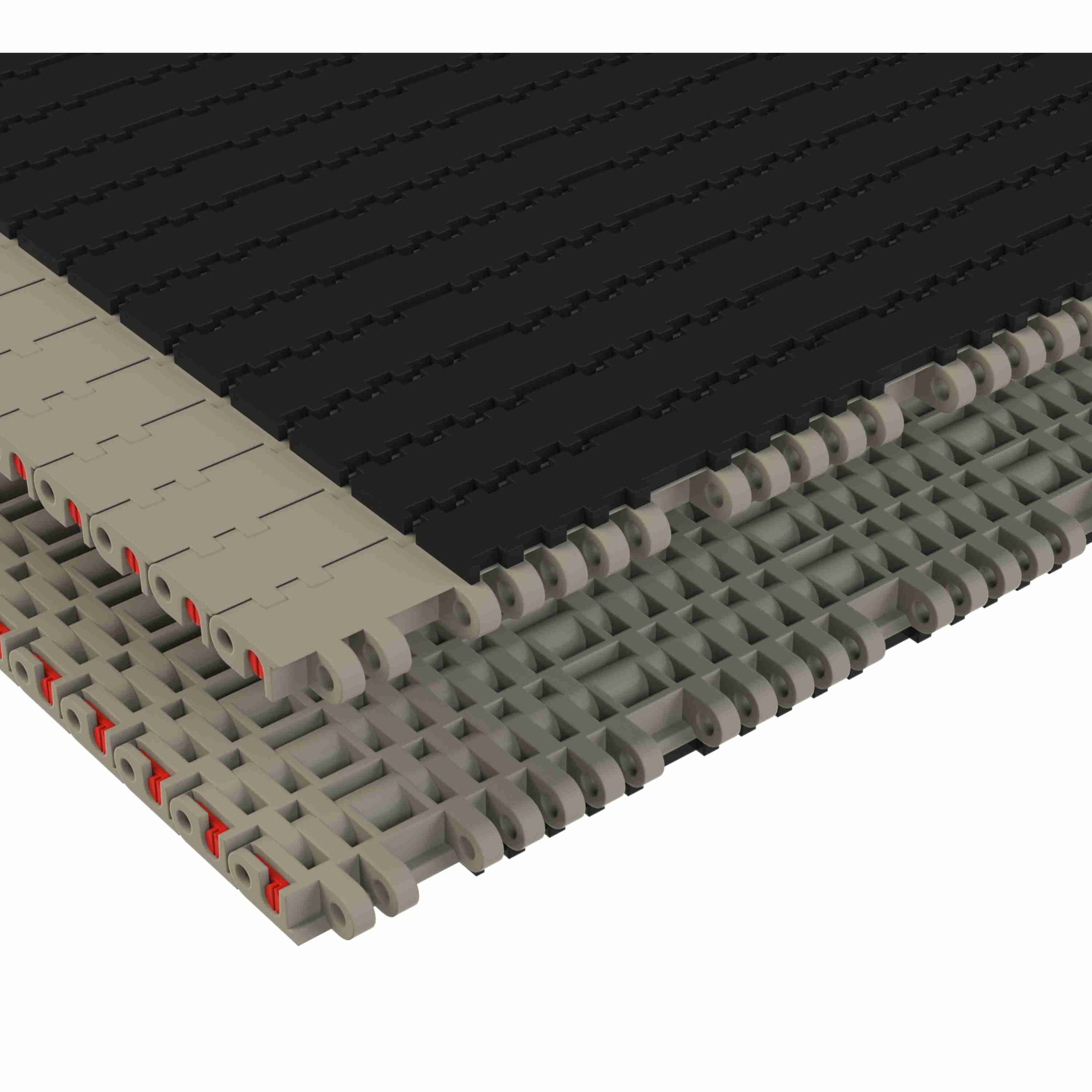

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Grey Tough Composite, Width: 14in, Pitch: 1in - 10324642
Part #:10324642
Catalog #:10324642
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material: | GTC | Open Area (%): | 3 % |
| Product Type: | Straight Running | Product Group: | Modular Plastic Belts |
| Series: | MatTop 7700 Series Chain | Belt Thickness (in): | 0.69 in |
| Rod/Pin Material: | Acetal | Chain Width Measurement System: | Imperial |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Product Line: | Plastic Modular Chain and Belt |
| Chain Pitch (mm): | 25.4 mm | Straight or Side-Flex: | Straight Running |
| Chain Number: | 7705 RubberTop® | Chain Material Description: | Grey Tough Composite |
| Chain Pitch (in): | 1 in | Chain Width (in): | 14 in |
| Surface Type: | RubberTop® | Chain Width (mm): | 355.6 mm |
| Belt Thickness (mm): | 17.6 mm | Chain Strength (lb/ft): | 2,200 lb/ft |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Strength (N/m): | 32,098 N·m |
General Specifications
| Weight: | 0.26 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
