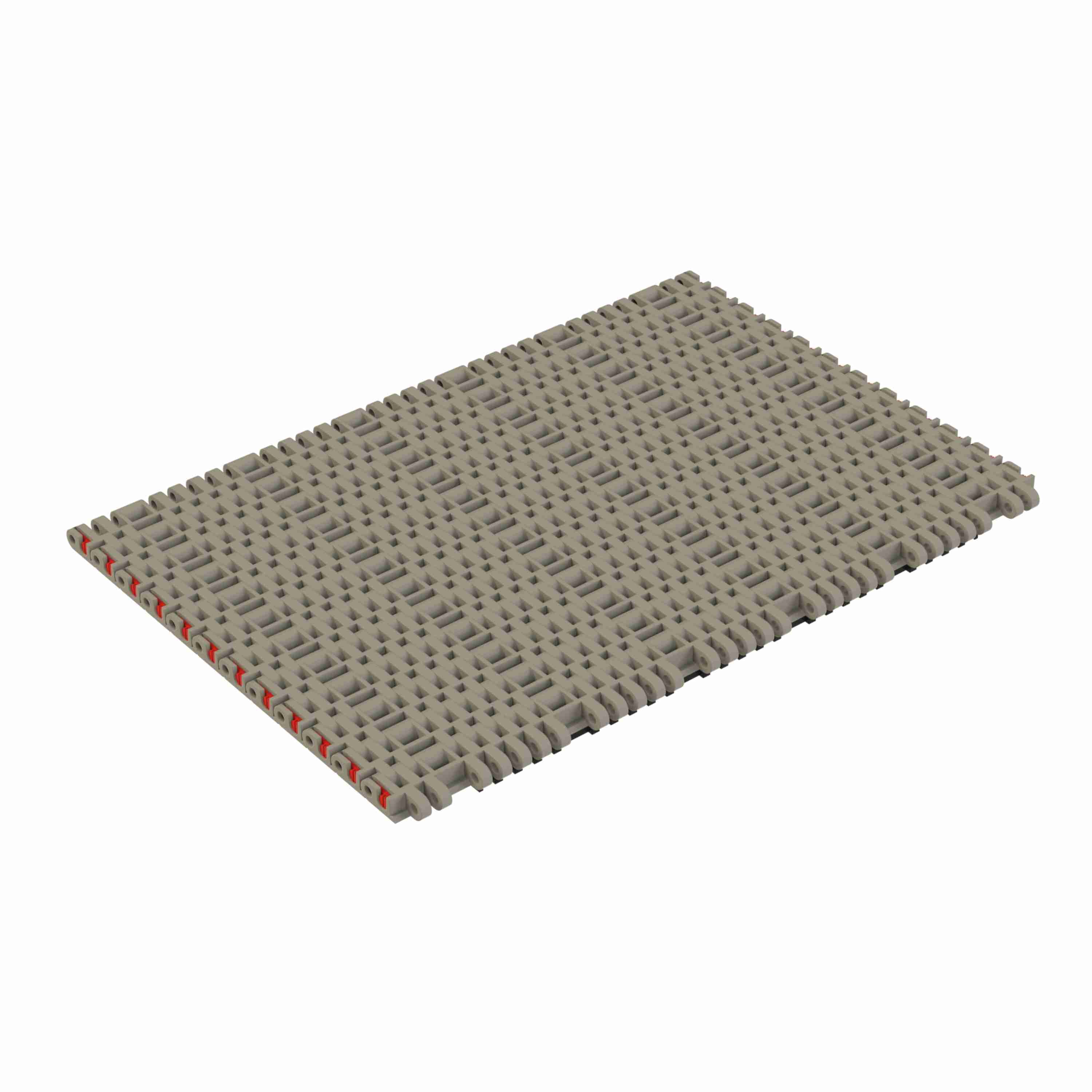

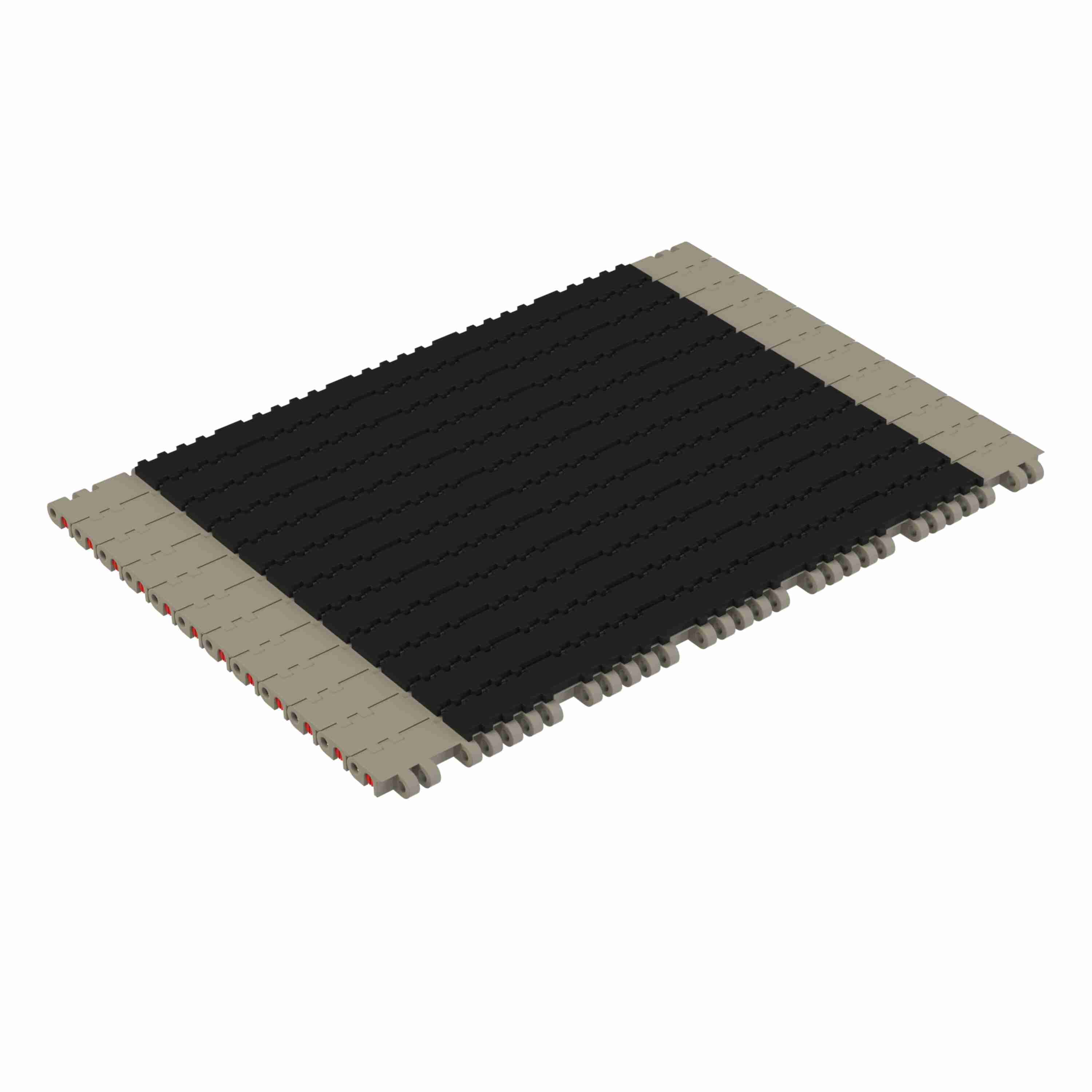

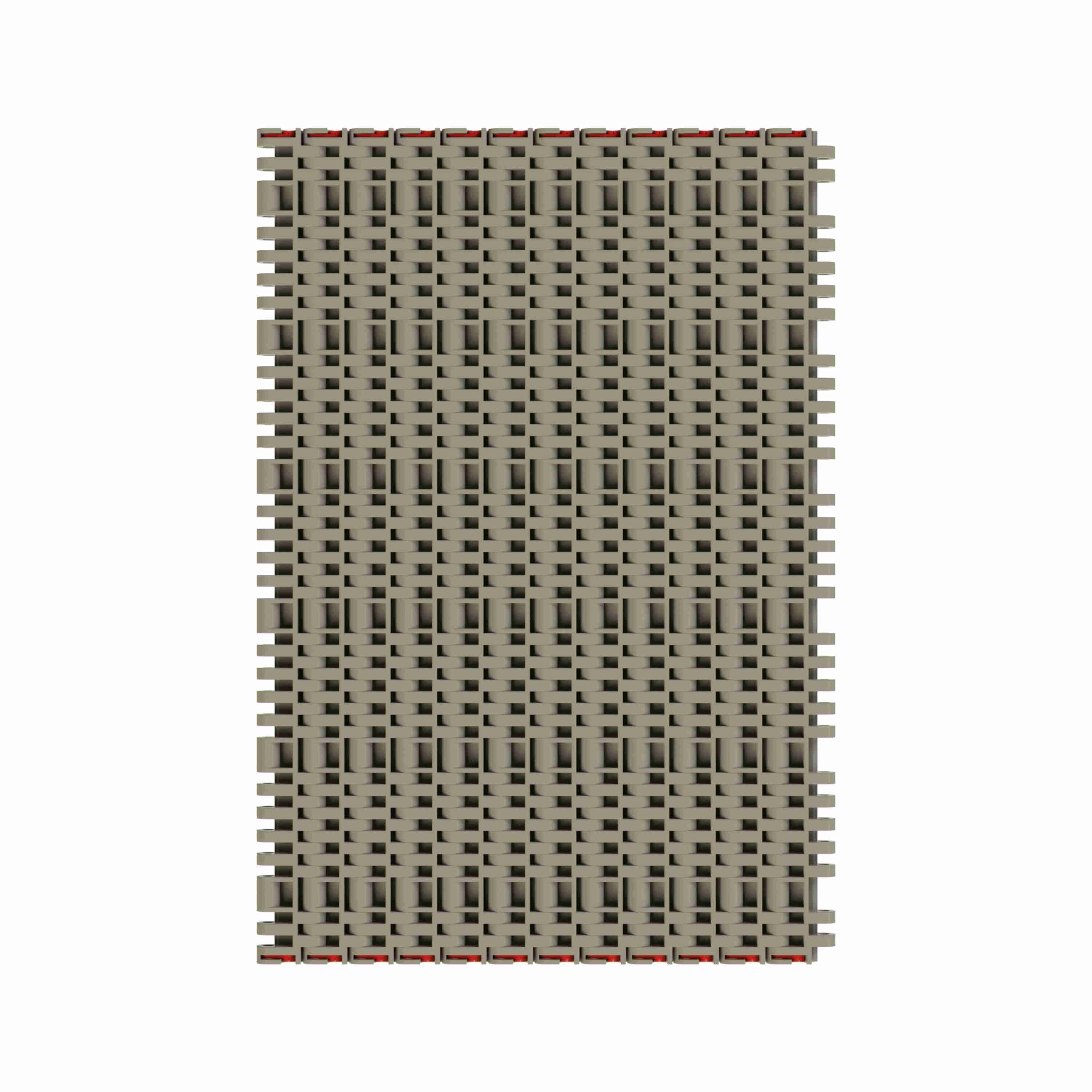

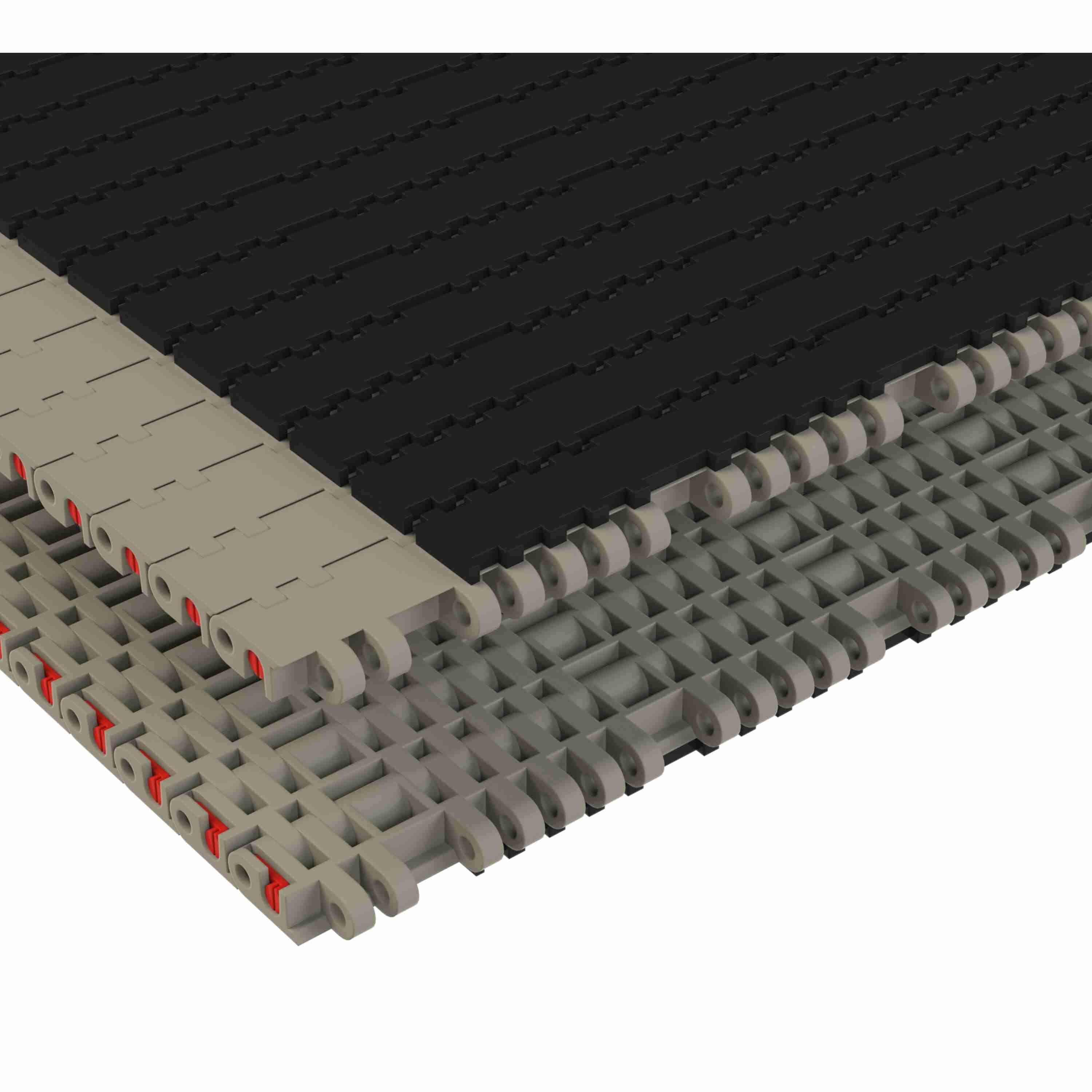

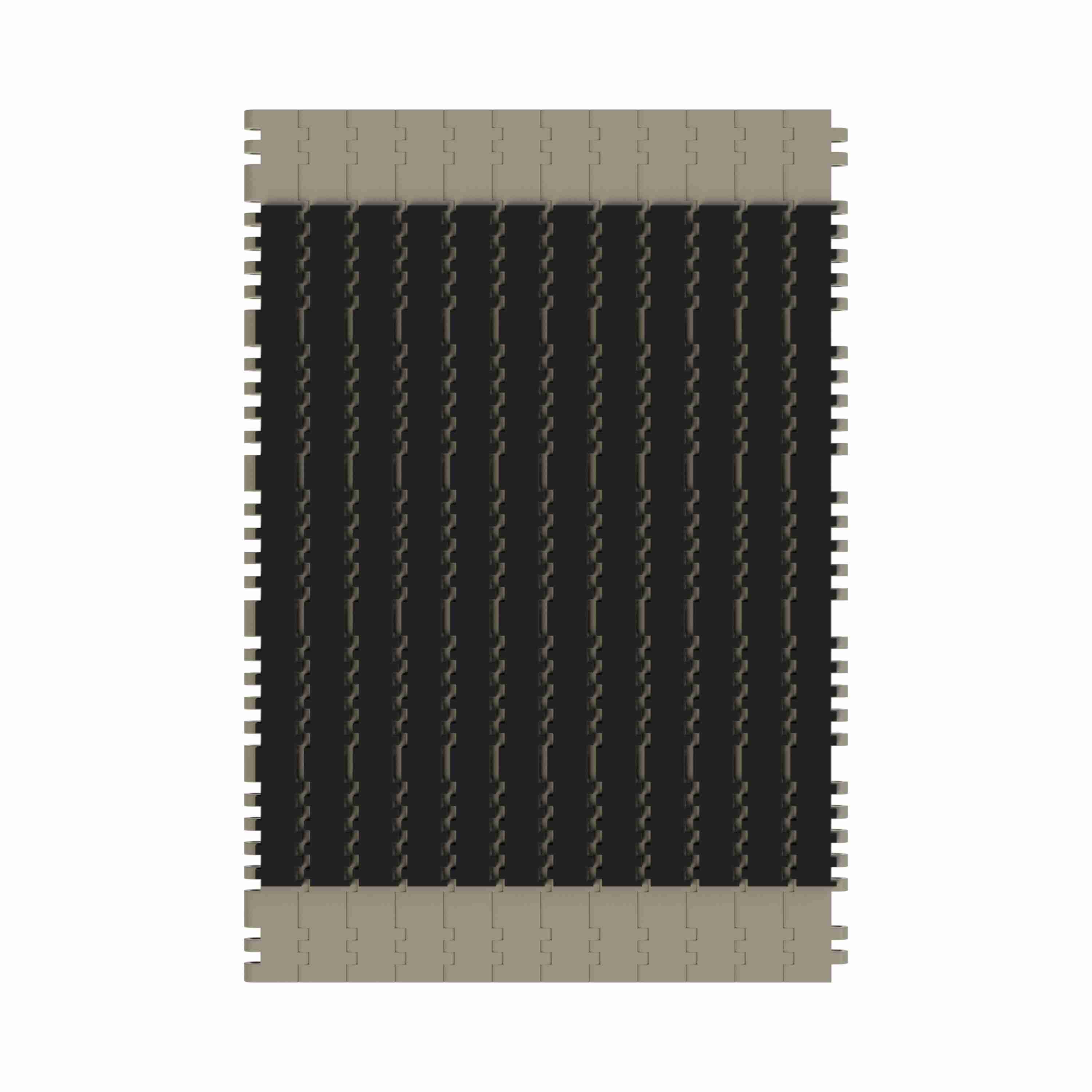

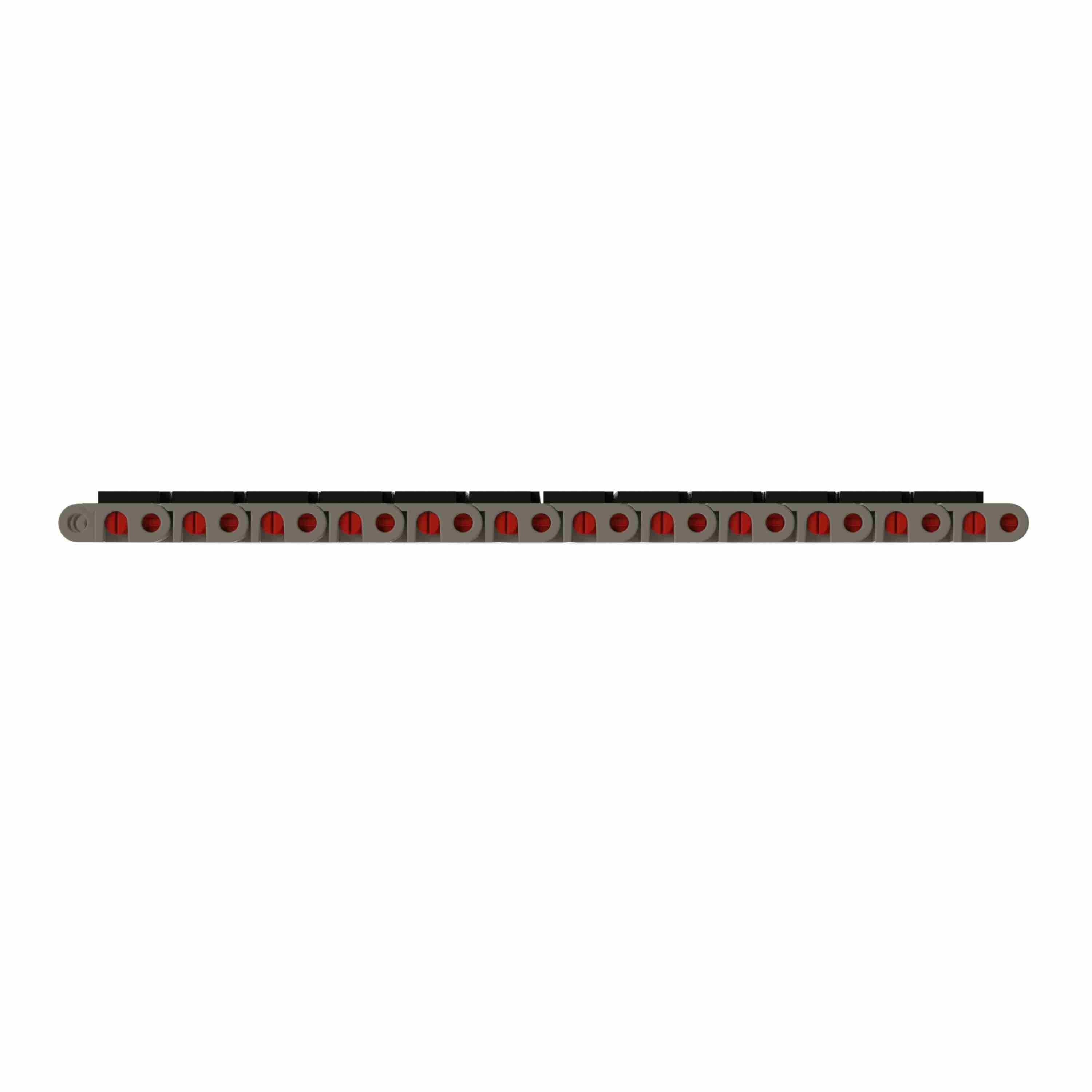

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Grey Tough Composite, Width: 21in, Pitch: 1in - 10324644
Part #:10324644
Catalog #:10324644
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb/ft): | 2,200 lb/ft | Chain Width (in): | 21 in |
| Series: | MatTop 7700 Series Chain | Product Line: | Plastic Modular Chain and Belt |
| Chain Pitch (in): | 1 in | Rod/Pin Material: | Acetal |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Chain Width (mm): | 533.4 mm |
| Chain Number: | 7705 RubberTop® | Product Group: | Modular Plastic Belts |
| Product Type: | Straight Running | Chain Pitch (mm): | 25.4 mm |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Strength (N/m): | 32,098 N·m |
| Chain Material: | GTC | Chain Material Description: | Grey Tough Composite |
| Straight or Side-Flex: | Straight Running | Chain Width Measurement System: | Imperial |
| Belt Thickness (in): | 0.69 in | Open Area (%): | 3 % |
| Belt Thickness (mm): | 17.6 mm | Surface Type: | RubberTop® |
General Specifications
| Weight: | 0.38 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
