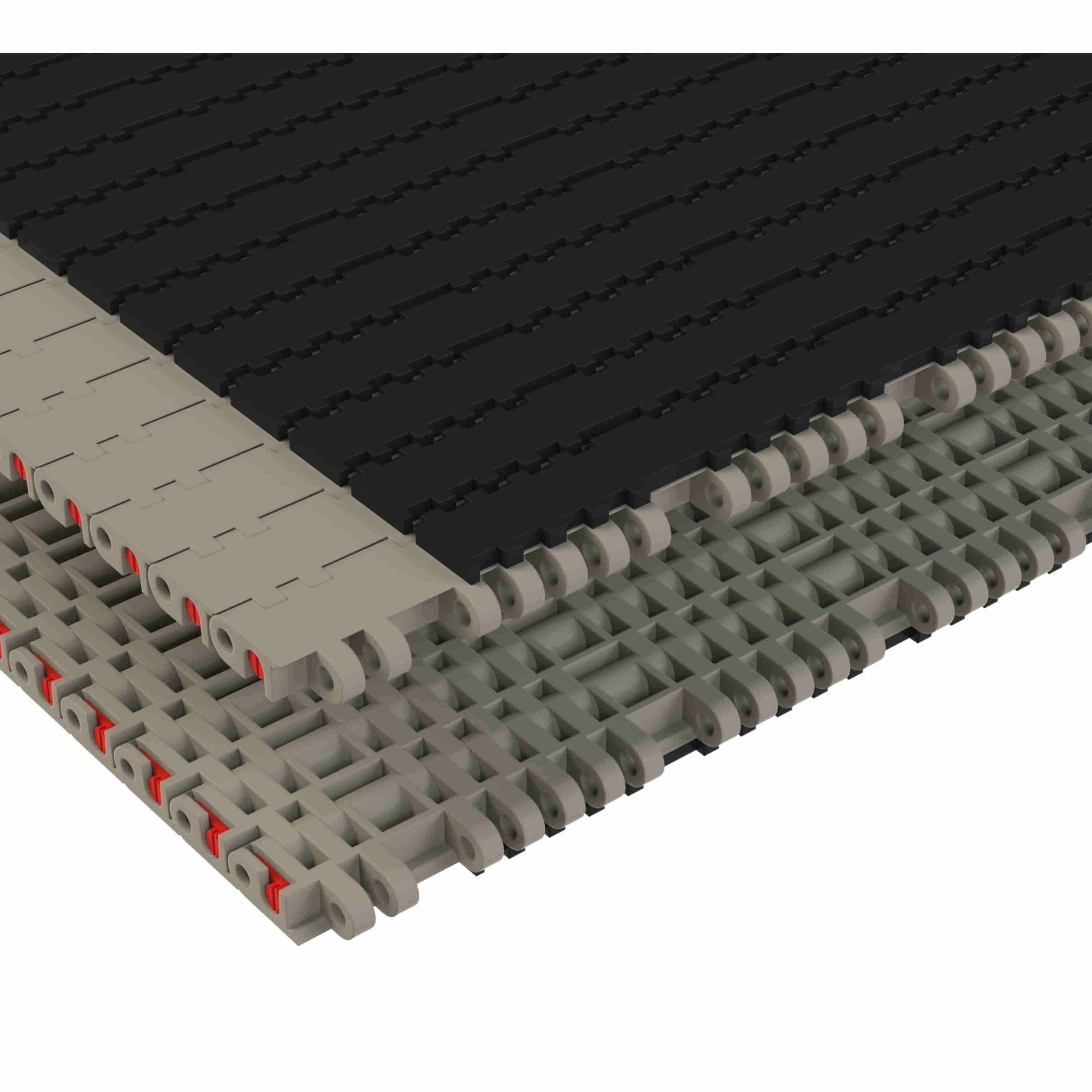

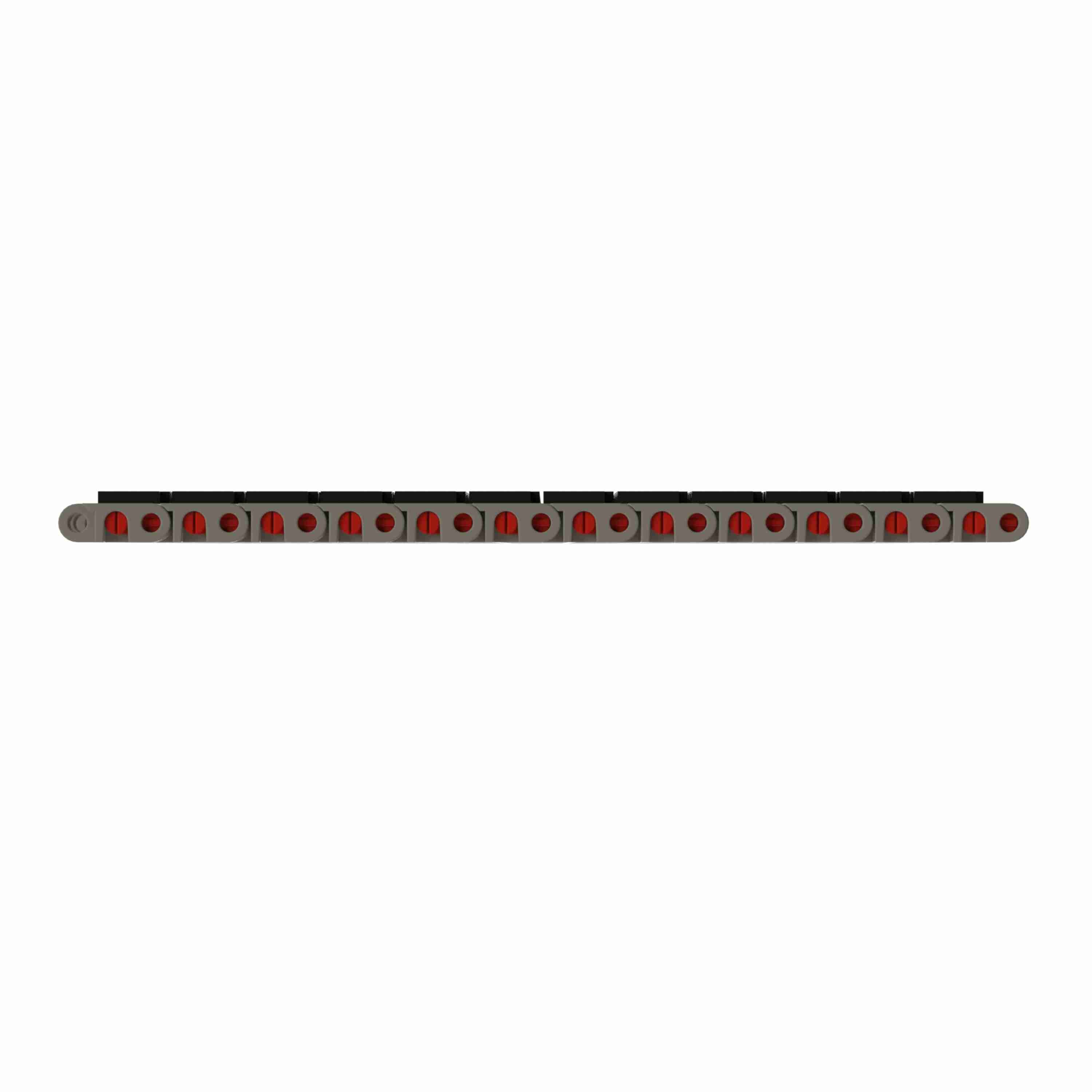

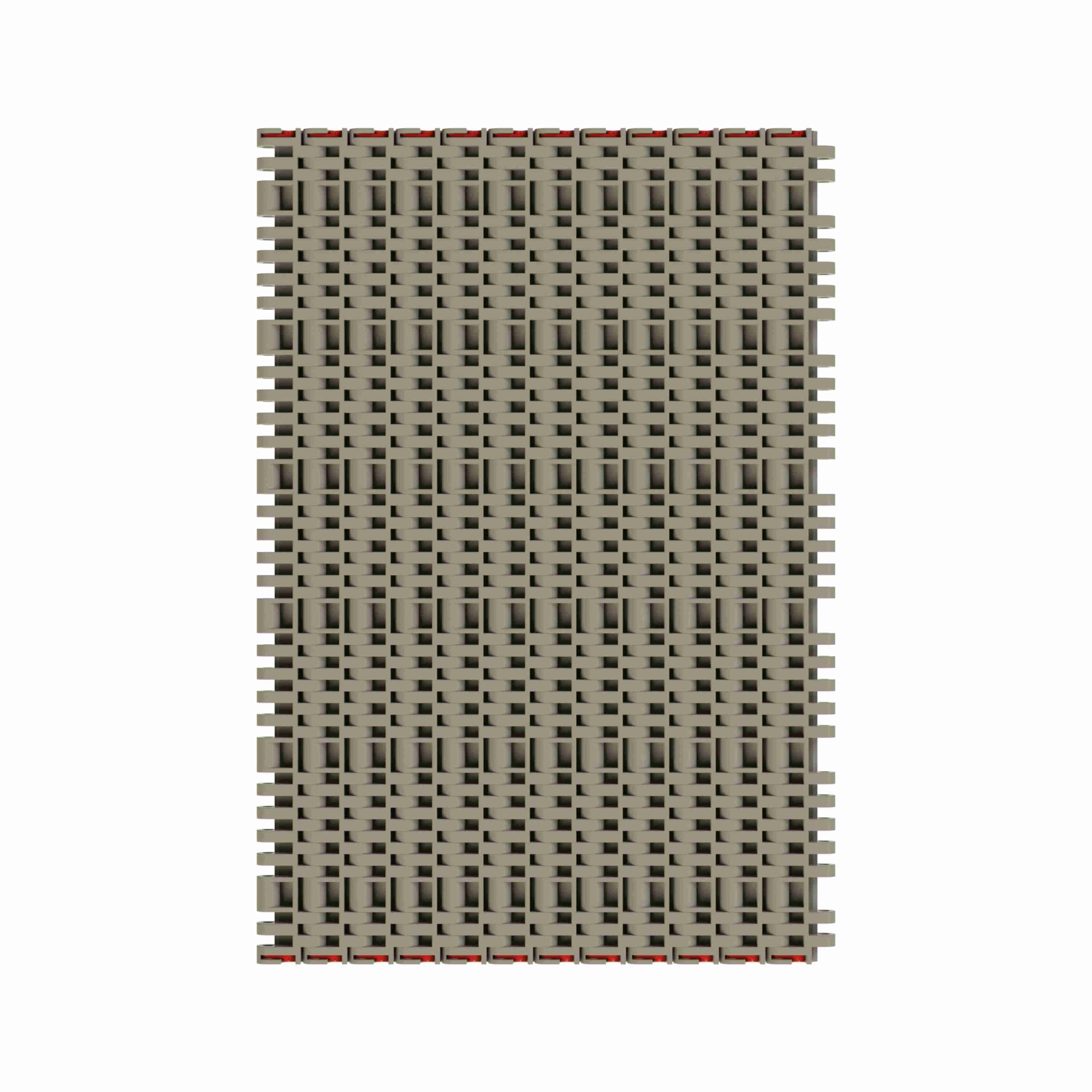

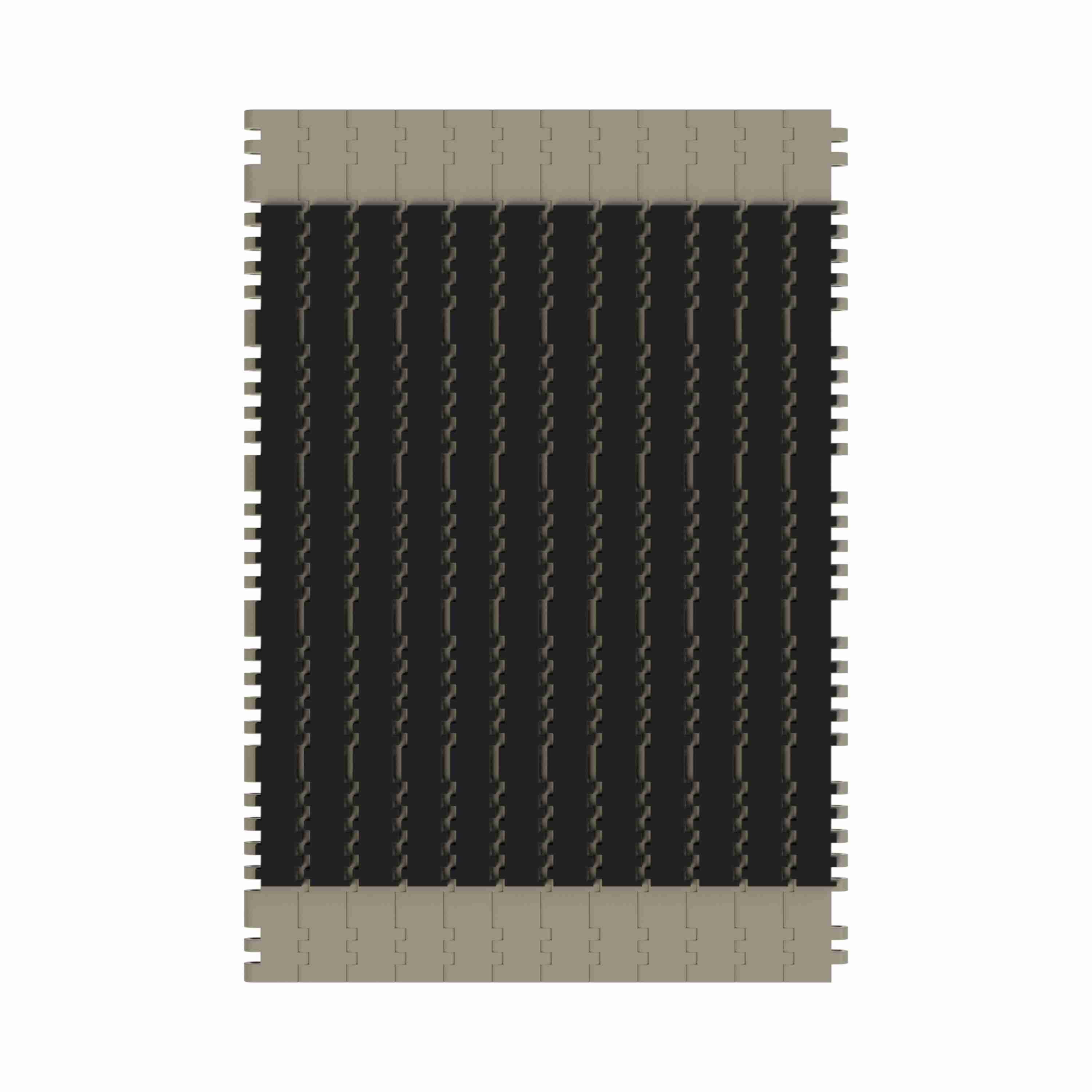

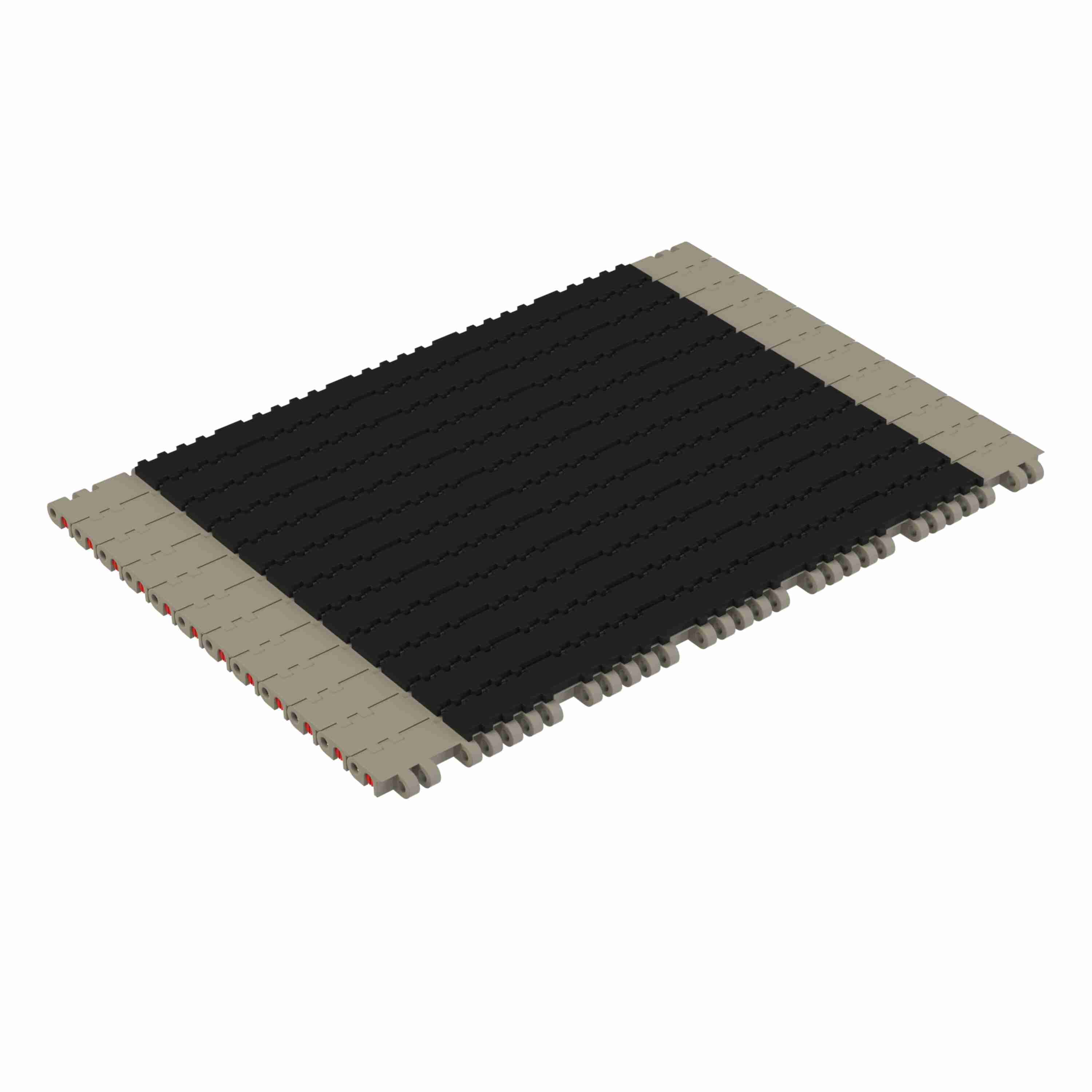

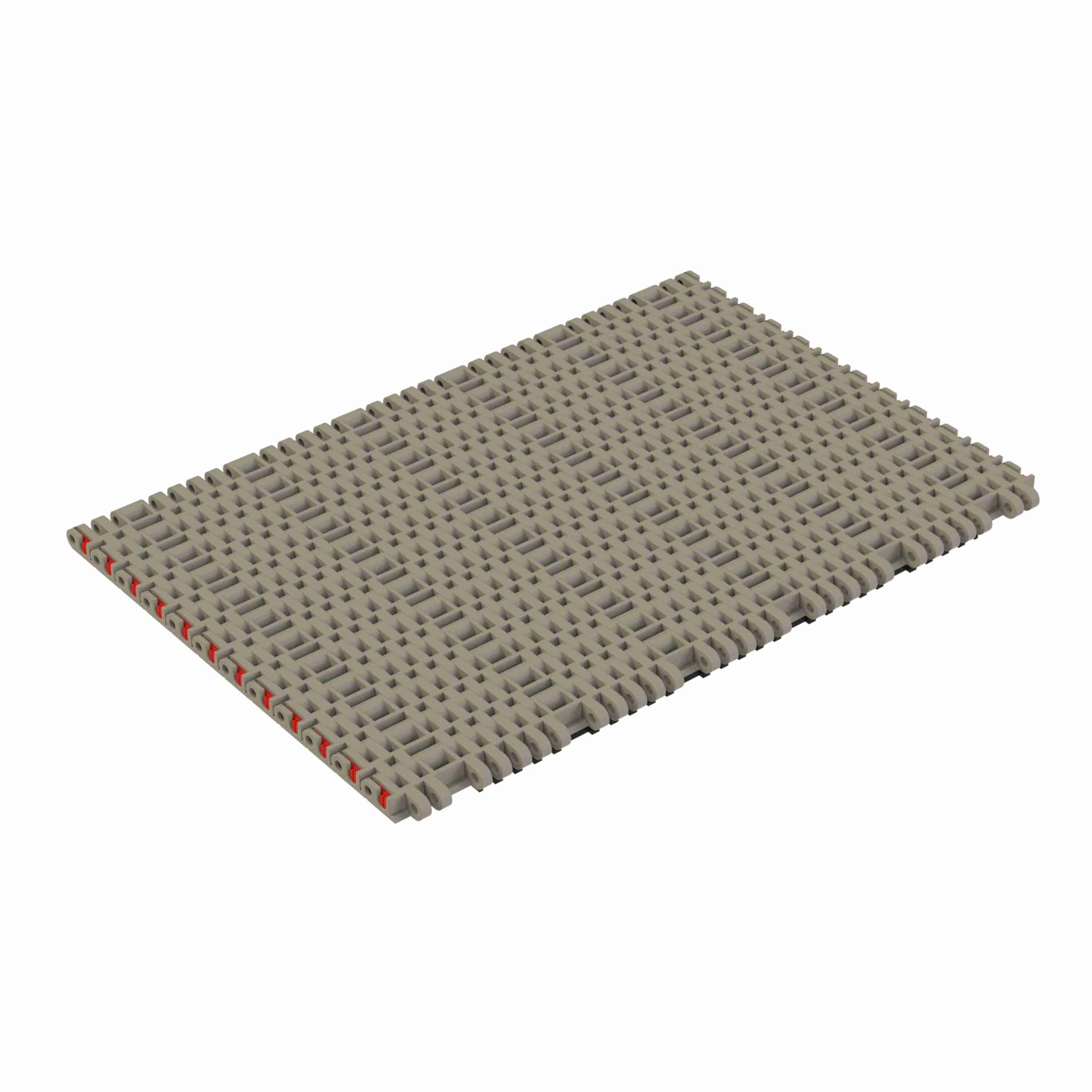

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Grey Tough Composite, Width: 30in, Pitch: 1in - 10324648
Part #:10324648
Catalog #:10324648
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Type: | Straight Running | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Series: | MatTop 7700 Series Chain | Chain Material: | GTC |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Width (in): | 30 in |
| Chain Pitch (in): | 1 in | Chain Width (mm): | 762 mm |
| Product Line: | Plastic Modular Chain and Belt | Belt Thickness (mm): | 17.6 mm |
| Belt Thickness (in): | 0.69 in | Chain Pitch (mm): | 25.4 mm |
| Chain Width Measurement System: | Imperial | Surface Type: | RubberTop® |
| Chain Strength (N/m): | 32,098 N·m | Chain Number: | 7705 RubberTop® |
| Rod/Pin Material: | Acetal | Straight or Side-Flex: | Straight Running |
| Open Area (%): | 3 % | Chain Material Description: | Grey Tough Composite |
| Chain Strength (lb/ft): | 2,200 lb/ft | Product Group: | Modular Plastic Belts |
General Specifications
| Weight: | 0.55 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
