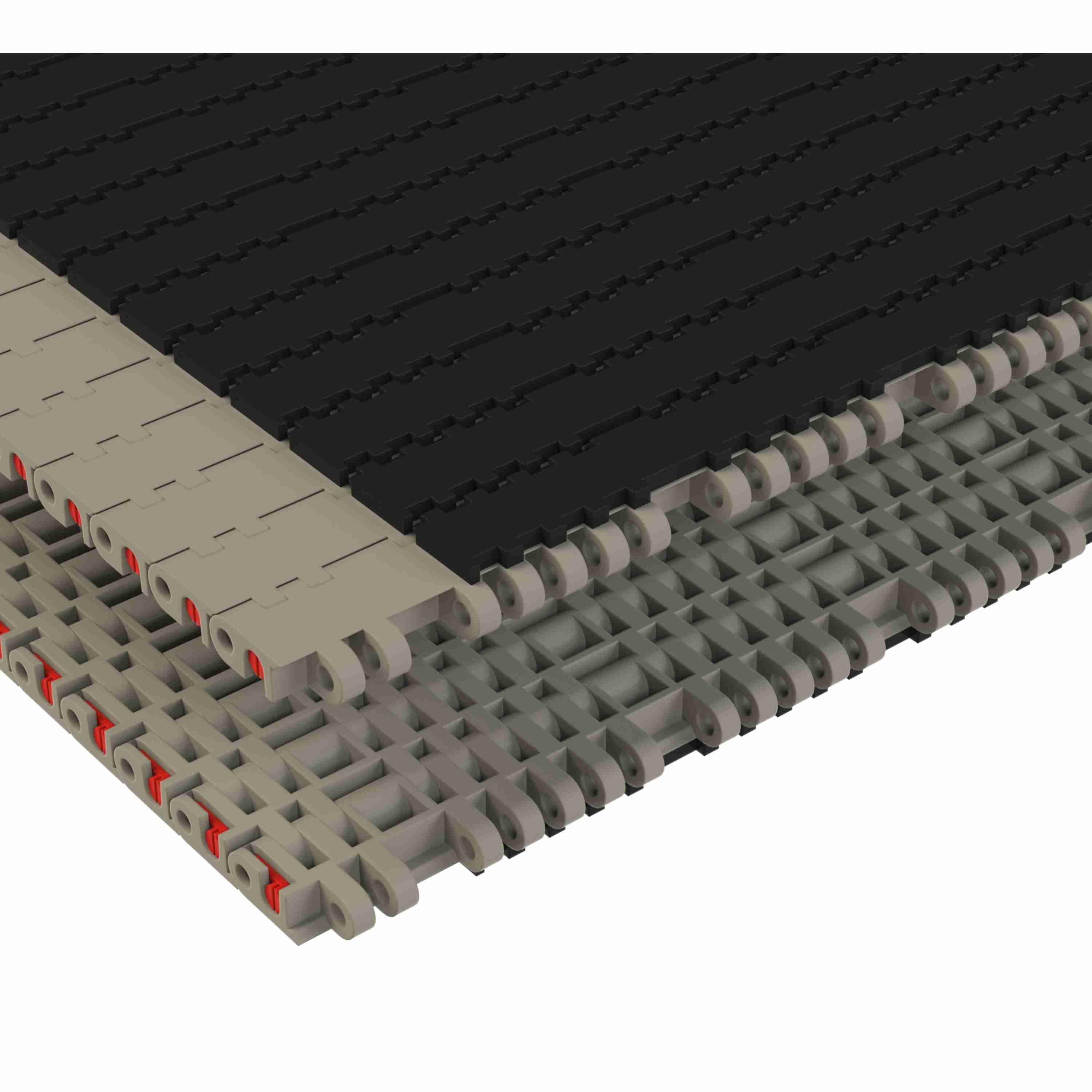

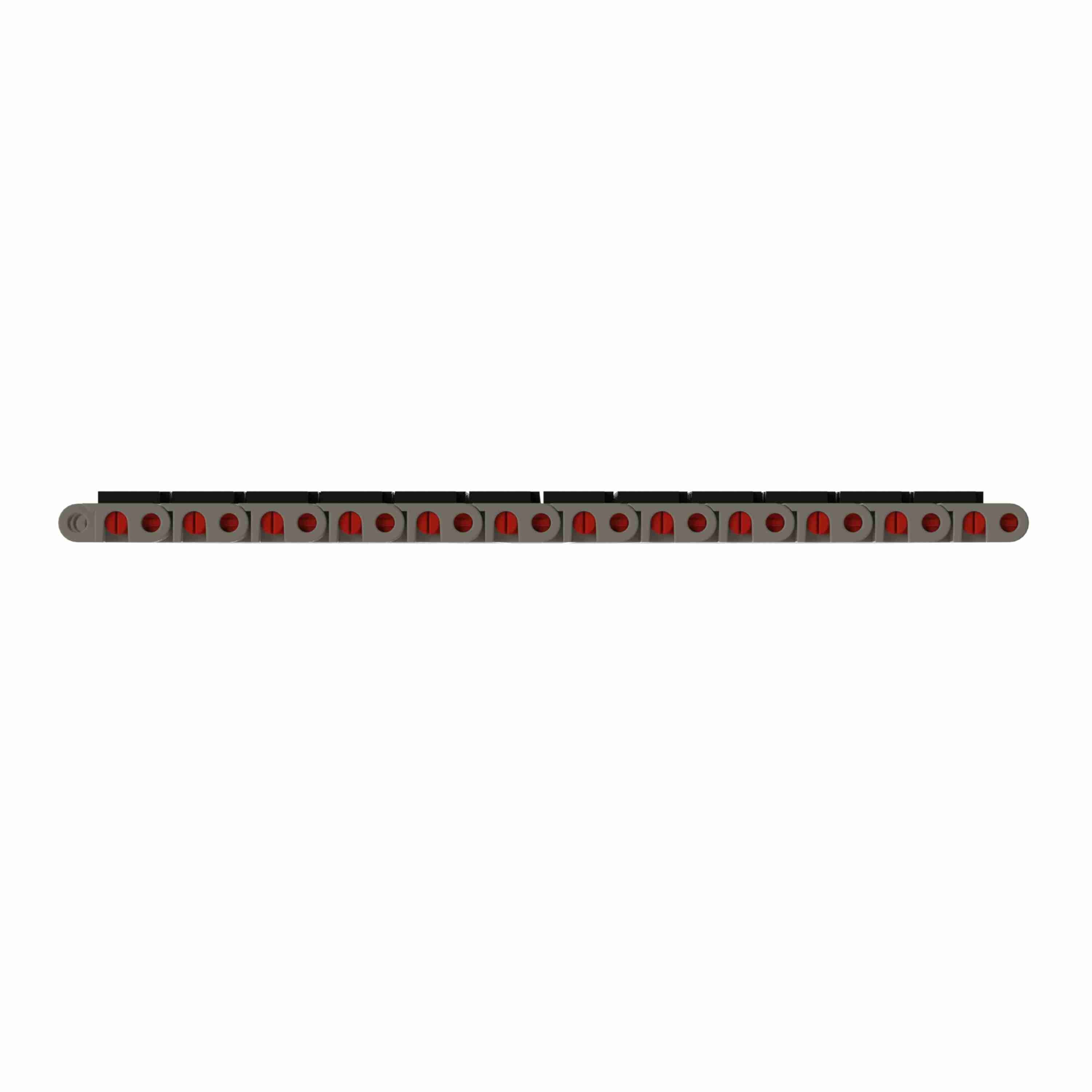

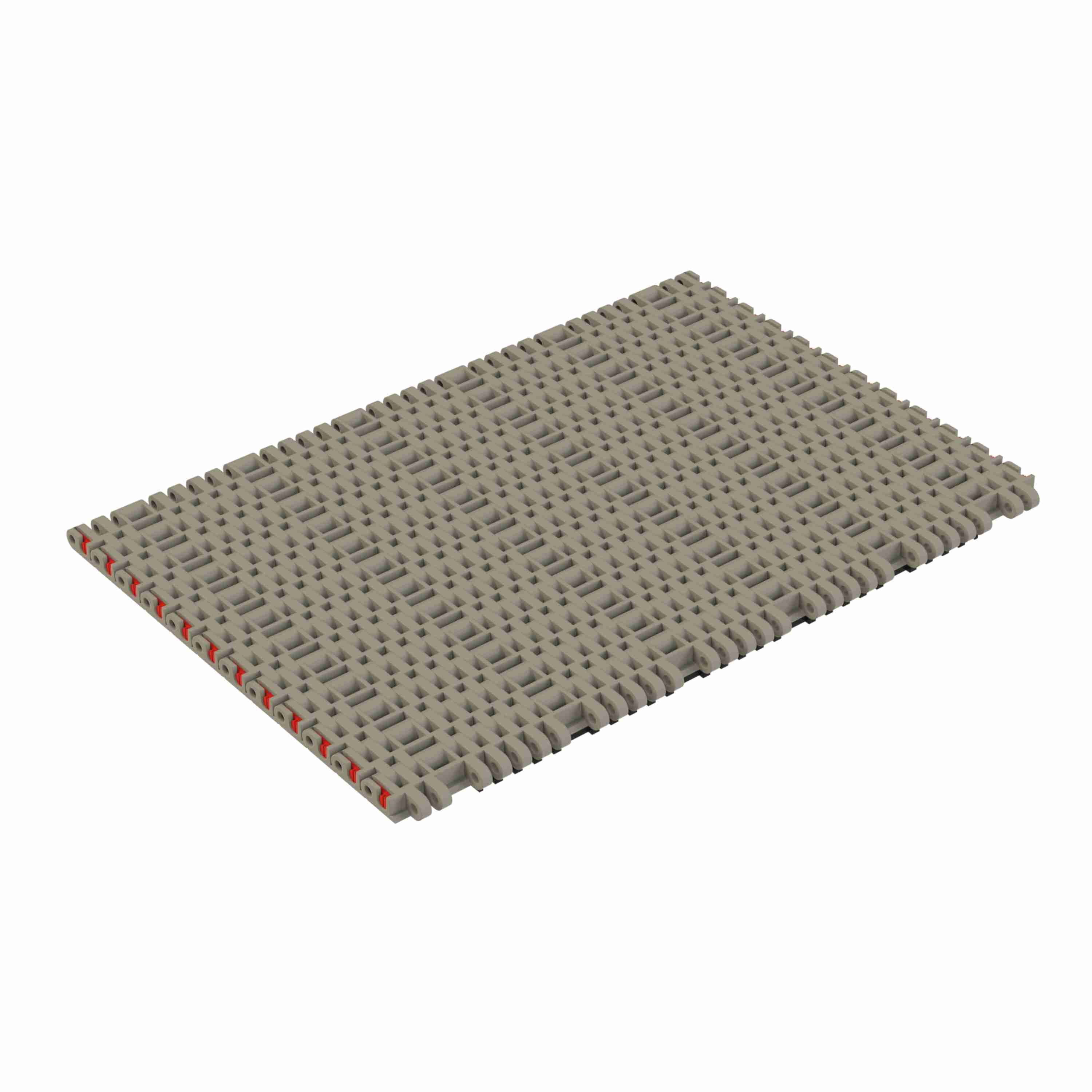

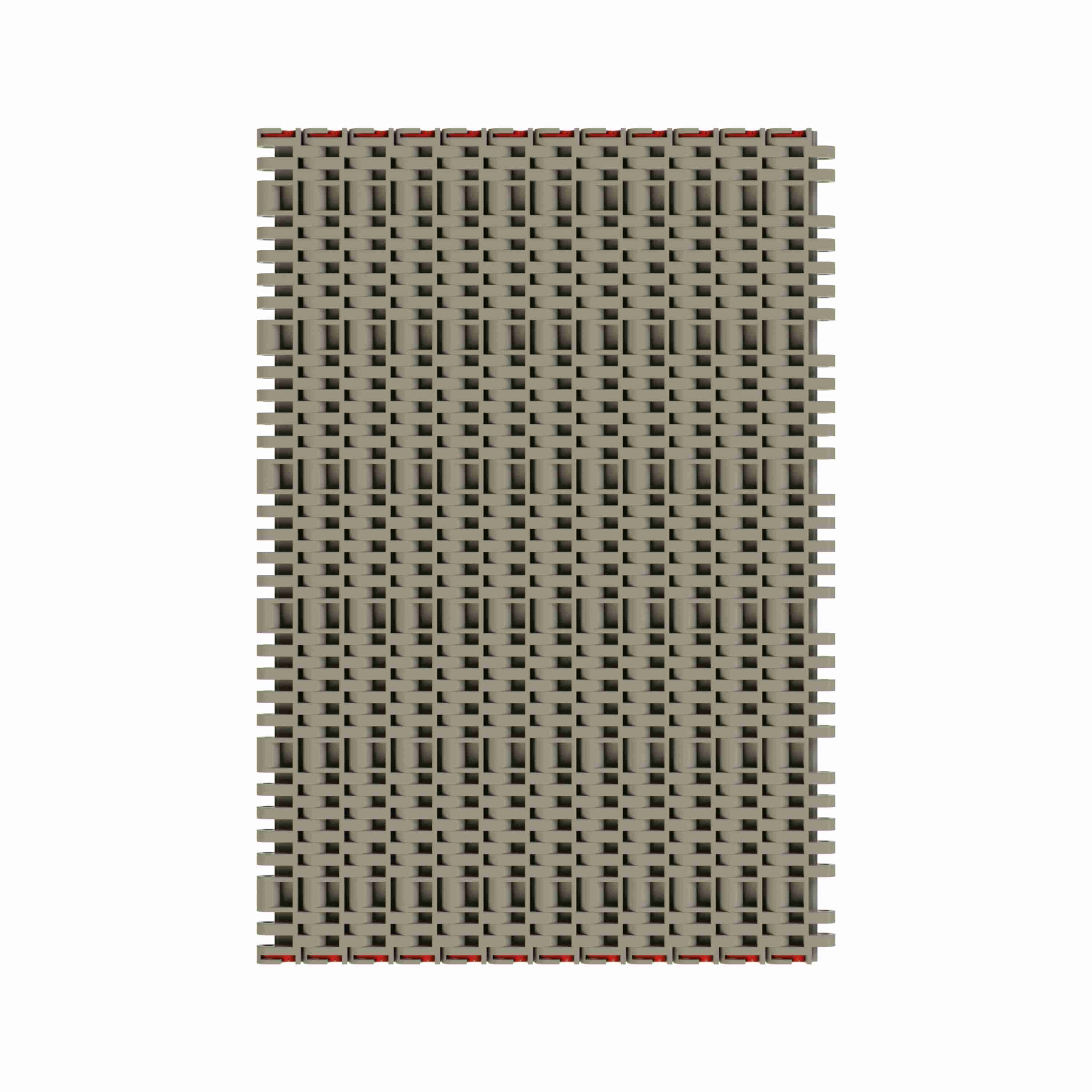

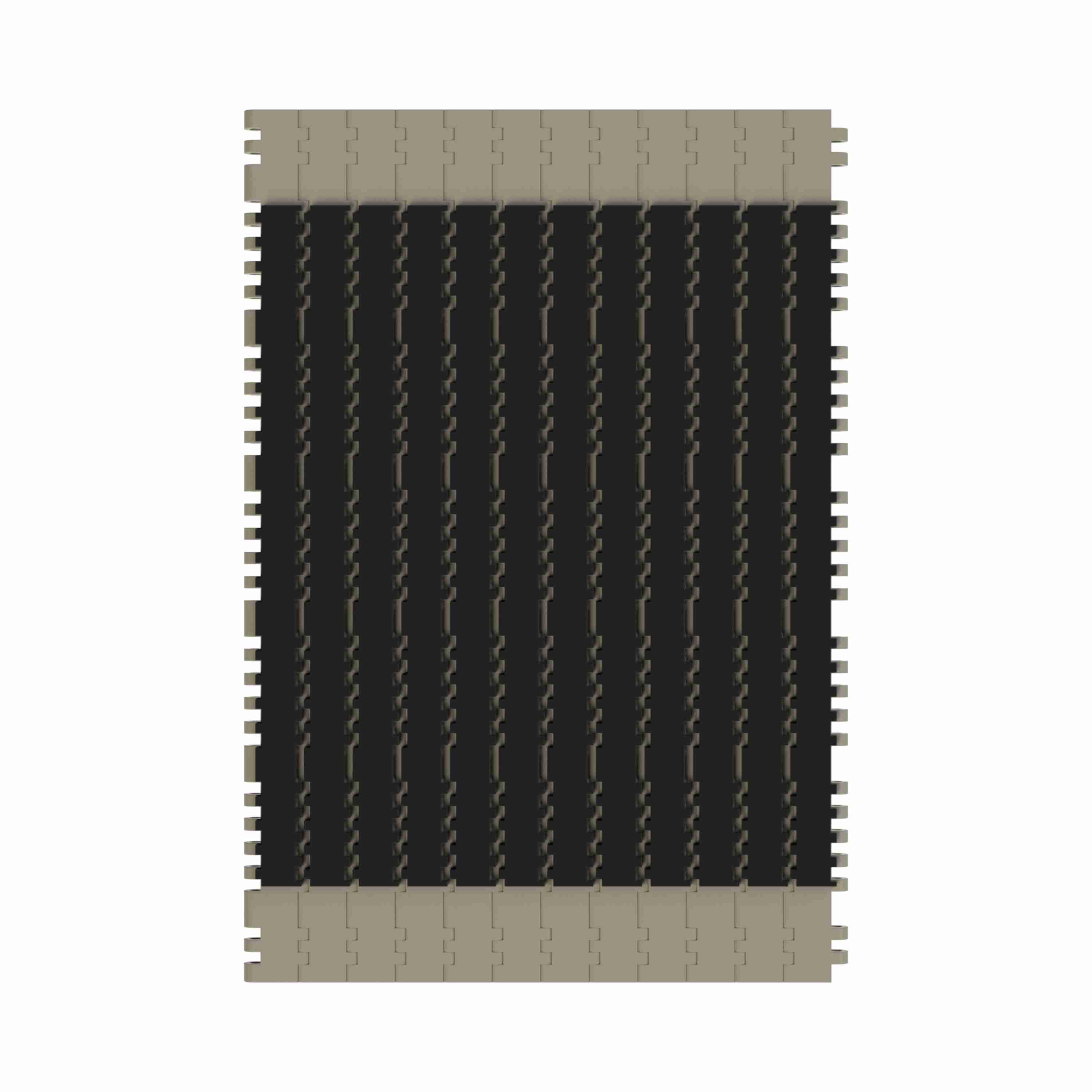

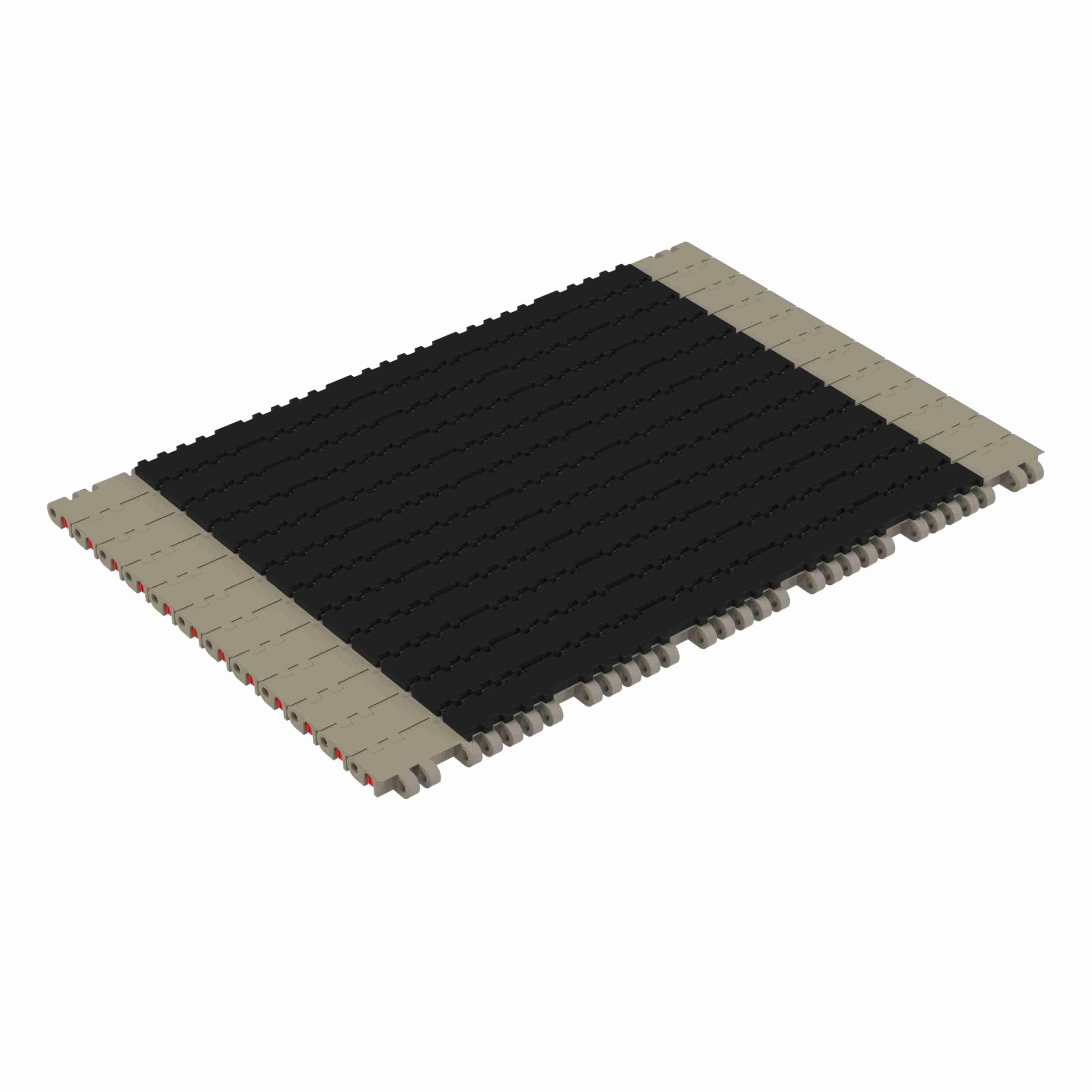

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Grey Tough Composite, Width: 36in, Pitch: 1in - 10324650
Part #:10324650
Catalog #:10324650
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Chain Width (mm): | 914.4 mm |
| Chain Material: | GTC | Chain Strength (lb/ft): | 2,200 lb/ft |
| Product Line: | Plastic Modular Chain and Belt | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Surface Type: | RubberTop® | Product Type: | Straight Running |
| Straight or Side-Flex: | Straight Running | Belt Thickness (mm): | 17.6 mm |
| Chain Strength (N/m): | 32,098 N·m | Series: | MatTop 7700 Series Chain |
| Chain Width (in): | 36 in | SG/RT Spacing (Pitches): | Every Pitch |
| Chain Material Description: | Grey Tough Composite | Product Group: | Modular Plastic Belts |
| Chain Pitch (in): | 1 in | Rod/Pin Material: | Acetal |
| Open Area (%): | 3 % | Chain Number: | 7705 RubberTop® |
| Chain Pitch (mm): | 25.4 mm | Belt Thickness (in): | 0.69 in |
General Specifications
| Weight: | 0.66 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
