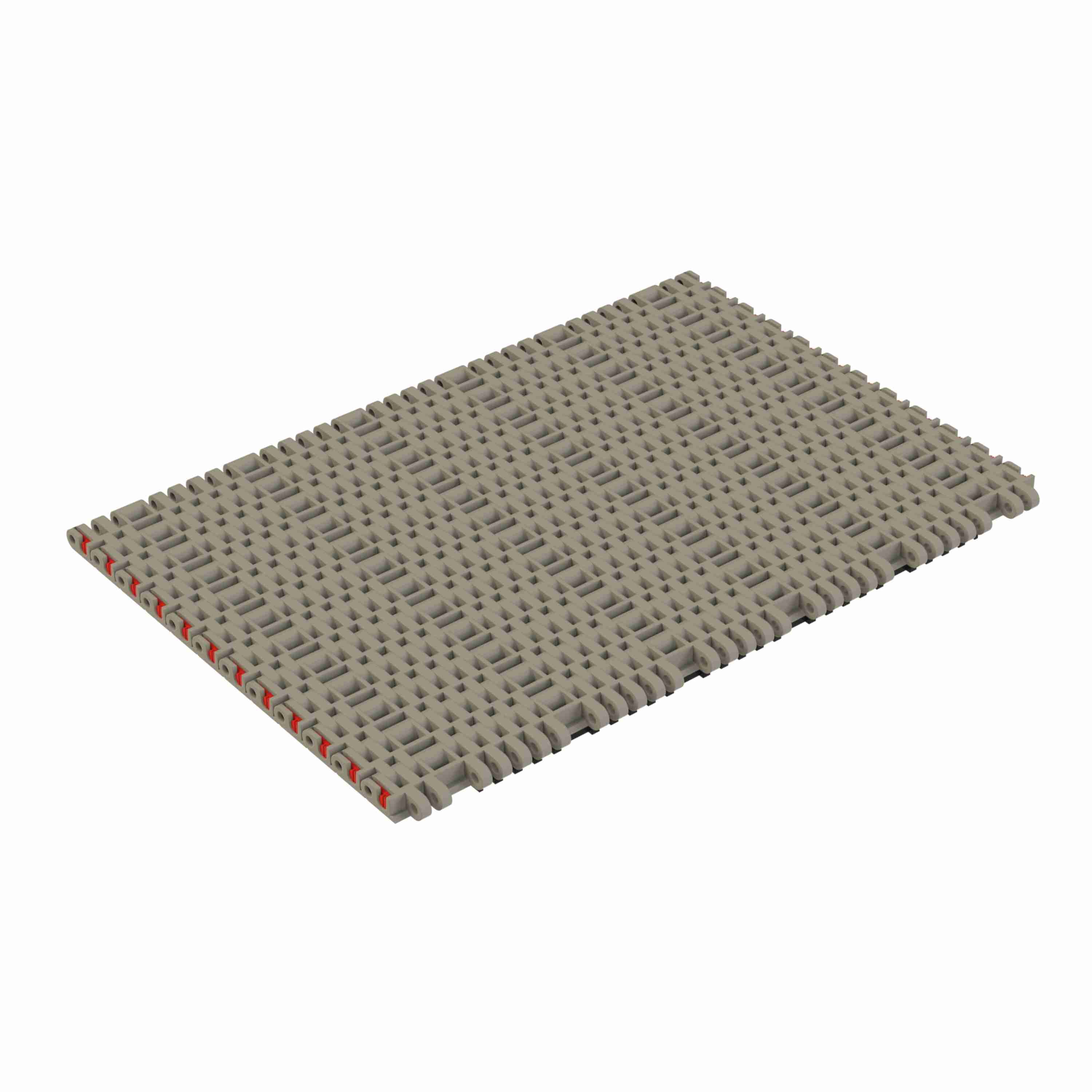

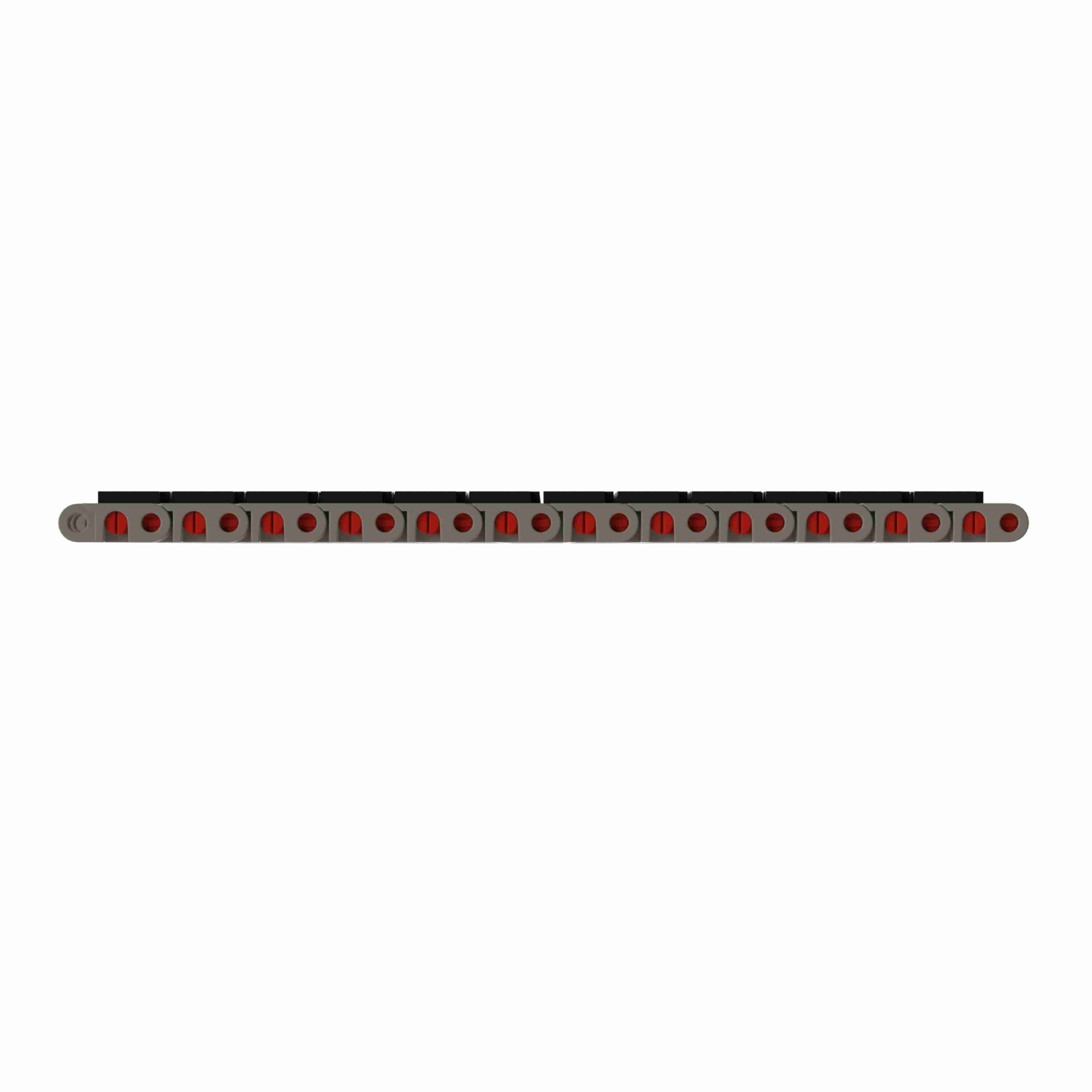

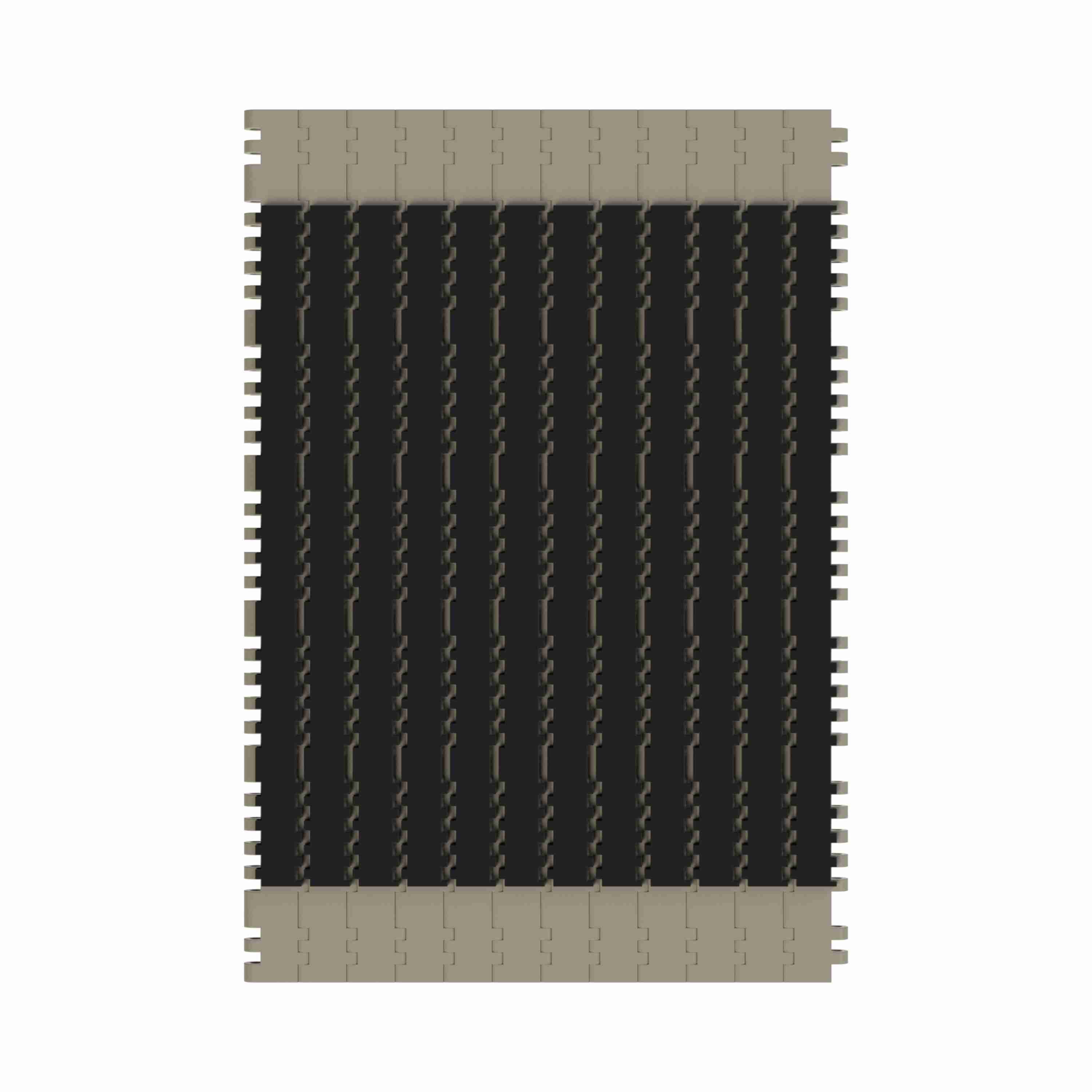

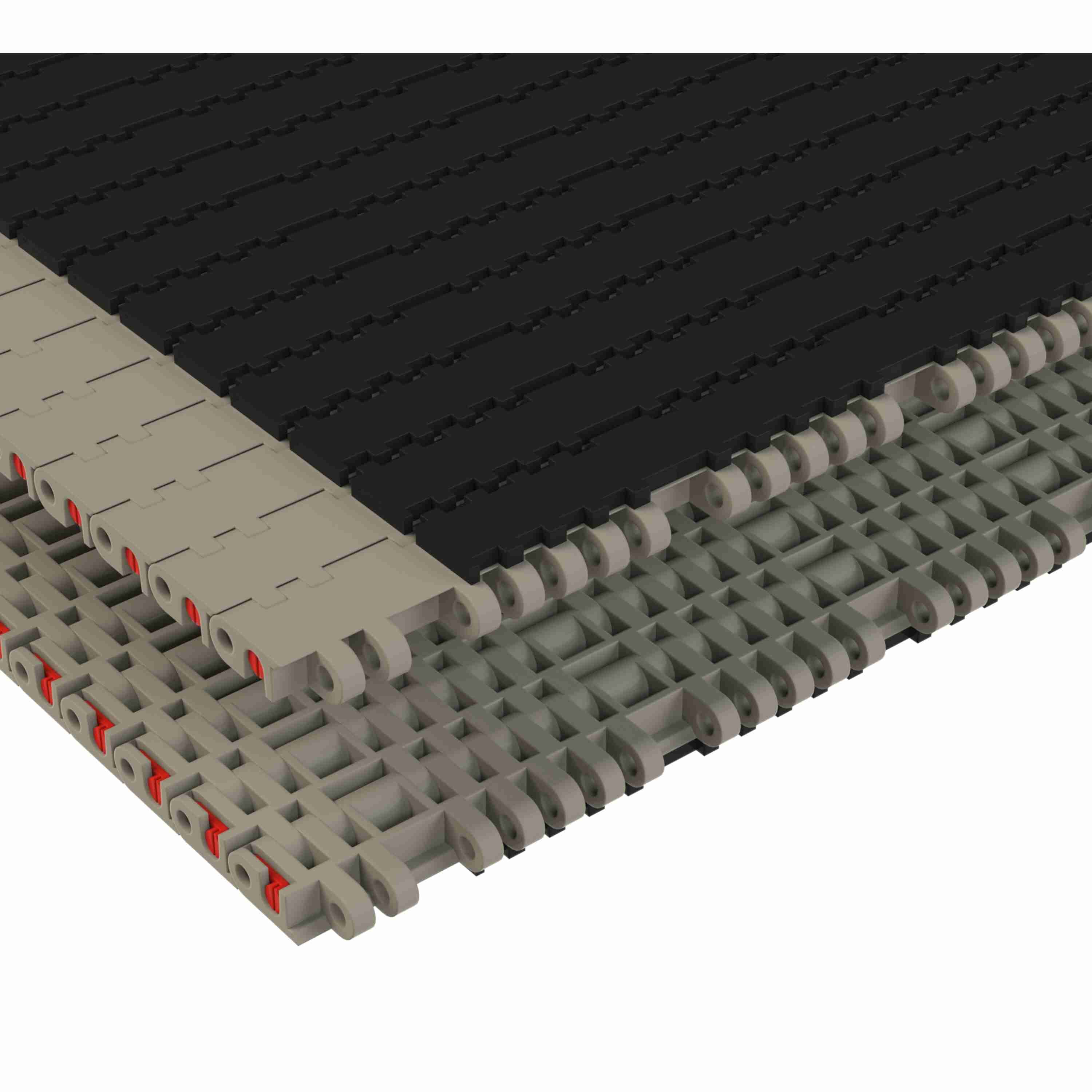

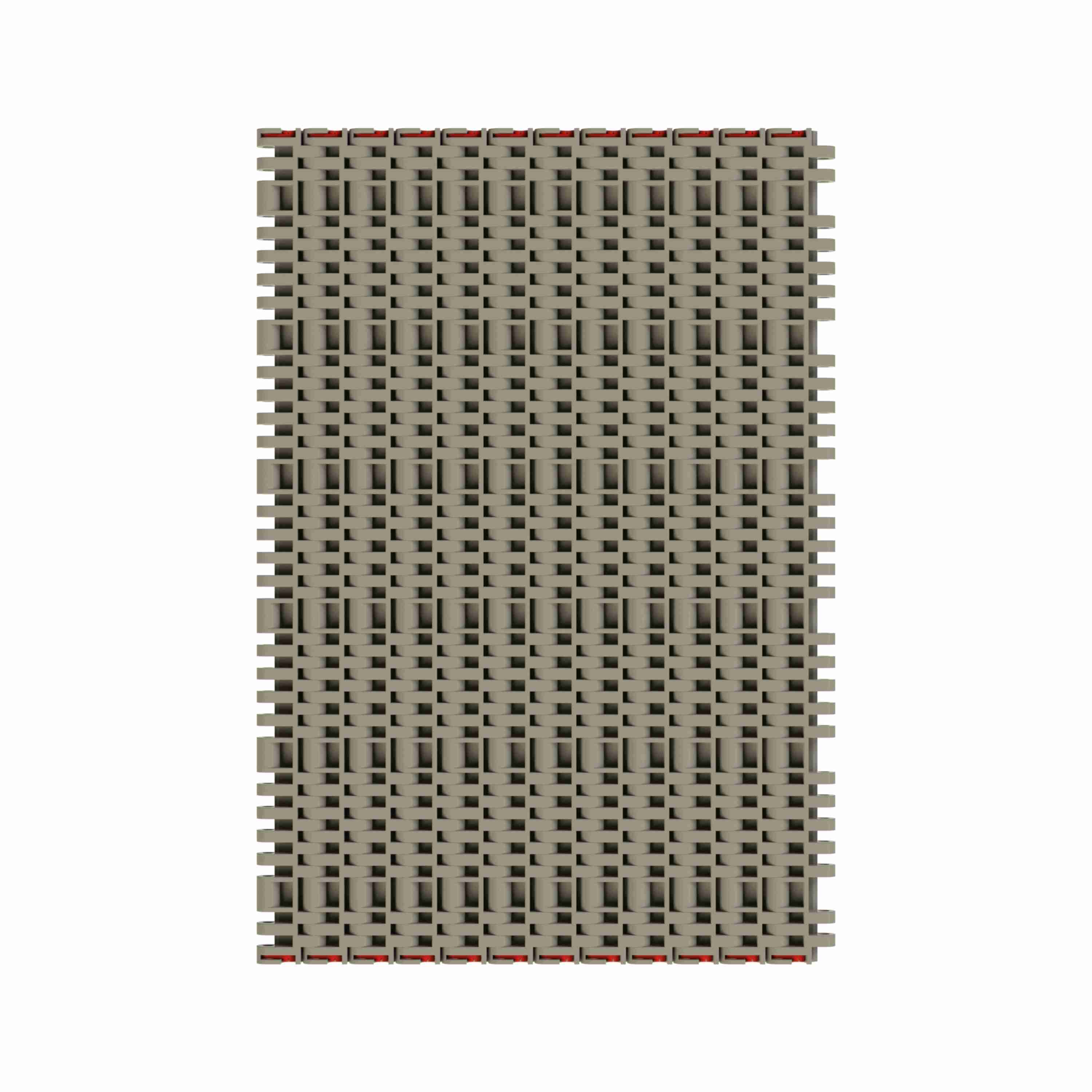

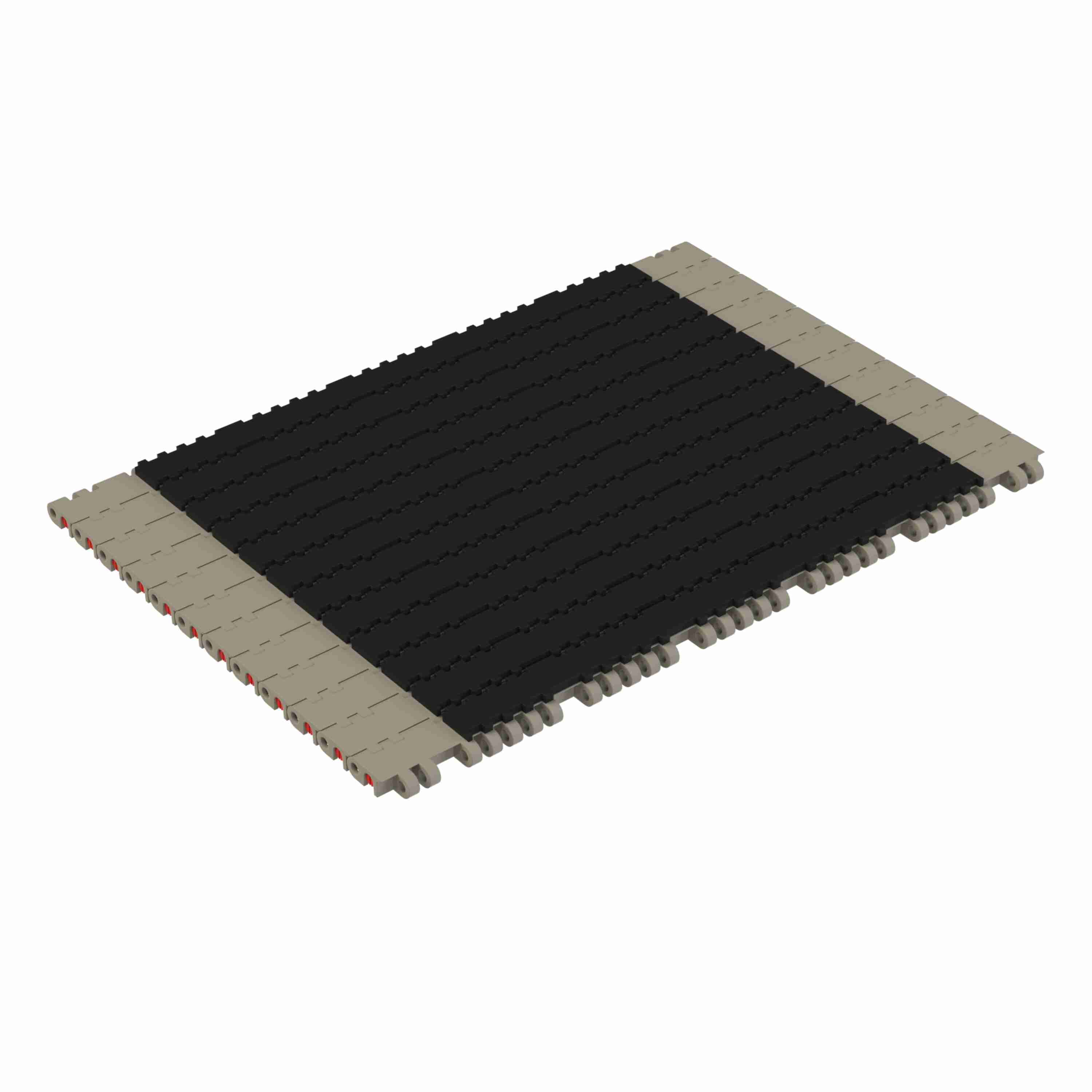

Rexnord 7705 RubberTop® Straight Running RubberTop®, Material: Grey Tough Composite, Width: 9in, Pitch: 1in - 10324641
Part #:10324641
Catalog #:10324641
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 7705 RubberTop® | Chain Width (in): | 9 in |
| Product Group: | Modular Plastic Belts | Chain Material Description: | Grey Tough Composite |
| Chain Width Measurement System: | Imperial | Series: | MatTop 7700 Series Chain |
| Straight or Side-Flex: | Straight Running | Chain Pitch (mm): | 25.4 mm |
| Belt Thickness (mm): | 17.6 mm | Product Line: | Plastic Modular Chain and Belt |
| Chain Width (mm): | 228.6 mm | Number of SuperGrip/RubberTop Rows: | 1 Row |
| SG/RT Spacing (Pitches): | Every Pitch | Open Area (%): | 3 % |
| Chain Pitch (in): | 1 in | Chain Strength (N/m): | 32,098 N·m |
| Chain Strength (lb/ft): | 2,200 lb/ft | Belt Thickness (in): | 0.69 in |
| Chain Material: | GTC | Surface Type: | RubberTop® |
| Rod/Pin Material: | Acetal | Product Type: | Straight Running |
General Specifications
| Weight: | 0.16 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
