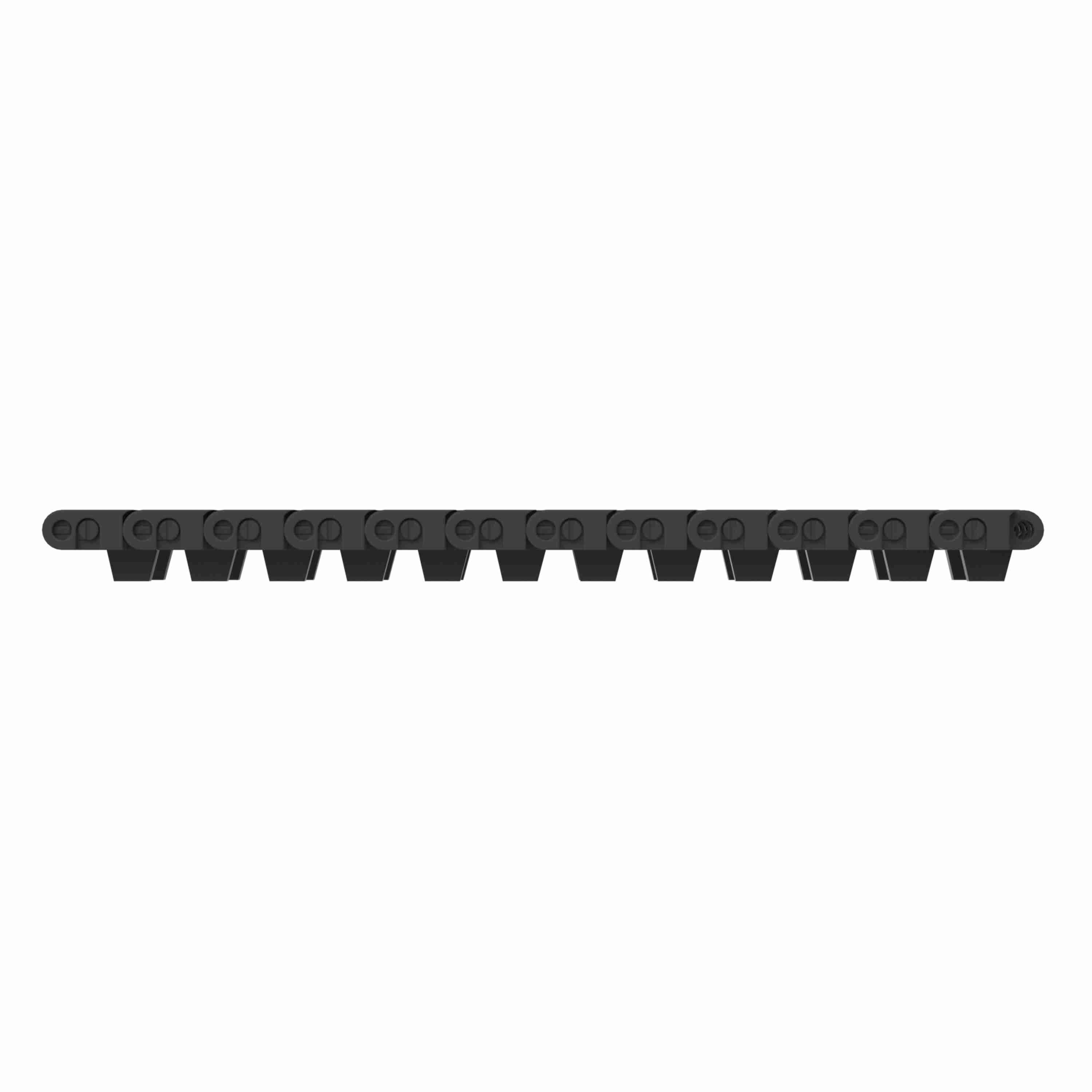

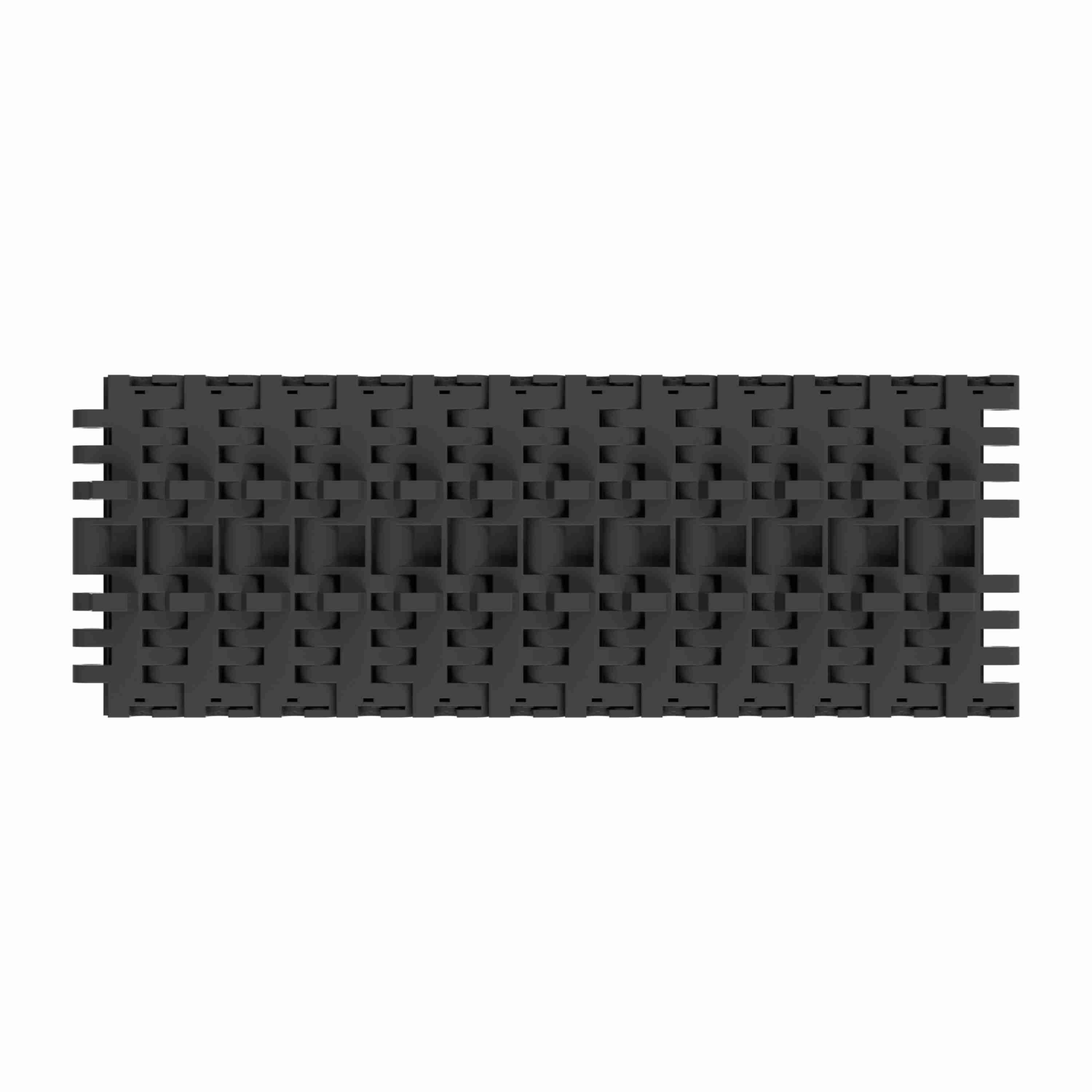

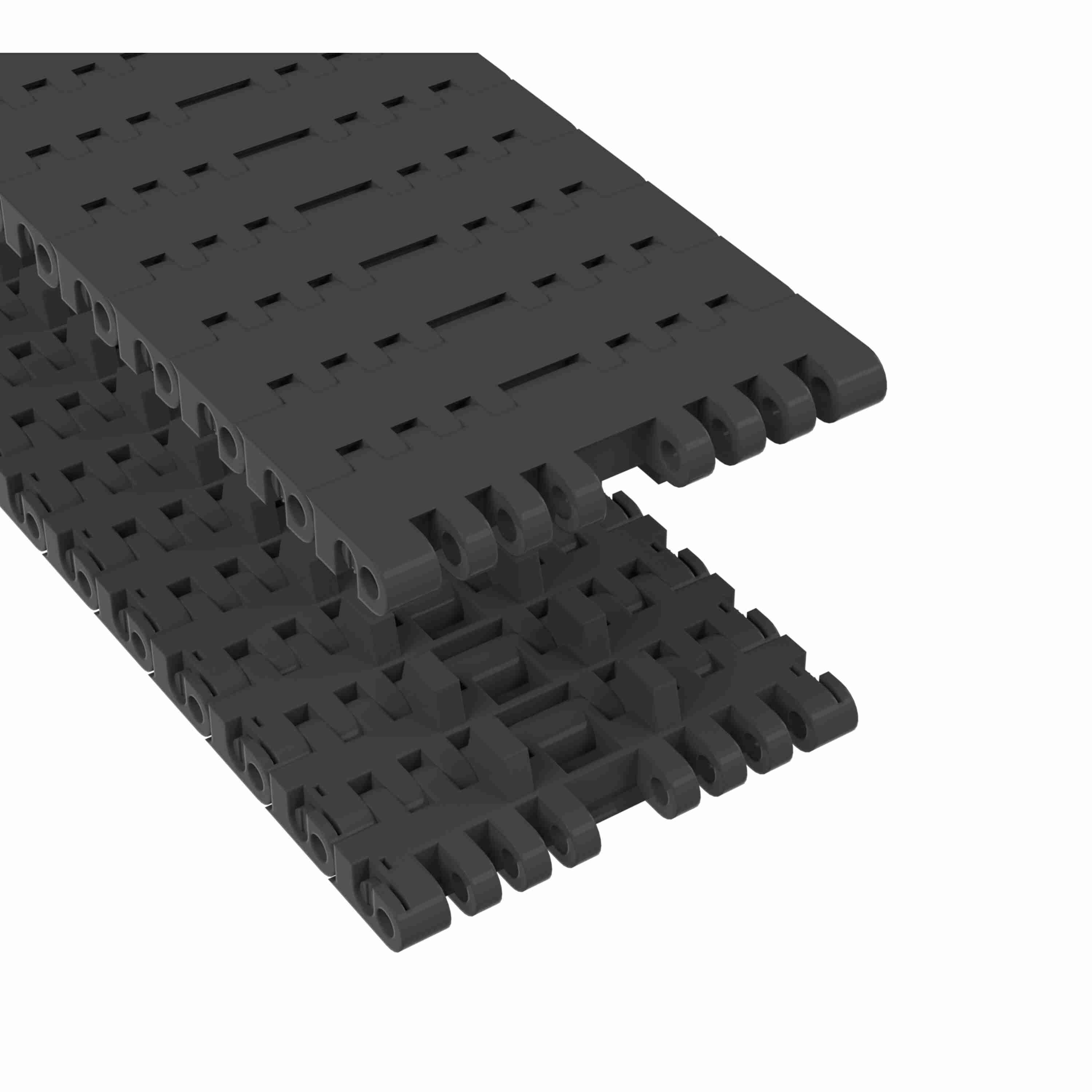

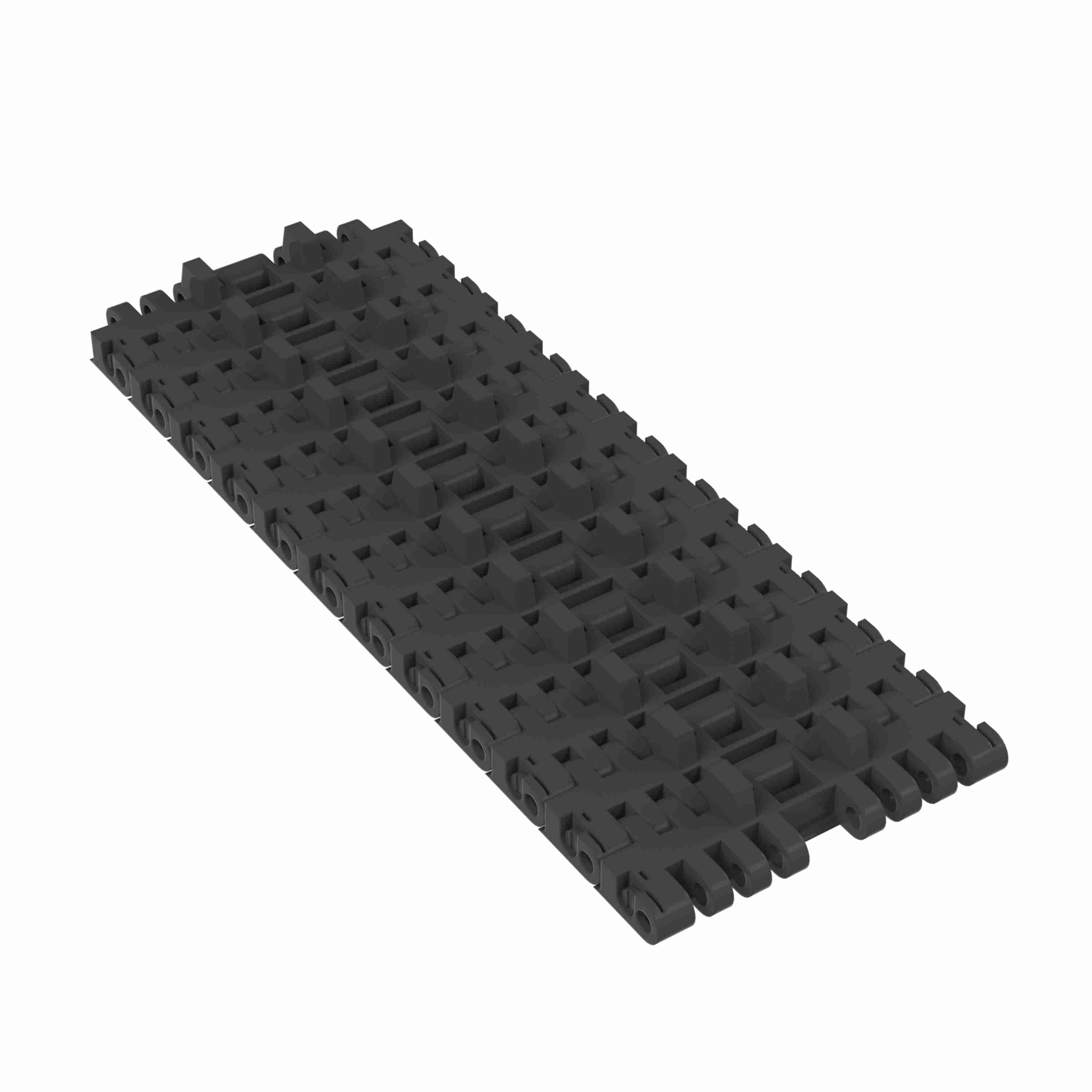

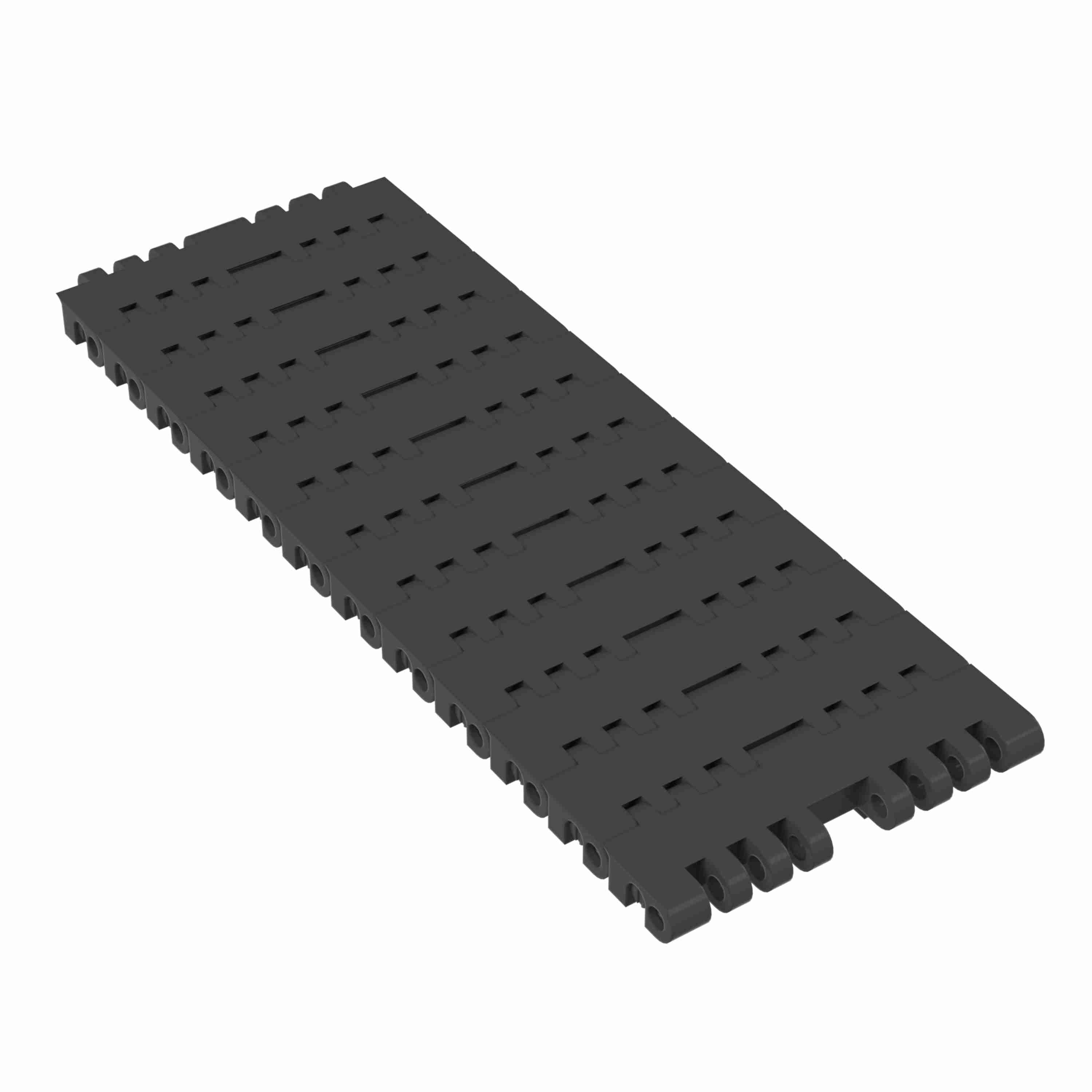

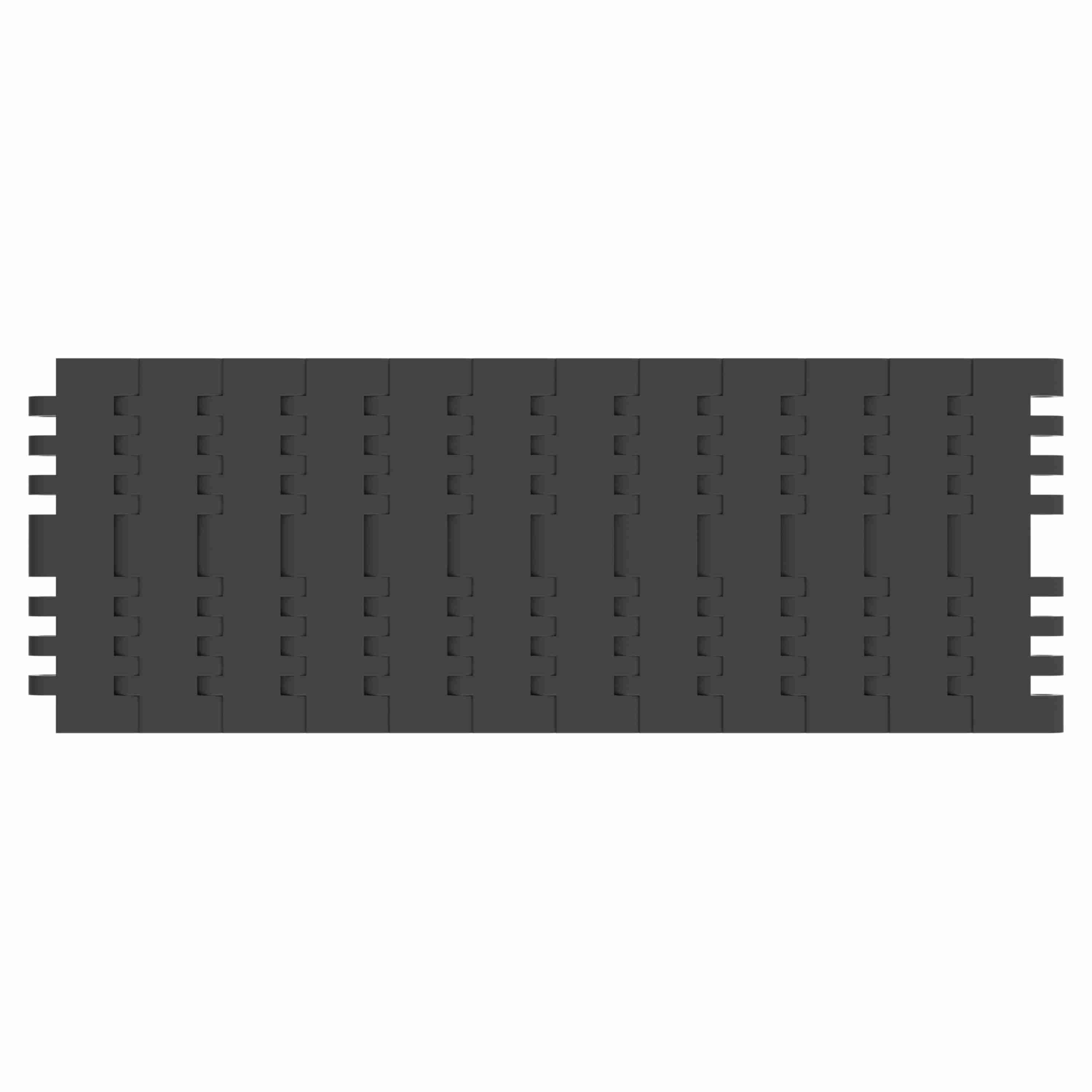

Rexnord 7705 Straight Running Solid Top, Material: Black Abrasion Resistant Polyamide, Width: 4.5in, Pitch: 1in - 81445361
Part #:10146012
Catalog #:81445361
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.5 in | Rod/Pin Material: | Acetal |
| Chain Material: | BWX | Open Area (%): | 3 % |
| Chain Pitch (mm): | 25.4 mm | Surface Type: | Solid Top |
| Belt Thickness (mm): | 12.7 mm | Positrack: | True |
| Chain Strength (lb): | 1,025 lb | Series: | MatTop 7700 Series Chain |
| Number of Positrack: | 2 | Chain Width Measurement System: | Imperial |
| Product Group: | Modular Plastic Belts | Product Type: | Straight Running |
| Chain Pitch (in): | 1 in | Chain Width (mm): | 114.3 mm |
| Chain Material Description: | Black Abrasion Resistant Polyamide | Product Line: | Plastic Modular Chain and Belt |
| Straight or Side-Flex: | Straight Running | Chain Strength (N): | 4,551 N |
| Chain Width (in): | 4.5 in | Positrack Location: | Center |
| Chain Number: | 7705 |
General Specifications
| Weight: | 0.09 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
