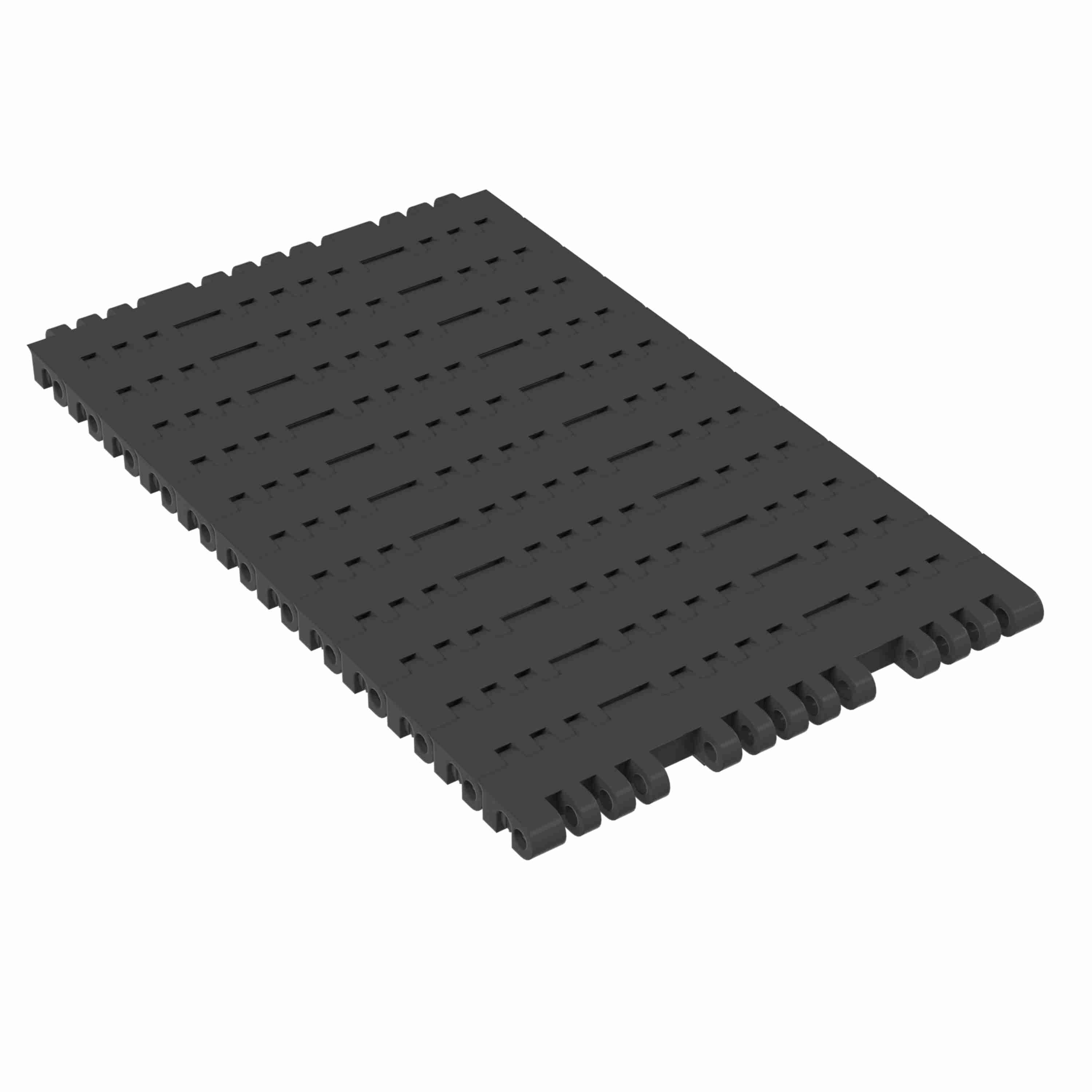

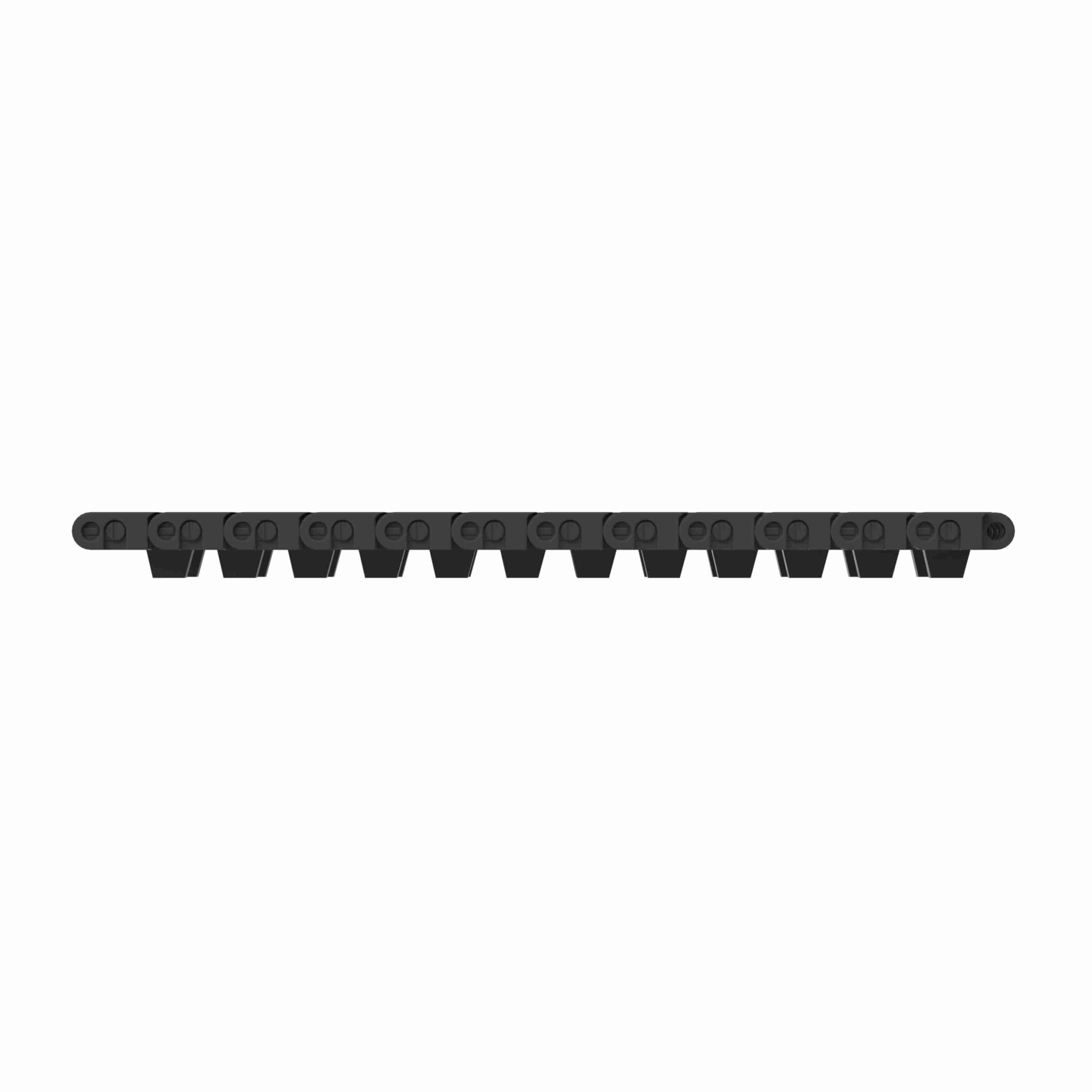

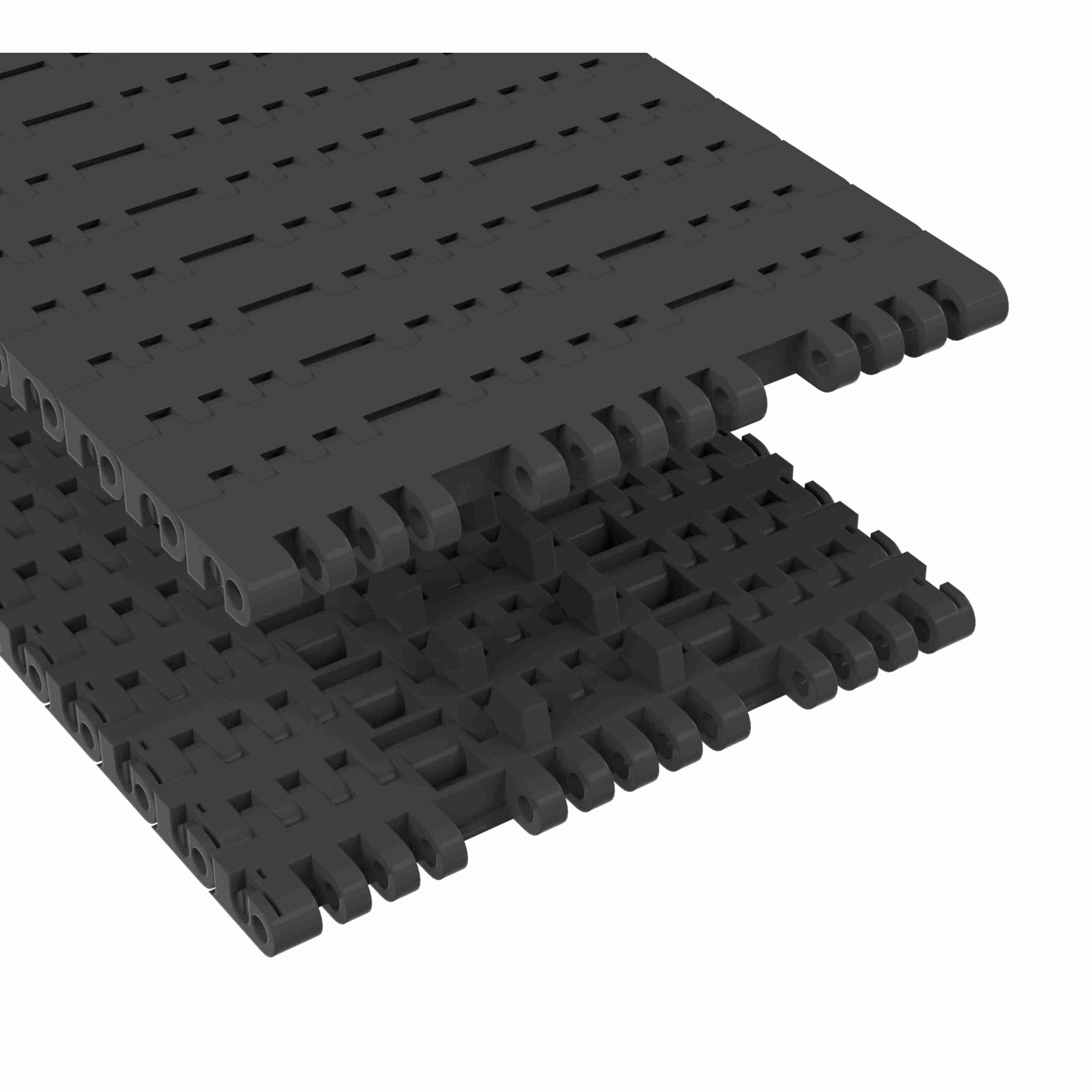

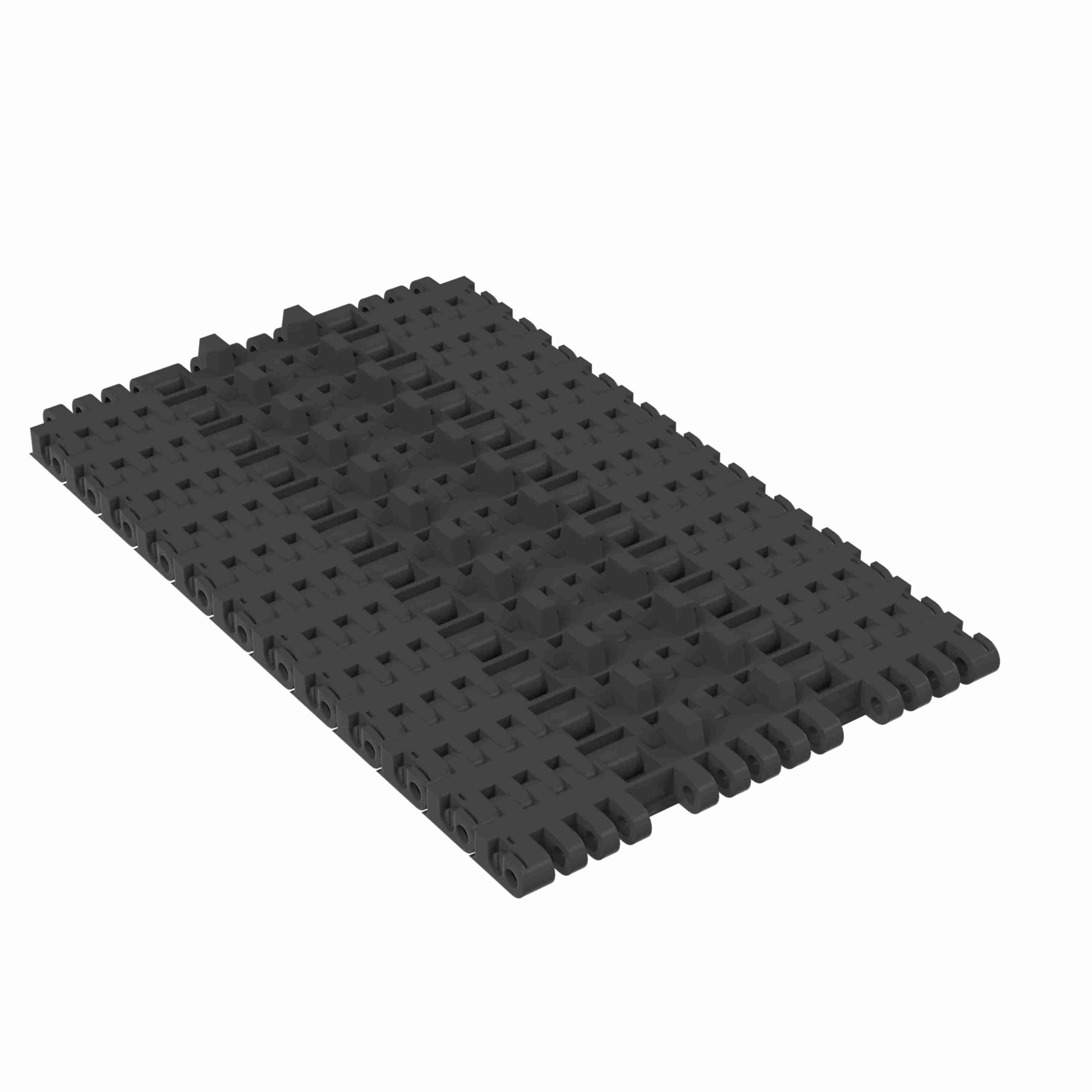

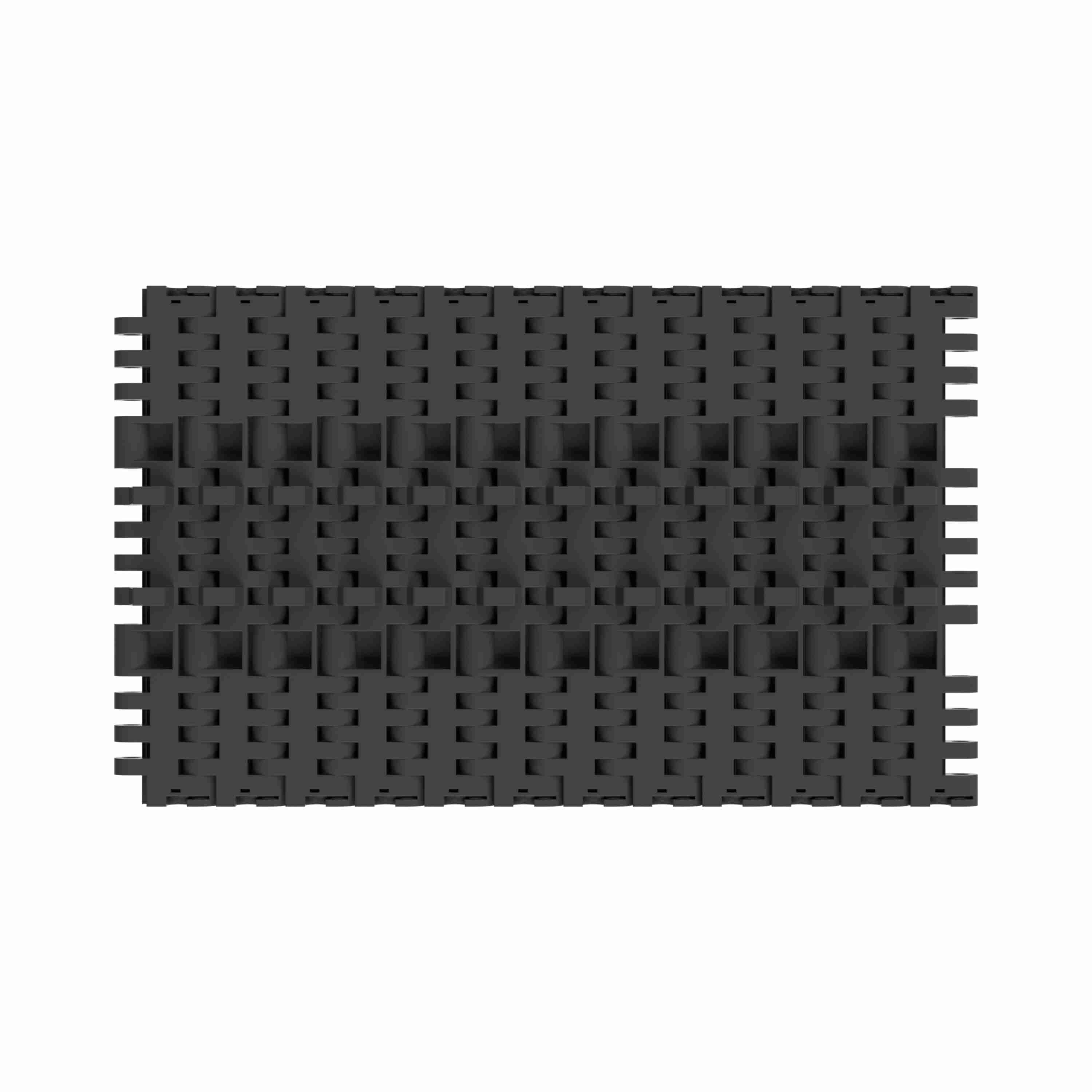

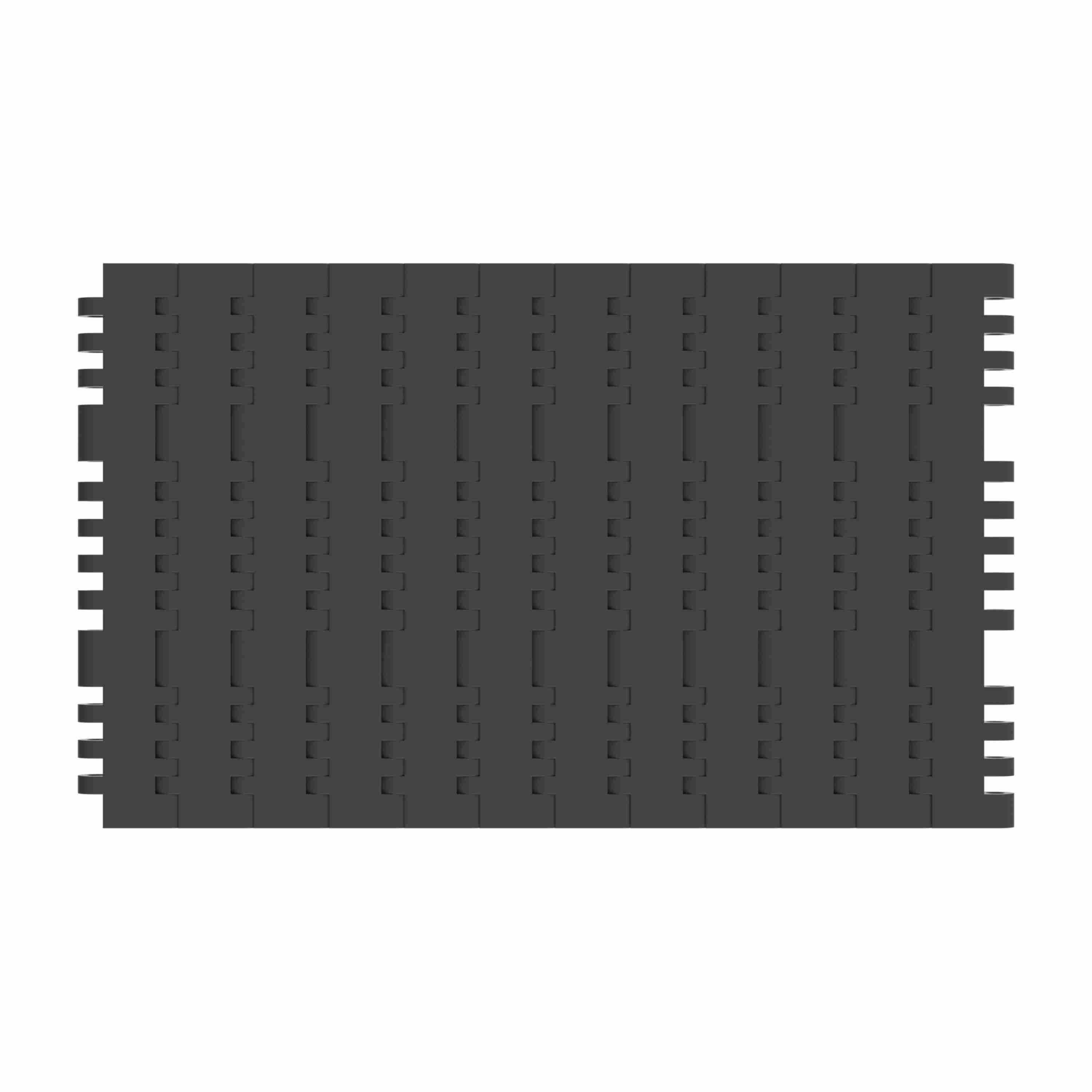

Rexnord 7705 Straight Running Solid Top, Material: Black Abrasion Resistant Polyamide, Width: 7.5in, Pitch: 1in - 10282299
Part #:10282299
Catalog #:10282299
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Acetal | Product Group: | Modular Plastic Belts |
| Chain Pitch (mm): | 25.4 mm | Series: | MatTop 7700 Series Chain |
| Chain Strength (N): | 7,770 N | Chain Material Description: | Black Abrasion Resistant Polyamide |
| Positrack Location: | Center | Chain Number: | 7705 |
| Chain Pitch (in): | 1 in | Number of Positrack: | 2 |
| Belt Thickness (mm): | 12.7 mm | Positrack: | True |
| Chain Width (mm): | 190.5 mm | Surface Type: | Solid Top |
| Product Type: | Straight Running | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 7.5 in | Product Line: | Plastic Modular Chain and Belt |
| Straight or Side-Flex: | Straight Running | Open Area (%): | 3 % |
| Chain Material: | BWX | Chain Strength (lb): | 1,750 lb |
| Belt Thickness (in): | 0.5 in |
General Specifications
| Weight: | 0.14 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
