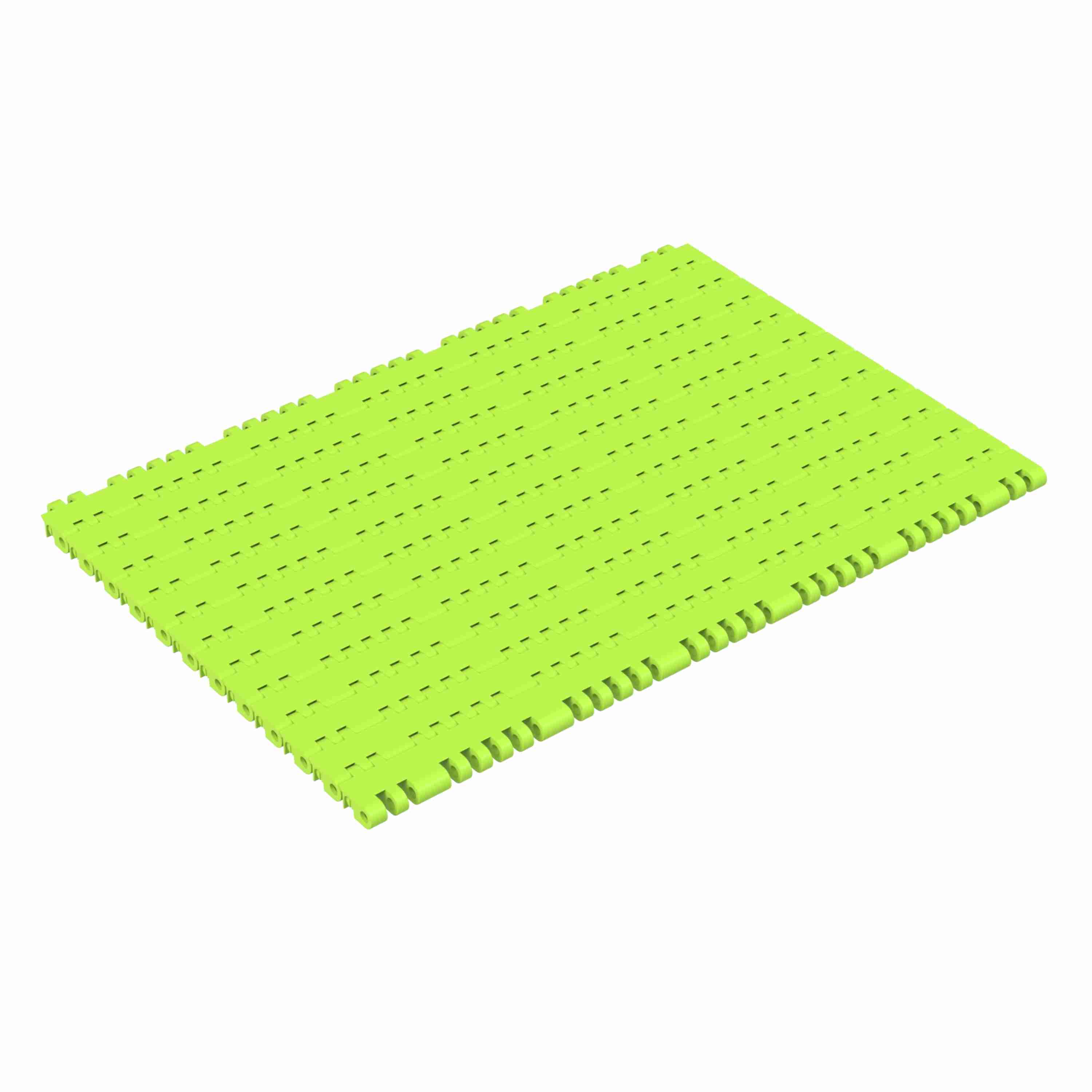

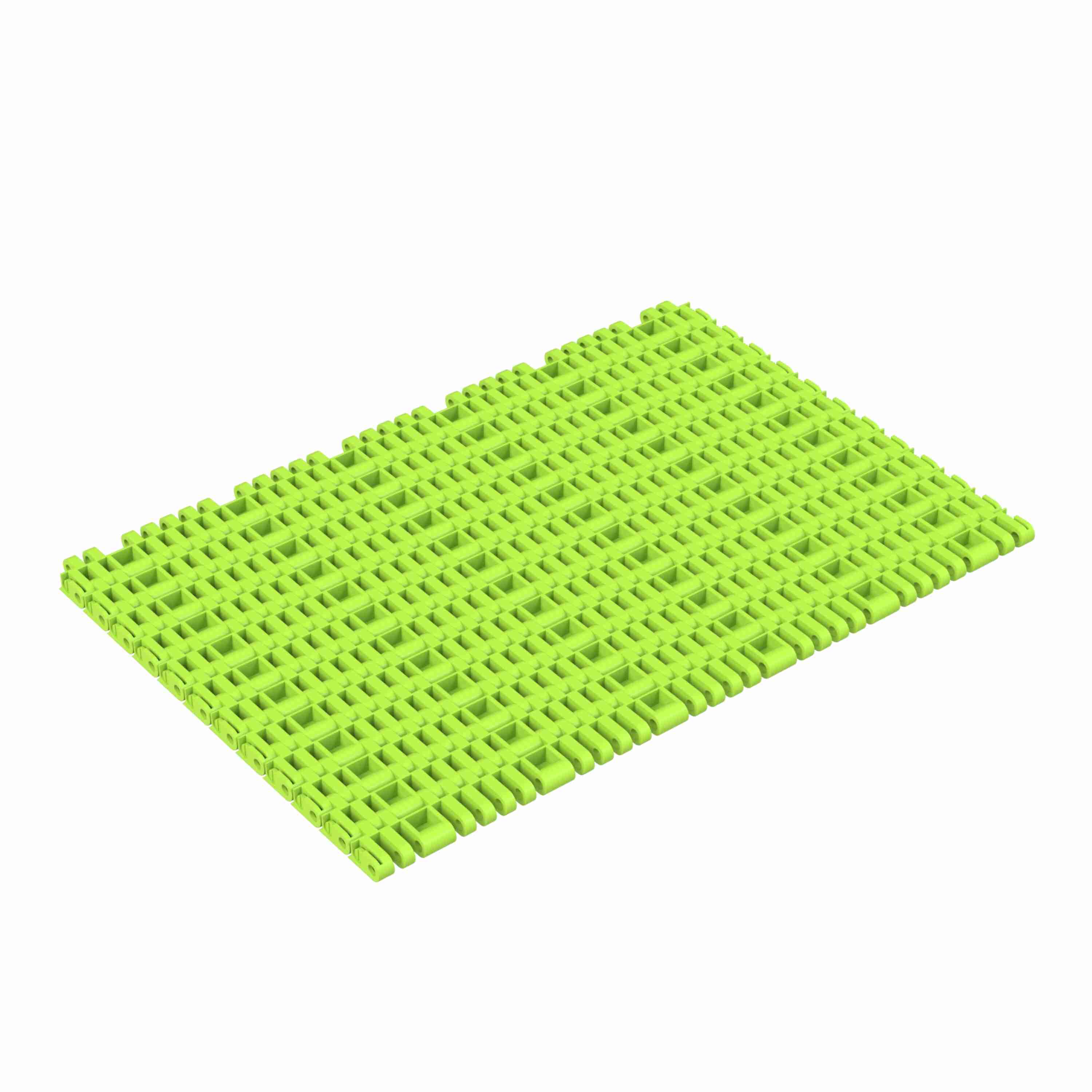

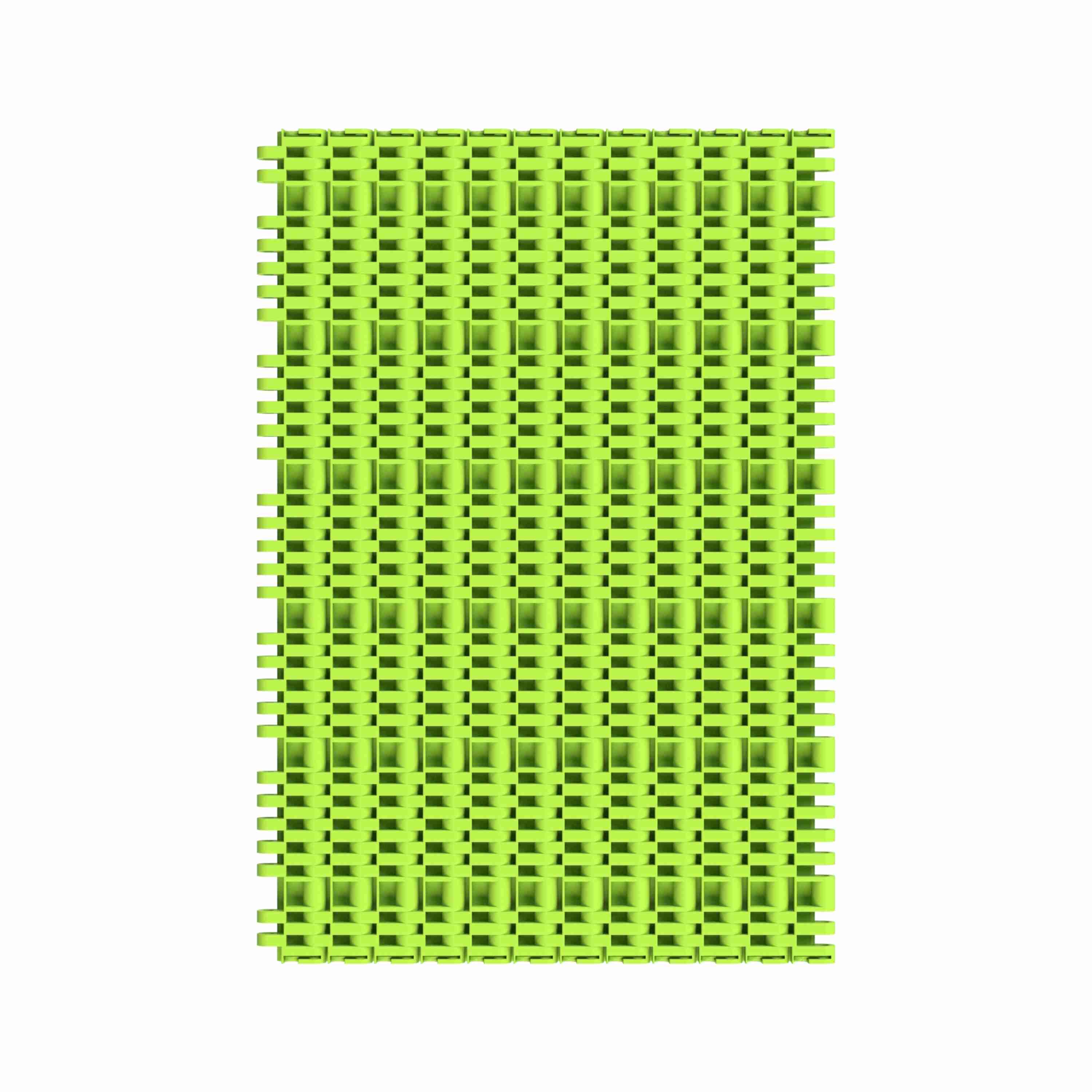

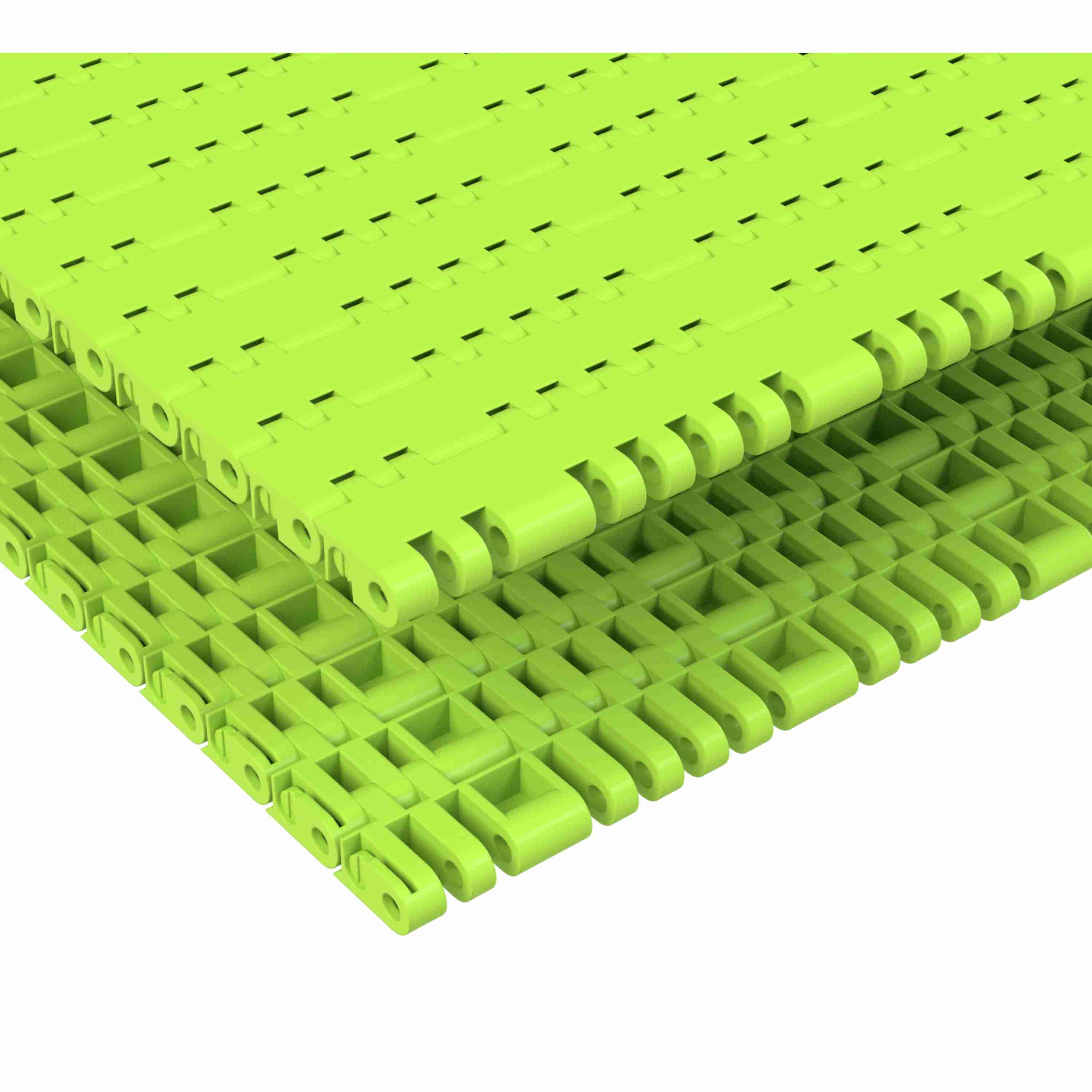

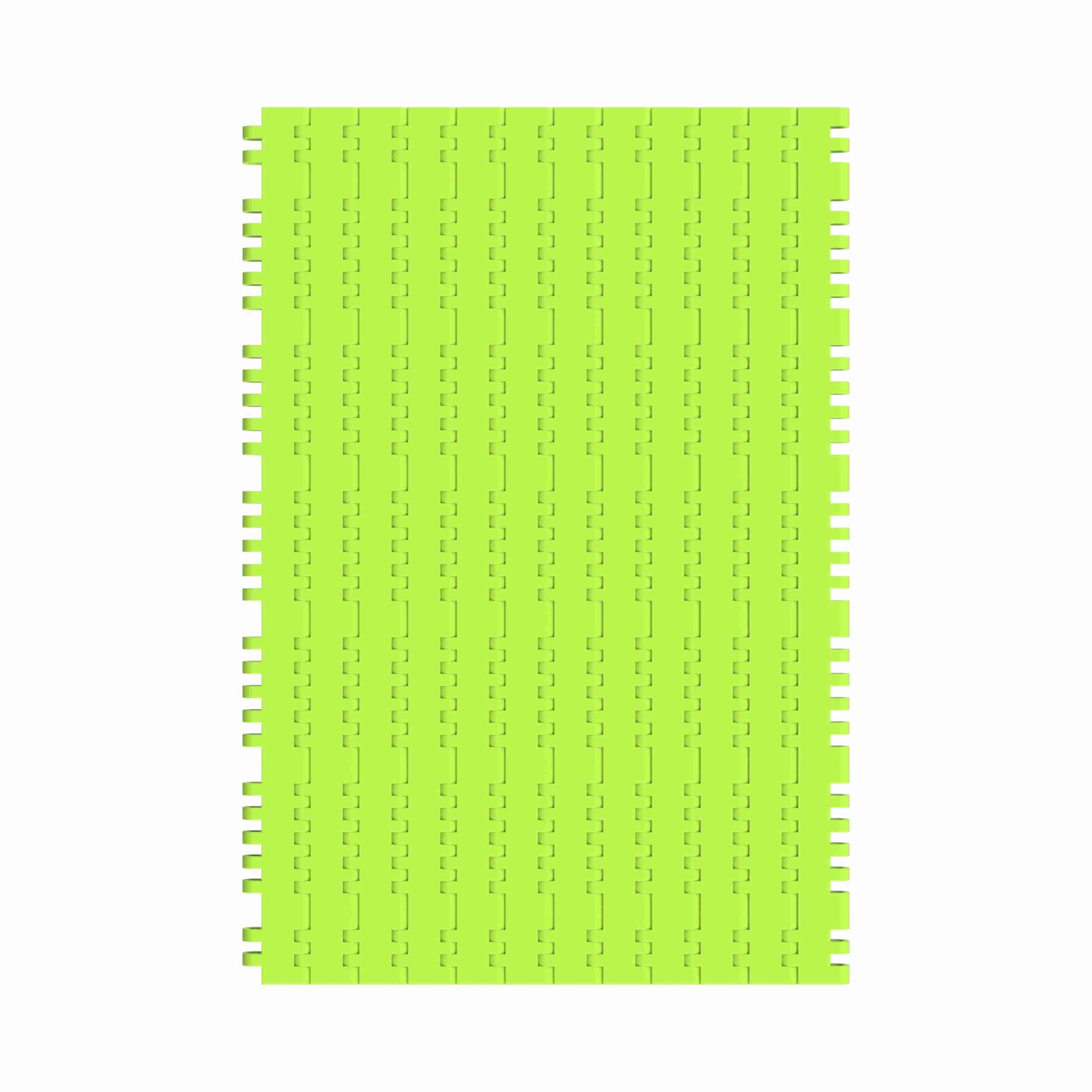

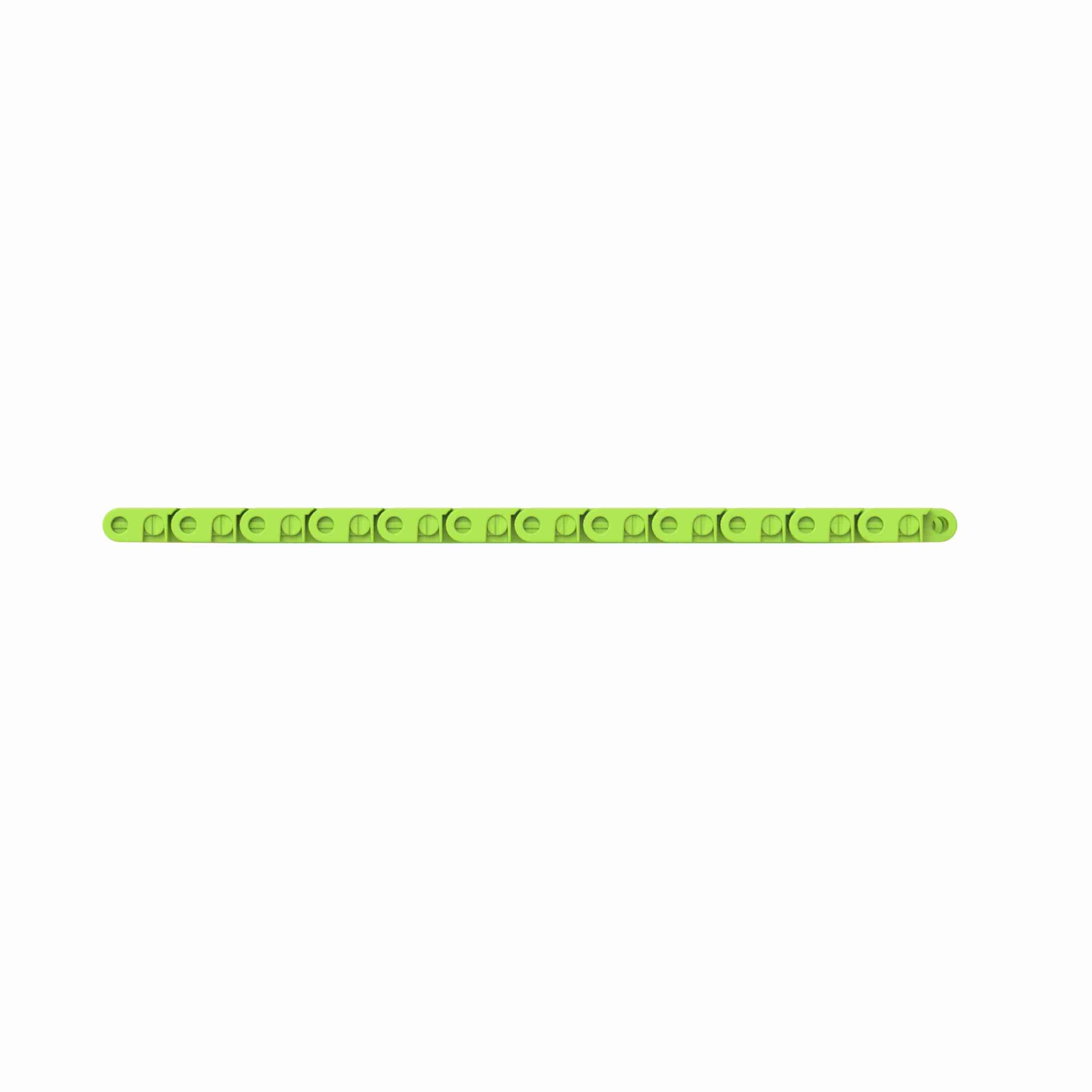

Rexnord 7705 Straight Running Solid Top, Material: Bright Lime-Green Dry PET Low Friction, Width: 12in, Pitch: 1in - 10523052
Part #:10523052
Catalog #:10523052
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (mm): | 25.4 mm | Chain Width (mm): | 304.8 mm |
| Series: | MatTop 7700 Series Chain | Straight or Side-Flex: | Straight Running |
| Belt Thickness (in): | 0.5 in | Open Area (%): | 3 % |
| Rod/Pin Material: | Polyester | Chain Strength (lb/ft): | 2,950 lb/ft |
| Chain Width (in): | 12 in | Chain Width Measurement System: | Imperial |
| Product Type: | Straight Running | Product Line: | Plastic Modular Chain and Belt |
| Chain Strength (N/m): | 43,041 N·m | Chain Number: | 7705 |
| Product Group: | Modular Plastic Belts | Chain Pitch (in): | 1 in |
| Chain Material: | Dry-PT | Surface Type: | Solid Top |
| Belt Thickness (mm): | 12.7 mm | Chain Material Description: | Bright Lime-Green Dry PET Low Friction |
General Specifications
| Weight: | 0.21 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
