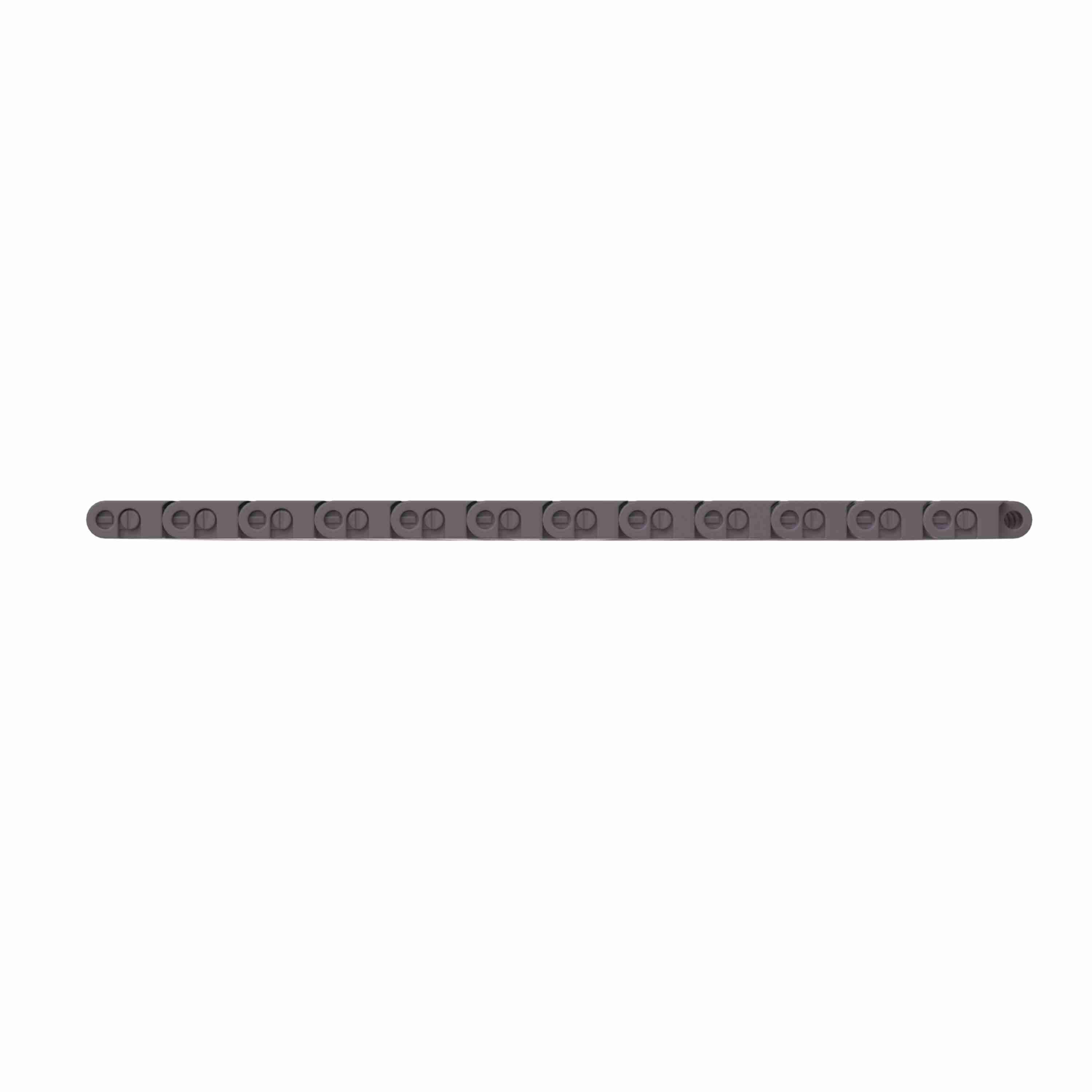

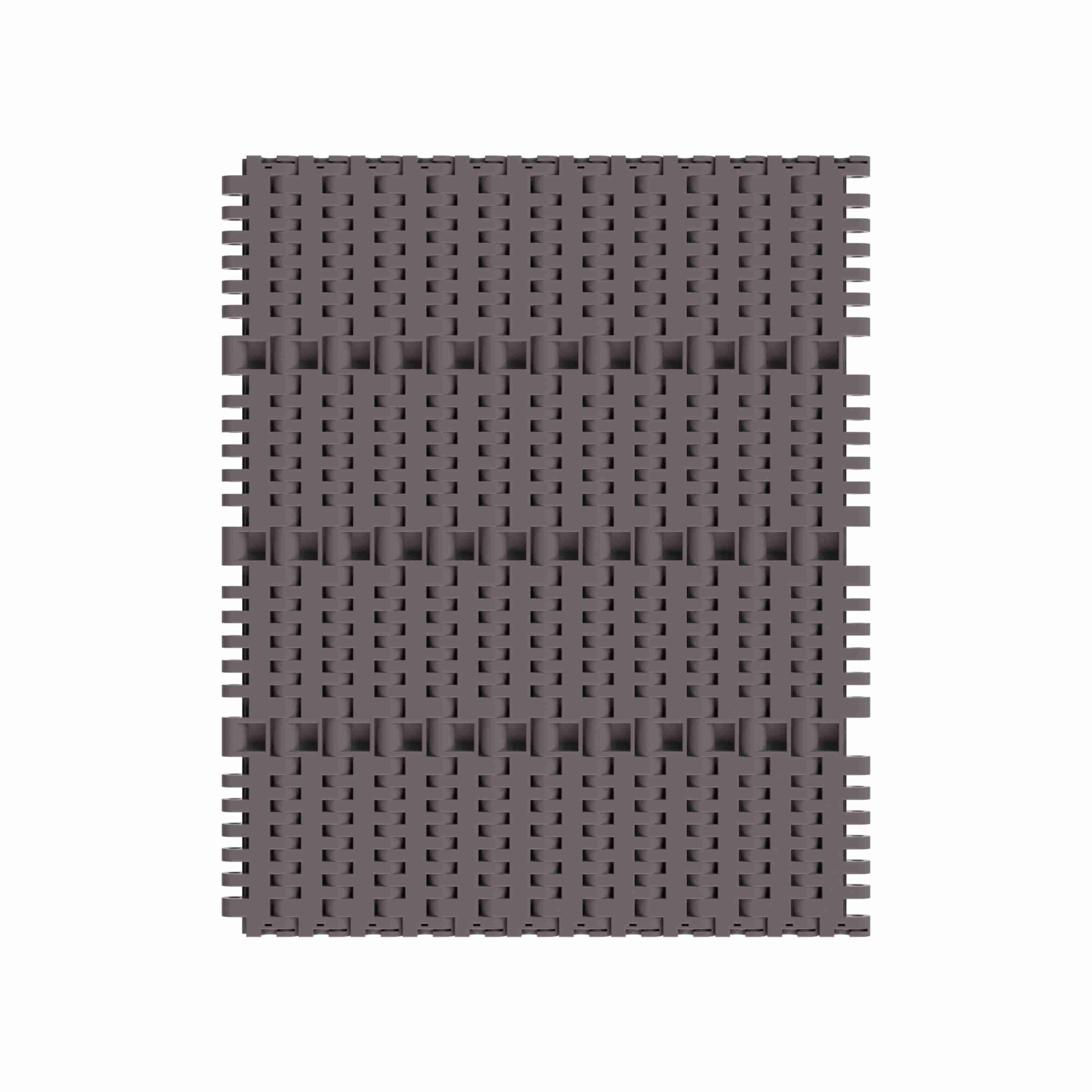

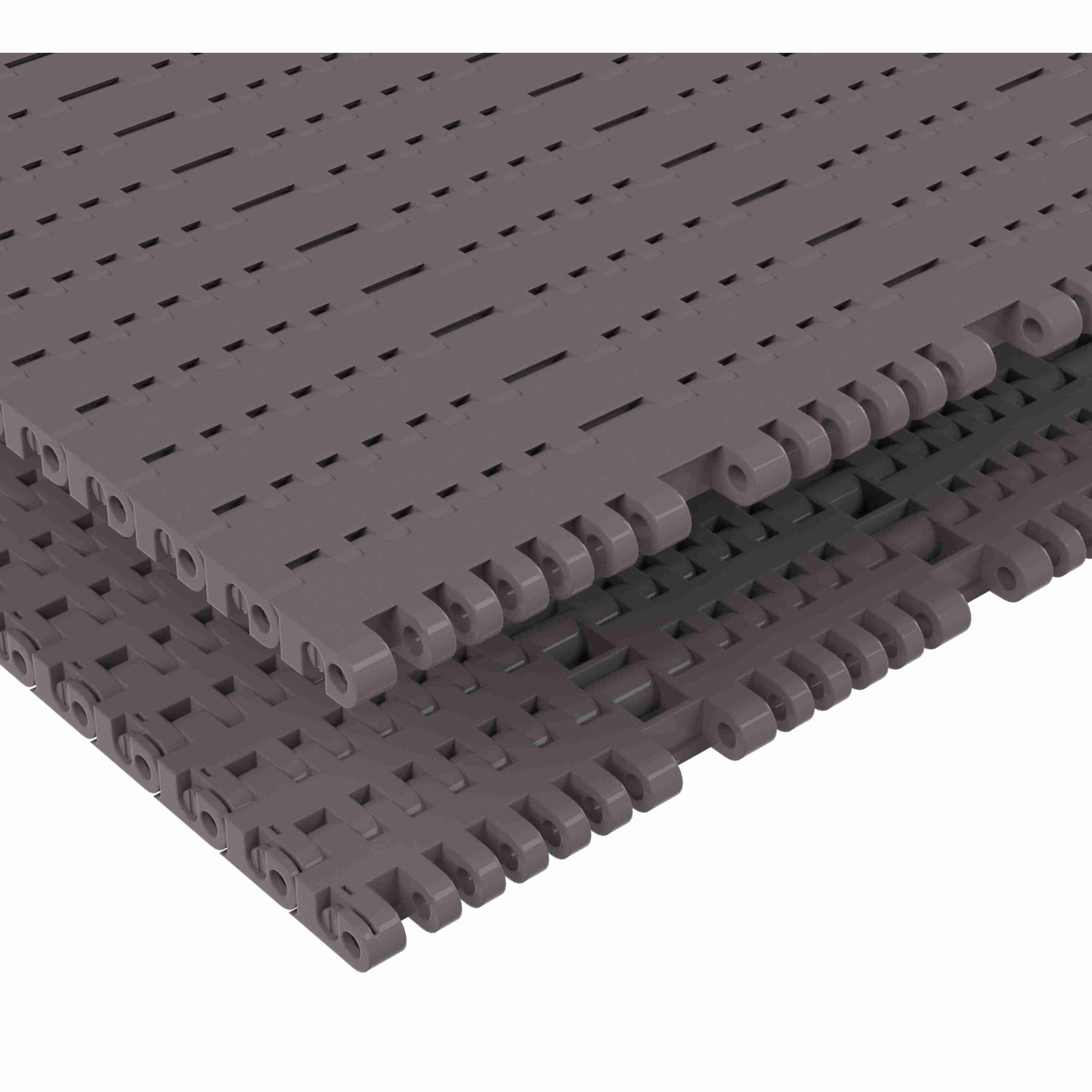

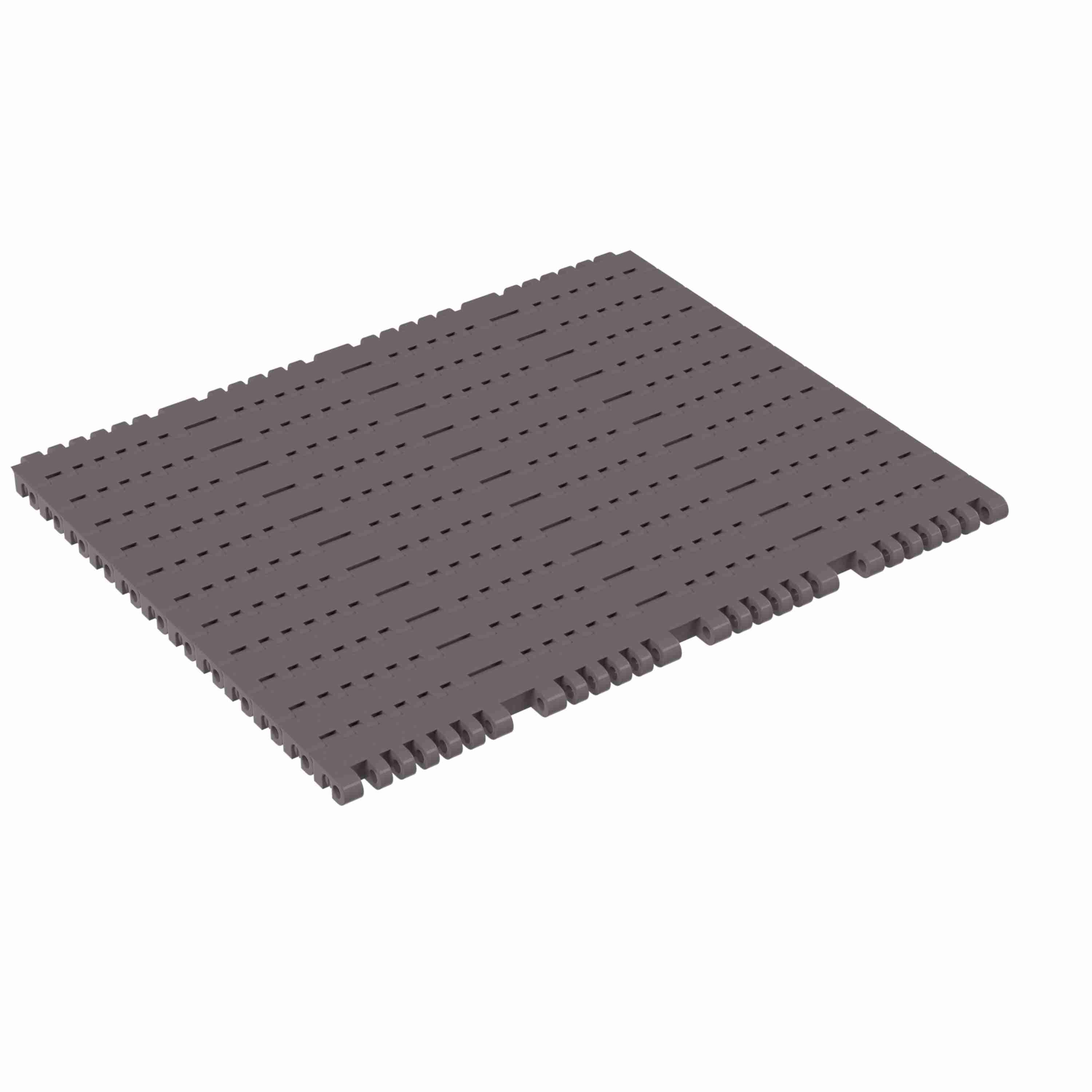

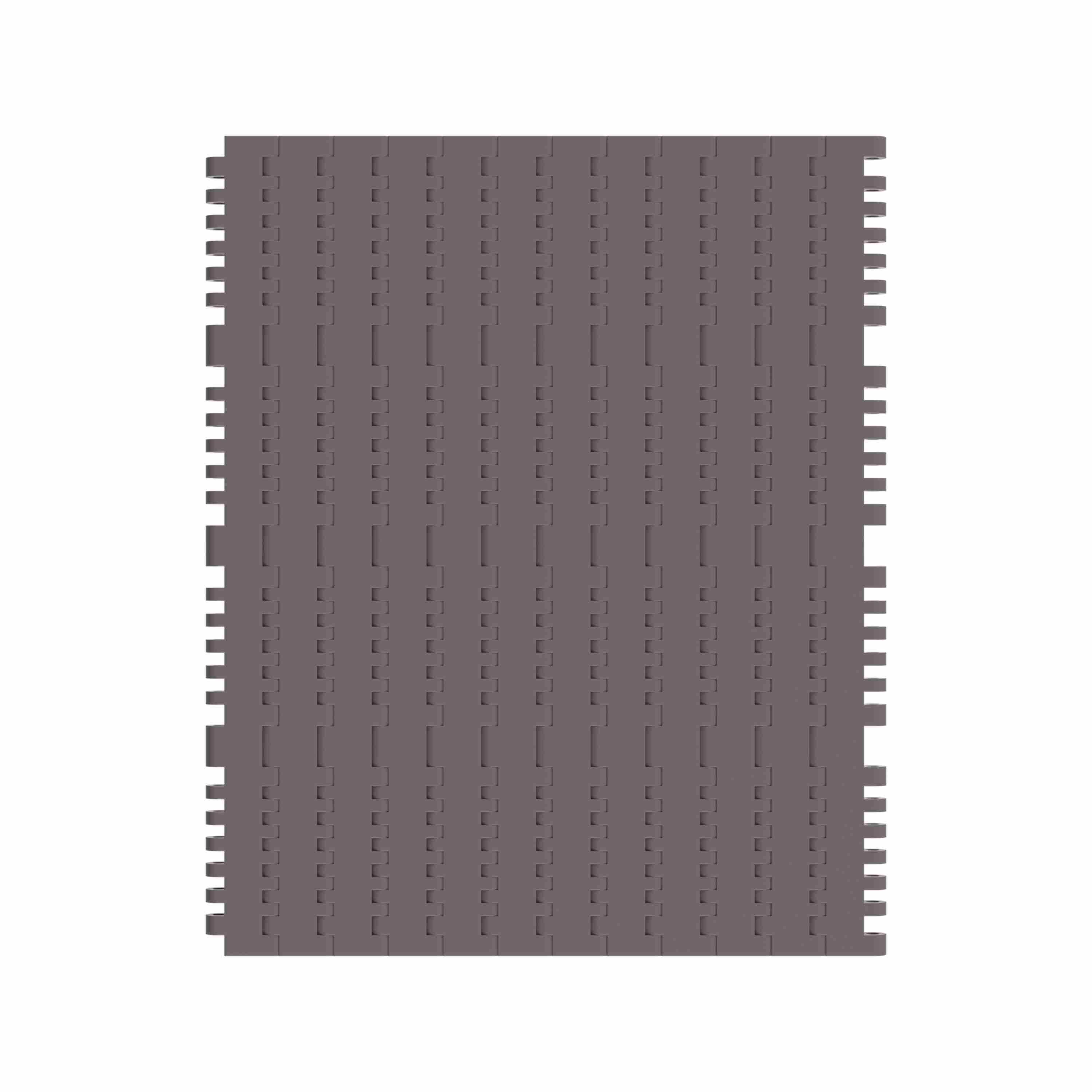

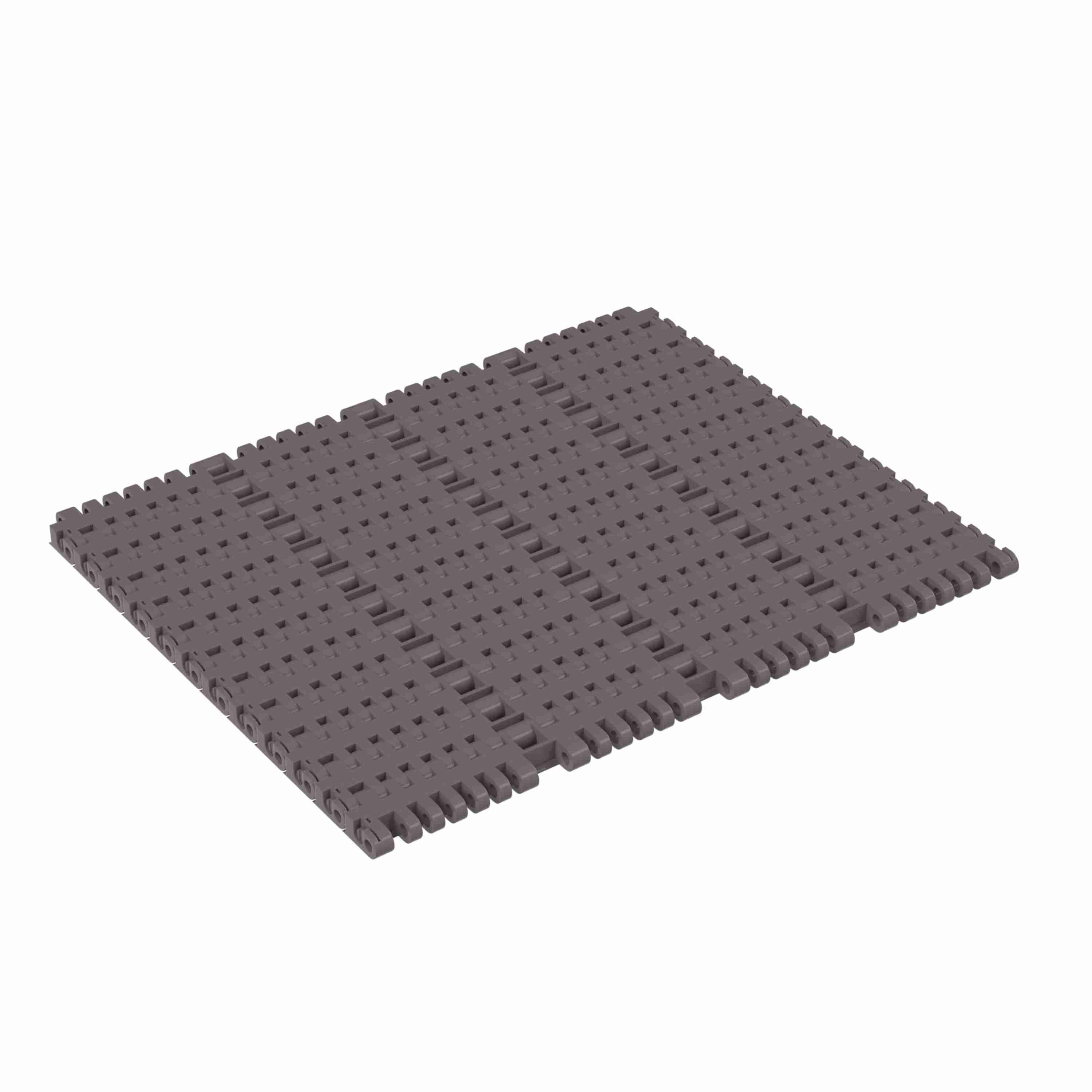

Rexnord 7705 Straight Running Solid Top, Material: Brown High Performance, Width: 15in, Pitch: 1in - 81416335
Part #:10028404
Catalog #:81416335
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 3 % | Chain Strength (lb/ft): | 2,950 lb/ft |
| Rod/Pin Material: | Polyester | Belt Thickness (in): | 0.5 in |
| Straight or Side-Flex: | Straight Running | Series: | MatTop 7700 Series Chain |
| Chain Number: | 7705 | Product Type: | Straight Running |
| Chain Pitch (in): | 1 in | Chain Material: | HP |
| Product Line: | Plastic Modular Chain and Belt | Chain Width (mm): | 381 mm |
| Chain Width (in): | 15 in | Product Group: | Modular Plastic Belts |
| Chain Pitch (mm): | 25.4 mm | Chain Material Description: | Brown High Performance |
| Chain Strength (N/m): | 43,041 N·m | Belt Thickness (mm): | 12.7 mm |
| Chain Width Measurement System: | Imperial | Surface Type: | Solid Top |
General Specifications
| Weight: | 0.29 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
