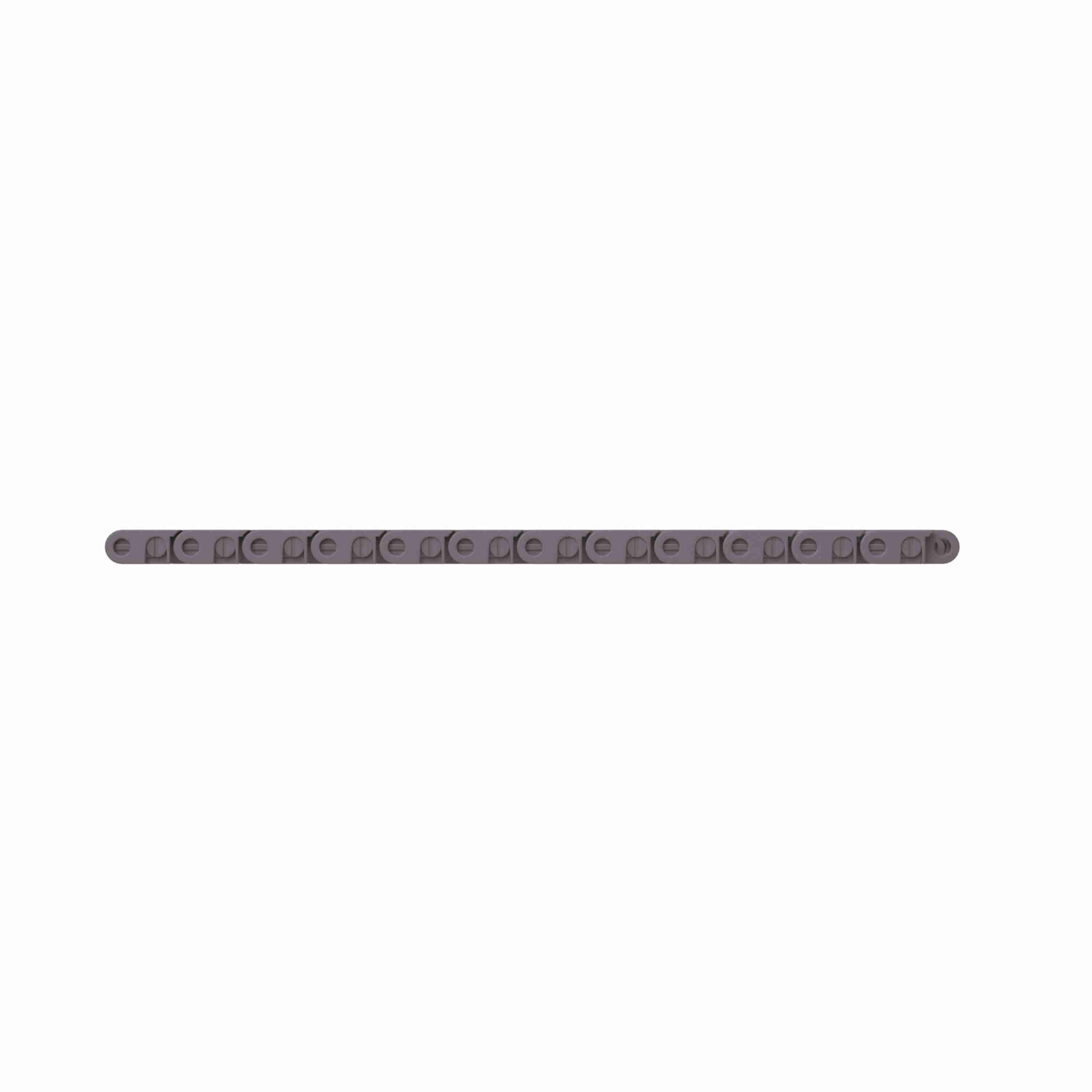

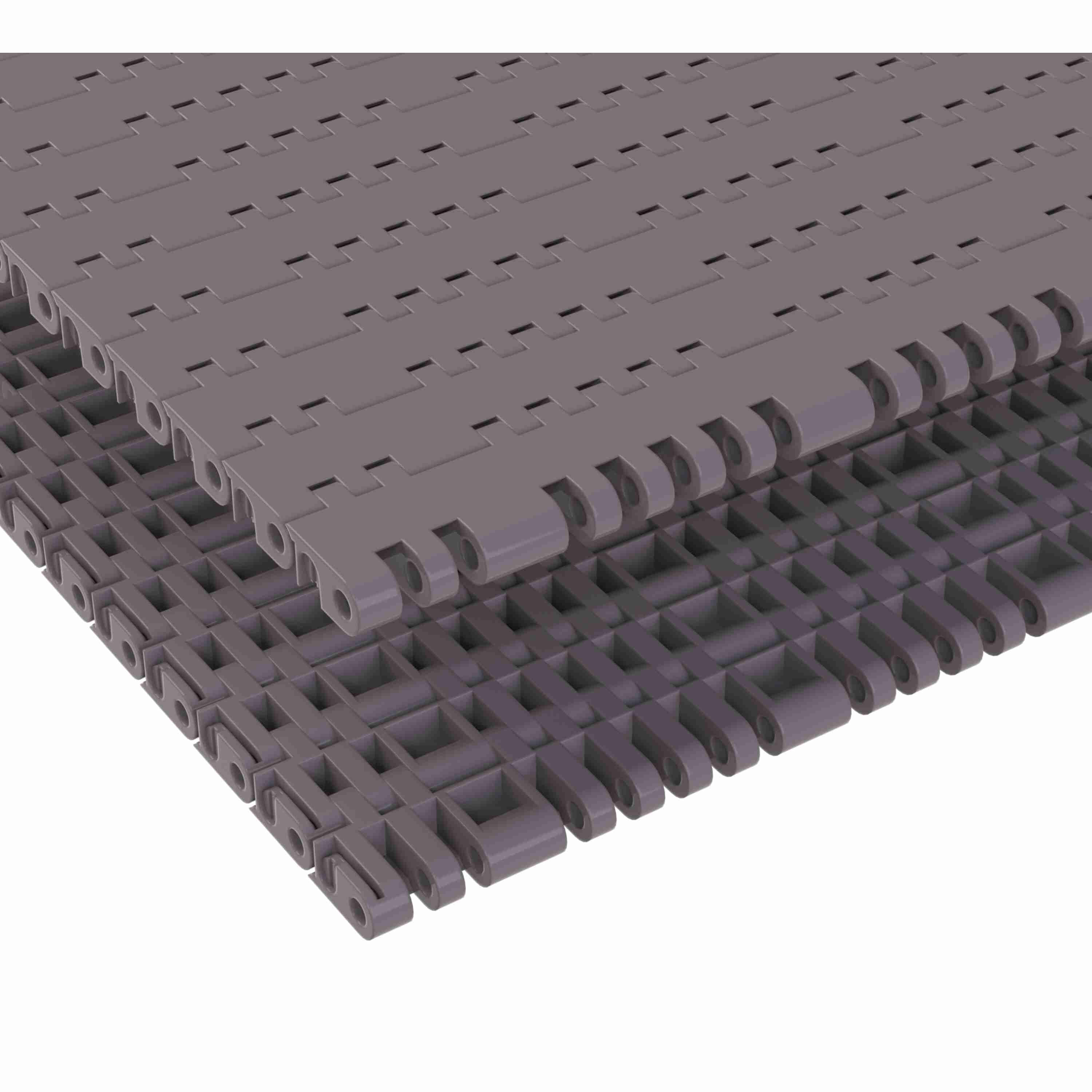

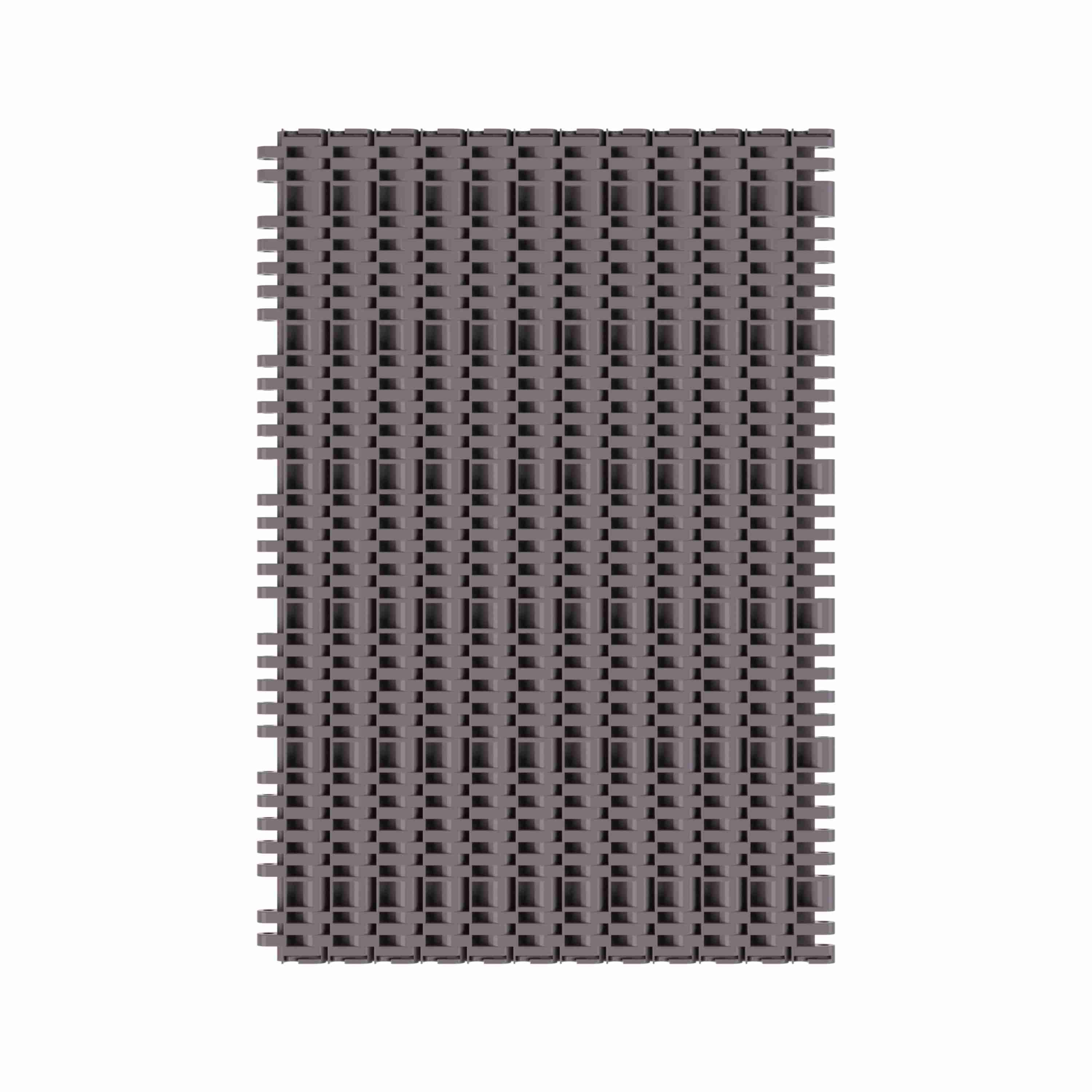

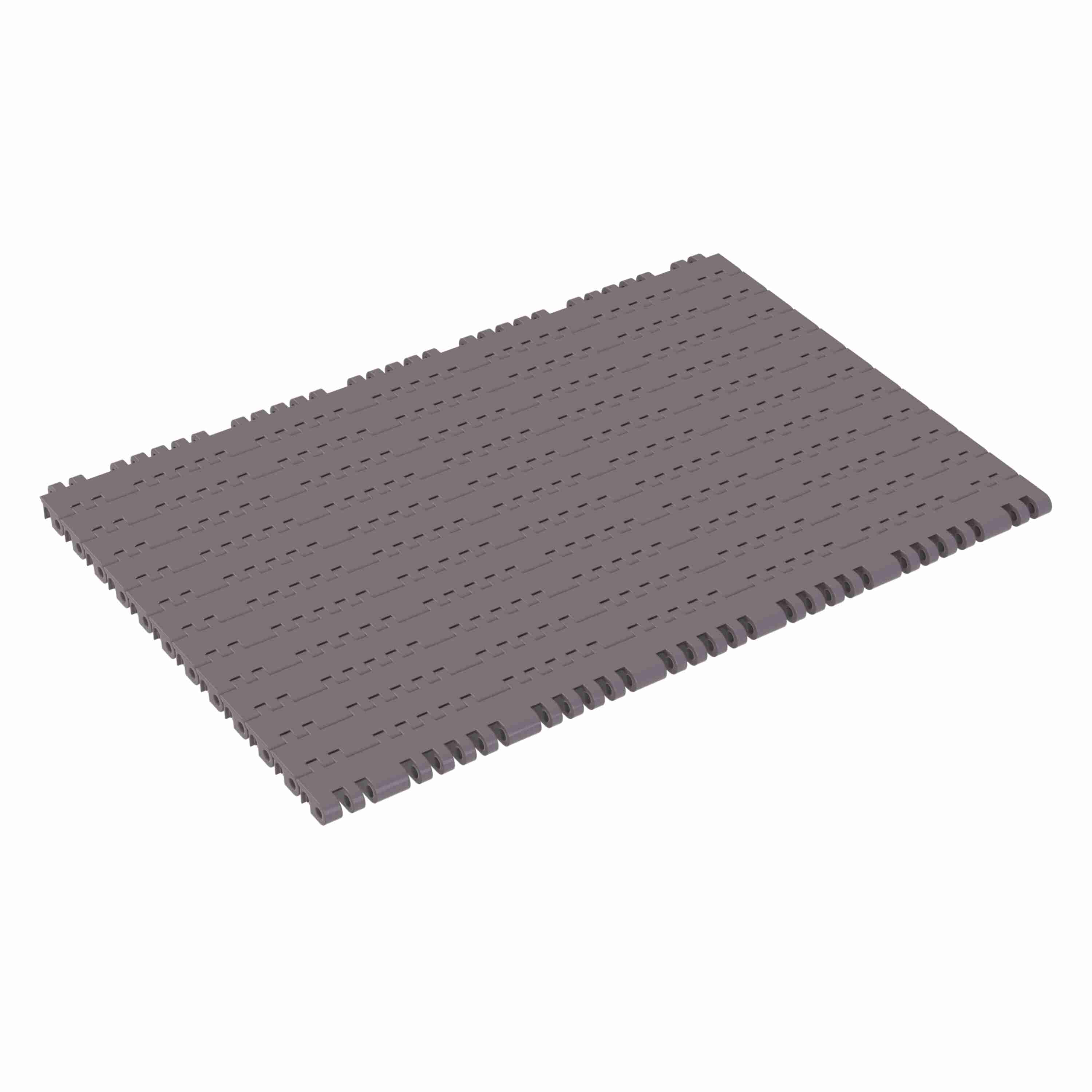

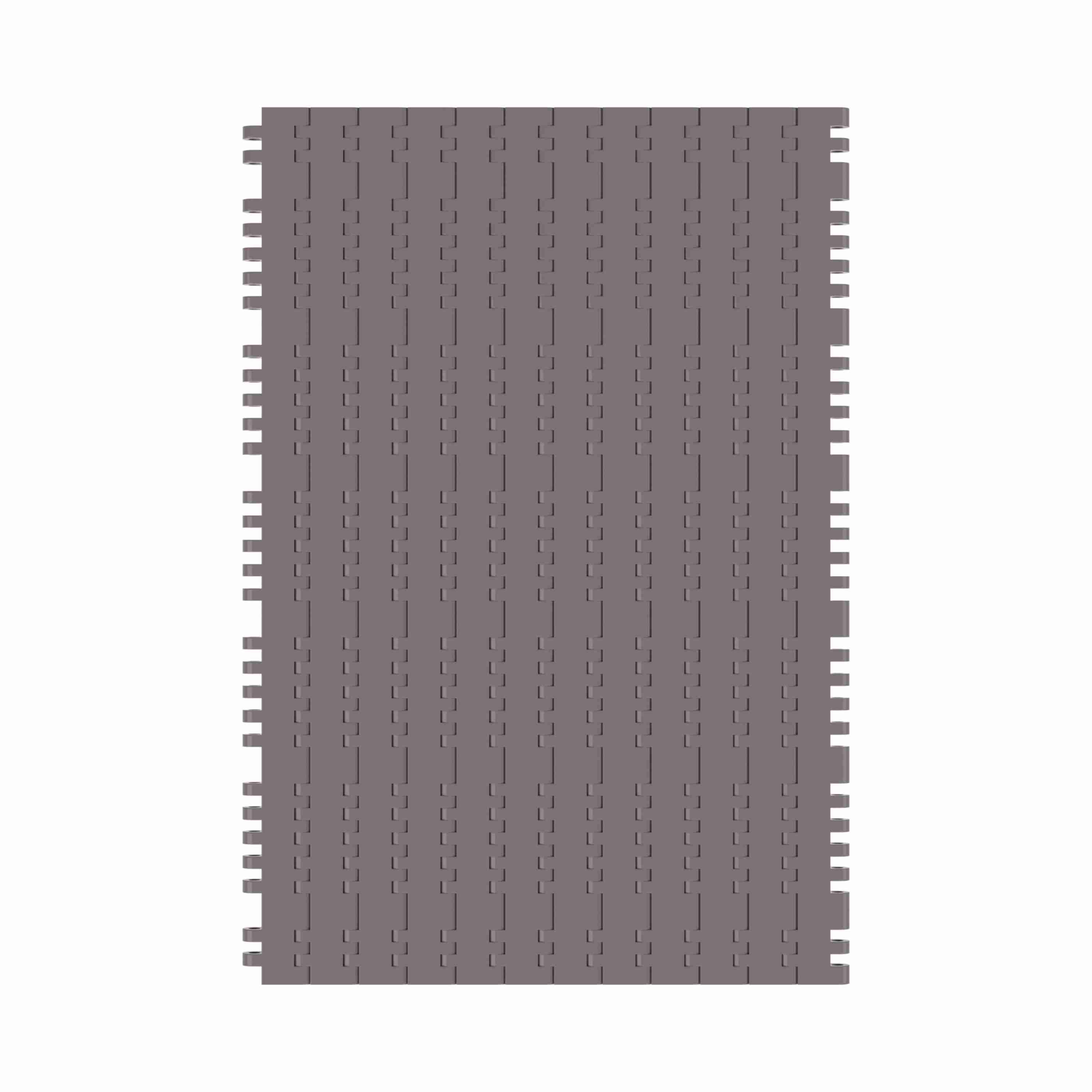

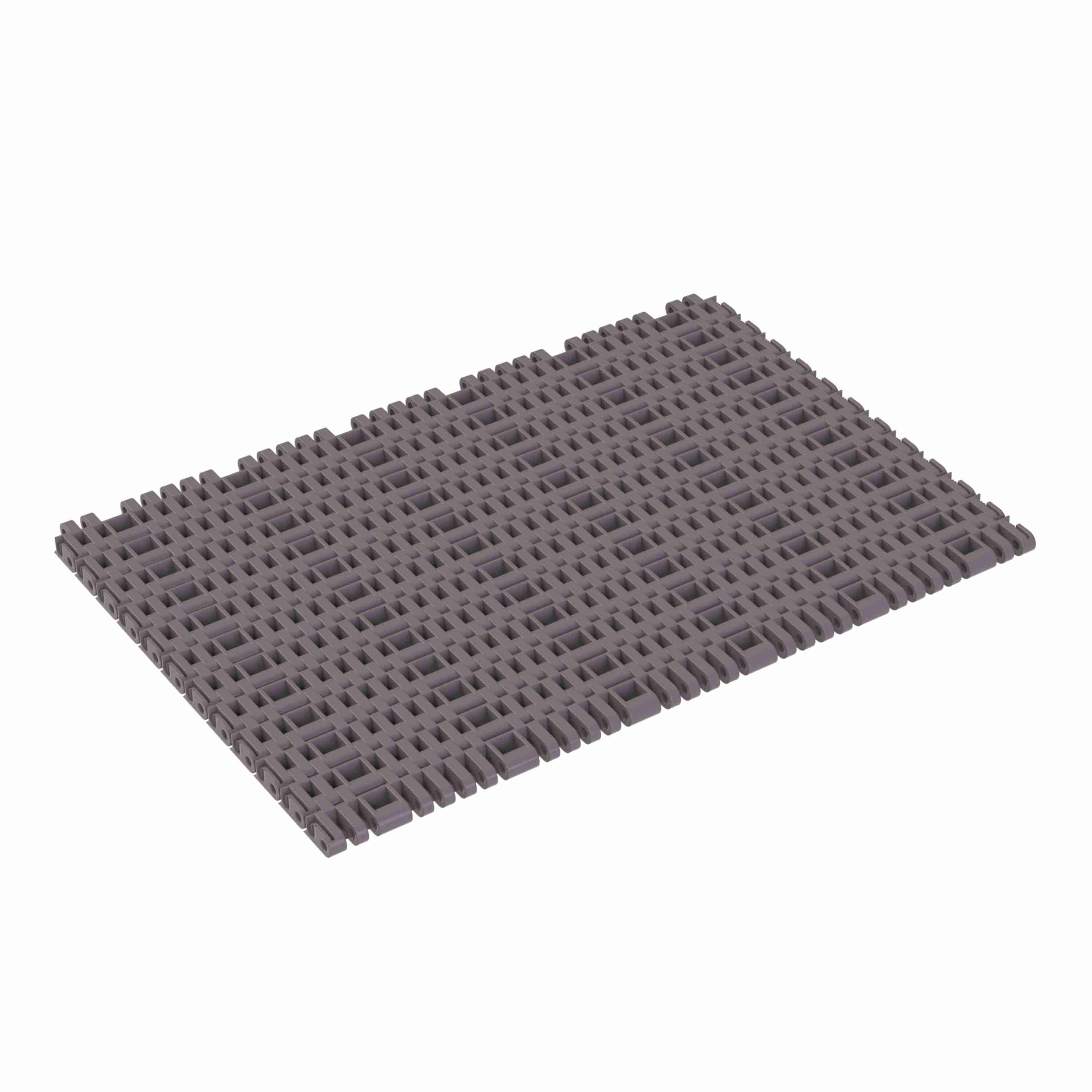

Rexnord 7705 Straight Running Solid Top, Material: Brown High Performance, Width: 20in, Pitch: 1in - HP7705-20
Part #:10028937
Catalog #:HP7705-20
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | MatTop 7700 Series Chain | Open Area (%): | 3 % |
| Chain Width Measurement System: | Imperial | Chain Material: | HP |
| Surface Type: | Solid Top | Chain Strength (N/m): | 43,041 N·m |
| Chain Width (mm): | 508 mm | Product Type: | Straight Running |
| Chain Material Description: | Brown High Performance | Chain Number: | 7705 |
| Product Line: | Plastic Modular Chain and Belt | Chain Pitch (mm): | 25.4 mm |
| Chain Strength (lb/ft): | 2,950 lb/ft | Rod/Pin Material: | Polyester |
| Belt Thickness (in): | 0.5 in | Product Group: | Modular Plastic Belts |
| Belt Thickness (mm): | 12.7 mm | Chain Width (in): | 20 in |
| Straight or Side-Flex: | Straight Running | Chain Pitch (in): | 1 in |
General Specifications
| Weight: | 0.38 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
