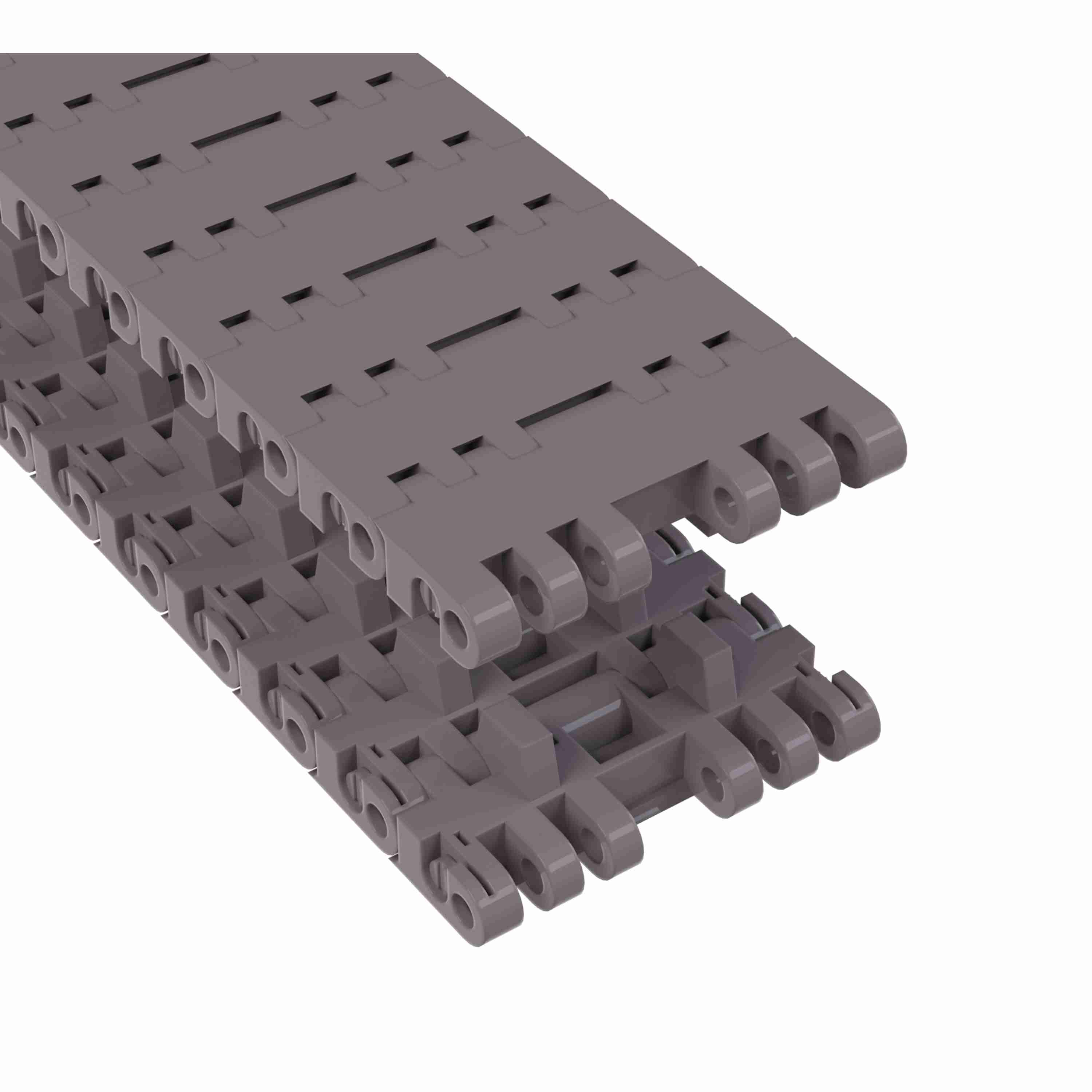

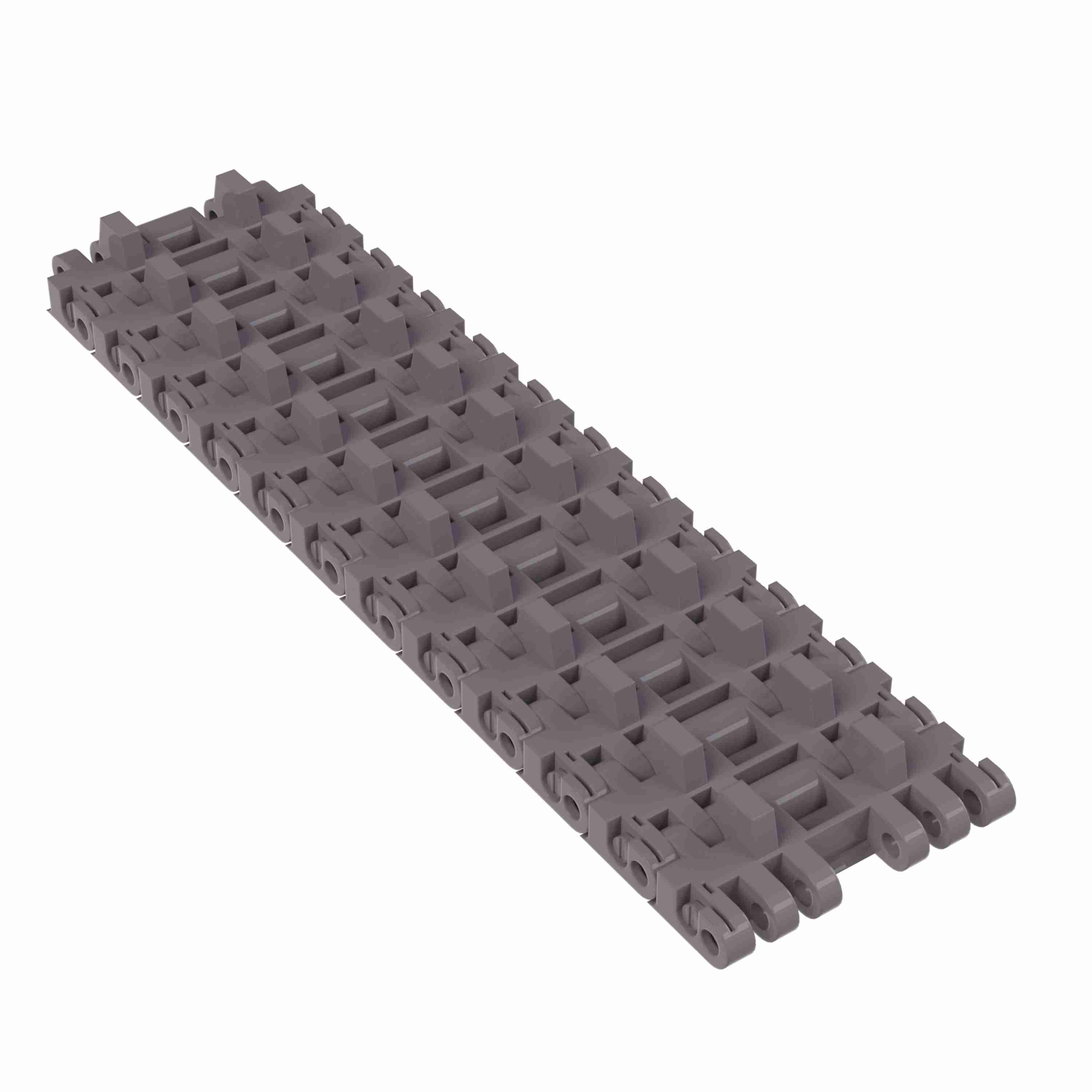

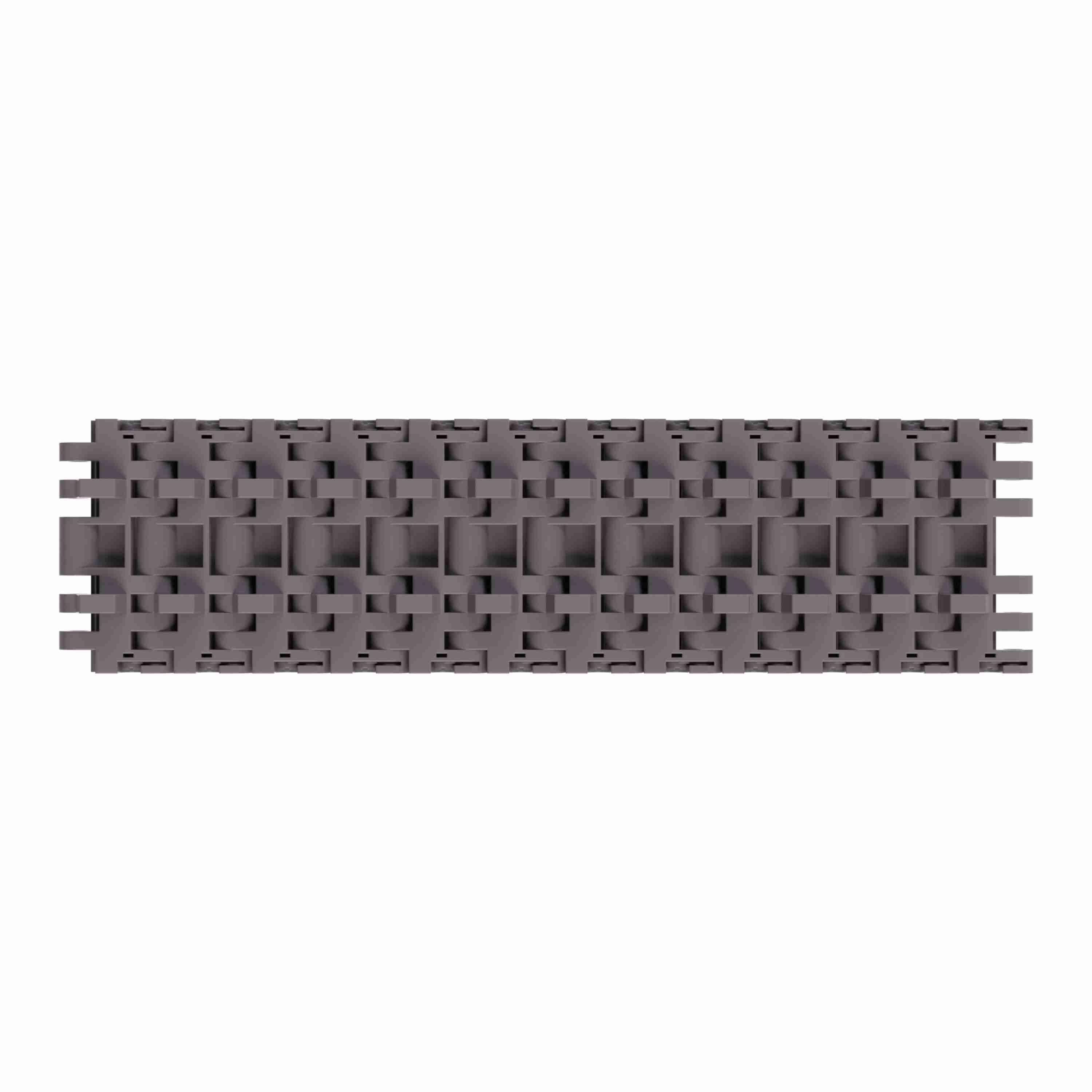

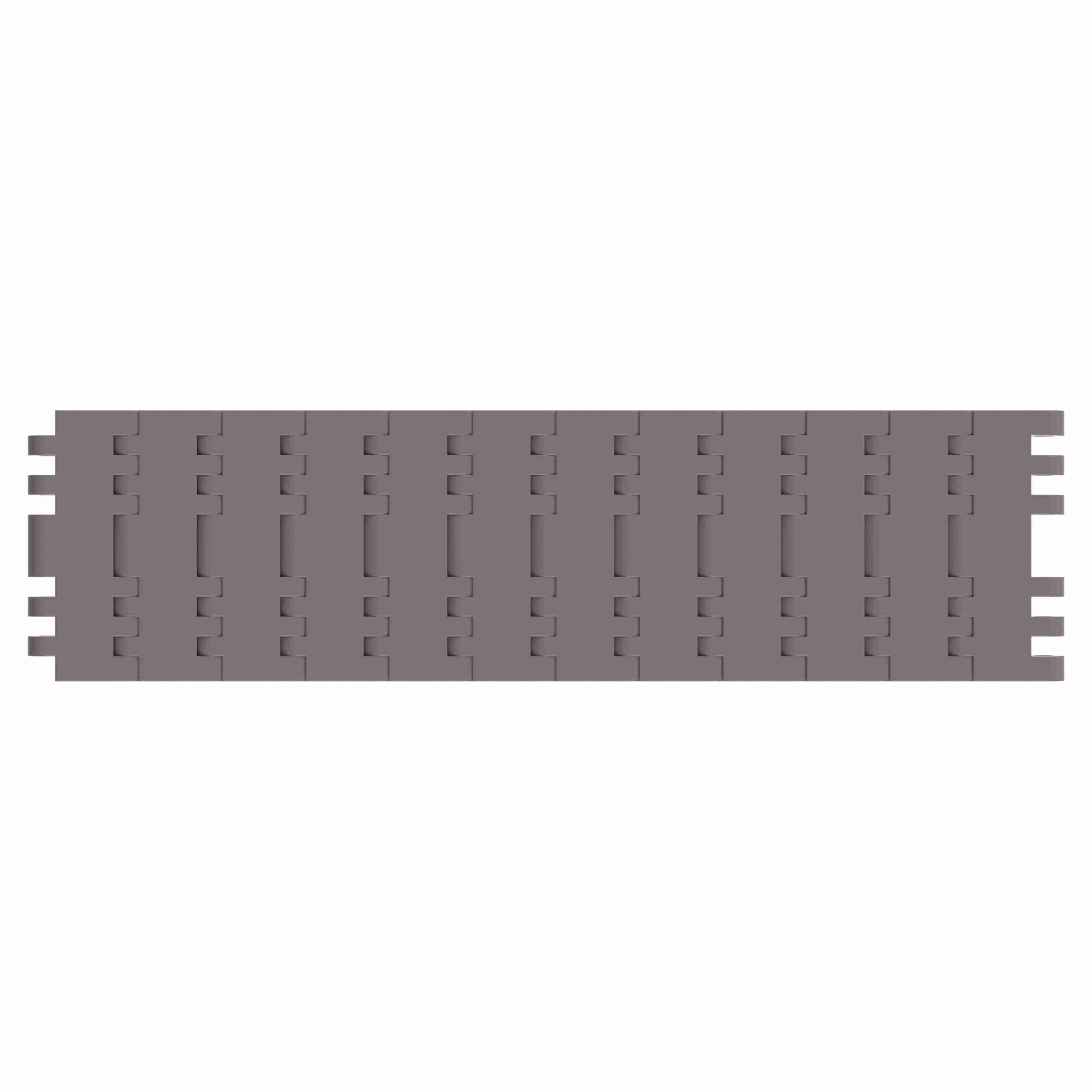

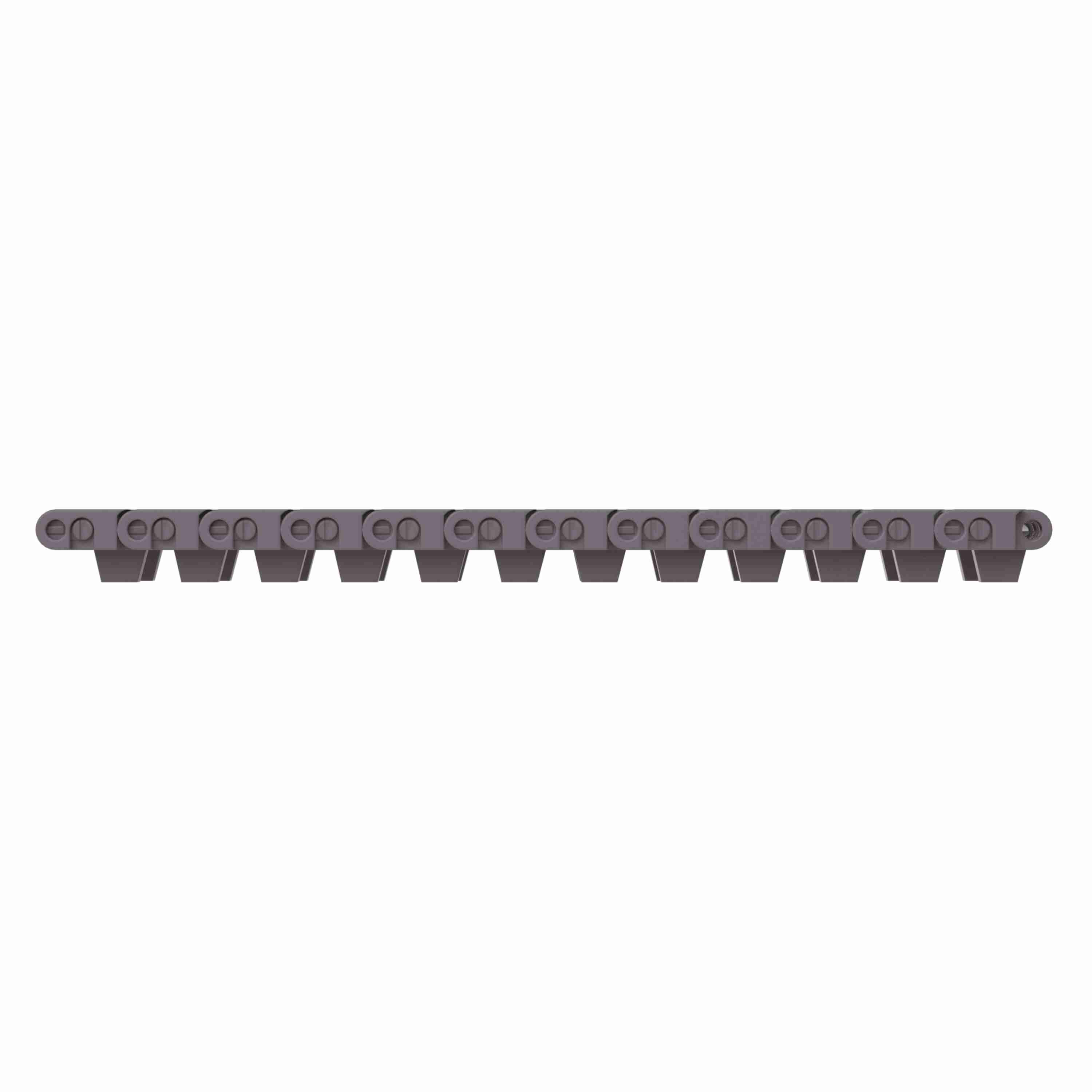

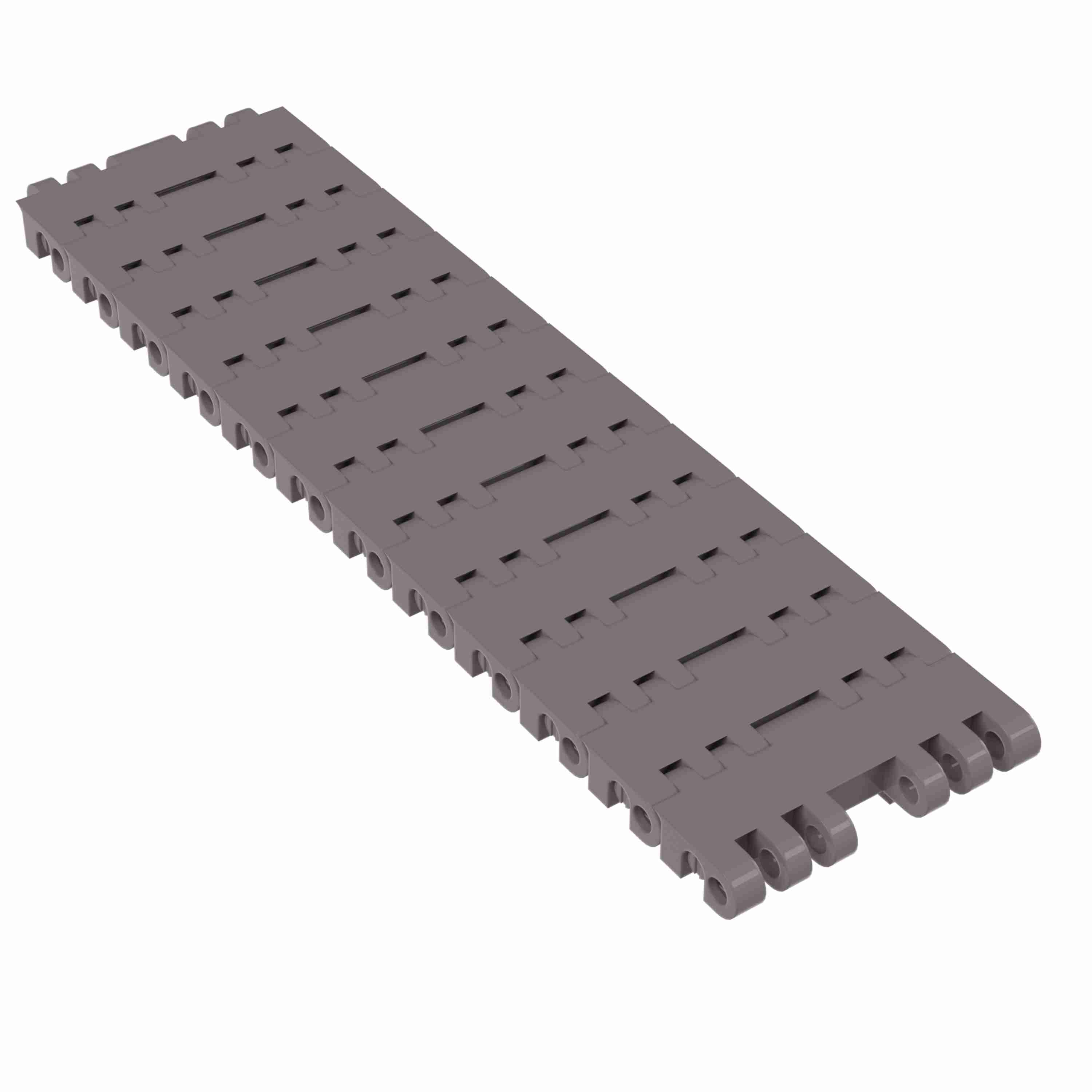

Rexnord 7705 Straight Running Solid Top, Material: Brown High Performance, Width: 3.25in, Pitch: 1in - 81415101
Part #:10028408
Catalog #:81415101
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (mm): | 12.7 mm | Chain Width Measurement System: | Imperial |
| Open Area (%): | 3 % | Chain Number: | 7705 |
| Rod/Pin Material: | Polyester | Surface Type: | Solid Top |
| Series: | MatTop 7700 Series Chain | Chain Width (in): | 3.25 in |
| Number of Positrack: | 2 | Chain Material Description: | Brown High Performance |
| Chain Width (mm): | 82.6 mm | Chain Strength (lb): | 685 lb |
| Chain Strength (N): | 3,041 N | Chain Pitch (in): | 1 in |
| Chain Pitch (mm): | 25.4 mm | Product Line: | Plastic Modular Chain and Belt |
| Product Group: | Modular Plastic Belts | Positrack Location: | Center |
| Positrack: | True | Belt Thickness (in): | 0.5 in |
| Chain Material: | HP | Straight or Side-Flex: | Straight Running |
| Product Type: | Straight Running |
General Specifications
| Weight: | 0.06 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
