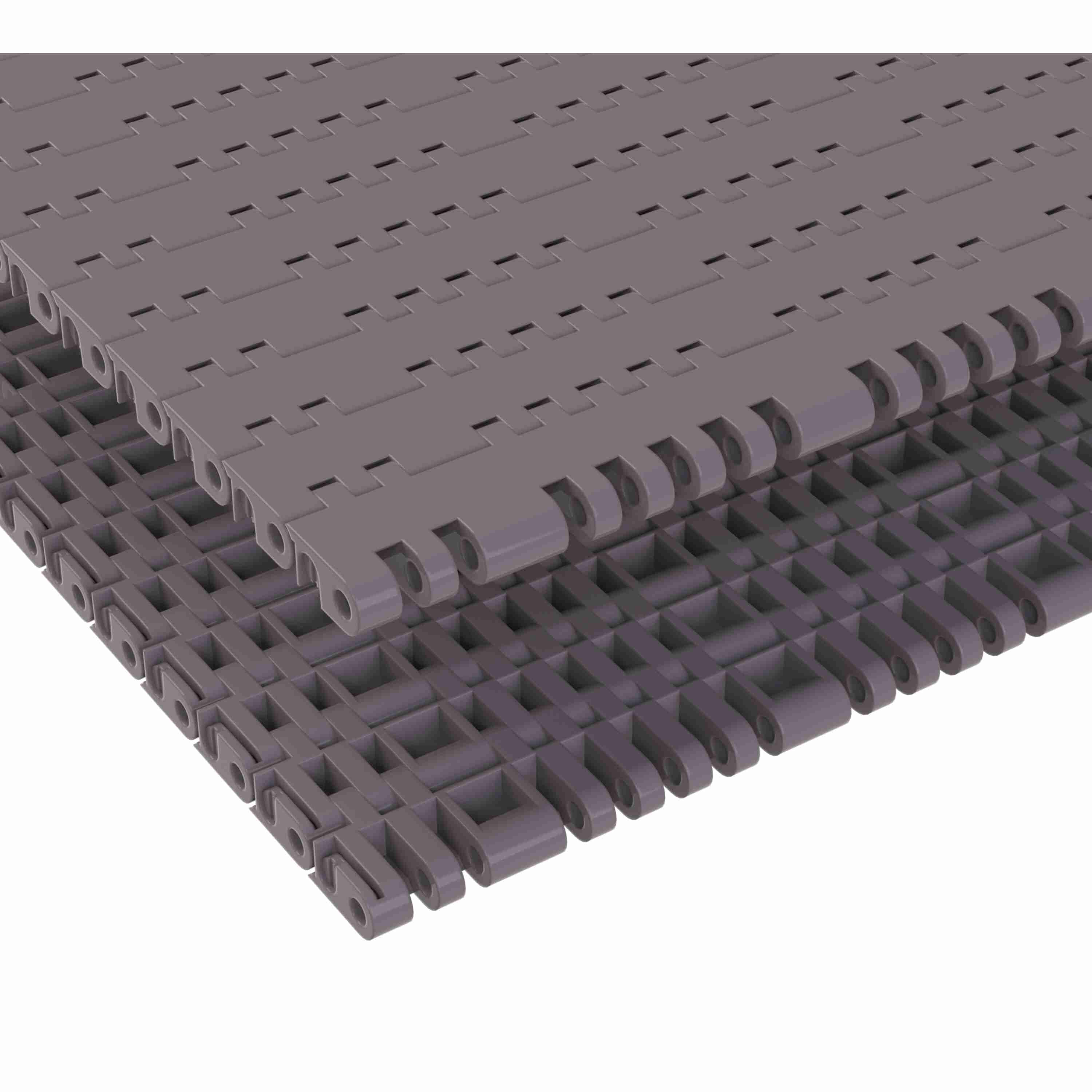

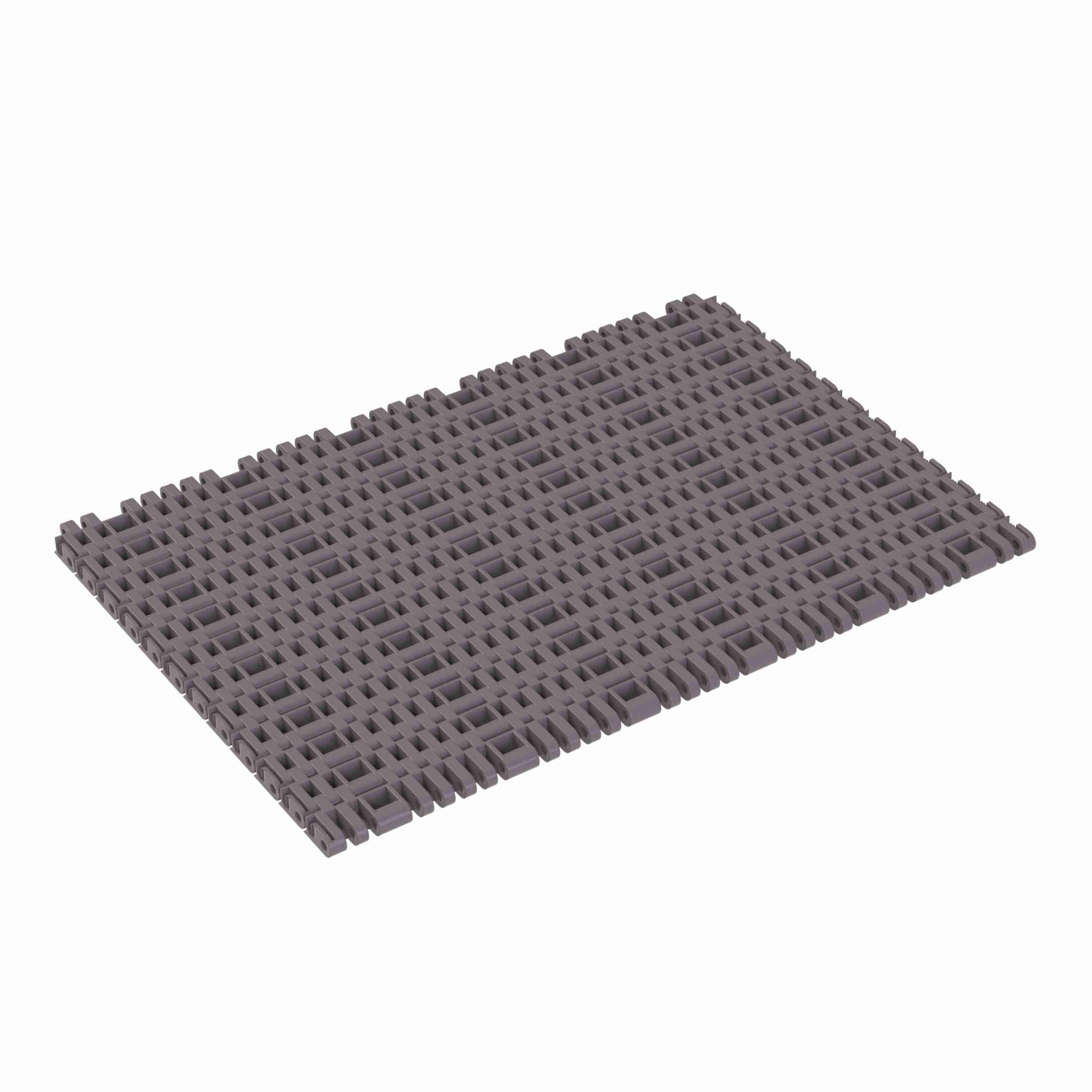

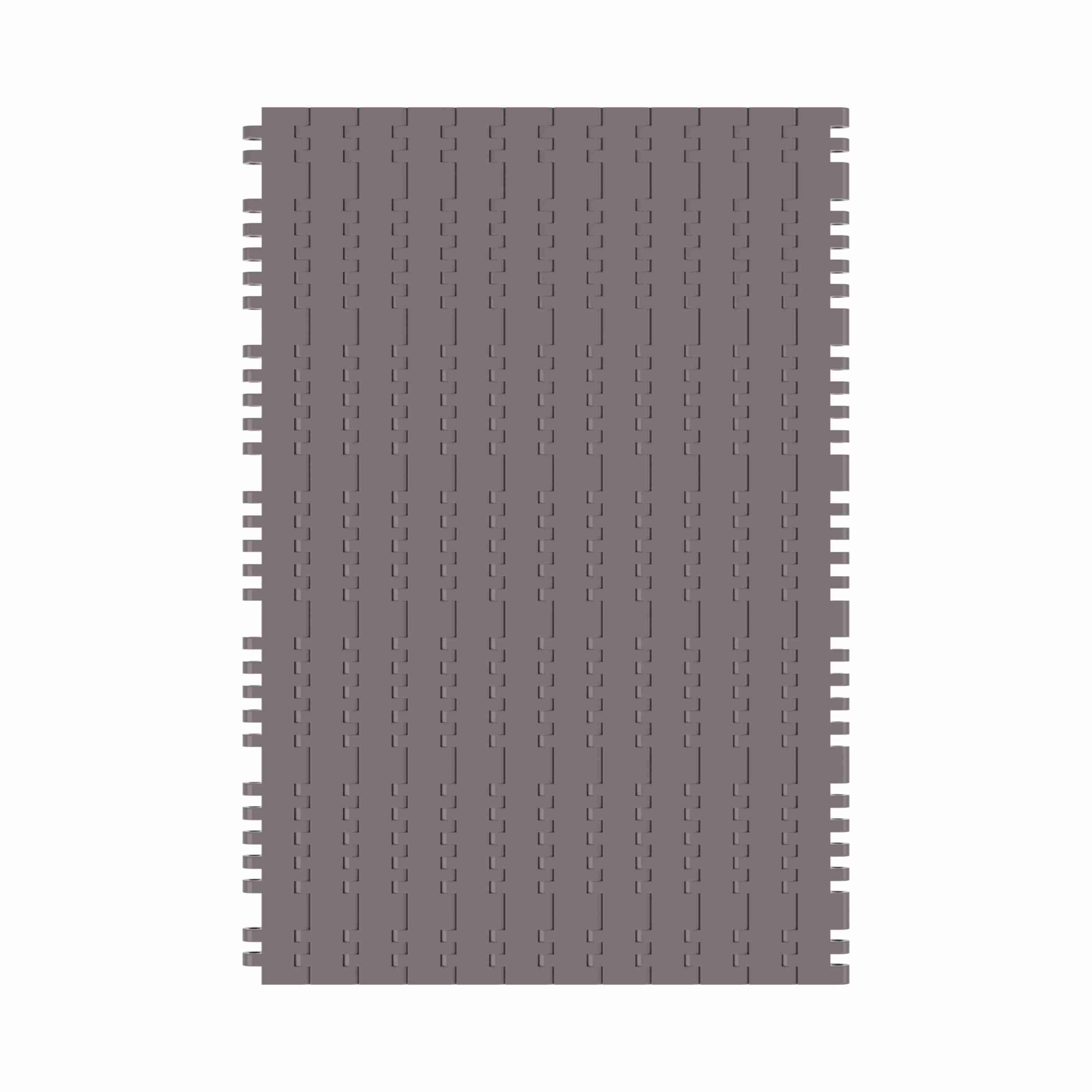

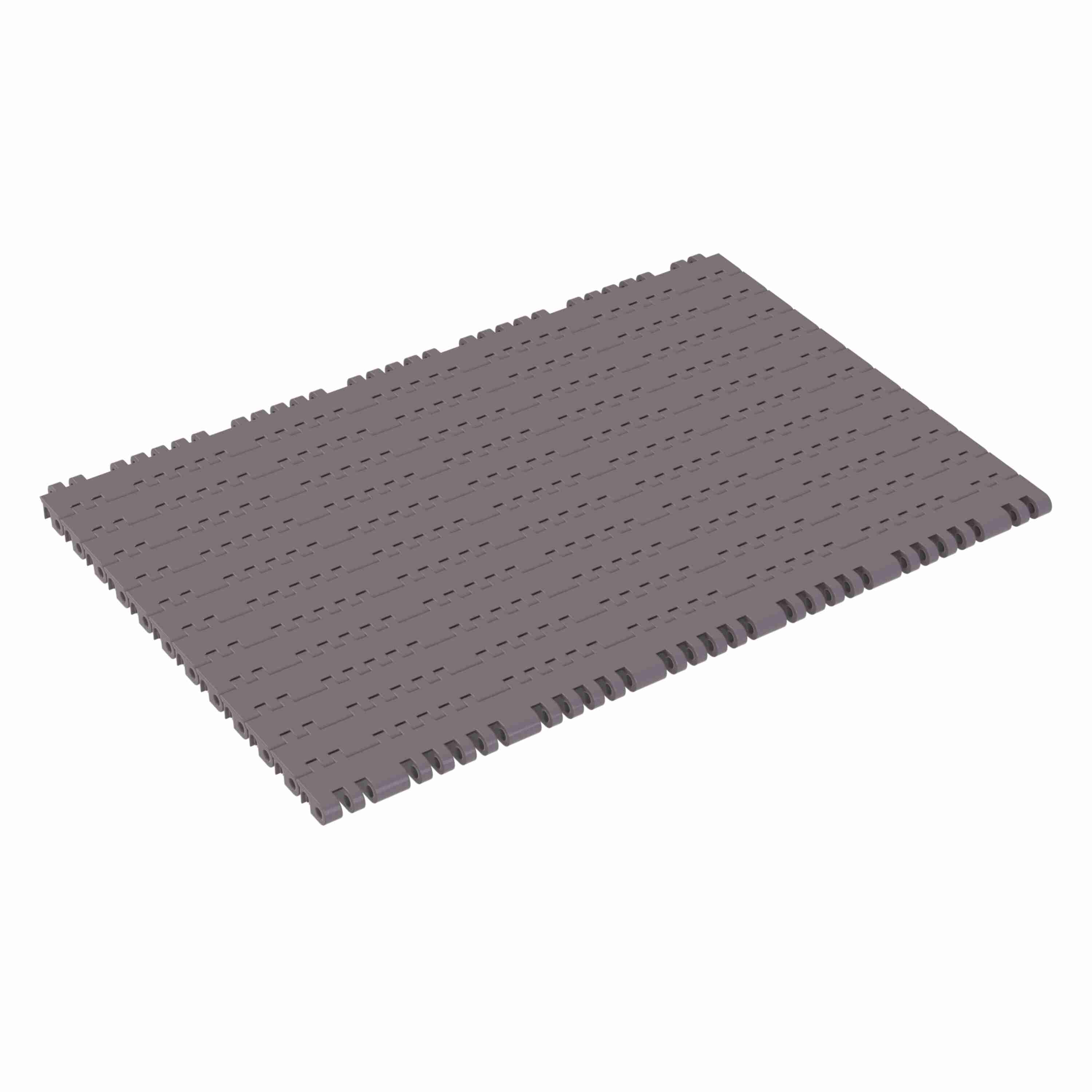

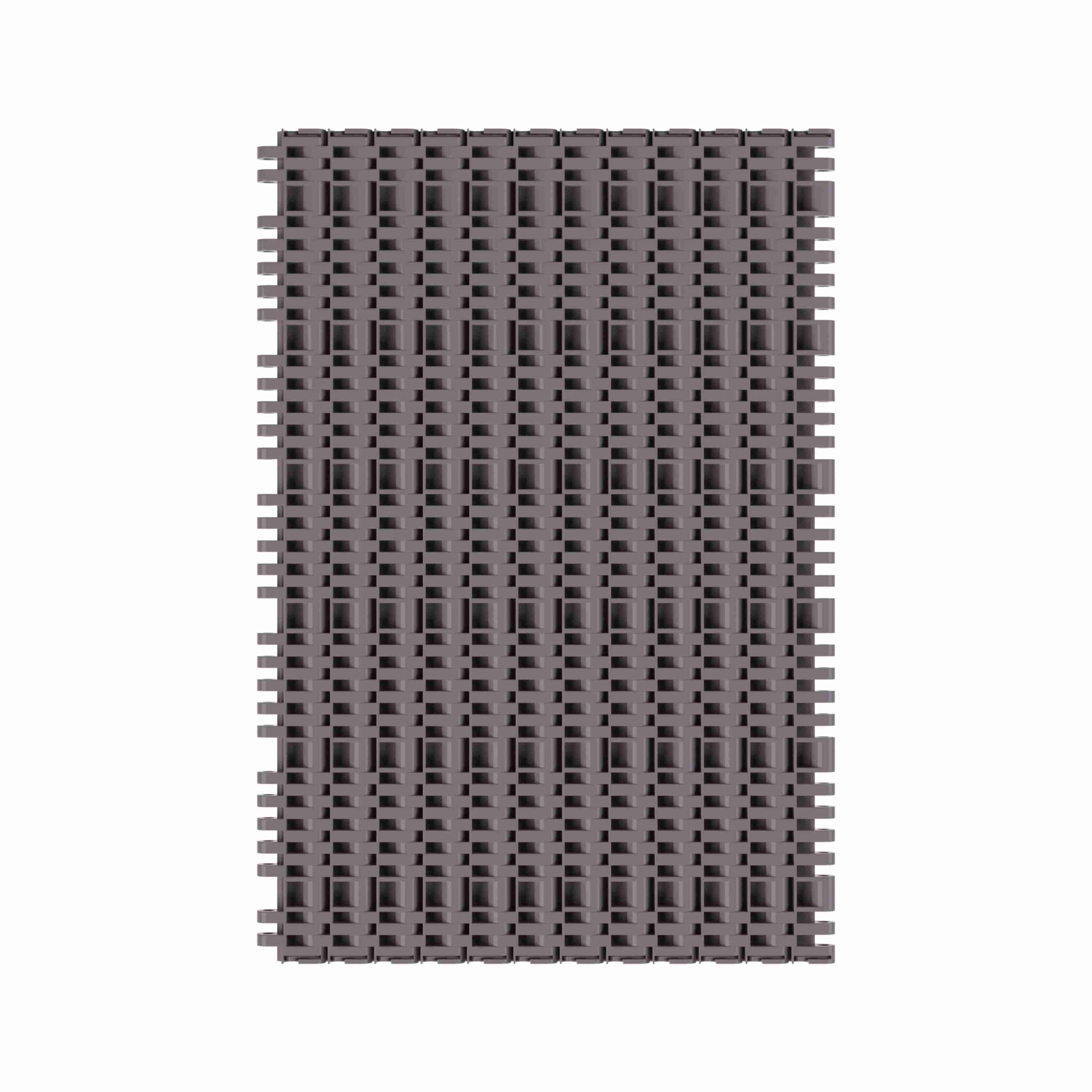

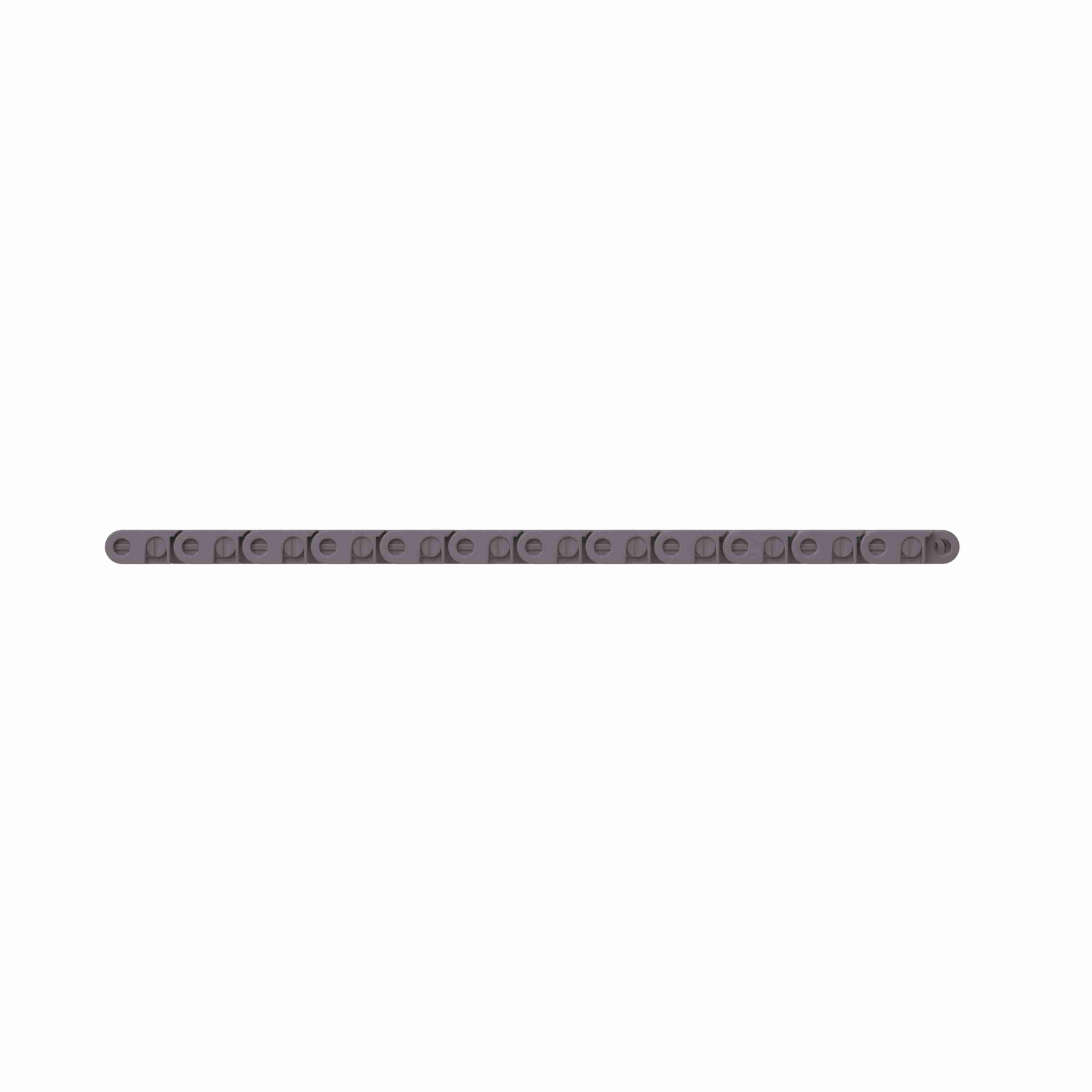

Rexnord 7705 Straight Running Solid Top, Material: Brown High Performance, Width: 33in, Pitch: 1in - 10324542
Part #:10324542
Catalog #:10324542
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Belt Thickness (in): | 0.5 in |
| Chain Number: | 7705 | Surface Type: | Solid Top |
| Chain Strength (lb/ft): | 2,950 lb/ft | Open Area (%): | 3 % |
| Chain Material Description: | Brown High Performance | Chain Width Measurement System: | Imperial |
| Product Type: | Straight Running | Chain Pitch (mm): | 25.4 mm |
| Straight or Side-Flex: | Straight Running | Product Line: | Plastic Modular Chain and Belt |
| Chain Width (mm): | 838.2 mm | Series: | MatTop 7700 Series Chain |
| Chain Pitch (in): | 1 in | Belt Thickness (mm): | 12.7 mm |
| Chain Width (in): | 33 in | Chain Strength (N/m): | 43,041 N·m |
| Chain Material: | HP | Rod/Pin Material: | Polyester |
General Specifications
| Weight: | 0.63 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
