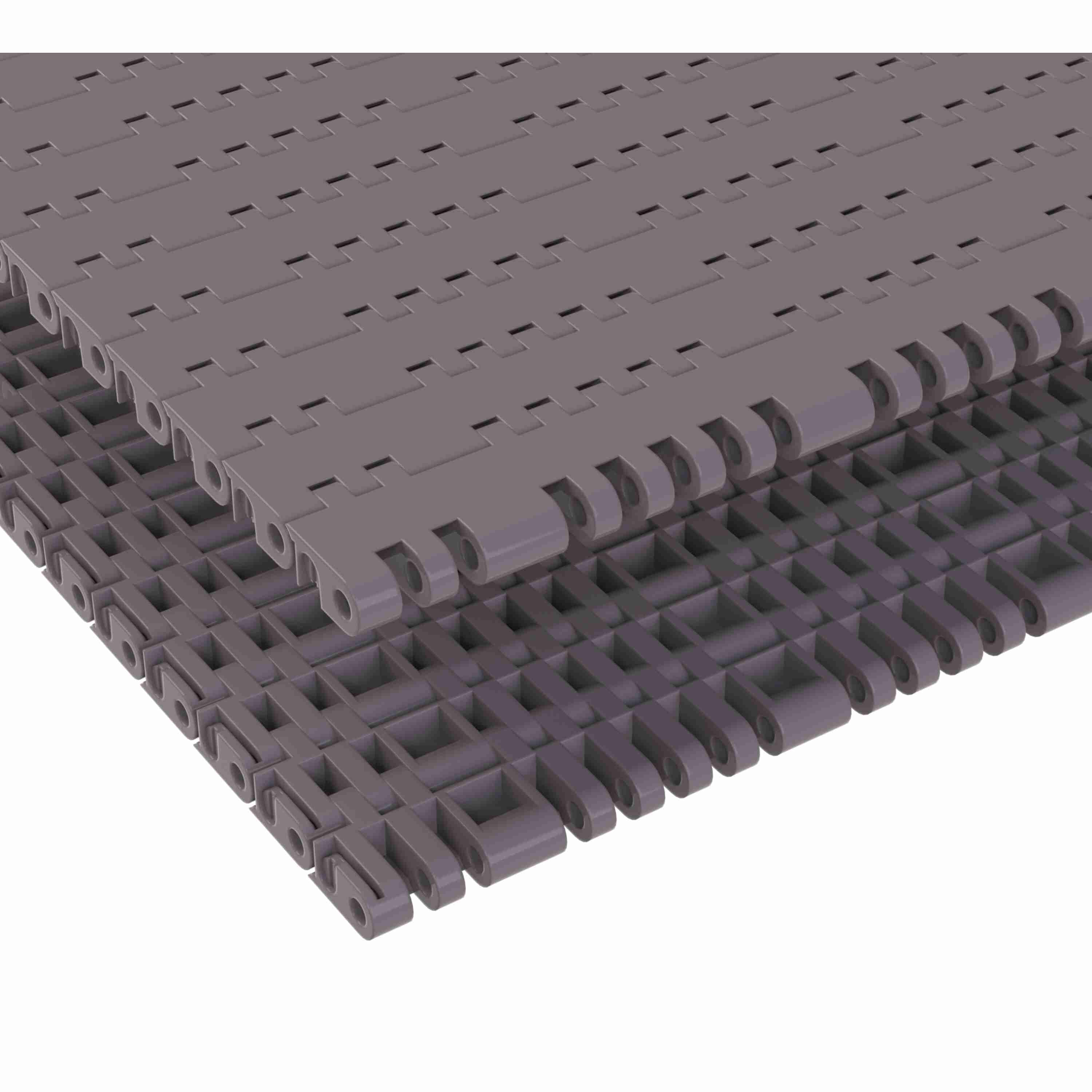

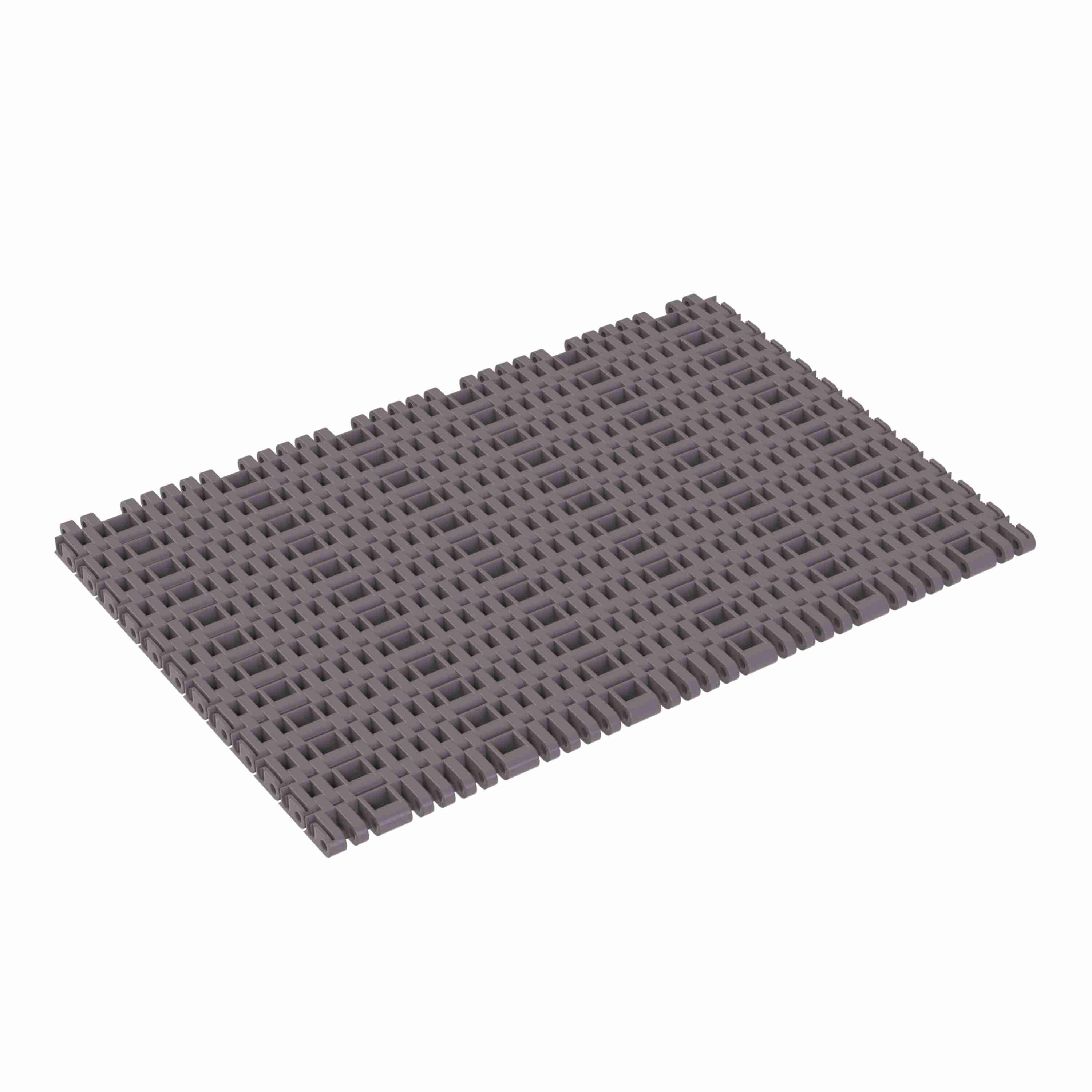

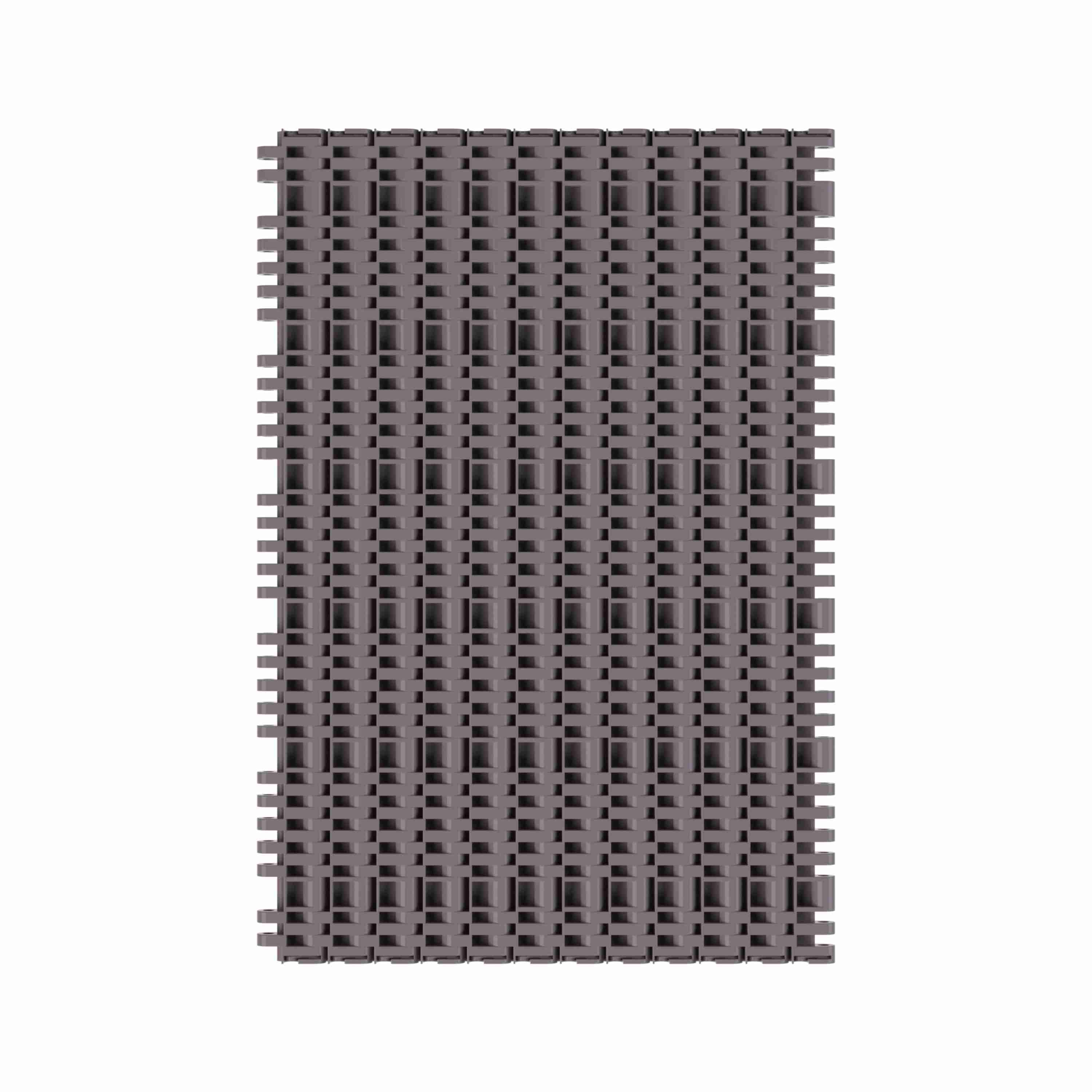

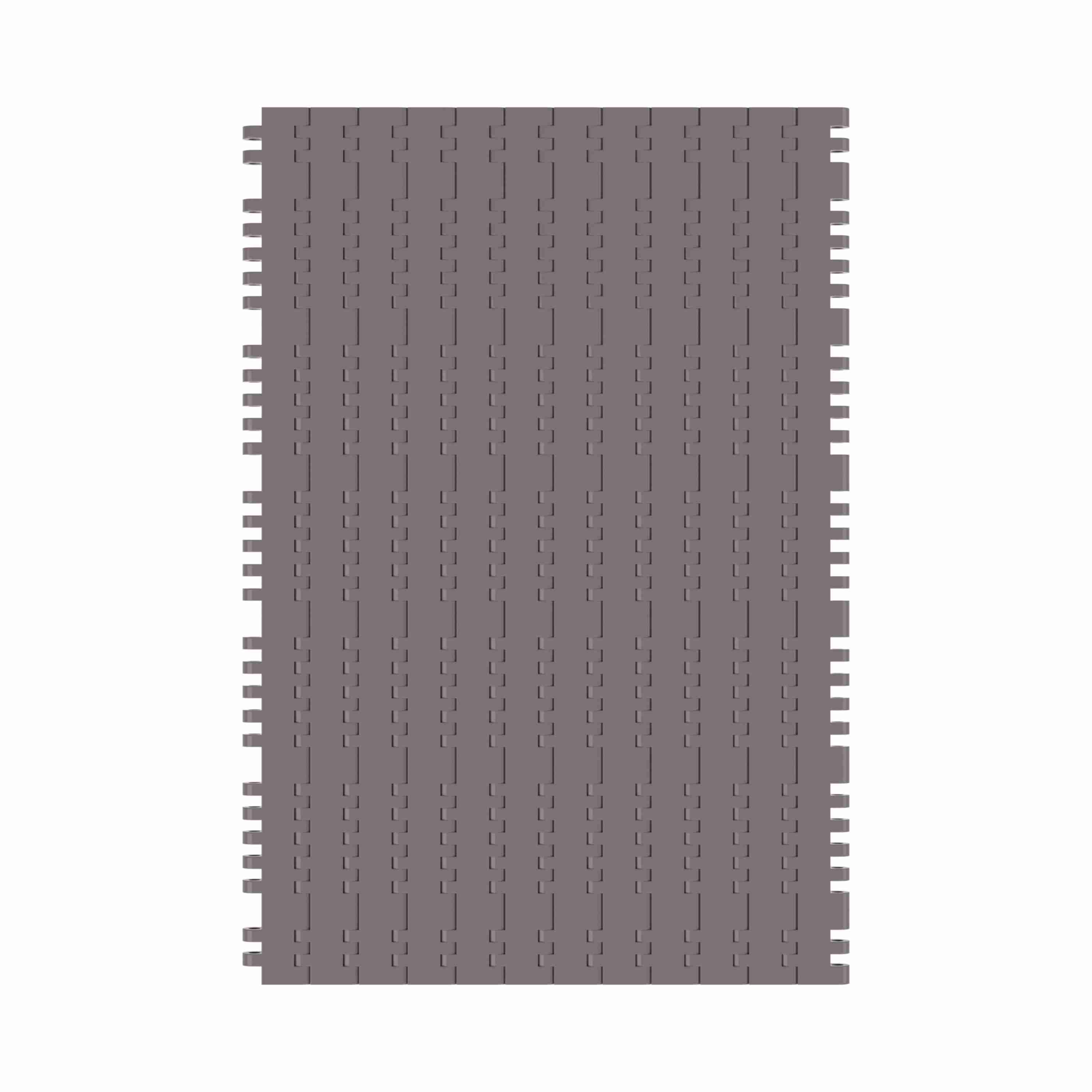

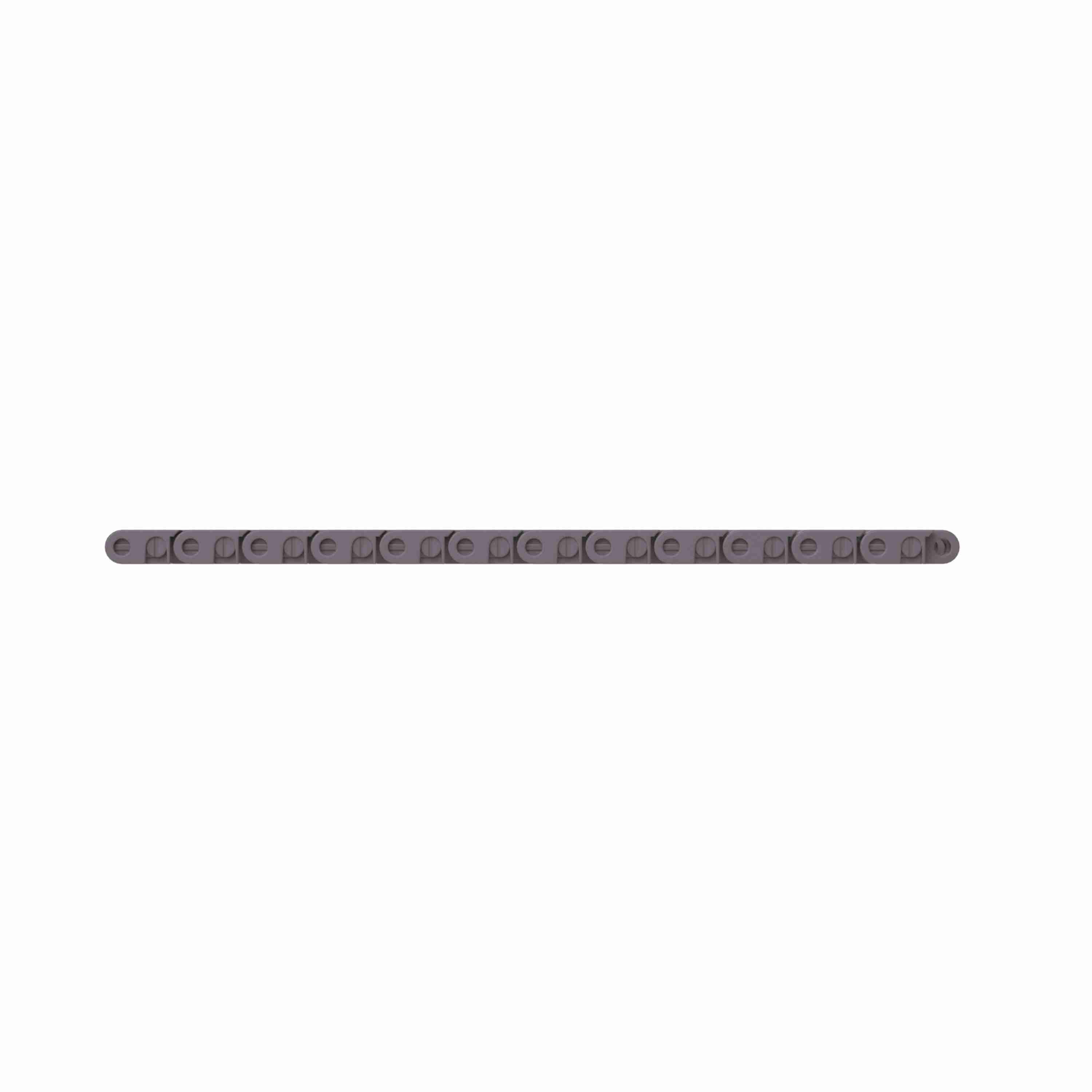

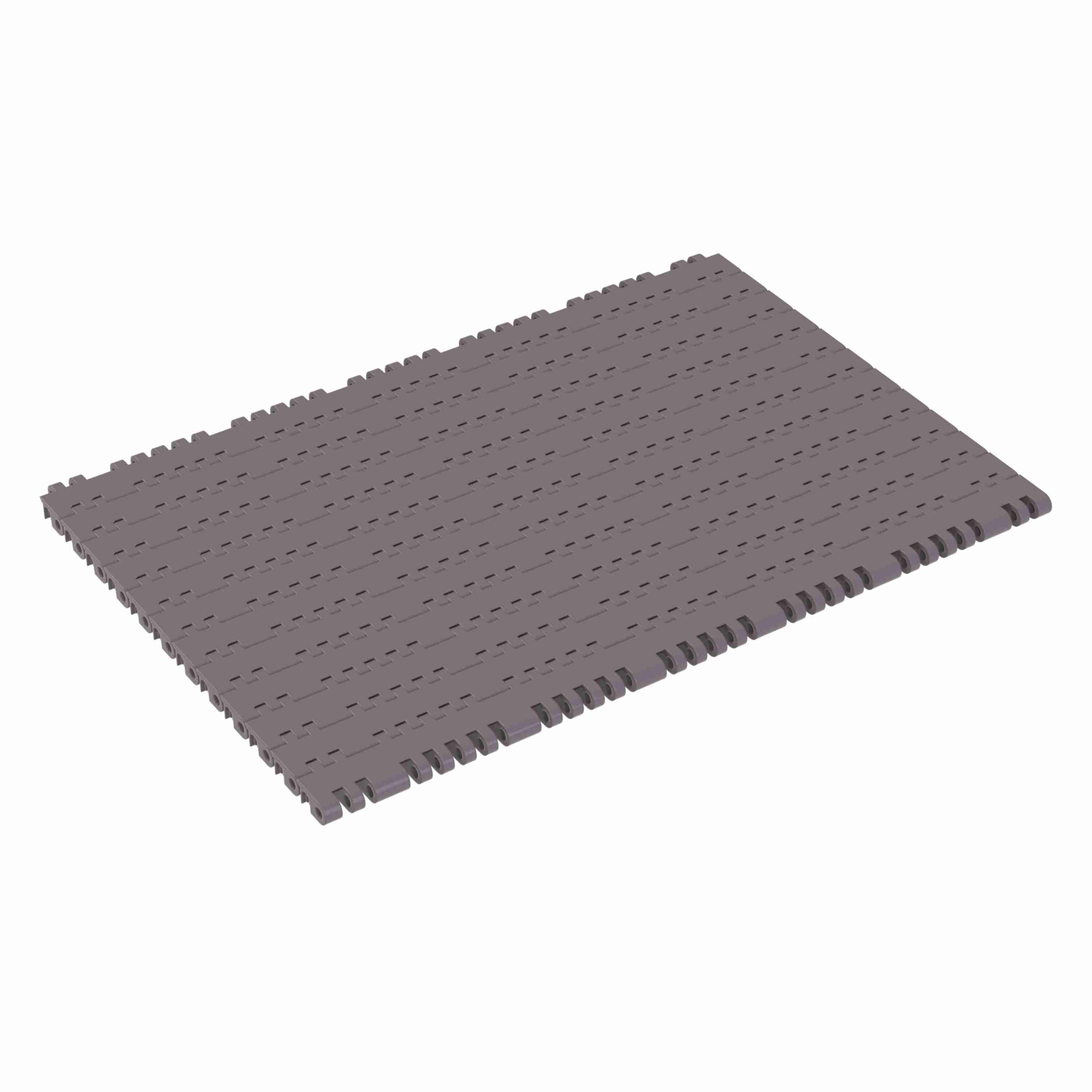

Rexnord 7705 Straight Running Solid Top, Material: Brown High Performance, Width: 42in, Pitch: 1in - 10324544
Part #:10324544
Catalog #:10324544
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material: | HP | Straight or Side-Flex: | Straight Running |
| Chain Pitch (mm): | 25.4 mm | Chain Number: | 7705 |
| Chain Strength (lb/ft): | 2,950 lb/ft | Belt Thickness (in): | 0.5 in |
| Open Area (%): | 3 % | Chain Pitch (in): | 1 in |
| Chain Width (in): | 42 in | Chain Strength (N/m): | 43,041 N·m |
| Product Group: | Modular Plastic Belts | Chain Width Measurement System: | Imperial |
| Chain Width (mm): | 1,066.8 mm | Rod/Pin Material: | Polyester |
| Product Line: | Plastic Modular Chain and Belt | Series: | MatTop 7700 Series Chain |
| Surface Type: | Solid Top | Belt Thickness (mm): | 12.7 mm |
| Product Type: | Straight Running | Chain Material Description: | Brown High Performance |
General Specifications
| Weight: | 0.81 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
