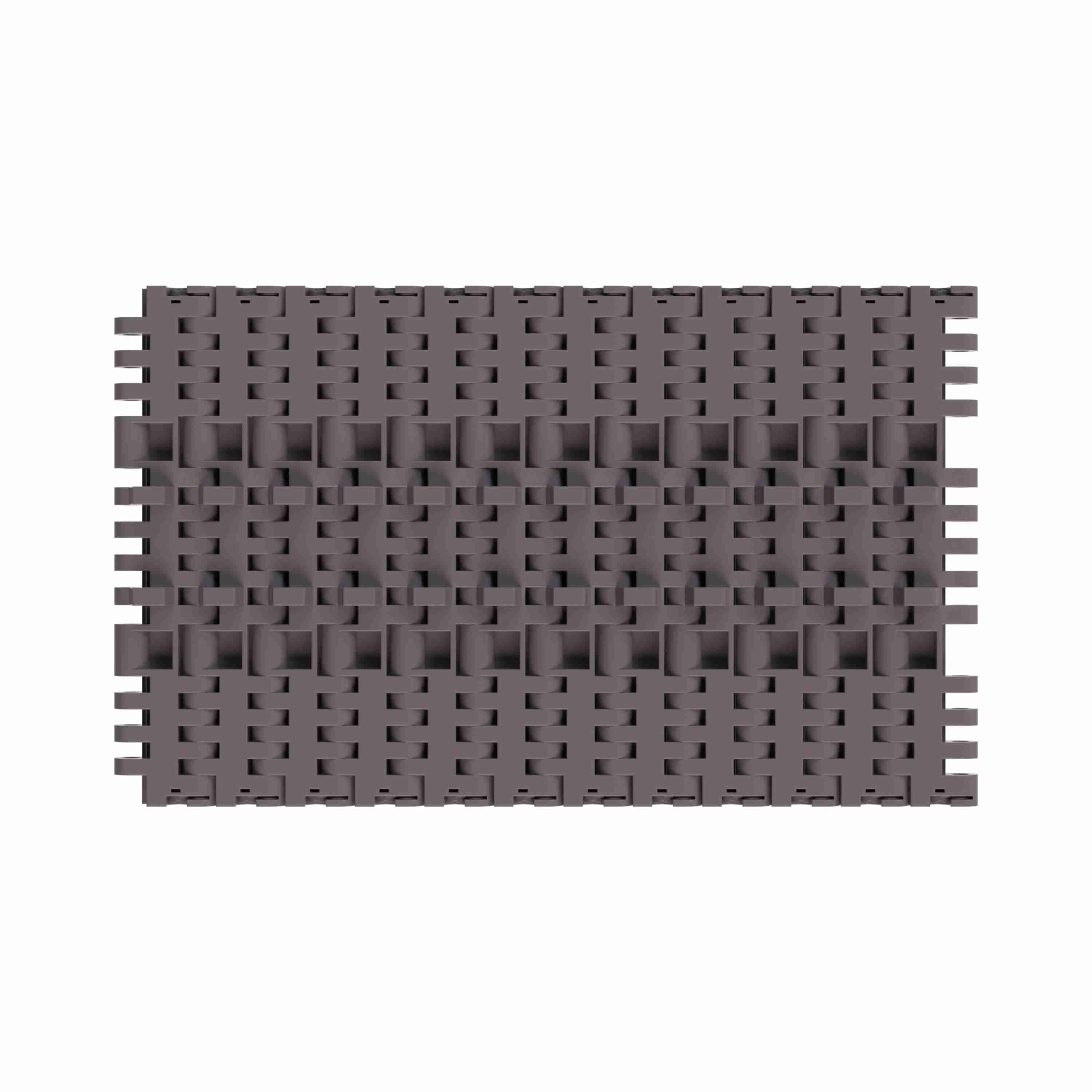

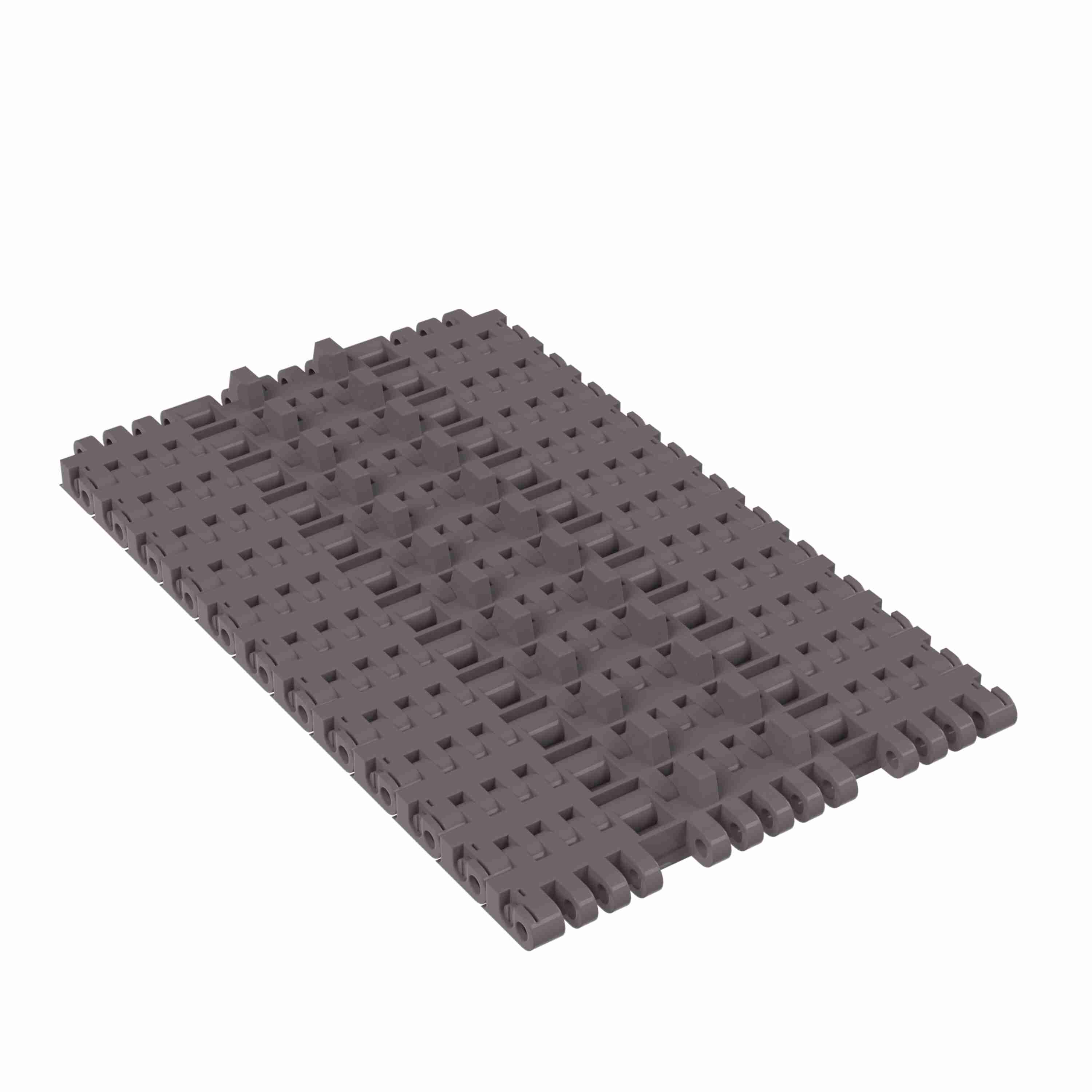

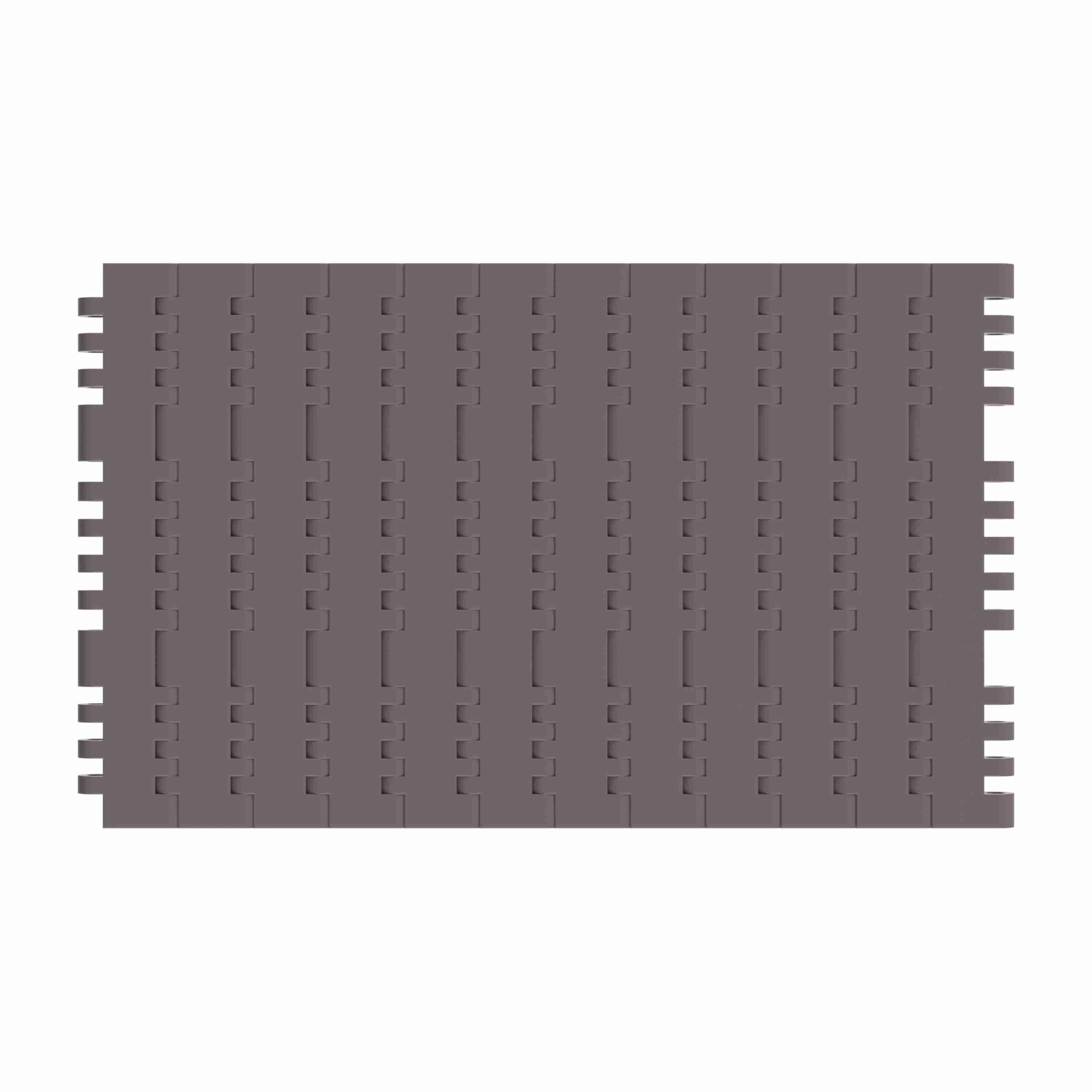

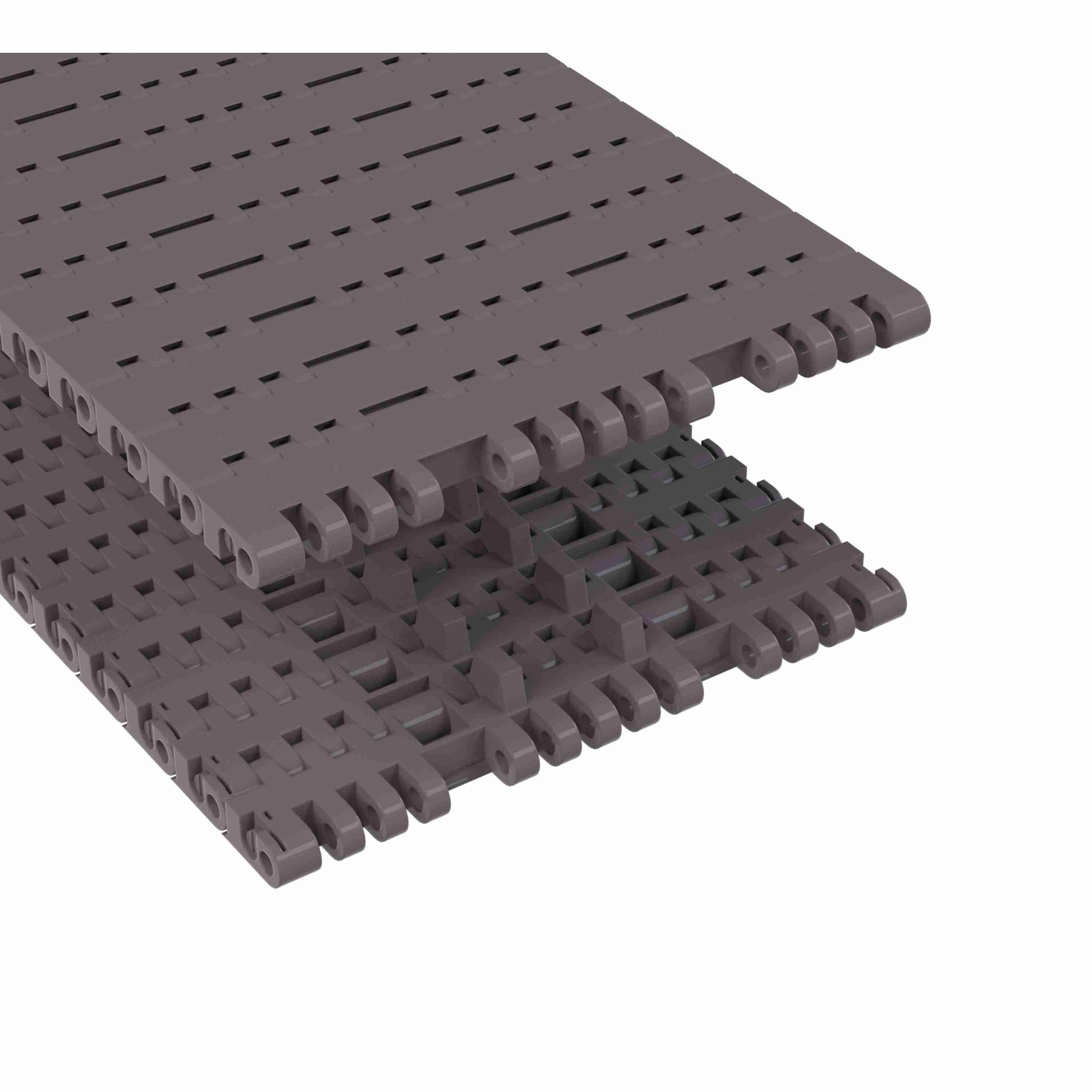

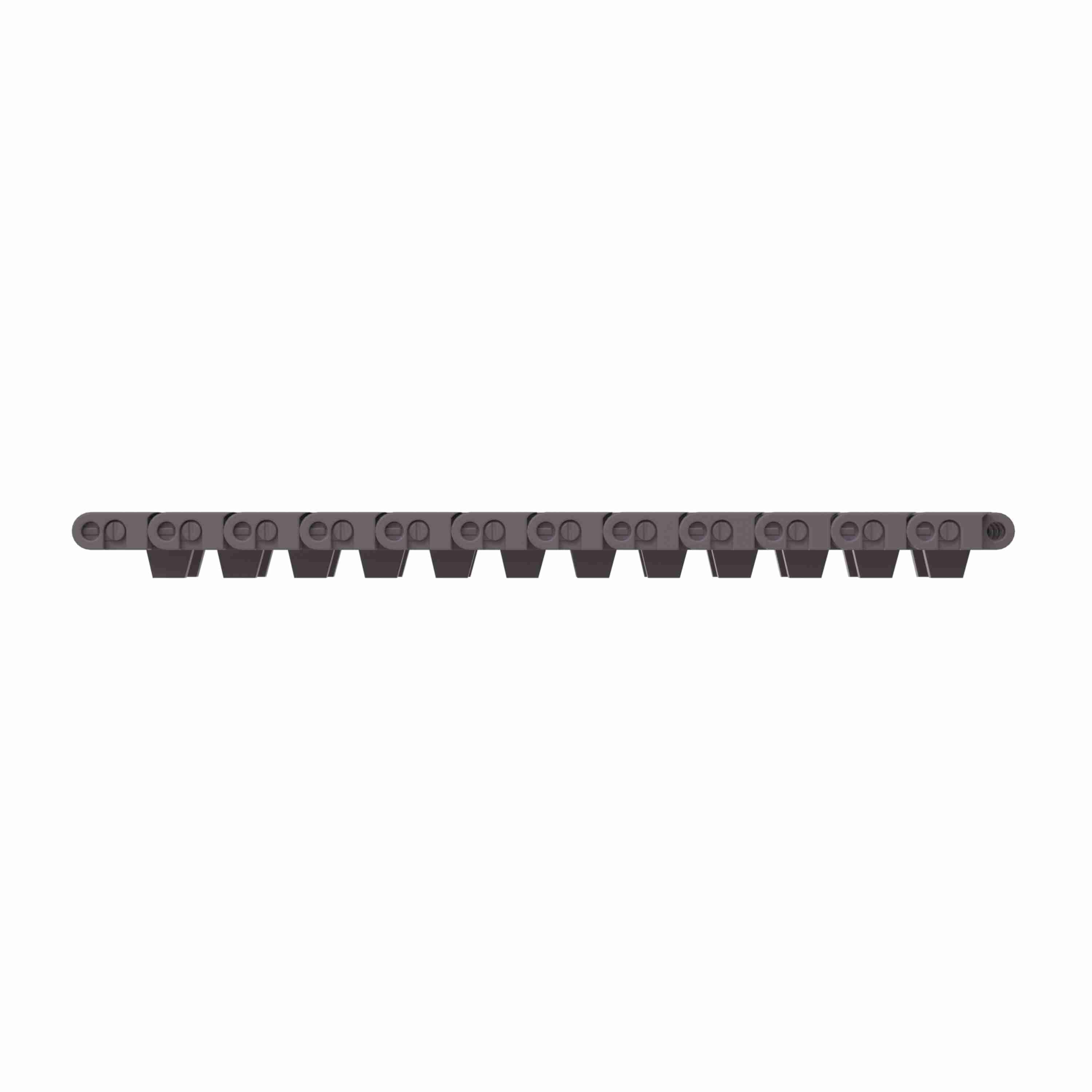

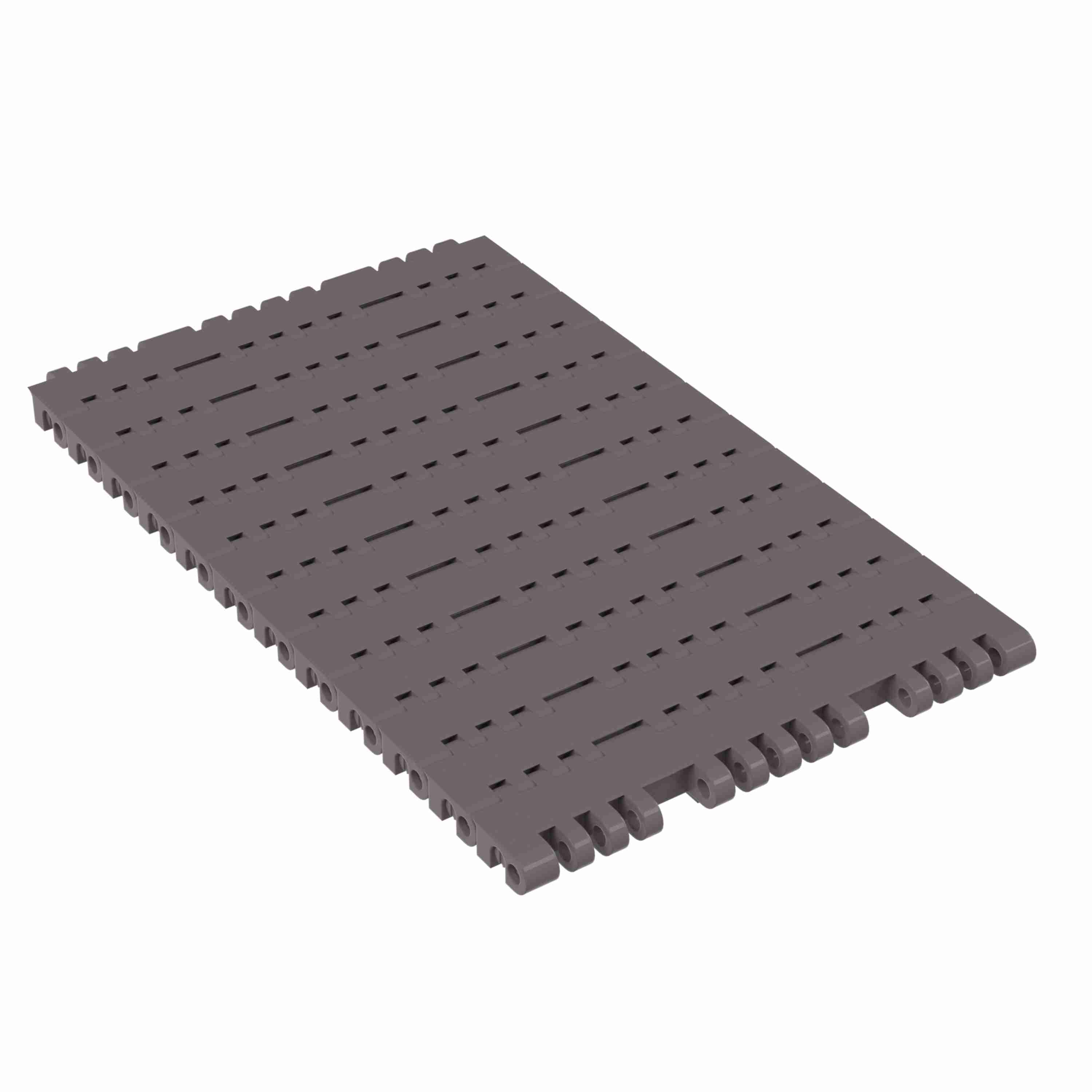

Rexnord 7705 Straight Running Solid Top, Material: Brown High Performance, Width: 7.5in, Pitch: 1in - 81415181
Part #:10028417
Catalog #:81415181
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (mm): | 25.4 mm | Chain Pitch (in): | 1 in |
| Belt Thickness (mm): | 12.7 mm | Positrack: | True |
| Chain Width (in): | 7.5 in | Product Type: | Straight Running |
| Series: | MatTop 7700 Series Chain | Chain Width (mm): | 190.5 mm |
| Belt Thickness (in): | 0.5 in | Surface Type: | Solid Top |
| Rod/Pin Material: | Polyester | Open Area (%): | 3 % |
| Chain Width Measurement System: | Imperial | Chain Strength (N): | 7,770 N |
| Straight or Side-Flex: | Straight Running | Chain Number: | 7705 |
| Chain Strength (lb): | 1,750 lb | Product Line: | Plastic Modular Chain and Belt |
| Product Group: | Modular Plastic Belts | Number of Positrack: | 2 |
| Positrack Location: | Center | Chain Material: | HP |
| Chain Material Description: | Brown High Performance |
General Specifications
| Weight: | 0.14 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
