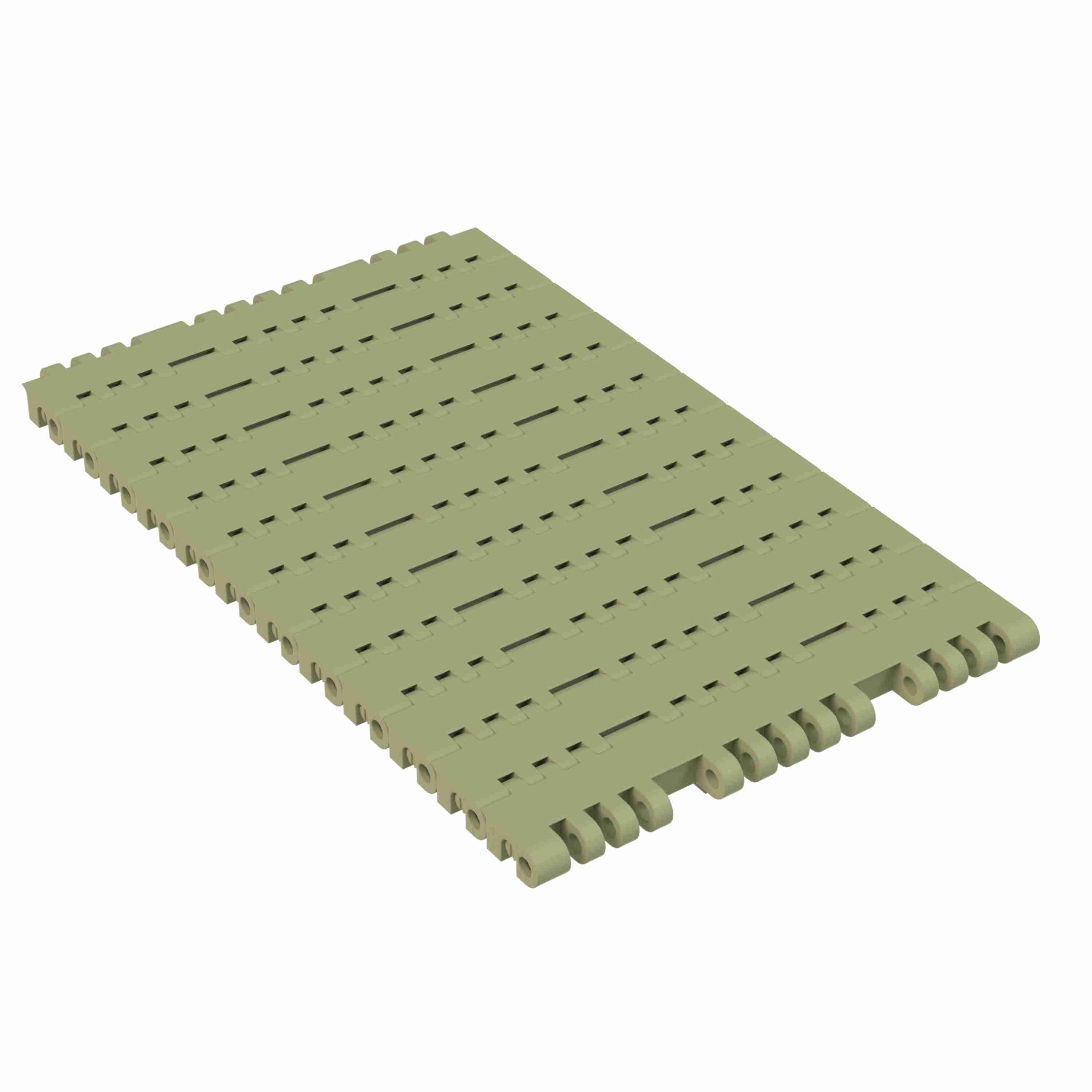

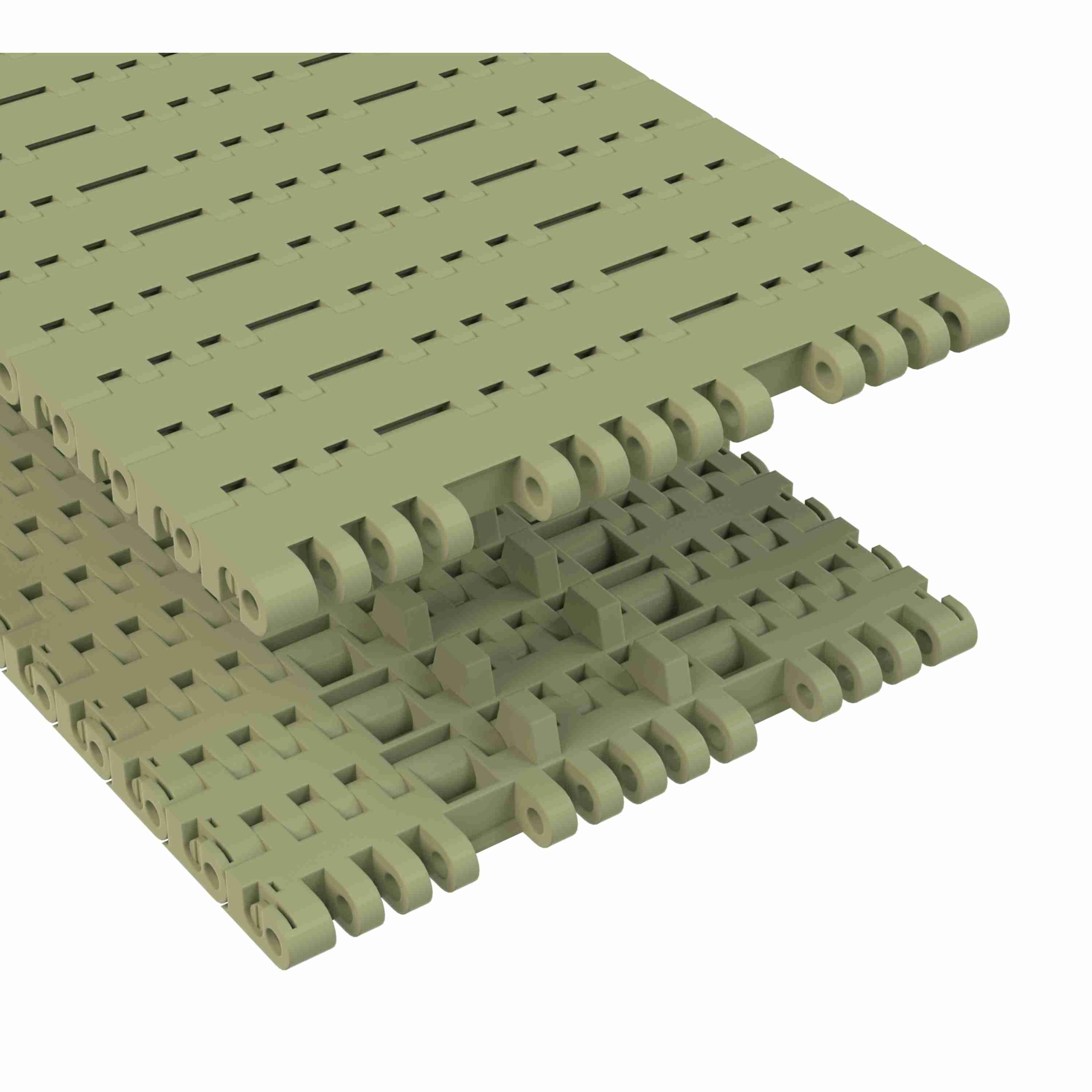

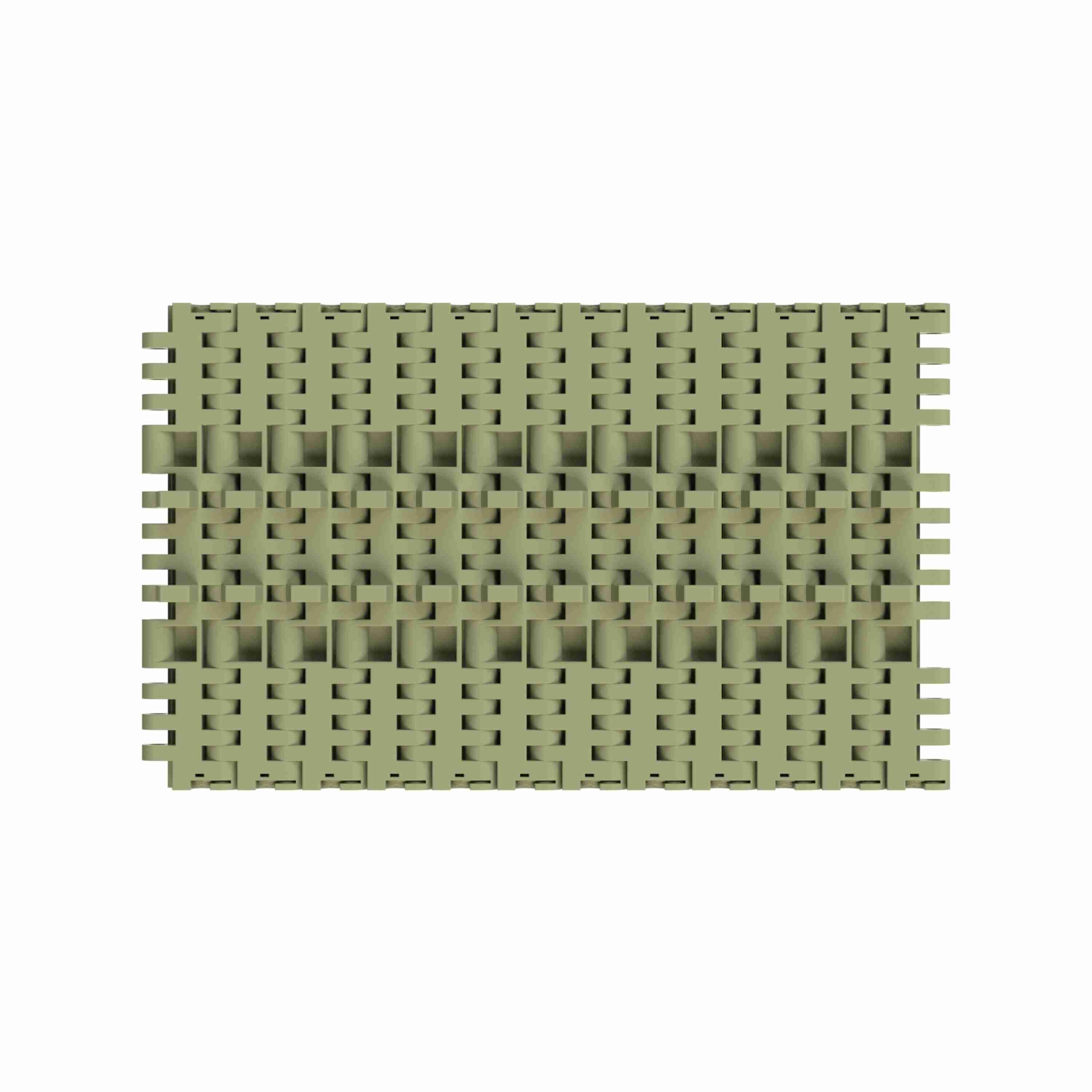

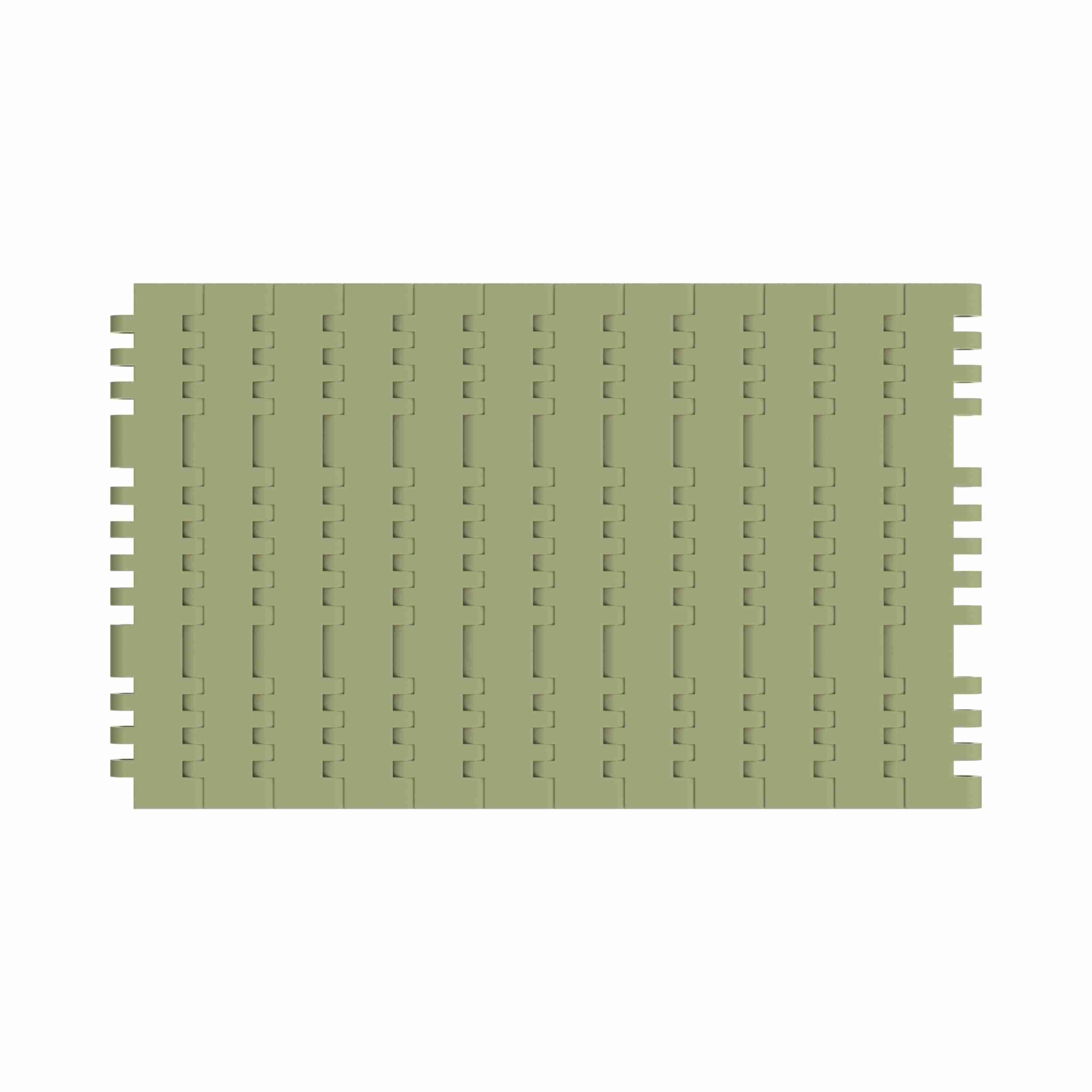

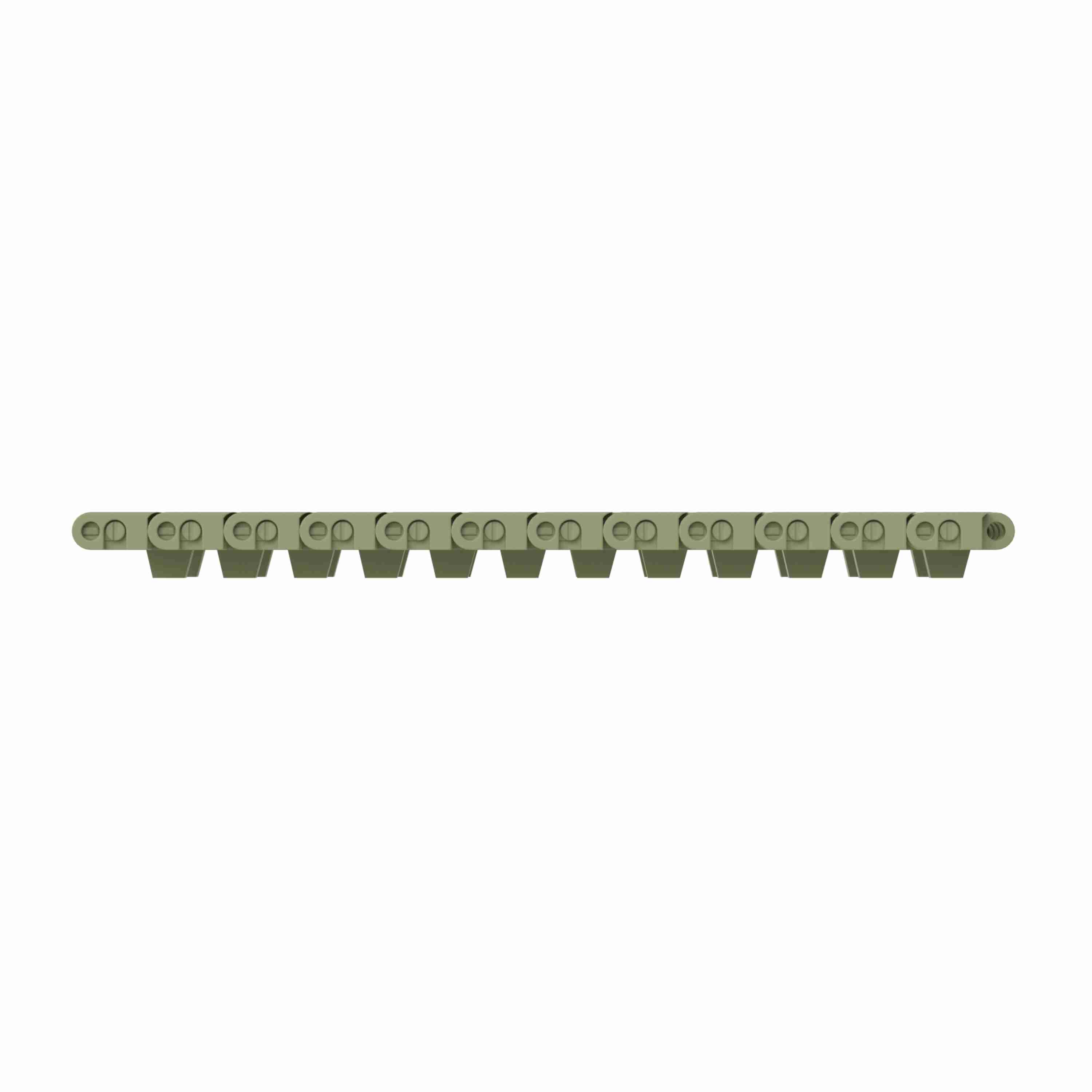

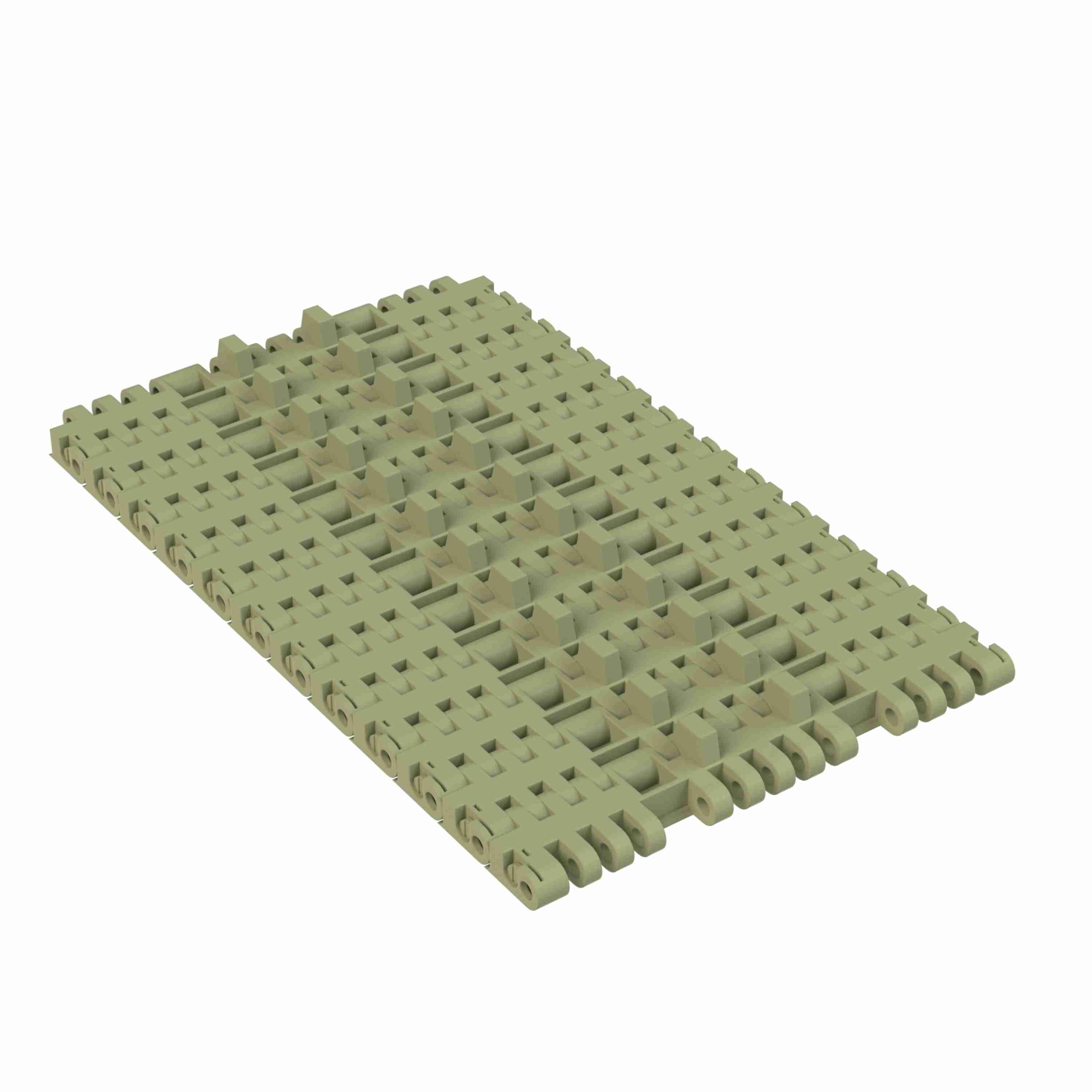

Rexnord 7705 Straight Running Solid Top, Material: Green Abrasion Resistant Polyamide, Width: 7.5in, Pitch: 1in - 81430041
Part #:10029108
Catalog #:81430041
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Product Type: | Straight Running |
| Chain Pitch (mm): | 25.4 mm | Positrack: | True |
| Open Area (%): | 3 % | Chain Strength (lb): | 1,750 lb |
| Rod/Pin Material: | Acetal | Chain Number: | 7705 |
| Product Group: | Modular Plastic Belts | Surface Type: | Solid Top |
| Series: | MatTop 7700 Series Chain | Chain Strength (N): | 7,770 N |
| Straight or Side-Flex: | Straight Running | Chain Material Description: | Green Abrasion Resistant Polyamide |
| Chain Width (mm): | 190.5 mm | Number of Positrack: | 2 |
| Chain Material: | WX | Belt Thickness (mm): | 12.7 mm |
| Belt Thickness (in): | 0.5 in | Chain Pitch (in): | 1 in |
| Positrack Location: | Center | Chain Width (in): | 7.5 in |
| Product Line: | Plastic Modular Chain and Belt |
General Specifications
| Weight: | 0.12 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
