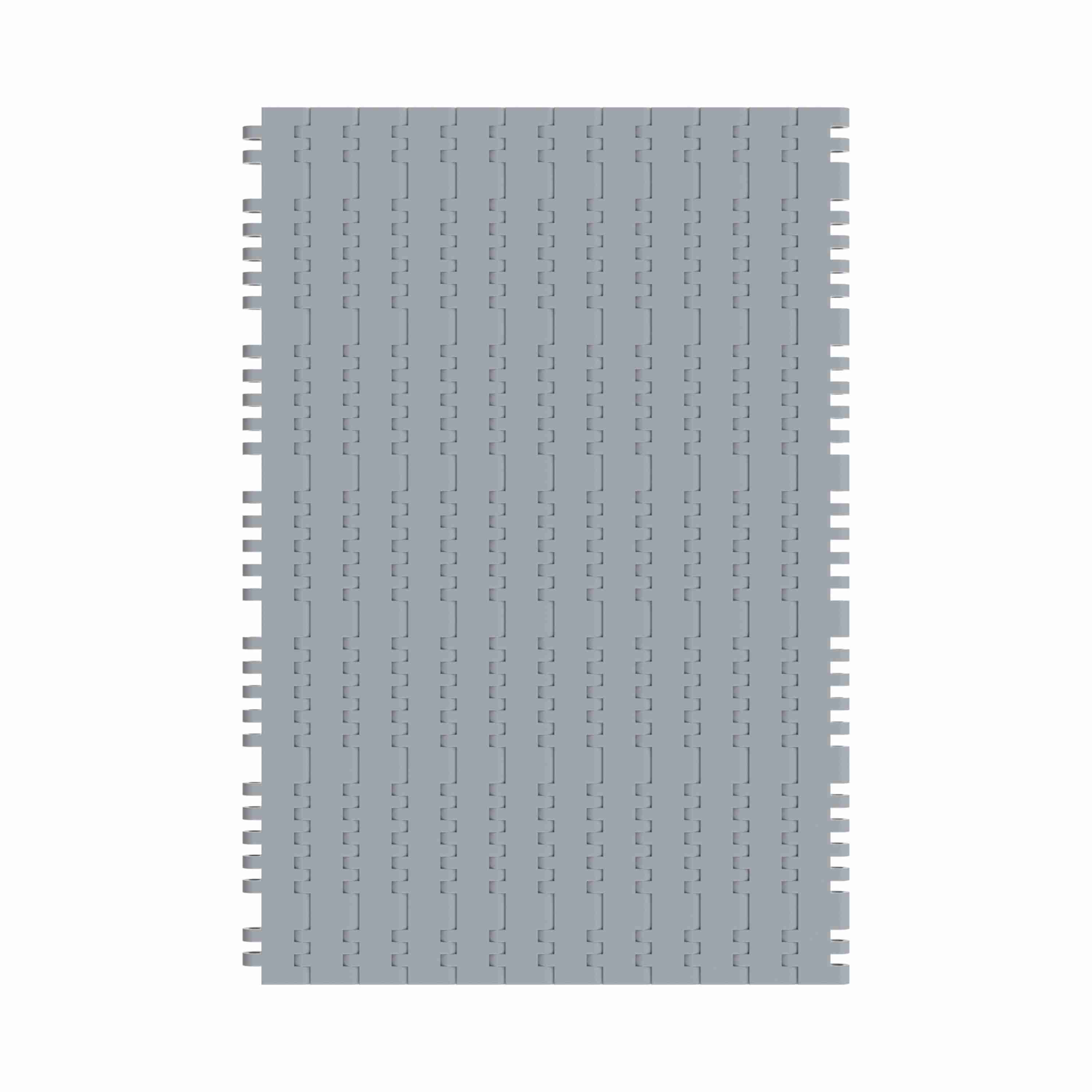

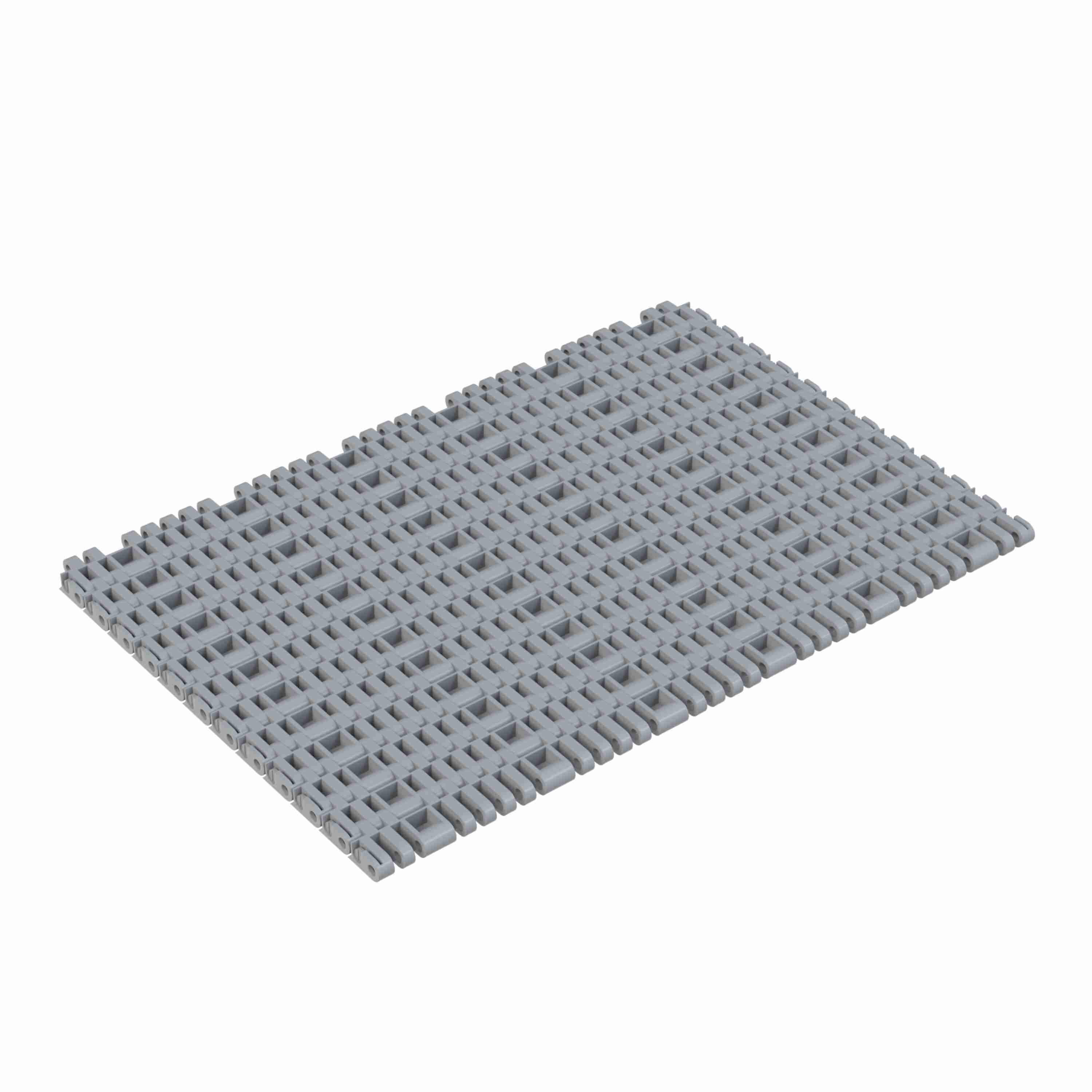

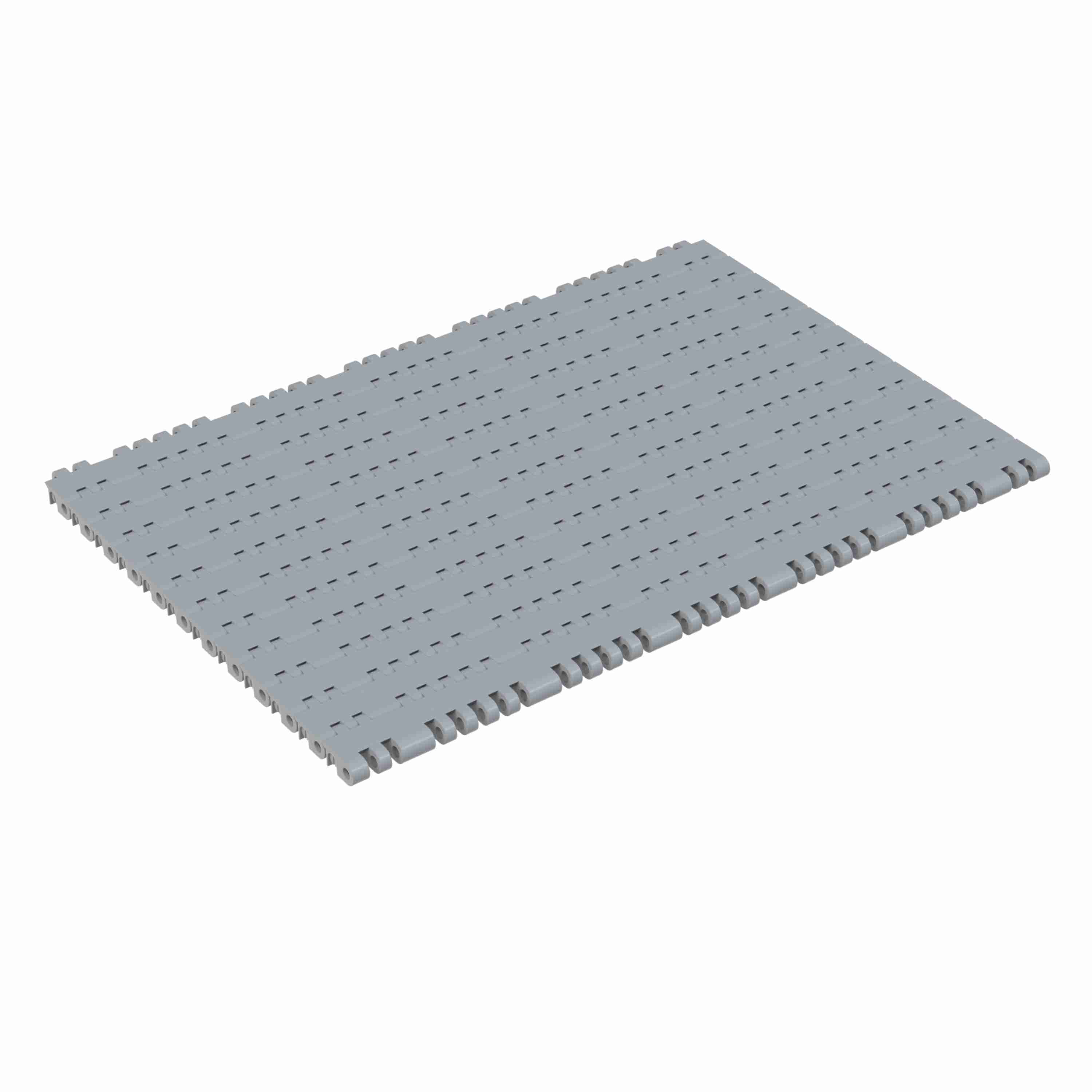

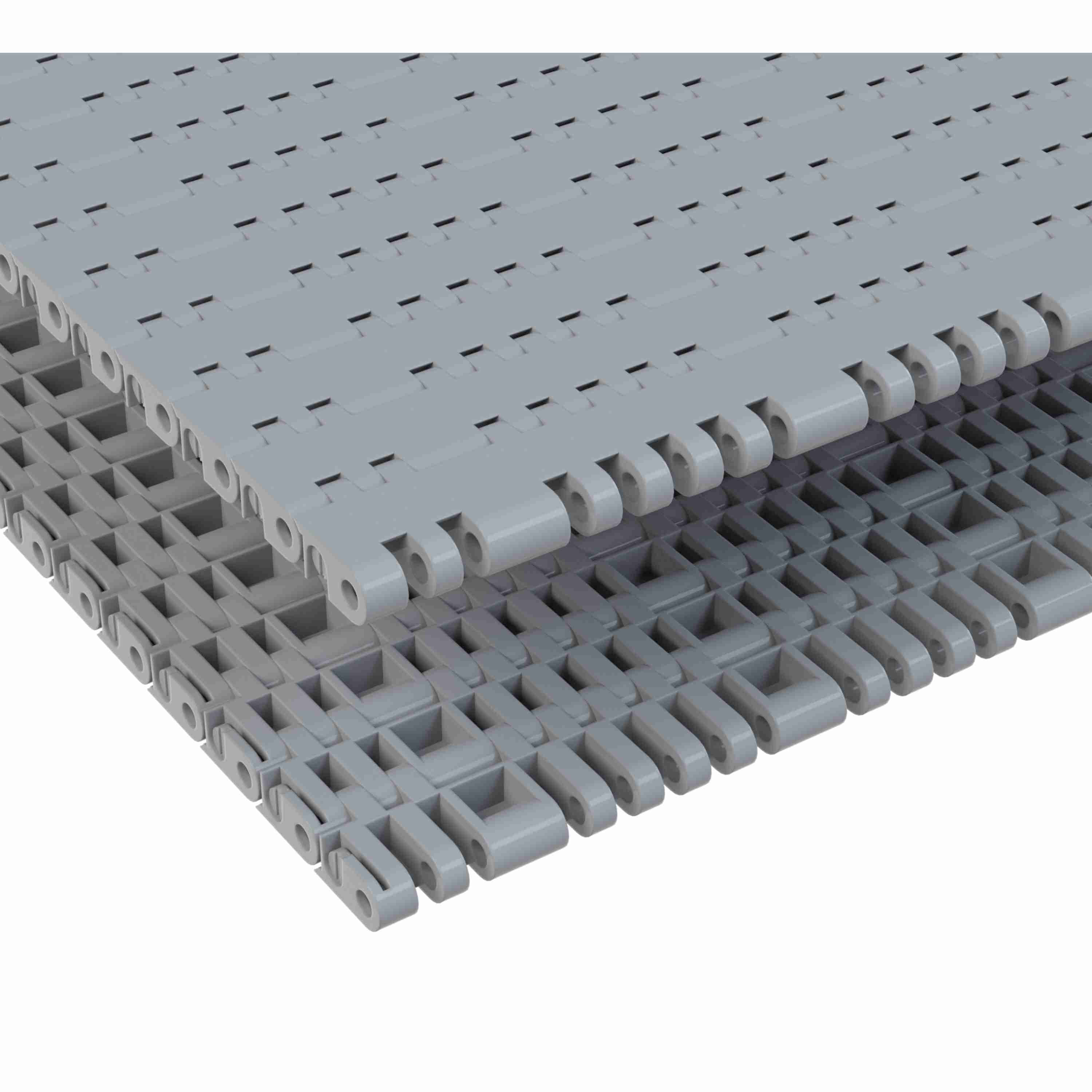

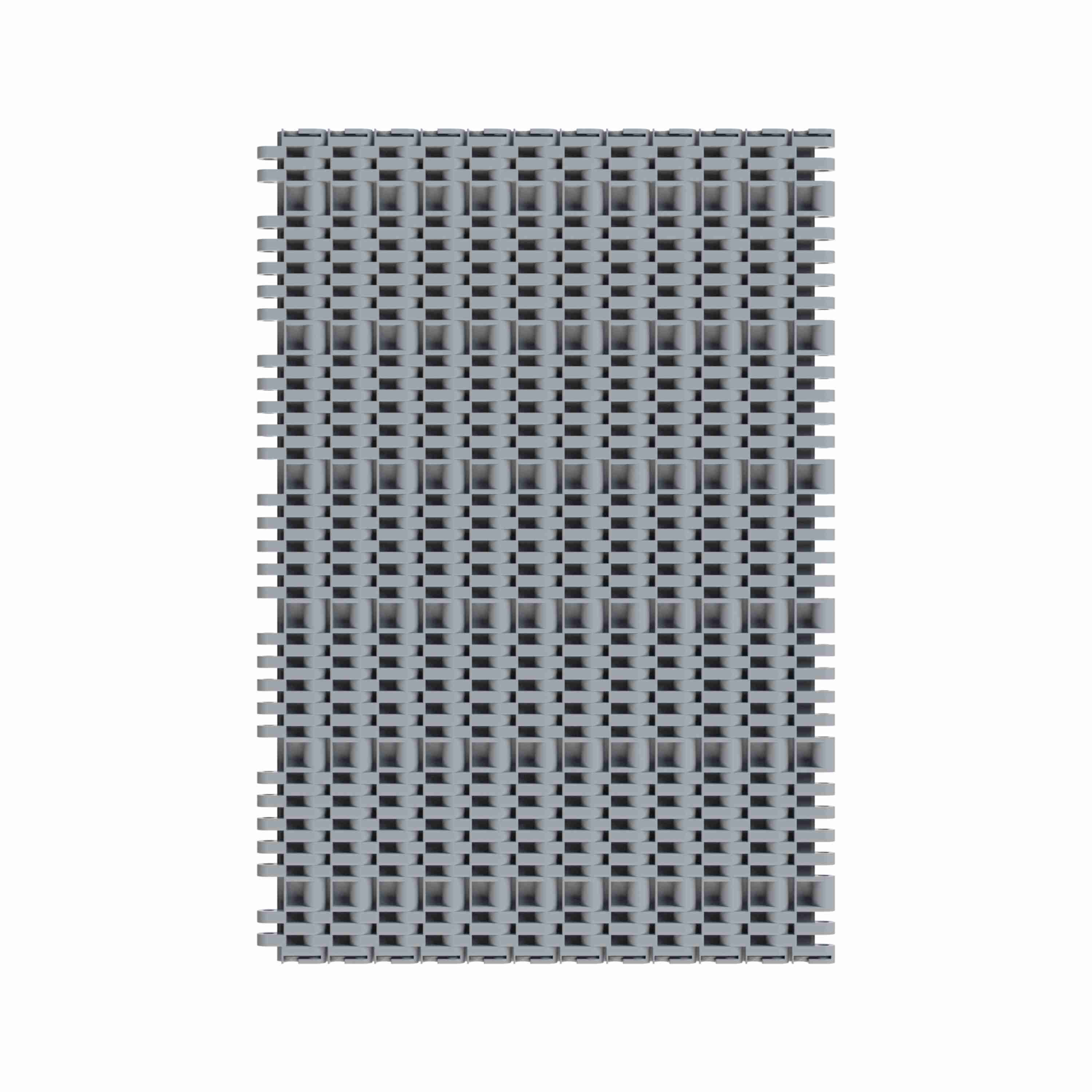

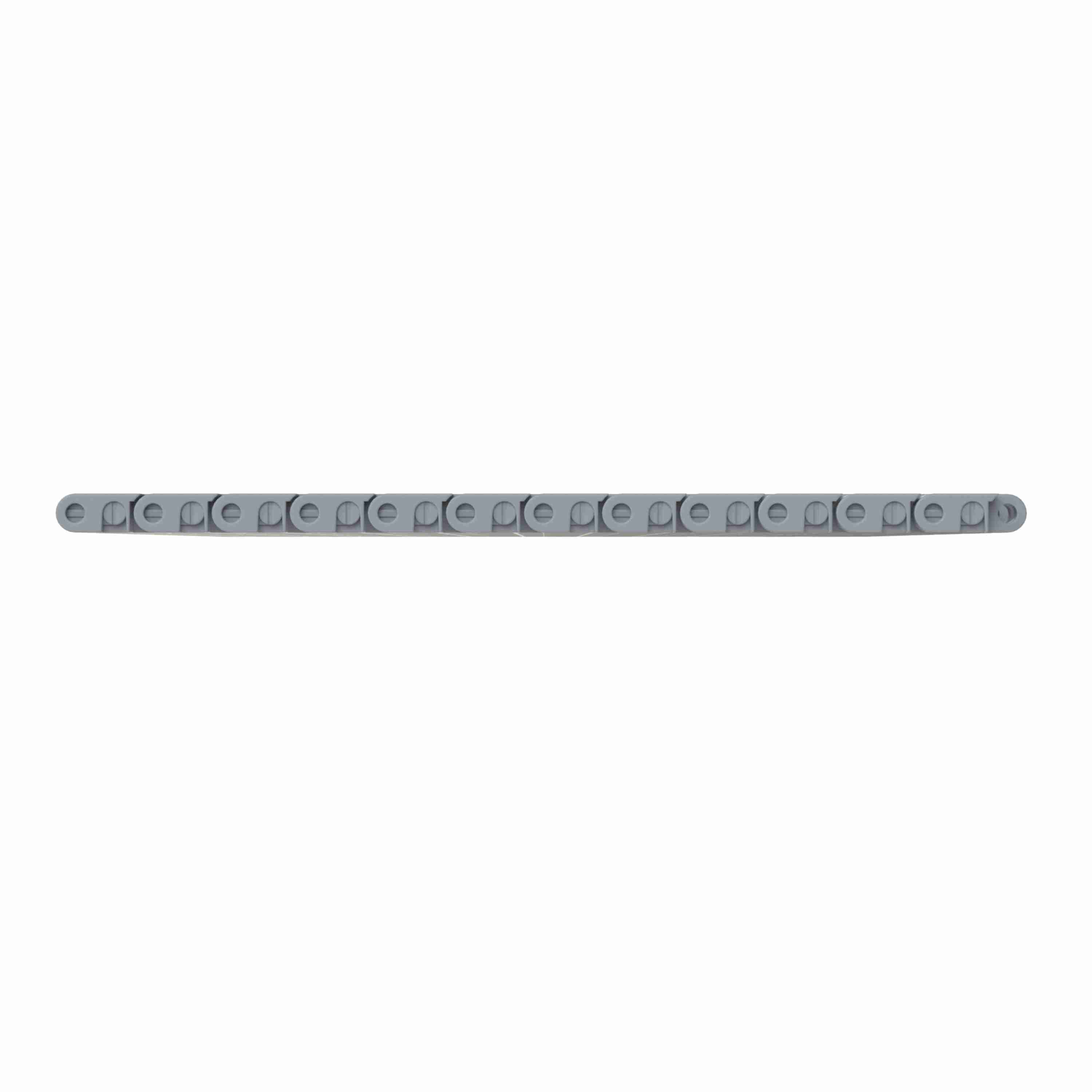

Rexnord 7705 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 12in, Pitch: 1in - 10295394
Part #:10295394
Catalog #:10295394
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Width Measurement System: | Imperial | Product Line: | Plastic Modular Chain and Belt |
| Open Area (%): | 3 % | Chain Pitch (in): | 1 in |
| Chain Material: | PSX | Chain Strength (N/m): | 43,041 N·m |
| Chain Width (in): | 12 in | Straight or Side-Flex: | Straight Running |
| Product Group: | Modular Plastic Belts | Surface Type: | Solid Top |
| Belt Thickness (mm): | 12.7 mm | Series: | MatTop 7700 Series Chain |
| Rod/Pin Material: | Polyester | Belt Thickness (in): | 0.5 in |
| Chain Pitch (mm): | 25.4 mm | Chain Number: | 7705 |
| Chain Width (mm): | 304.8 mm | Chain Material Description: | Silver Platinum Series™ X |
| Chain Strength (lb/ft): | 2,950 lb/ft | Product Type: | Straight Running |
General Specifications
| Weight: | 0.24 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
