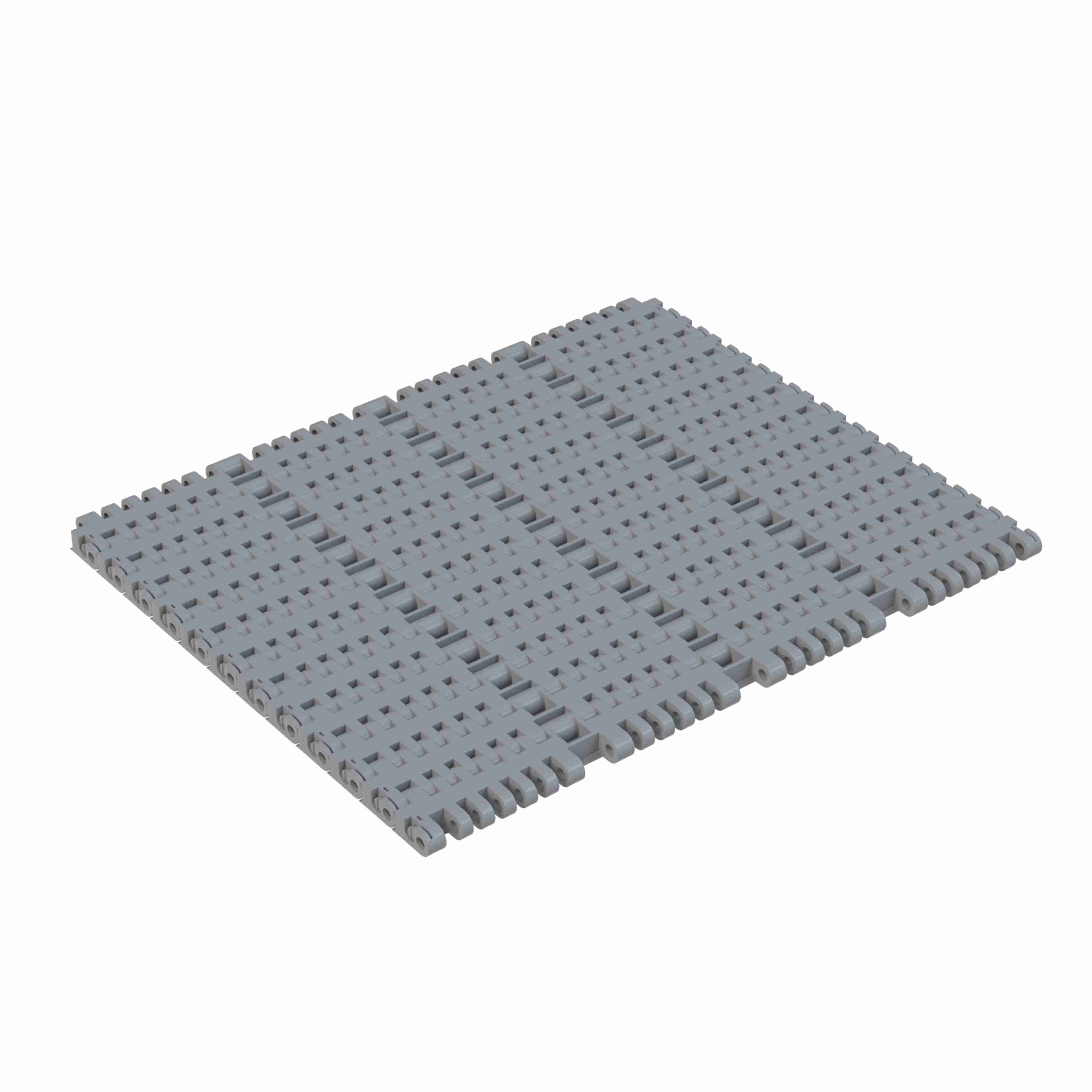

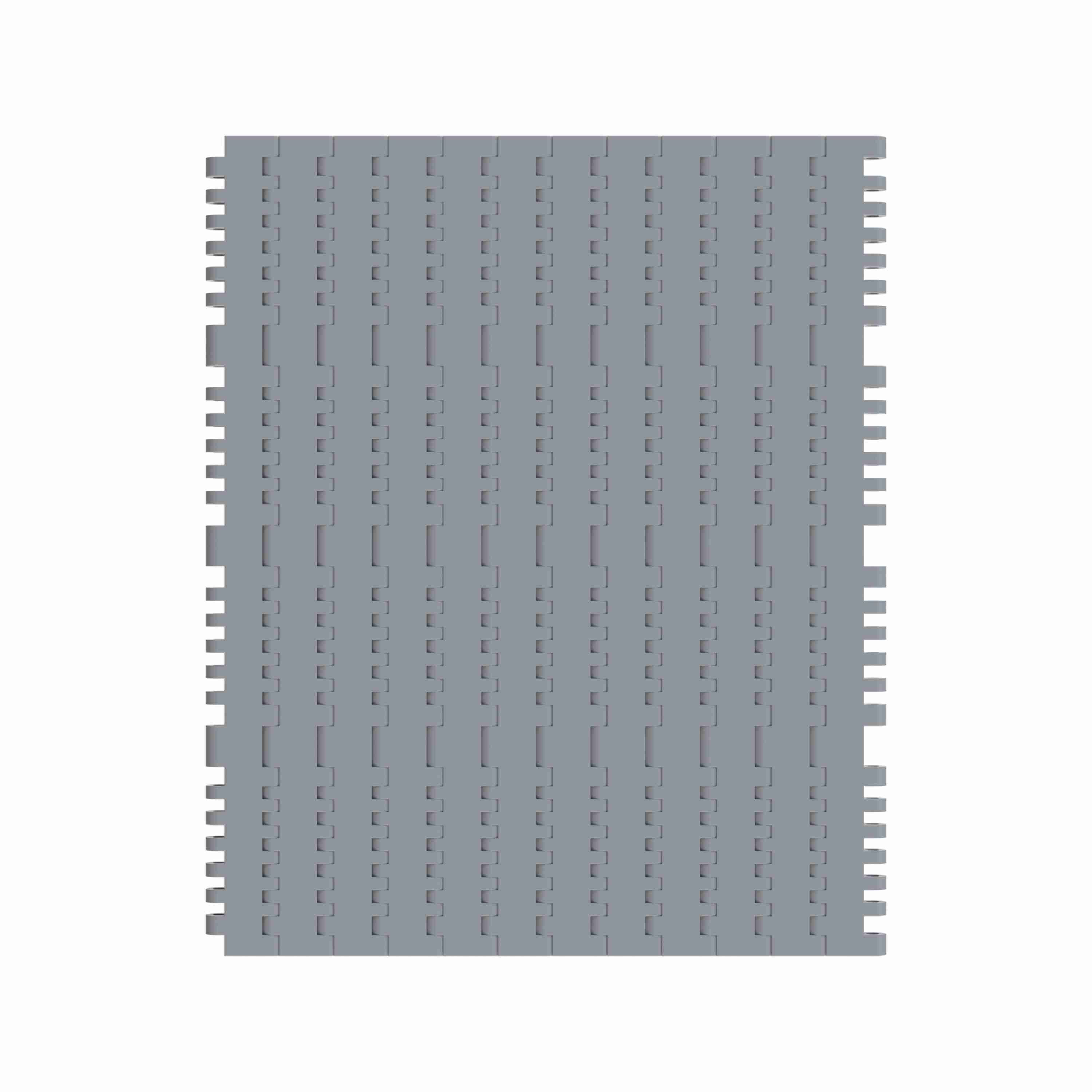

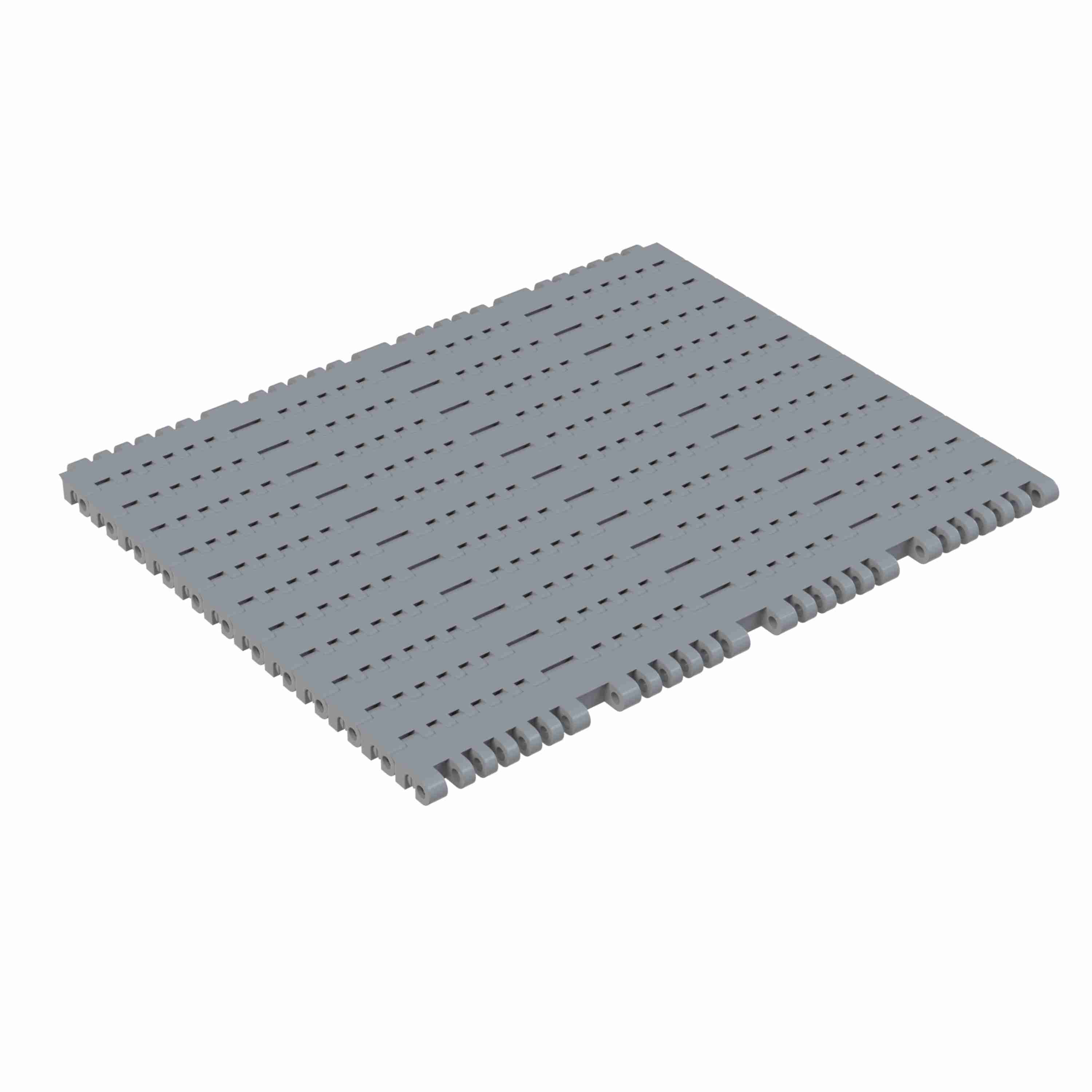

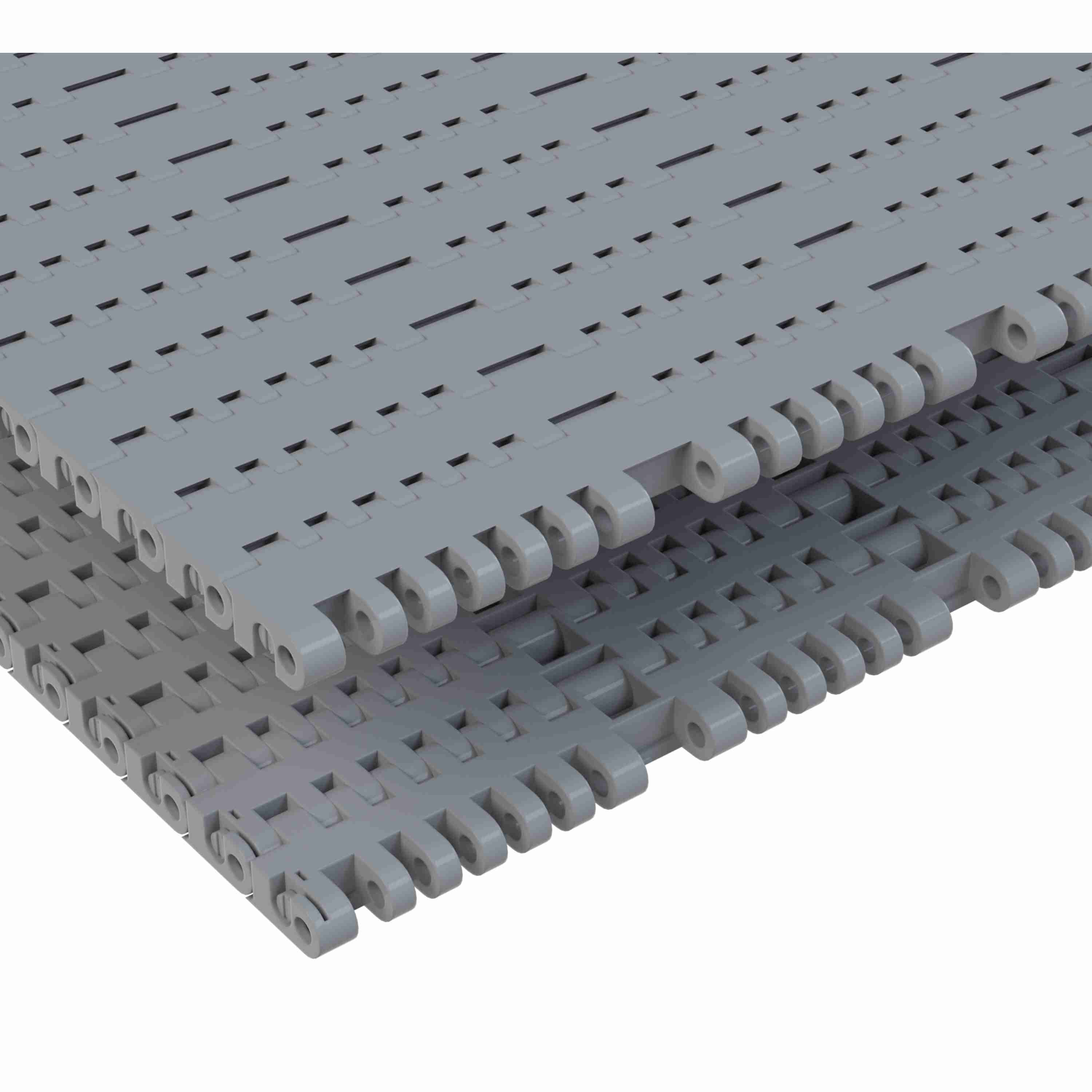

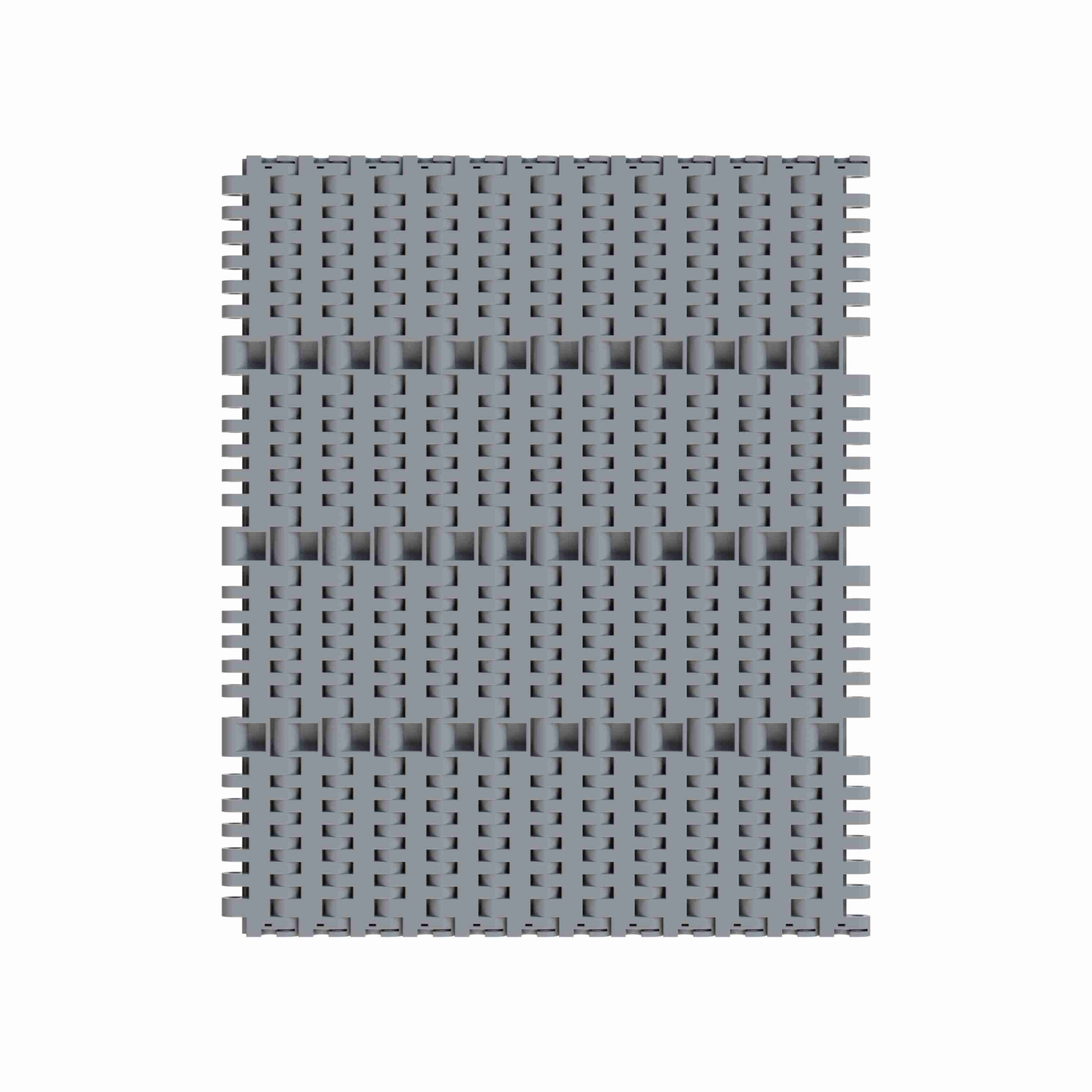

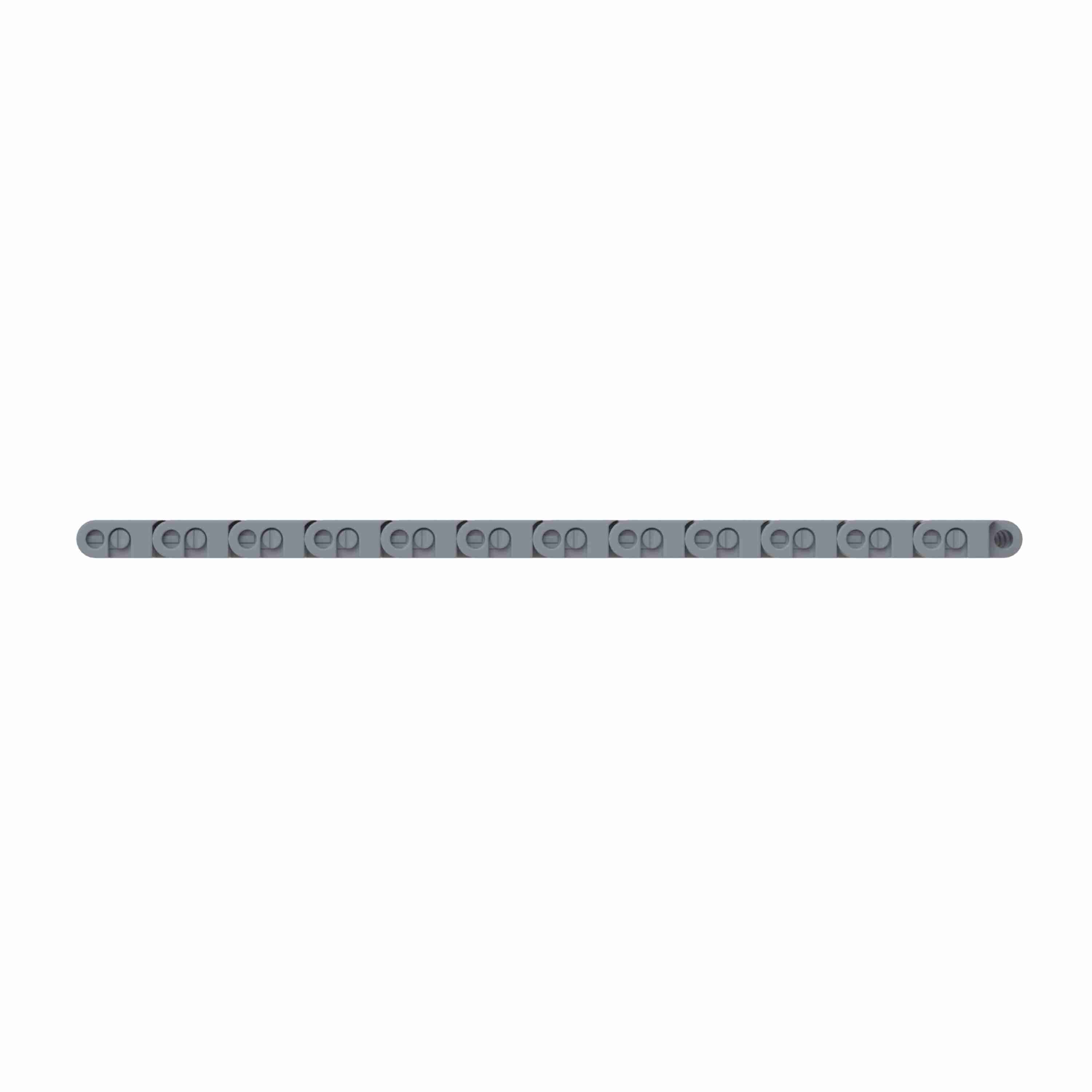

Rexnord 7705 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 15in, Pitch: 1in - 10286167
Part #:10286167
Catalog #:10286167
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Rod/Pin Material: | Polyester | Surface Type: | Solid Top |
| Product Type: | Straight Running | Chain Width Measurement System: | Imperial |
| Belt Thickness (in): | 0.5 in | Chain Strength (lb): | 3,400 lb |
| Chain Material Description: | Silver Platinum Series™ X | Product Line: | Plastic Modular Chain and Belt |
| Product Group: | Modular Plastic Belts | Chain Width (mm): | 381 mm |
| Series: | MatTop 7700 Series Chain | Chain Number: | 7705 |
| Chain Material: | PSX | Chain Pitch (mm): | 25.4 mm |
| Straight or Side-Flex: | Straight Running | Chain Strength (N): | 15,096 N |
| Chain Pitch (in): | 1 in | Chain Width (in): | 15 in |
| Open Area (%): | 3 % | Belt Thickness (mm): | 12.7 mm |
General Specifications
| Weight: | 0.24 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
