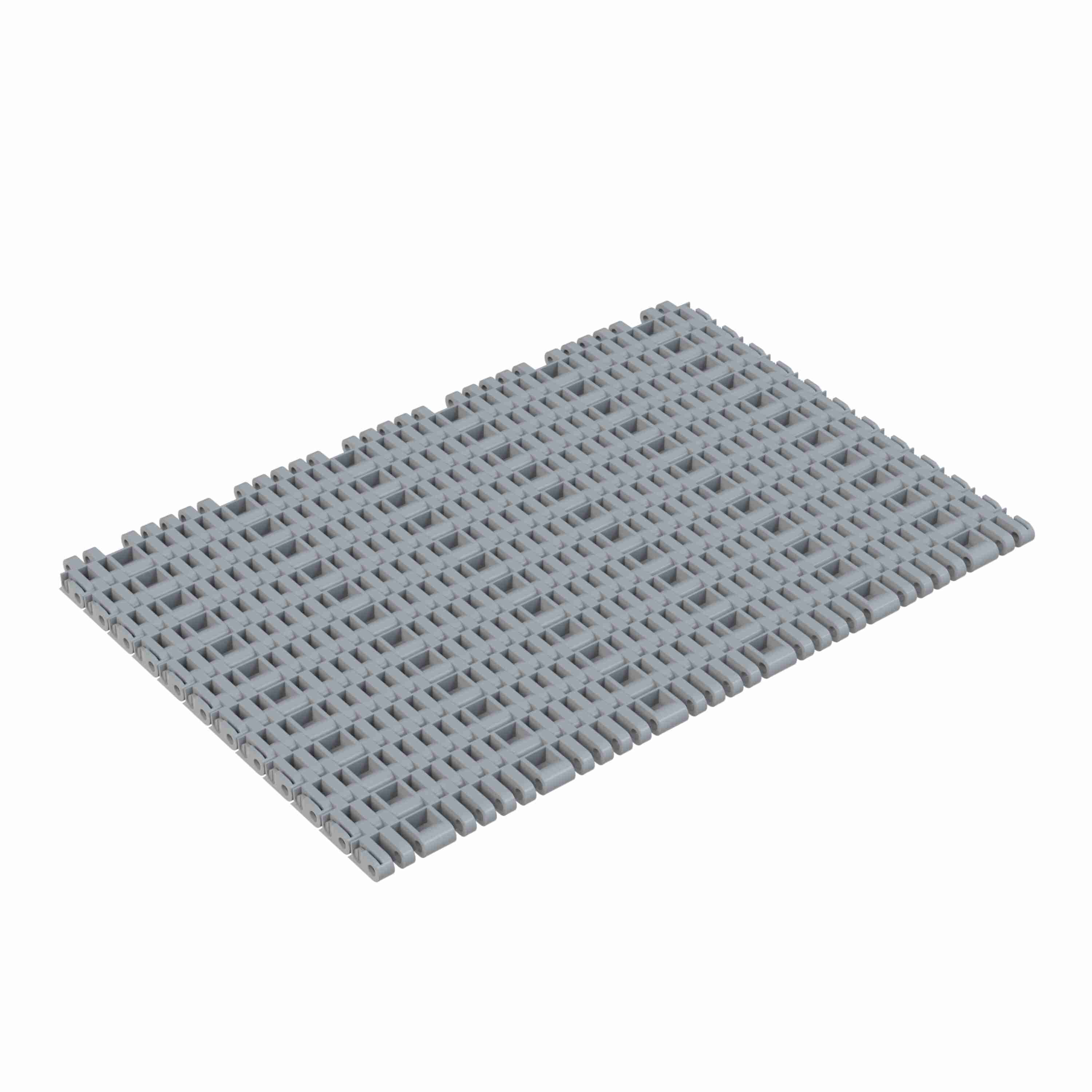

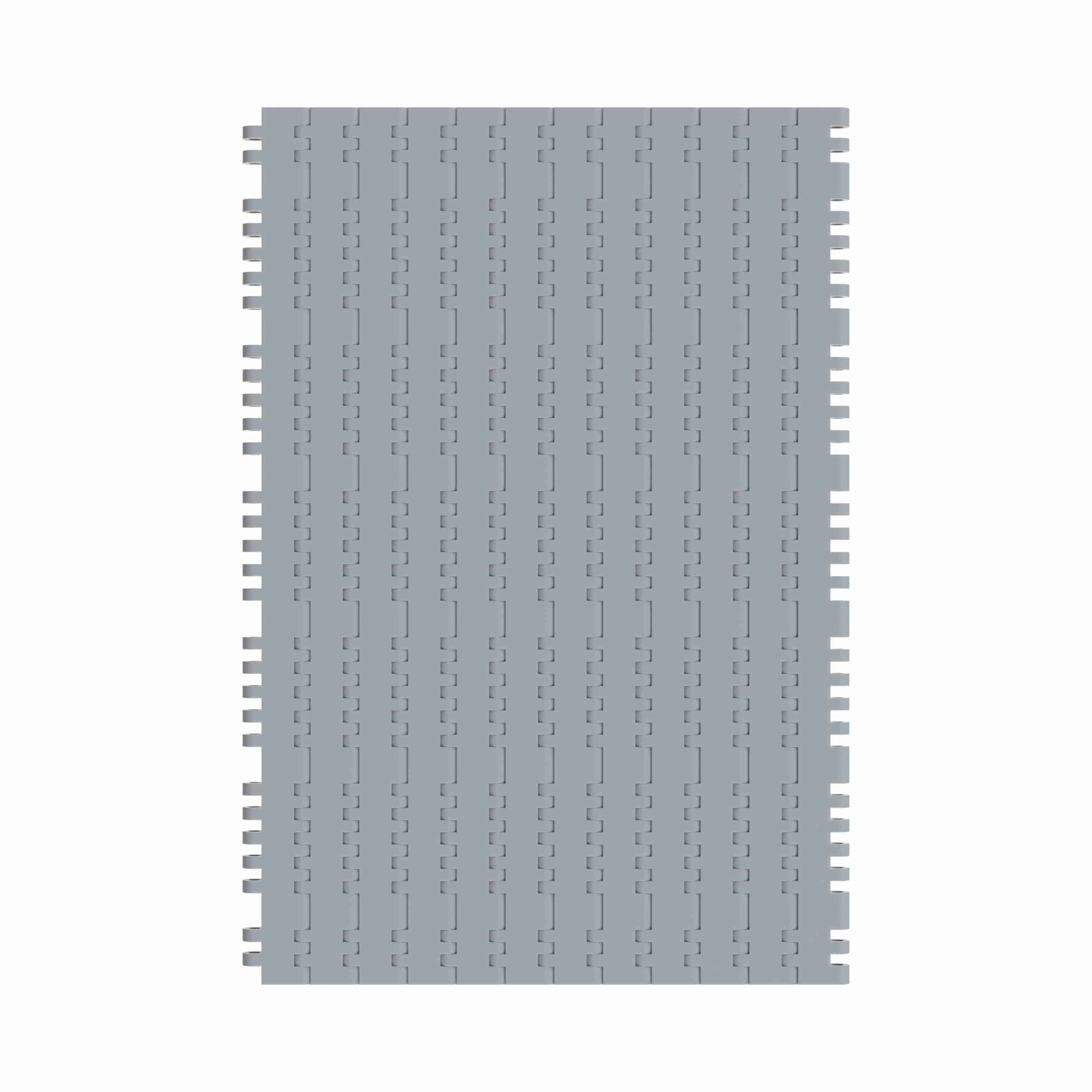

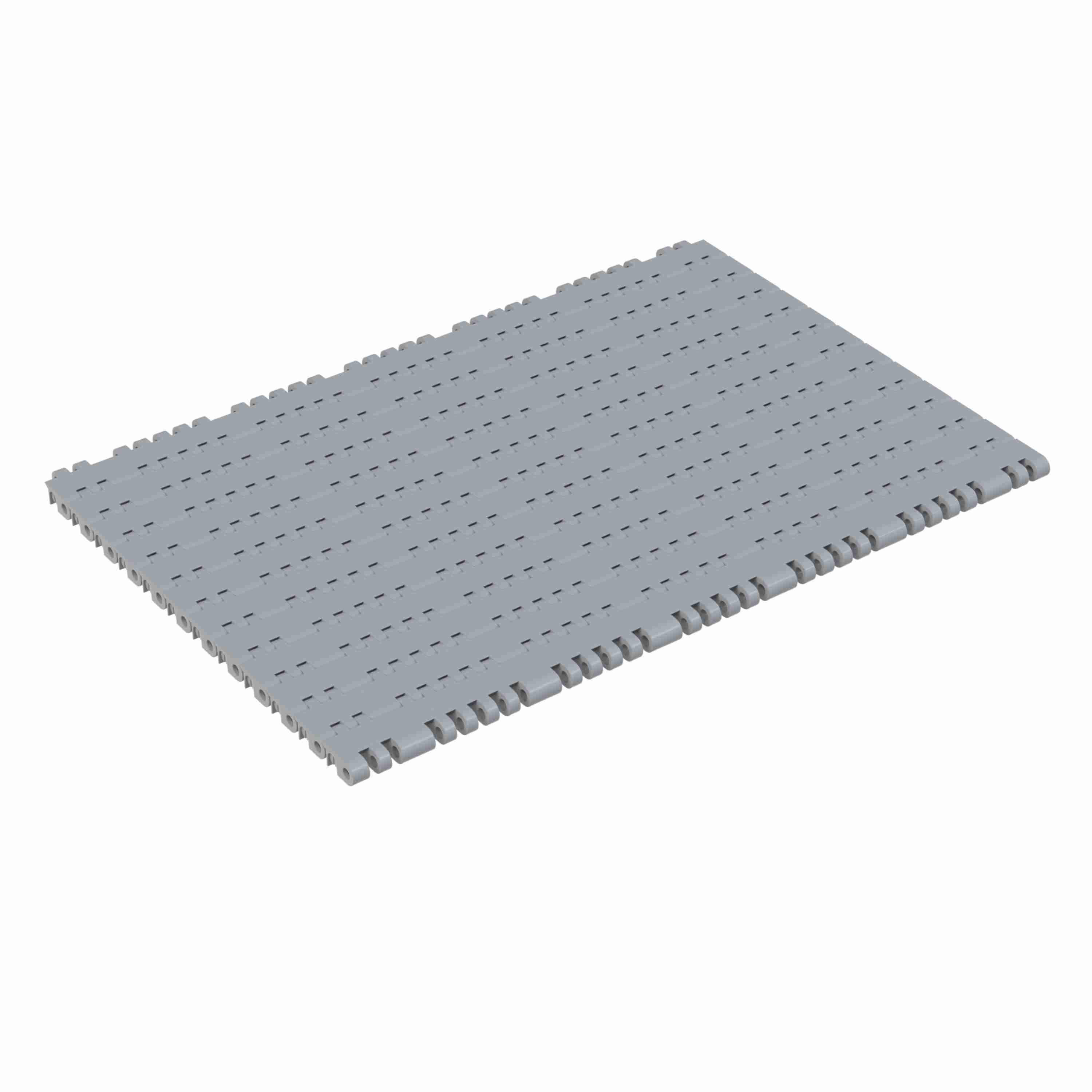

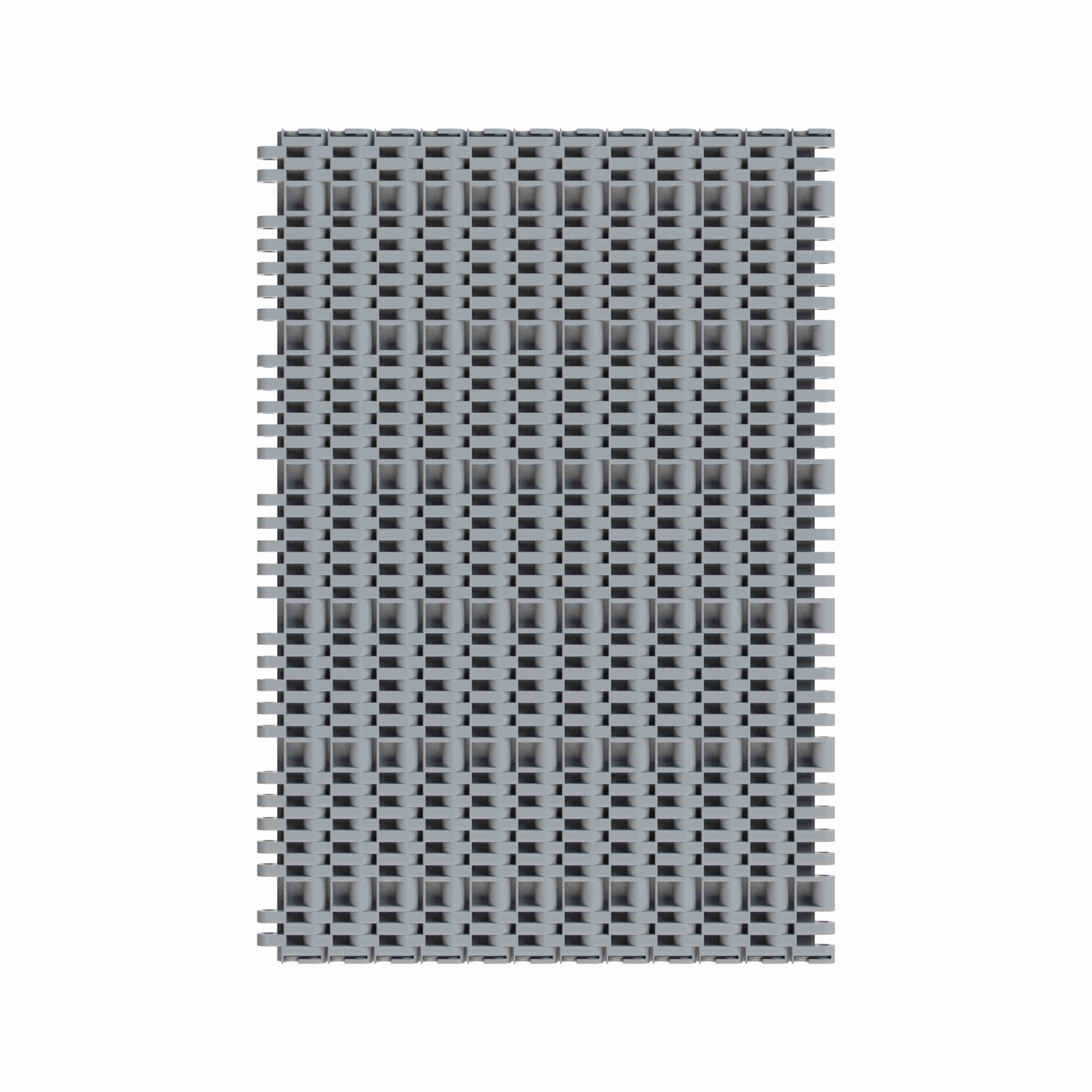

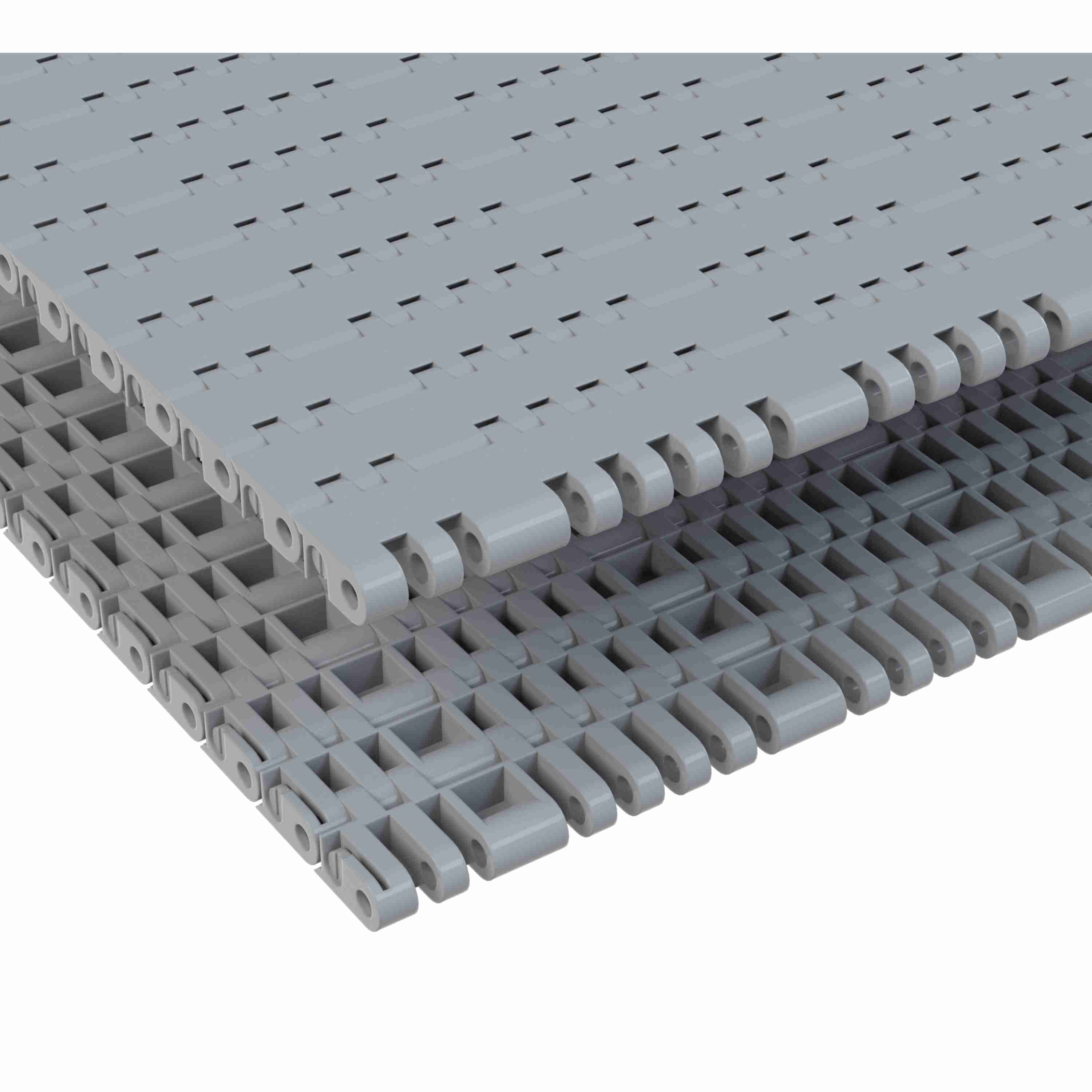

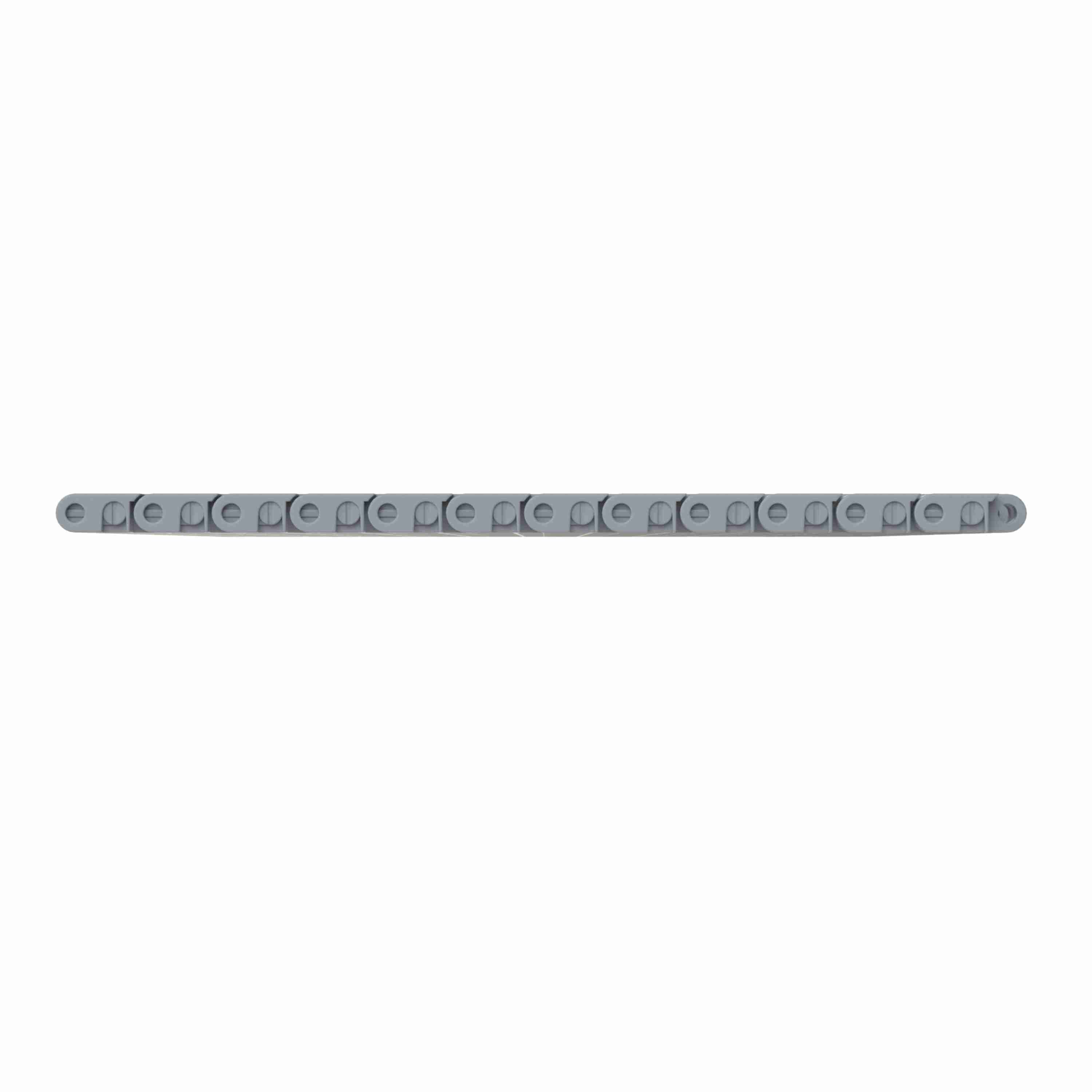

Rexnord 7705 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 18in, Pitch: 1in - 10295398
Part #:10295398
Catalog #:10295398
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Open Area (%): | 3 % | Chain Strength (N/m): | 43,041 N·m |
| Belt Thickness (mm): | 12.7 mm | Chain Material: | PSX |
| Chain Width Measurement System: | Imperial | Series: | MatTop 7700 Series Chain |
| Chain Strength (lb/ft): | 2,950 lb/ft | Chain Material Description: | Silver Platinum Series™ X |
| Chain Pitch (in): | 1 in | Product Line: | Plastic Modular Chain and Belt |
| Chain Pitch (mm): | 25.4 mm | Product Group: | Modular Plastic Belts |
| Chain Number: | 7705 | Straight or Side-Flex: | Straight Running |
| Belt Thickness (in): | 0.5 in | Chain Width (mm): | 457.2 mm |
| Chain Width (in): | 18 in | Product Type: | Straight Running |
| Surface Type: | Solid Top | Rod/Pin Material: | Polyester |
General Specifications
| Weight: | 0.33 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
