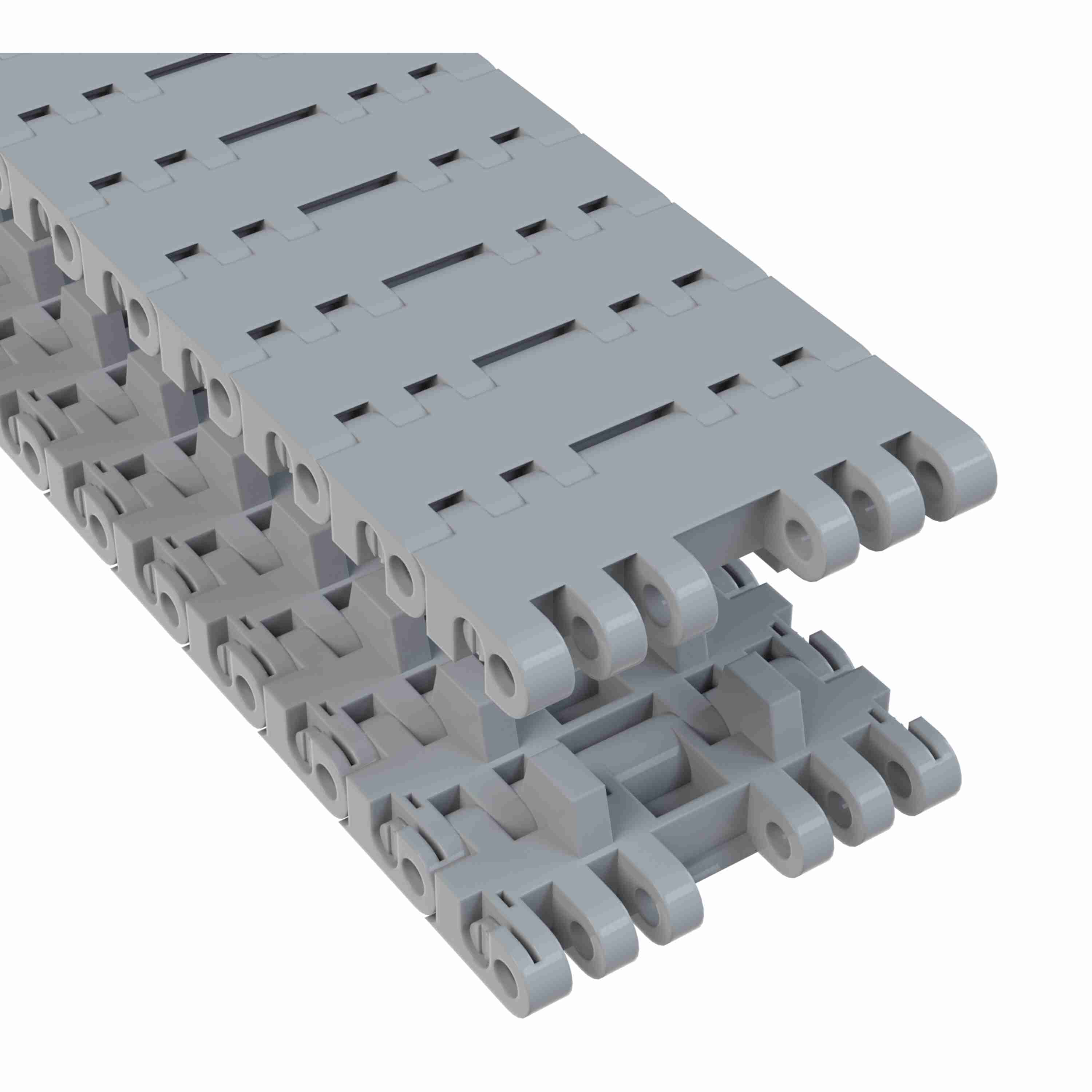

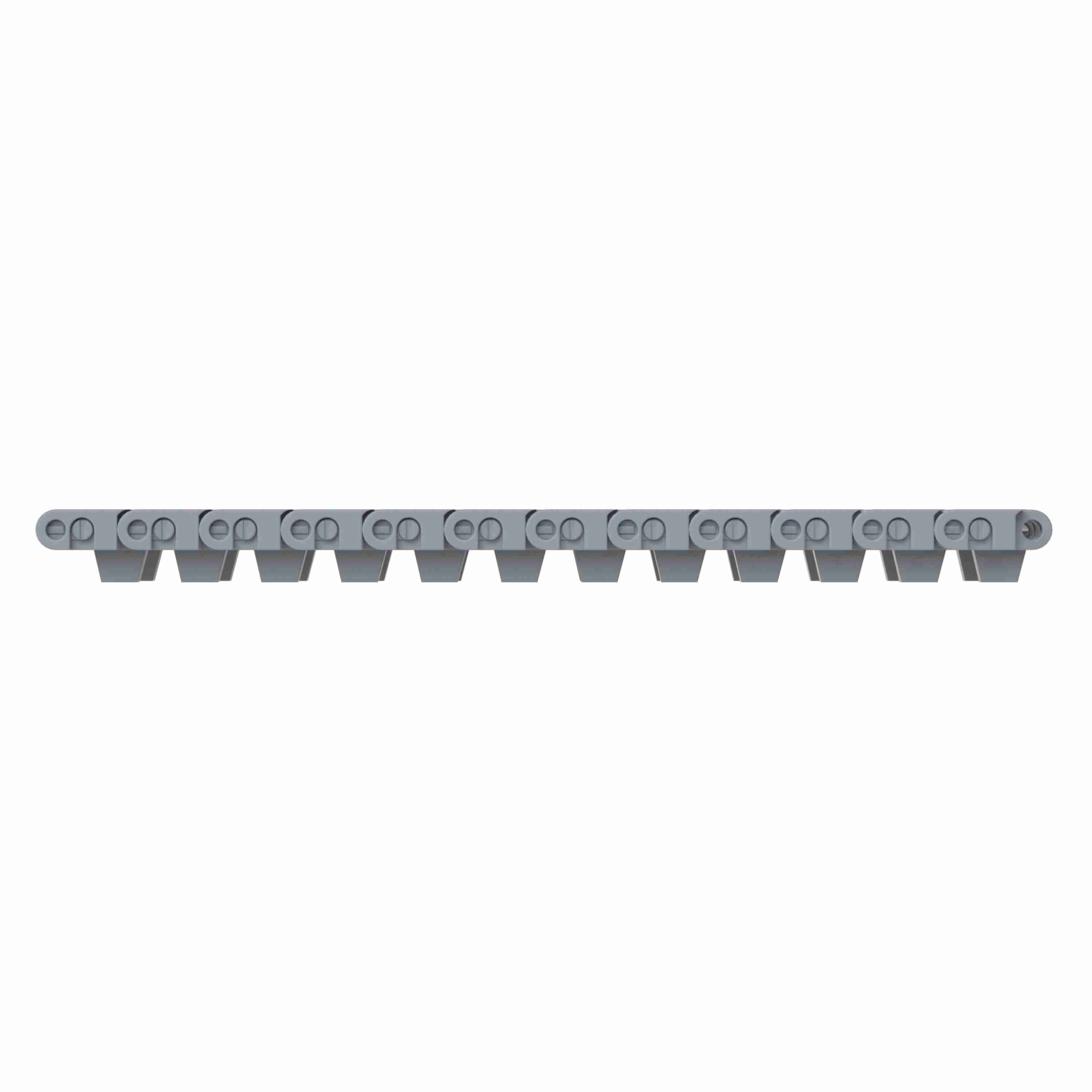

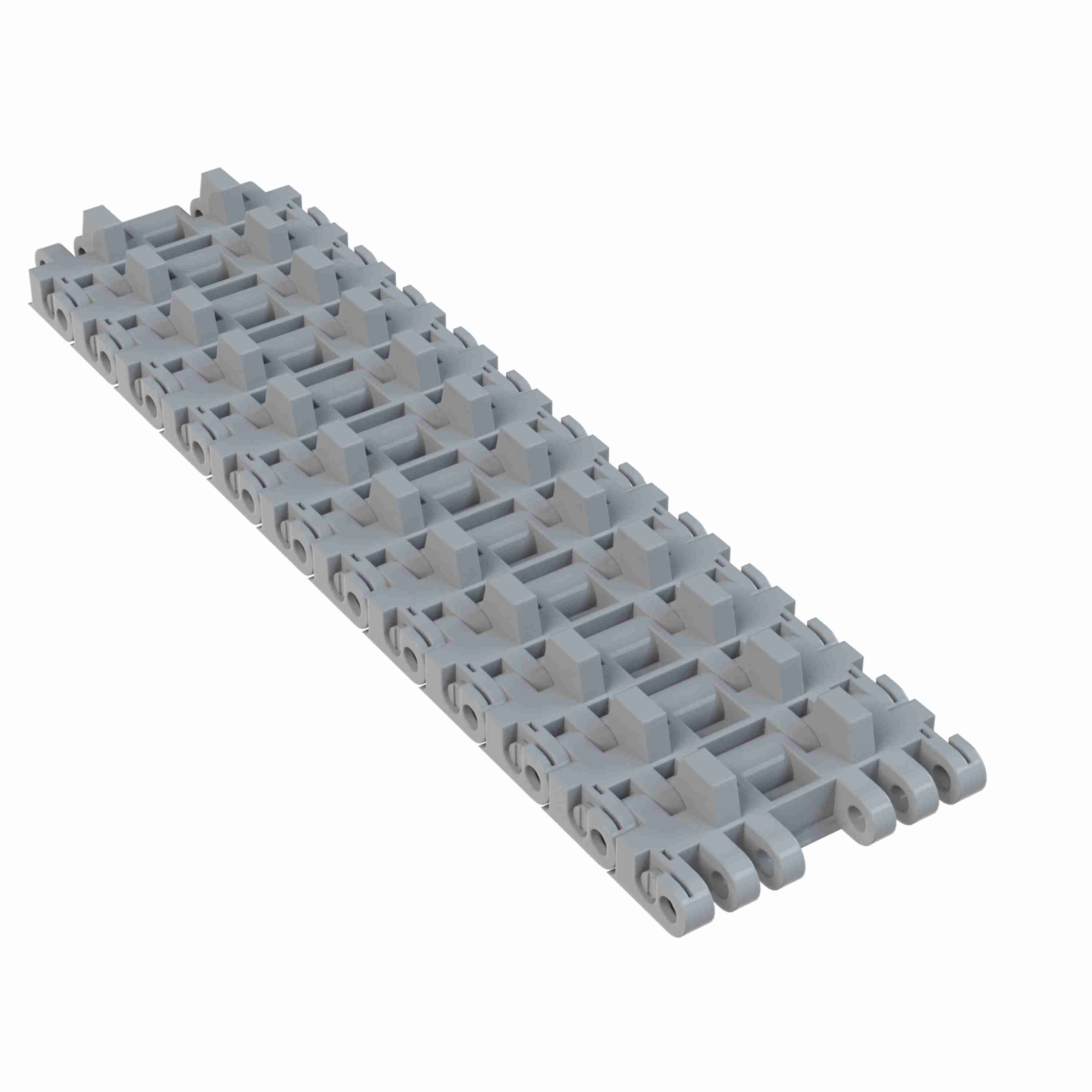

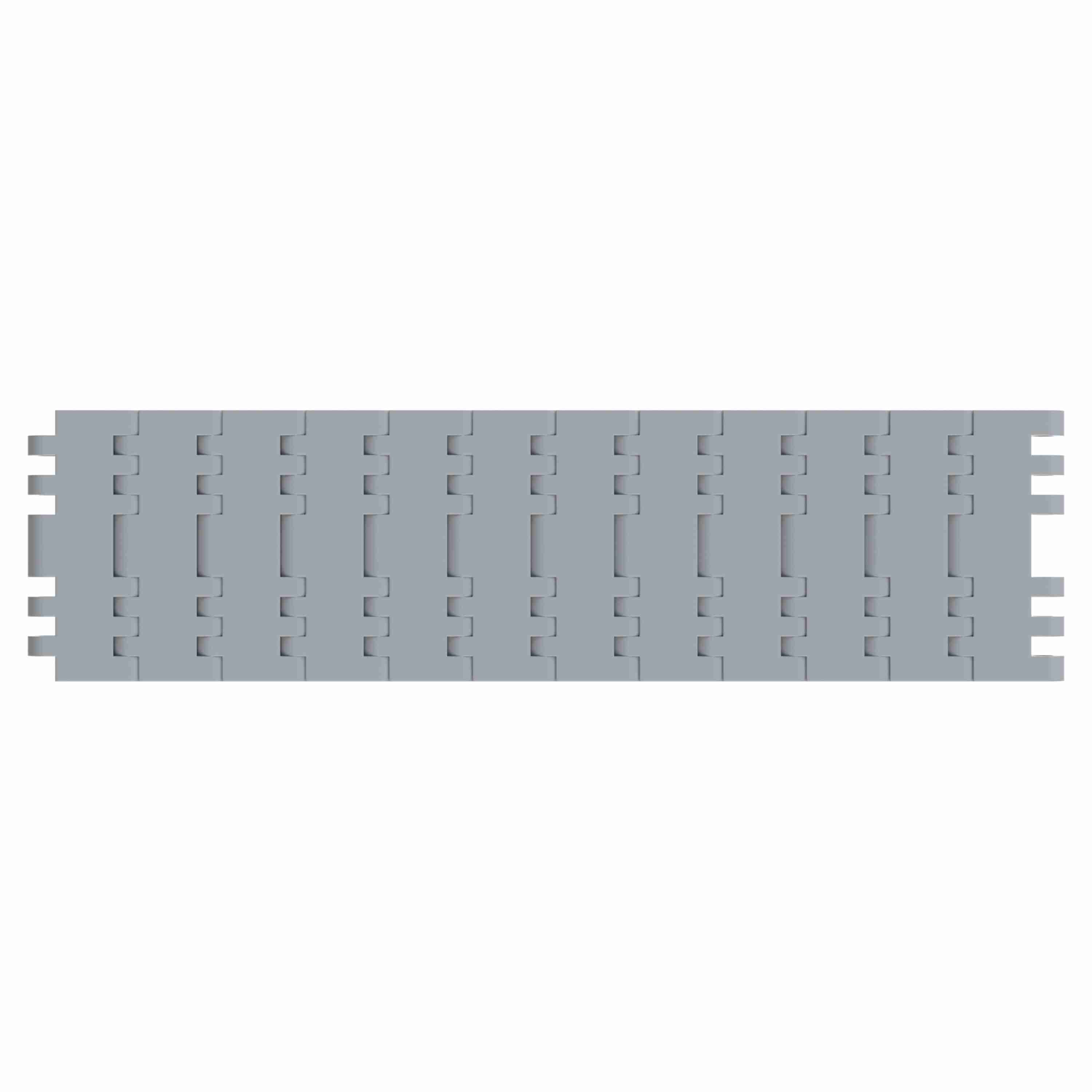

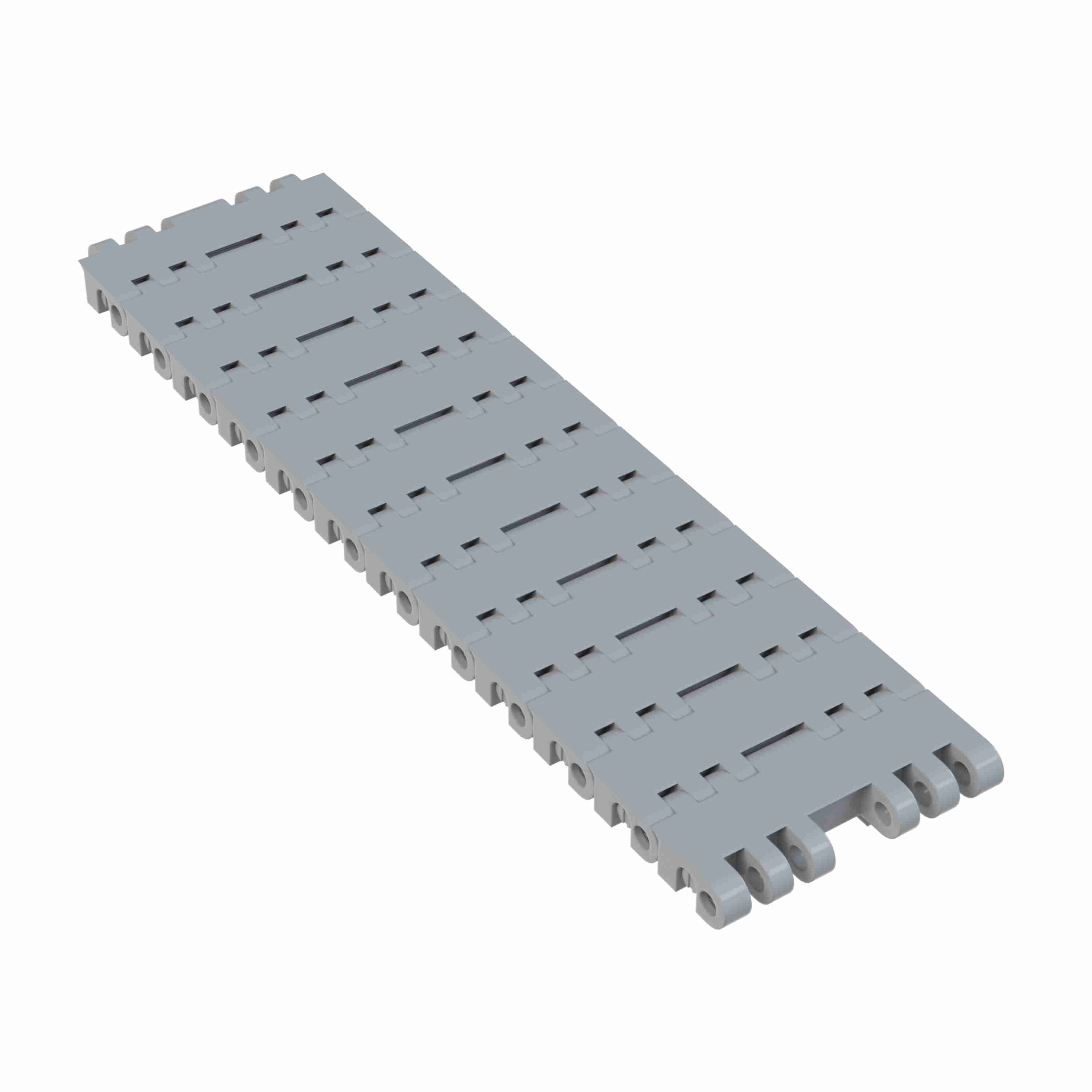

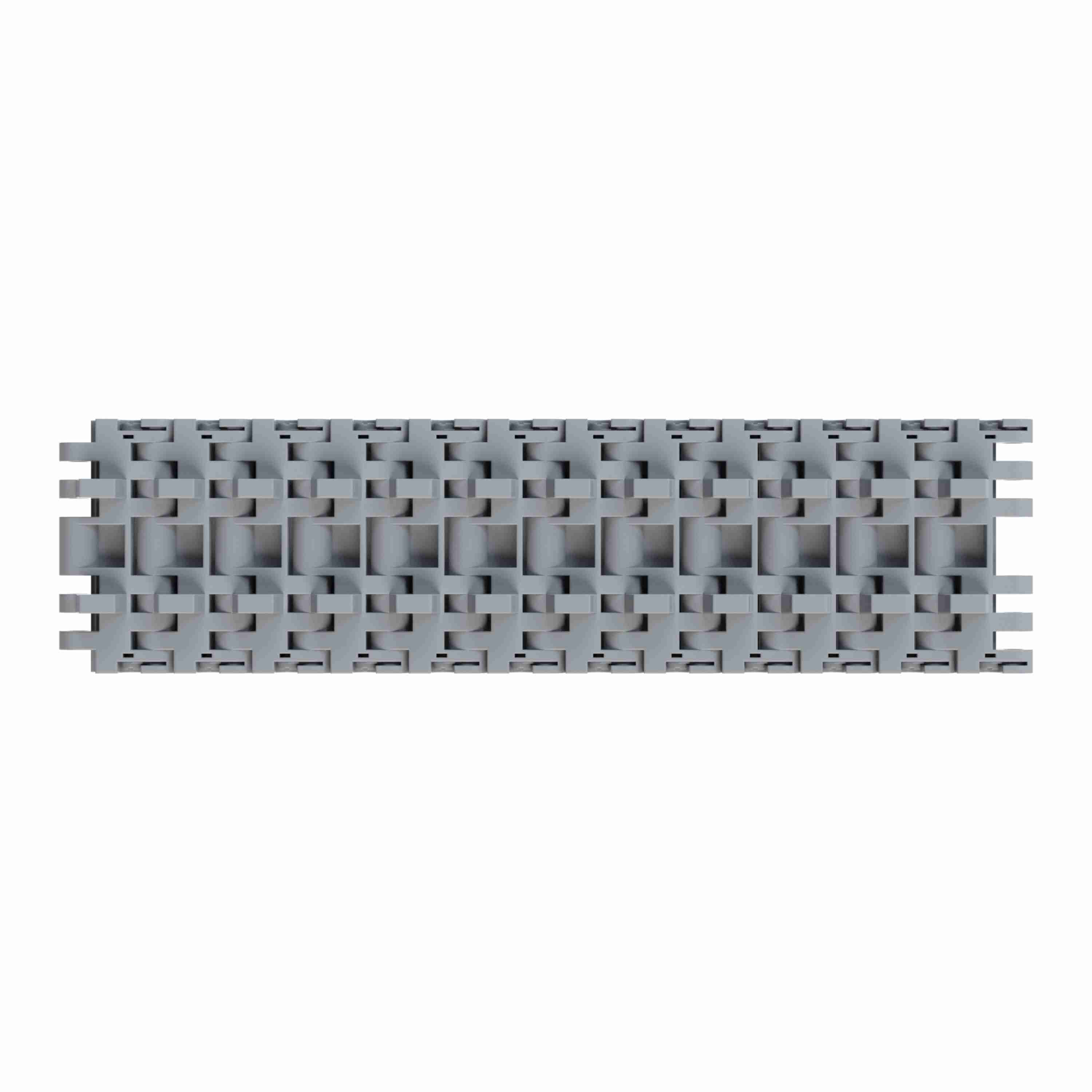

Rexnord 7705 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 3.25in, Pitch: 1in - 10286169
Part #:10286169
Catalog #:10286169
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Product Line: | Plastic Modular Chain and Belt |
| Chain Material Description: | Silver Platinum Series™ X | Chain Pitch (mm): | 25.4 mm |
| Chain Strength (lb): | 685 lb | Chain Number: | 7705 |
| Belt Thickness (mm): | 12.7 mm | Chain Width Measurement System: | Imperial |
| Straight or Side-Flex: | Straight Running | Chain Pitch (in): | 1 in |
| Series: | MatTop 7700 Series Chain | Chain Width (in): | 3.25 in |
| Belt Thickness (in): | 0.5 in | Chain Strength (N): | 3,041 N |
| Chain Width (mm): | 82.6 mm | Surface Type: | Solid Top |
| Number of Positrack: | 2 | Product Type: | Straight Running |
| Positrack: | True | Chain Material: | PSX |
| Positrack Location: | Center | Rod/Pin Material: | Polyester |
| Open Area (%): | 3 % |
General Specifications
| Weight: | 0.06 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
