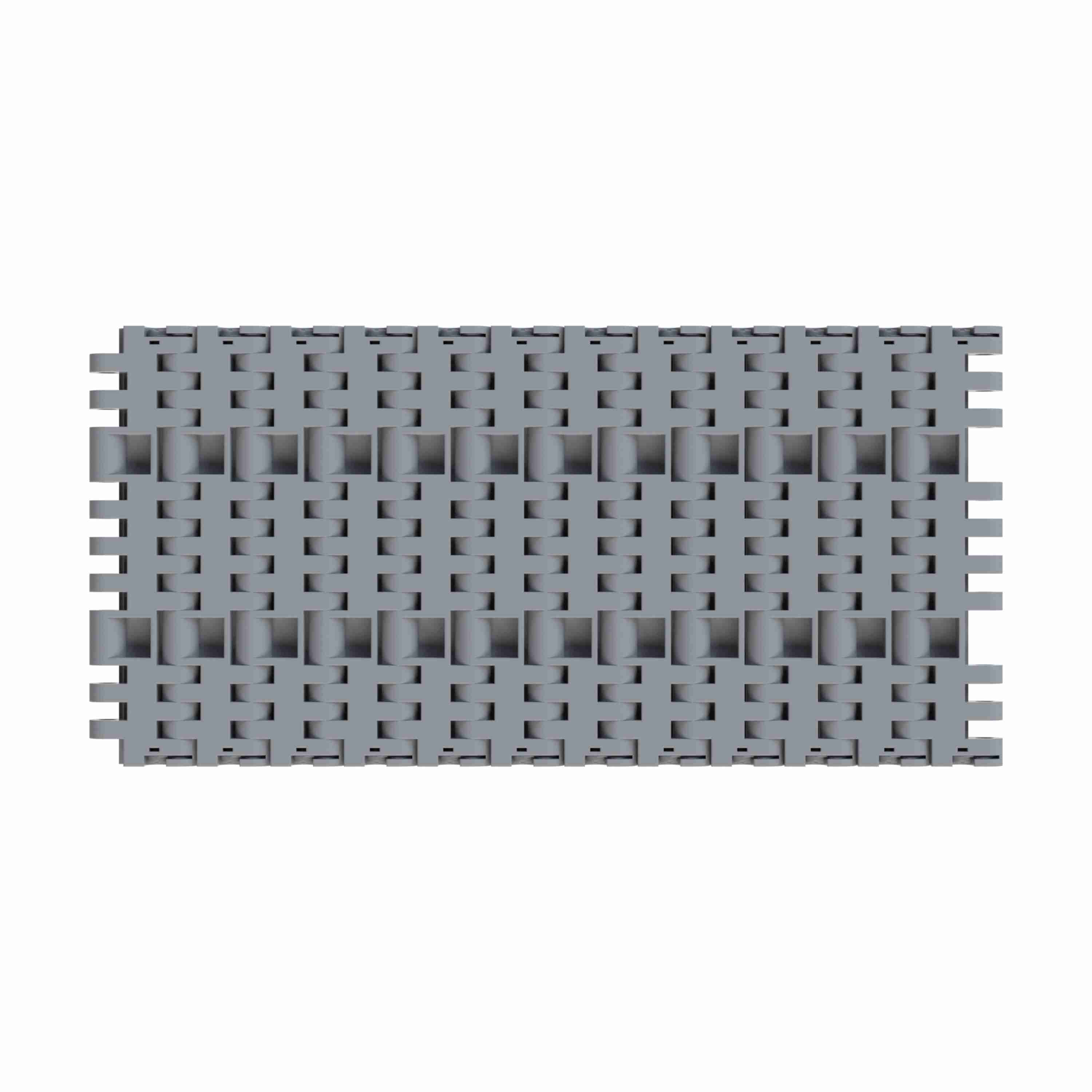

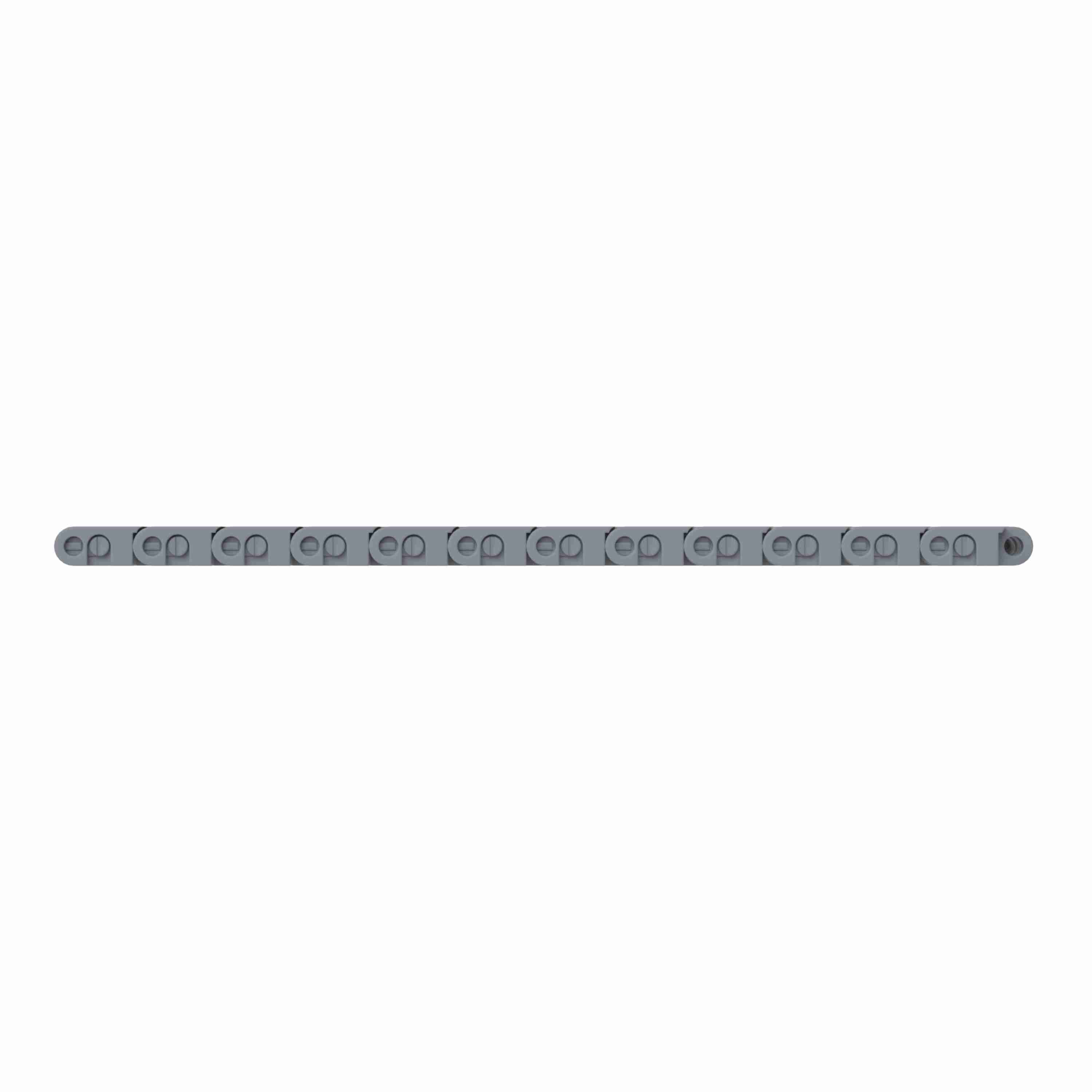

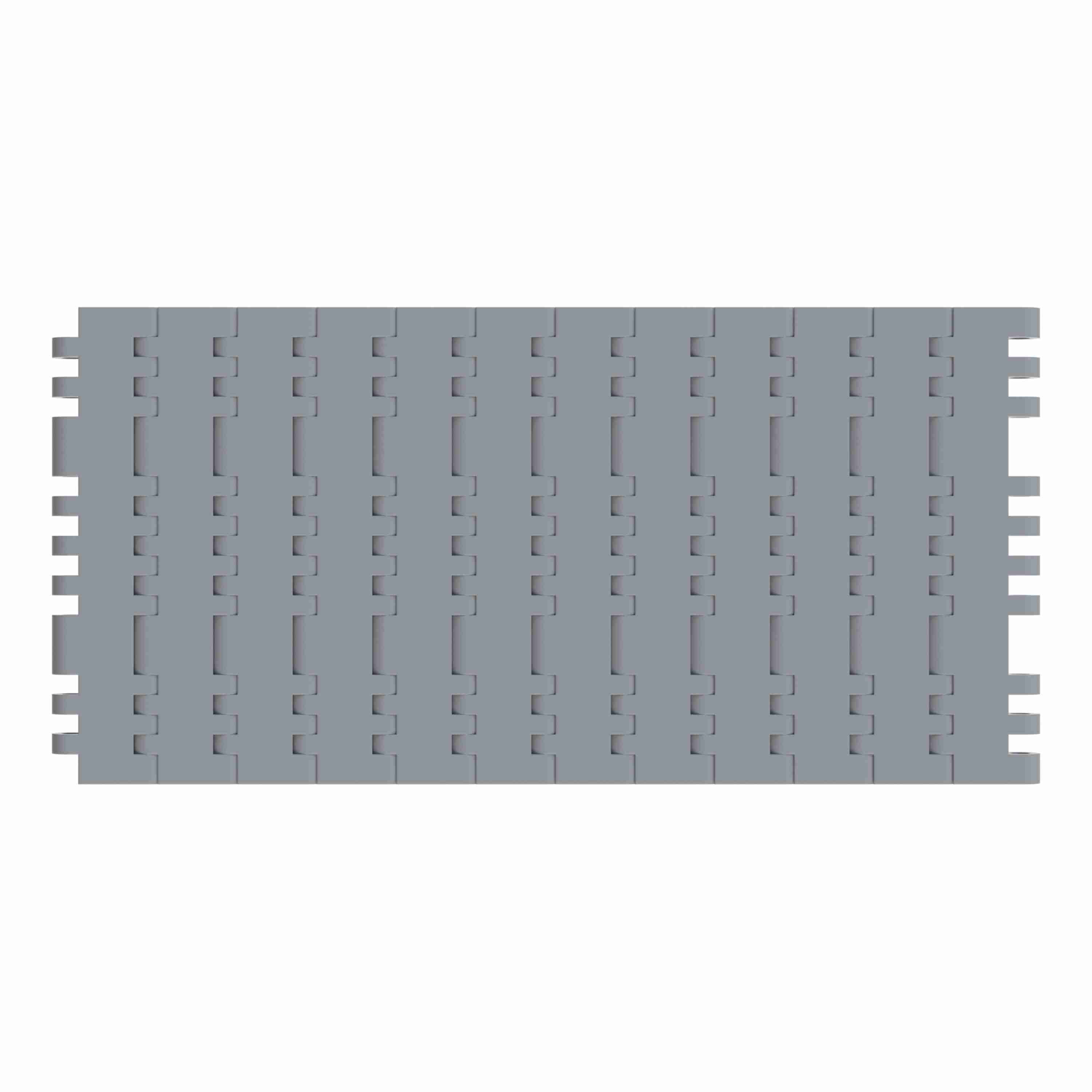

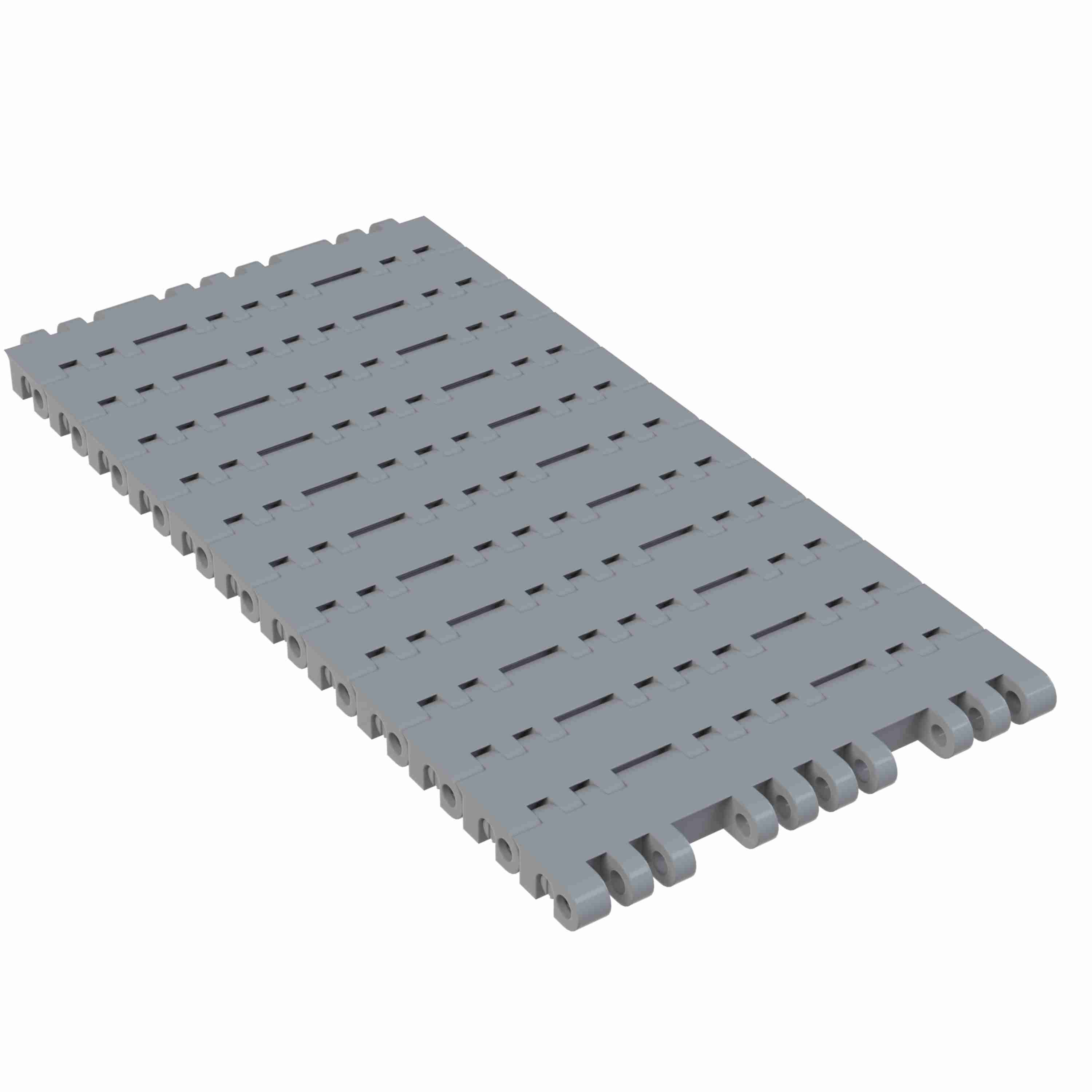

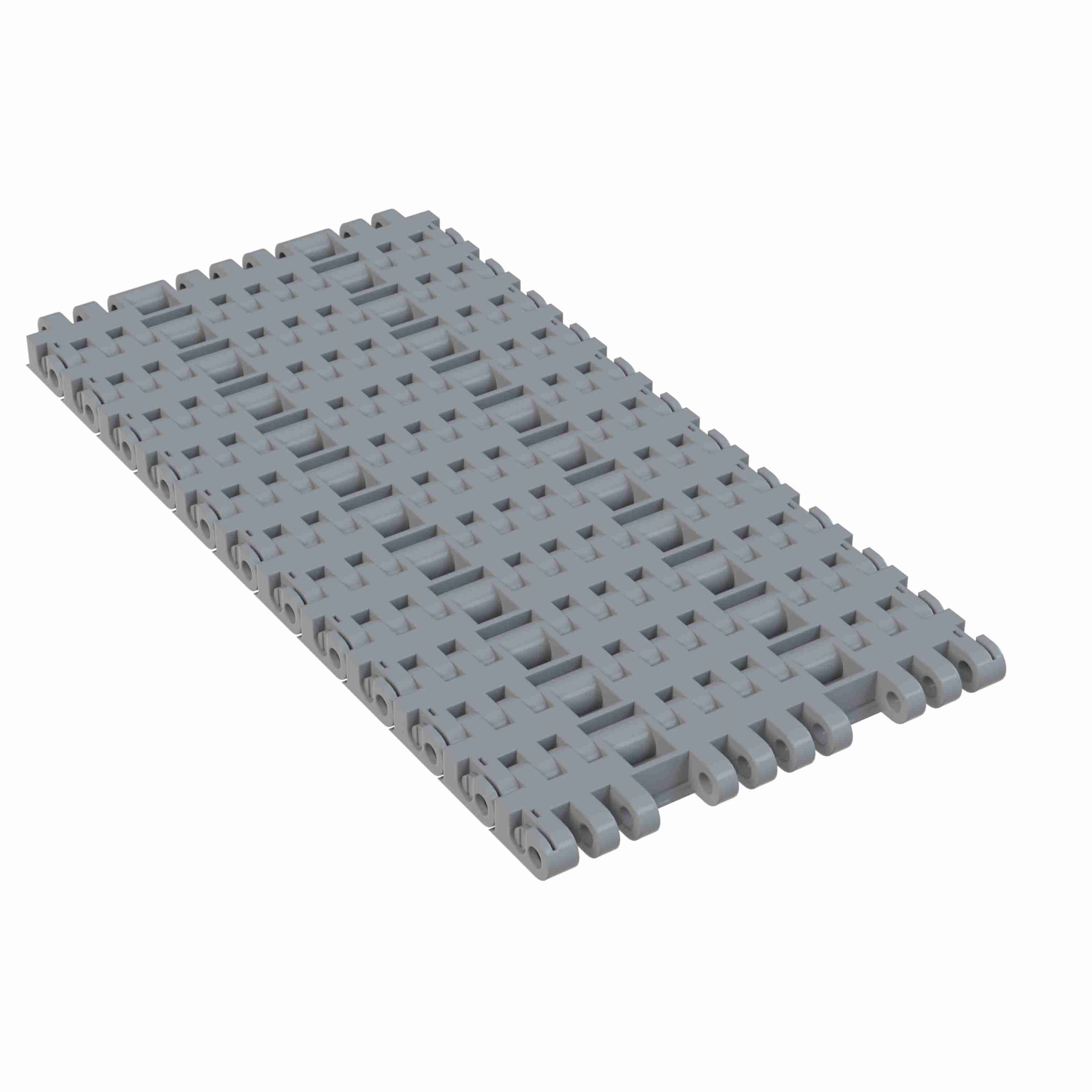

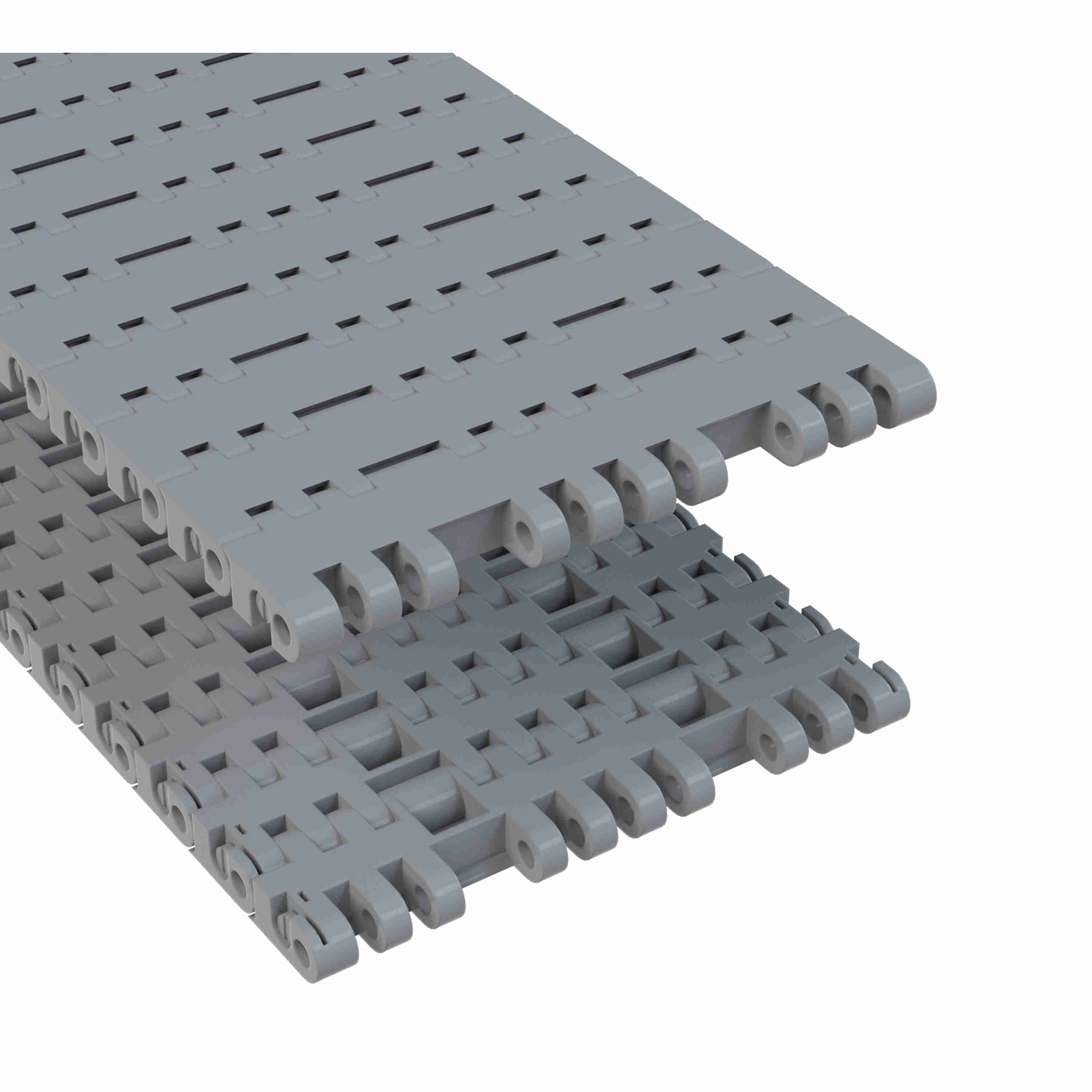

Rexnord 7705 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 6in, Pitch: 1in - 10286165
Part #:10286165
Catalog #:10286165
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Pitch (mm): | 25.4 mm | Chain Pitch (in): | 1 in |
| Belt Thickness (mm): | 12.7 mm | Series: | MatTop 7700 Series Chain |
| Chain Strength (N): | 6,549 N | Belt Thickness (in): | 0.5 in |
| Open Area (%): | 3 % | Rod/Pin Material: | Polyester |
| Chain Material Description: | Silver Platinum Series™ X | Chain Width Measurement System: | Imperial |
| Chain Width (in): | 6 in | Product Group: | Modular Plastic Belts |
| Product Type: | Straight Running | Chain Material: | PSX |
| Chain Width (mm): | 152.4 mm | Straight or Side-Flex: | Straight Running |
| Chain Strength (lb): | 1,475 lb | Product Line: | Plastic Modular Chain and Belt |
| Chain Number: | 7705 | Surface Type: | Solid Top |
General Specifications
| Weight: | 0.10 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
