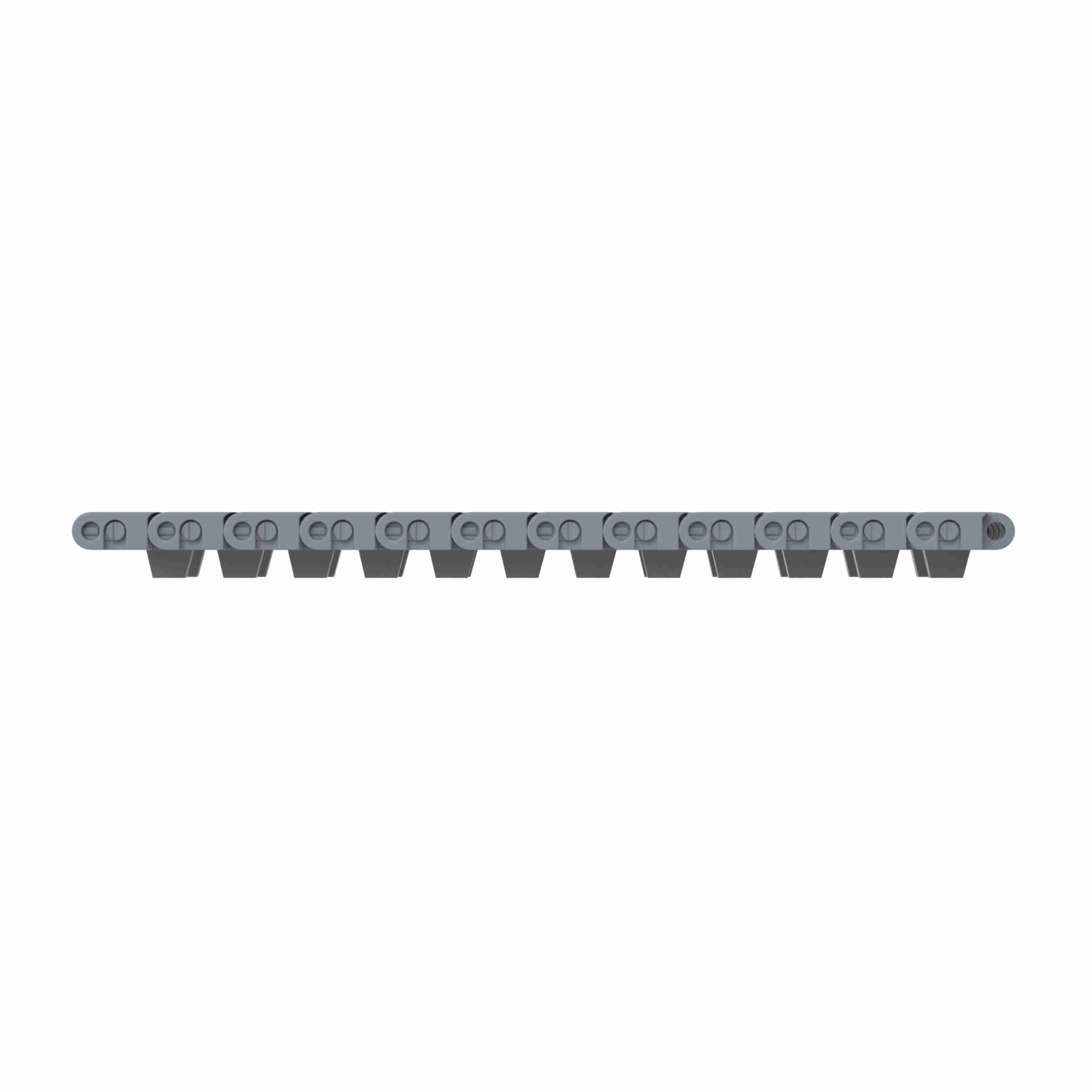

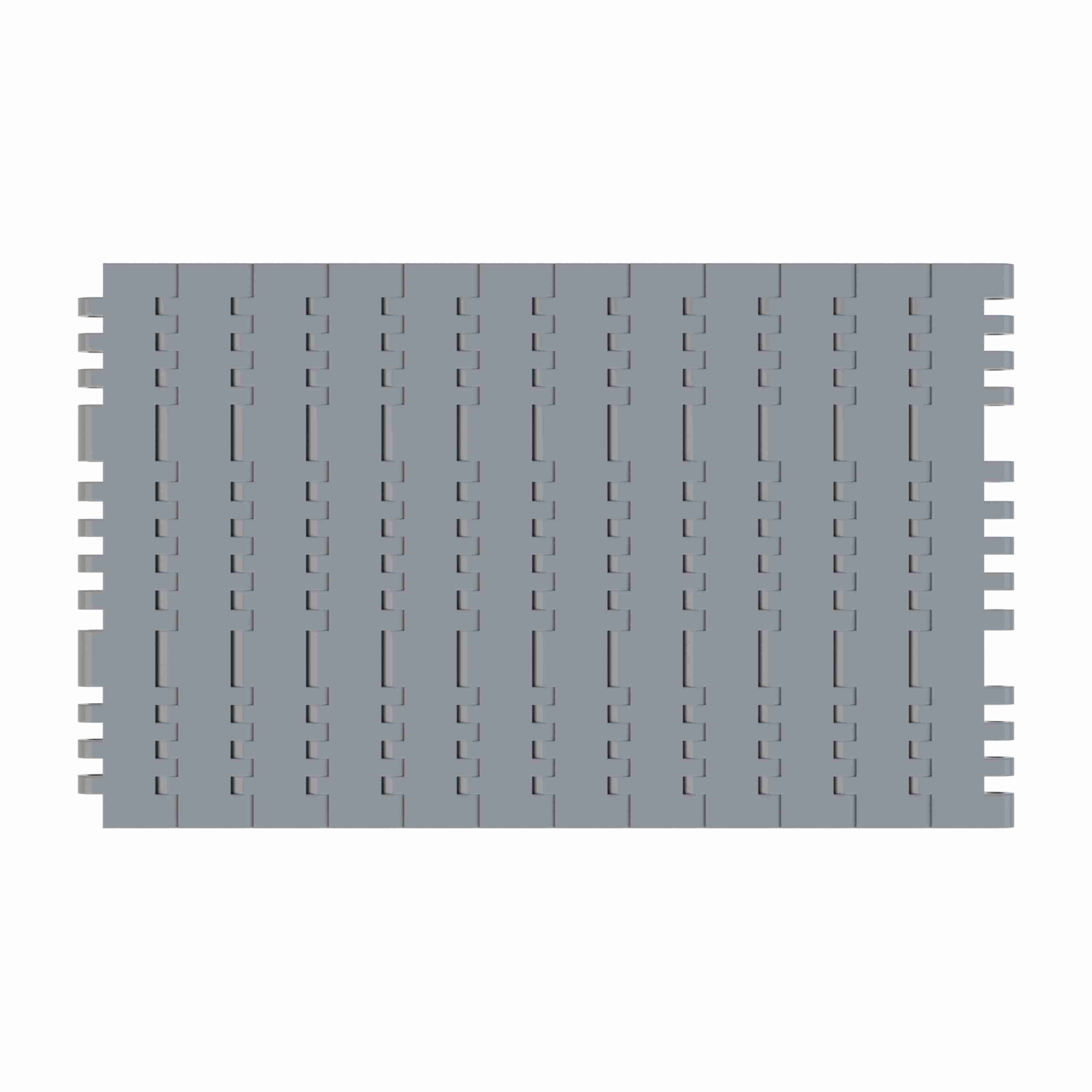

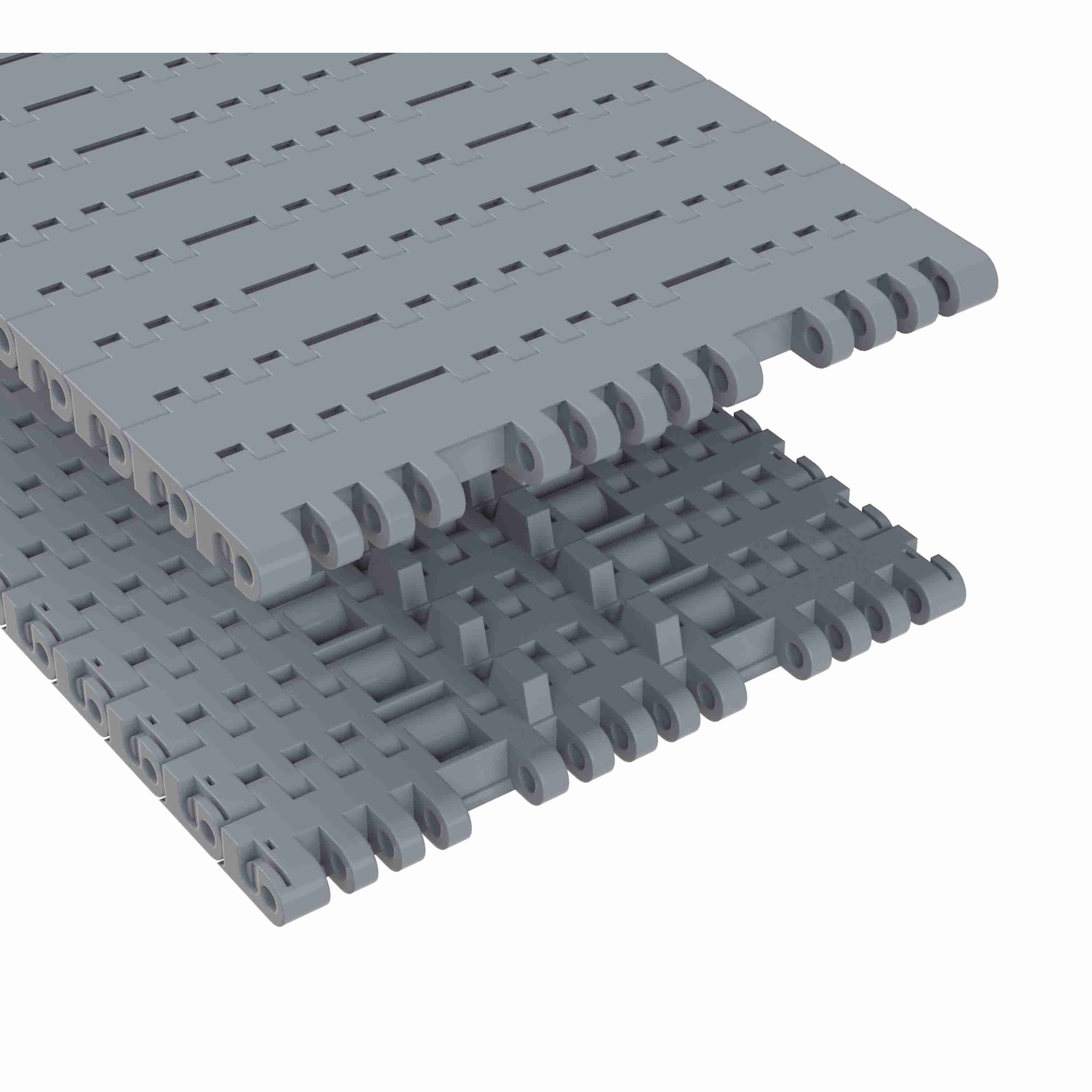

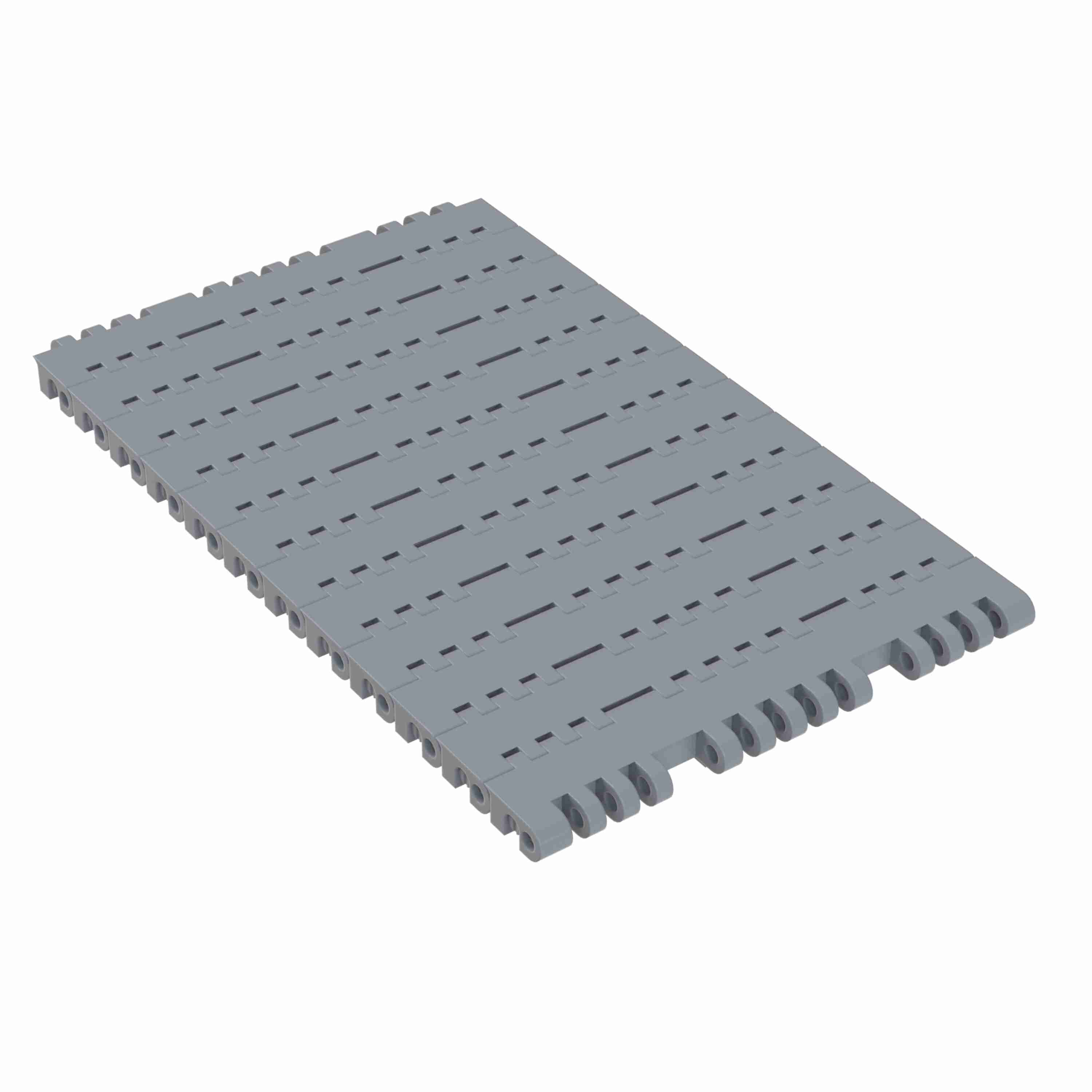

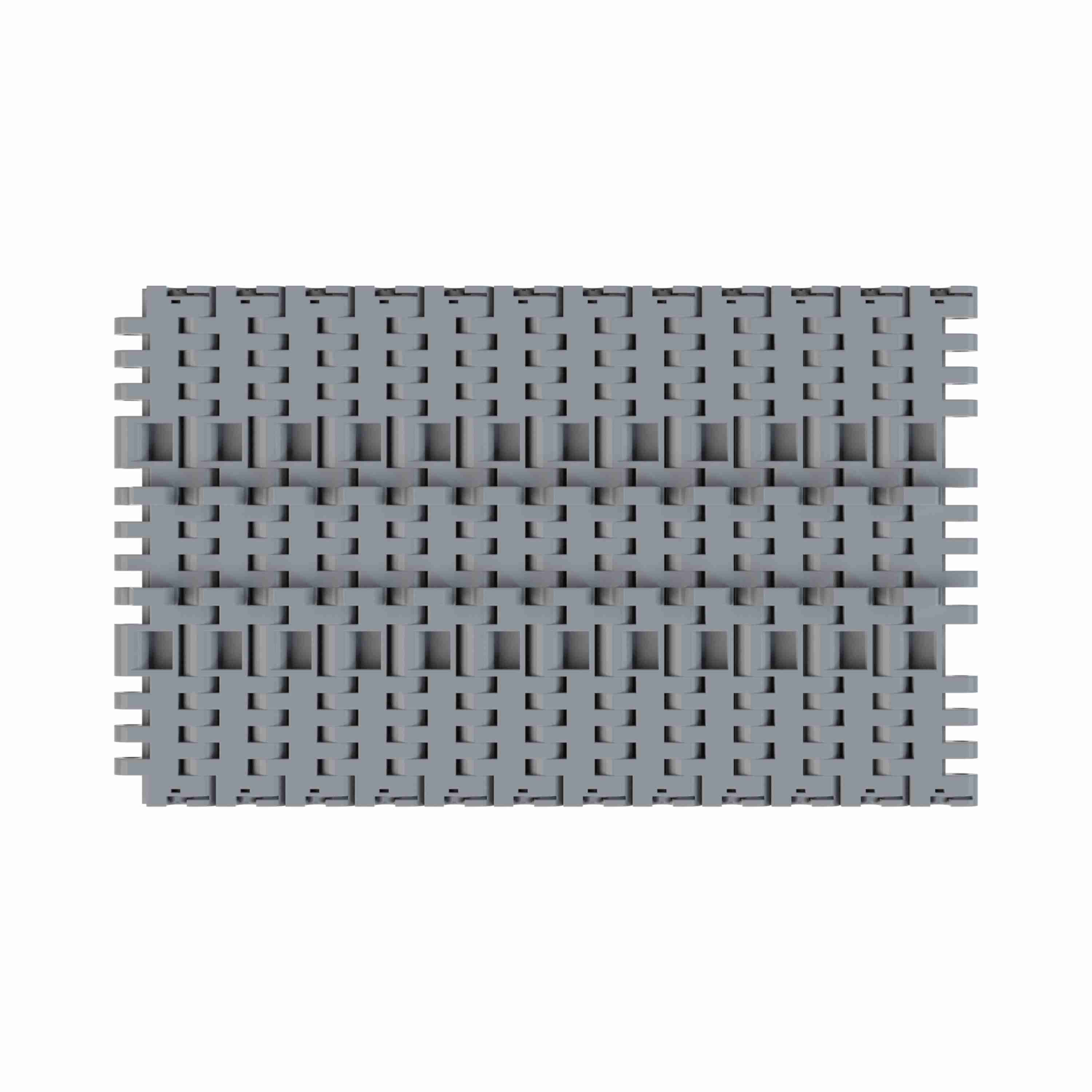

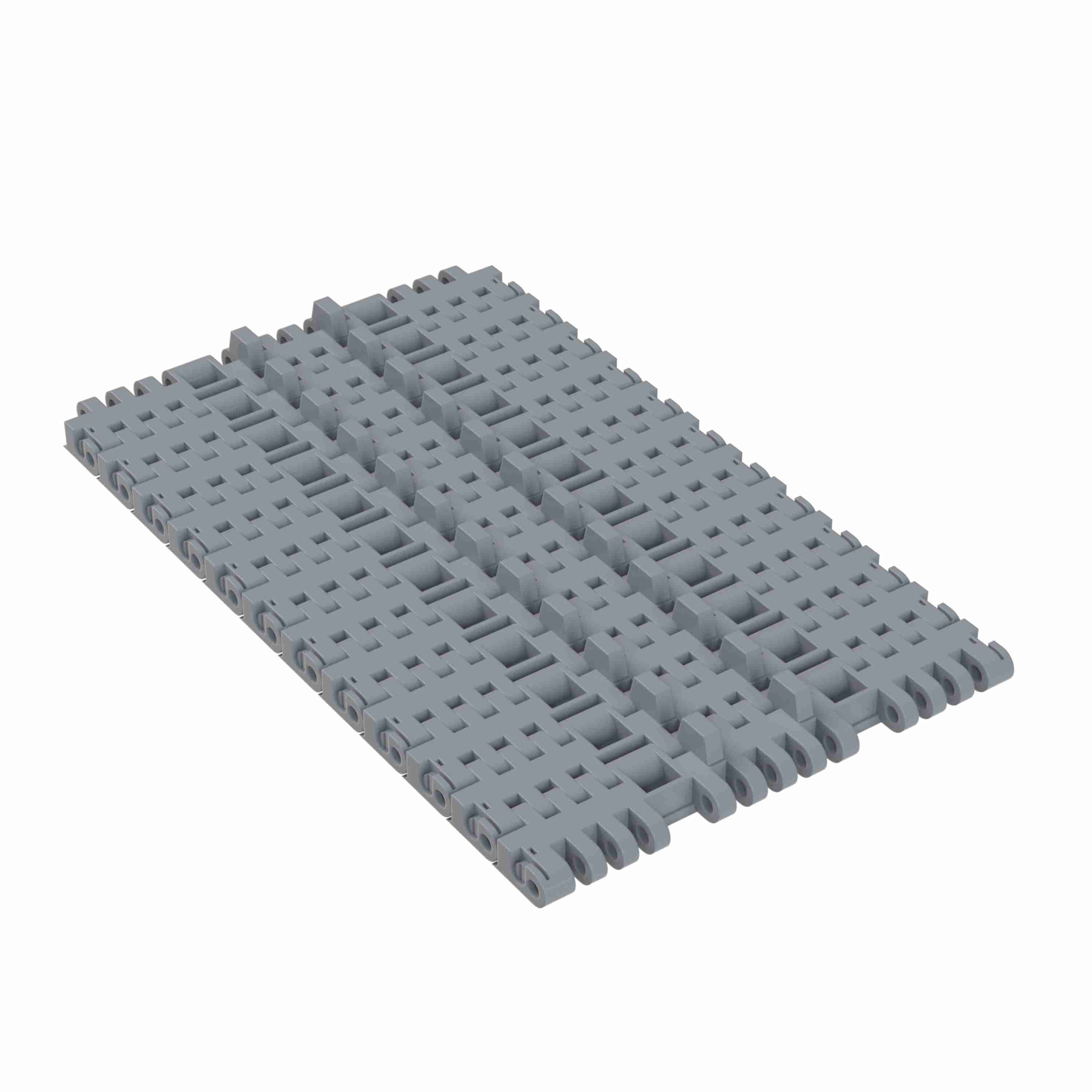

Rexnord 7705 Straight Running Solid Top, Material: Silver Platinum Series™ X, Width: 7.5in, Pitch: 1in - 10286172
Part #:10286172
Catalog #:10286172
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Positrack: | True | Belt Thickness (mm): | 12.7 mm |
| Series: | MatTop 7700 Series Chain | Product Type: | Straight Running |
| Product Line: | Plastic Modular Chain and Belt | Product Group: | Modular Plastic Belts |
| Number of Positrack: | 2 | Chain Strength (N): | 7,770 N |
| Chain Width (in): | 7.5 in | Straight or Side-Flex: | Straight Running |
| Chain Material Description: | Silver Platinum Series™ X | Open Area (%): | 3 % |
| Belt Thickness (in): | 0.5 in | Chain Material: | PSX |
| Chain Strength (lb): | 1,750 lb | Chain Width (mm): | 190.5 mm |
| Surface Type: | Solid Top | Chain Pitch (mm): | 25.4 mm |
| Positrack Location: | Center | Chain Width Measurement System: | Imperial |
| Rod/Pin Material: | Polyester | Chain Pitch (in): | 1 in |
| Chain Number: | 7705 |
General Specifications
| Weight: | 0.13 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
