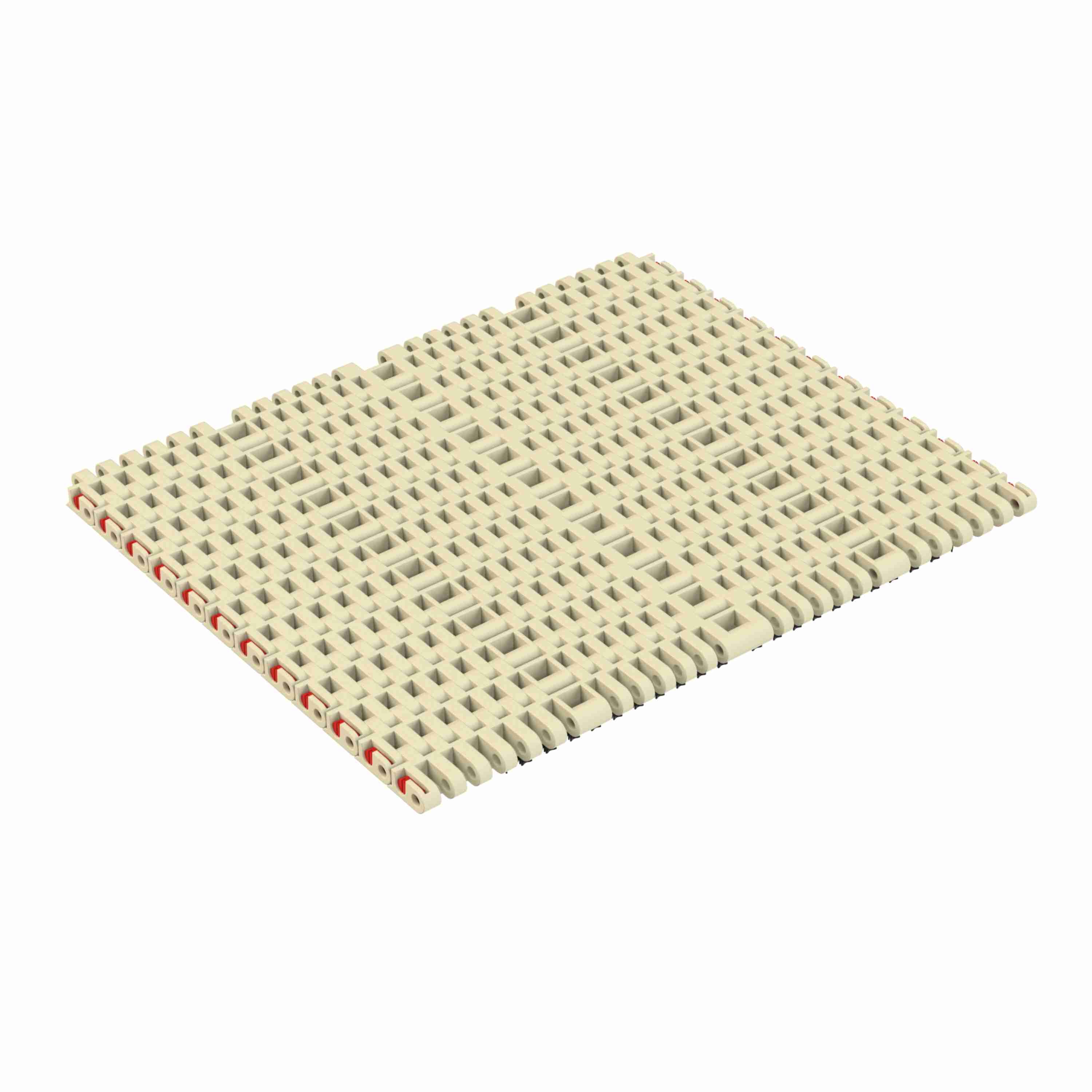

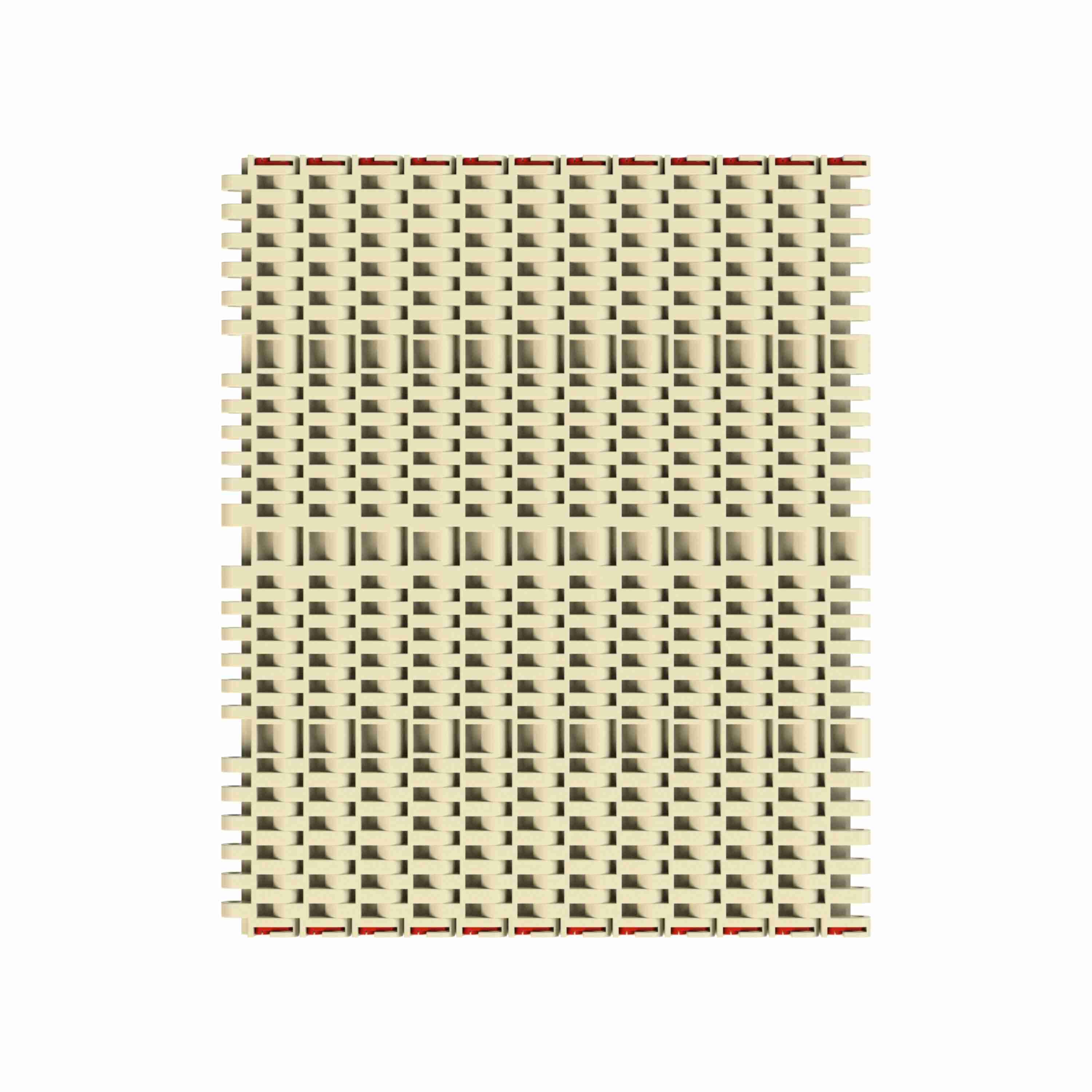

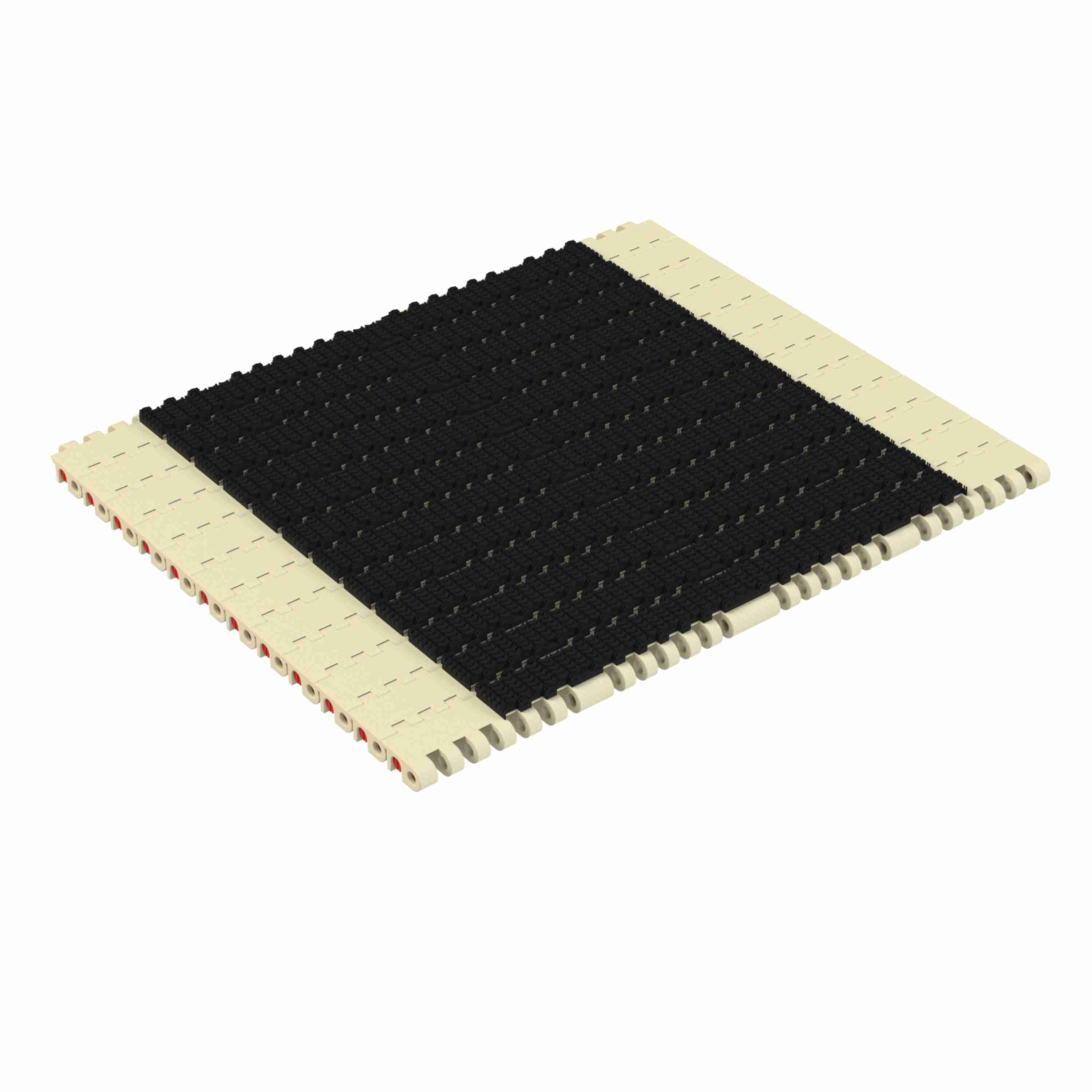

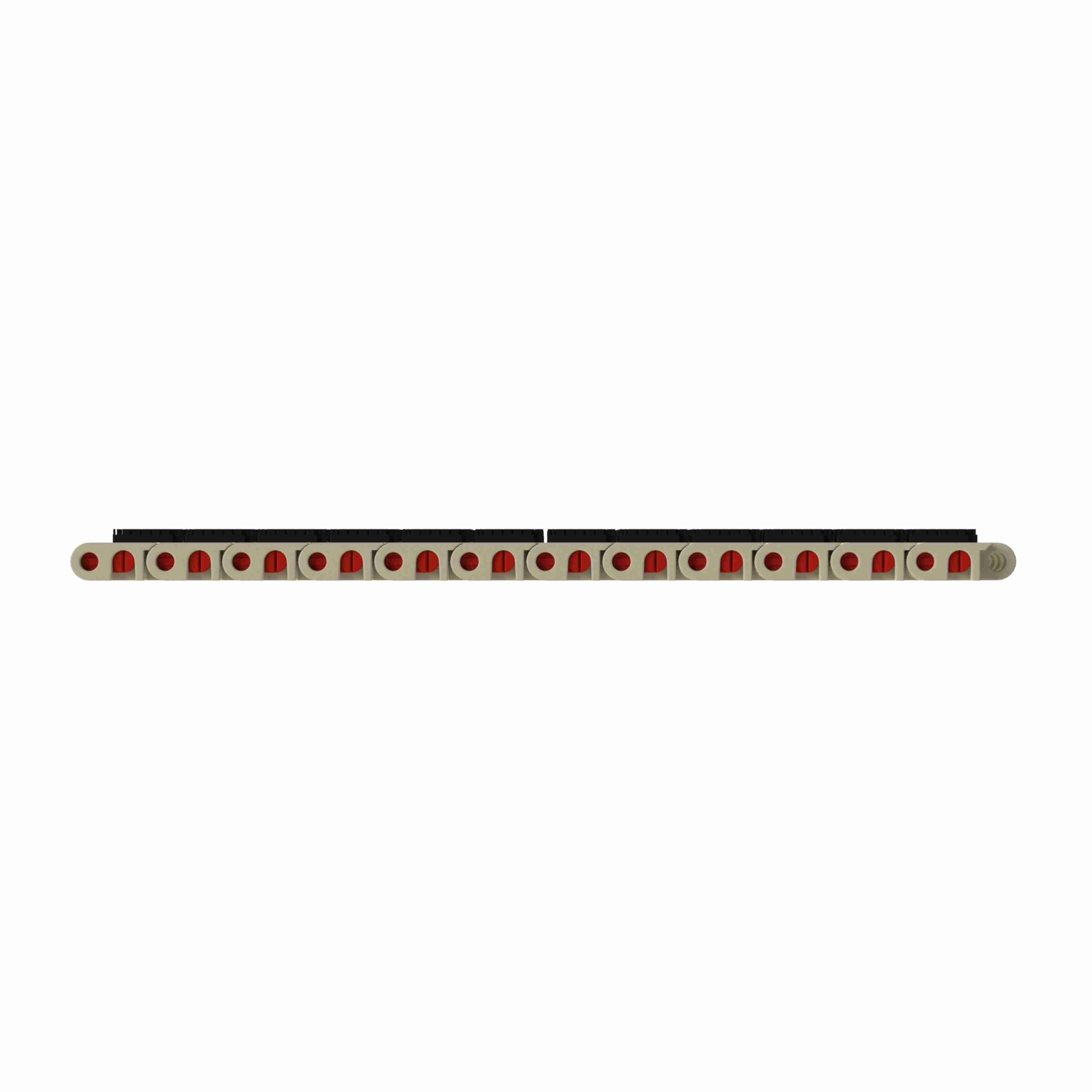

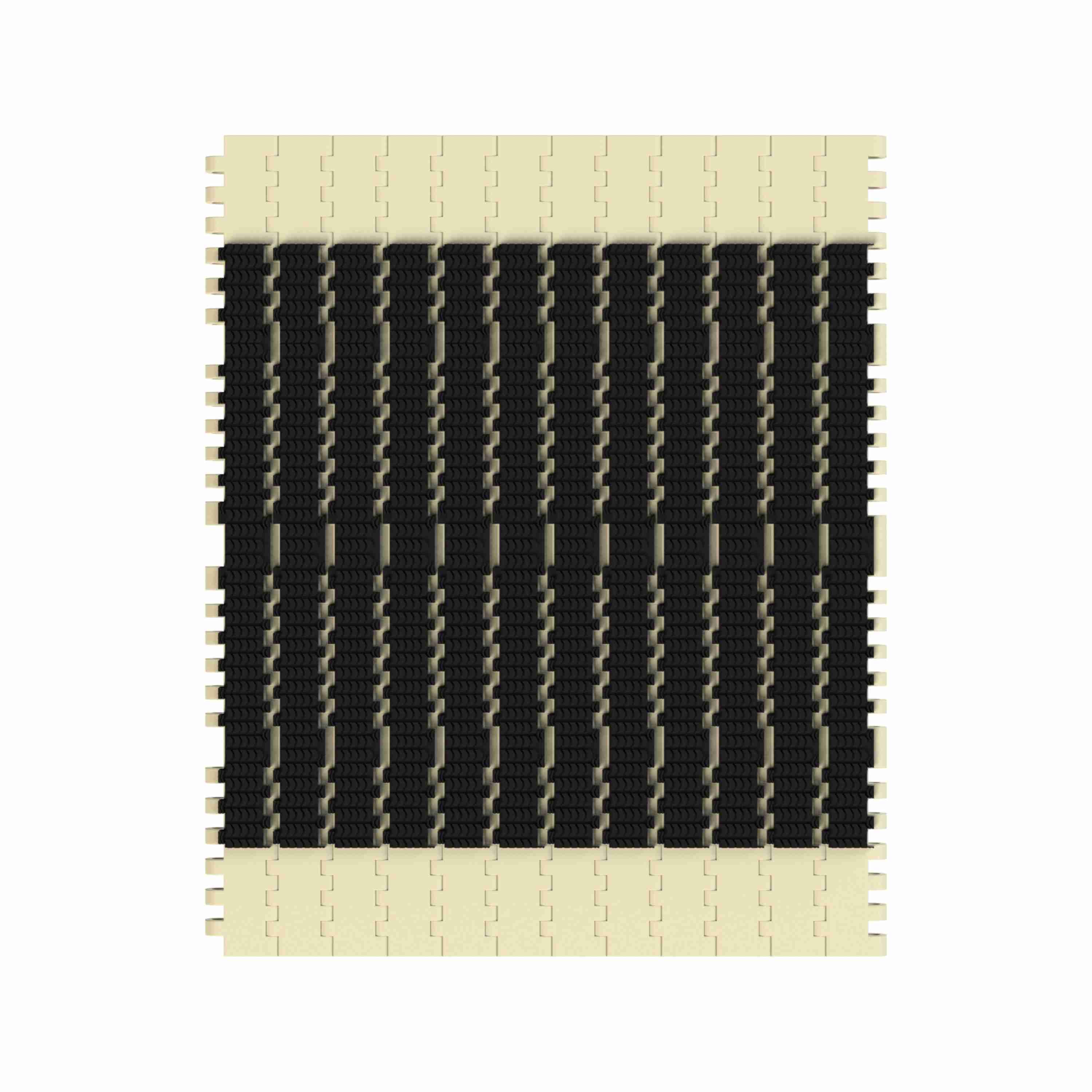

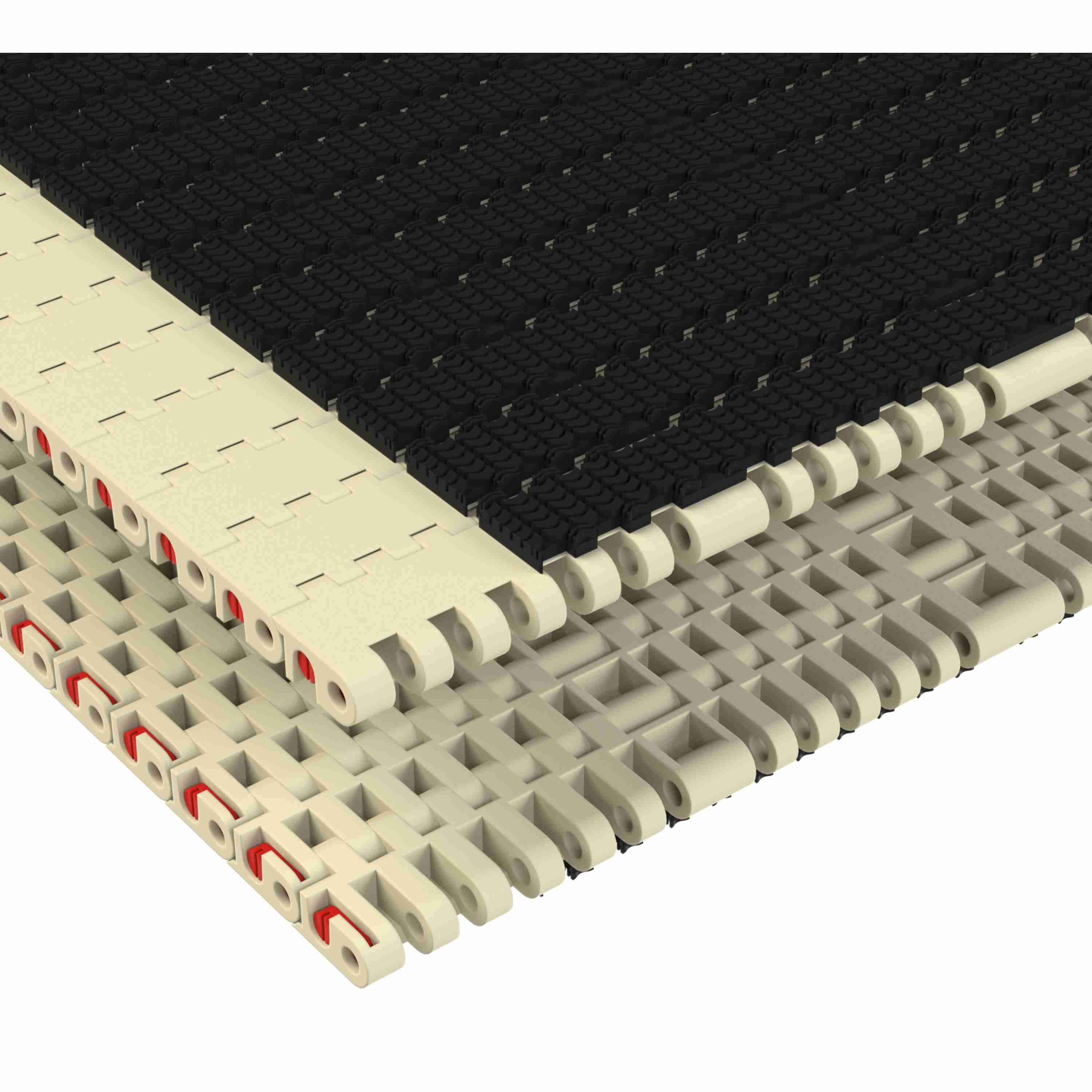

Rexnord 7705 SuperGrip™ Straight Running SuperGrip™, Material: Beige High Temperature, Width: 12in, Pitch: 1in - 10383957
Part #:10383957
Catalog #:10383957
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Chain Width (in): | 12 in |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Pitch (mm): | 25.4 mm |
| Belt Thickness (in): | 0.69 in | Surface Type: | SuperGrip™ |
| Straight or Side-Flex: | Straight Running | Product Line: | Plastic Modular Chain and Belt |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Chain Strength (N/m): | 26,262 N·m |
| Product Type: | Straight Running | Open Area (%): | 3 % |
| Chain Material: | HT | Chain Material Description: | Beige High Temperature |
| Chain Strength (lb/ft): | 1,800 lb/ft | Rod/Pin Material: | Polypropylene |
| Chain Pitch (in): | 1 in | Chain Width (mm): | 304.8 mm |
| Series: | MatTop 7700 Series Chain | Chain Number: | 7705 SuperGrip™ |
| Chain Width Measurement System: | Imperial | Belt Thickness (mm): | 17.6 mm |
General Specifications
| Weight: | 0.18 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
