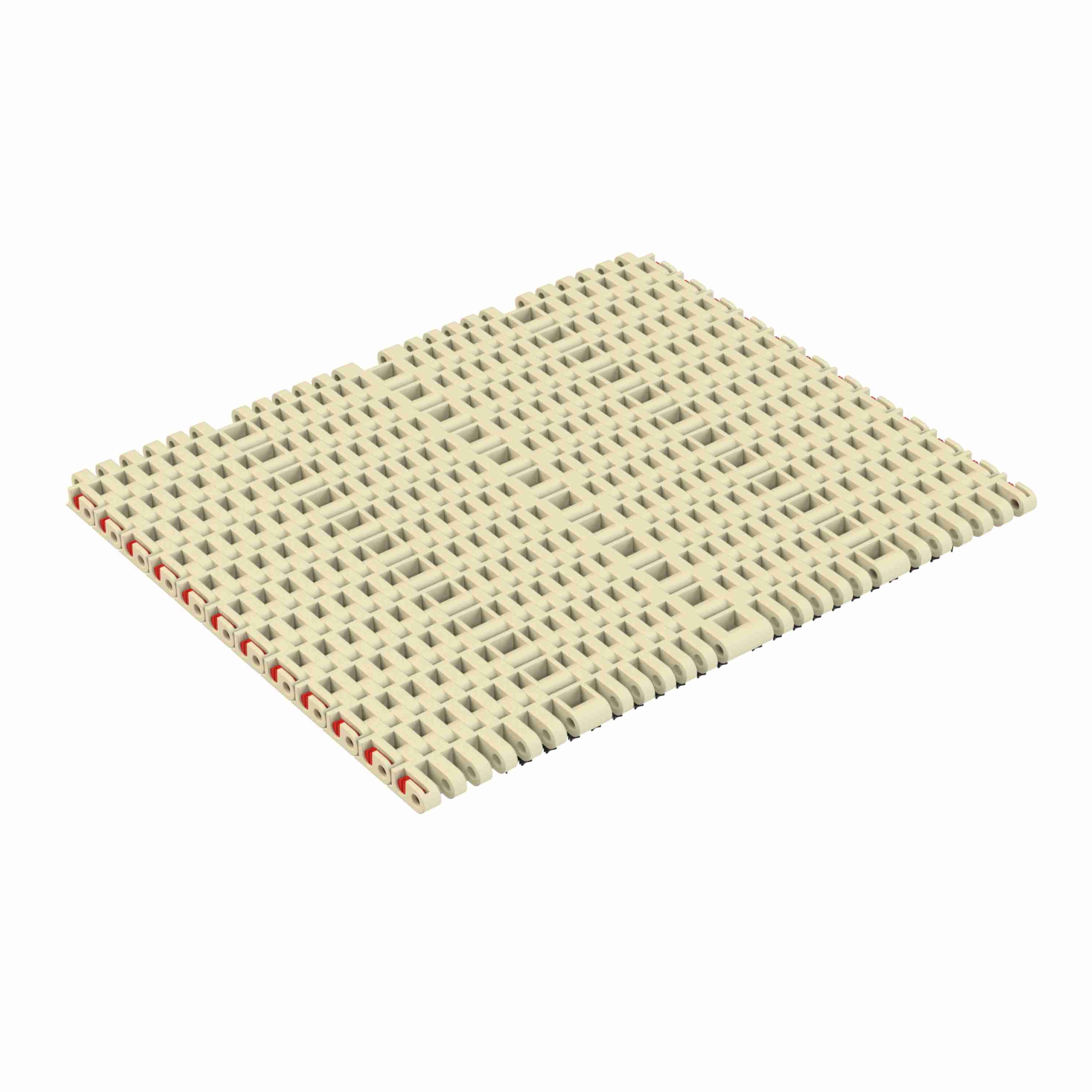

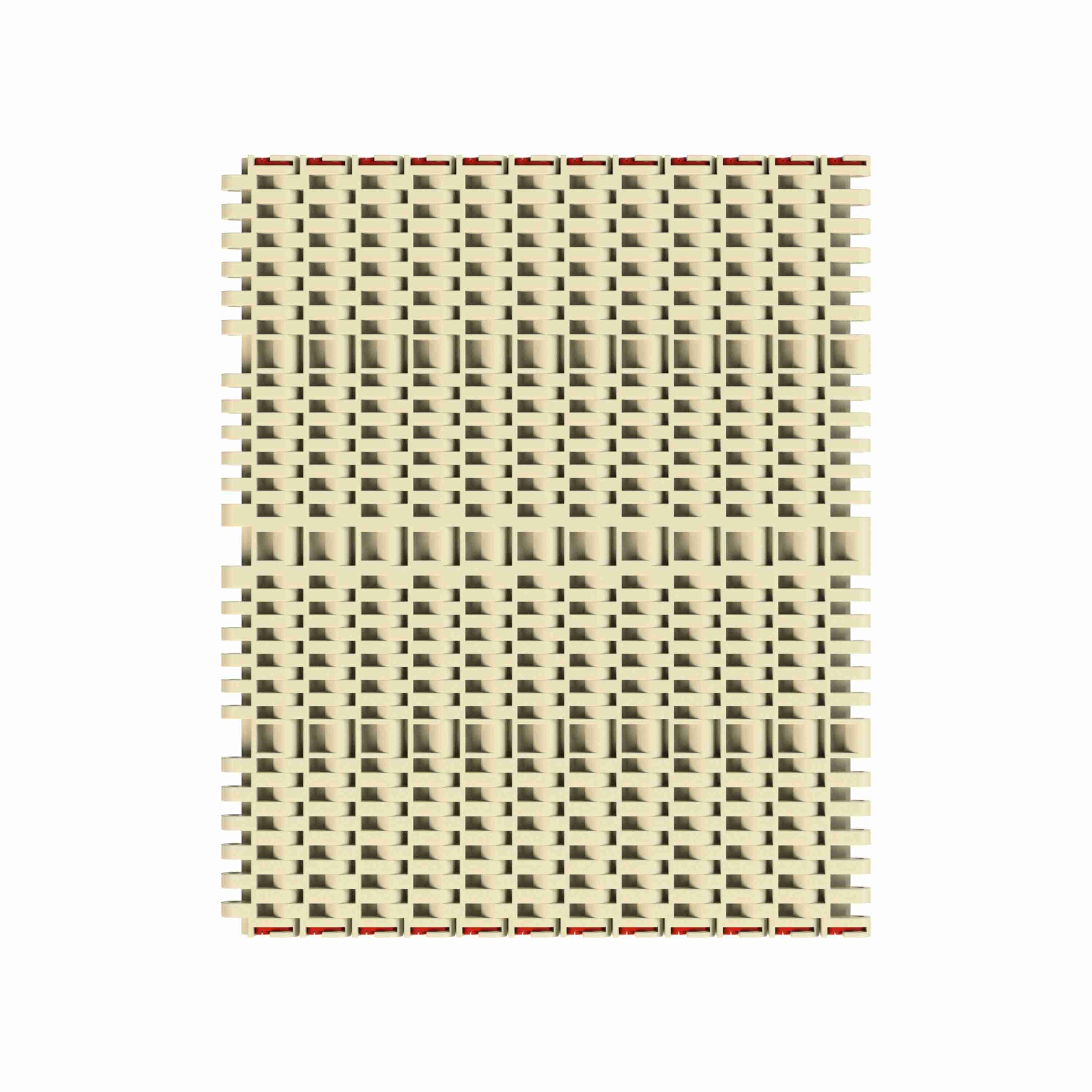

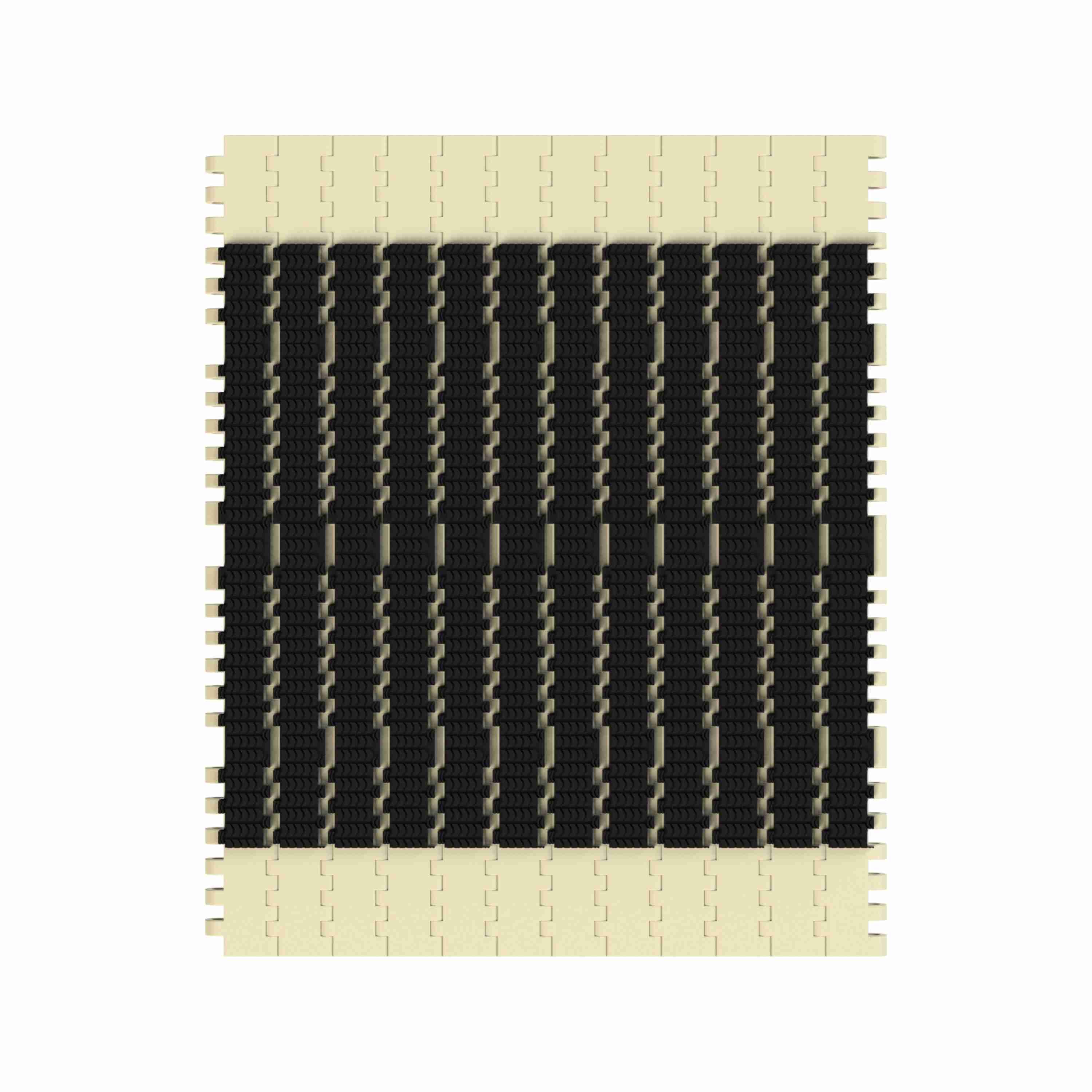

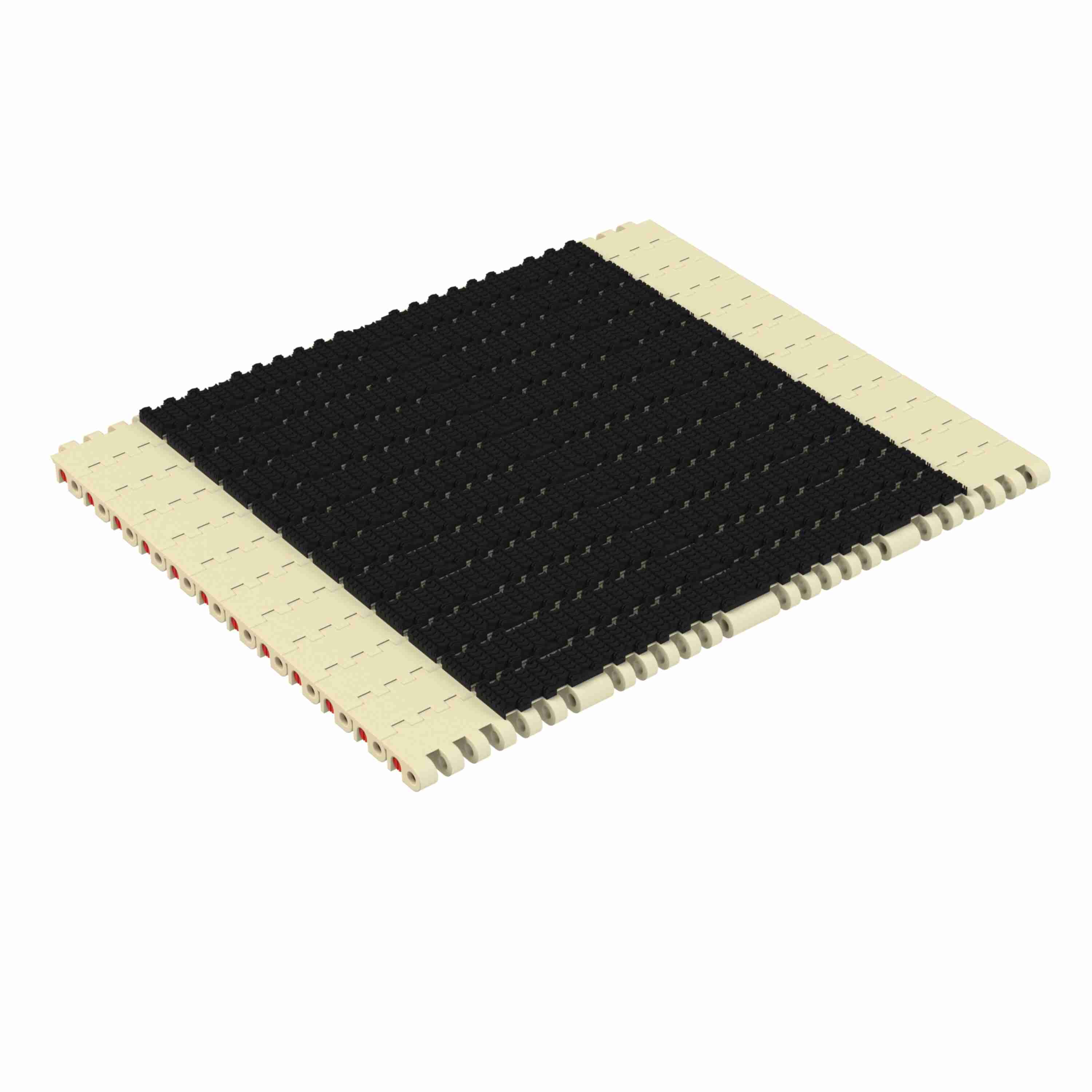

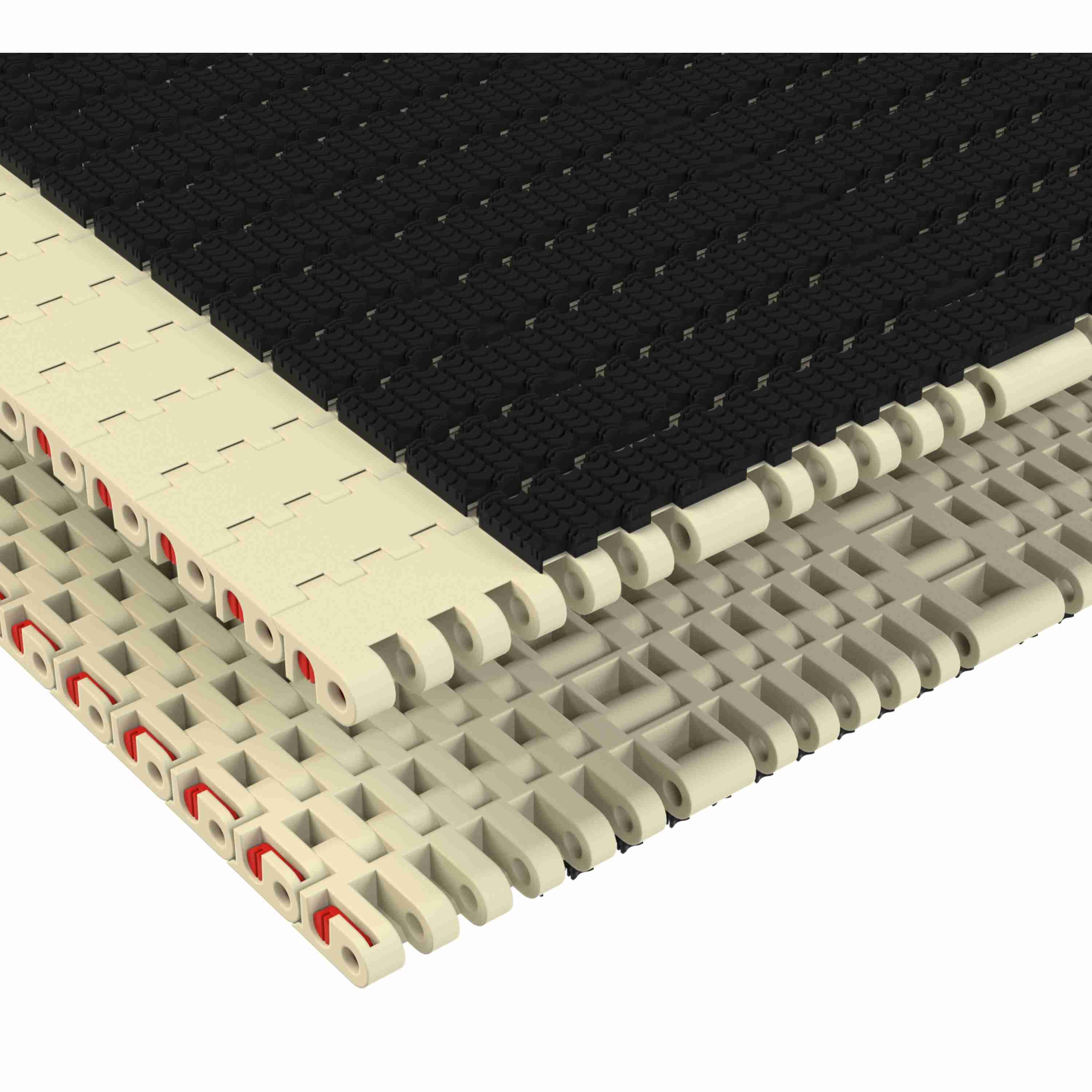

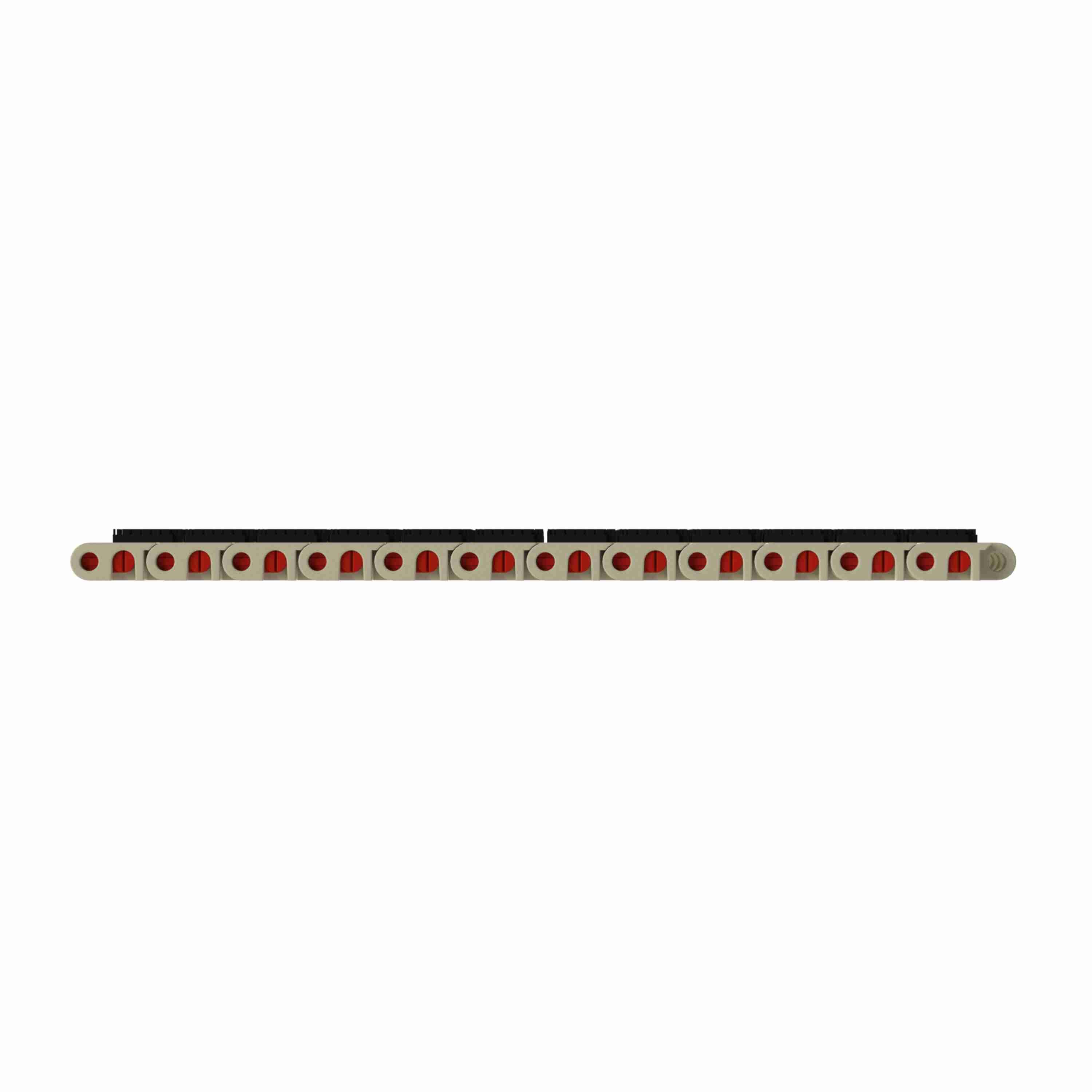

Rexnord 7705 SuperGrip™ Straight Running SuperGrip™, Material: Beige High Temperature, Width: 15in, Pitch: 1in - 10383958
Part #:10383958
Catalog #:10383958
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | SuperGrip™ | Chain Number: | 7705 SuperGrip™ |
| Belt Thickness (in): | 0.69 in | SG/RT Spacing (Pitches): | Every Pitch |
| Rod/Pin Material: | Polypropylene | Chain Width (mm): | 381 mm |
| Straight or Side-Flex: | Straight Running | Product Line: | Plastic Modular Chain and Belt |
| Chain Strength (N/m): | 26,262 N·m | Chain Pitch (in): | 1 in |
| Product Type: | Straight Running | Chain Width (in): | 15 in |
| Chain Width Measurement System: | Imperial | Series: | MatTop 7700 Series Chain |
| Chain Pitch (mm): | 25.4 mm | Open Area (%): | 3 % |
| Chain Material: | HT | Chain Material Description: | Beige High Temperature |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Product Group: | Modular Plastic Belts |
| Chain Strength (lb/ft): | 1,800 lb/ft | Belt Thickness (mm): | 17.6 mm |
General Specifications
| Weight: | 0.23 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
