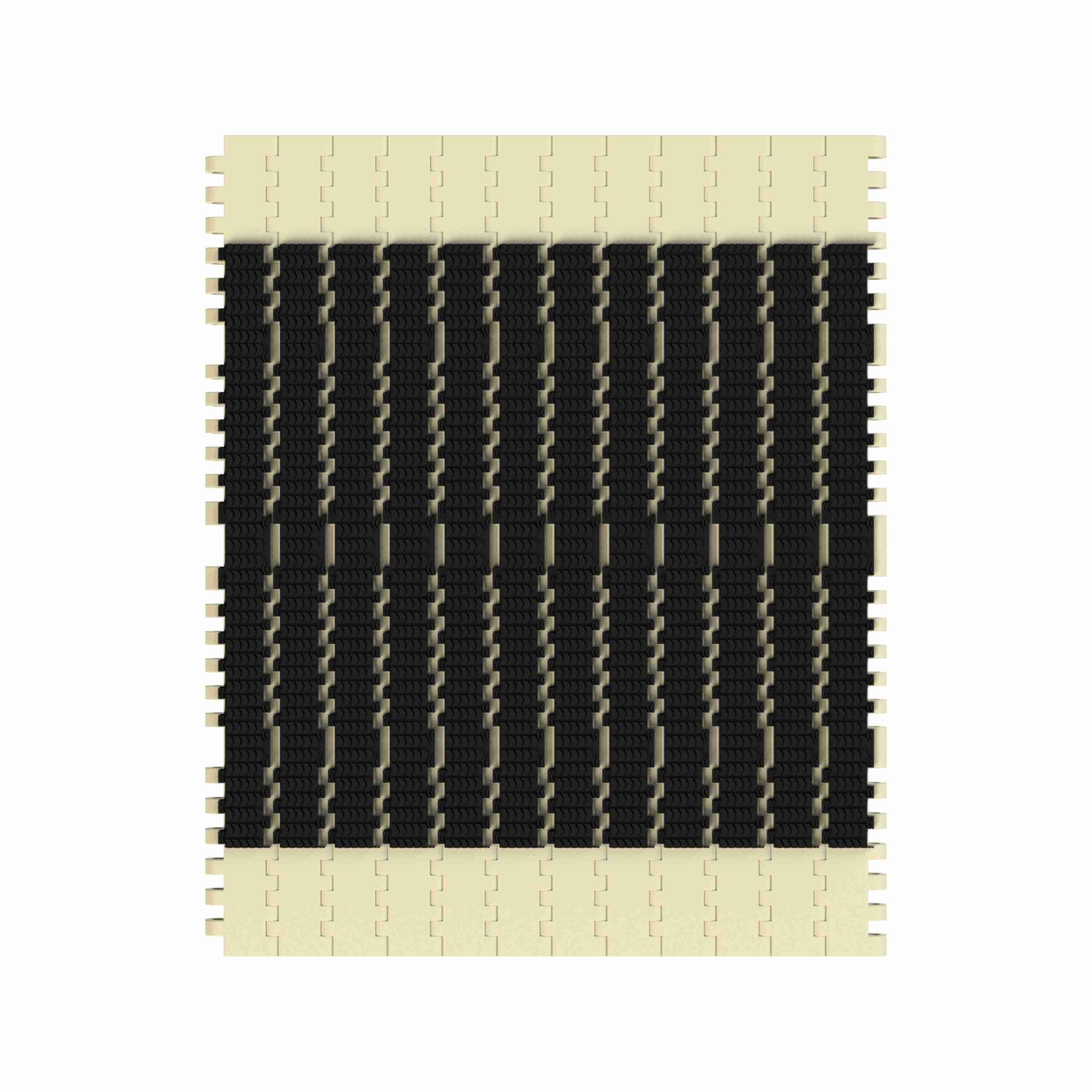

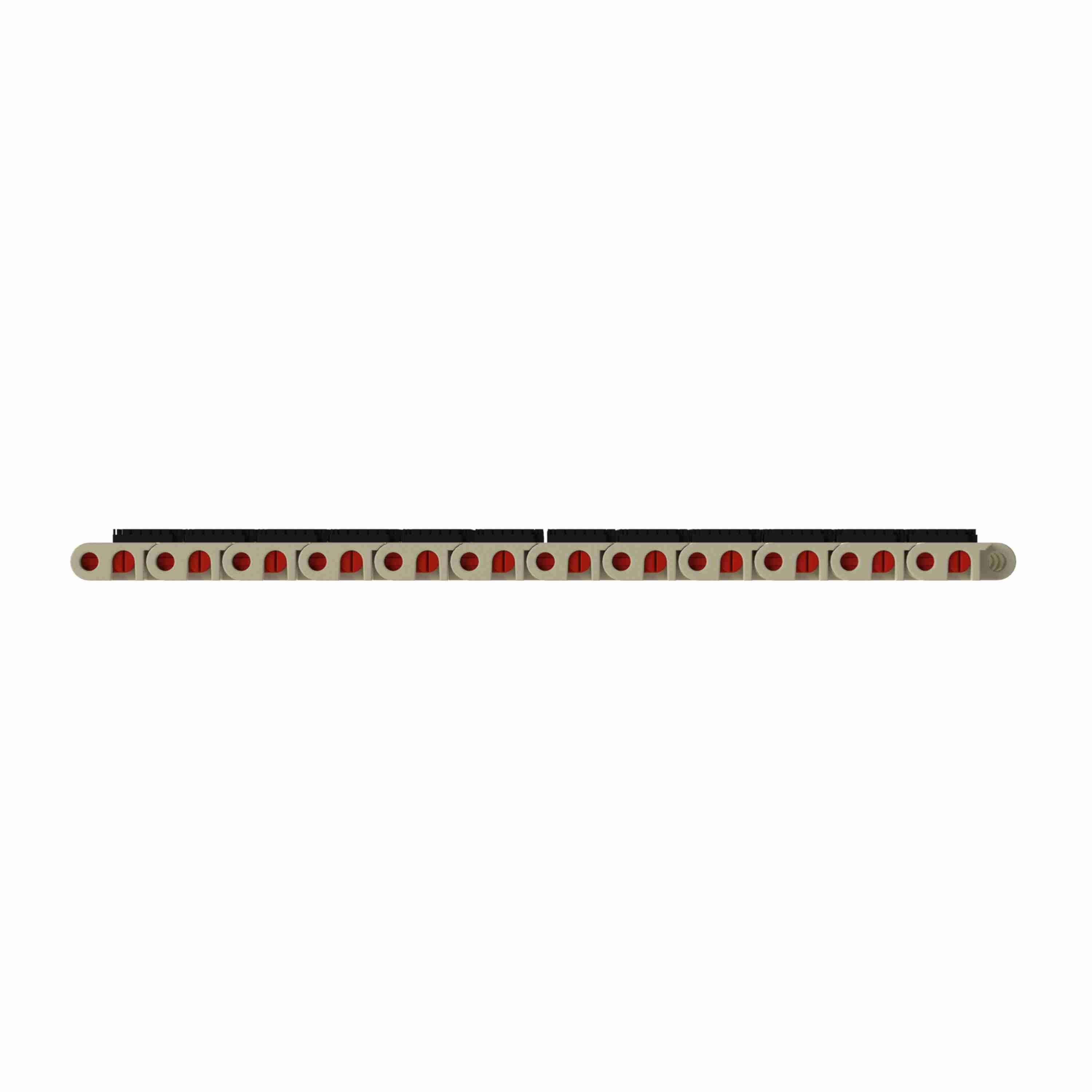

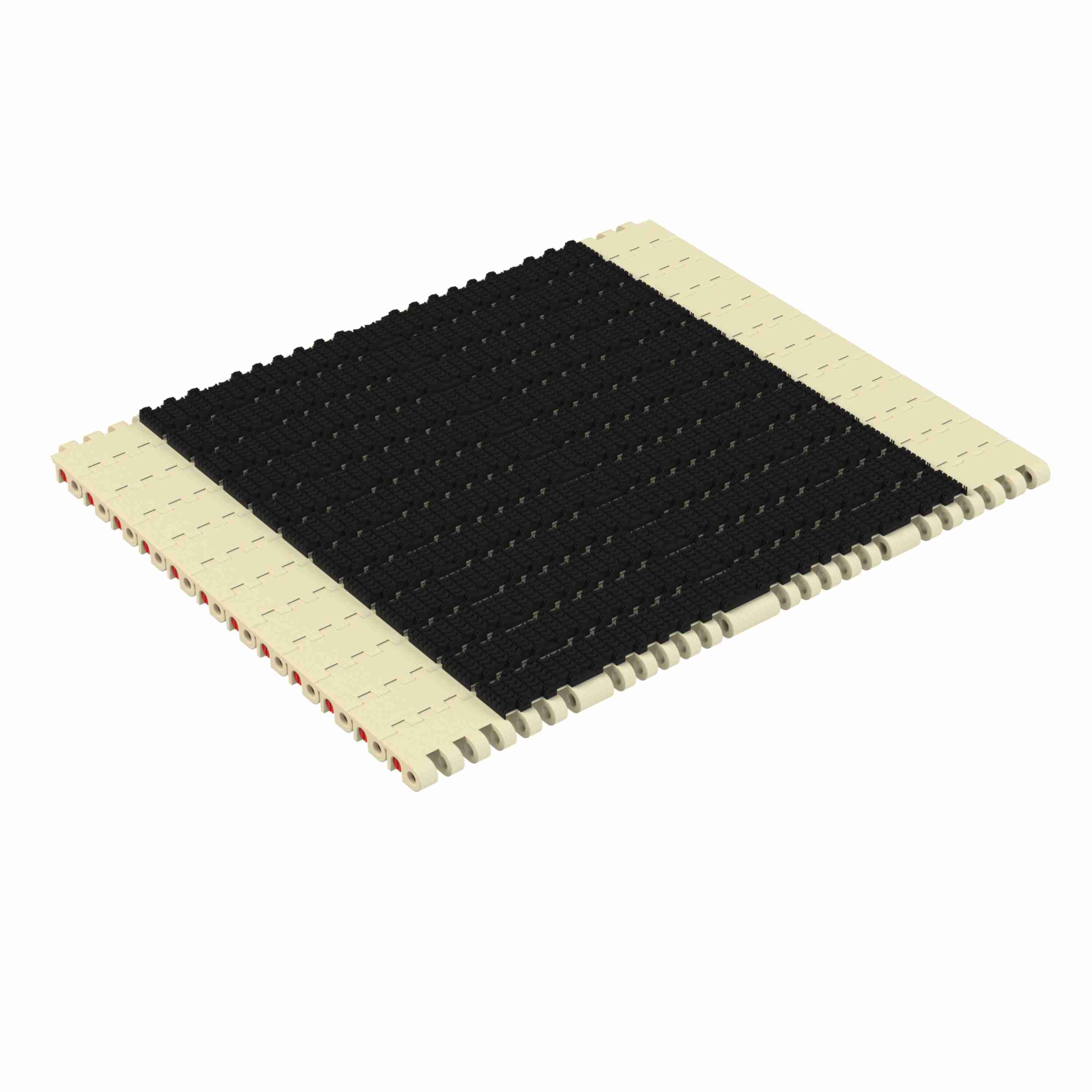

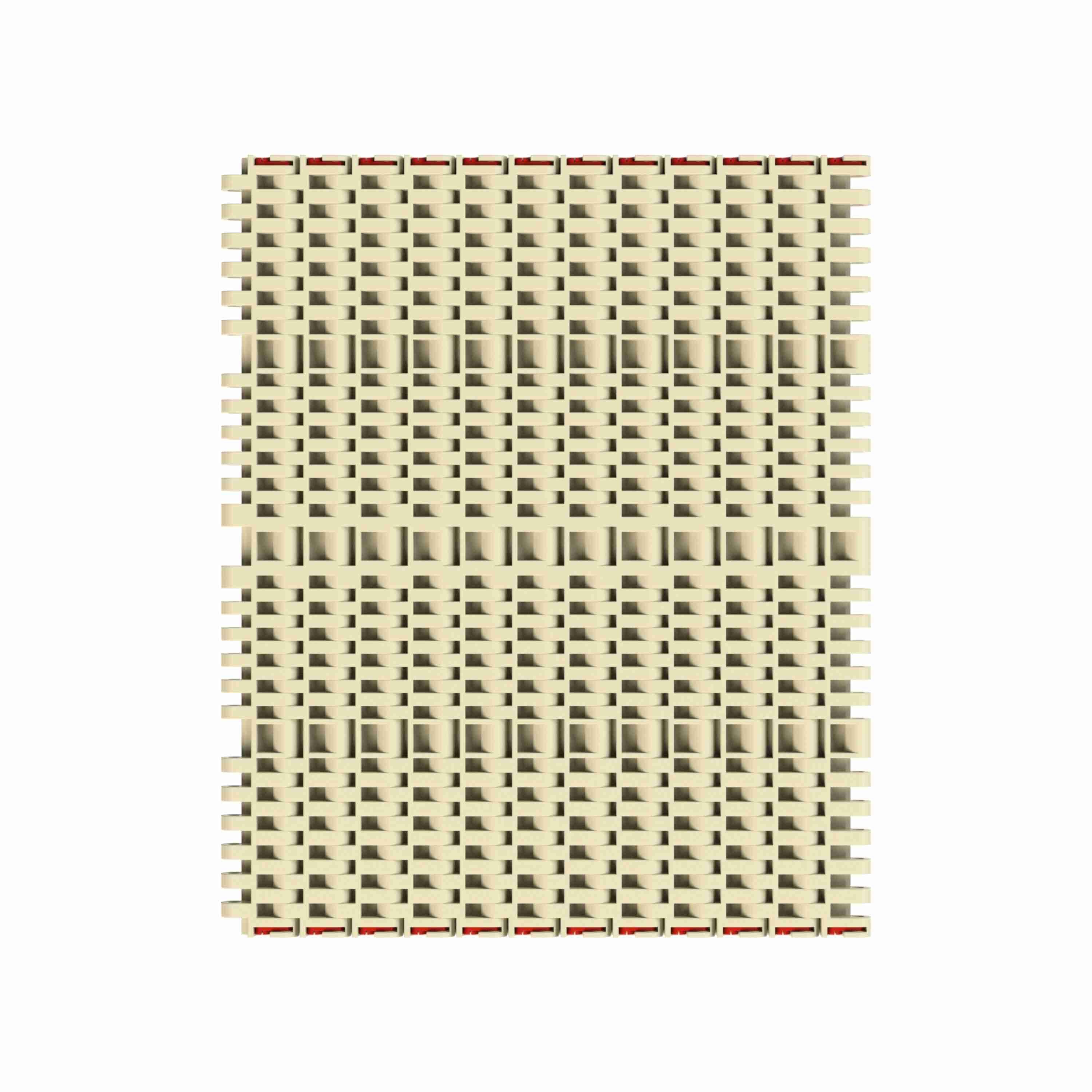

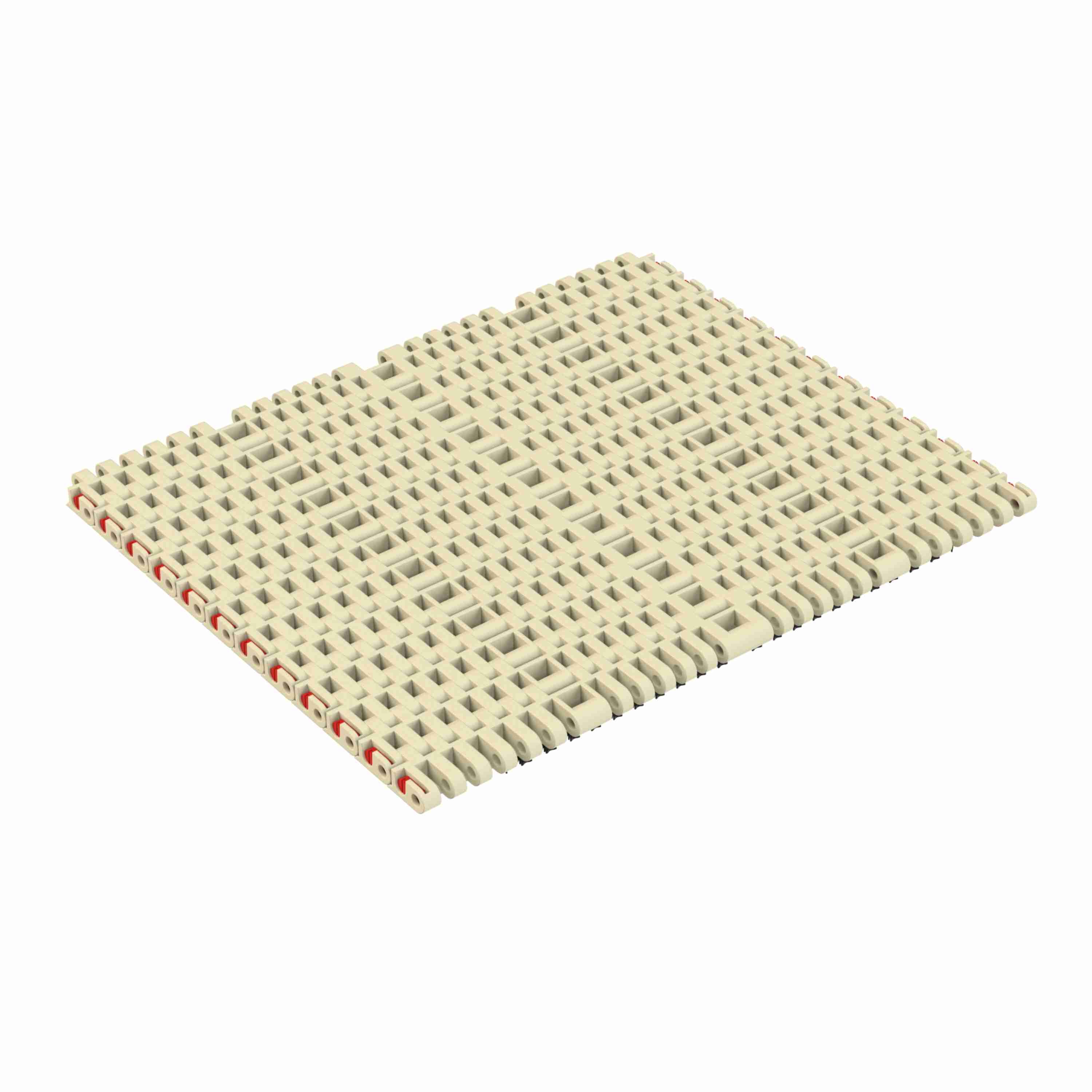

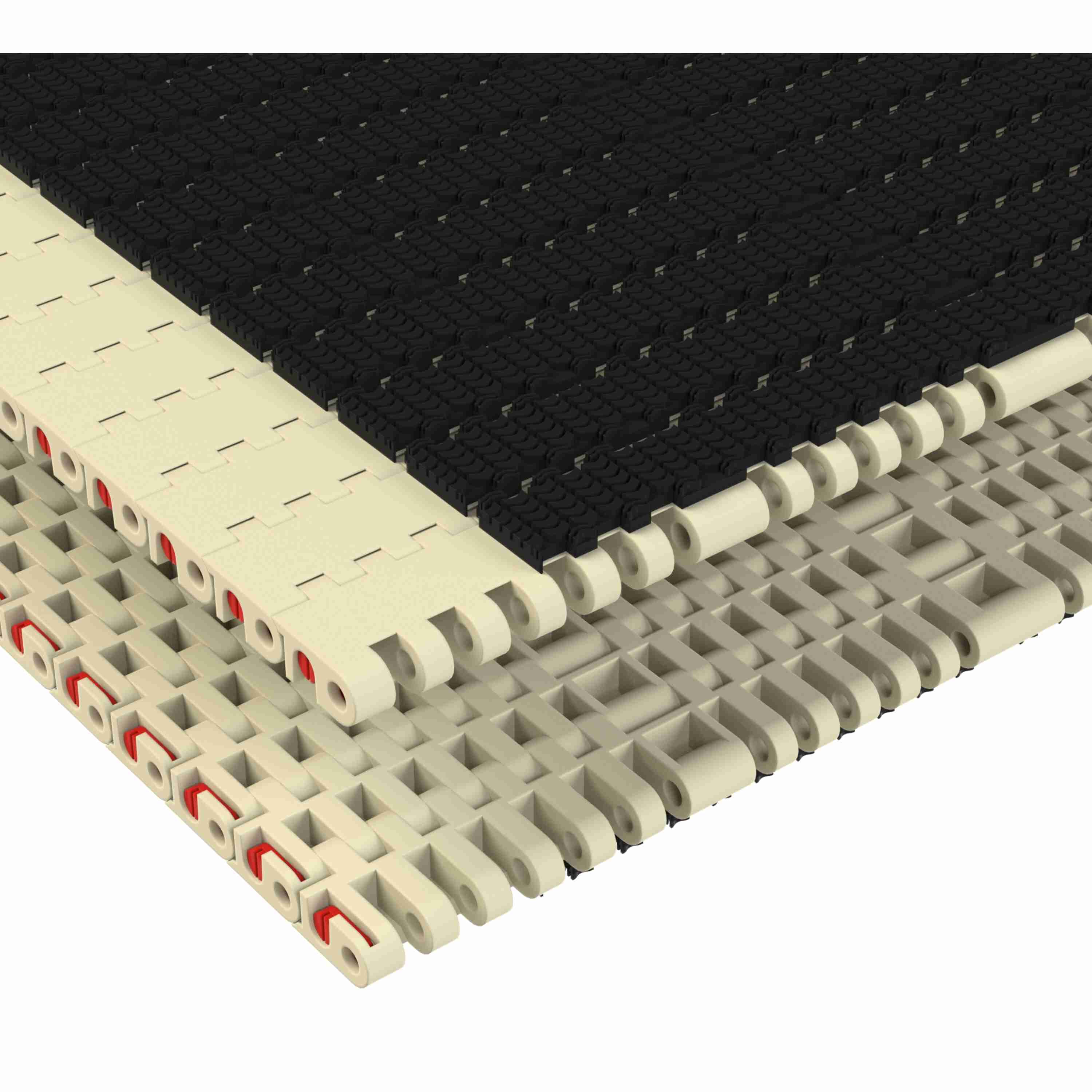

Rexnord 7705 SuperGrip™ Straight Running SuperGrip™, Material: Beige High Temperature, Width: 18in, Pitch: 1in - 10383959
Part #:10383959
Catalog #:10383959
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Beige High Temperature | Product Type: | Straight Running |
| Belt Thickness (mm): | 17.6 mm | Belt Thickness (in): | 0.69 in |
| Rod/Pin Material: | Polypropylene | Chain Pitch (in): | 1 in |
| Chain Strength (lb/ft): | 1,800 lb/ft | Product Group: | Modular Plastic Belts |
| Chain Strength (N/m): | 26,262 N·m | Chain Width Measurement System: | Imperial |
| Product Line: | Plastic Modular Chain and Belt | Chain Width (mm): | 457.2 mm |
| Chain Number: | 7705 SuperGrip™ | Chain Width (in): | 18 in |
| Chain Material: | HT | SG/RT Spacing (Pitches): | Every Pitch |
| Straight or Side-Flex: | Straight Running | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Chain Pitch (mm): | 25.4 mm | Series: | MatTop 7700 Series Chain |
| Surface Type: | SuperGrip™ | Open Area (%): | 3 % |
General Specifications
| Weight: | 0.27 LB | HTC: | 3926909989 |
| Country of Origin: | Mexico |
