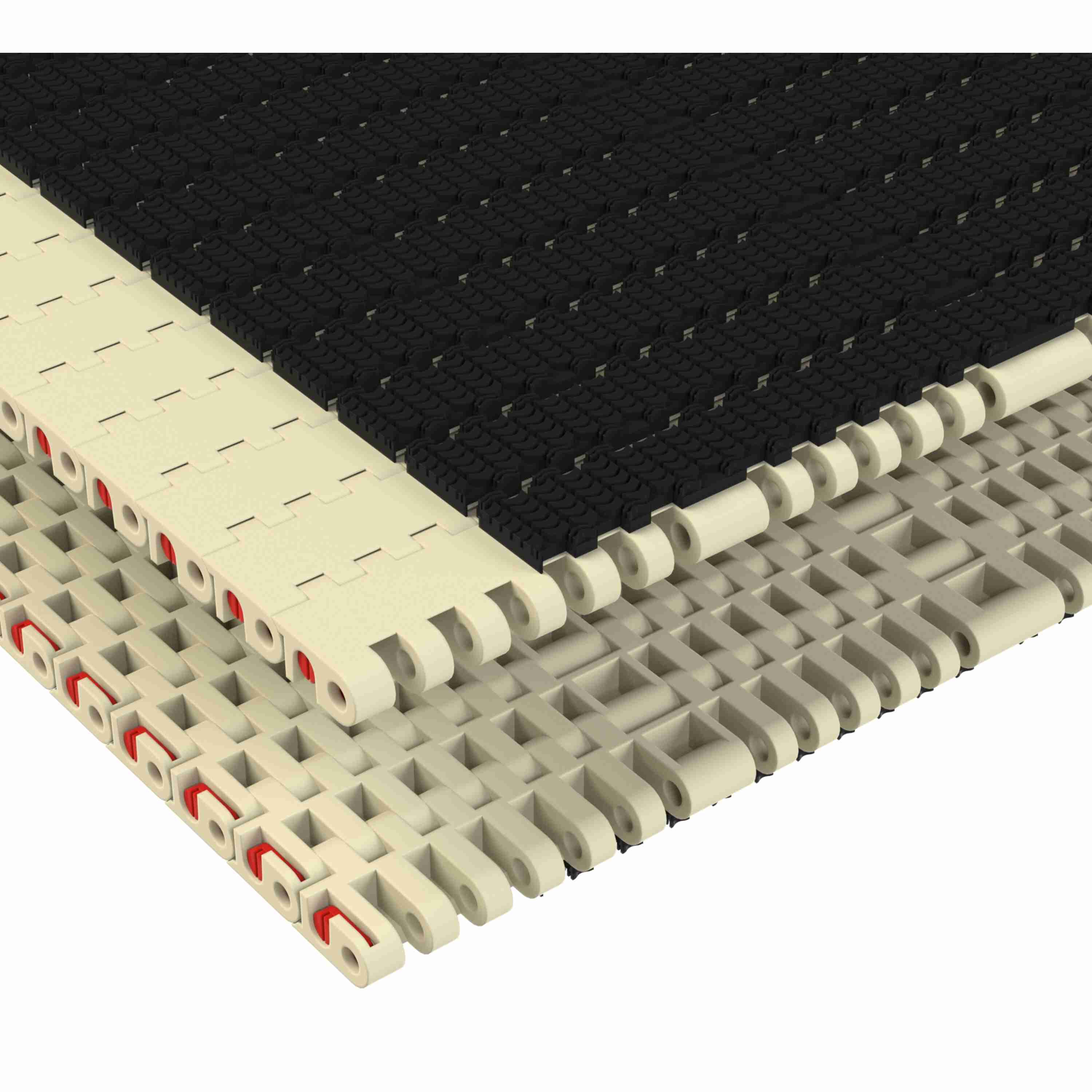

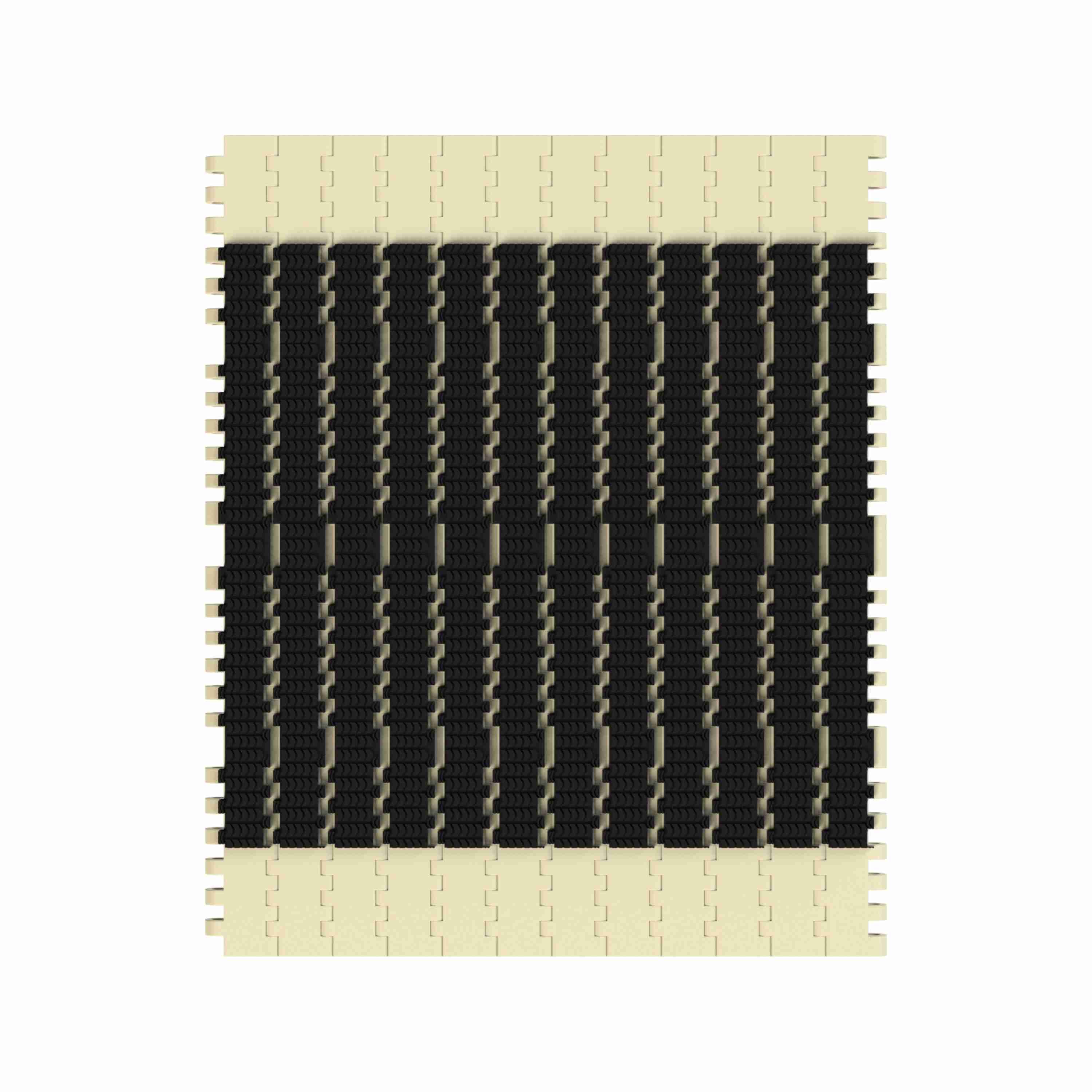

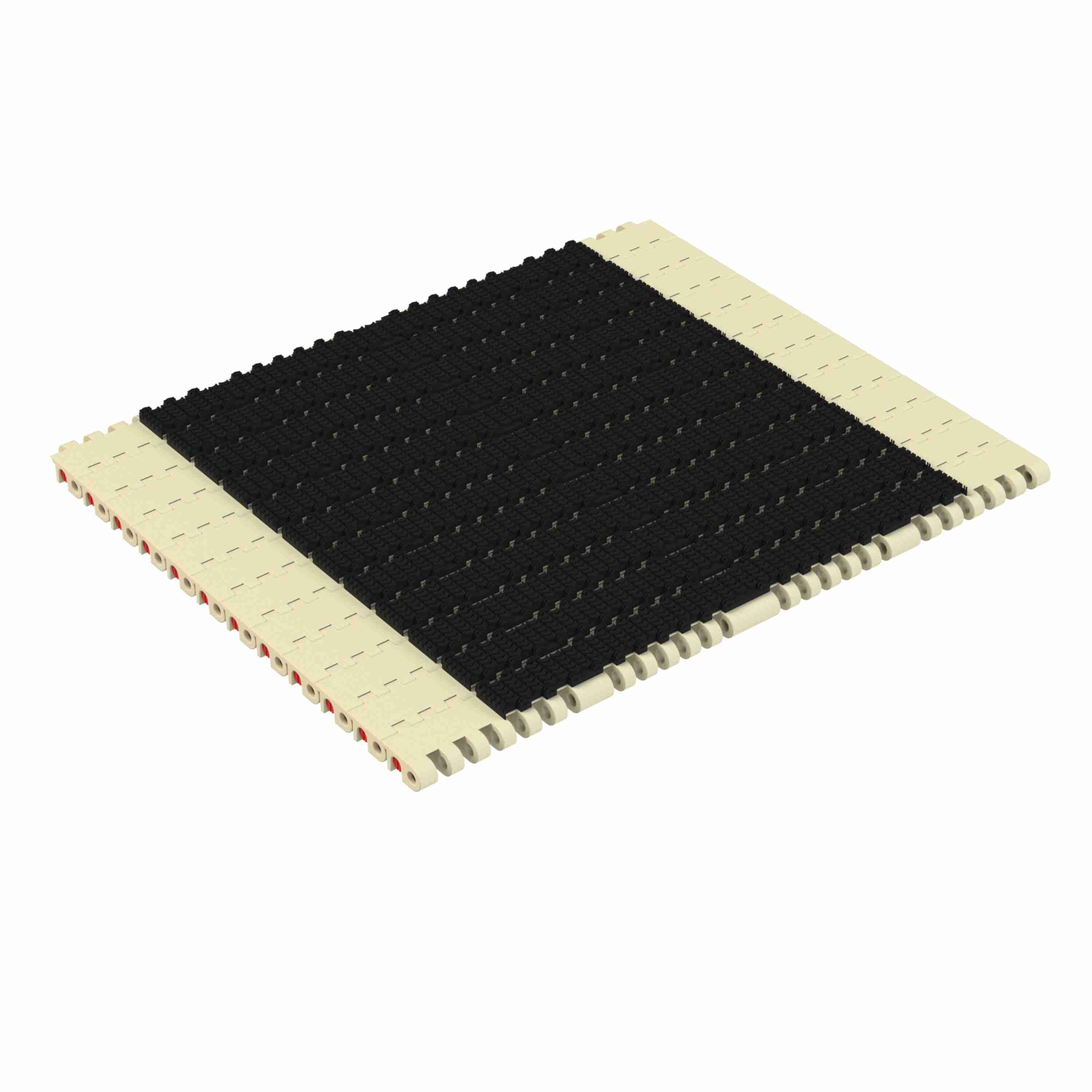

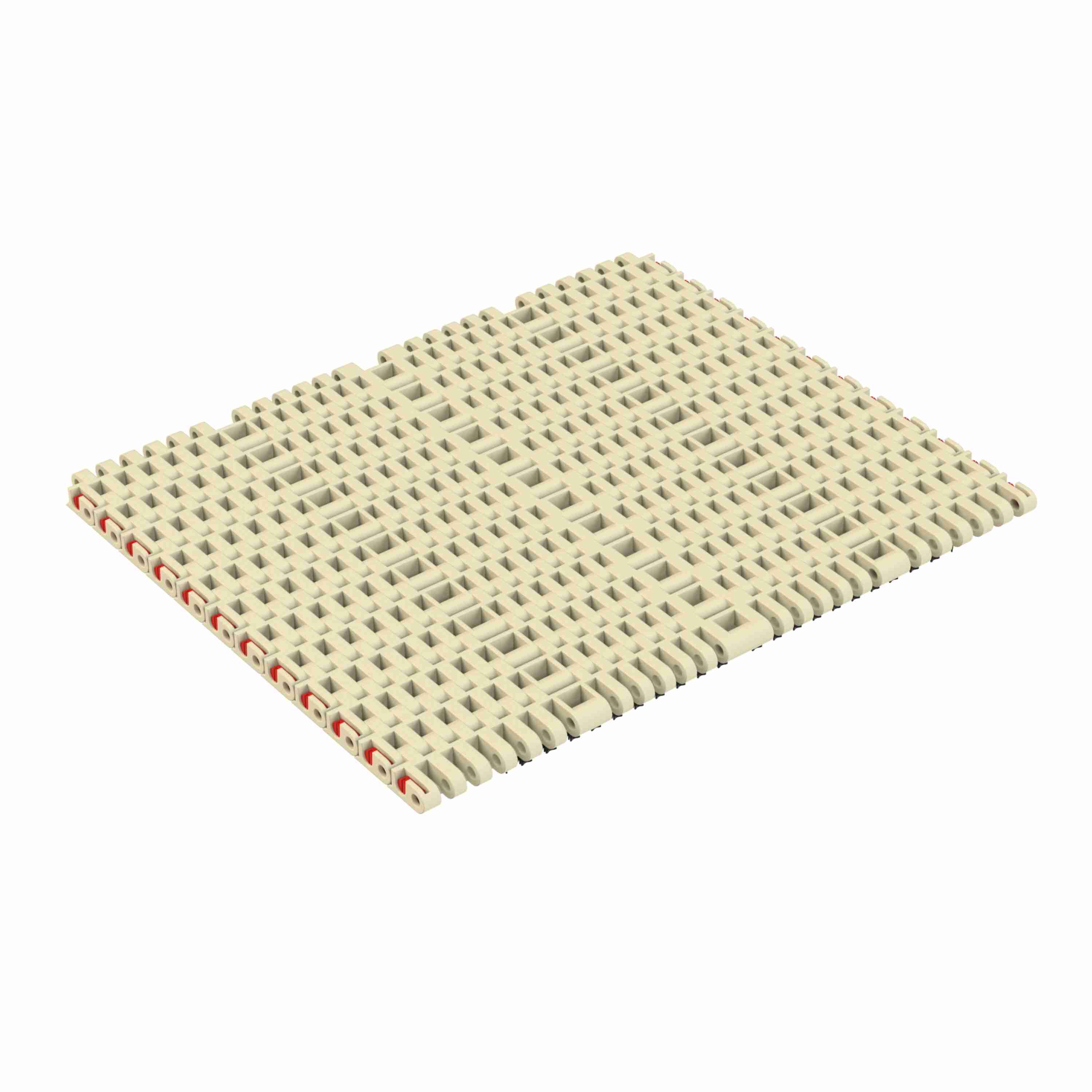

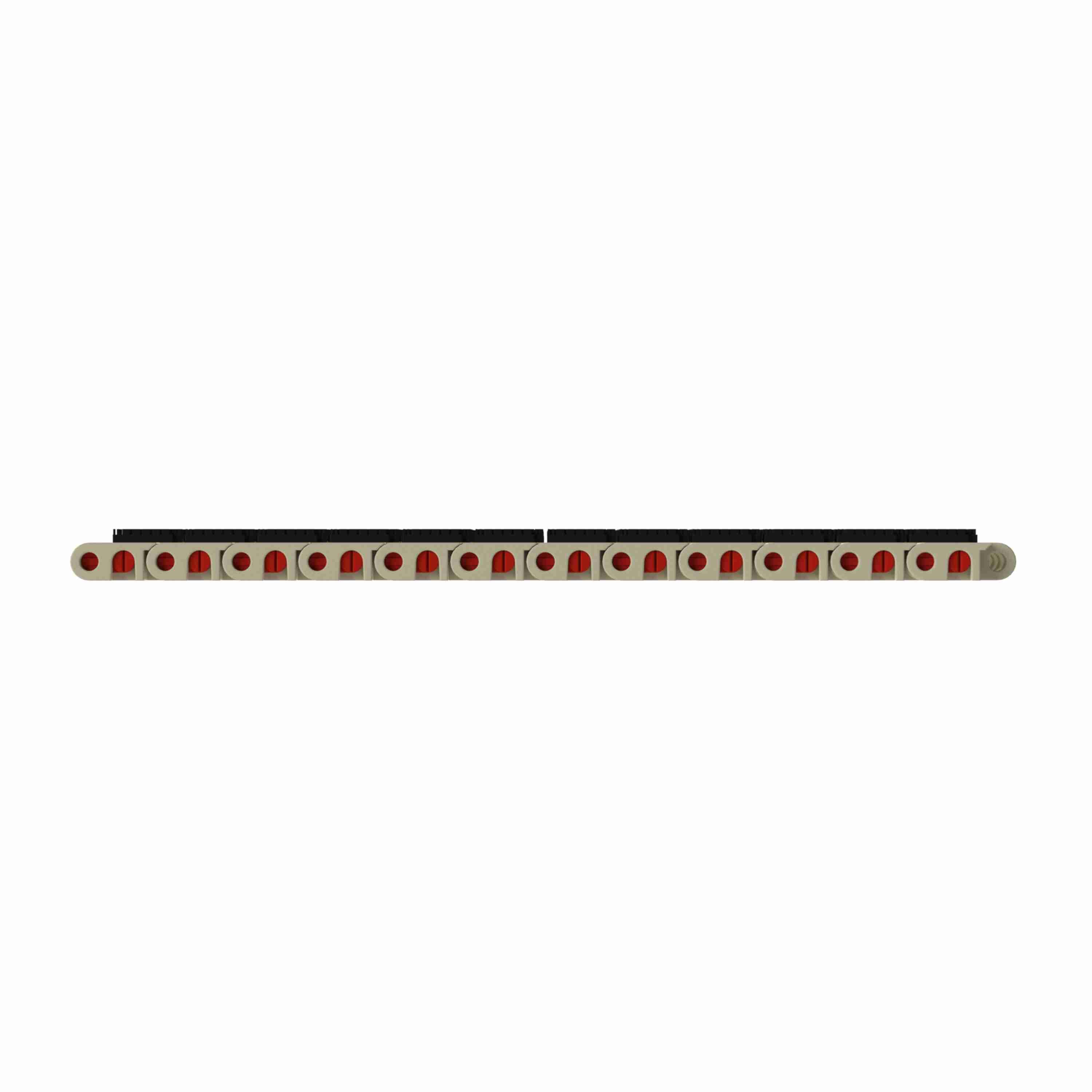

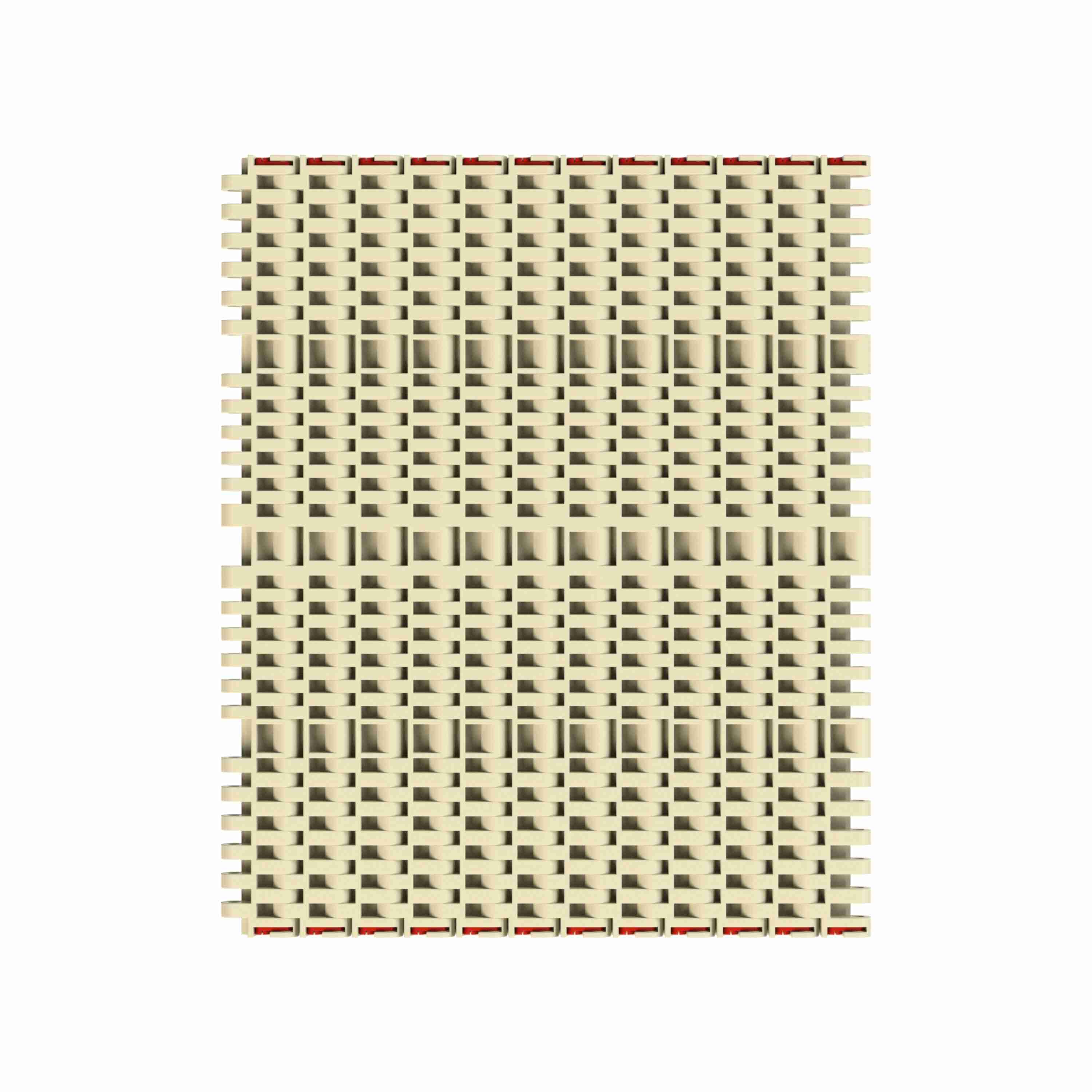

Rexnord 7705 SuperGrip™ Straight Running SuperGrip™, Material: Beige High Temperature, Width: 24in, Pitch: 1in - 10383991
Part #:10383991
Catalog #:10383991
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material Description: | Beige High Temperature | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Open Area (%): | 3 % | Product Line: | Plastic Modular Chain and Belt |
| Series: | MatTop 7700 Series Chain | Surface Type: | SuperGrip™ |
| Chain Pitch (mm): | 25.4 mm | Belt Thickness (in): | 0.69 in |
| Chain Pitch (in): | 1 in | Chain Strength (N/m): | 26,262 N·m |
| Belt Thickness (mm): | 17.6 mm | Product Type: | Straight Running |
| Rod/Pin Material: | Polypropylene | SG/RT Spacing (Pitches): | Every Pitch |
| Chain Number: | 7705 SuperGrip™ | Chain Width (in): | 24 in |
| Chain Strength (lb/ft): | 1,800 lb/ft | Chain Material: | HT |
| Straight or Side-Flex: | Straight Running | Product Group: | Modular Plastic Belts |
| Chain Width Measurement System: | Imperial | Chain Width (mm): | 609.6 mm |
General Specifications
| Weight: | 0.36 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
