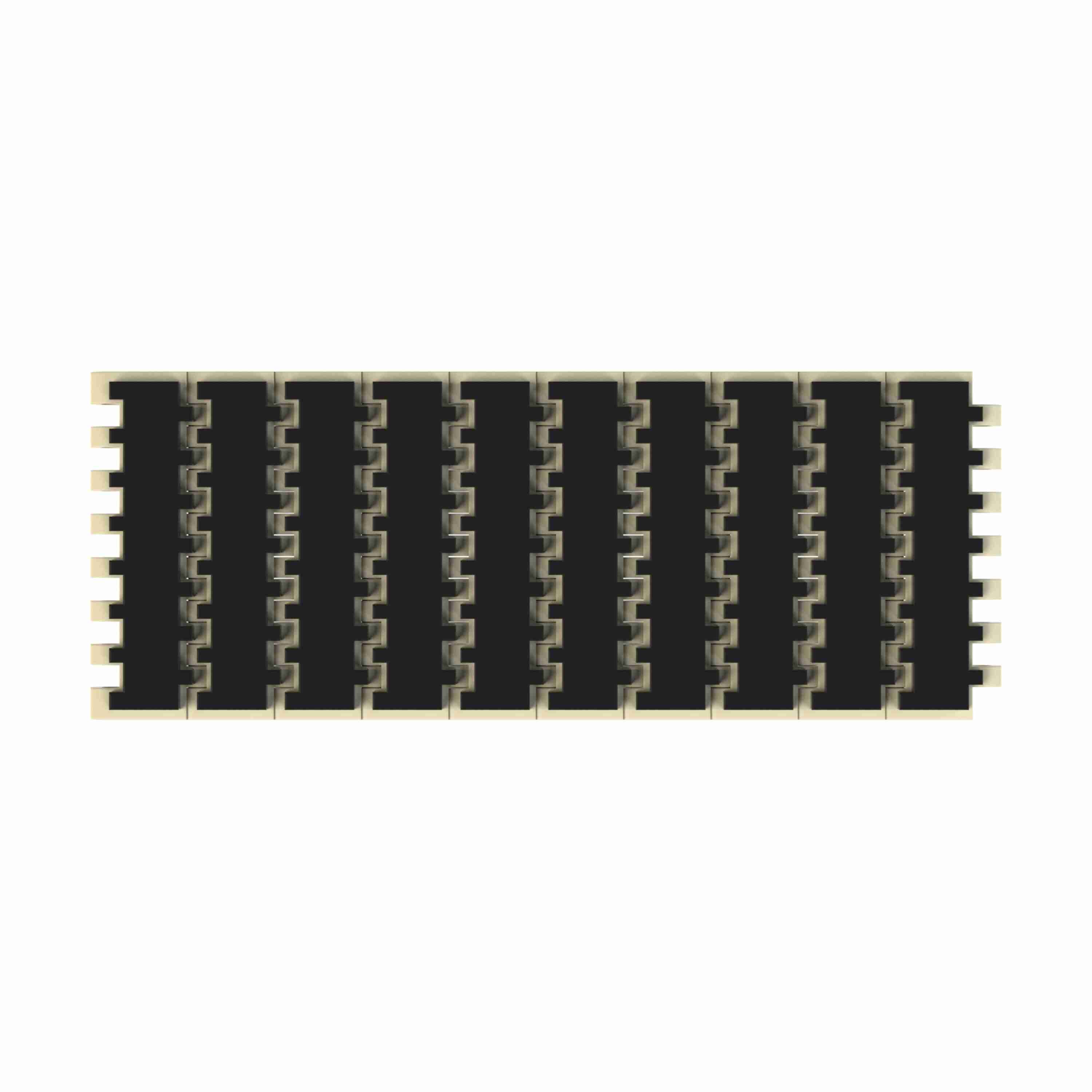

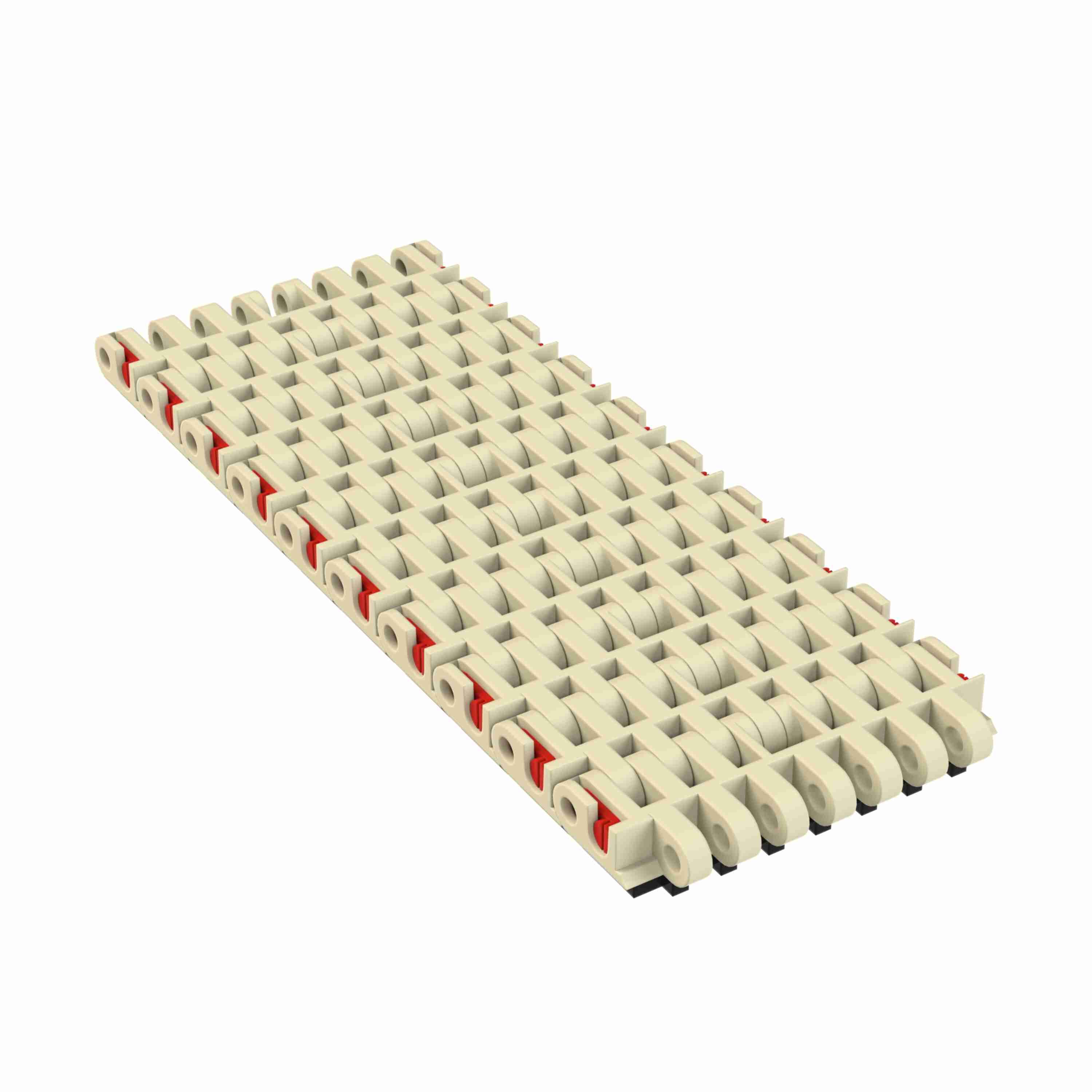

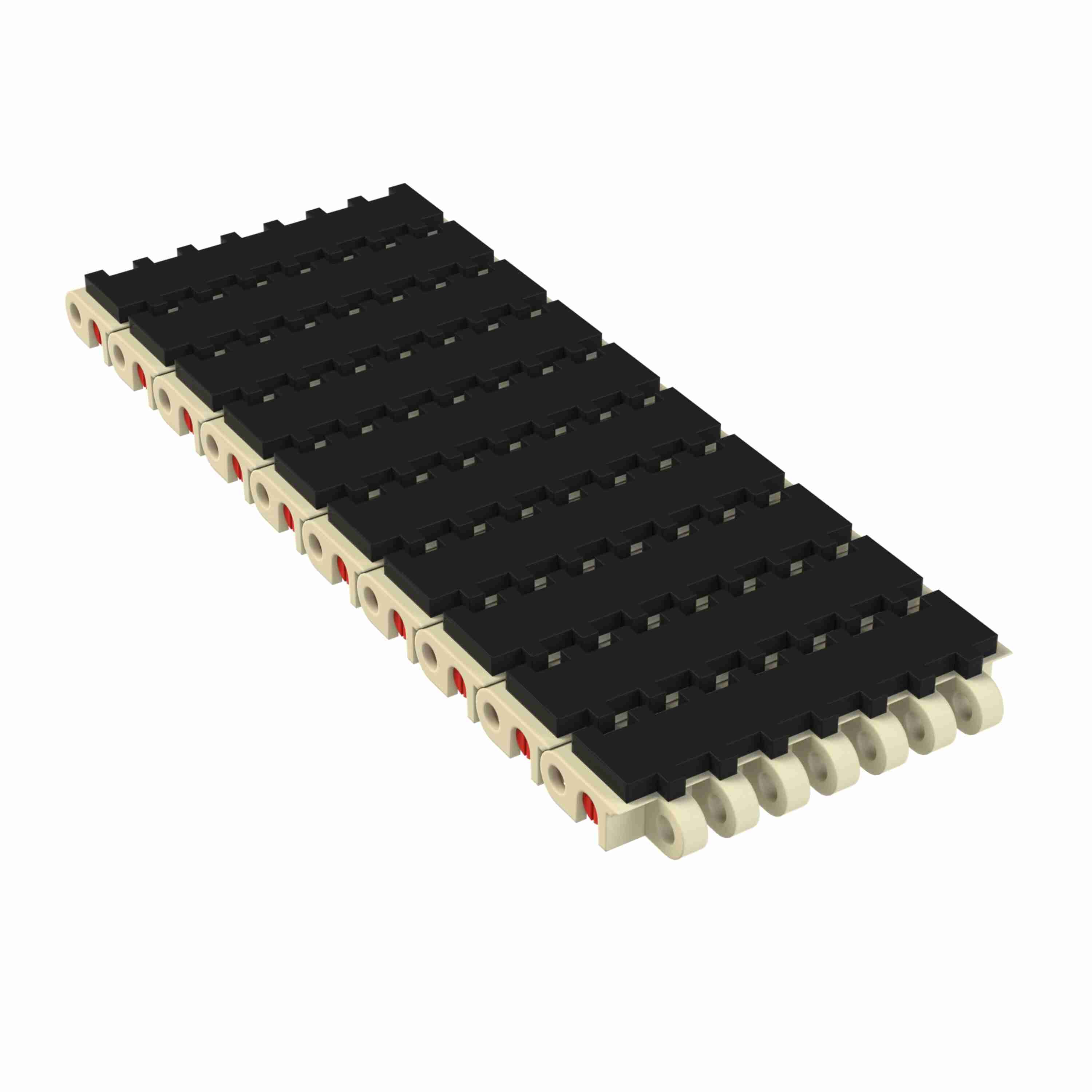

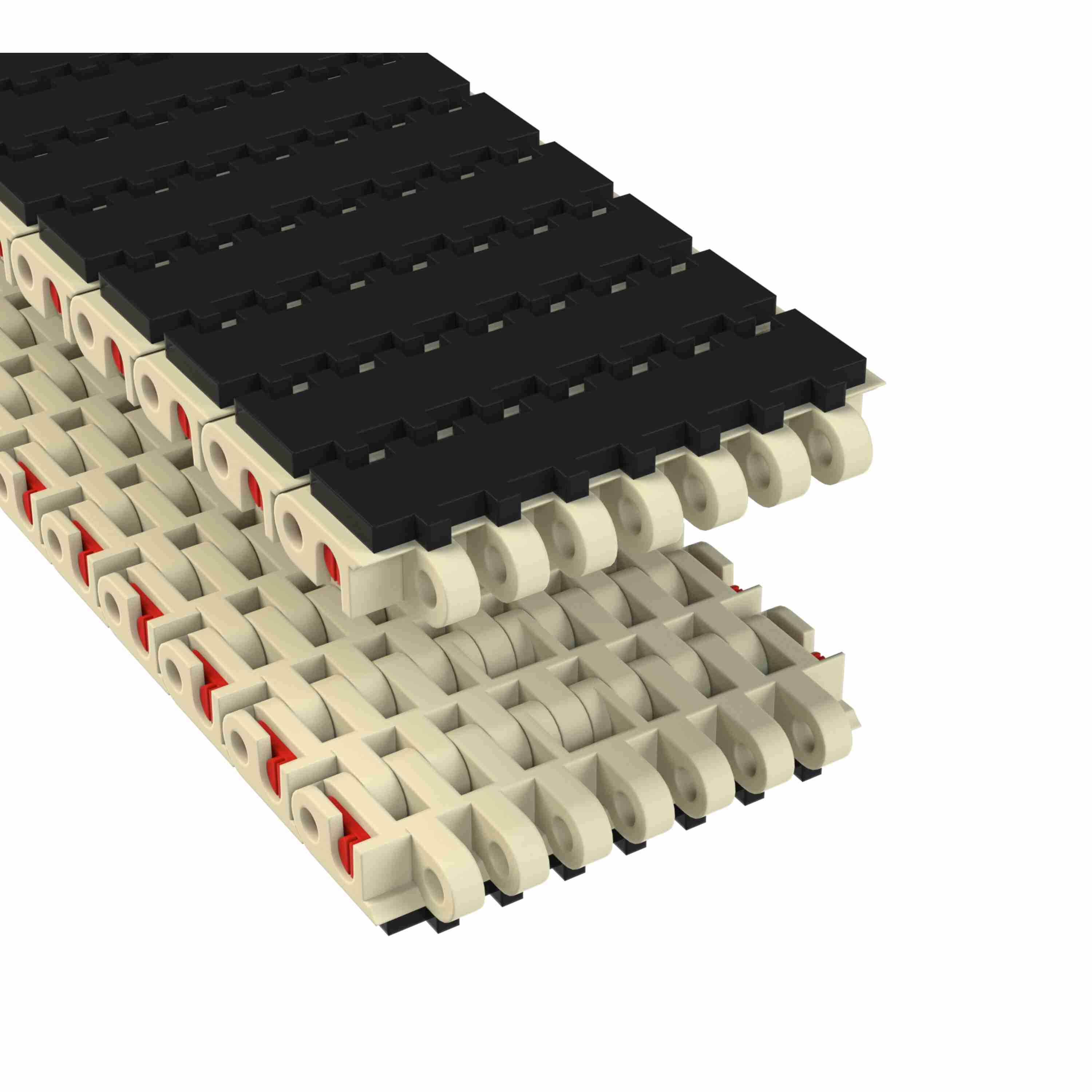

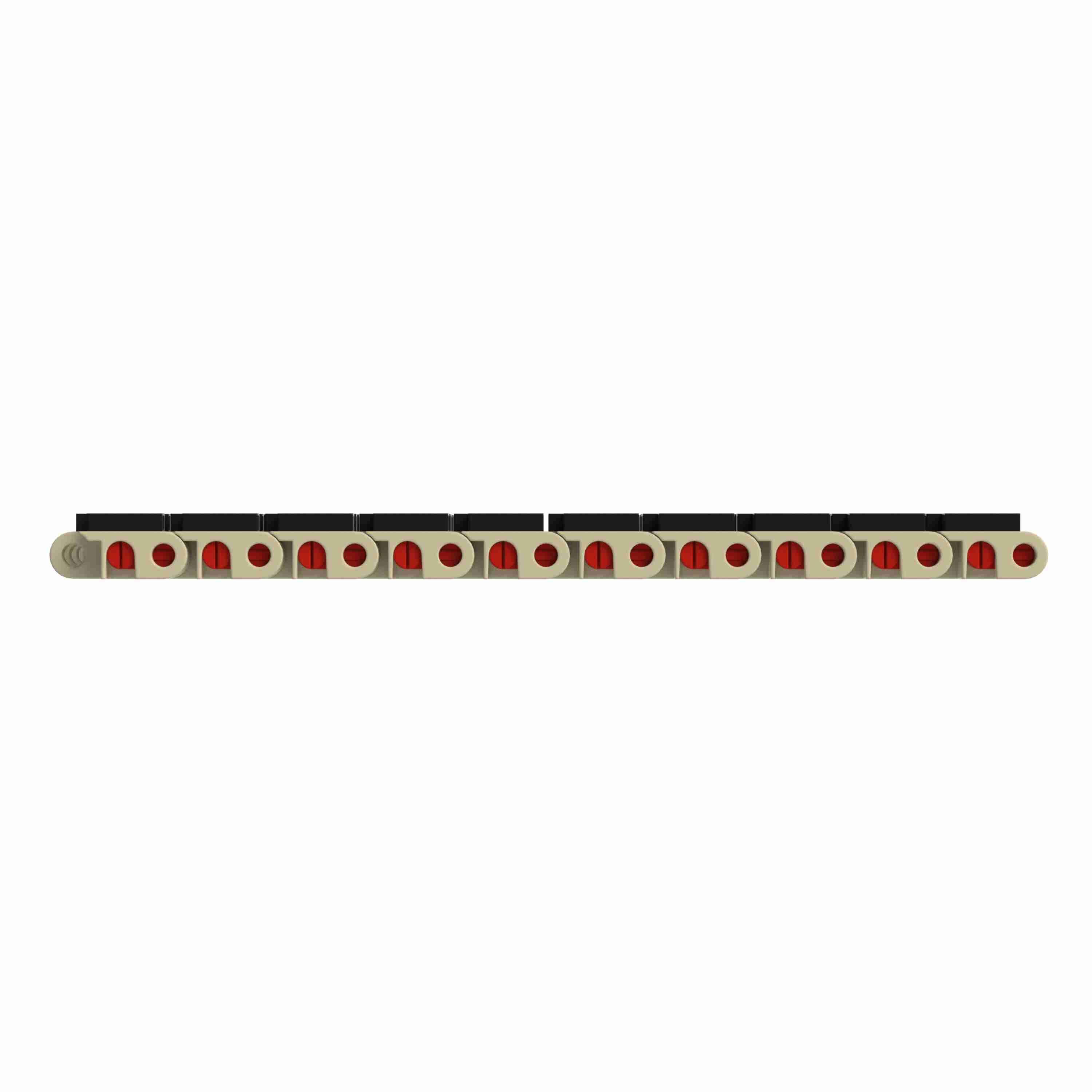

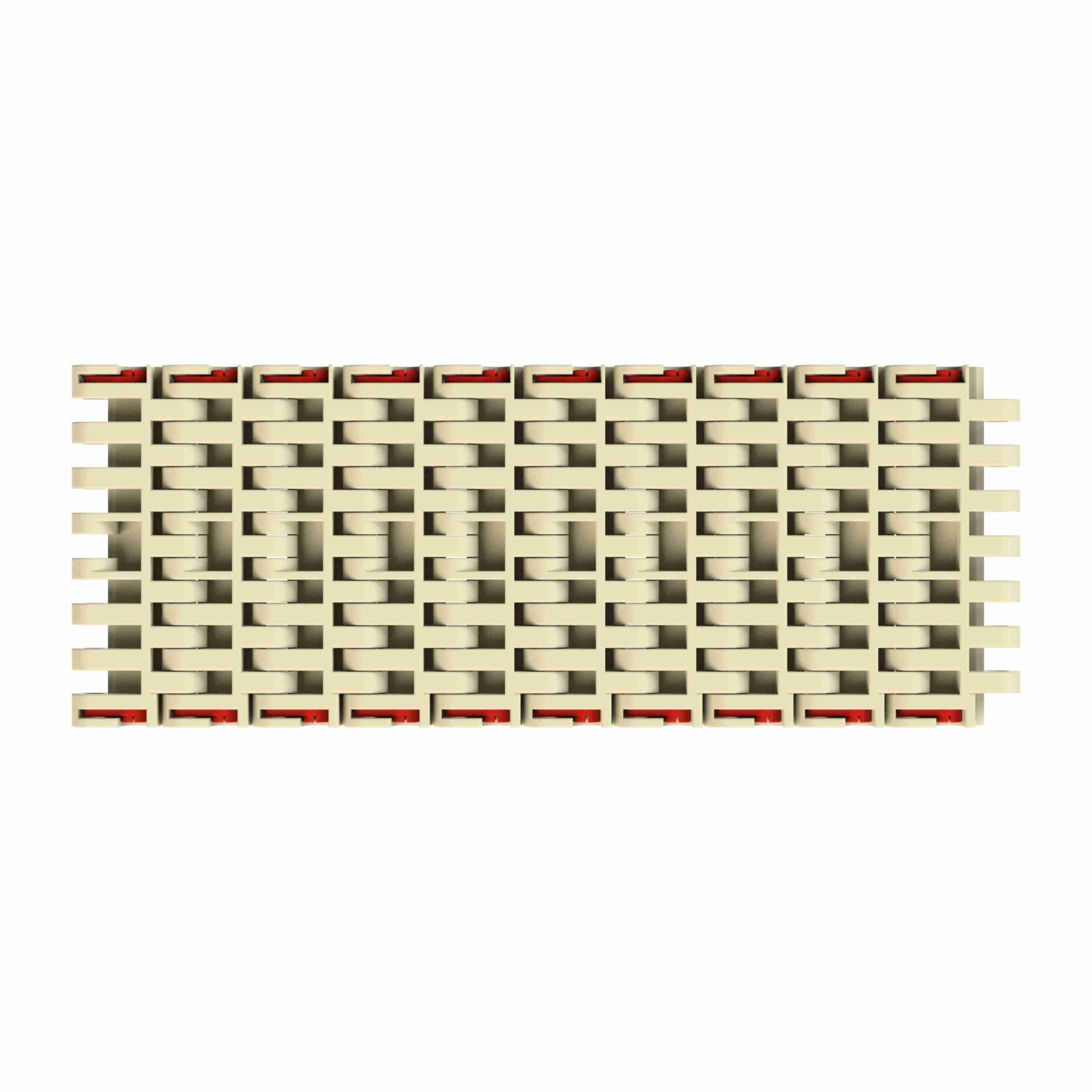

Rexnord 7705 SuperGrip™ Straight Running SuperGrip™, Material: Beige High Temperature, Width: 4in, Pitch: 1in - 81447671
Part #:10028425
Catalog #:81447671
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Material: | HT | Chain Strength (lb): | 572 lb |
| Chain Strength (N): | 2,540 N | Surface Type: | SuperGrip™ |
| Product Line: | Plastic Modular Chain and Belt | Chain Number: | 7705 SuperGrip™ |
| Product Group: | Modular Plastic Belts | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Series: | MatTop 7700 Series Chain | Open Area (%): | 3 % |
| Product Type: | Straight Running | Chain Pitch (in): | 1 in |
| Belt Thickness (mm): | 17.6 mm | Chain Width Measurement System: | Imperial |
| Chain Width (mm): | 101.6 mm | Chain Material Description: | Beige High Temperature |
| Chain Pitch (mm): | 25.4 mm | Belt Thickness (in): | 0.69 in |
| Rod/Pin Material: | Polypropylene | Straight or Side-Flex: | Straight Running |
| Chain Width (in): | 4 in | SG/RT Spacing (Pitches): | Every Pitch |
General Specifications
| Weight: | 0.07 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
