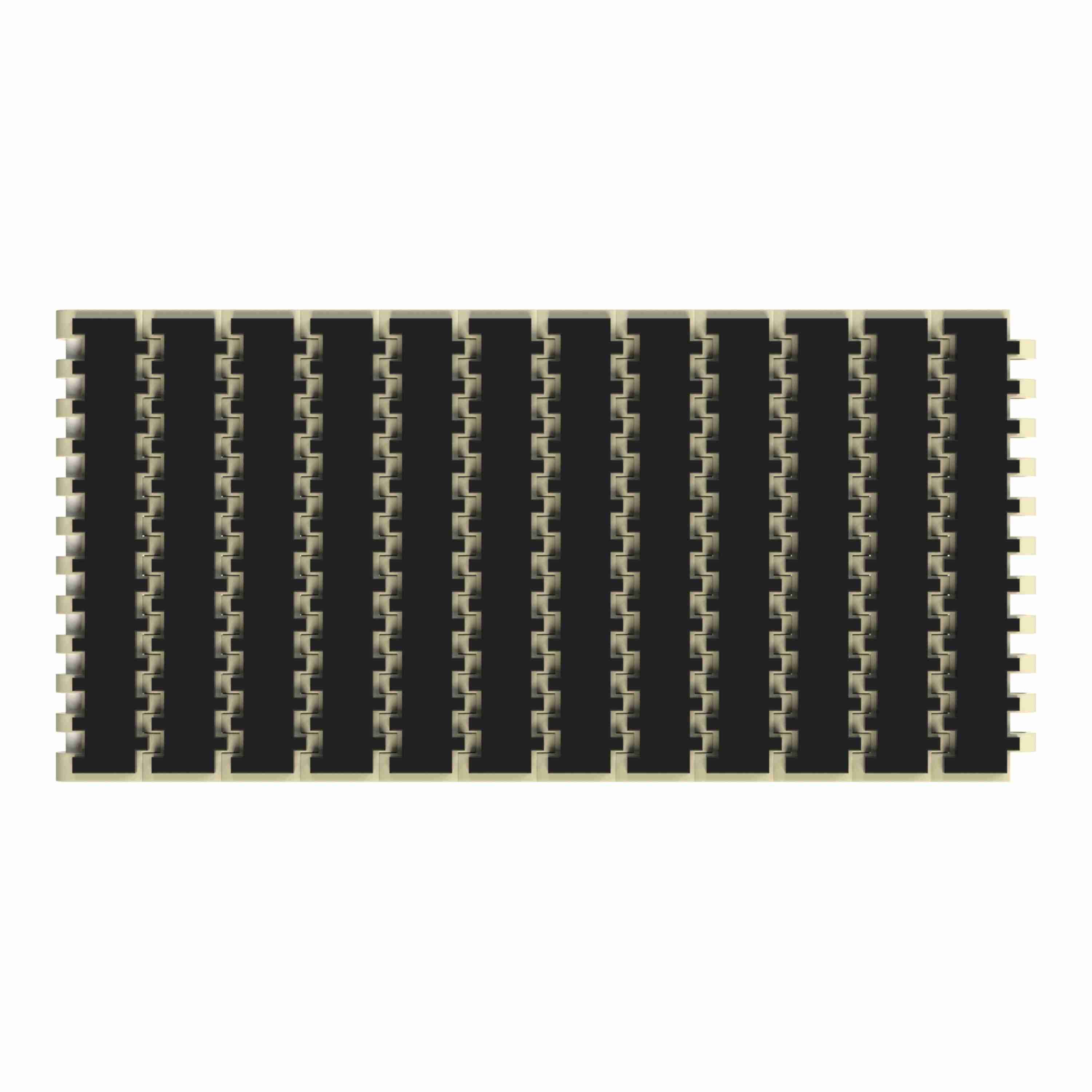

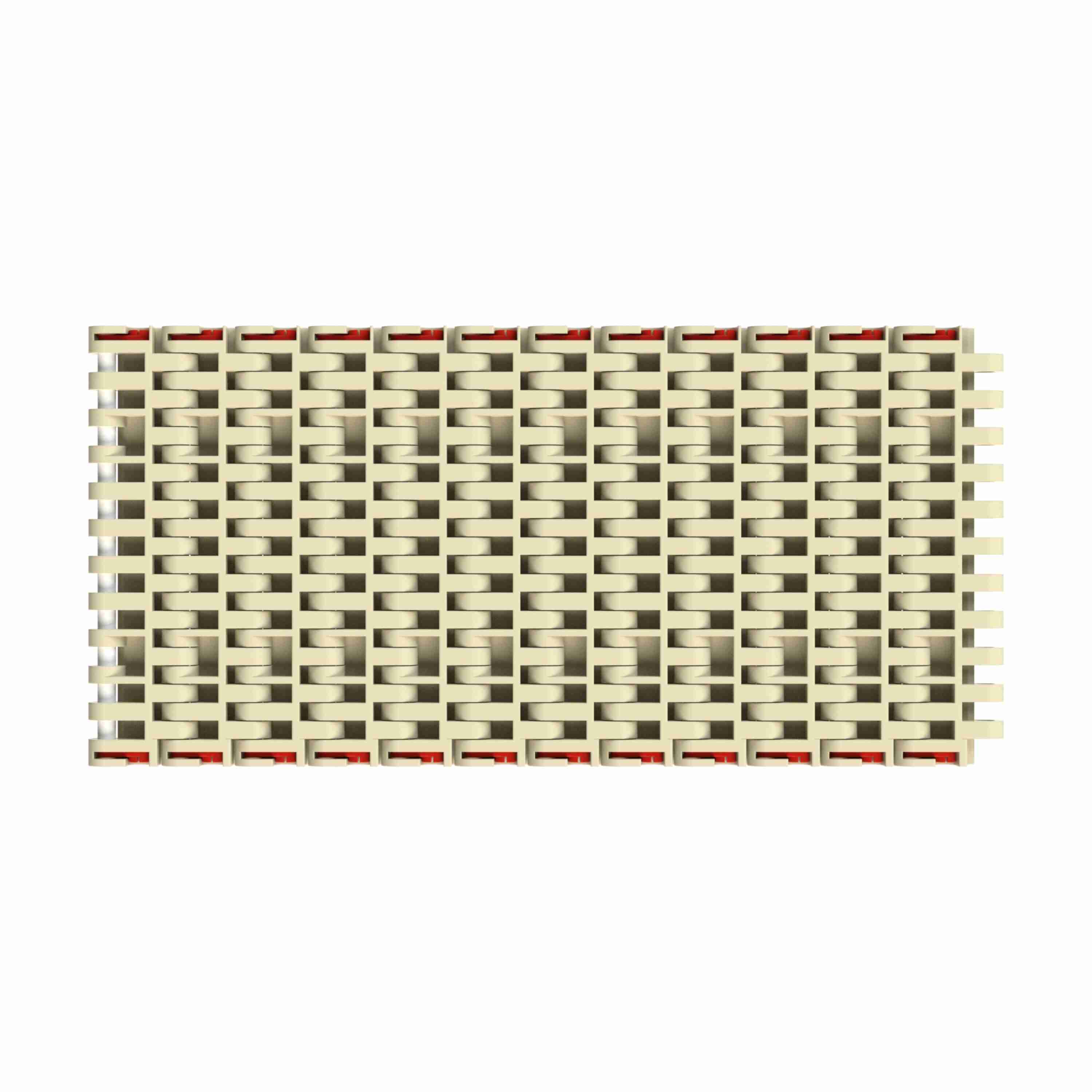

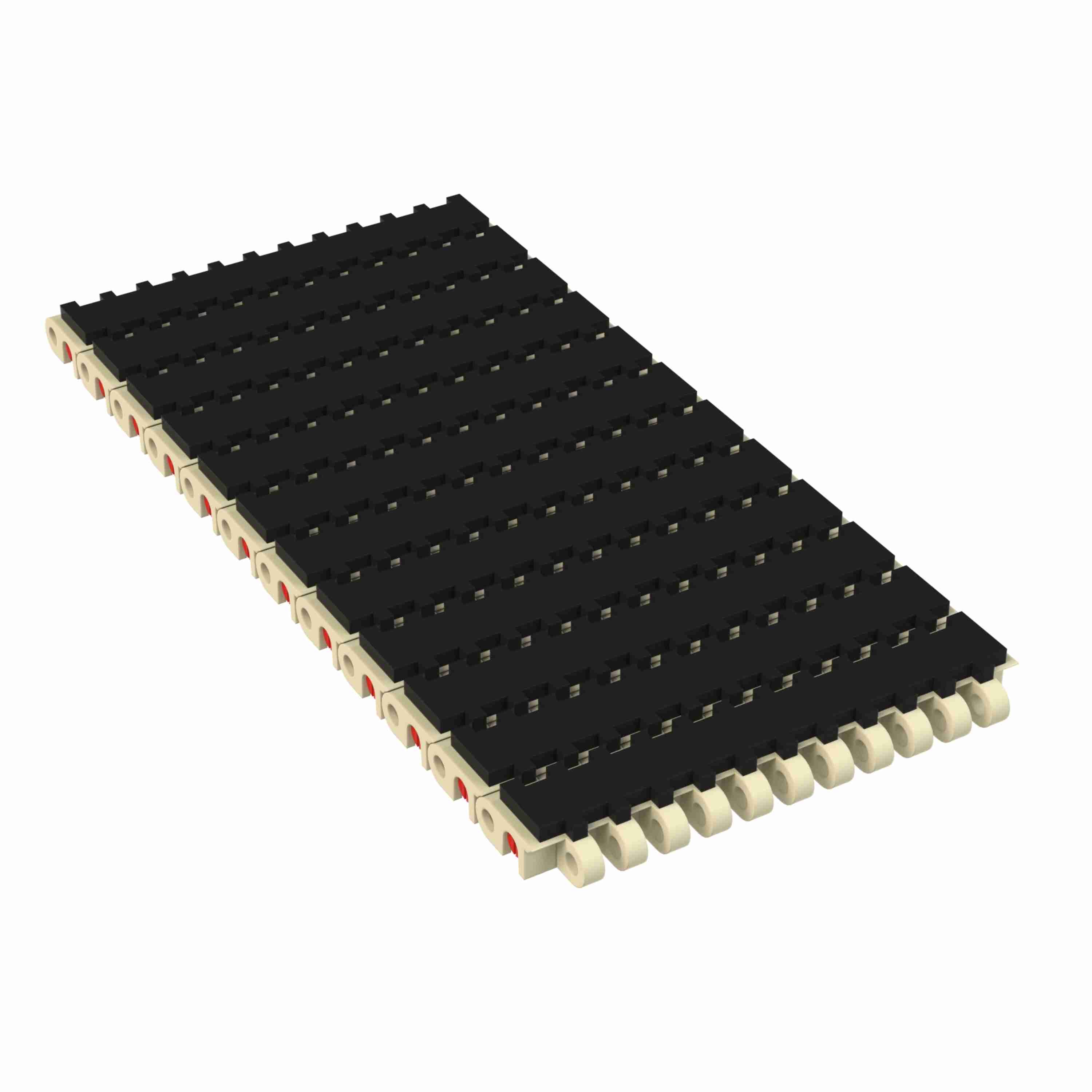

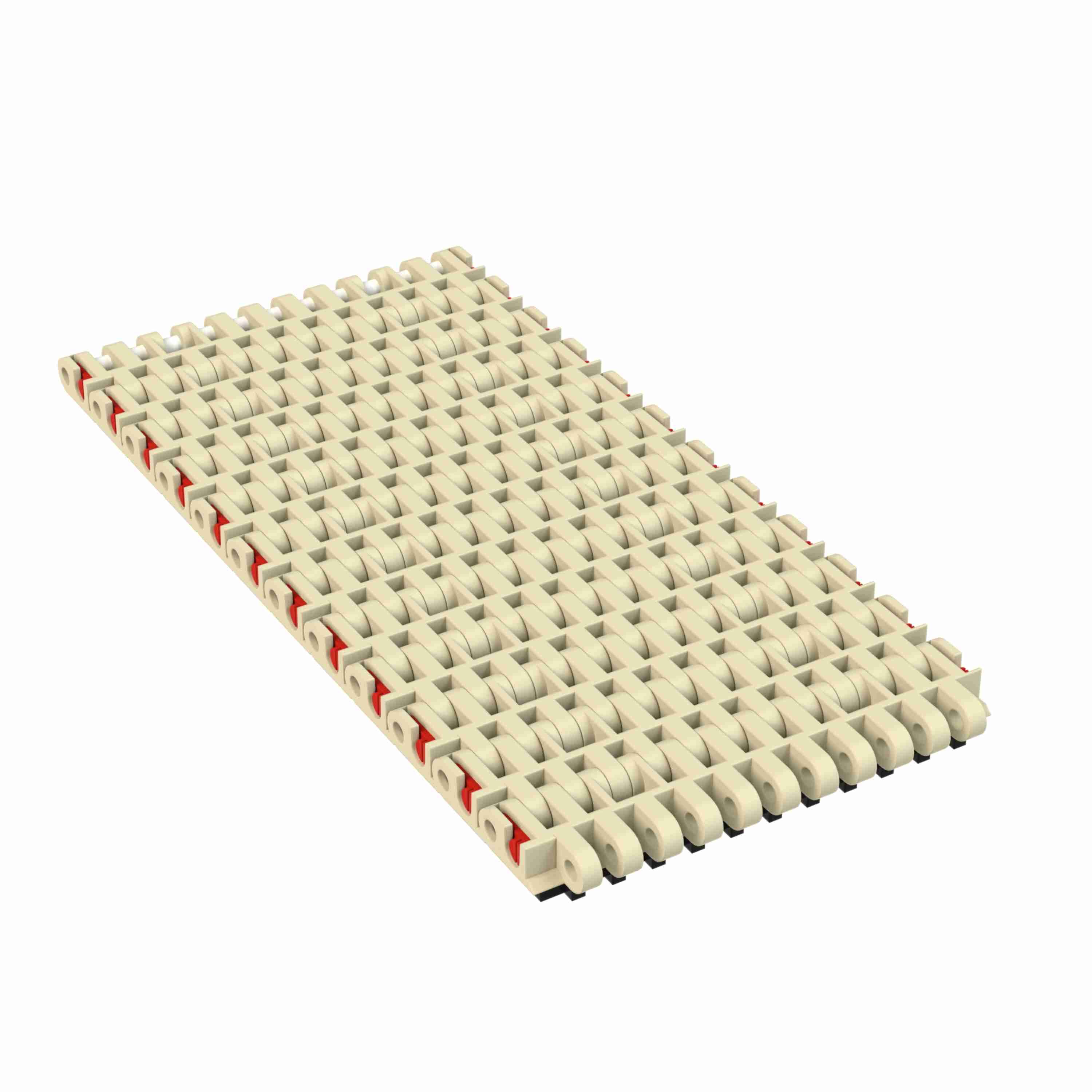

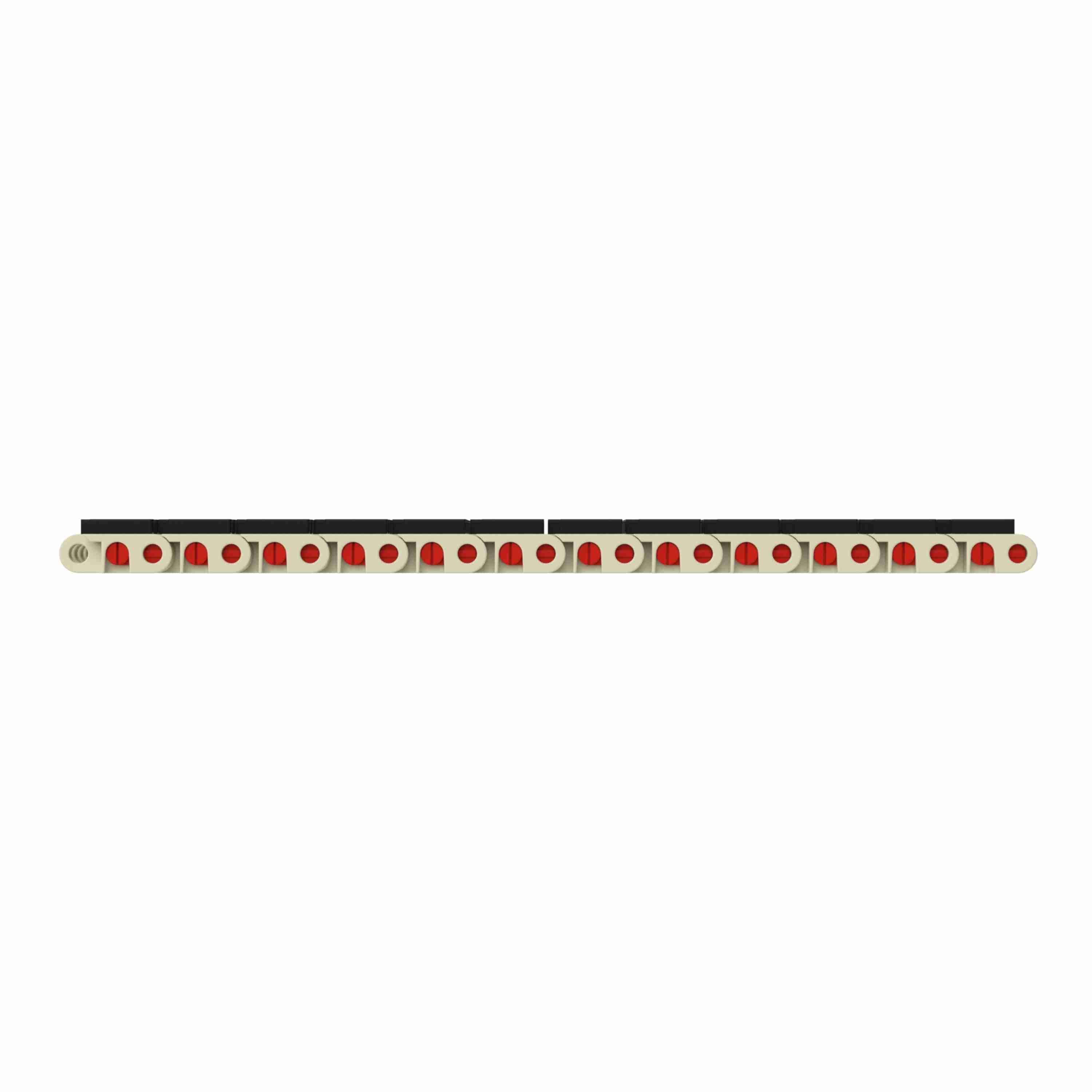

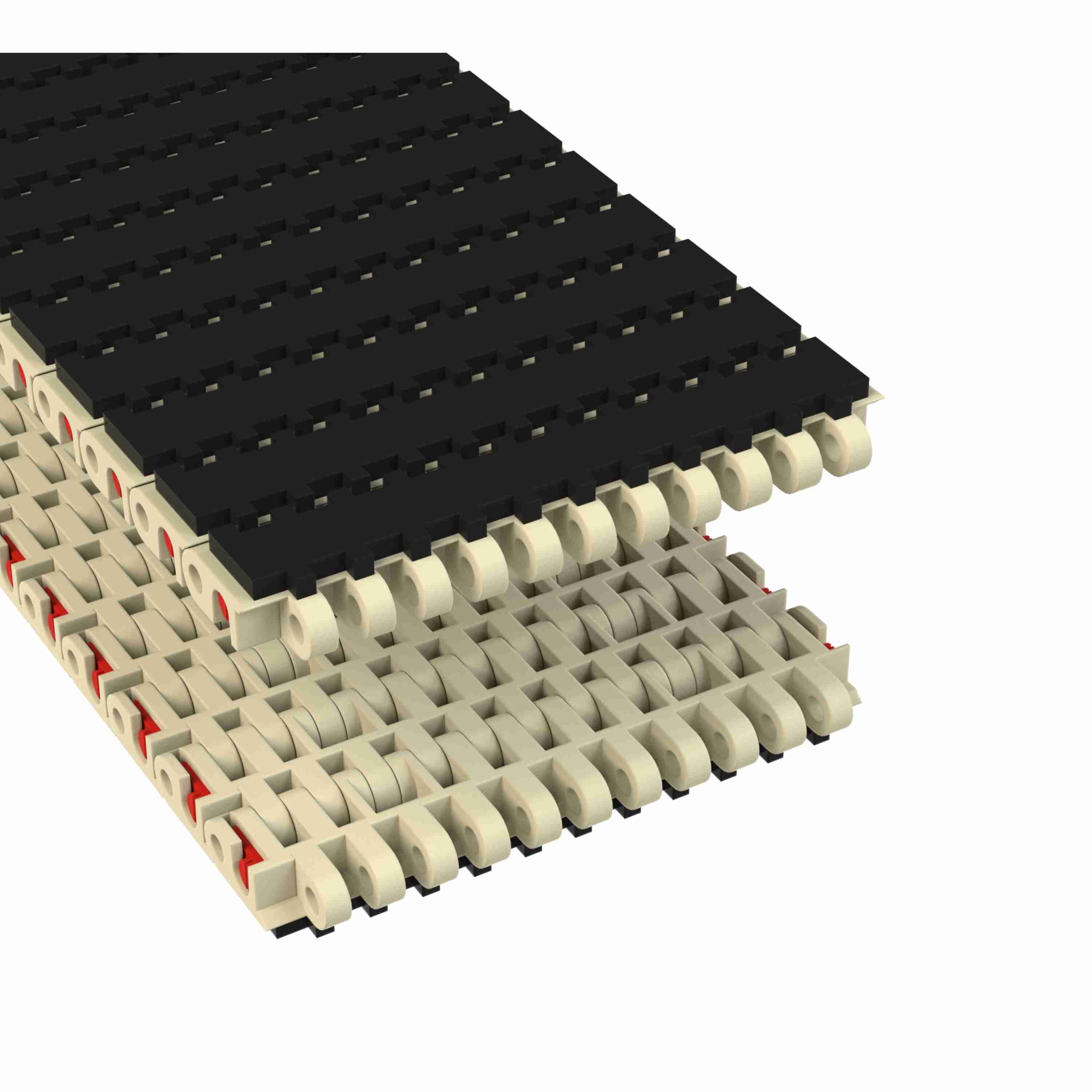

Rexnord 7705 SuperGrip™ Straight Running SuperGrip™, Material: Beige High Temperature, Width: 6in, Pitch: 1in - 81447672
Part #:10028426
Catalog #:81447672
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Surface Type: | SuperGrip™ | Chain Pitch (mm): | 25.4 mm |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Straight or Side-Flex: | Straight Running |
| Chain Pitch (in): | 1 in | Chain Strength (N): | 3,956 N |
| Chain Width (in): | 6 in | Product Type: | Straight Running |
| Product Group: | Modular Plastic Belts | Product Line: | Plastic Modular Chain and Belt |
| SG/RT Spacing (Pitches): | Every Pitch | Belt Thickness (in): | 0.69 in |
| Chain Number: | 7705 SuperGrip™ | Chain Width (mm): | 152.4 mm |
| Chain Material Description: | Beige High Temperature | Chain Width Measurement System: | Imperial |
| Chain Material: | HT | Series: | MatTop 7700 Series Chain |
| Belt Thickness (mm): | 17.6 mm | Open Area (%): | 3 % |
| Chain Strength (lb): | 891 lb | Rod/Pin Material: | Polypropylene |
General Specifications
| Weight: | 0.08 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
