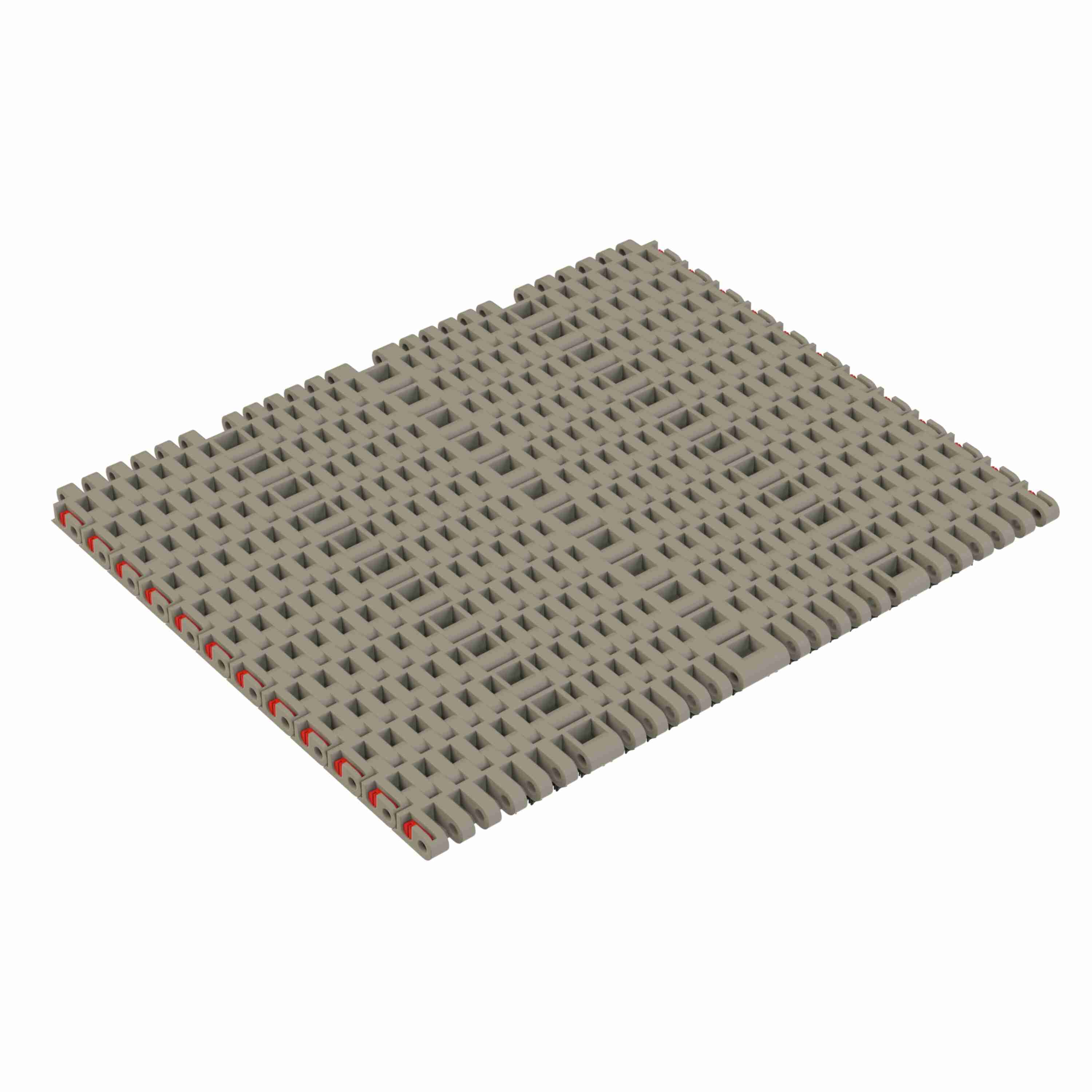

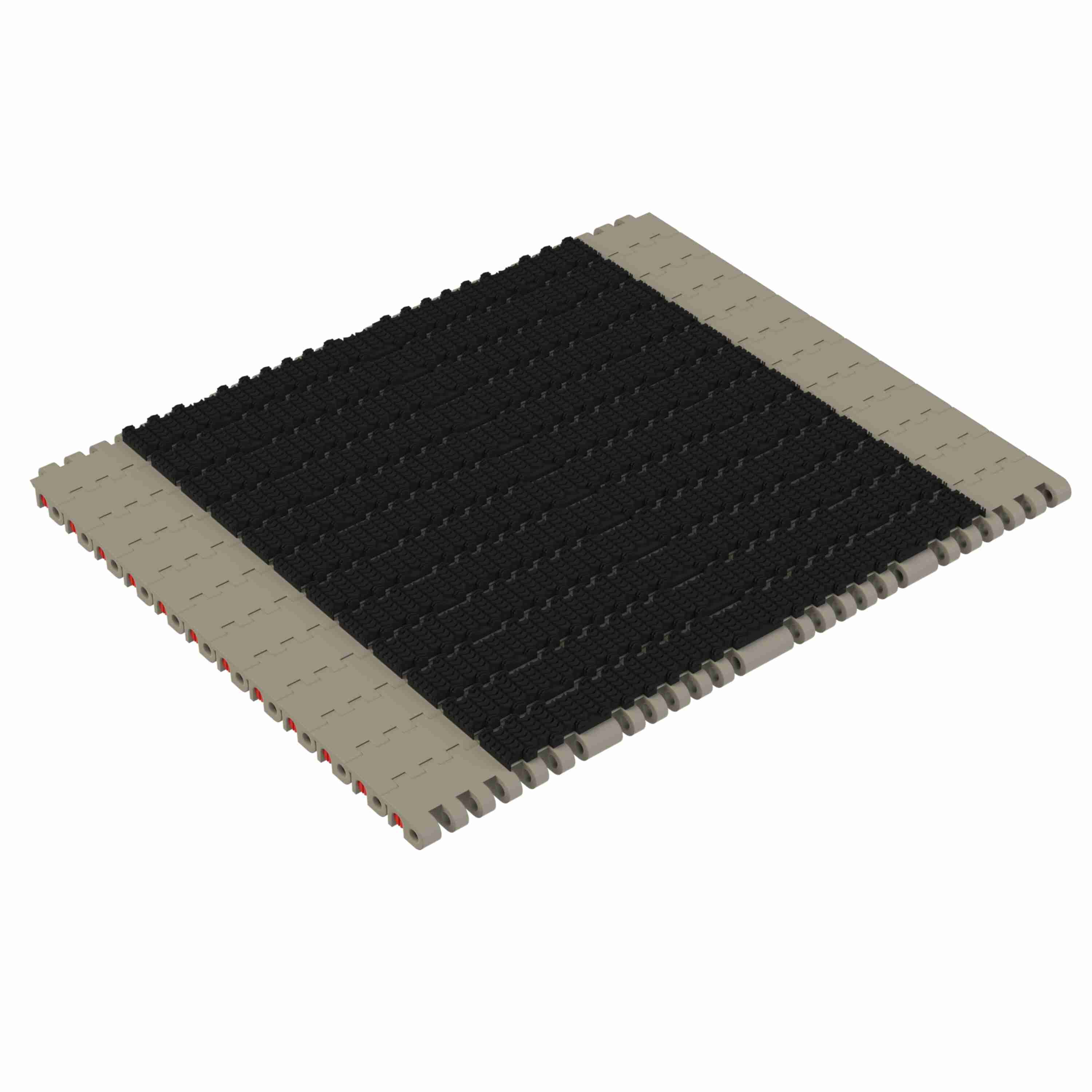

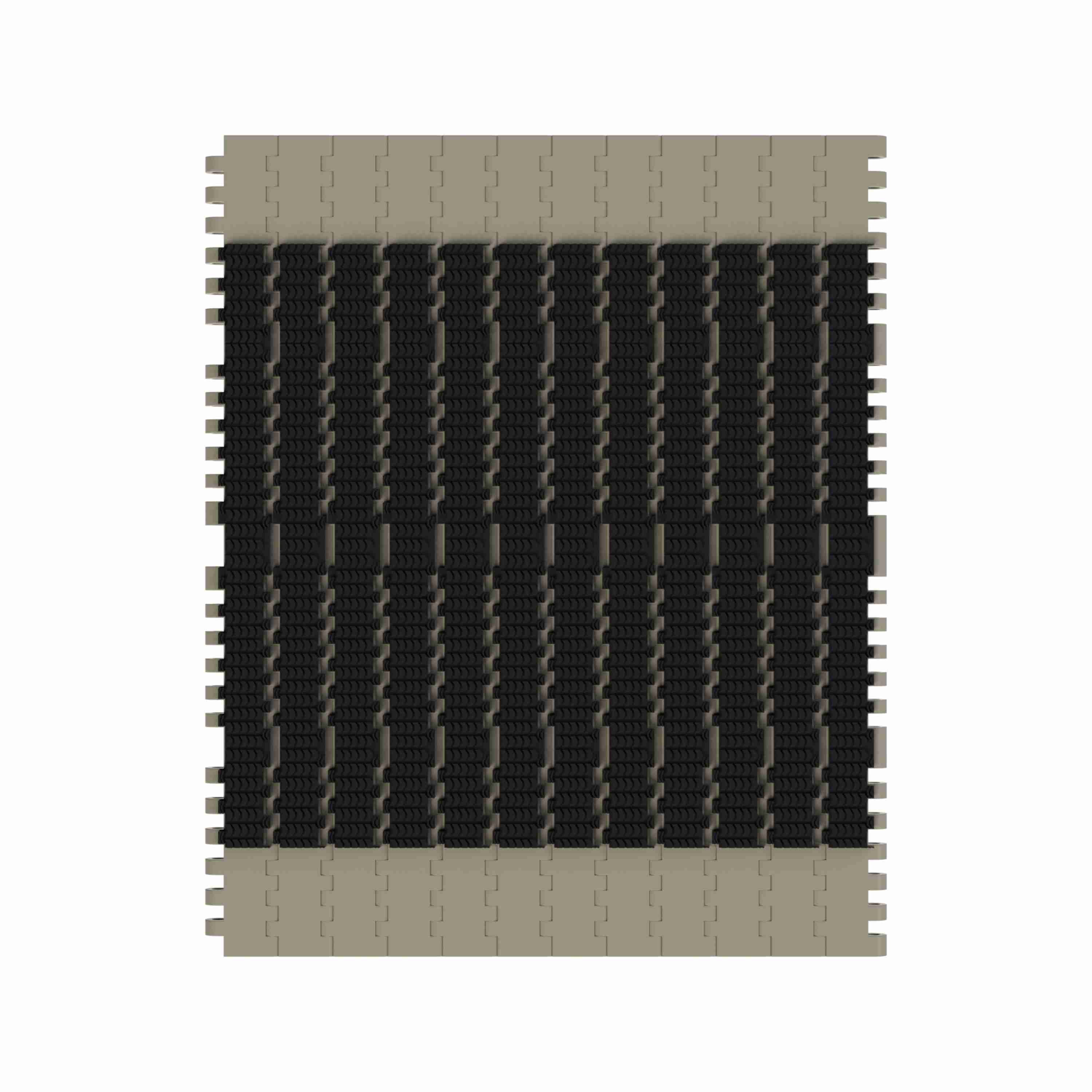

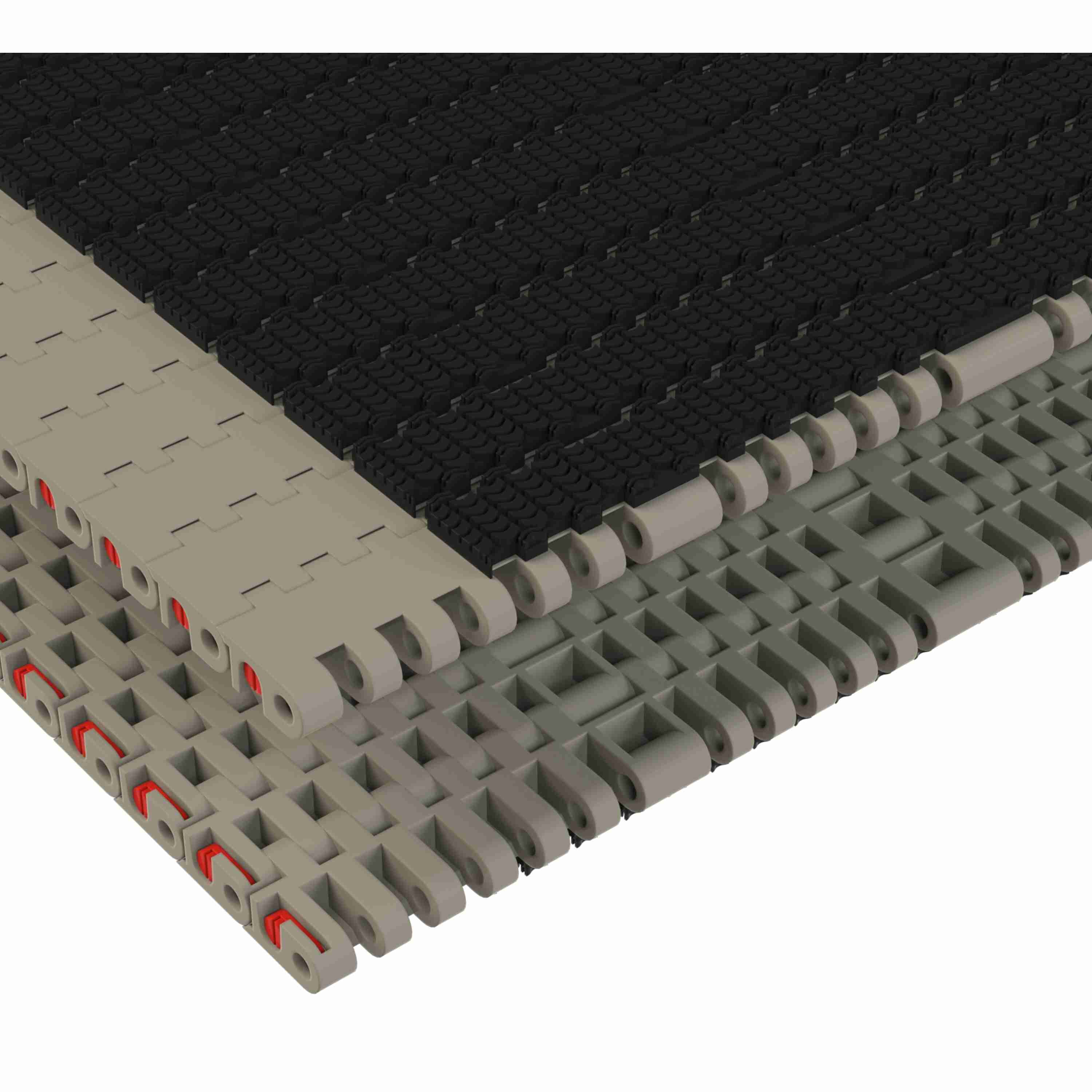

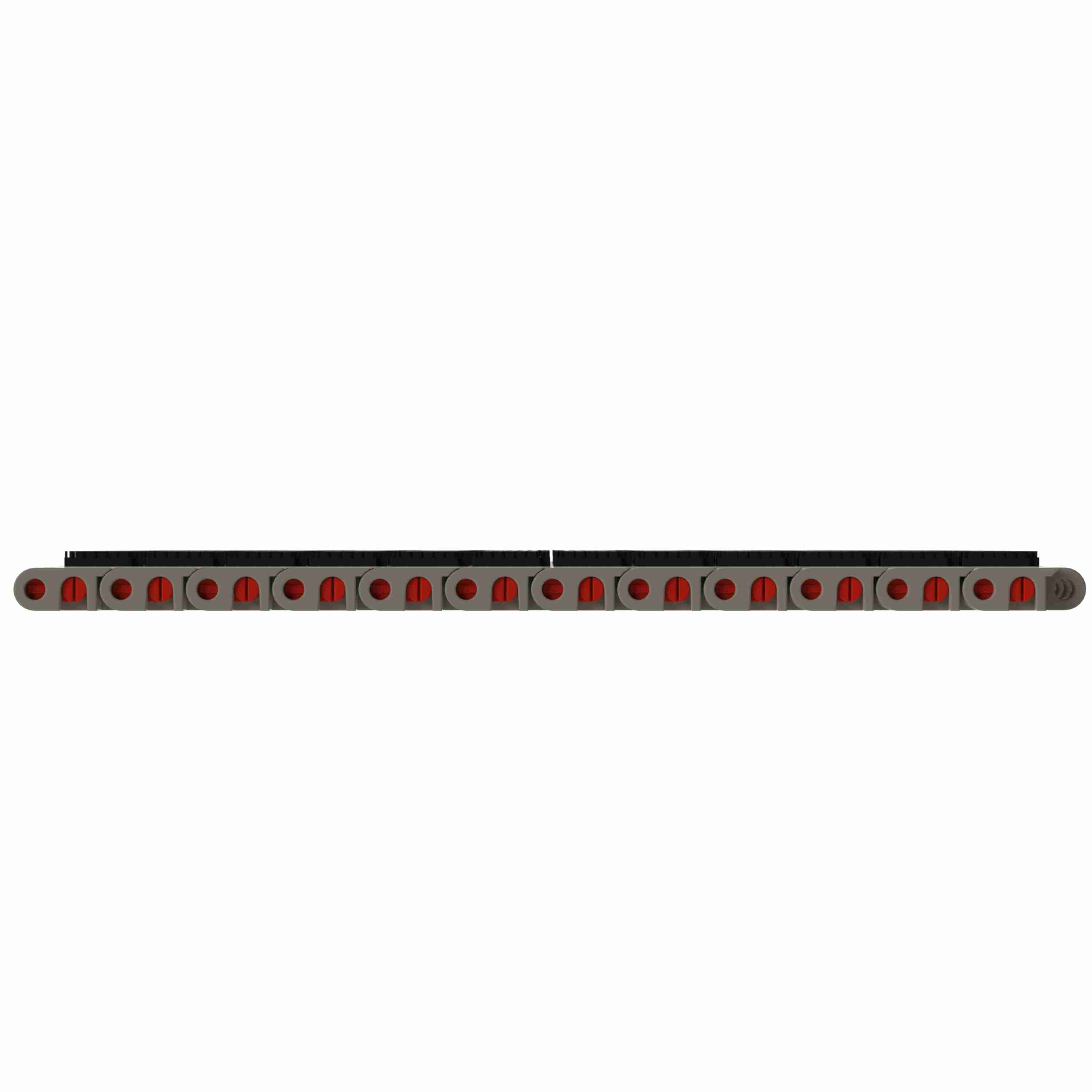

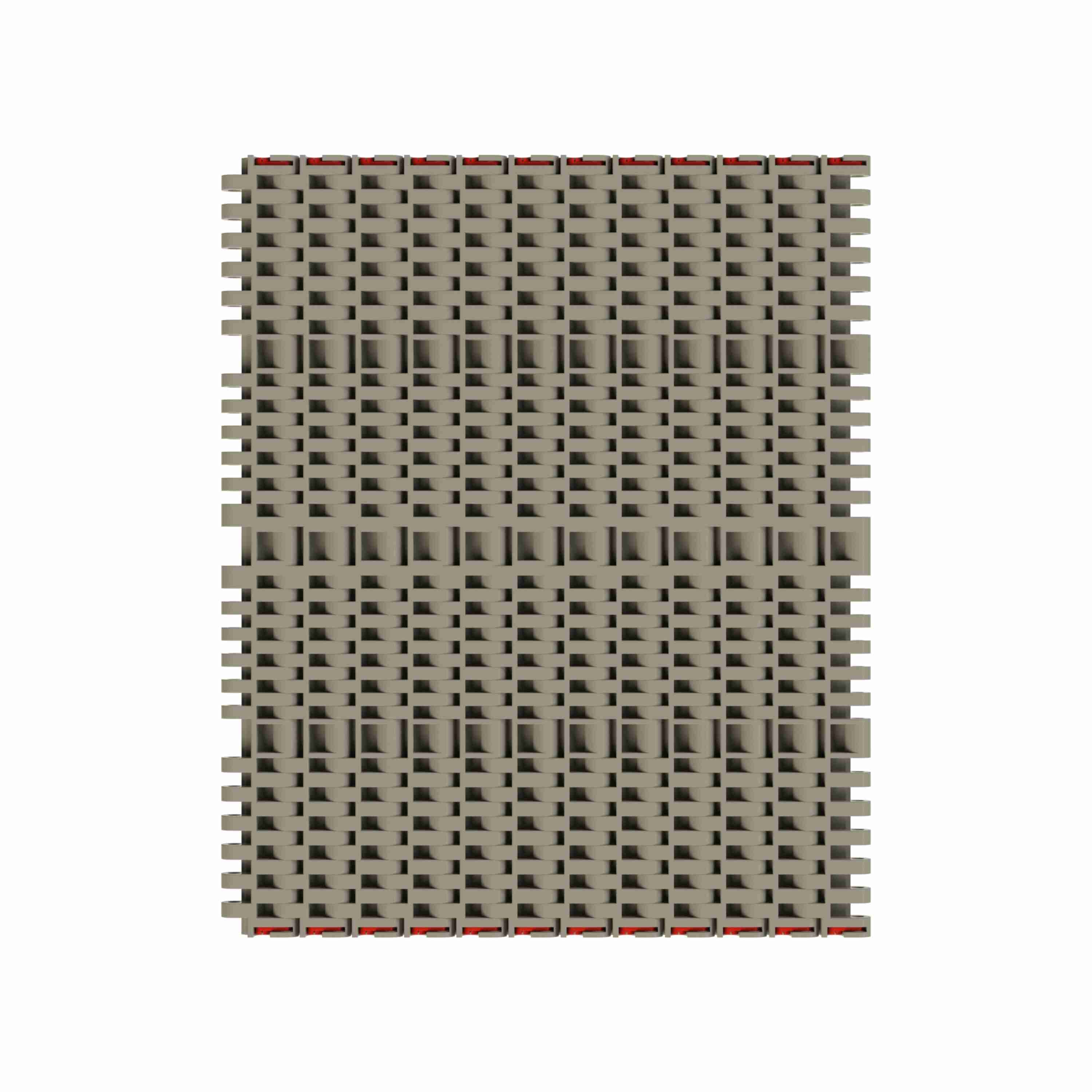

Rexnord 7705 SuperGrip™ Straight Running SuperGrip™, Material: Grey Tough Composite, Width: 15in, Pitch: 1in - 10384013
Part #:10384013
Catalog #:10384013
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | MatTop 7700 Series Chain | Open Area (%): | 3 % |
| Chain Number: | 7705 SuperGrip™ | Straight or Side-Flex: | Straight Running |
| Chain Width (mm): | 381 mm | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Belt Thickness (mm): | 17.6 mm | Chain Pitch (in): | 1 in |
| Product Line: | Plastic Modular Chain and Belt | Product Group: | Modular Plastic Belts |
| Rod/Pin Material: | Acetal | Chain Material: | GTC |
| Surface Type: | SuperGrip™ | Chain Pitch (mm): | 25.4 mm |
| Chain Width Measurement System: | Imperial | Chain Strength (N/m): | 32,098 N·m |
| Product Type: | Straight Running | Belt Thickness (in): | 0.69 in |
| Chain Width (in): | 15 in | SG/RT Spacing (Pitches): | Every Pitch |
| Chain Strength (lb/ft): | 2,200 lb/ft | Chain Material Description: | Grey Tough Composite |
General Specifications
| Weight: | 0.27 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
