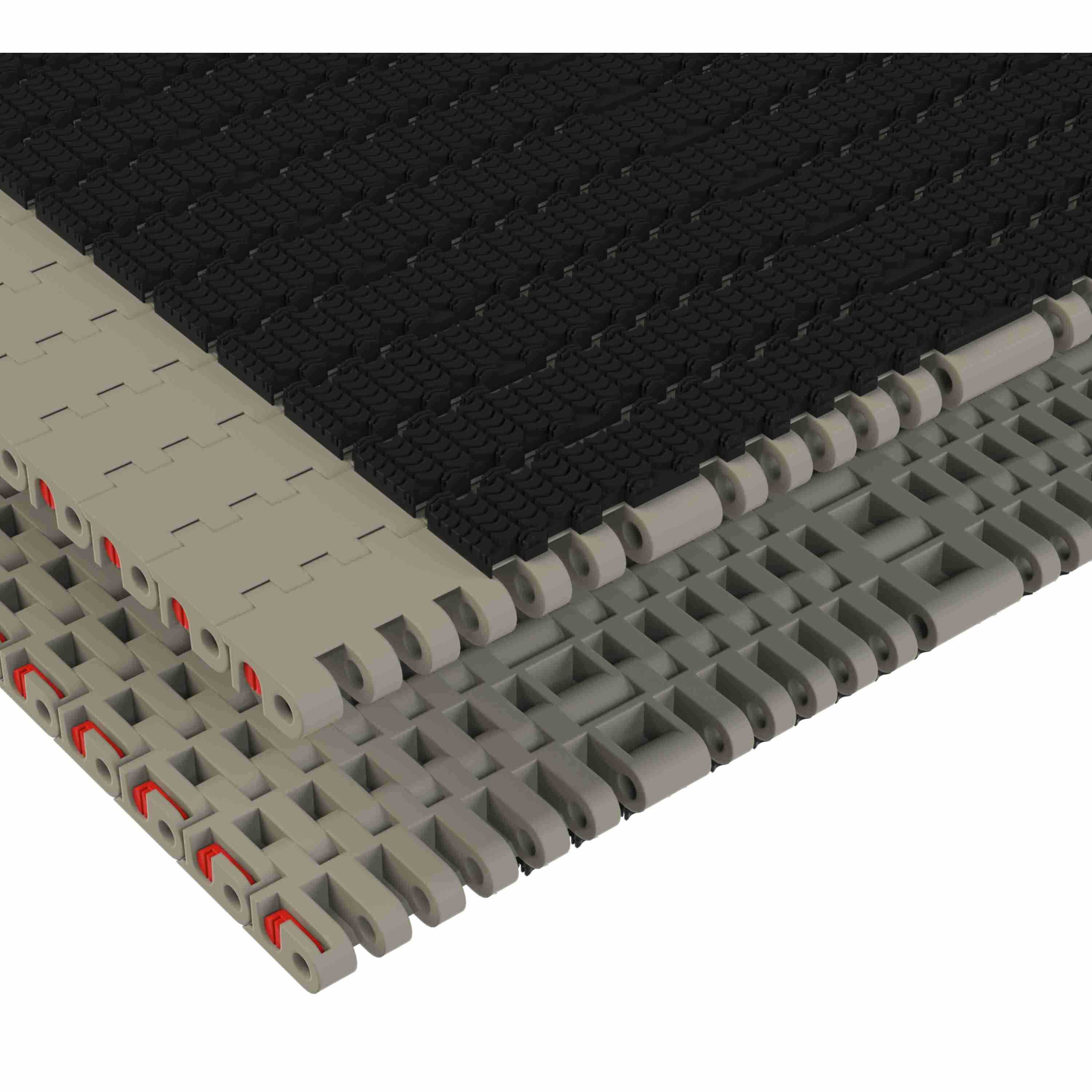

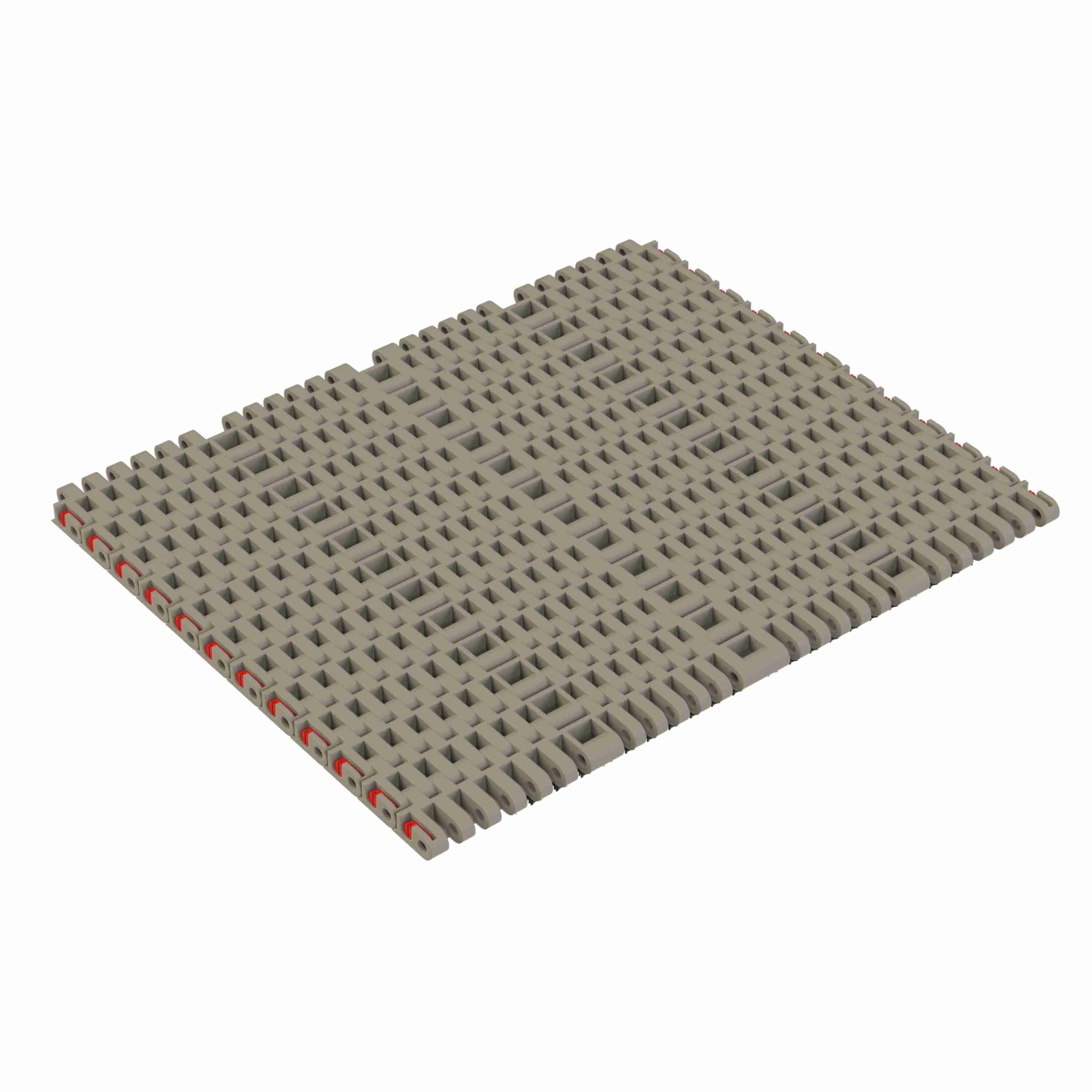

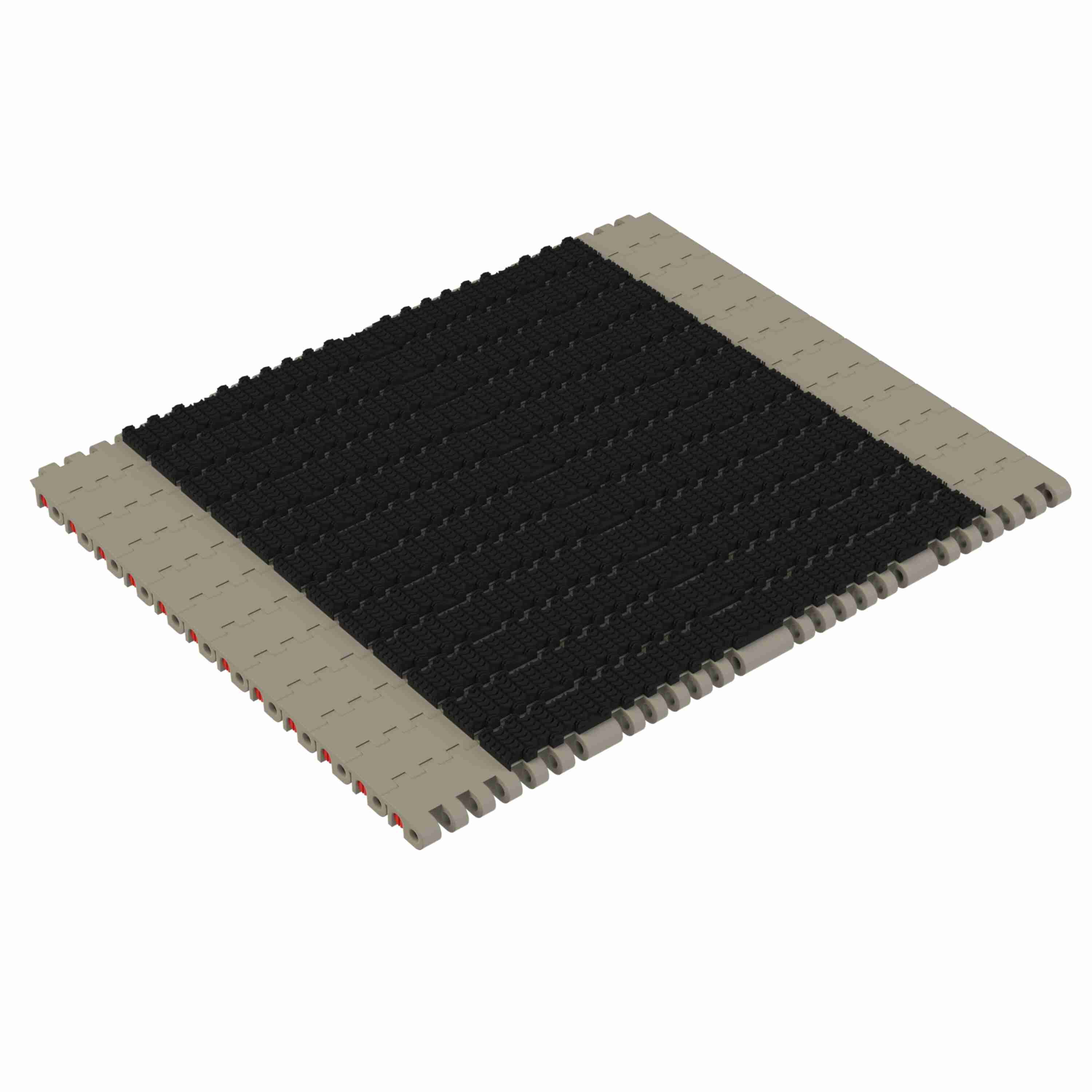

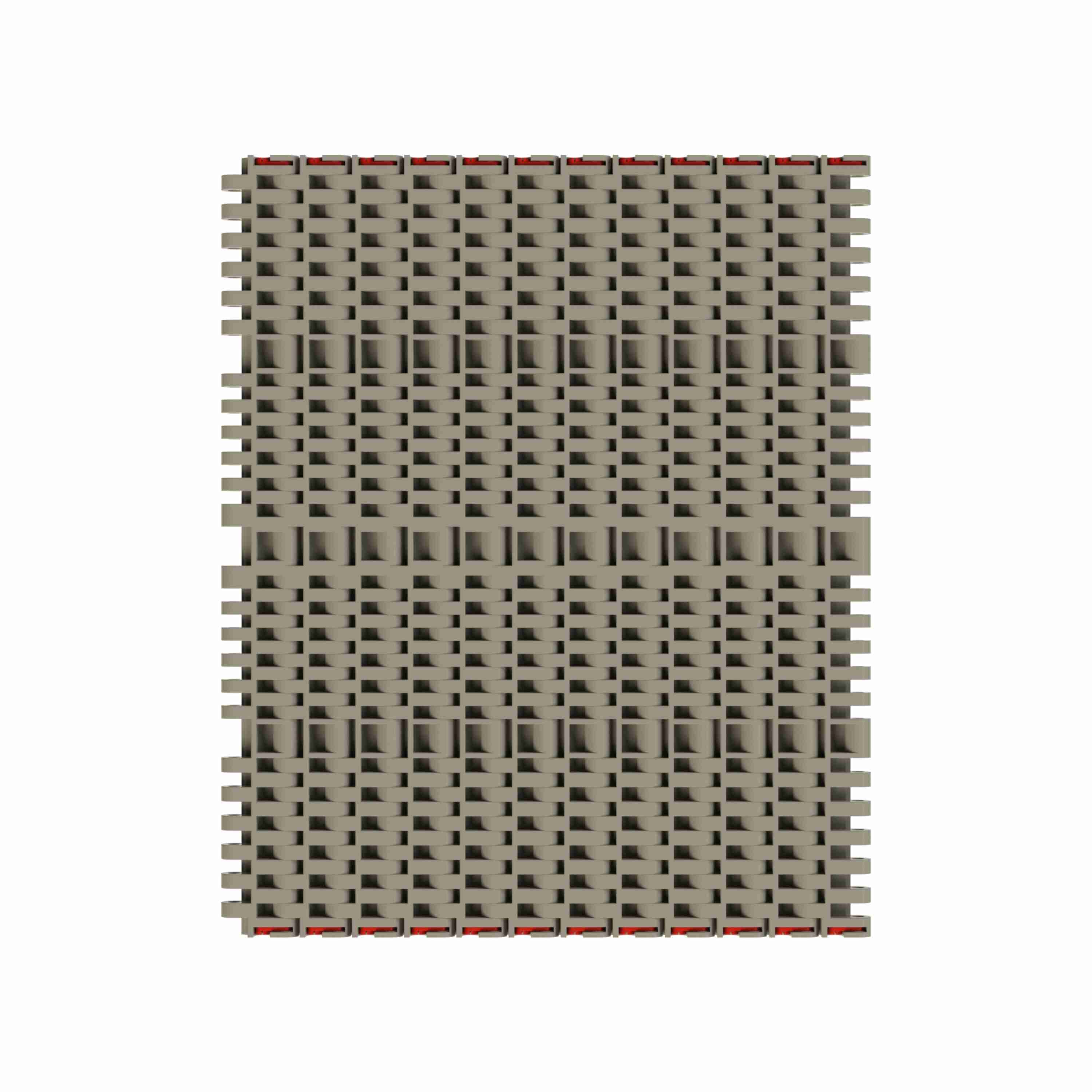

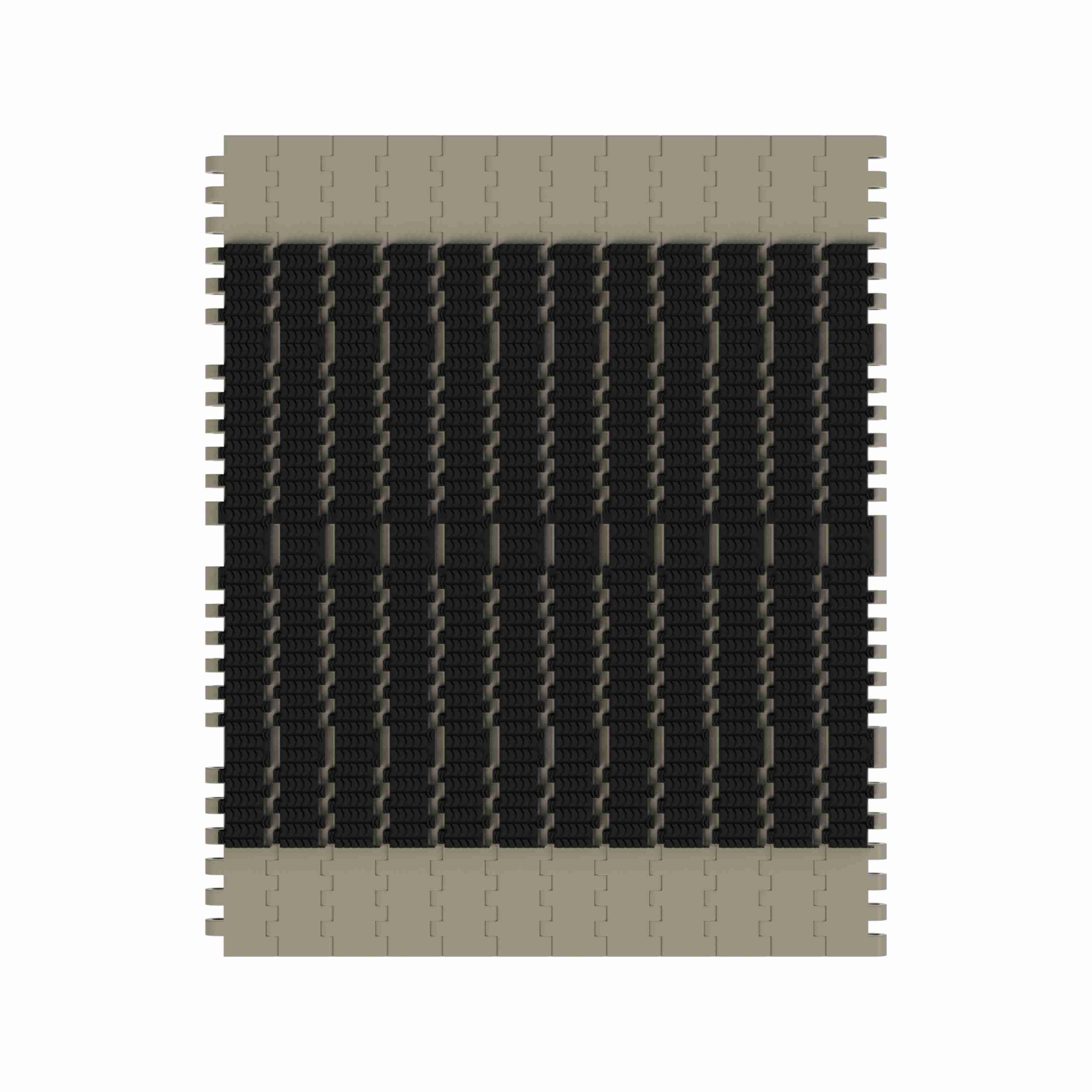

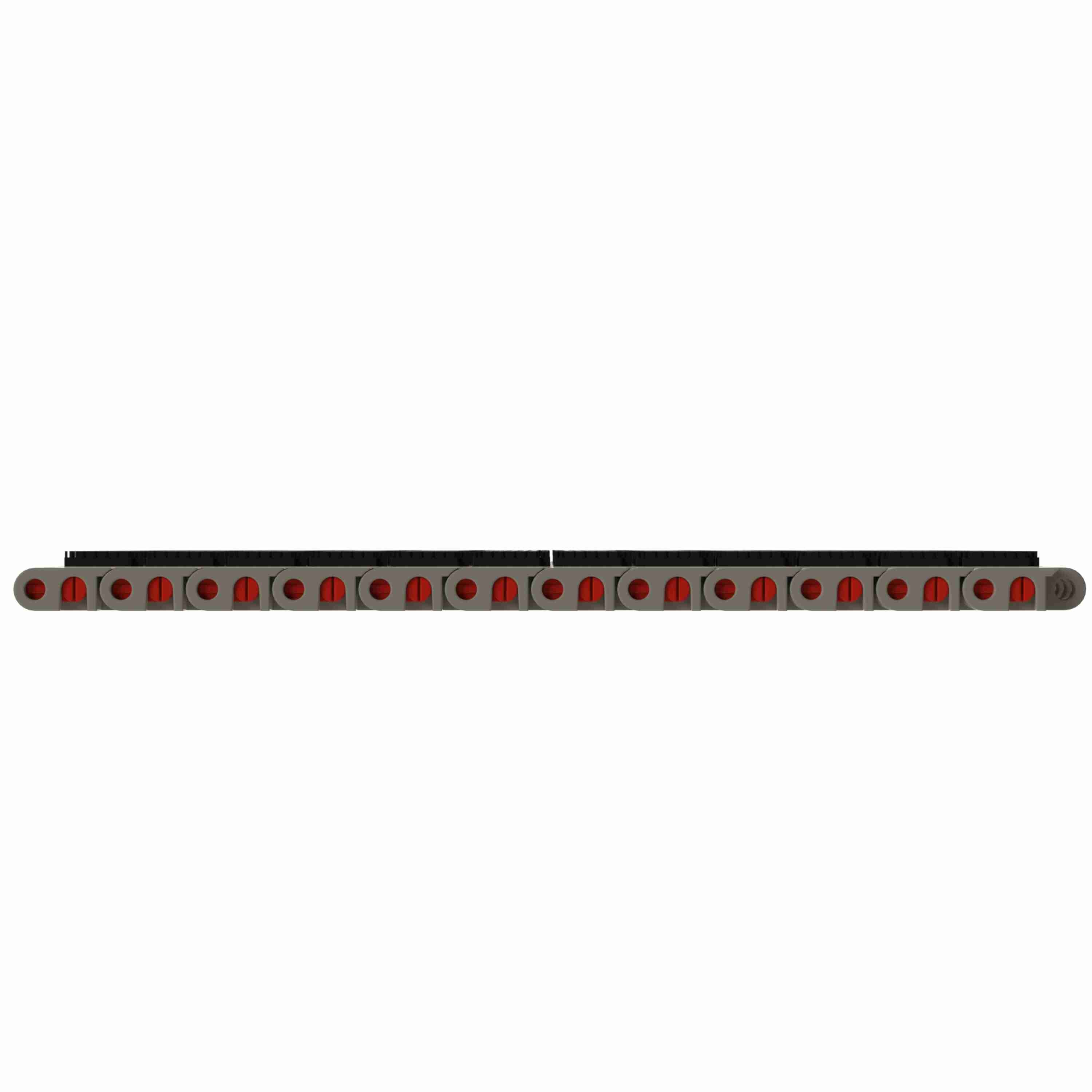

Rexnord 7705 SuperGrip™ Straight Running SuperGrip™, Material: Grey Tough Composite, Width: 24in, Pitch: 1in - 10384016
Part #:10384016
Catalog #:10384016
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Number: | 7705 SuperGrip™ | Chain Pitch (mm): | 25.4 mm |
| Number of SuperGrip/RubberTop Rows: | 1 Row | Product Line: | Plastic Modular Chain and Belt |
| Chain Strength (lb/ft): | 2,200 lb/ft | Chain Width Measurement System: | Imperial |
| Surface Type: | SuperGrip™ | Product Group: | Modular Plastic Belts |
| Open Area (%): | 3 % | Chain Width (in): | 24 in |
| Chain Pitch (in): | 1 in | SG/RT Spacing (Pitches): | Every Pitch |
| Belt Thickness (mm): | 17.6 mm | Product Type: | Straight Running |
| Chain Material: | GTC | Chain Width (mm): | 609.6 mm |
| Series: | MatTop 7700 Series Chain | Straight or Side-Flex: | Straight Running |
| Chain Material Description: | Grey Tough Composite | Belt Thickness (in): | 0.69 in |
| Rod/Pin Material: | Acetal | Chain Strength (N/m): | 32,098 N·m |
General Specifications
| Weight: | 0.44 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
