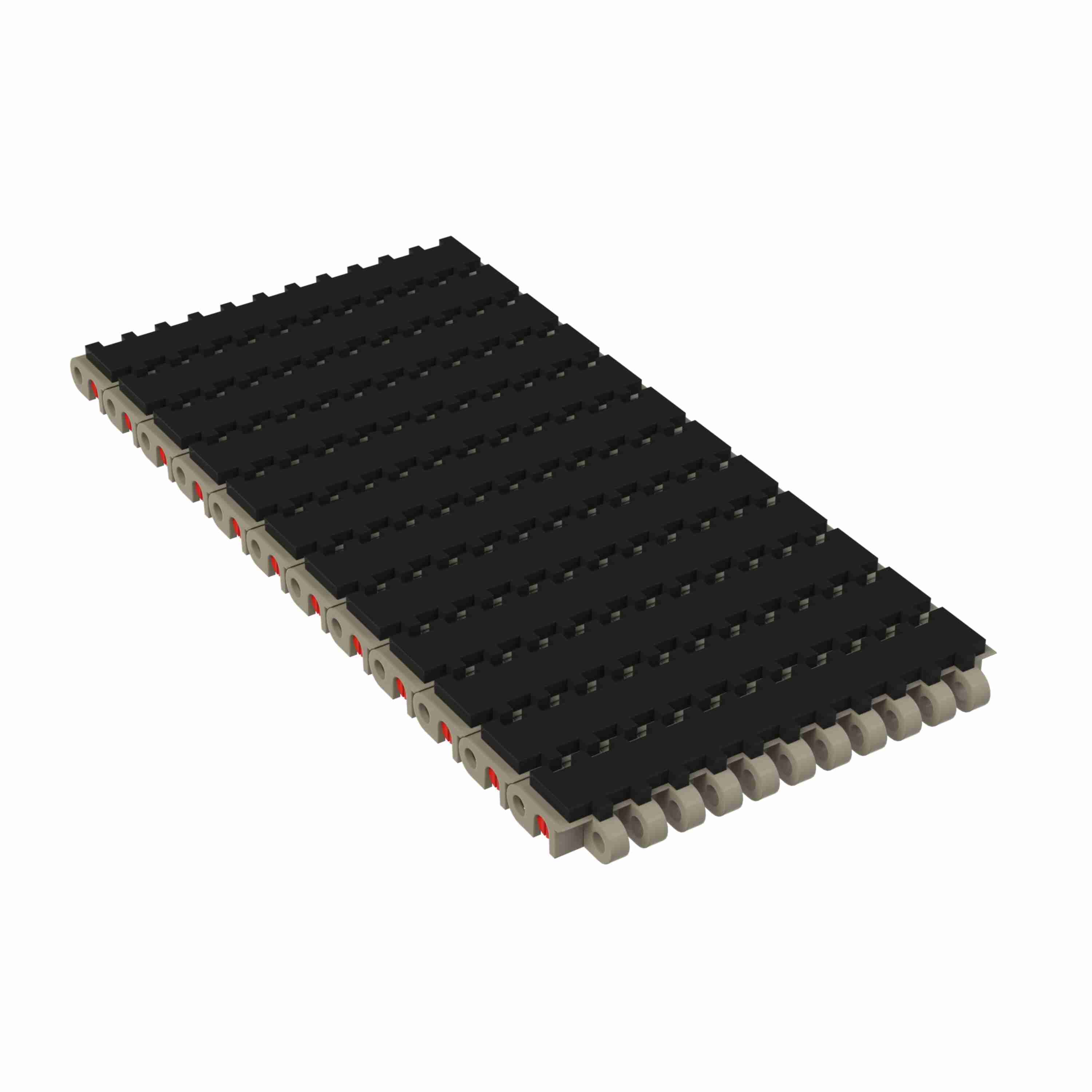

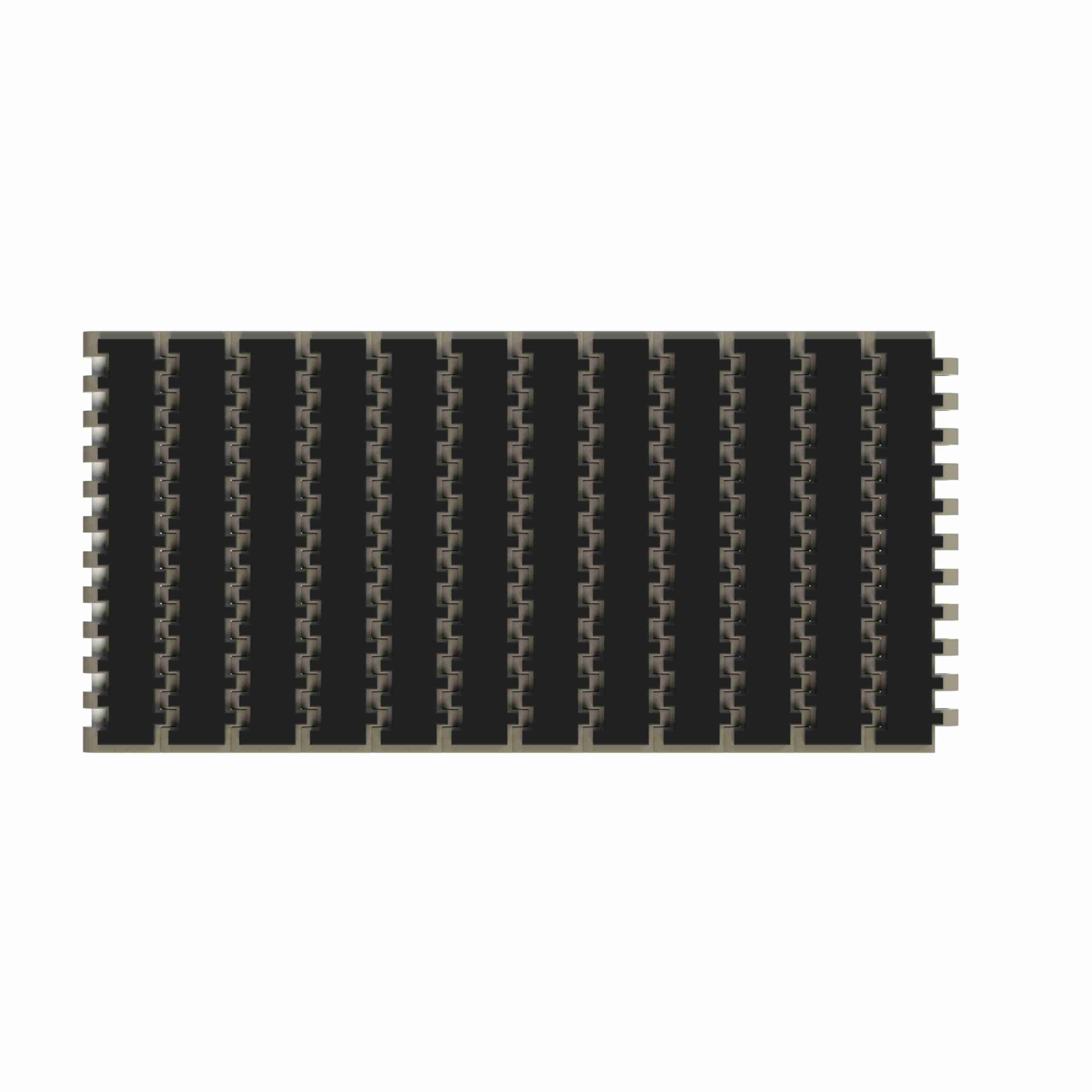

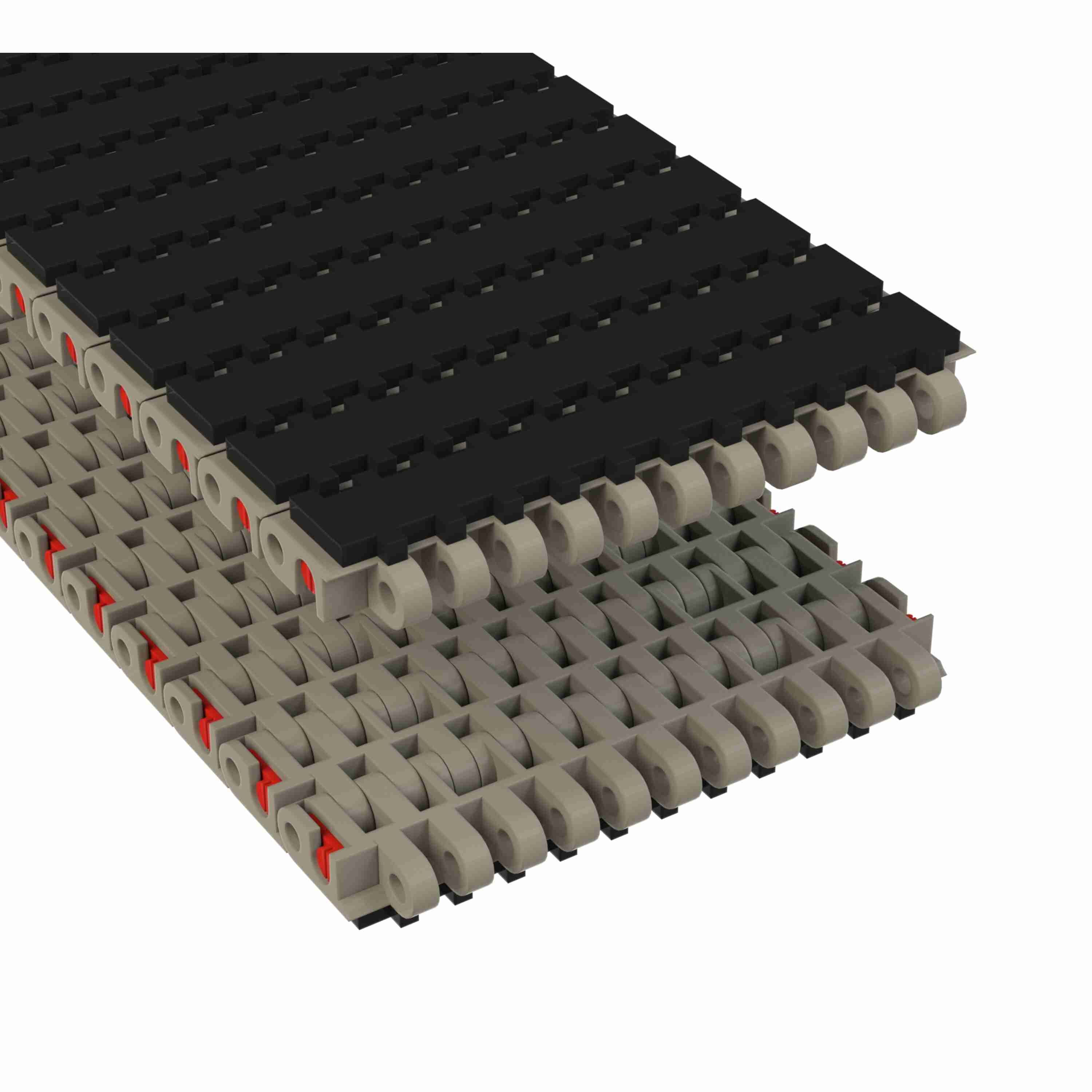

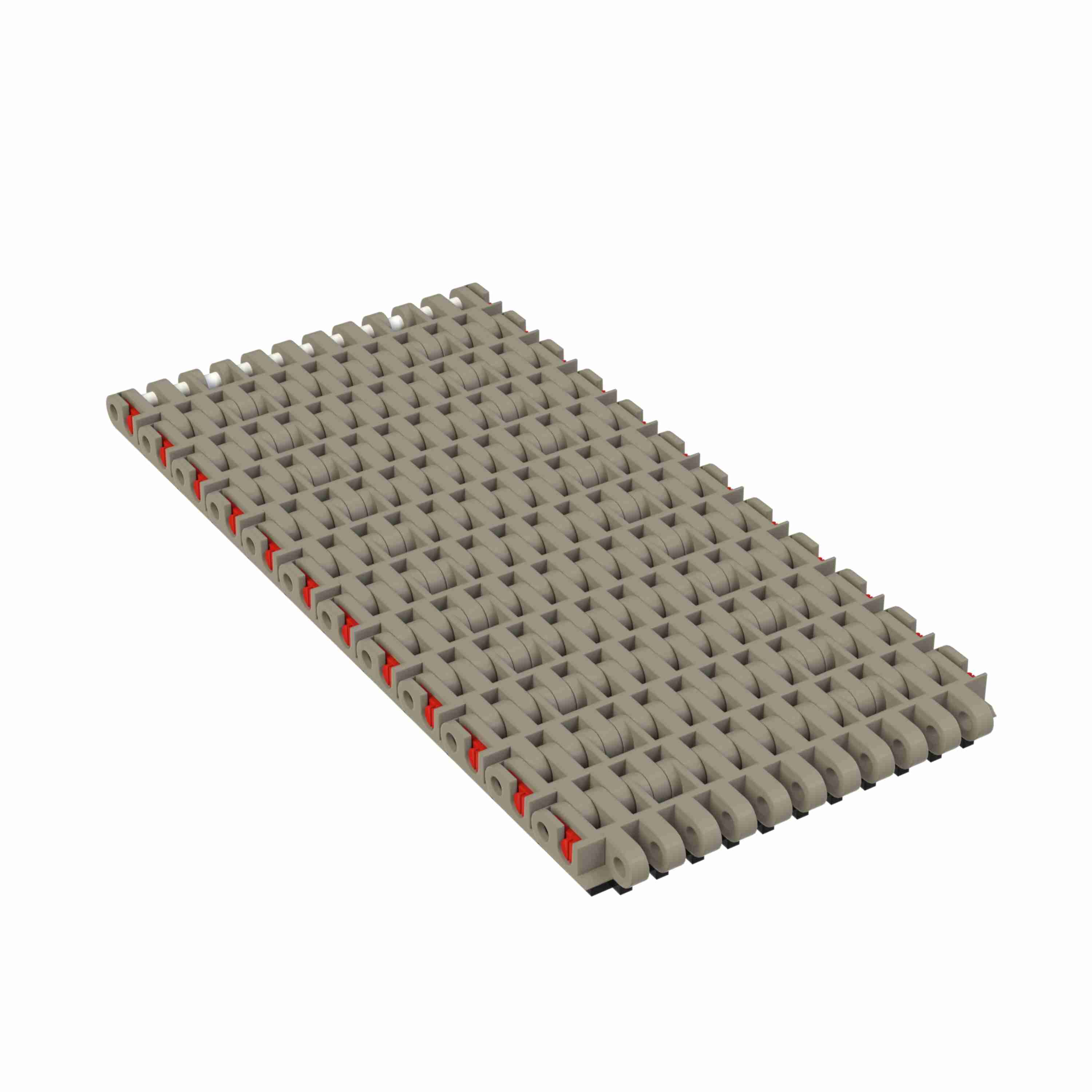

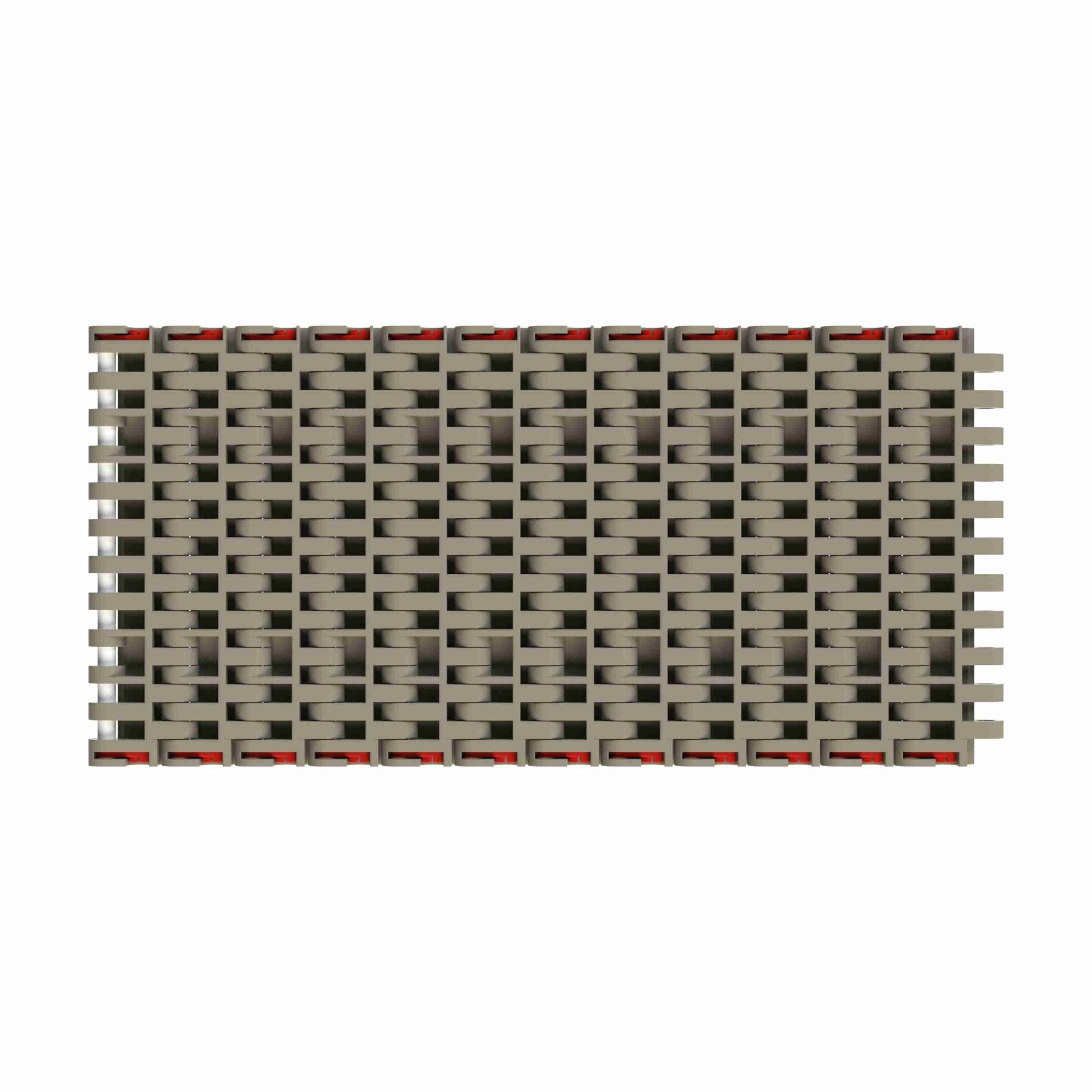

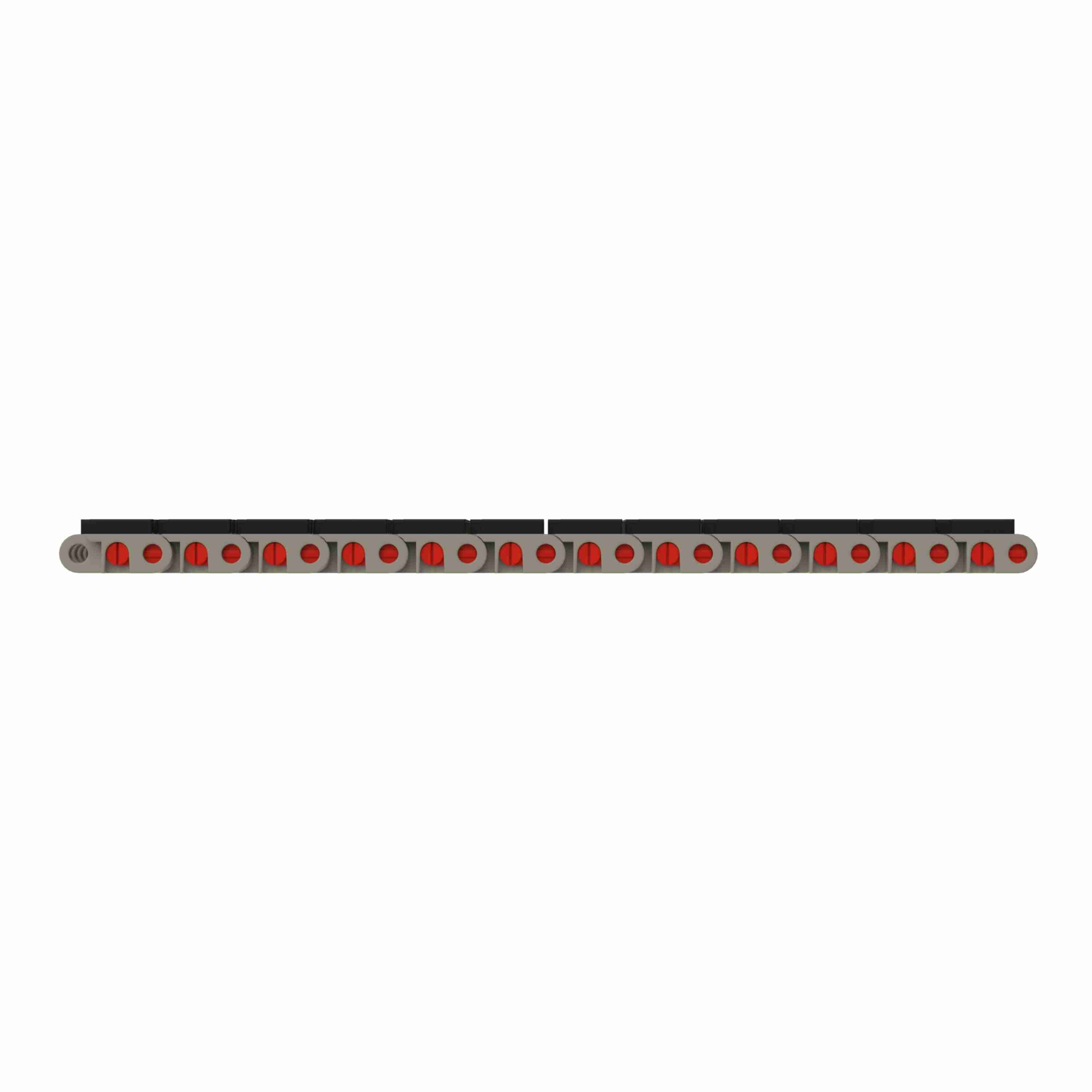

Rexnord 7705 SuperGrip™ Straight Running SuperGrip™, Material: Grey Tough Composite, Width: 6in, Pitch: 1in - 81447682
Part #:10028429
Catalog #:81447682
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Belt Thickness (in): | 0.69 in | Chain Width (mm): | 152.4 mm |
| Chain Number: | 7705 SuperGrip™ | Rod/Pin Material: | Acetal |
| Chain Material: | GTC | Surface Type: | SuperGrip™ |
| SG/RT Spacing (Pitches): | Every Pitch | Chain Width Measurement System: | Imperial |
| Chain Pitch (in): | 1 in | Belt Thickness (mm): | 17.6 mm |
| Chain Strength (lb): | 1,100 lb | Number of SuperGrip/RubberTop Rows: | 1 Row |
| Chain Pitch (mm): | 25.4 mm | Chain Material Description: | Grey Tough Composite |
| Open Area (%): | 3 % | Chain Width (in): | 6 in |
| Product Group: | Modular Plastic Belts | Straight or Side-Flex: | Straight Running |
| Series: | MatTop 7700 Series Chain | Product Line: | Plastic Modular Chain and Belt |
| Product Type: | Straight Running | Chain Strength (N): | 4,884 N |
General Specifications
| Weight: | 0.12 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
