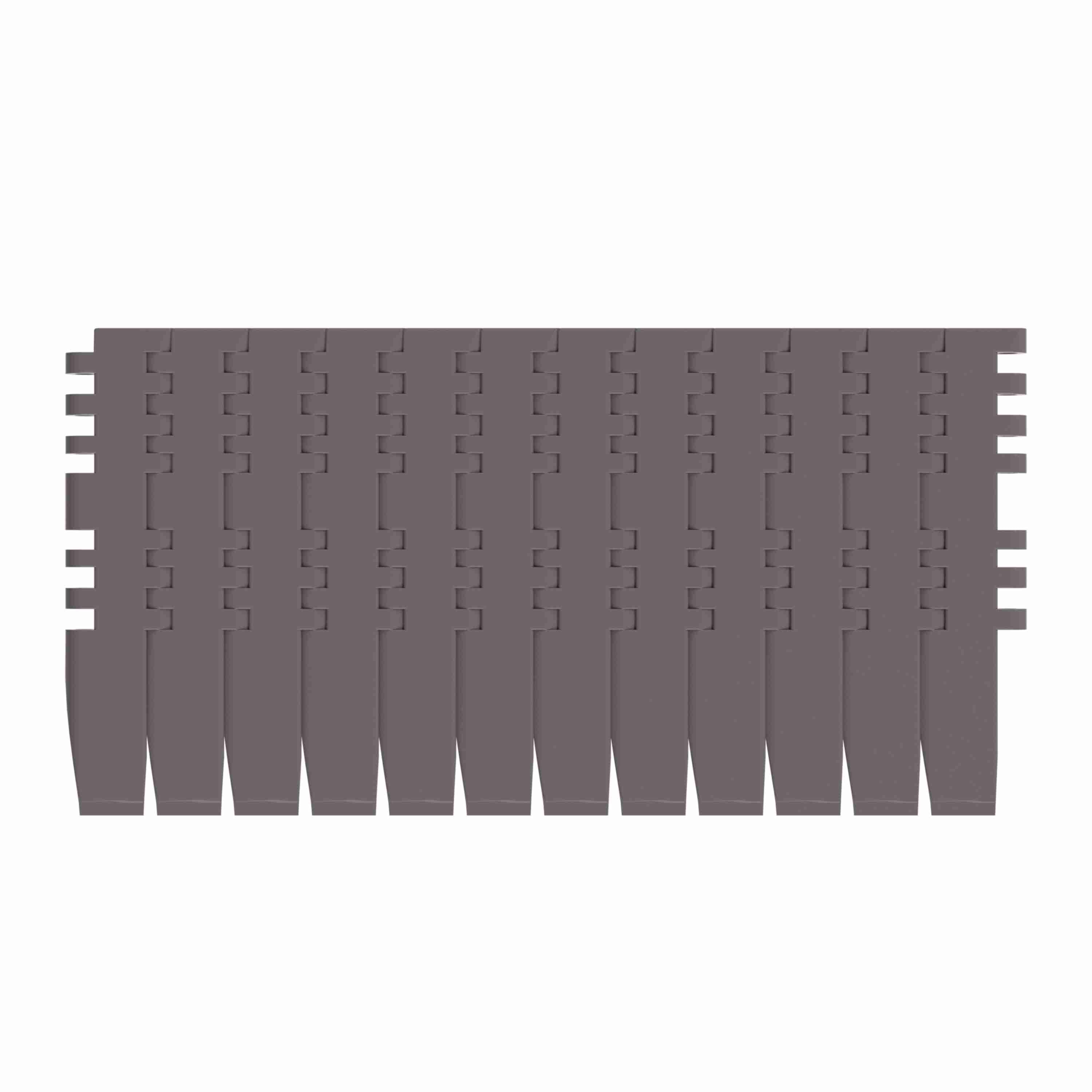

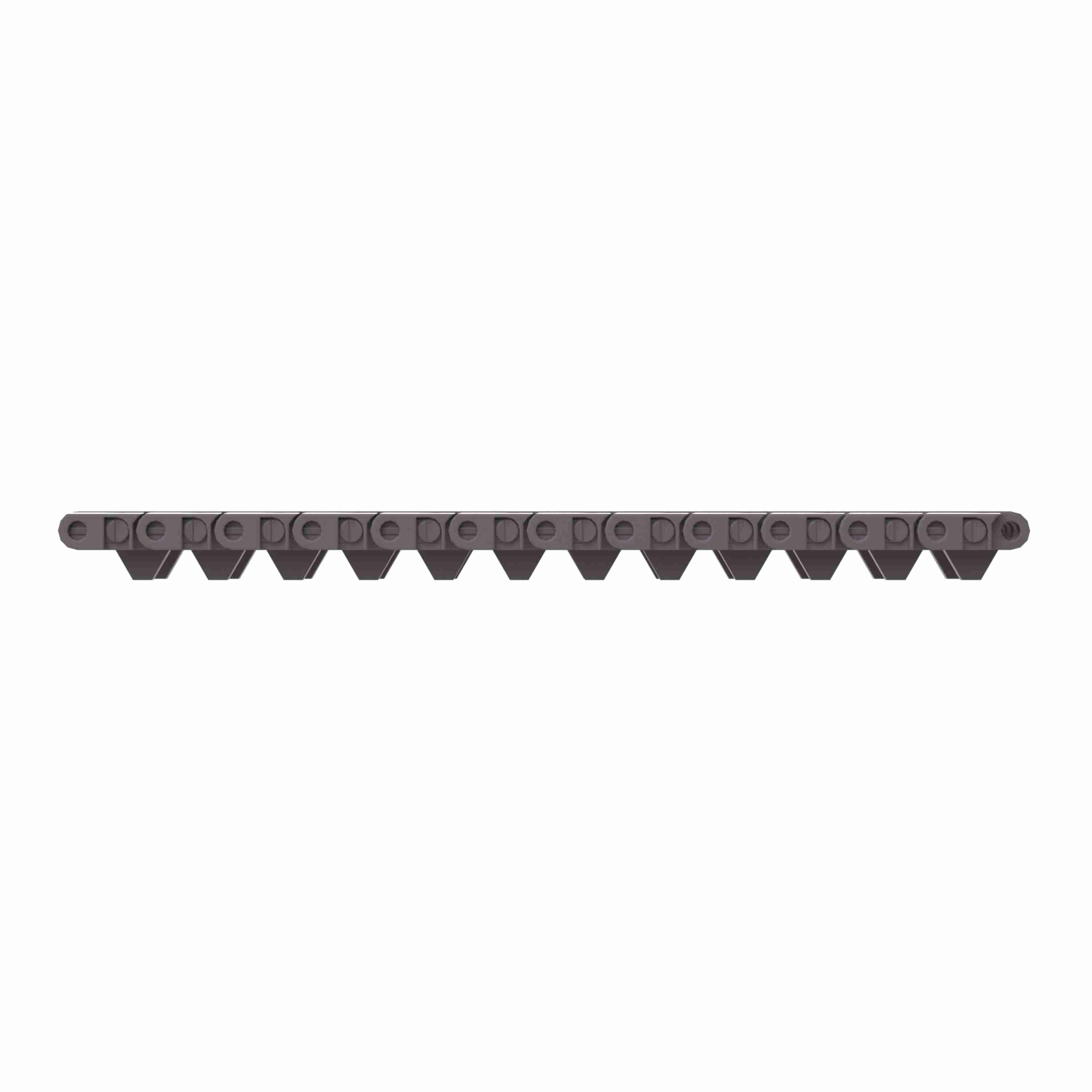

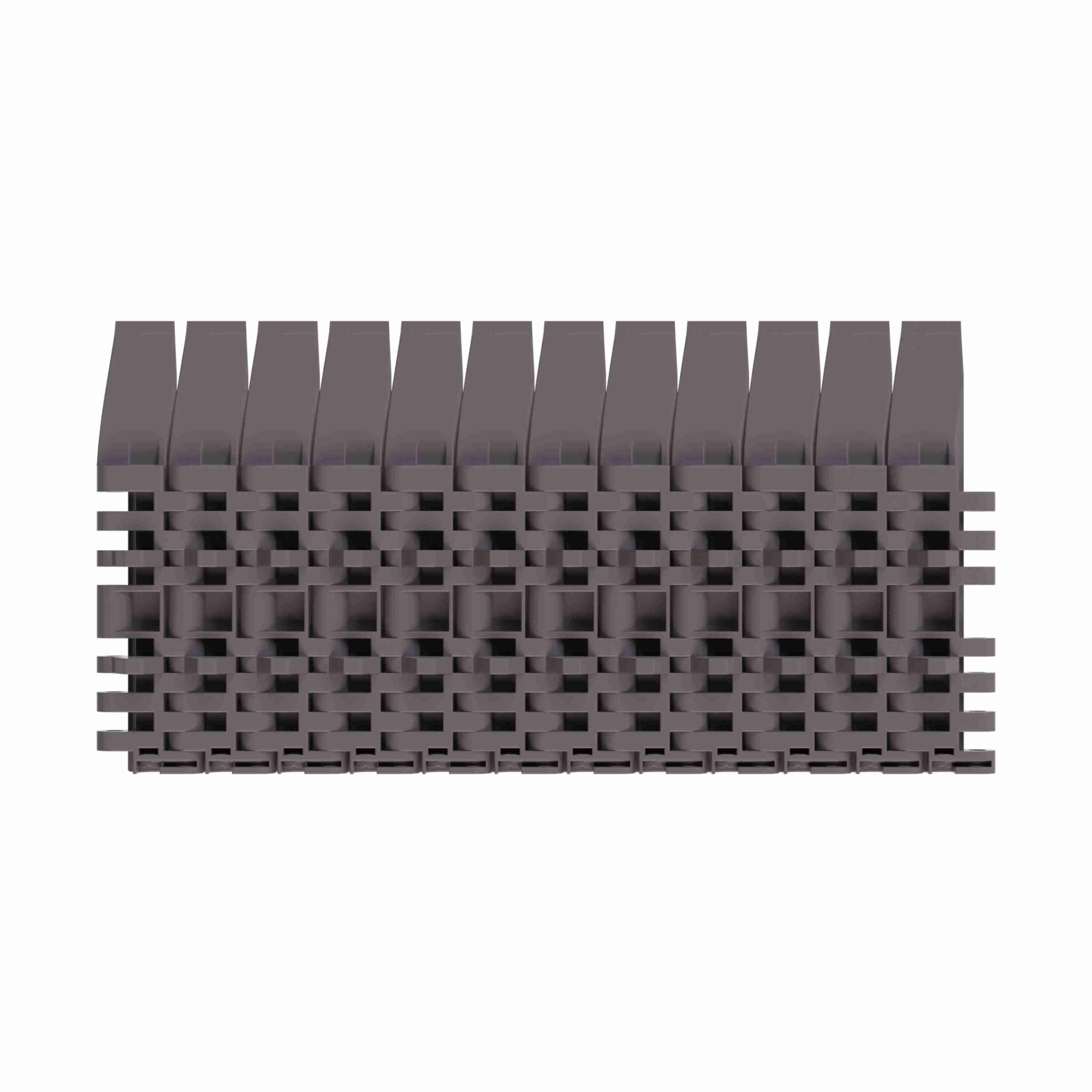

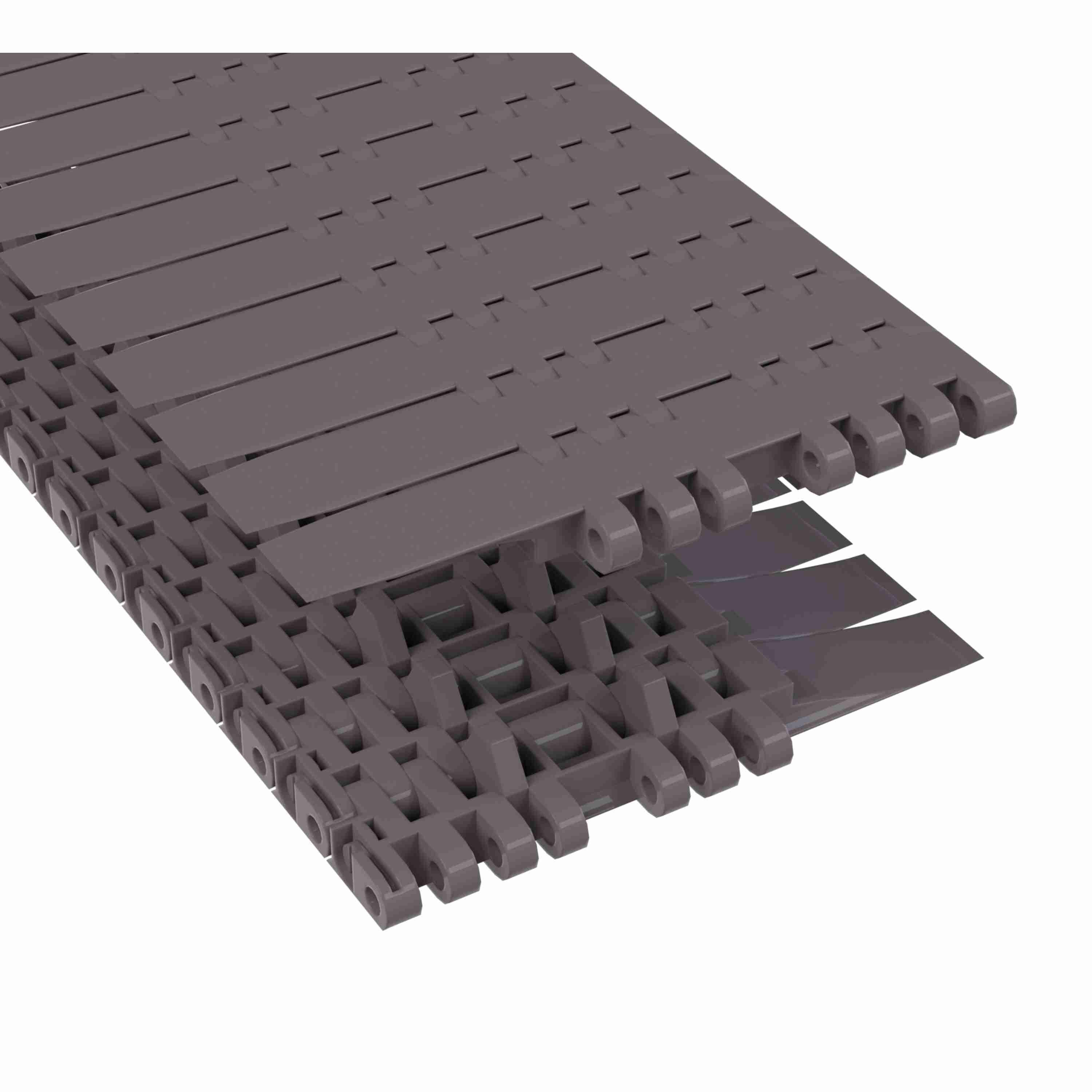

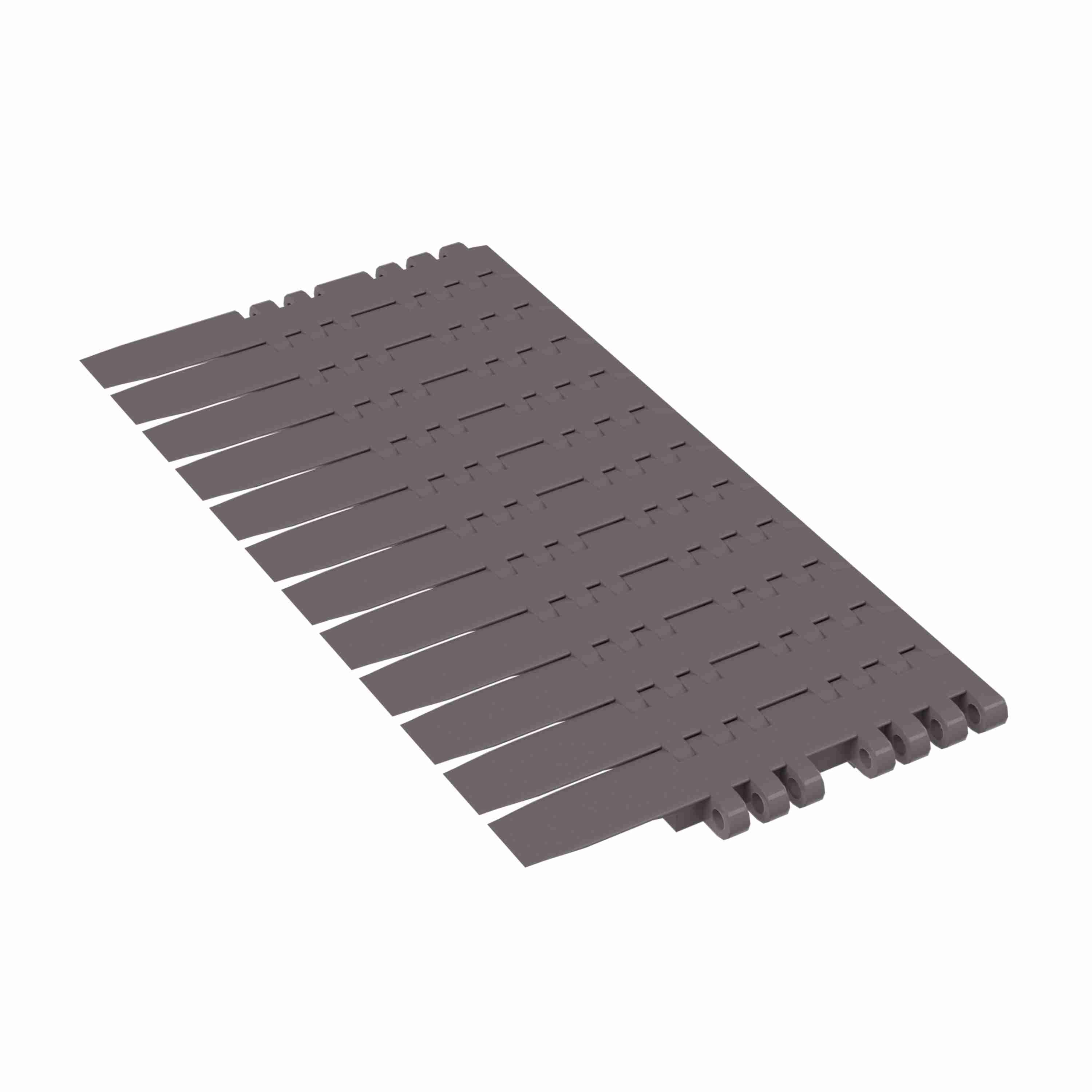

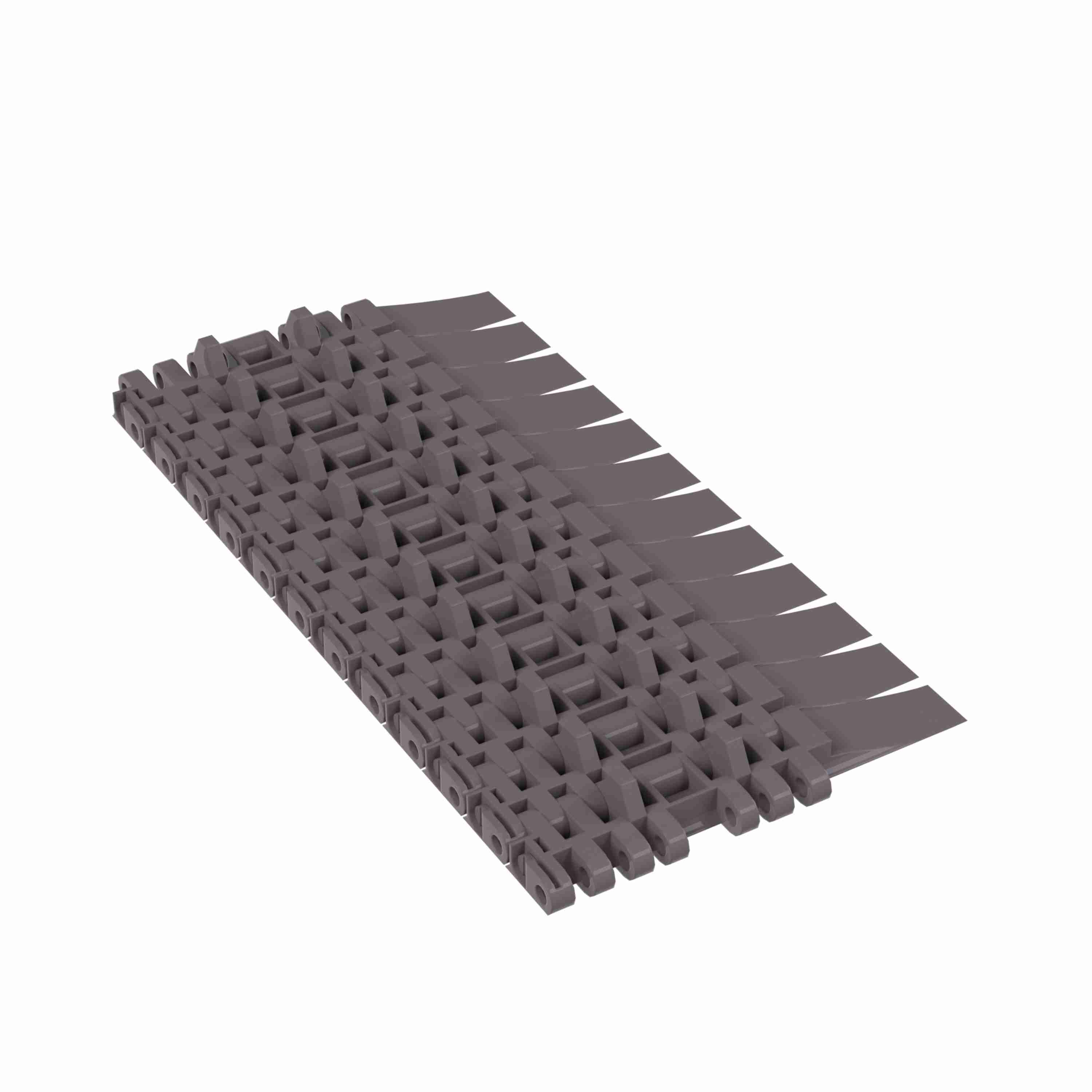

Rexnord 7705DTS Straight Running DTS®, Material: Brown High Performance, Width: 4.5in, Pitch: 1in - 81413921
Part #:10028409
Catalog #:81413921
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb): | 1,025 lb | Product Group: | Modular Plastic Belts |
| Chain Width (in): | 4.5 in | Chain Number: | 7705DTS |
| Positrack Location: | Center | Chain Material: | HP |
| Product Line: | Plastic Modular Chain and Belt | Belt Thickness (in): | 0.5 in |
| Chain Strength (N): | 4,551 N | Chain Width (mm): | 114.3 mm |
| Rod/Pin Material: | Polyester | Chain Width Measurement System: | Imperial |
| Chain Pitch (in): | 1 in | Straight or Side-Flex: | Straight Running |
| Direction: | LH | Product Type: | Straight Running |
| Series: | MatTop 7700 Series Chain | Belt Thickness (mm): | 12.7 mm |
| Chain Material Description: | Brown High Performance | Positrack: | True |
| Number of Positrack: | 2 | Open Area (%): | 3 % |
| Chain Pitch (mm): | 25.4 mm | Surface Type: | DTS® |
General Specifications
| Weight: | 0.10 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
