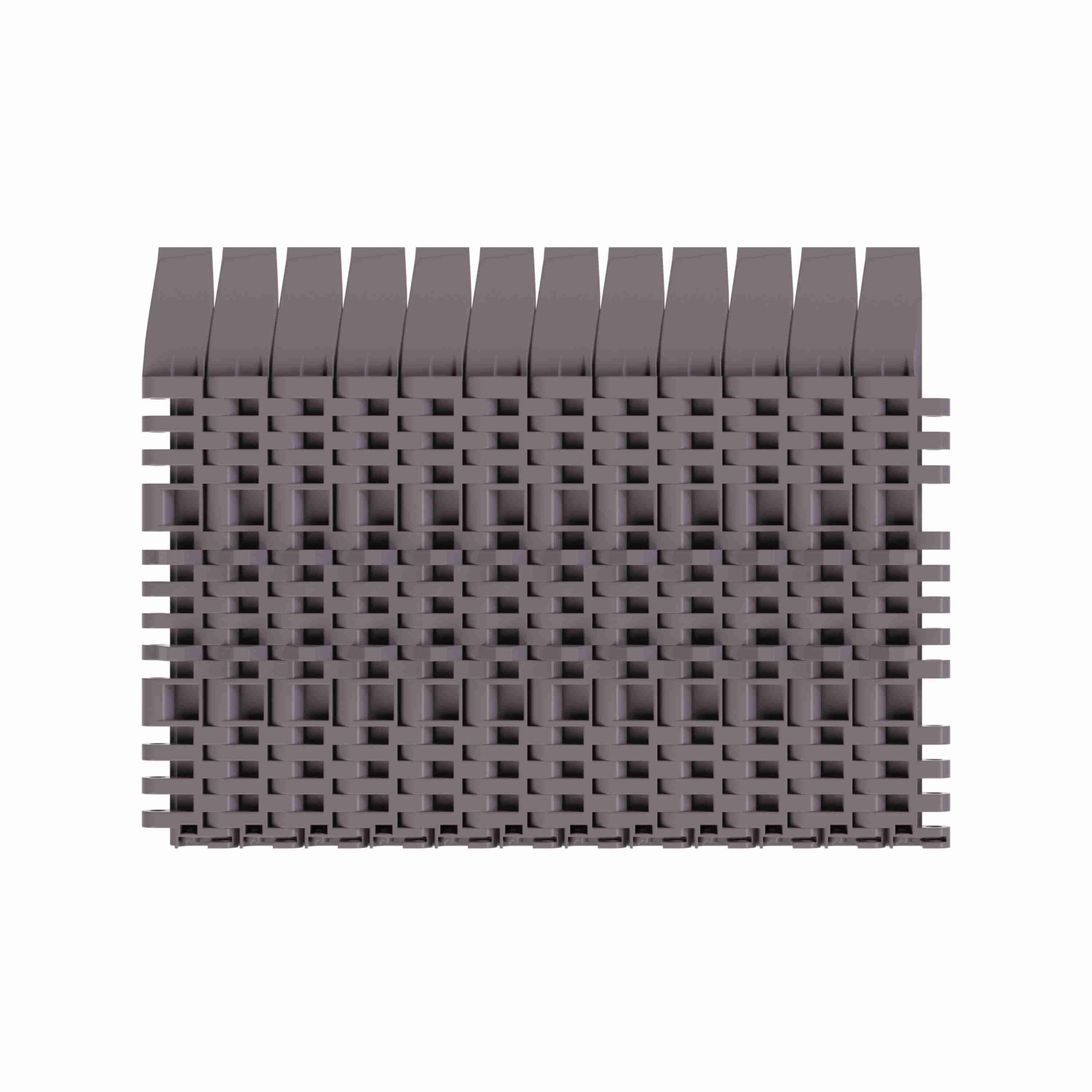

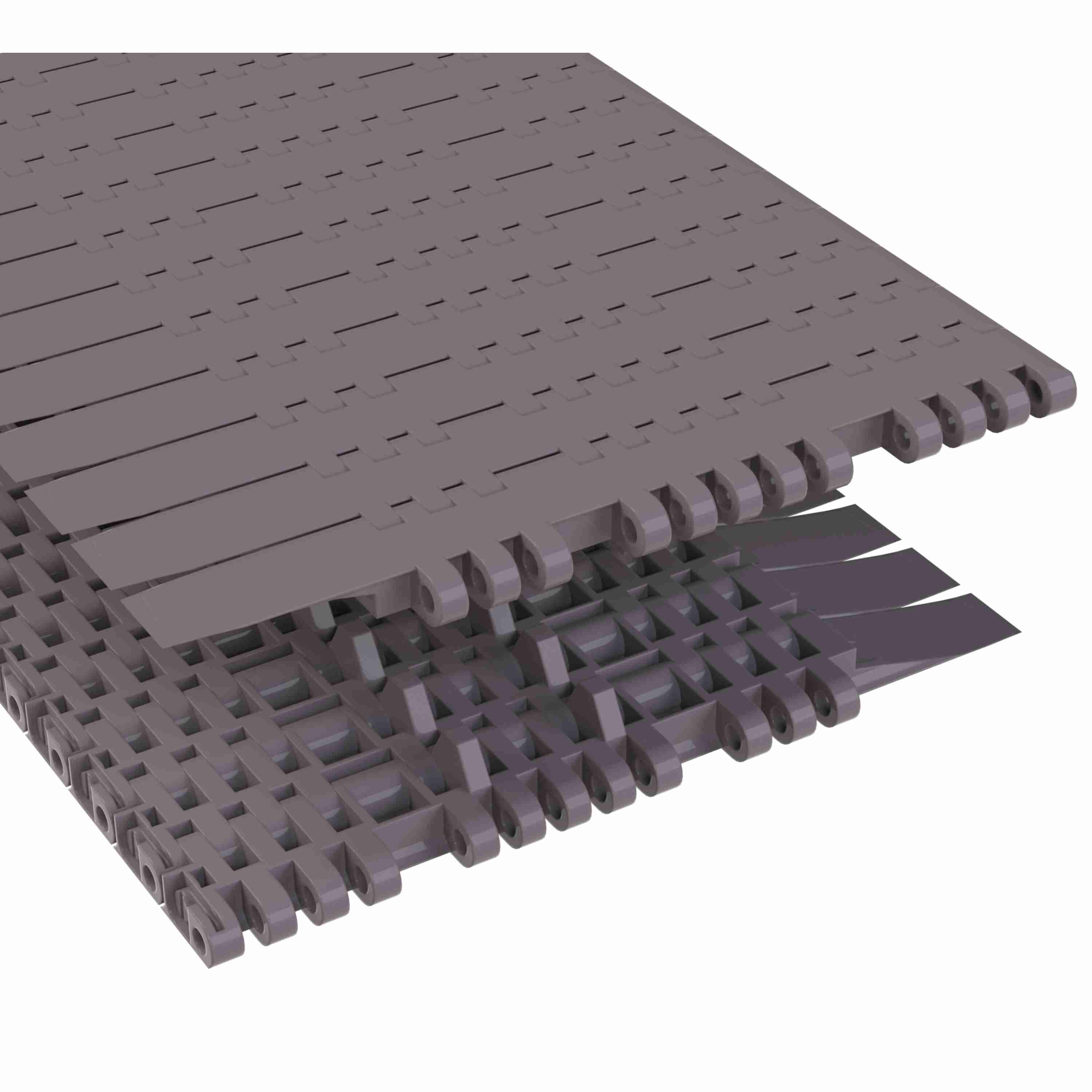

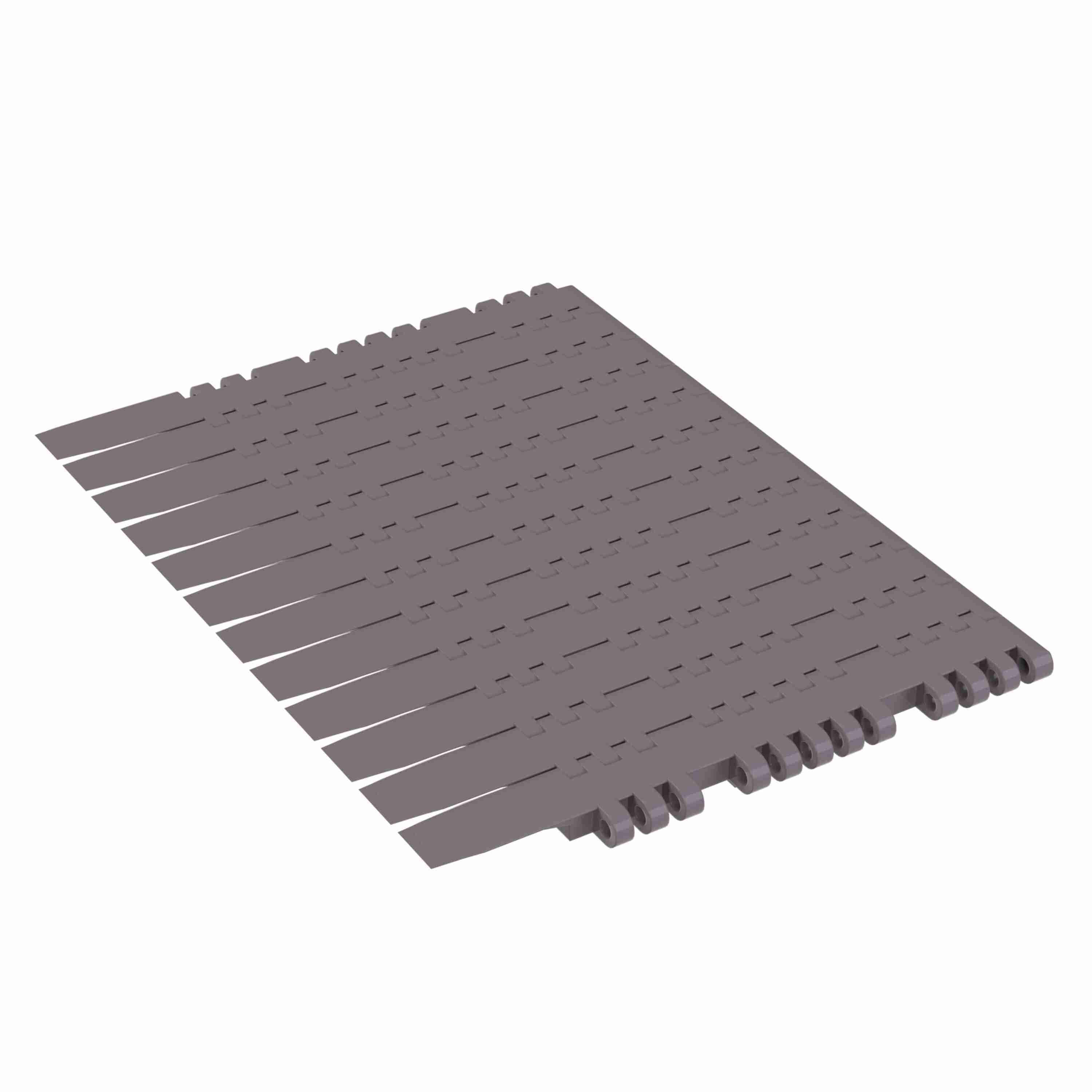

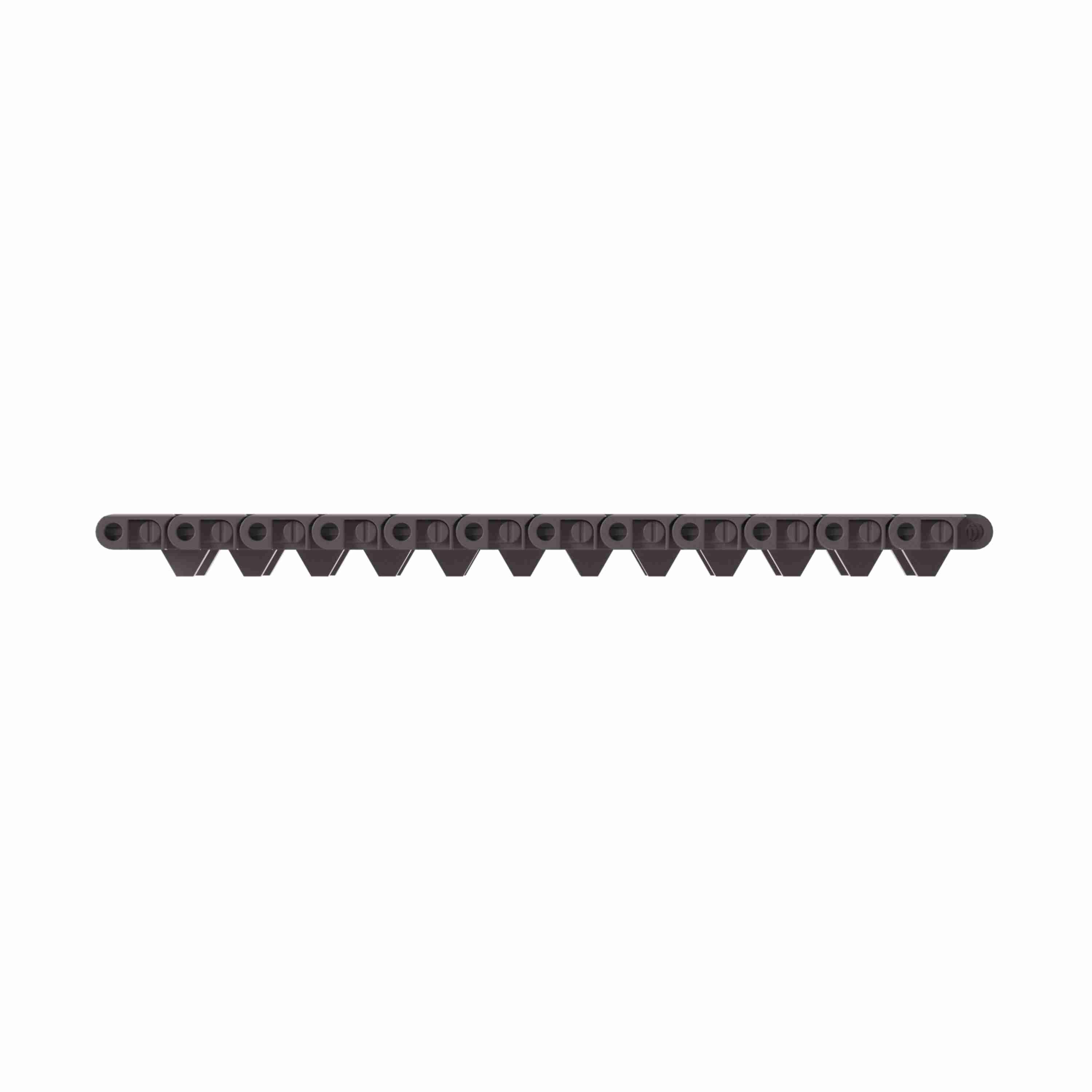

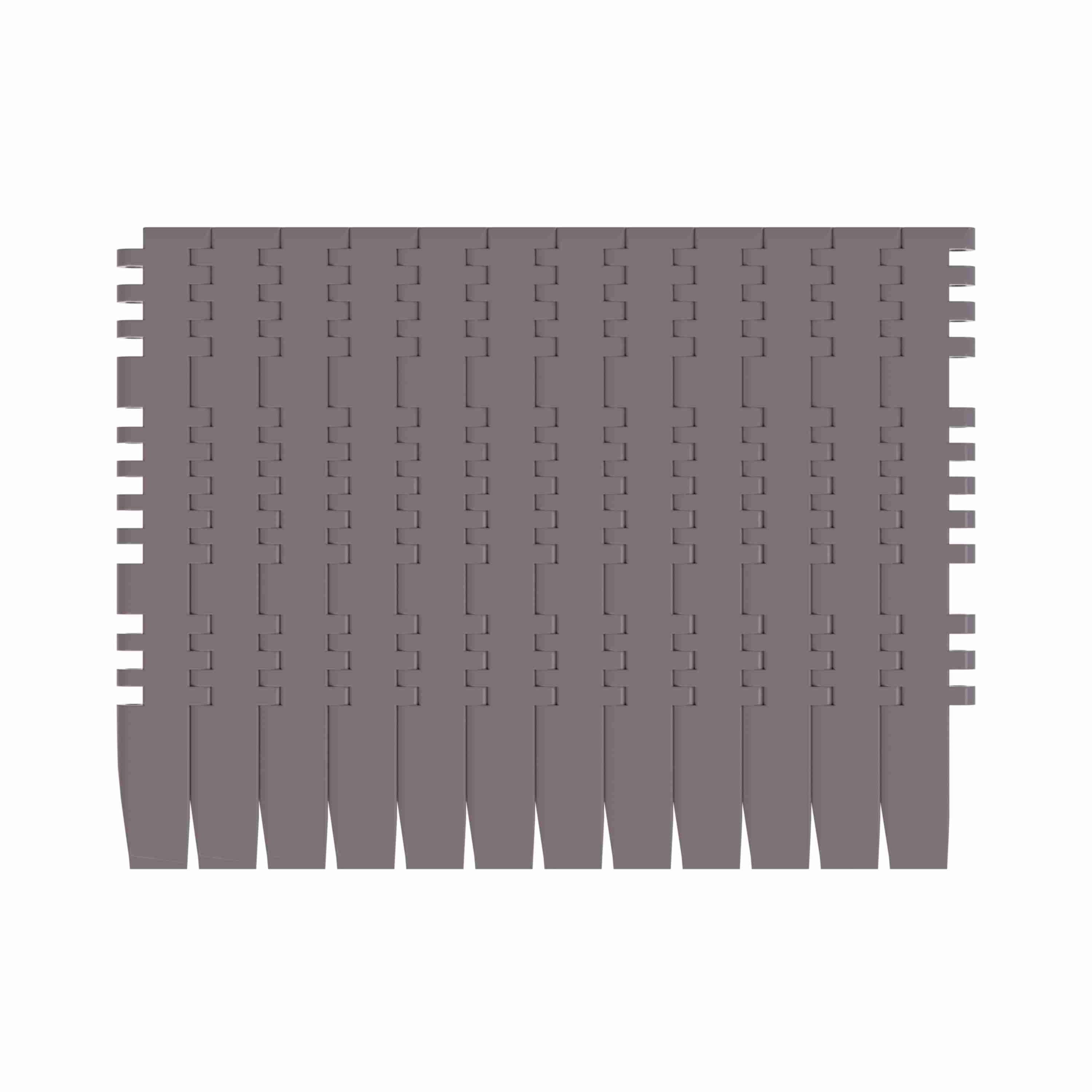

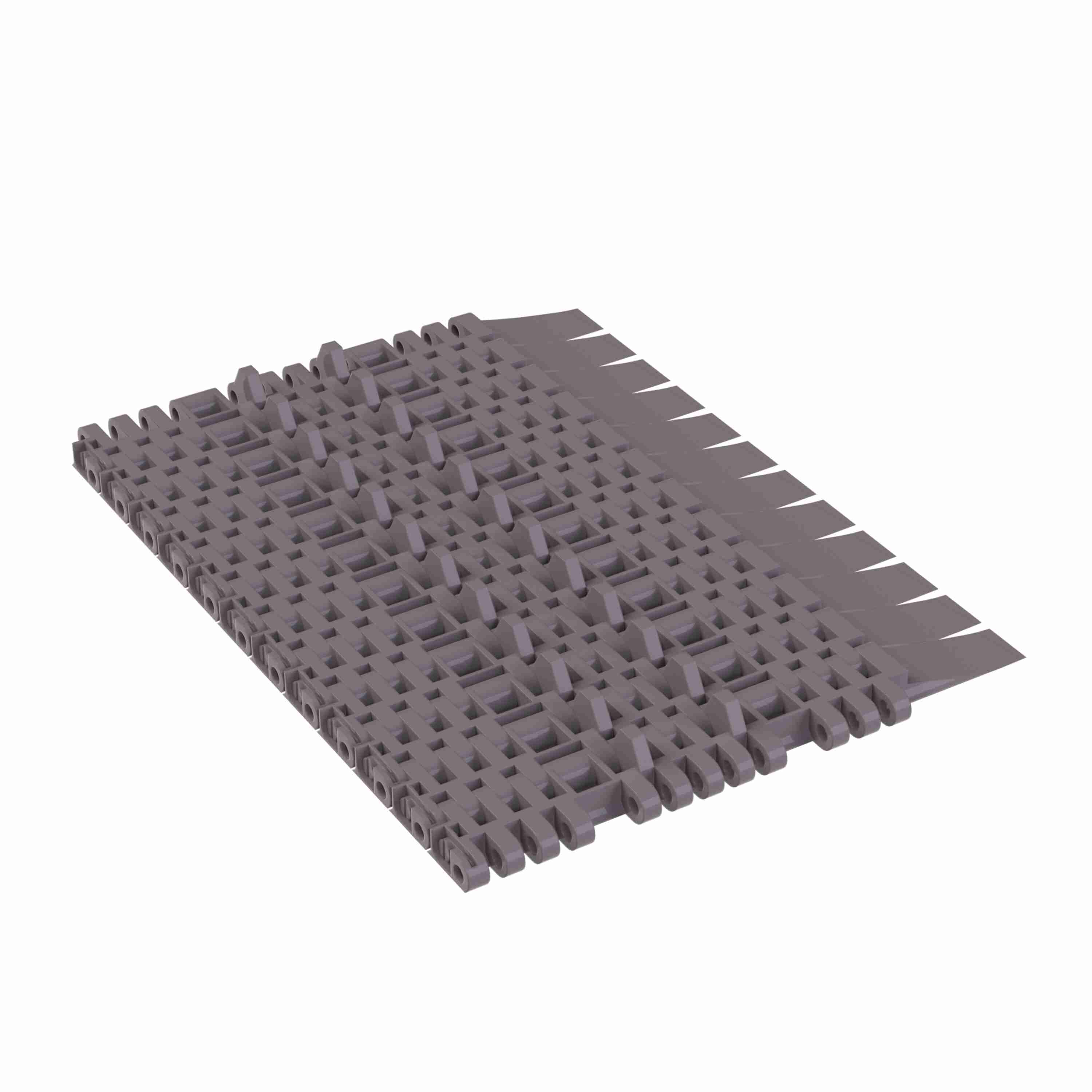

Rexnord 7705DTS Straight Running DTS®, Material: Brown High Performance, Width: 7.5in, Pitch: 1in - 81413922
Part #:10028414
Catalog #:81413922
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Product Group: | Modular Plastic Belts | Chain Number: | 7705DTS |
| Product Line: | Plastic Modular Chain and Belt | Chain Width (in): | 7.5 in |
| Rod/Pin Material: | Polyester | Chain Width Measurement System: | Imperial |
| Chain Material Description: | Brown High Performance | Chain Pitch (mm): | 25.4 mm |
| Series: | MatTop 7700 Series Chain | Direction: | LH |
| Surface Type: | DTS® | Number of Positrack: | 2 |
| Chain Pitch (in): | 1 in | Chain Material: | HP |
| Chain Strength (lb): | 1,750 lb | Positrack Location: | Center |
| Product Type: | Straight Running | Belt Thickness (in): | 0.5 in |
| Positrack: | True | Chain Width (mm): | 190.5 mm |
| Straight or Side-Flex: | Straight Running | Open Area (%): | 3 % |
| Chain Strength (N): | 7,770 N | Belt Thickness (mm): | 12.7 mm |
General Specifications
| Weight: | 0.12 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
