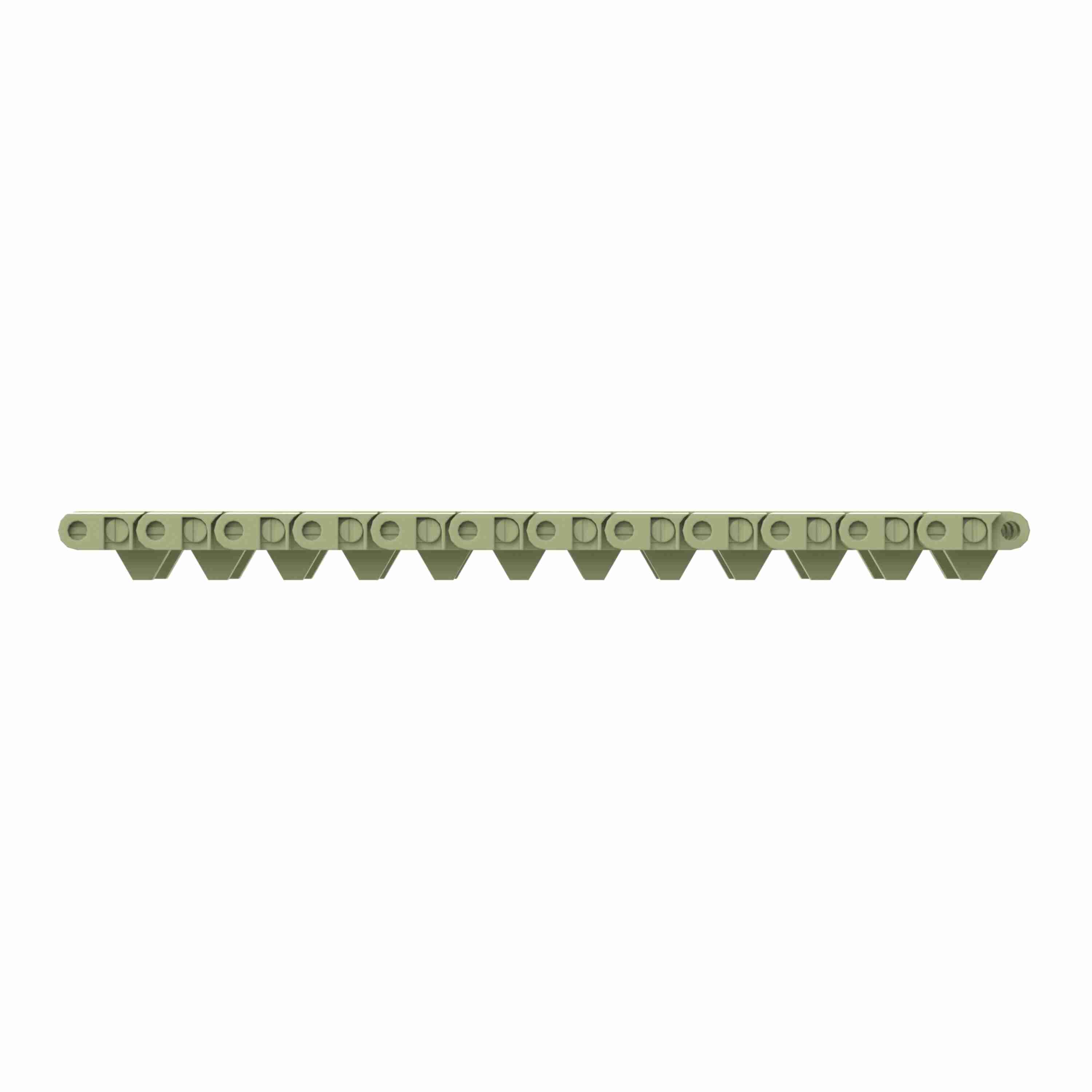

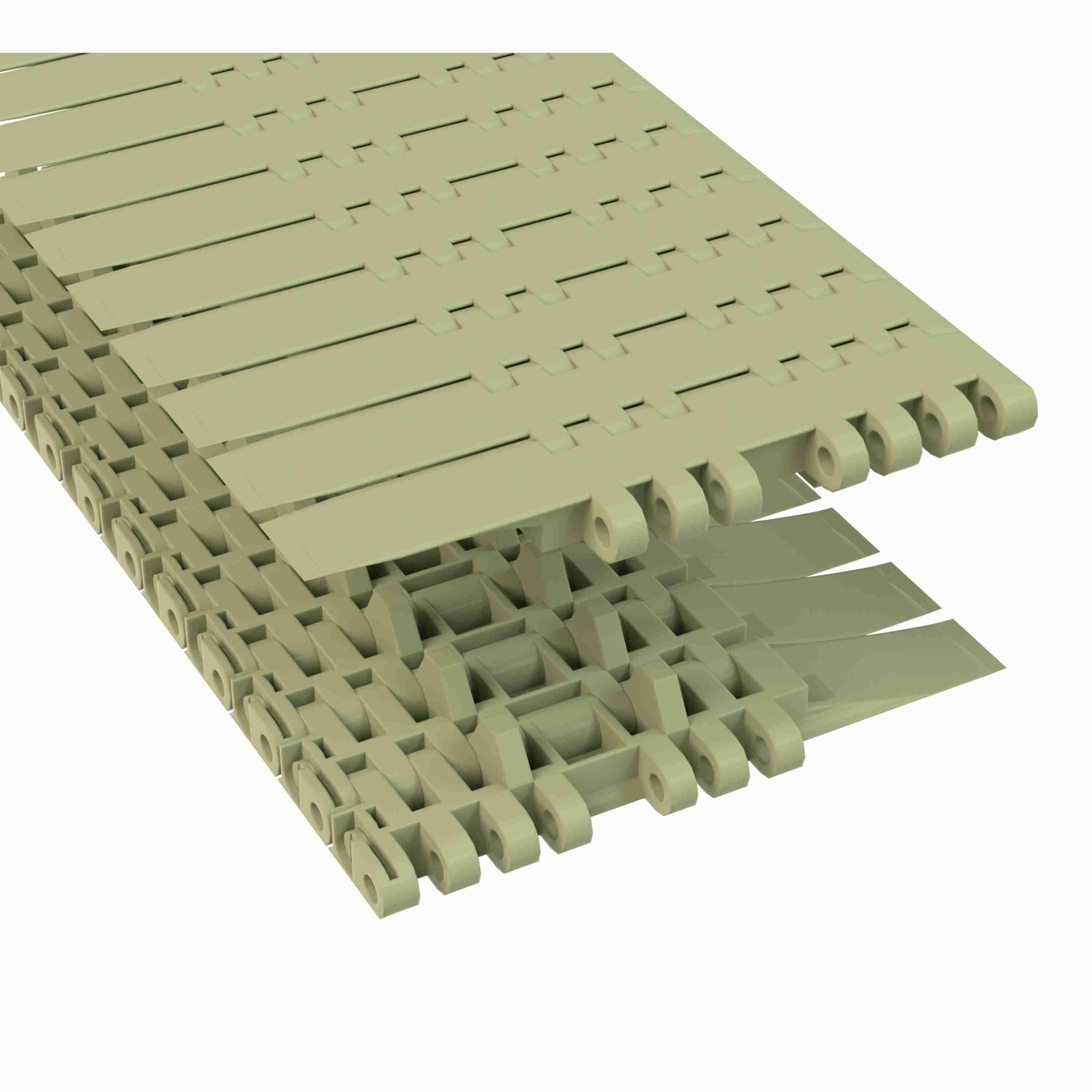

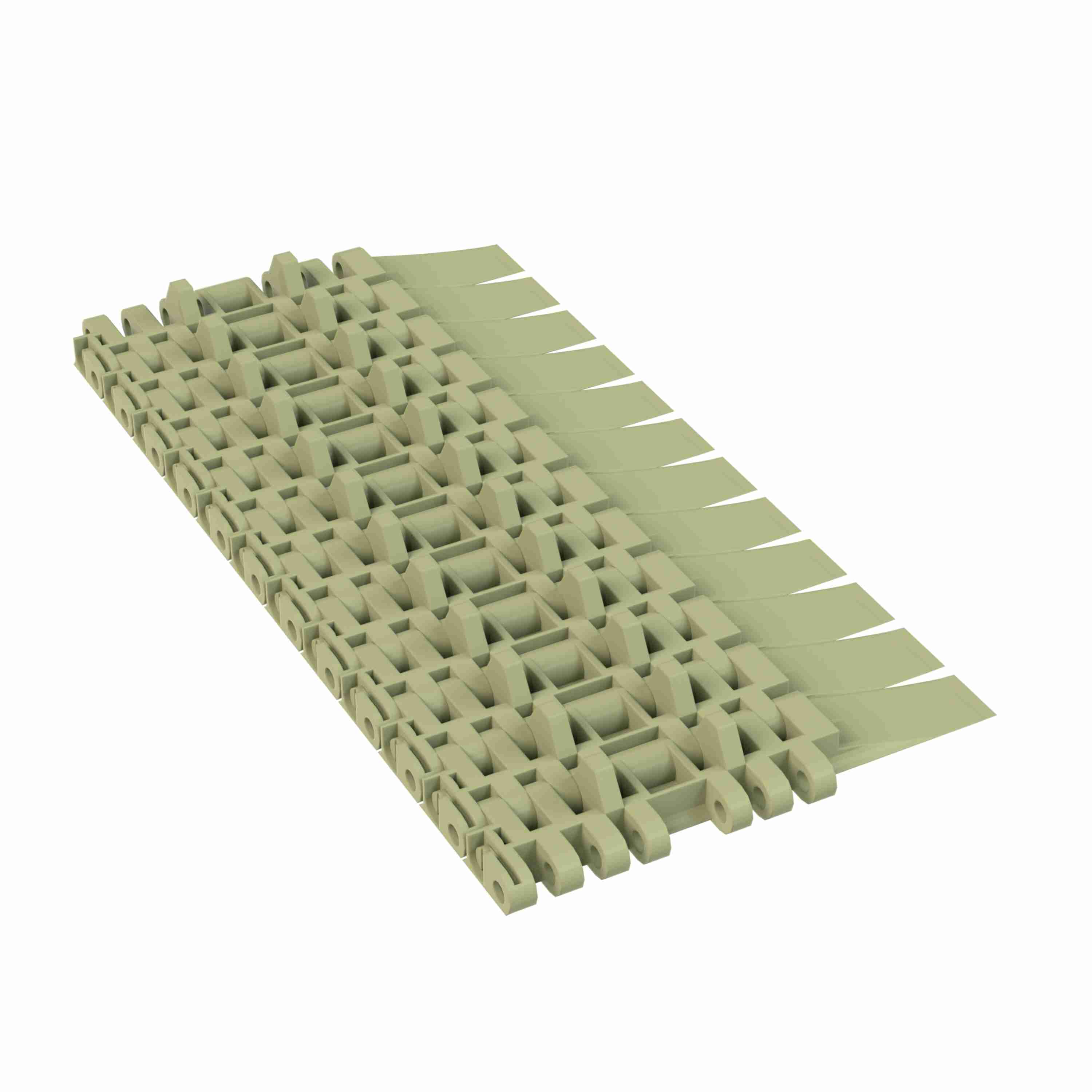

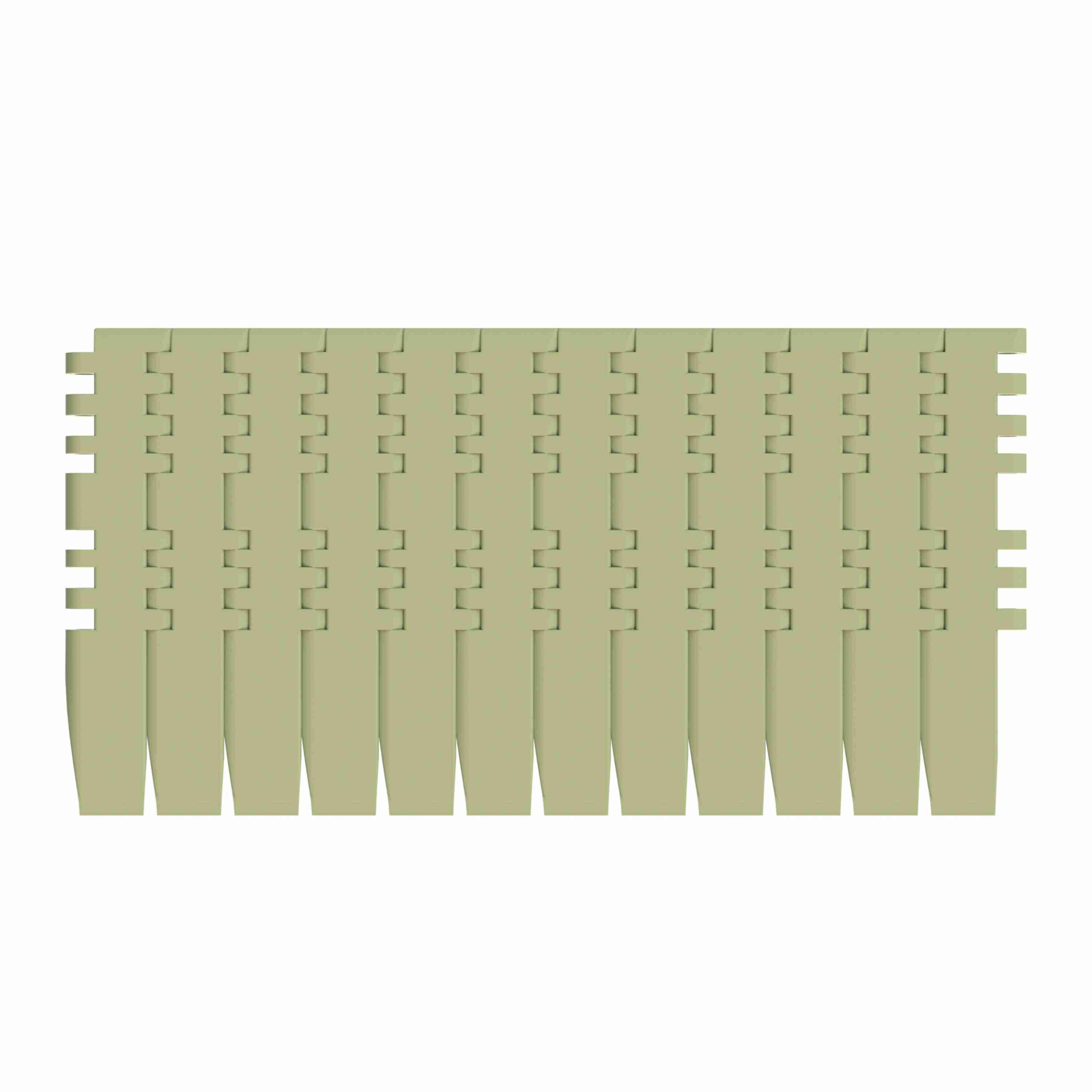

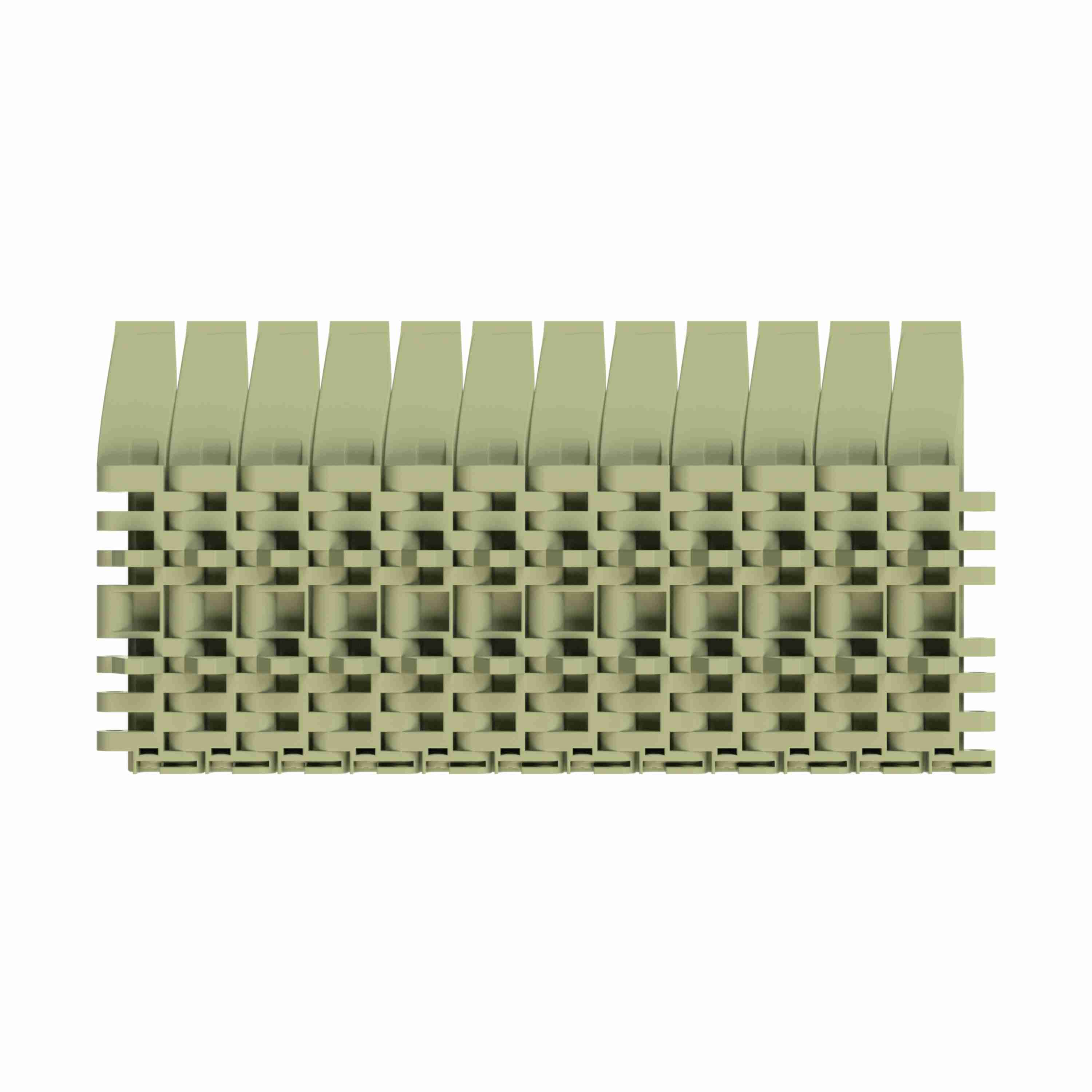

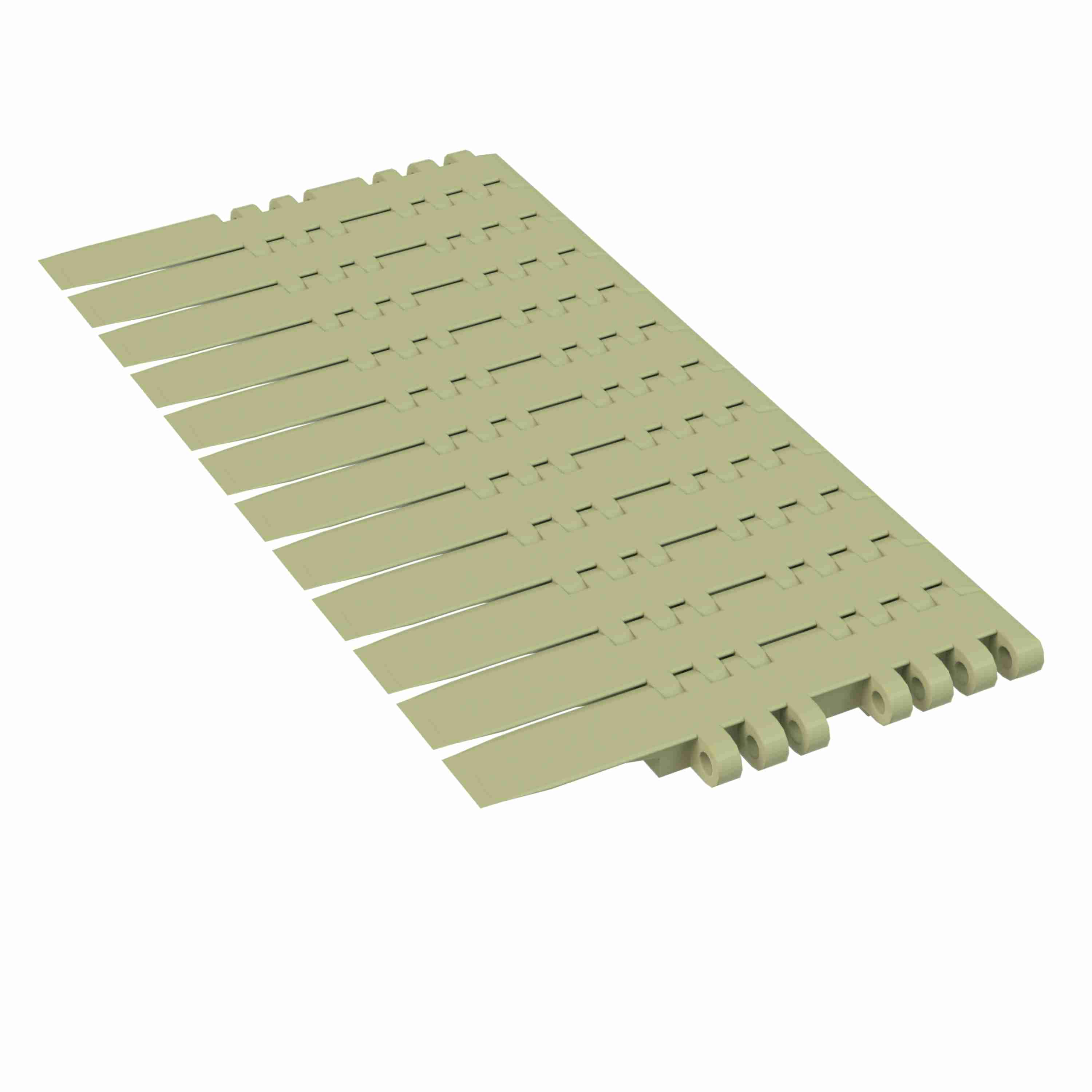

Rexnord 7705DTS Straight Running DTS®, Material: Green Abrasion Resistant Polyamide, Width: 4.5in, Pitch: 1in - 81426371
Part #:10183180
Catalog #:81426371
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Chain Strength (lb): | 1,025 lb | Rod/Pin Material: | Acetal |
| Product Group: | Modular Plastic Belts | Direction: | LH |
| Surface Type: | DTS® | Chain Pitch (mm): | 25.4 mm |
| Chain Pitch (in): | 1 in | Chain Width (mm): | 114.3 mm |
| Positrack Location: | Center | Positrack: | True |
| Series: | MatTop 7700 Series Chain | Chain Number: | 7705DTS |
| Chain Strength (N): | 4,551 N | Chain Material: | WX |
| Number of Positrack: | 2 | Belt Thickness (mm): | 12.7 mm |
| Product Type: | Straight Running | Open Area (%): | 3 % |
| Belt Thickness (in): | 0.5 in | Product Line: | Plastic Modular Chain and Belt |
| Straight or Side-Flex: | Straight Running | Chain Material Description: | Green Abrasion Resistant Polyamide |
| Chain Width (in): | 4.5 in | Chain Width Measurement System: | Imperial |
General Specifications
| Weight: | 0.10 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
