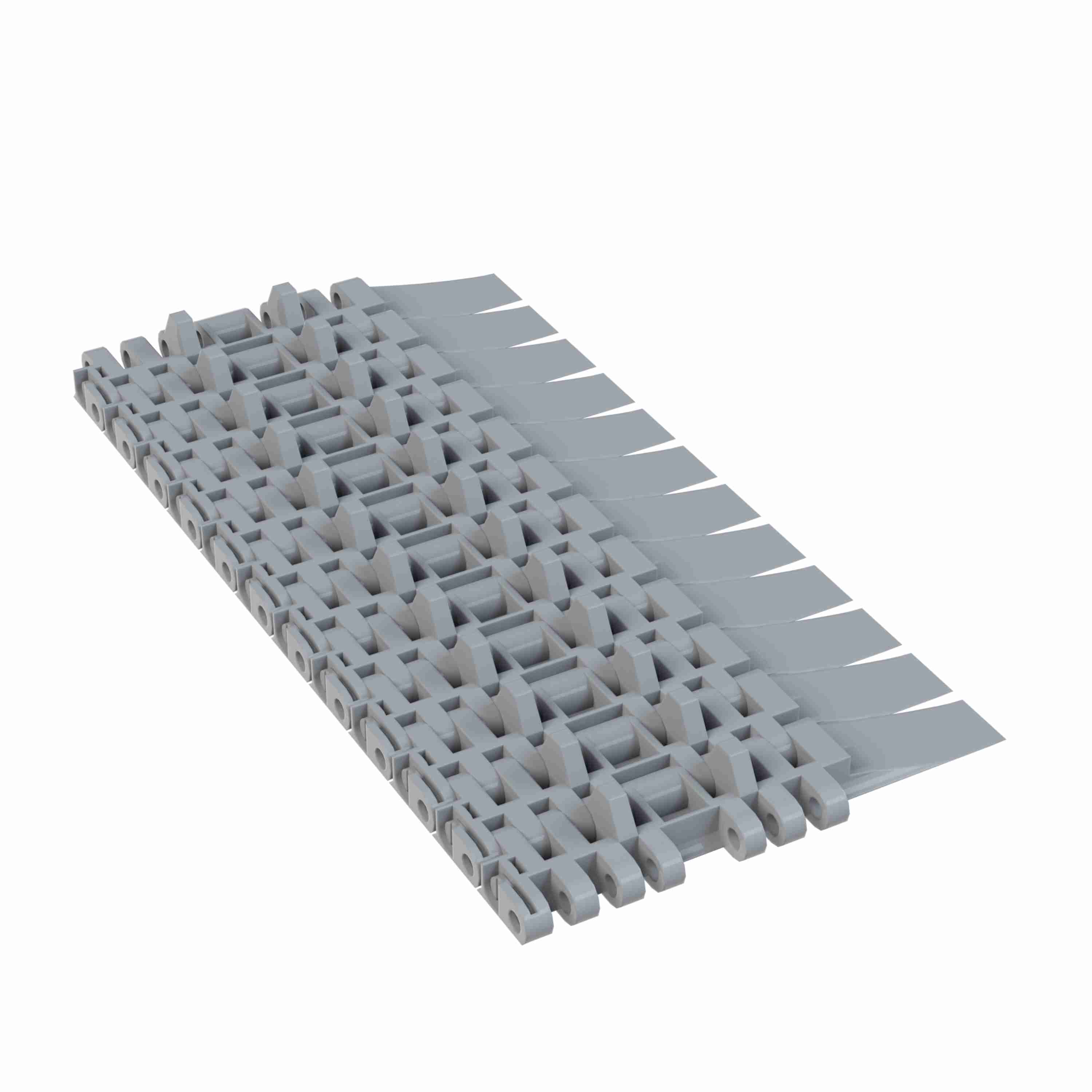

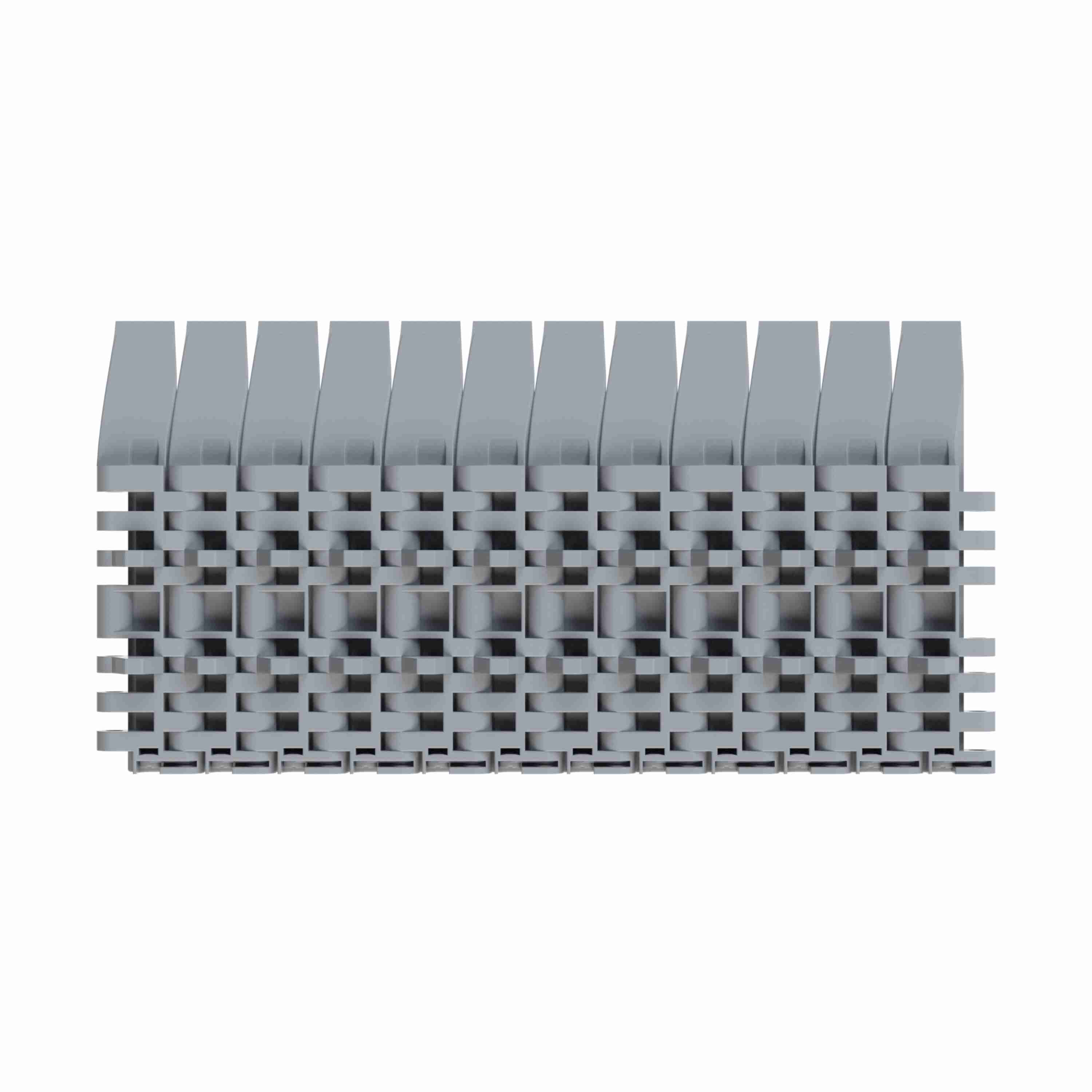

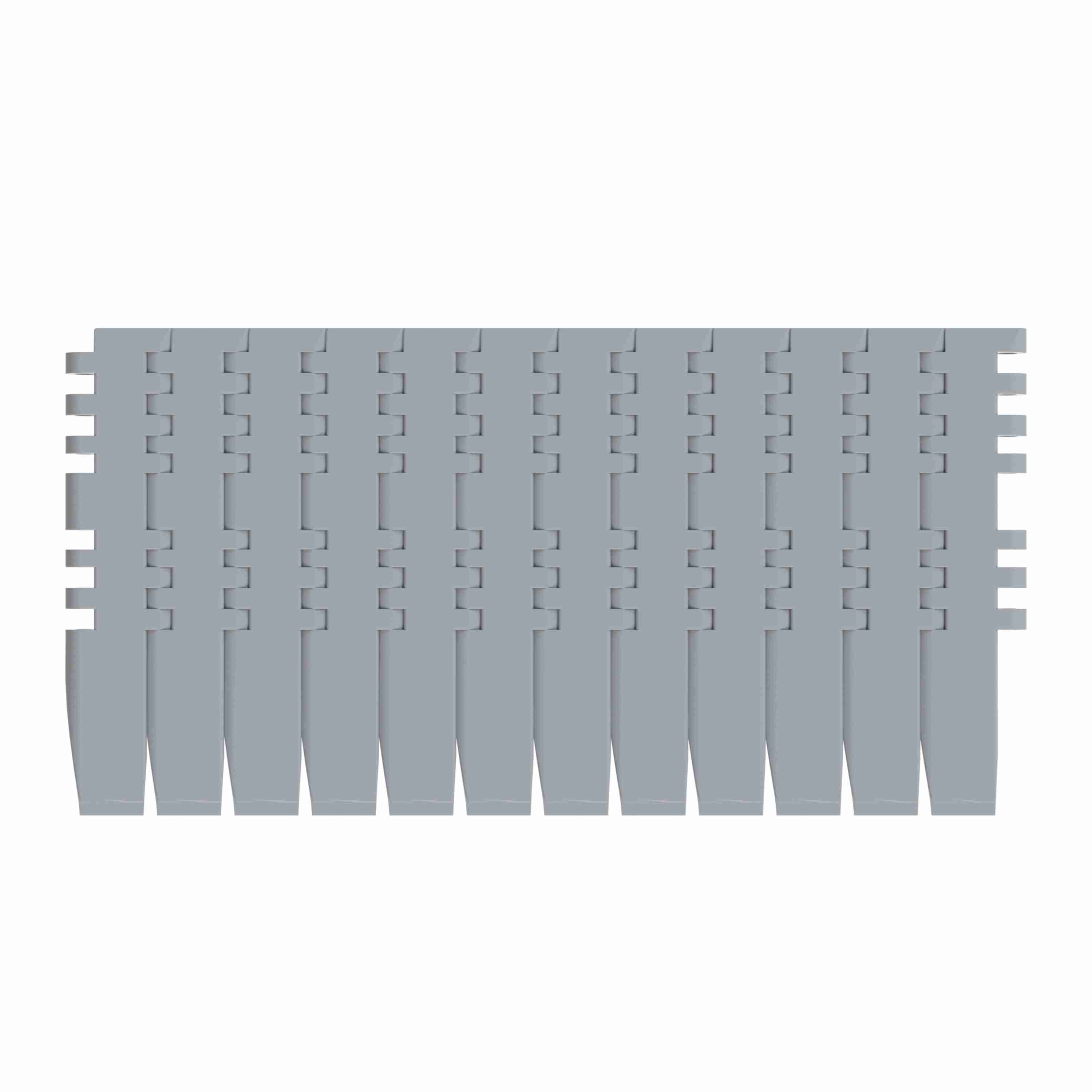

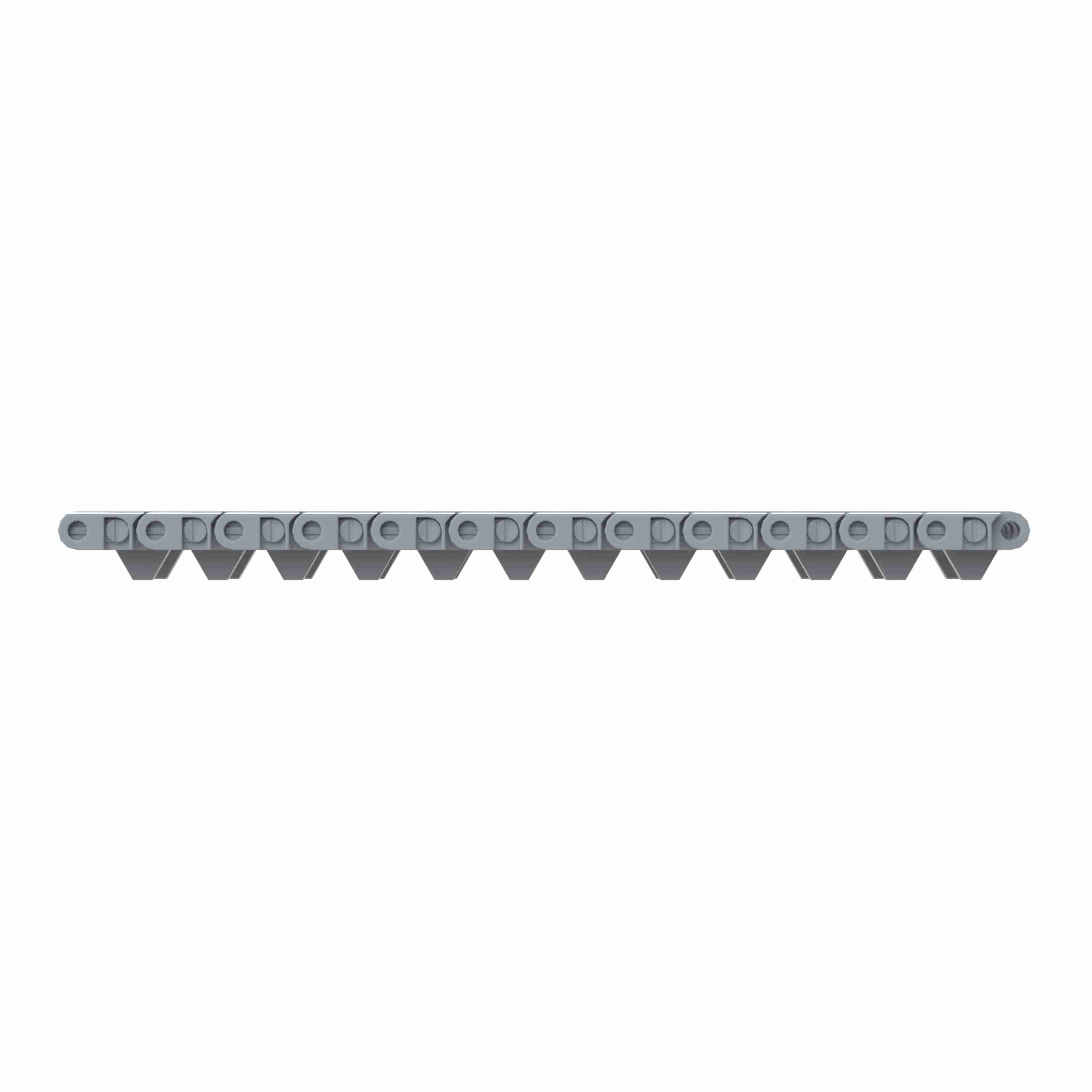

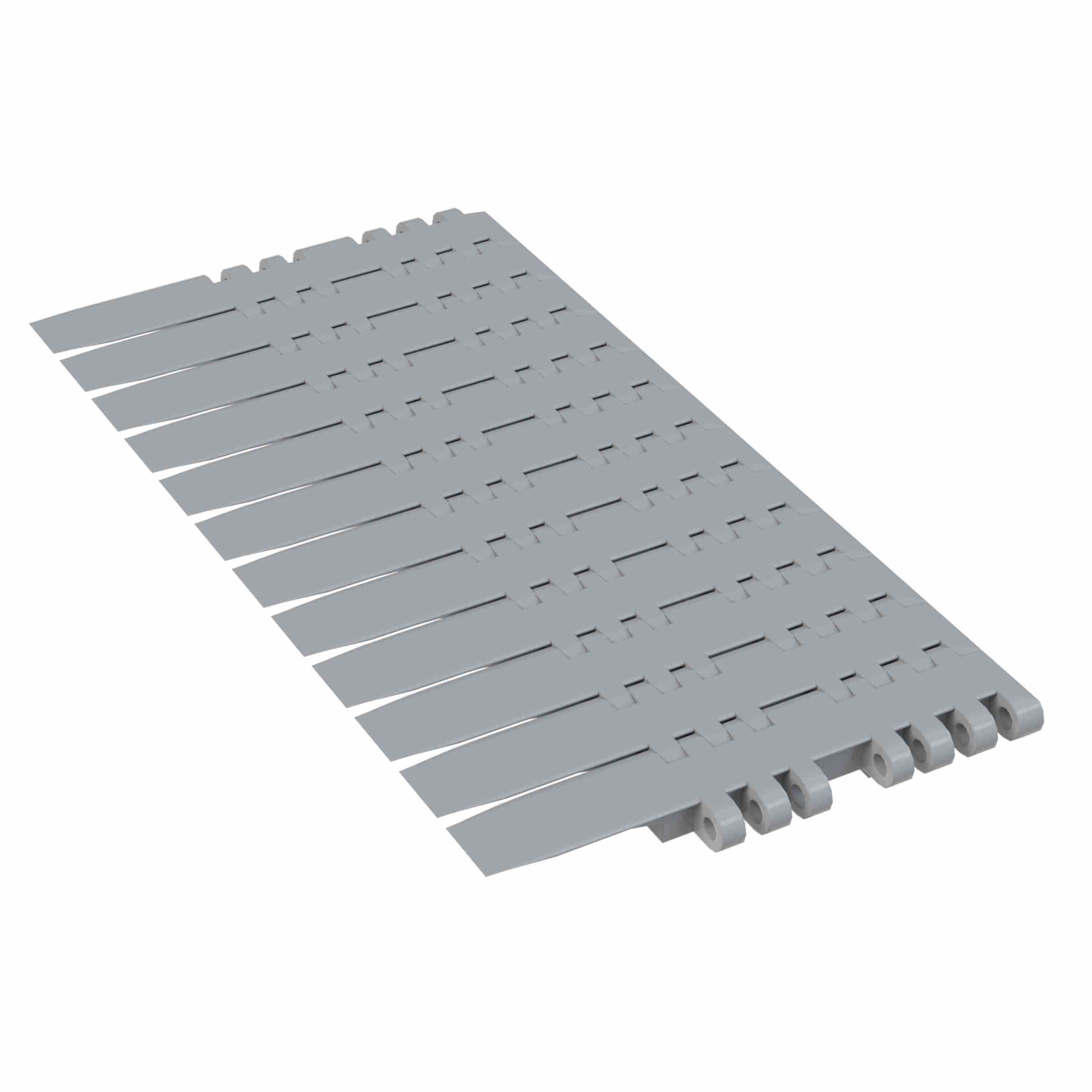

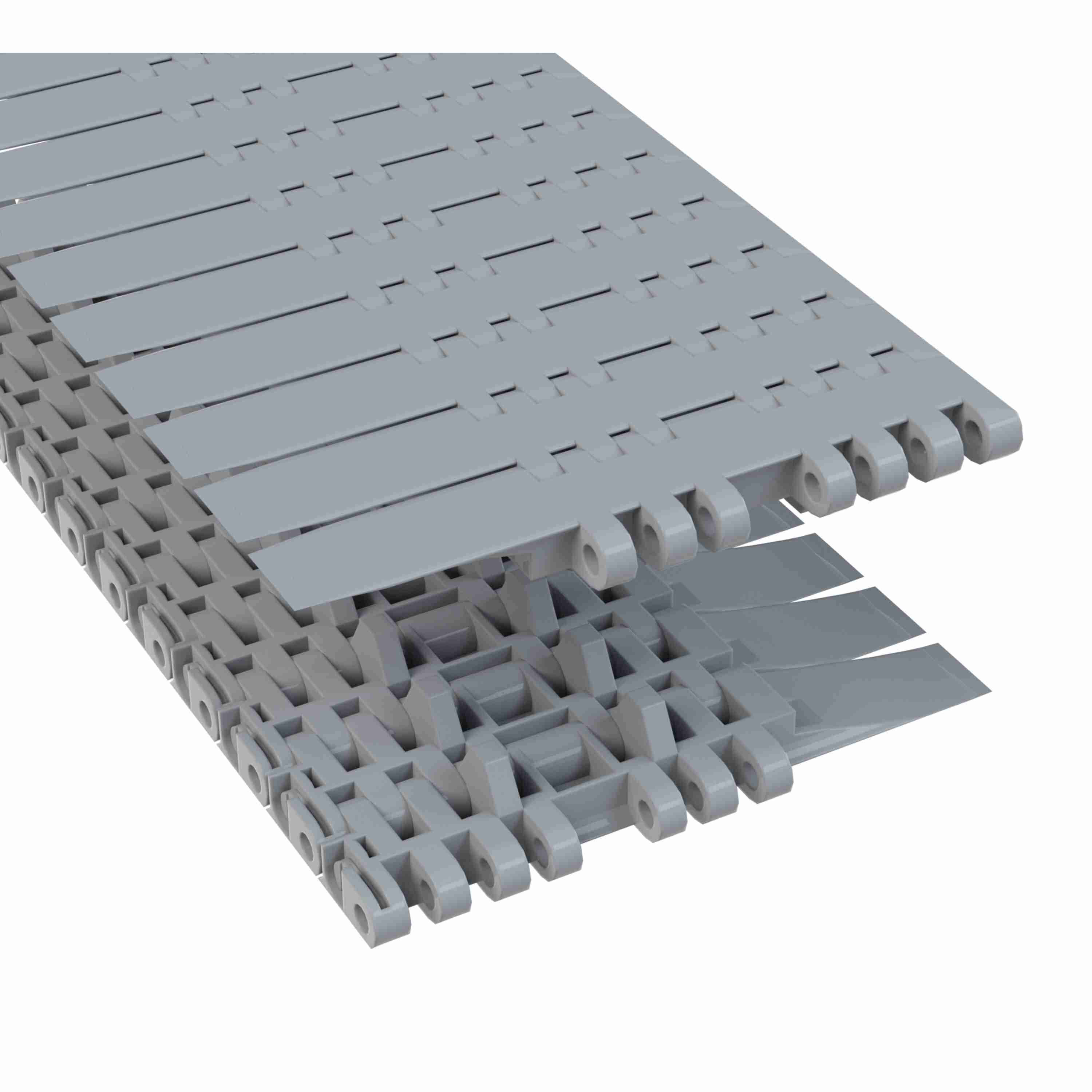

Rexnord 7705DTS Straight Running DTS®, Material: Silver Platinum Series™ X, Width: 4.5in, Pitch: 1in - 10295779
Part #:10295779
Catalog #:10295779
How can we improve our Product Information?
Talk to one of our expert sales professionals about how this brand can efficiently power your business.
Product Specifications
Technical Specifications
| Series: | MatTop 7700 Series Chain | Chain Material: | PSX |
| Surface Type: | DTS® | Rod/Pin Material: | Polyester |
| Belt Thickness (in): | 0.5 in | Chain Number: | 7705DTS |
| Chain Pitch (mm): | 25.4 mm | Product Type: | Straight Running |
| Chain Strength (lb): | 1,025 lb | Straight or Side-Flex: | Straight Running |
| Positrack: | True | Positrack Location: | Center |
| Chain Width (mm): | 114.3 mm | Chain Width (in): | 4.5 in |
| Direction: | LH | Product Line: | Plastic Modular Chain and Belt |
| Belt Thickness (mm): | 12.7 mm | Chain Width Measurement System: | Imperial |
| Product Group: | Modular Plastic Belts | Open Area (%): | 3 % |
| Chain Material Description: | Silver Platinum Series™ X | Chain Strength (N): | 4,551 N |
| Chain Pitch (in): | 1 in | Number of Positrack: | 2 |
General Specifications
| Weight: | 0.09 LB | HTC: | 3926906090 |
| Country of Origin: | Mexico |
